Model GE 911.49485890 Built-In Oven with Microwave (Kenmore 91149485890) – Common Parts & Diagrams
MICROWAVE
MICROWAVE DOOR

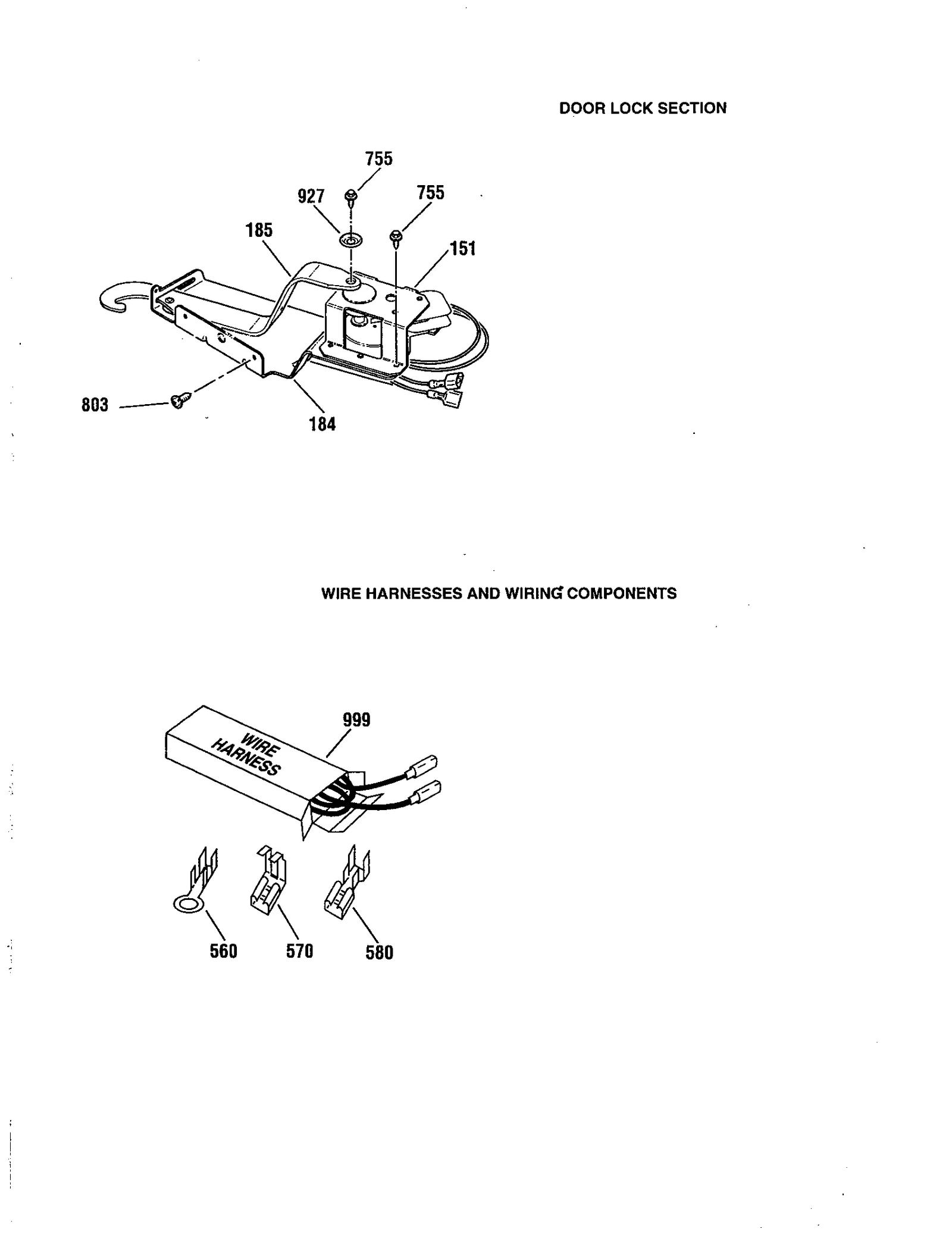

DOOR LOCK/WIRE HARNESS/COMPONENTS

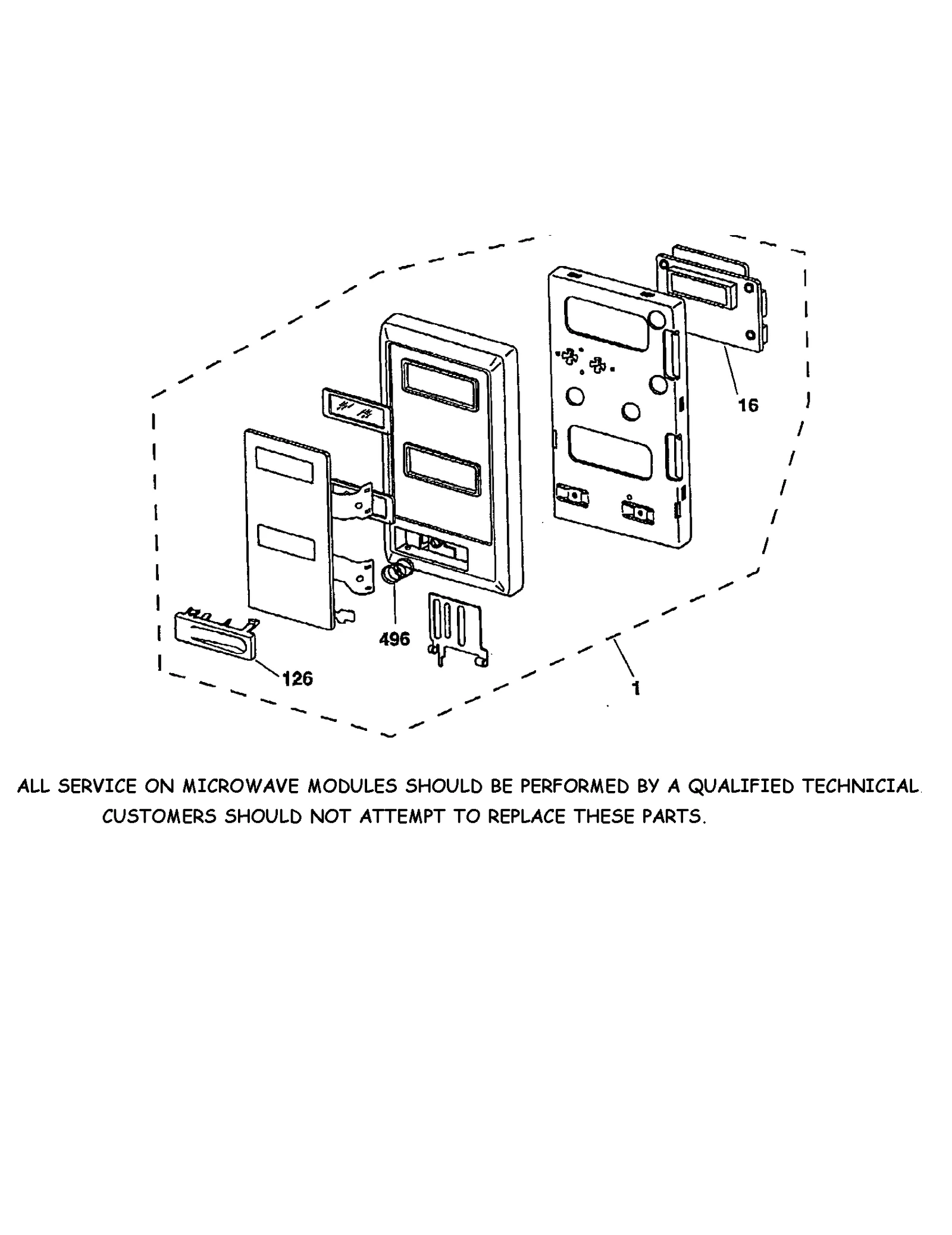

MICROWAVE CONTROL PANEL

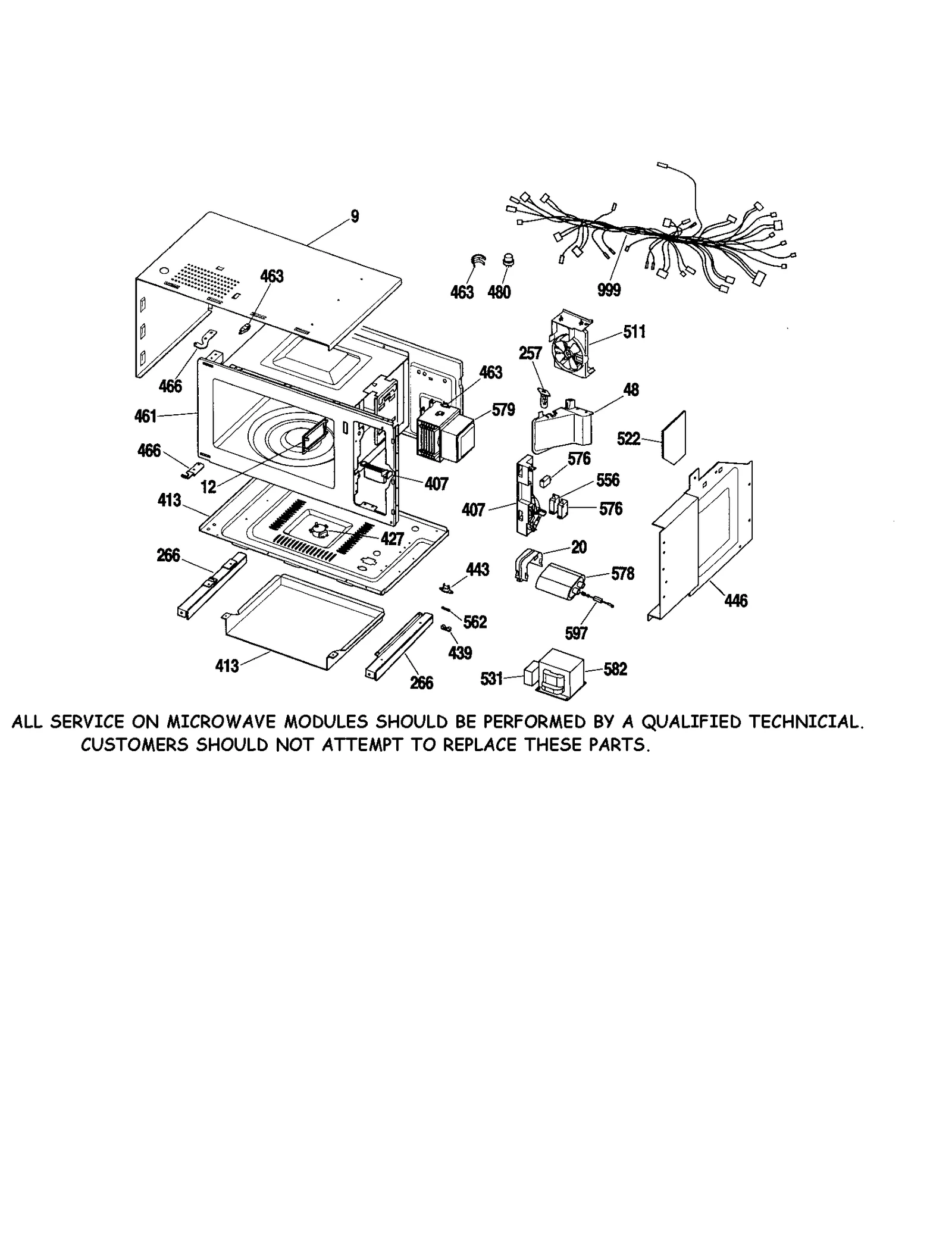

MICROWAVE BODY

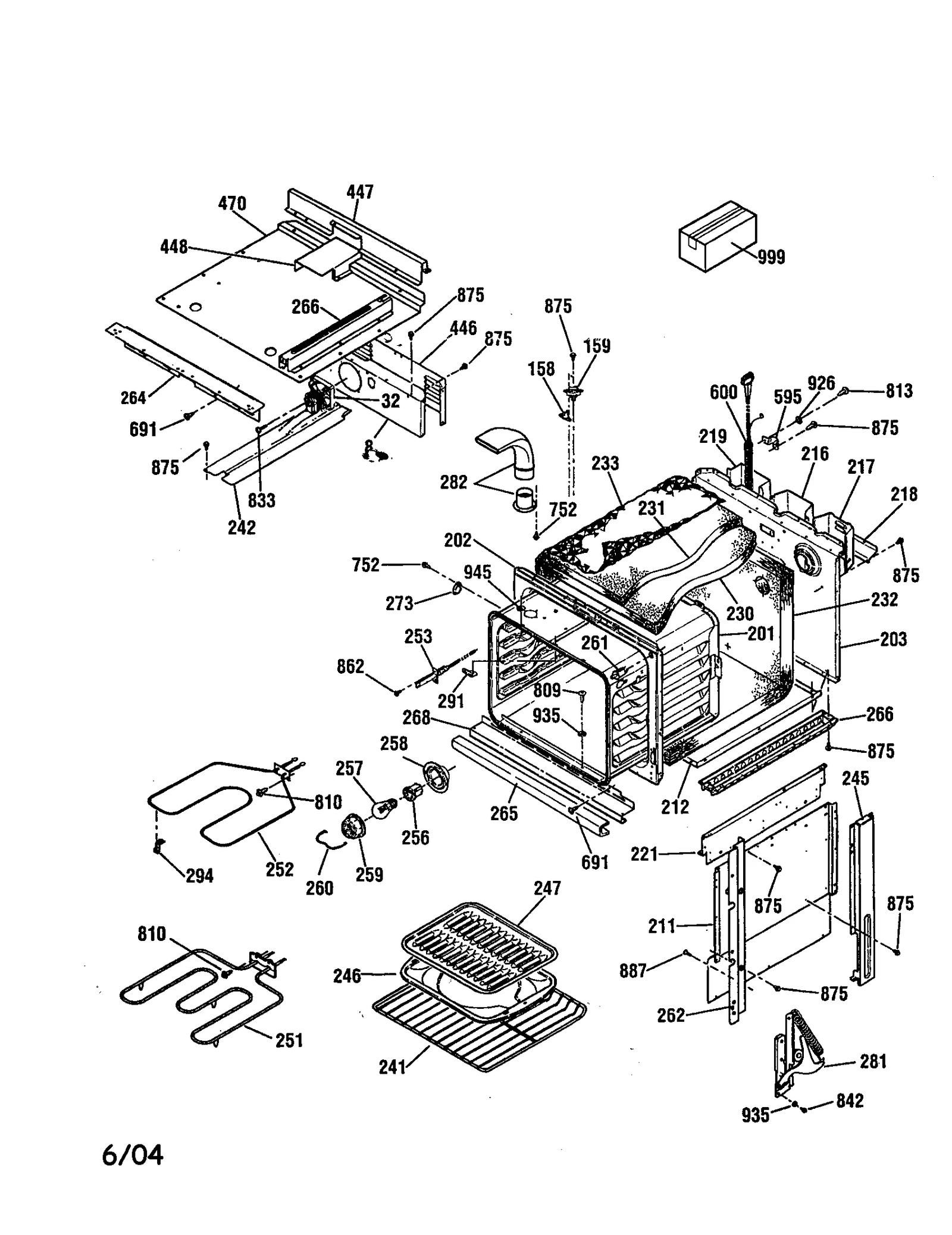

BODY
DOOR

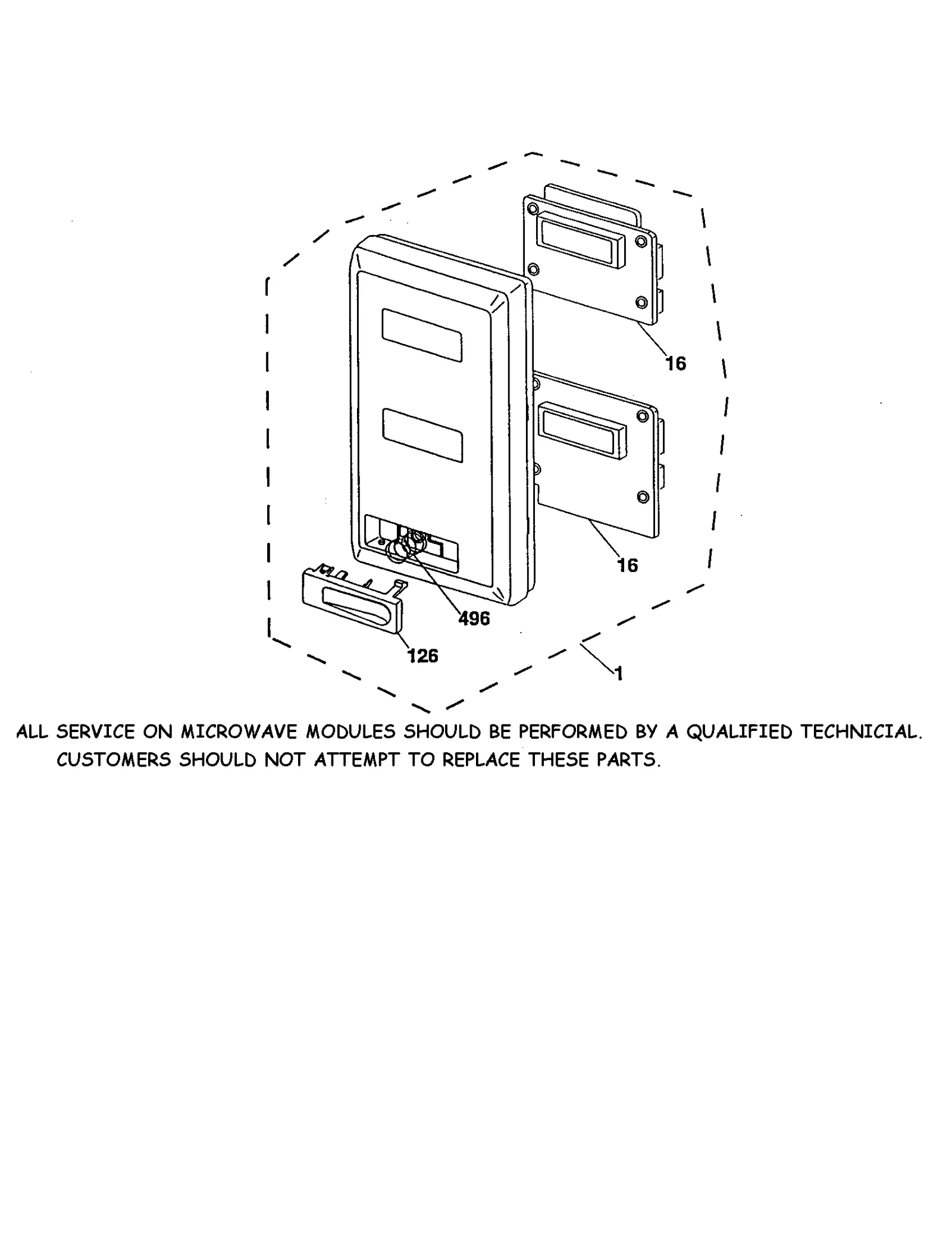

MICROWAVE CONTROL PANEL
Common parts from model GE 911.49485890 Built-In Oven with Microwave (Kenmore 91149485890)
1
Oven Control Board GEN WB36X10088 Contact Us For Availability
1A
PCB GEN WB36X10089 Contact Us For Availability
8
Fan Supprt L GEN WB02K5137 Contact Us For Availability
9
Out Drive Frame GEN WB63T10039 Contact Us For Availability
12
"cover,wave G" GEN WB06X0538 Contact Us For Availability
16
Cntl Ovn (er GEN WB27T10082 Contact Us For Availability
16A
Microwave Electronic Control Board GEN WB27T10091 Contact Us For Availability
20
Bracket GEN WB06X0537 Contact Us For Availability
48
Air Cover GEN WB06X0535 Contact Us For Availability
106
Door Trim Shield GEN WB07T10061 Contact Us For Availability
112
Liner GEN WB55T10026 Contact Us For Availability
113
Retainer Insert GEN WB02T10016 Contact Us For Availability
121
Oven Door Glass GEN WB57T10080 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57T10078 Contact Us For Availability
122
Oven Door Glass GEN WB57T10079 Contact Us For Availability
126
Push Button GEN WB03X10048 Contact Us For Availability
126
Button-black GEN WB03X0885 Contact Us For Availability
126A
Push Button GEN WB03X10047 Contact Us For Availability
126A
Button-white GEN WB03X0887 Contact Us For Availability
134
Door Vent Trim GEN WB07T10066 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10058 Contact Us For Availability
136
Oven Door Handle GEN WB15T10008 Contact Us For Availability
136A
Wall Oven Door Handle GEN WB15T10007 Contact Us For Availability
140
Oven Door Frame GEN WB55T10027 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10024 Contact Us For Availability
201
Oven Body GEN WB63T10009 Contact Us For Availability
202
Frame GEN WB63T10036 Contact Us For Availability
212
Cabinet GEN WB63K5080 Contact Us For Availability
216
COVER WIRE ELEMENT GEN WB34K5069 Contact Us For Availability
217
Cover Wire Light GEN WB34K5070 Contact Us For Availability
218
Wire Cover GEN WB34K5067 Contact Us For Availability
221
Body Side Ex GEN WB63K5174 Contact Us For Availability
232
Insulation GEN WB35K5089 Contact Us For Availability
233
Heat Reflector GEN WB34K5080 Contact Us For Availability
245
Vert Sd Supp GEN WB02K5139 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
258
Housing GEN WB02X7693 Contact Us For Availability
260
Bail GEN WB02X7694 Contact Us For Availability
262
Vert Sde Tri GEN WB07T10090 Contact Us For Availability
262A
Vert Sde Tri GEN WB07T10091 Contact Us For Availability
262B
Trim GEN WB07T10092 Contact Us For Availability
262C
Trim GEN WB07T10093 Contact Us For Availability
264
Vent Trim GEN WB07T10057 Contact Us For Availability
265
Trim Btm (wh GEN WB07T10065 Contact Us For Availability
265A
Bottom Trim GEN WB07T10060 Contact Us For Availability
266
Side Panel B GEN WB63X10052 Contact Us For Availability
266A
Bkt Slide-b: GEN WB63X10014 Contact Us For Availability
266A
Slide Rail GEN WB63T10044 Contact Us For Availability
268
Trim Frt Frm GEN WB07T10064 Contact Us For Availability
268A
Front Frame Trim GEN WB07T10059 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
281
Wall Oven Door Hinge GEN WB10T10001 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
282A
Vent Tube GEN WB28T10005 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Wall Oven Door Middle Glass GEN WB56T10004 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
407A
Latch Hook GEN WB10X10016 Contact Us For Availability
413
Oven Base Plate GEN WB63X10011 Contact Us For Availability
413A
Base Bracket GEN WB63X10015 Contact Us For Availability
439
Fuse Holder GEN WB06X10463 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
446
Duct Assembly GEN WB34T10071 Contact Us For Availability
447
Cover Wire C GEN WB34T10014 Contact Us For Availability
448
Wire Cover GEN WB34K5185 Contact Us For Availability
461
Cavity GEN WB63X10012 Contact Us For Availability
463A
Microwave Thermal Cut-Off GEN WB27X10166 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
466
Lower Hinge GEN WB10X10017 Contact Us For Availability
466A
Hinge GEN WB14X0211 Contact Us For Availability
470
Bottom Compa GEN WB55T10043 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
522
Cushion GEN WB35X10001 Contact Us For Availability
531
Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability
582
Trans-h V GEN WB27T10464 Contact Us For Availability
691
Screw GEN WB01K5163 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
999
Wall Oven Wire Harness GEN WB18T10275 Contact Us For Availability
999
Installation Instructions GEN 31-10307 Contact Us For Availability
999A
Installation Guide GEN 31-13669 Contact Us For Availability
999B
Sear GEN SR10425 Contact Us For Availability
999C
Parts List GEN 31-13671 Contact Us For Availability
× ![]()
