Model GE 911.47869100 Electric Built-In Oven with Microwave (Kenmore 91147869100) – Common Parts & Diagrams
MICROWAVE DOOR

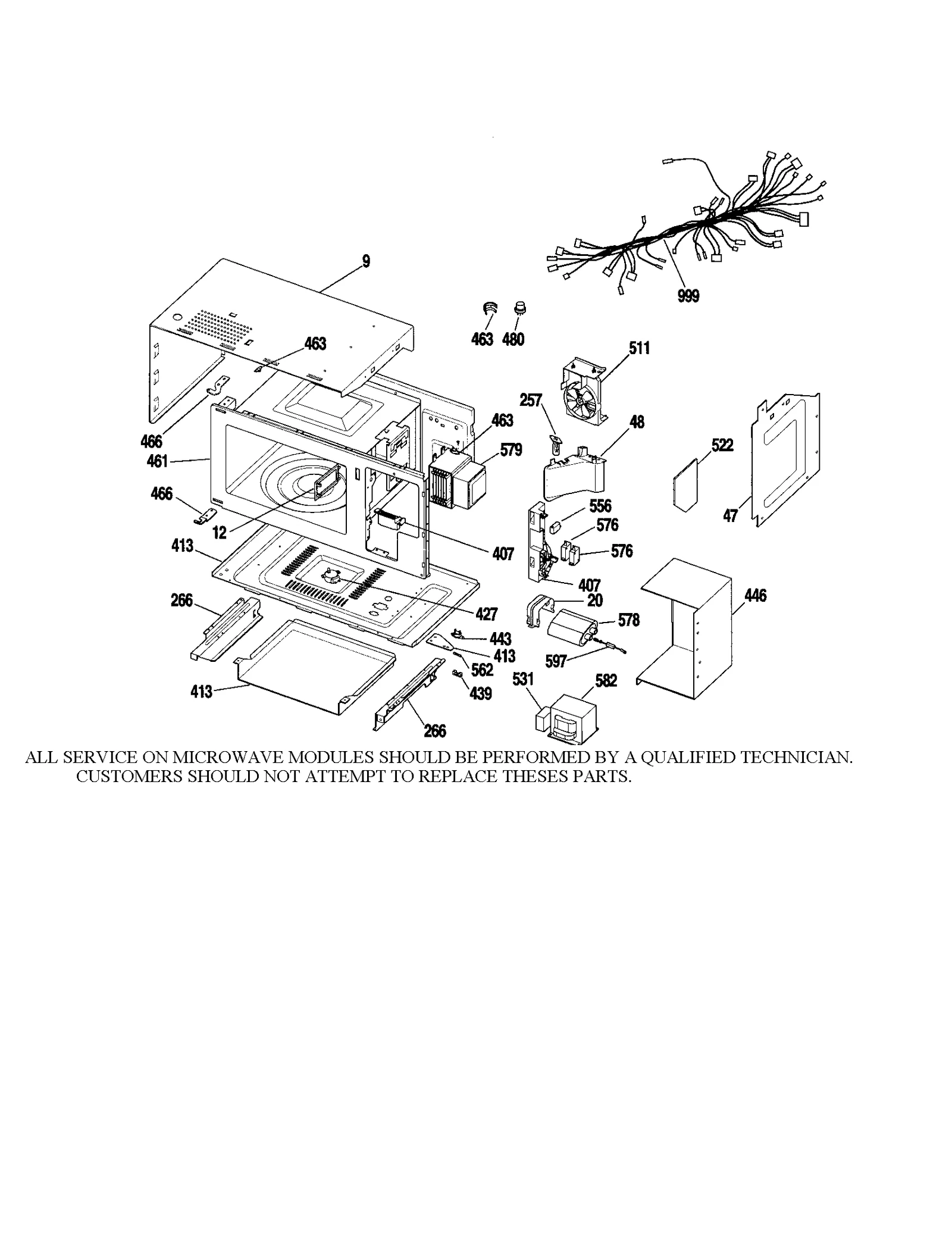

MICROWAVE BODY
MICROWAVE ENCLOSURES
BODY
DOOR
DOOR LOCK/WIRE HARNESS
MICROWAVE CONTROL PANEL
Common parts from model GE 911.47869100 Electric Built-In Oven with Microwave (Kenmore 91147869100)
1
Console (White) GEN WB36X10097 Contact Us For Availability
1A
Console GEN WB36X10095 Contact Us For Availability
8
Fan Support GEN WB02T10020 Contact Us For Availability
16
Oven Control GEN WB27T10313 Contact Us For Availability
16A
Control Board GEN WB27T10112 Contact Us For Availability
49
Fan Screen GEN WB34T10043 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Filler Trim Shield GEN WB07T10138 Contact Us For Availability
112
Lining Ovn D GEN WB55T10090 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Oven Door Glass GEN WB57T10171 Contact Us For Availability
121A
Oven Glass GEN WB57T10173 Contact Us For Availability
126
Button-black GEN WB03X0885 Contact Us For Availability
126A
Button-white GEN WB03X0887 Contact Us For Availability
132
Oven Door Gasket GEN WB41T10002 Contact Us For Availability
134
Drive Trim Vent GEN WB07T10237 Contact Us For Availability
134A
Drive Trim Vent (Black) GEN WB07T10238 Contact Us For Availability
136
Oven Door Handle GEN WB15K10006 Contact Us For Availability
136A
Oven Door Handle GEN WB15K10005 Contact Us For Availability
140
Oven Door Frame GEN WB55T10078 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10080 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
159
Limit Switch GEN WB24T10059 Contact Us For Availability
201
Oven Body GEN WB63T10070 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
BTM. INSULATION RETAINER GEN WB02K10047 Contact Us For Availability
215
Cover Wire S GEN WB34T10009 Contact Us For Availability
216
Wire Cover GEN WB34K5234 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
BACK INSULATION RETAINER GEN WB56X10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Insulation Retainer GEN WB02T10109 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
242
Slide Rail-r GEN WB02K5384 Contact Us For Availability
242A
Slide Rail-l GEN WB02K5385 Contact Us For Availability
243
Air Duct Top GEN WB34T10010 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
246
Glass Tray GEN WB49X0690 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
258
Oven Door Gasket GEN WB04T10021 Contact Us For Availability
262
Vert Sde Trm GEN WB07K5517 Contact Us For Availability
262A
Vert Sde Trm GEN WB07K5518 Contact Us For Availability
262B
Sde Trm-rt GEN WB07K5416 Contact Us For Availability
262C
Sde Trm-lt GEN WB07K5417 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10209 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
279
Box Vent GEN WB38T10014 Contact Us For Availability
281
Range Oven Door Hinge Assembly, Right GEN WB14T10009 Contact Us For Availability
281A
Hinge Asm-lt GEN WB14T10010 Contact Us For Availability
282
Vent Tube GEN WB28T10070 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
Spacer GEN WB02X9896 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Microwave High-Voltage Transformer GEN WB27X10189 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
835
Screw-10-32 GEN WB01X1123 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
947
Cable Clip GEN WB01K5043 Contact Us For Availability
999
Installation Instructions GEN 31-10436 Contact Us For Availability
999
Wire Harness GEN WB18T10109 Contact Us For Availability
999A
Wall Oven Owner's Manual GEN 31-13682 Contact Us For Availability
999A
Wire Harness GEN WB18T10208 Contact Us For Availability
999B
MINI MANUAL W/WIRE DIAGRAM GEN 31-13804 Contact Us For Availability
999B
Wire Harness GEN WB18T10056 Contact Us For Availability
999C
Range Sears GEN SR10478 Contact Us For Availability
999C
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
999D
Parts List GEN 31-13924 Contact Us For Availability
× ![]()
