Model GE 911.47084100 Electric Built-In Oven (Kenmore 91147084100) – Common Parts & Diagrams
WIRE HARNESS AND COMPONENTS
DOOR

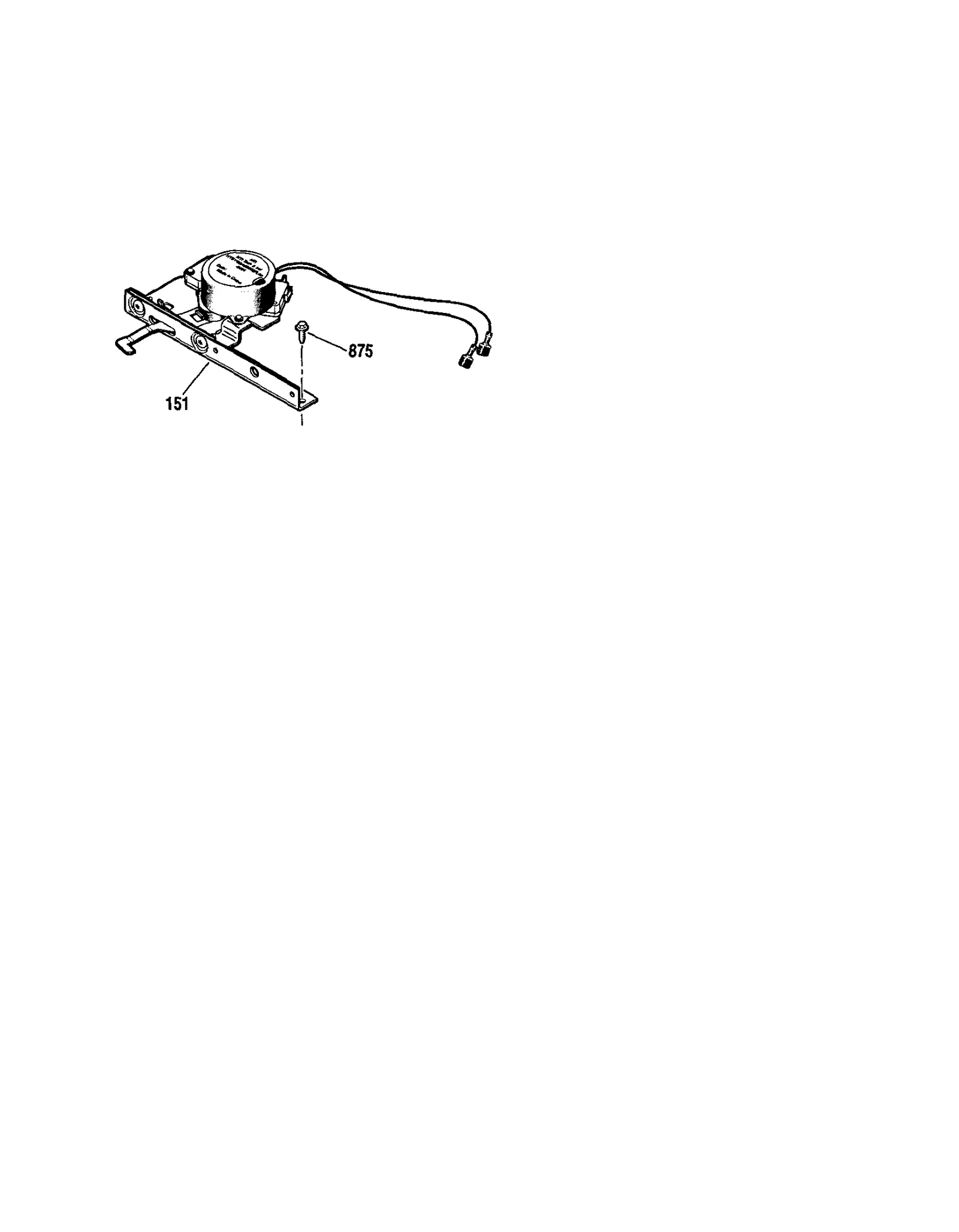

LOCK SECTION

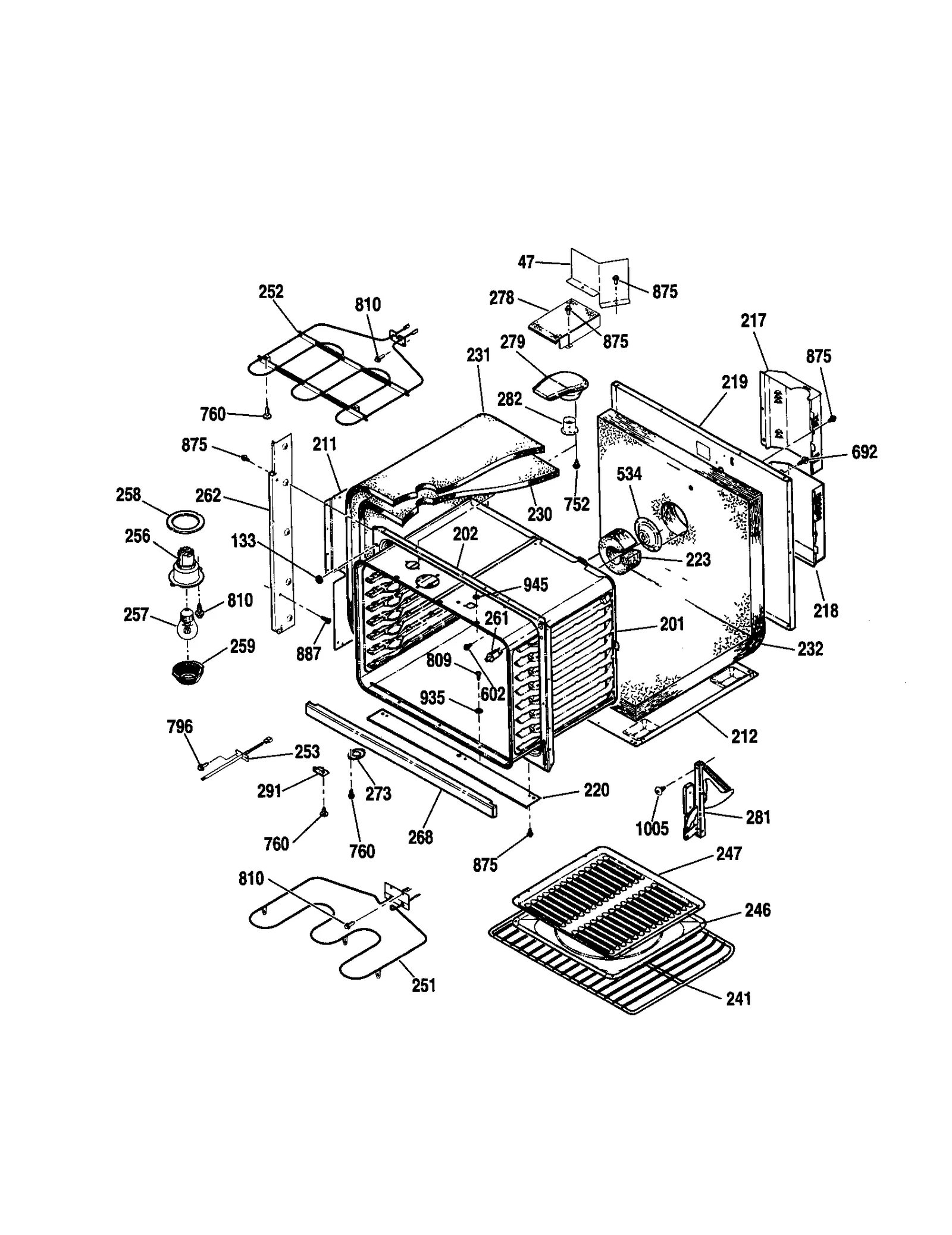

BODY SECTION

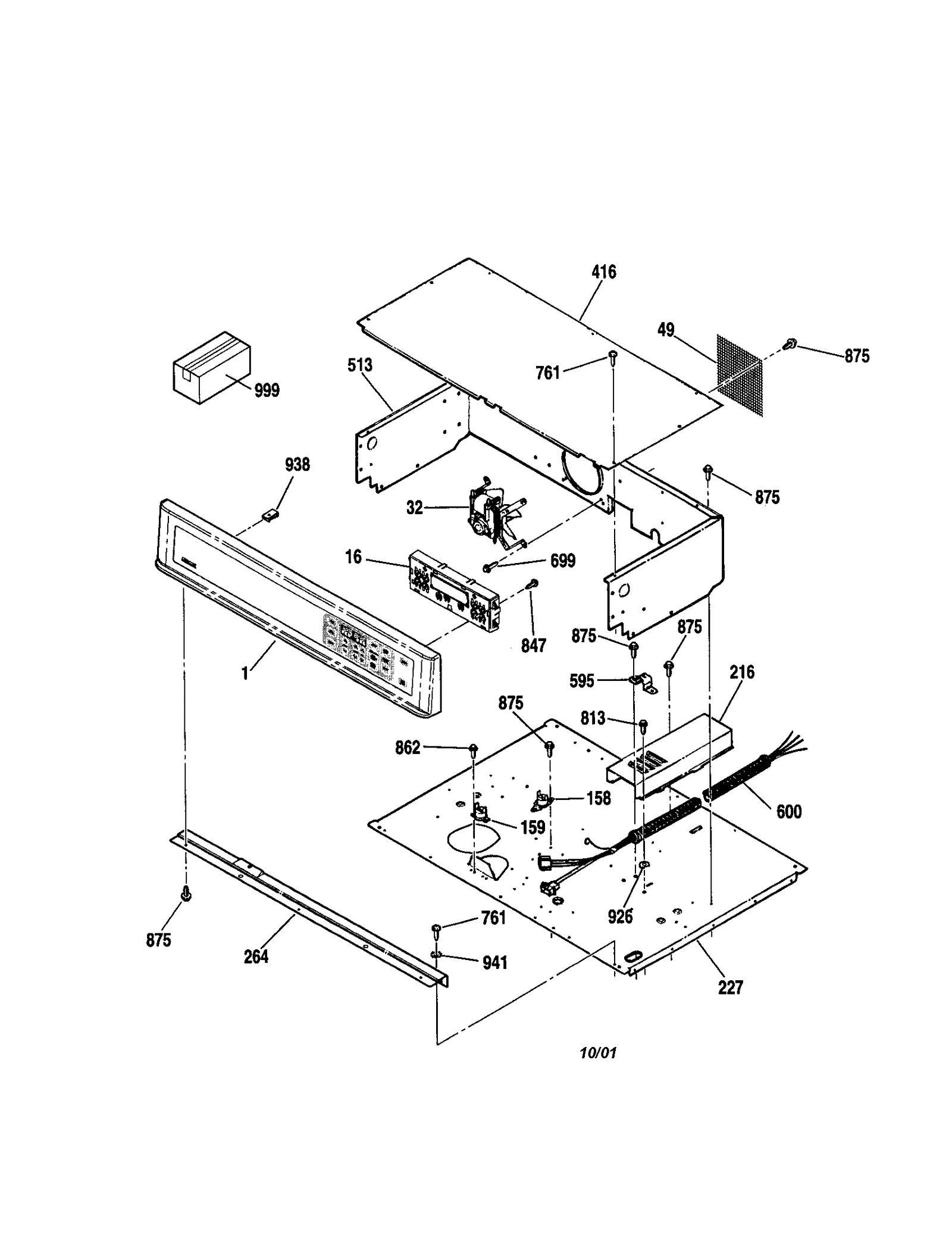

CONTROL SECTION
Common parts from model GE 911.47084100 Electric Built-In Oven (Kenmore 91147084100)
1
Control Panel GEN WB36T10442 Contact Us For Availability
1A
Control Panel GEN WB36T10443 Contact Us For Availability
1B
Control Panel GEN WB36T10441 Contact Us For Availability
16
Wall Oven Control Board GEN WB27T10305 Contact Us For Availability
47
Air Deflector GEN WB39T10002 Contact Us For Availability
49
Fan Screen GEN WB34T10043 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57T10091 Contact Us For Availability
132
Oven Door Gasket GEN WB41T10002 Contact Us For Availability
136B
Handle GEN WB15T10043 Contact Us For Availability
140
Oven Door Frame GEN WB55T10078 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10080 Contact Us For Availability
140B
Oven Door Frame GEN WB55T10081 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
159
Limit Switch GEN WB24T10059 Contact Us For Availability
201
Oven Body GEN WB63T10070 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
BTM. INSULATION RETAINER GEN WB02K10047 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
BACK INSULATION RETAINER GEN WB56K10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Insulation Retainer GEN WB02T10109 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
258
Oven Door Gasket GEN WB04T10021 Contact Us For Availability
262
Trim Vert Si GEN WB07T10040 Contact Us For Availability
262A
Trim Vert Si GEN WB07T10041 Contact Us For Availability
262B
Trim Vert Si GEN WB07T10042 Contact Us For Availability
262C
Trim Vert Si GEN WB07T10043 Contact Us For Availability
262D
Trim GEN WB07T10124 Contact Us For Availability
262E
Trim GEN WB07T10125 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10209 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
268B
Trim Btm (bs GEN WB07T10123 Contact Us For Availability
278
Vent Shield GEN WB34T10052 Contact Us For Availability
279
Box Vent GEN WB38T10014 Contact Us For Availability
281
Range Oven Door Hinge Assembly, Right GEN WB14T10009 Contact Us For Availability
281A
Hinge Asm-lt GEN WB14T10010 Contact Us For Availability
282
Vent Tube GEN WB28T10070 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
600
Condenser Wire GEN WB18K5473 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
761B
Trim Screw GEN WB01K5211 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
770B
Scr 8-18ab F GEN WB01T10035 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
887B
Screw St 8-1 GEN WB01T10033 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Instructions GEN 31-10437 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAGRAM GEN 31-13809 Contact Us For Availability
999B
Owner's Manual GEN SR10476 Contact Us For Availability
999C
Parts List GEN 31-13922 Contact Us For Availability
× ![]()
