Model GE 911.46399300 Range (Kenmore 91146399300) – Common Parts & Diagrams

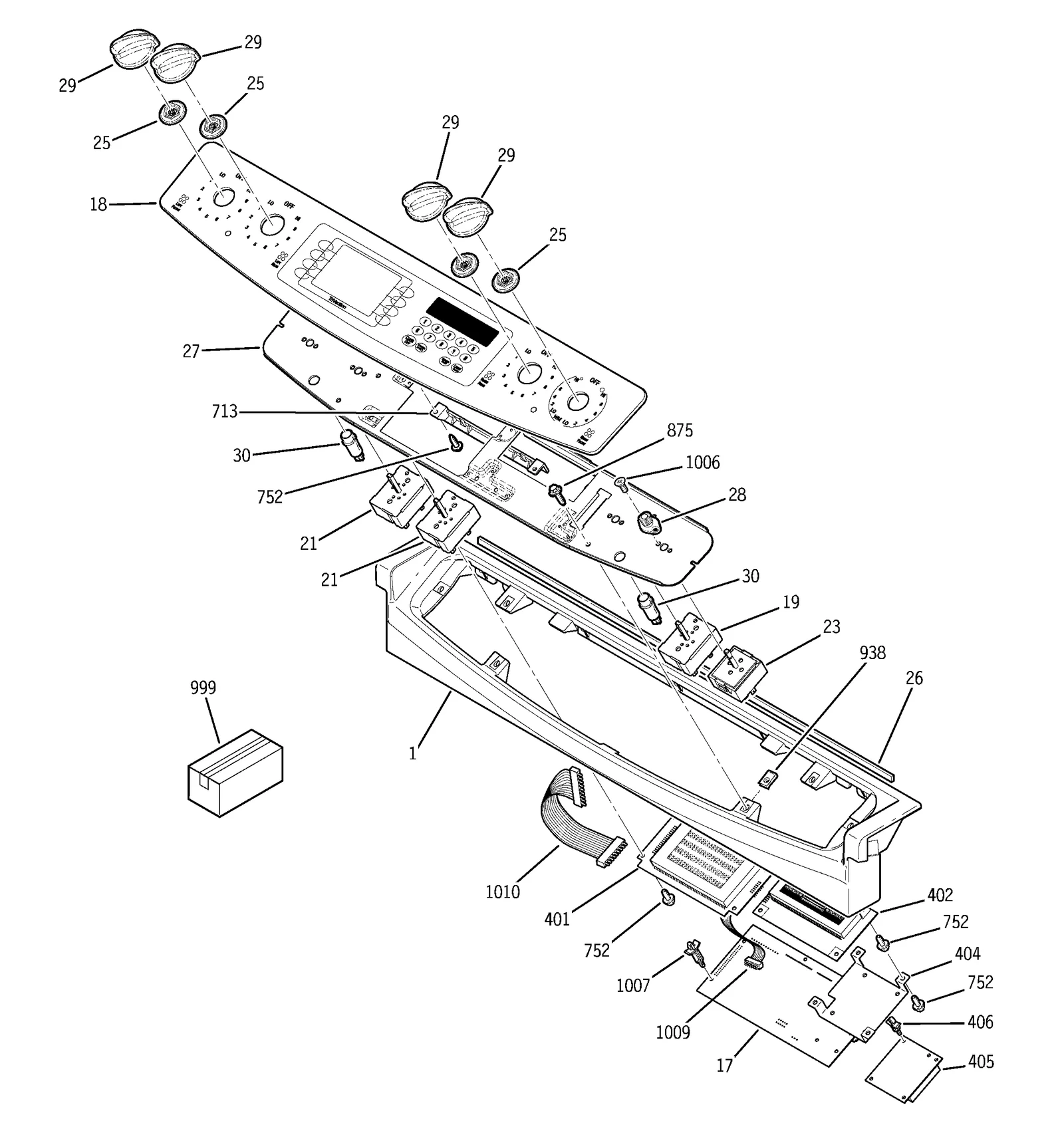

CONTROL PANEL

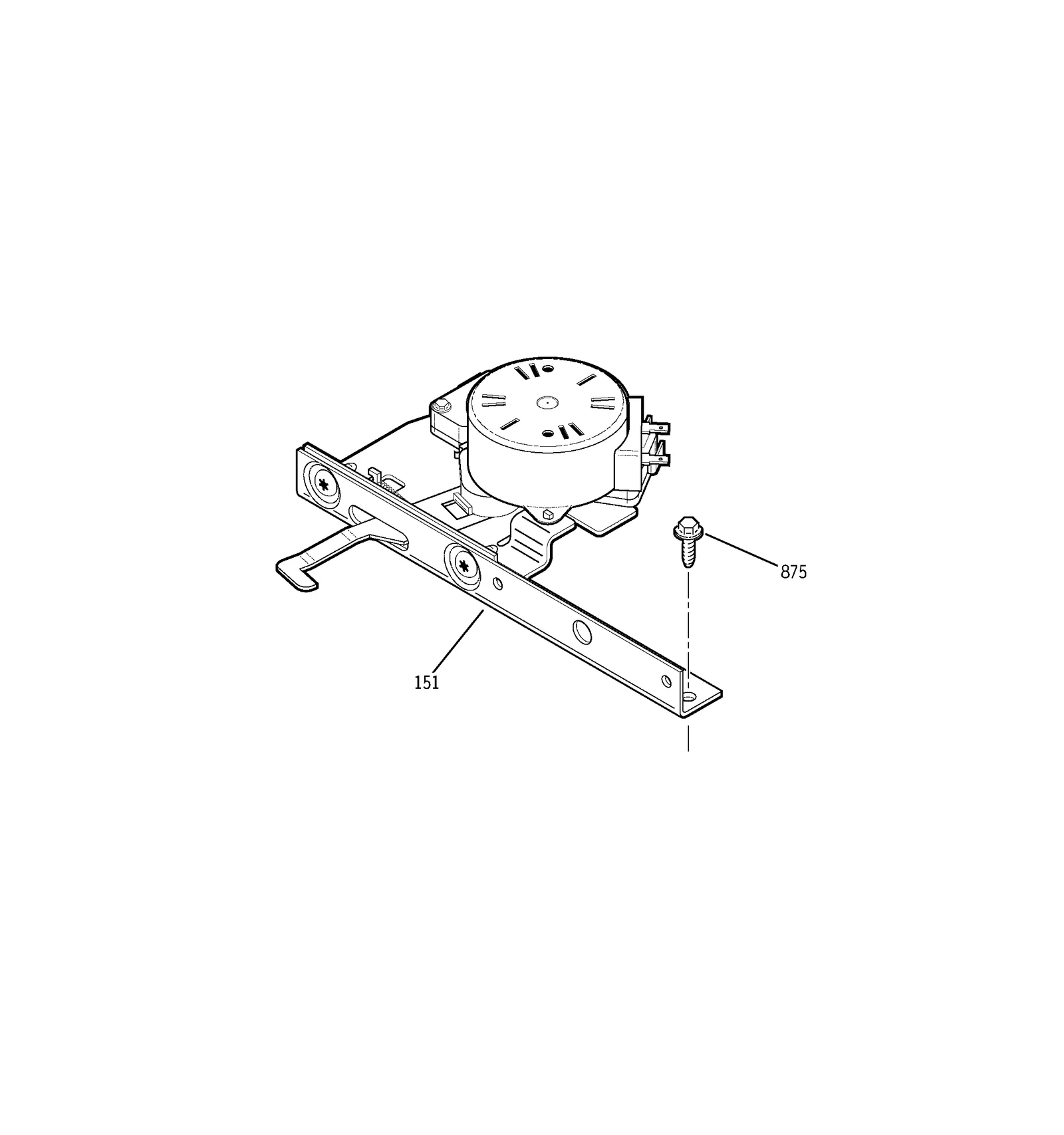

DOOR LOCK

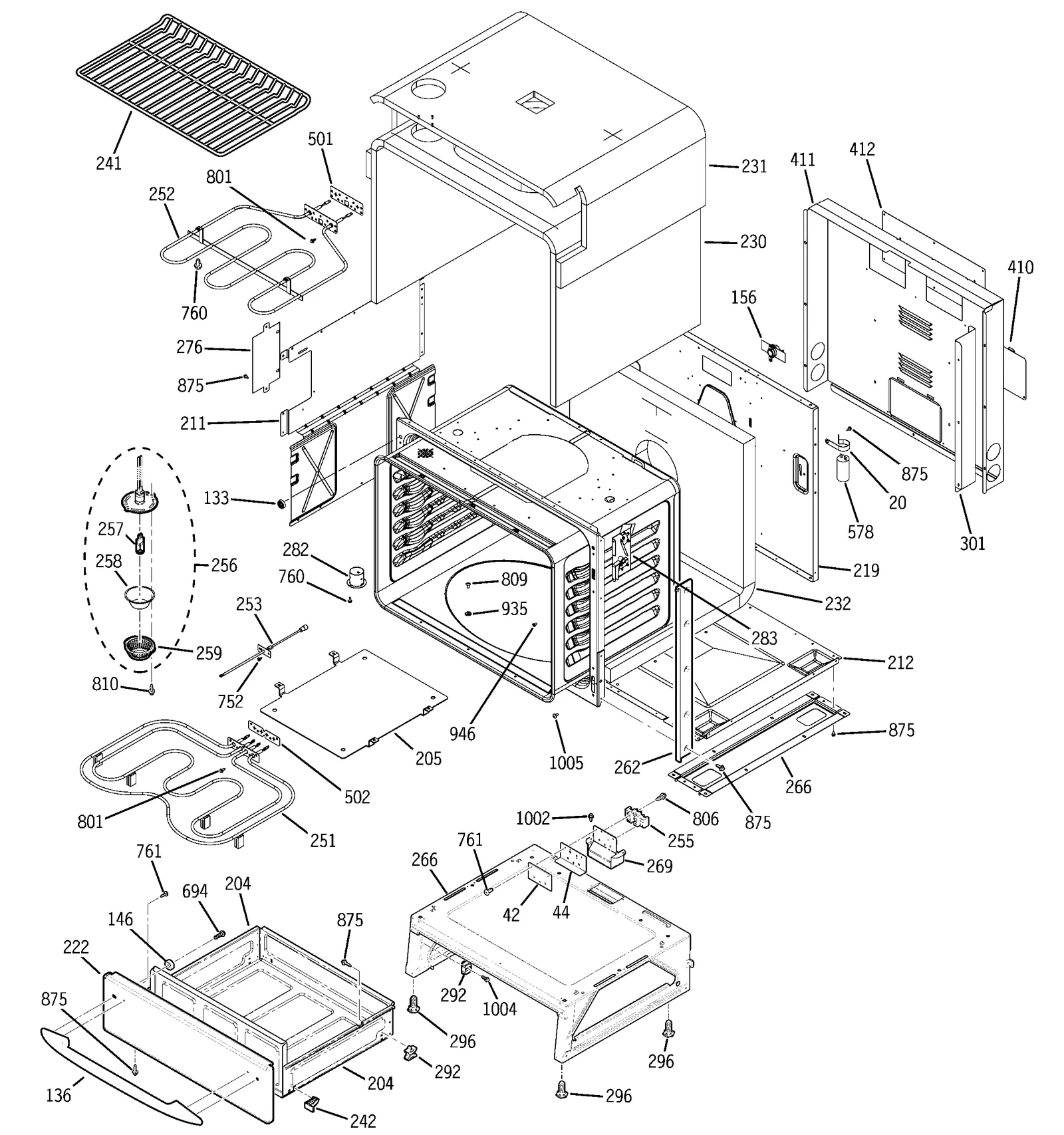

BODY PARTS

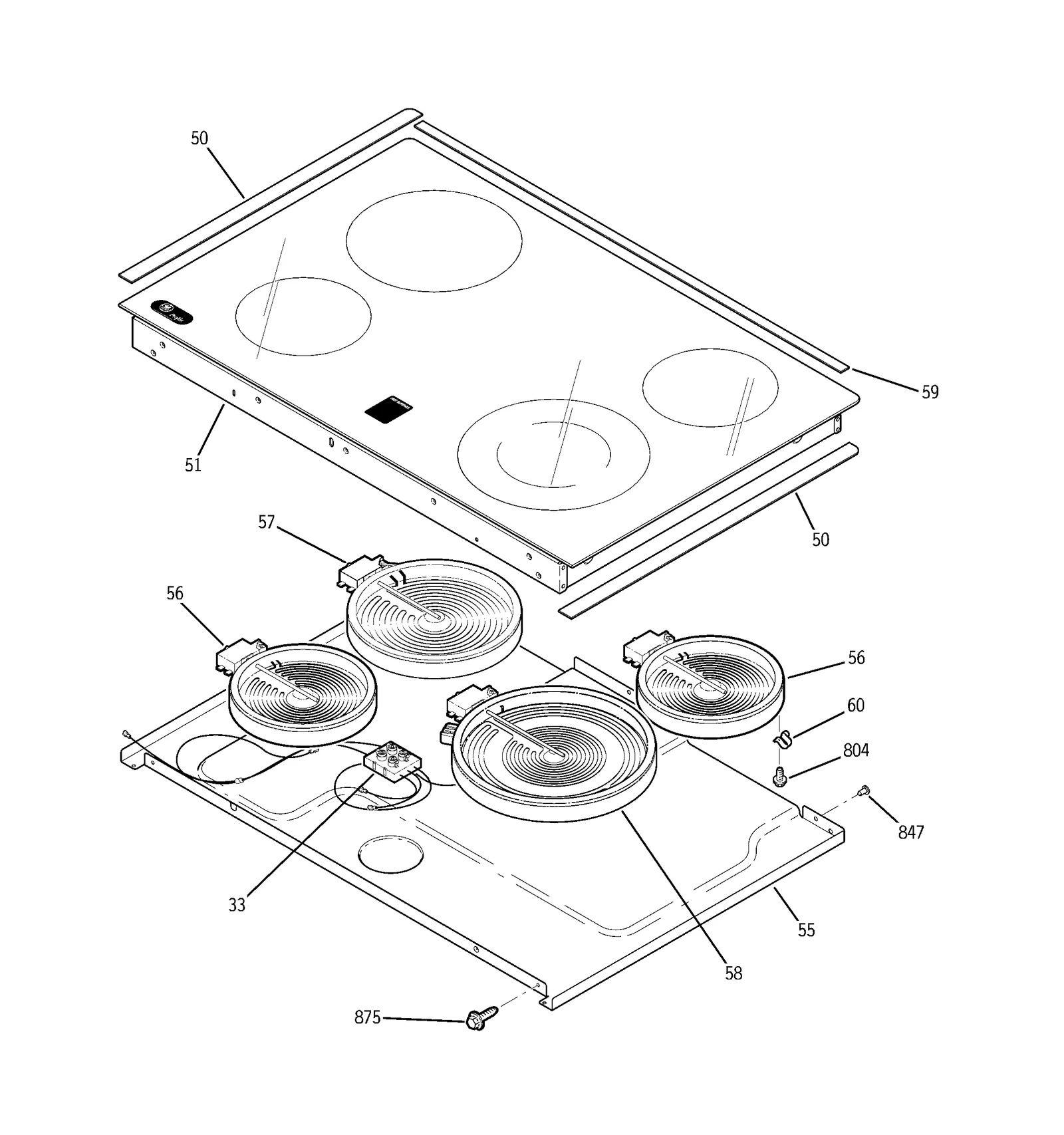

COOKTOP

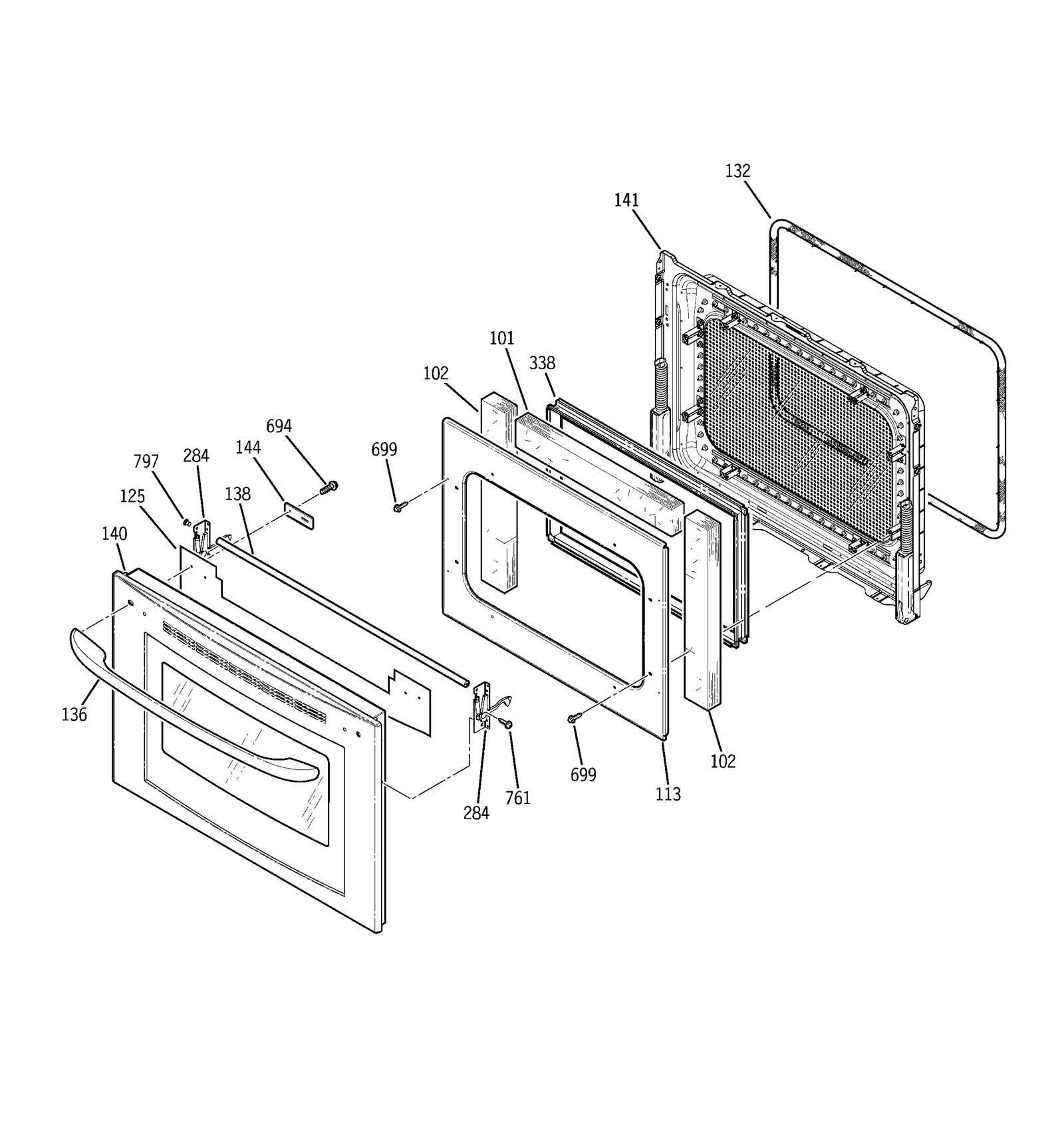

STAINLESS STEEL DOOR

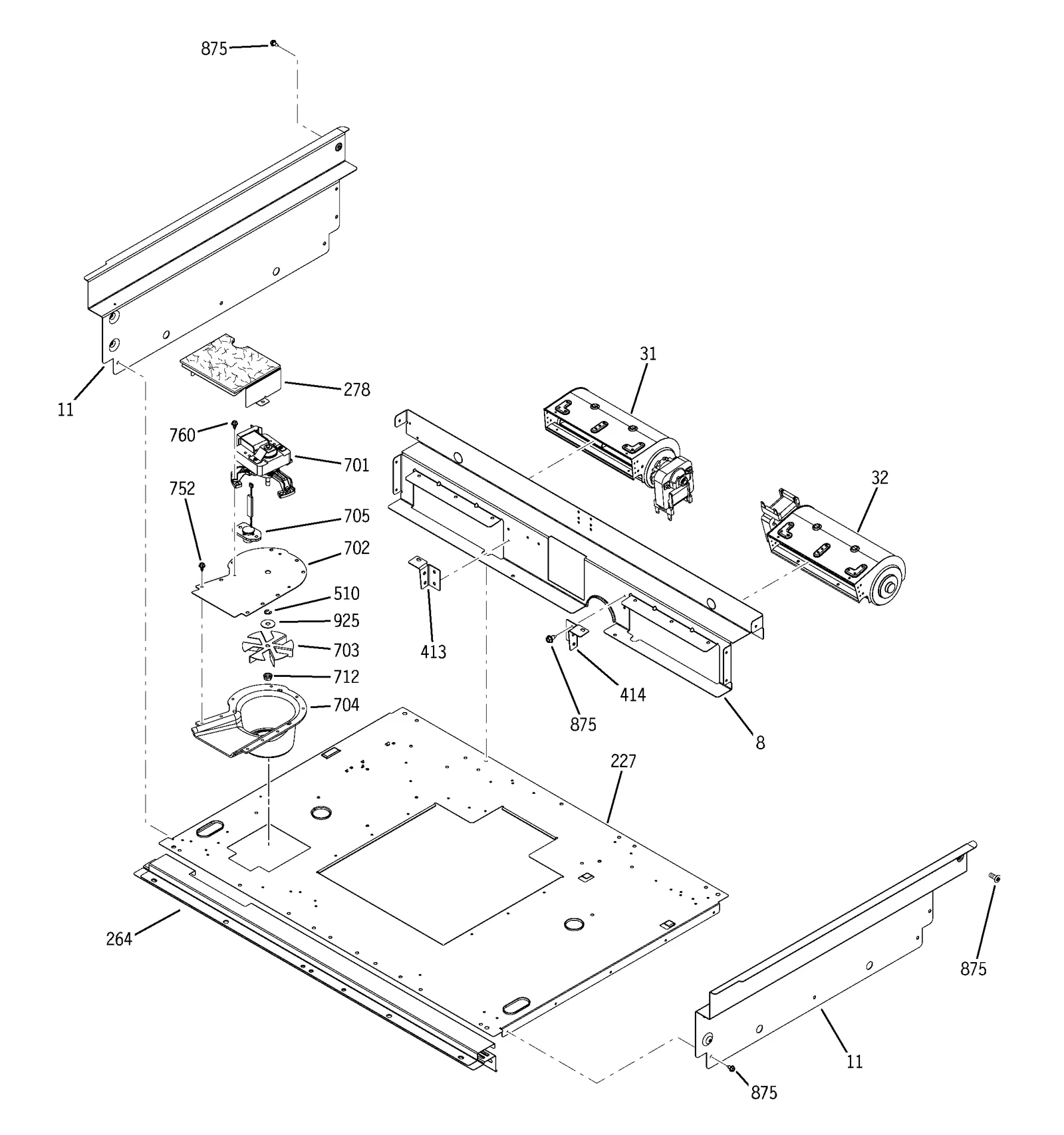

COOLING FAN

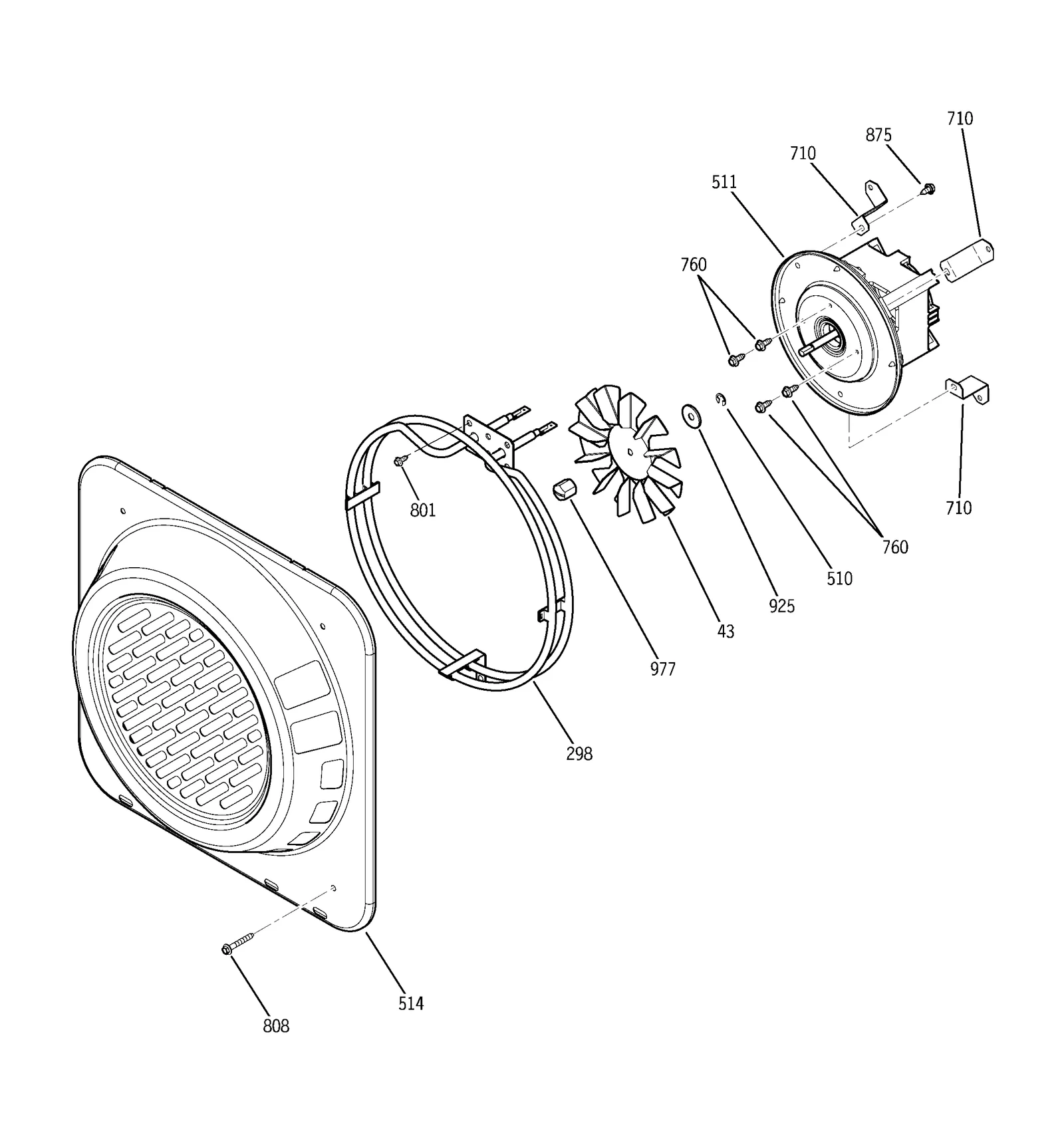

CONVECTION FAN

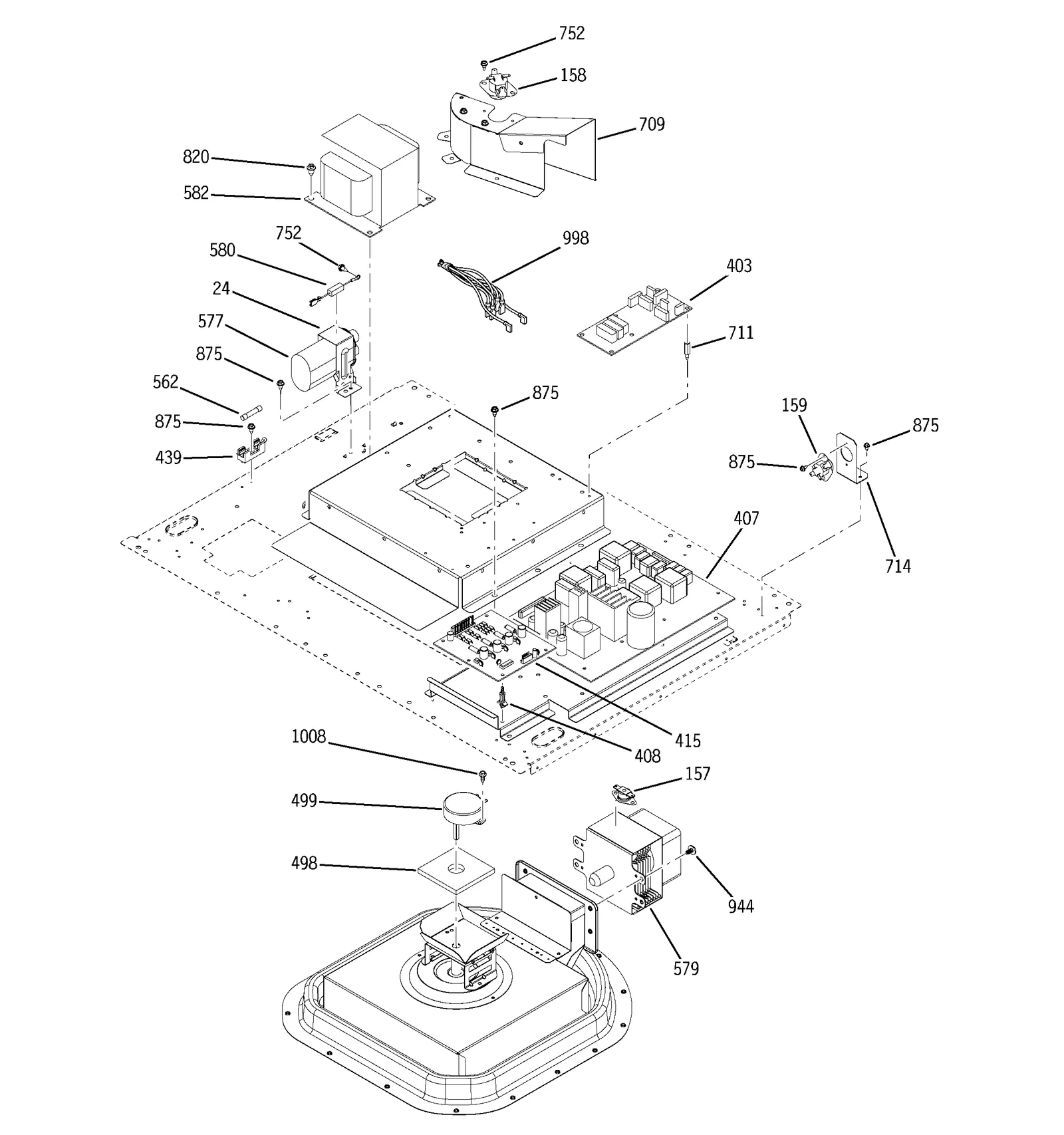

CONTROL SECTION
DOOR
Common parts from model GE 911.46399300 Range (Kenmore 91146399300)
8
Extension Refrigerator Shelf GEN WB07T10430 Contact Us For Availability
11
Extension Sd GEN WB07T10431 Contact Us For Availability
11
Extension Sd GEN WB07T10432 Contact Us For Availability
24
Bracket-h.v. GEN WB02T10206 Contact Us For Availability
26
Gasket Control GEN WB02X10742 Contact Us For Availability
29
Range Burner Control Knob GEN WB03T10087 Contact Us For Availability
31
Range Blower Assembly GEN WB26T10026 Contact Us For Availability
32
Range Blower Assembly GEN WB26T10027 Contact Us For Availability
33
Indicator Light GEN WB18K10013 Contact Us For Availability
50
Maintenance Gasket GEN WB02T10148 Contact Us For Availability
51
Glass GEN WB62T10292 Contact Us For Availability
51
Main GEN WB62T10293 Contact Us For Availability
51
MAINTOP GLASS ASM -ELITE GEN WB62T10294 Contact Us For Availability
55
Burner GEN WB64T10040 Contact Us For Availability
59
Maintenance Gasket GEN WB04T10037 Contact Us For Availability
60
Range Surface Element Spring GEN WB09T10002 Contact Us For Availability
113
Retainer Insert GEN WB56T10147 Contact Us For Availability
125
Reflector He GEN WB34T10092 Contact Us For Availability
132
Oven Door Gasket GEN WB04T10031 Contact Us For Availability
136
Oven Handle GEN WB15T10073 Contact Us For Availability
136
Oven Handle GEN WB15T10074 Contact Us For Availability
136
Oven Handle GEN WB15T10075 Contact Us For Availability
136
Oven Handle GEN WB15T10076 Contact Us For Availability
138
Rod Bracket Reinforcement GEN WB02T10200 Contact Us For Availability
140
Door Outer A GEN WB57T10244 Contact Us For Availability
140
Door Outer A GEN WB57T10246 Contact Us For Availability
140
Door Outer A GEN WB57T10247 Contact Us For Availability
140
Door Outer A GEN WB57T10248 Contact Us For Availability
141
In Door Pnl GEN WB55T10130 Contact Us For Availability
141
Inner Door GEN WB55T10131 Contact Us For Availability
144
Wall Oven Door Handle Mounting Bracket GEN WB02T10147 Contact Us For Availability
151
Range Oven Door Lock Assembly GEN WB14T10013 Contact Us For Availability
158
Fad Sht GEN WB24T10106 Contact Us For Availability
159
Fad Sht GEN WB24T10107 Contact Us For Availability
227
Retainer Insert GEN WB02T10202 Contact Us For Availability
241
Range Oven Rack GEN WB48T10038 Contact Us For Availability
251
Range Bake Element GEN WB44T10048 Contact Us For Availability
256
Halogen Lamp GEN WB08T10028 Contact Us For Availability
262
Trim GEN WB07T10433 Contact Us For Availability
262
Trim GEN WB07T10434 Contact Us For Availability
262
Trim GEN WB07T10391 Contact Us For Availability
262
Trim GEN WB07T10392 Contact Us For Availability
264
Vent Trim GEN WB07T10423 Contact Us For Availability
266
Base Rivet A GEN WB39T10001 Contact Us For Availability
269
Mounting Terminal GEN WB34T10082 Contact Us For Availability
276
Interlock Cover GEN WB02T10210 Contact Us For Availability
278
Vent Shield GEN WB34T10093 Contact Us For Availability
283
Interlock GEN WB15T10099 Contact Us For Availability
283
Interlock GEN WB15T10115 Contact Us For Availability
284
Interlock Hook GEN WB10T10038 Contact Us For Availability
298
Conversion Element GEN WB44T10023 Contact Us For Availability
301
Divider Duct GEN WB02T10240 Contact Us For Availability
401
Wall Oven Text Display Board GEN WB27T10547 Contact Us For Availability
403
Emi Fluid Board GEN WB27T10561 Contact Us For Availability
407
Range Oven Control Board GEN WB27T10551 No Longer Available
410
Access Panel GEN WB02T10234 Contact Us For Availability
411
COVER DUCT GEN WB02T10235 Contact Us For Availability
412
Motor Cover GEN WB02T10237 Contact Us For Availability
413
Fan Bracket GEN WB02T10238 Contact Us For Availability
414
Fan Bracket GEN WB02T10239 Contact Us For Availability
415
Cooktop Board GEN WB27T10564 Contact Us For Availability
499
Stirrer Motor GEN WB26T10028 Contact Us For Availability
501
Gasket Broil GEN WB04T10033 Contact Us For Availability
502
Bake Gasket GEN WB04T10034 Contact Us For Availability
510
Clip-e GEN WB01T10078 Contact Us For Availability
514
Fan Cover GEN WB02T10224 Contact Us For Availability
577
Capacitor GEN WB27T10543 Contact Us For Availability
578
Range Fan Motor Start Capacitor GEN WB26T10016 Contact Us For Availability
582
Wall Oven Transformer GEN WB27T10544 Contact Us For Availability
701
Vent Motor GEN WB26T10024 Contact Us For Availability
702
Body Vent To GEN WB02T10215 Contact Us For Availability
703
Blade Vent F GEN WB02T10213 Contact Us For Availability
704
Body Vent Bo GEN WB02T10214 Contact Us For Availability
705
Sc Sensor GEN WB23T10017 Contact Us For Availability
709
Duct Asm Mag GEN WB02T10236 Contact Us For Availability
710
BRACKET CONVECT MOUNT GEN WB02T10221 Contact Us For Availability
711
Stud GEN WB01T10080 Contact Us For Availability
712
Oven Ven Nut GEN WB01T10081 Contact Us For Availability
714
Bracket Fad GEN WB02T10246 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
801
Scr10-16 Trt GEN WB01T10088 Contact Us For Availability
944
Magnet Screw GEN WB01T10082 Contact Us For Availability
998
Harness Si A GEN WB18T10321 Contact Us For Availability
1004
Screw-12-pk GEN WH02X0941 Contact Us For Availability
1008
Stirrer Motor GEN WB01T10085 Contact Us For Availability
1010
Range Display Board Ribbon Cable GEN WB18T10319 Contact Us For Availability
× ![]()
