Model GE 911.45569893 Electric Drop-In Range (Kenmore 91145569893) – Common Parts & Diagrams

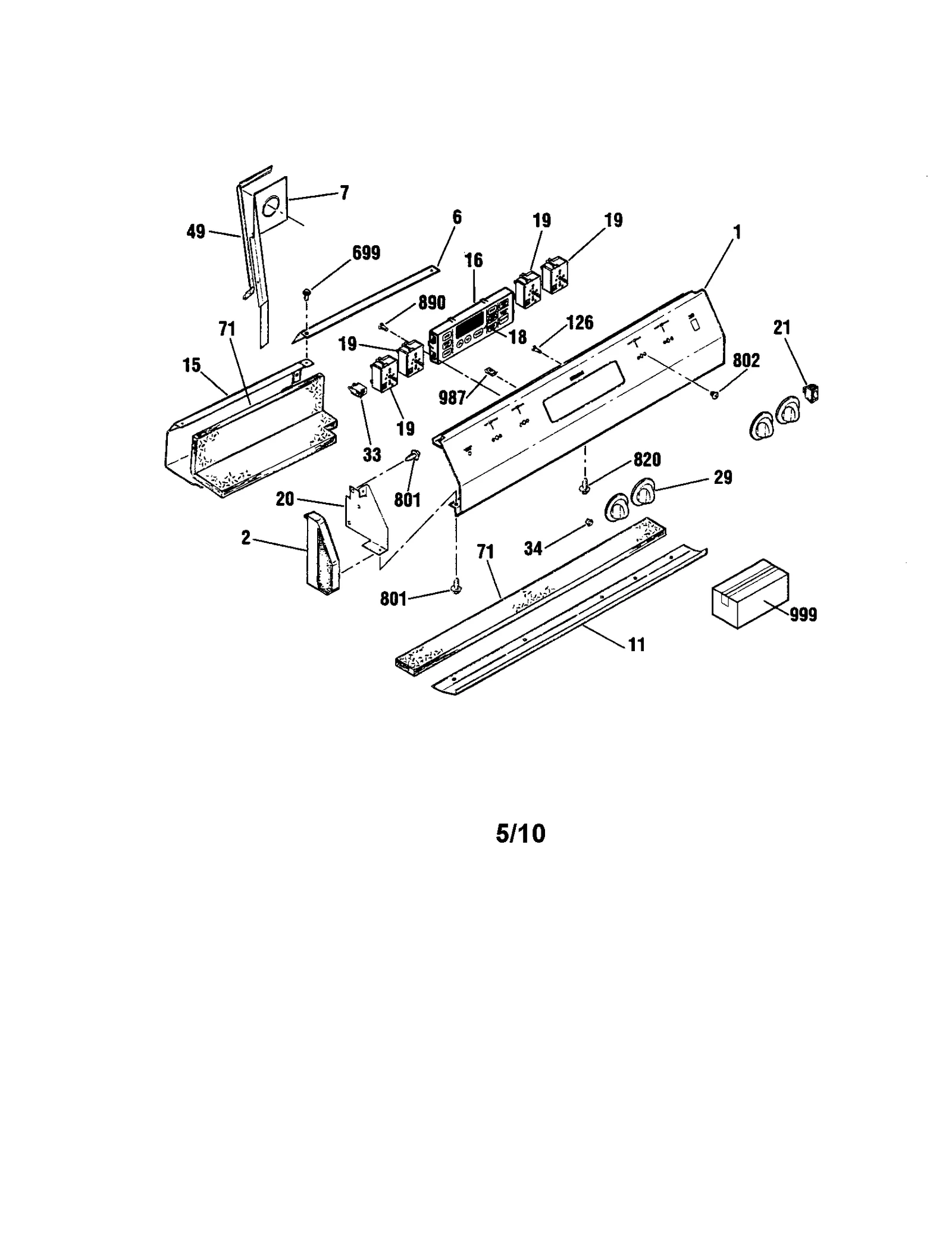

CONTROL PANEL

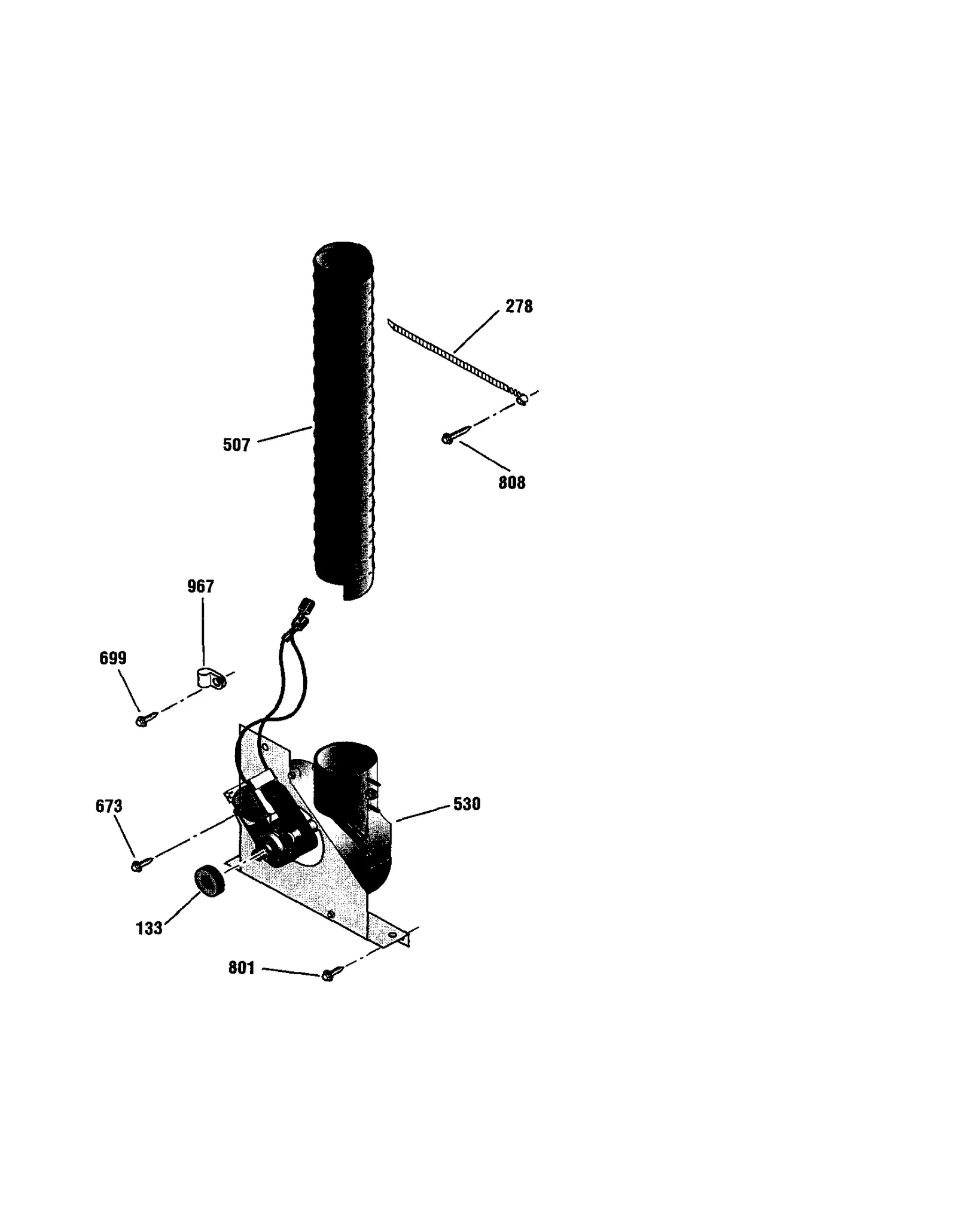

BLOWER
DOOR
DOOR
MAINTOP
BODY
DOOR LOCK/WIRING COMPONENTS
Common parts from model GE 911.45569893 Electric Drop-In Range (Kenmore 91145569893)
2B
End Cap GEN WB36K5402 Contact Us For Availability
20
Bracket GEN WB02K5239 Contact Us For Availability
49
Heat Seal GEN WB32K5018 Contact Us For Availability
51
Main Top GEN WB62K5112 Contact Us For Availability
51A
Main Top Wh GEN WB62K5051 Contact Us For Availability
51B
Main Top Ad GEN WB62K5052 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
59A
Range Drip Pan, 6-in (Black) GEN WB32K5041 Contact Us For Availability
60A
Range Drip Pan, 8-in GEN WB32K5042 Contact Us For Availability
61
Burner Box GEN WB64K5042 Contact Us For Availability
71
Insulation GEN WB02X9888 Contact Us For Availability
71A
Insulation Control Cover GEN WB06X0006 Contact Us For Availability
75
Burner Box GEN WB63T10026 Contact Us For Availability
77
Vent Seal GEN WB02X9895 Contact Us For Availability
80
Shield GEN WB02X9570 Contact Us For Availability
83
Terminal Block Clip GEN WB01K5128 Contact Us For Availability
90
Mt Supp Rod GEN WB02M0084 Contact Us For Availability
91
Cooktop Hinge GEN WB14X0136 Contact Us For Availability
93
Wire Cover GEN WB02X9569 Contact Us For Availability
95
Hinge Bracket GEN WB02X9568 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
112
Door Liner GEN WB55T10018 Contact Us For Availability
112
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (White) GEN WB57K5304 Contact Us For Availability
121
Oven Door Glass GEN WB57K5215 Contact Us For Availability
121A
Range Oven Door Outer Panel (Black) GEN WB57K5307 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5141 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
124
Drive Frame Insulation (White) GEN WB35K5104 Contact Us For Availability
124
Drive Frame Insulation GEN WB35K5103 Contact Us For Availability
125
Sd Trim Insu GEN WB35K5100 Contact Us For Availability
125A
Sd Trim Insu GEN WB35K5099 Contact Us For Availability
126
Button Plug GEN WB02X1125 Contact Us For Availability
133
Felt Washer GEN WB01X1159 Contact Us For Availability
136
Oven Handle GEN WB15K5113 Contact Us For Availability
136
Dr Hndl Blk GEN WB15K5074 Contact Us For Availability
136A
Door Handle GEN WB15K5114 Contact Us For Availability
140
Oven Drive Frame (White) GEN WB56K5136 Contact Us For Availability
140
Oven Door Frame GEN WB56K5144 Contact Us For Availability
146
Spacer Handle (Black) GEN WB02X9037 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
158
Range Control Panel Cooling Fan Thermal Switc GEN WB24K5086 Contact Us For Availability
159
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
178
Lock Motor Insert GEN WB35M0023 Contact Us For Availability
201
End Cap GEN WB36T10002 Contact Us For Availability
202
Frame GEN WB63T10029 Contact Us For Availability
203
Main Bk Asm GEN WB63K5142 Contact Us For Availability
208
Main GEN WB63K5139 Contact Us For Availability
211
Ins Ret Sd L GEN WB02K5195 Contact Us For Availability
211A
Ins Ret Sd R GEN WB02K5196 Contact Us For Availability
212
Insul Ret Lo GEN WB02K5122 Contact Us For Availability
219
Wire Cover GEN WB34K5134 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
255
Junction Blk GEN WB17X0215 Contact Us For Availability
257
BULB OVEN LI GEN BUY LOCAL Contact Us For Availability
259
Oven Bulb Lens GEN WB25T1002 Contact Us For Availability
262
Sd Trim Rt GEN WB07K5296 Contact Us For Availability
262A
Sd Trim Lt GEN WB07K5295 Contact Us For Availability
262B
Sd Trim Lt GEN WB07K5292 Contact Us For Availability
262C
Sd Trim Rt GEN WB07K5291 Contact Us For Availability
268
Trim GEN WB07K5294 Contact Us For Availability
268A
Trim GEN WB07K5293 Contact Us For Availability
278
Hose Clamp GEN WB02K5102 Contact Us For Availability
281
Range Oven Door Hinge, Left GEN WB10K5018 Contact Us For Availability
281A
Hinge Assembly GEN WB10K5017 Contact Us For Availability
282
Vent Tube GEN WB38K5044 Contact Us For Availability
286
Oven Drive Spring GEN WB09M0001 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
Spacer GEN WB02X9896 Contact Us For Availability
300
Bridge Spacer GEN WB02M0086 Contact Us For Availability
507
Flex Hose GEN WB26M0017 Contact Us For Availability
530
Range Blower GEN WB26K5070 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Conduit Wiring Harness GEN WB18K5368 Contact Us For Availability
673
SCREW TORQUE LIMITING GEN WB01T10003 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
803
Rear Insert Retainer GEN WB02K5163 Contact Us For Availability
803A
Ovbt Ins Ret GEN WB02K5162 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
835
Screw-10-32 GEN WB01X1123 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
947
Cable Clip GEN WB01K5043 Contact Us For Availability
967
Clip GEN WB02X9894 Contact Us For Availability
987
Speed Nut GEN WB01X1311 Contact Us For Availability
993
Spacer GEN WB02X9575 Contact Us For Availability
999
Installation Instructions GEN SR10183 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-13302 Contact Us For Availability
999B
Owner's Manual GEN SR10367 Contact Us For Availability
999C
Parts List GEN 31-13566 Contact Us For Availability
× ![]()
