Model GE 911.41885890 Wall Oven (Kenmore 91141885890) – Common Parts & Diagrams
UPPER BODY
WIRE HARNESSES AND COMPONENTS

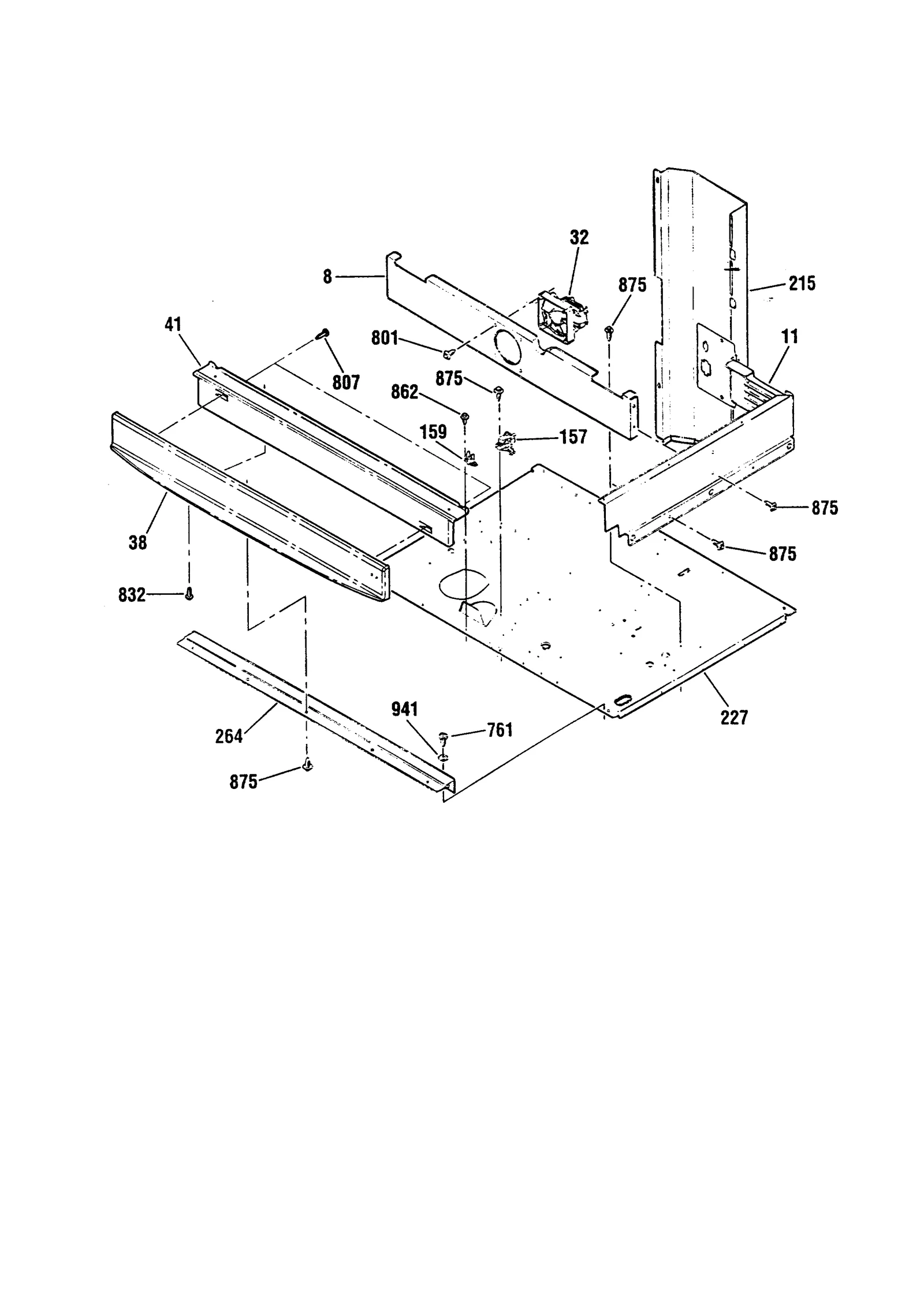

CENTER SPACE

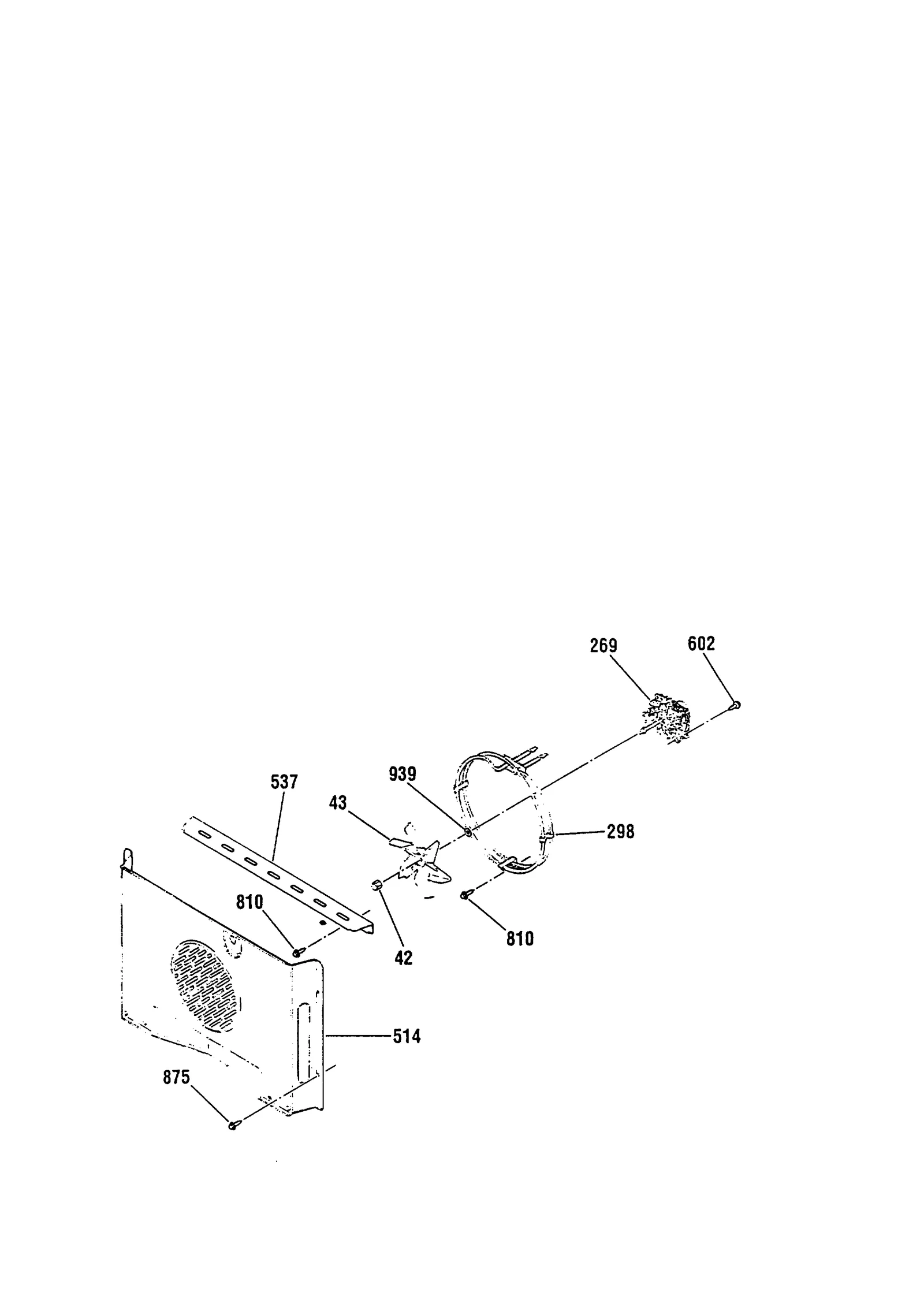

NONE

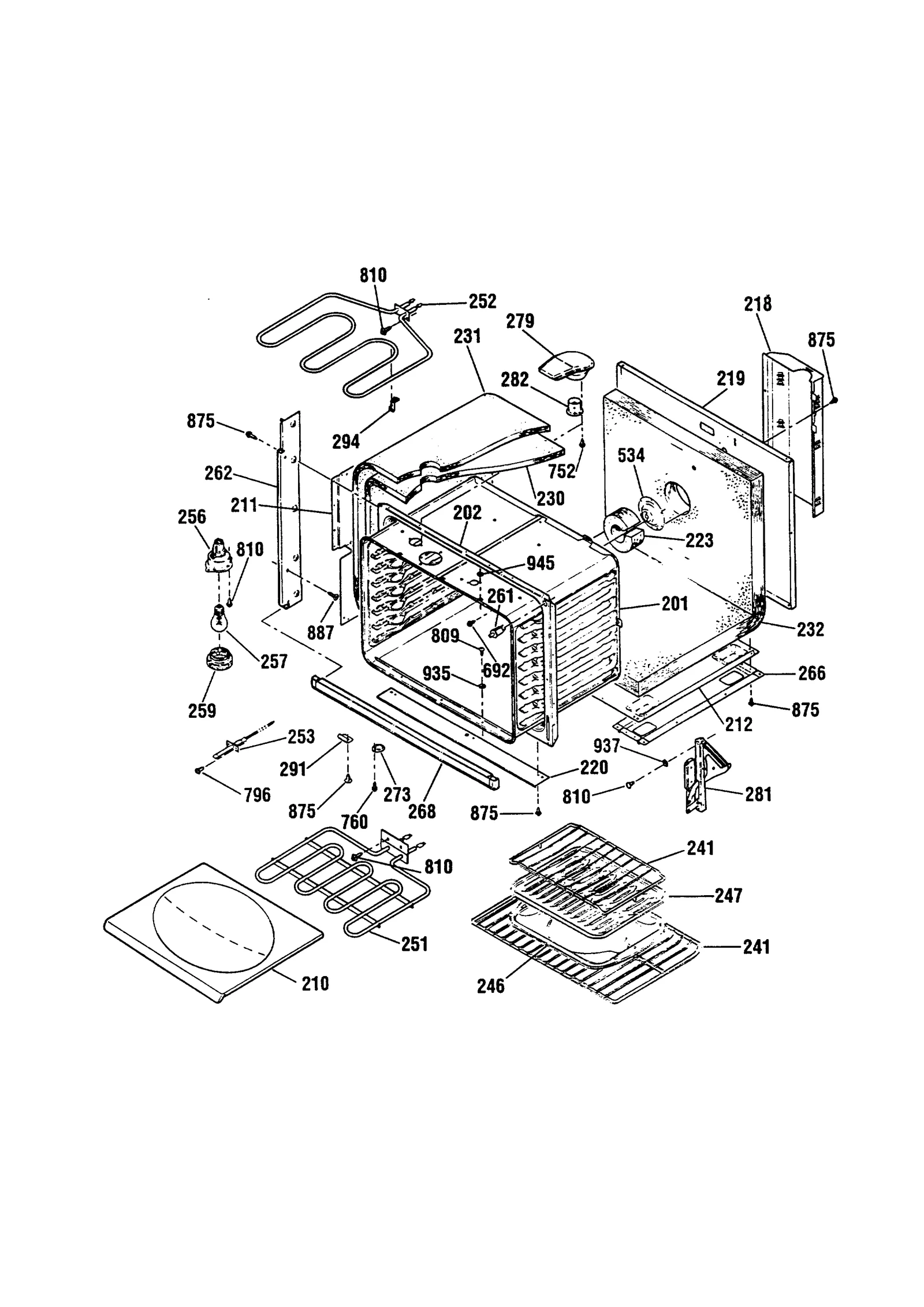

LOWER BODY

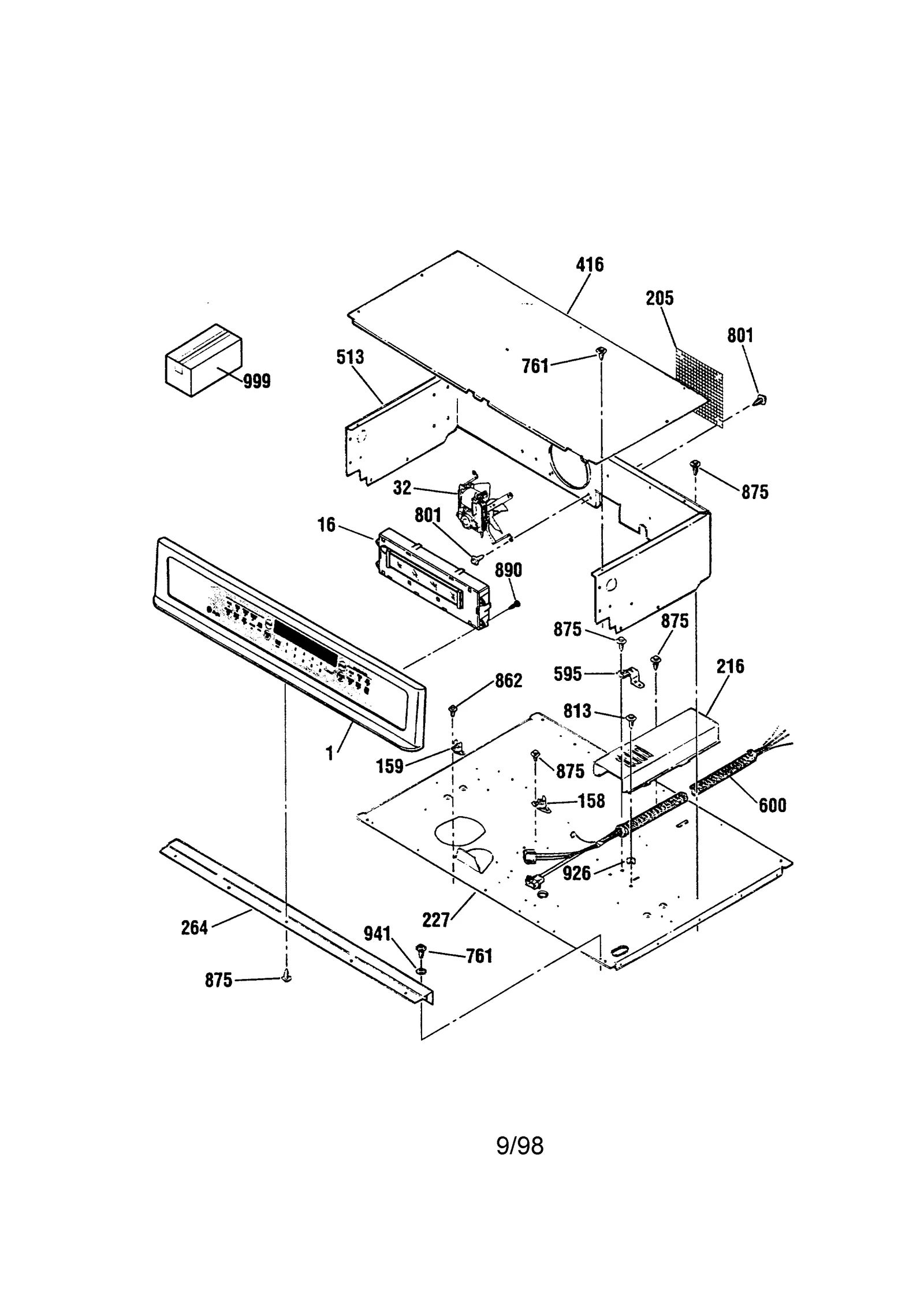

CONTROL

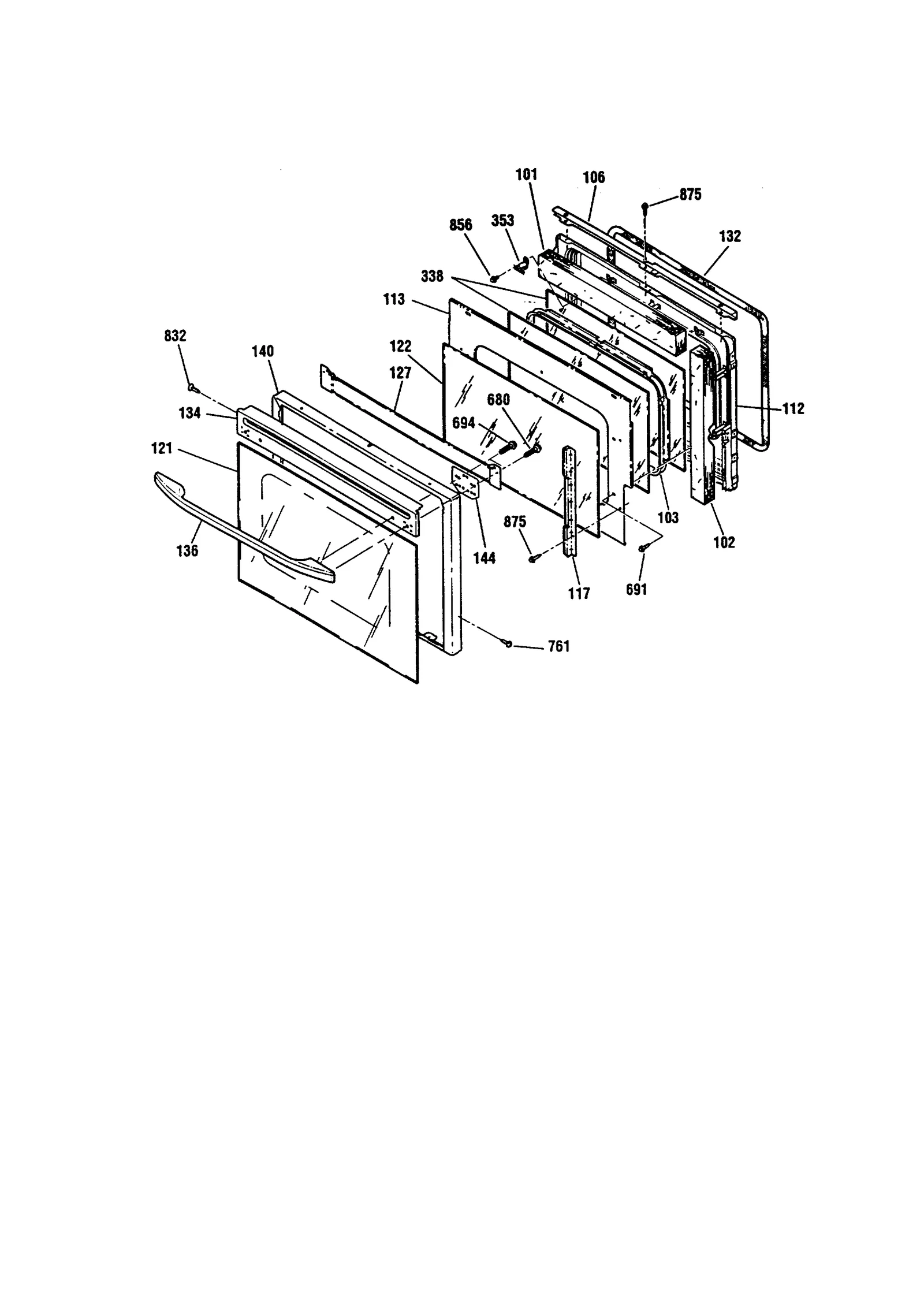

DOOR

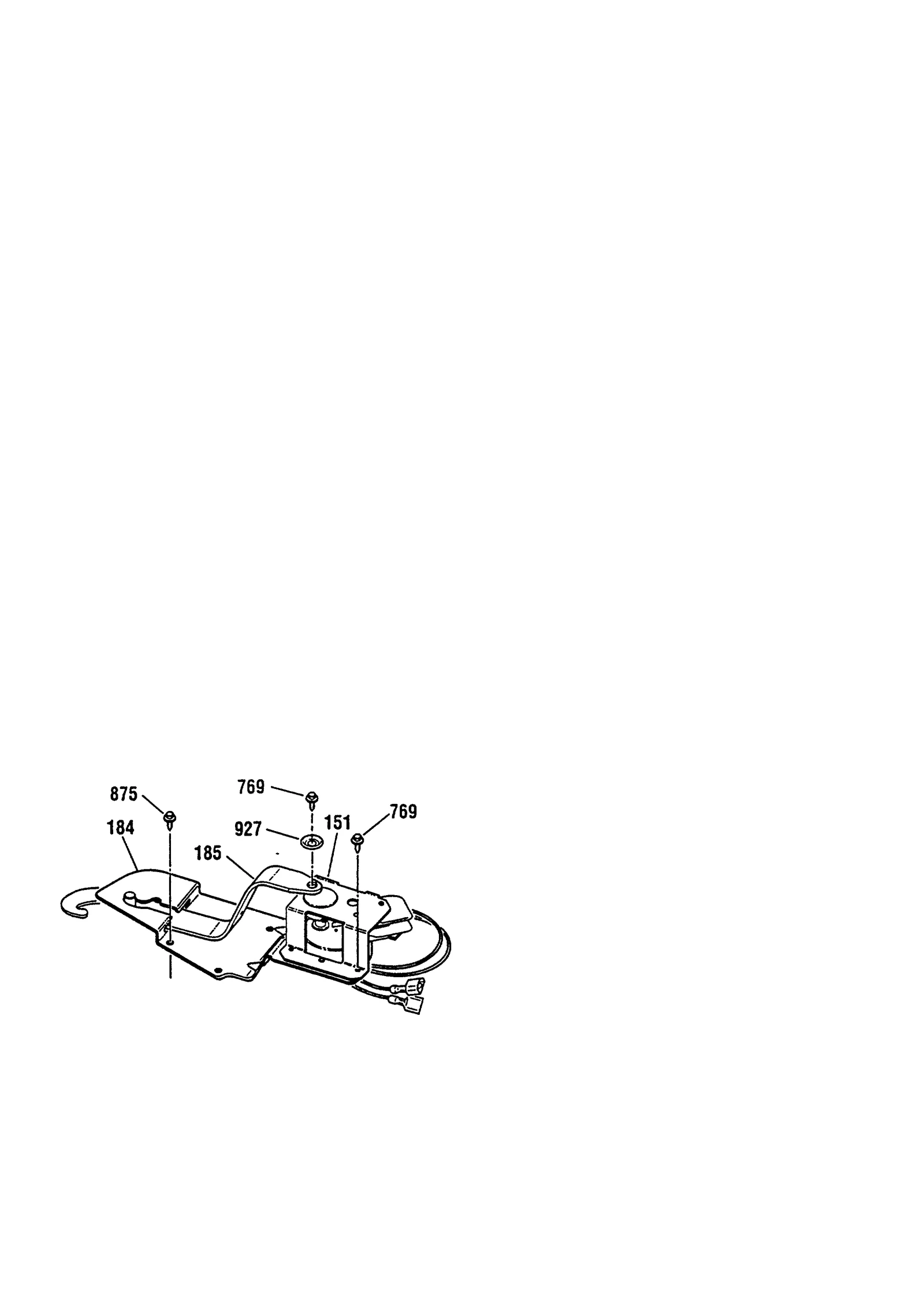

DOOR LOCK
Common parts from model GE 911.41885890 Wall Oven (Kenmore 91141885890)
1
Wall Oven Control Panel Assembly (White) GEN WB36T10168 Contact Us For Availability
1A
Control Panel GEN WB36T10167 Contact Us For Availability
8
Fan Support GEN WB02K5355 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11A
Side Ext-lt GEN WB37K5038 Contact Us For Availability
16
Oven Control GEN WB27T10058 Contact Us For Availability
38
Filler White GEN WB07K5448 Contact Us For Availability
38A
Filler Trim GEN WB07K5447 Contact Us For Availability
41
Filler Trim GEN WB34K5242 Contact Us For Availability
41A
Filler Trim GEN WB34K5241 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Trim Shield GEN WB07T10036 Contact Us For Availability
112
Ov Dr Lining GEN WB55T10017 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Oven Door Glass GEN WB57T10075 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57K5212 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
134
Door Vent Trim GEN WB07T10044 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10045 Contact Us For Availability
136
Oven Door Handle GEN WB15K10006 Contact Us For Availability
136A
Oven Door Handle GEN WB15K10005 Contact Us For Availability
140
Oven Door Frame GEN WB55T10020 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10021 Contact Us For Availability
157
Limit Switch GEN WB24K5125 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
159
Wall Oven Cooling Fan Limit Switch GEN WB24K5142 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
202
Frame GEN WB63T10015 Contact Us For Availability
205
Screw Fan Housing GEN WB06K5041 Contact Us For Availability
210
Control Panel GEN WB36T10034 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
215
Wire Cover GEN WB34K5224 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer GEN WB02K5387 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
241A
Oven Rack GEN WB48K5022 Contact Us For Availability
251
Range Bake Element GEN WB44T10006 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Trim GEN WB07T10049 Contact Us For Availability
262A
Trim GEN WB07T10050 Contact Us For Availability
262B
Trim GEN WB07T10051 Contact Us For Availability
262C
Trim GEN WB07T10052 Contact Us For Availability
264
Trim Vent Bl GEN WB07K5466 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
269
Heater Fan Motor GEN WB26X5069 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
514
Fan Cover GEN WB26T10002 Contact Us For Availability
534
Oven Body Support GEN WB26K5062 Contact Us For Availability
537
Fan Cover GEN WB26T10001 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5540 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
691A
Trim Screw GEN WB01K5192 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
832
Trim Screw GEN WB01K1158 Contact Us For Availability
832
Screw (White) GEN WB01K5161 Contact Us For Availability
832A
Screw (Black) GEN WB01X1317 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
939
Washer GEN WB01K5198 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Installation GEN 31-10125 Contact Us For Availability
999A
Lck Mtr Harn GEN WB18K5491 Contact Us For Availability
999A
MINI MANUAL W/WIRE DIAGRAM GEN 31-13635 Contact Us For Availability
999B
Wire Harness GEN WB18T10036 Contact Us For Availability
999B
Owner's Manual GEN SR10410 Contact Us For Availability
999C
WIRE HARNESS - MAIN (LOWER) GEN WB18T10035 Contact Us For Availability
999C
Parts List GEN 31-13606 Contact Us For Availability
× ![]()
