Model GE 911.41489995 30" Built-In Oven with Microwave (Kenmore 91141489995) – Common Parts & Diagrams
MICROWAVE BODY
MICROWAVE DOOR

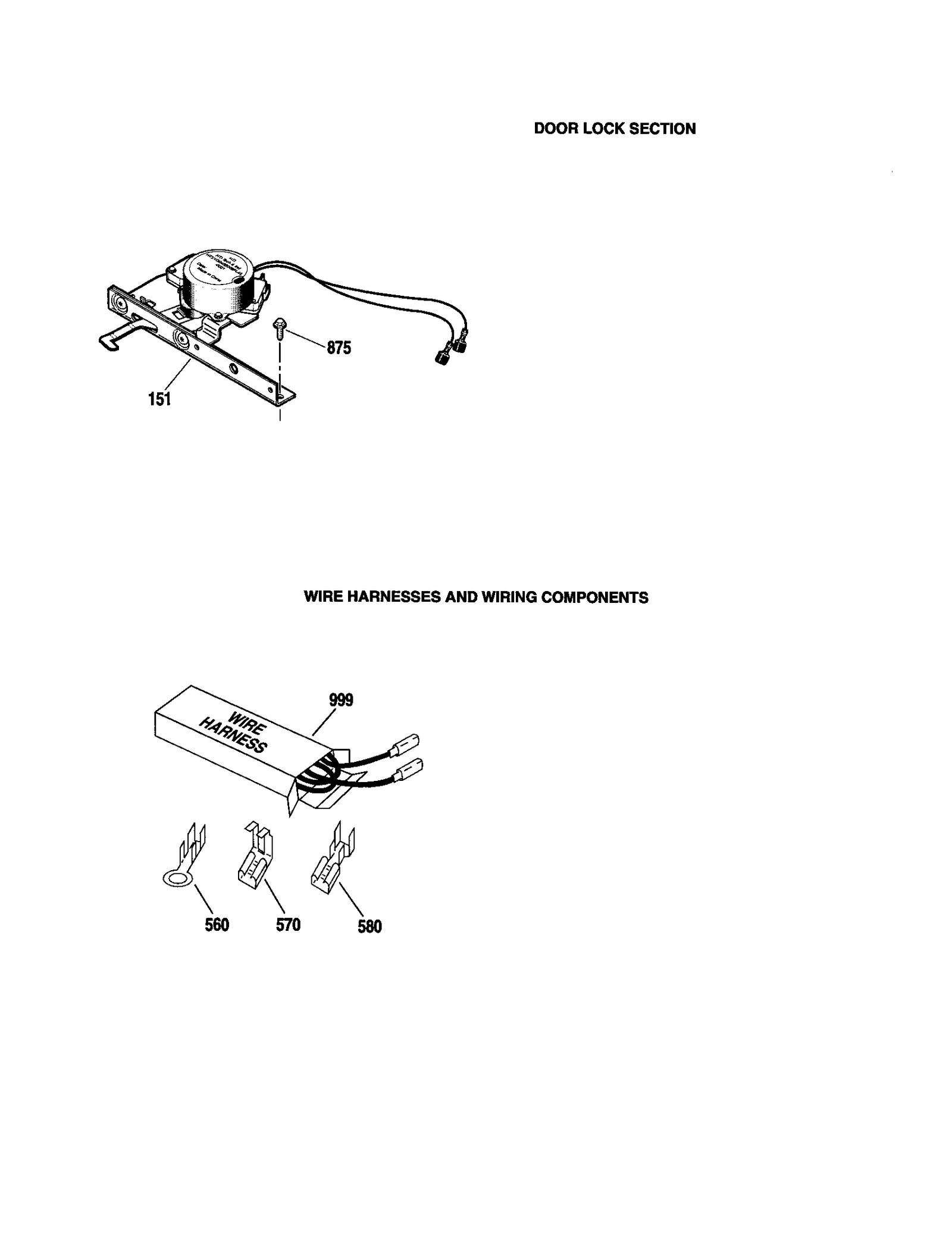

DOOR LOCK/WIRE HARNESS

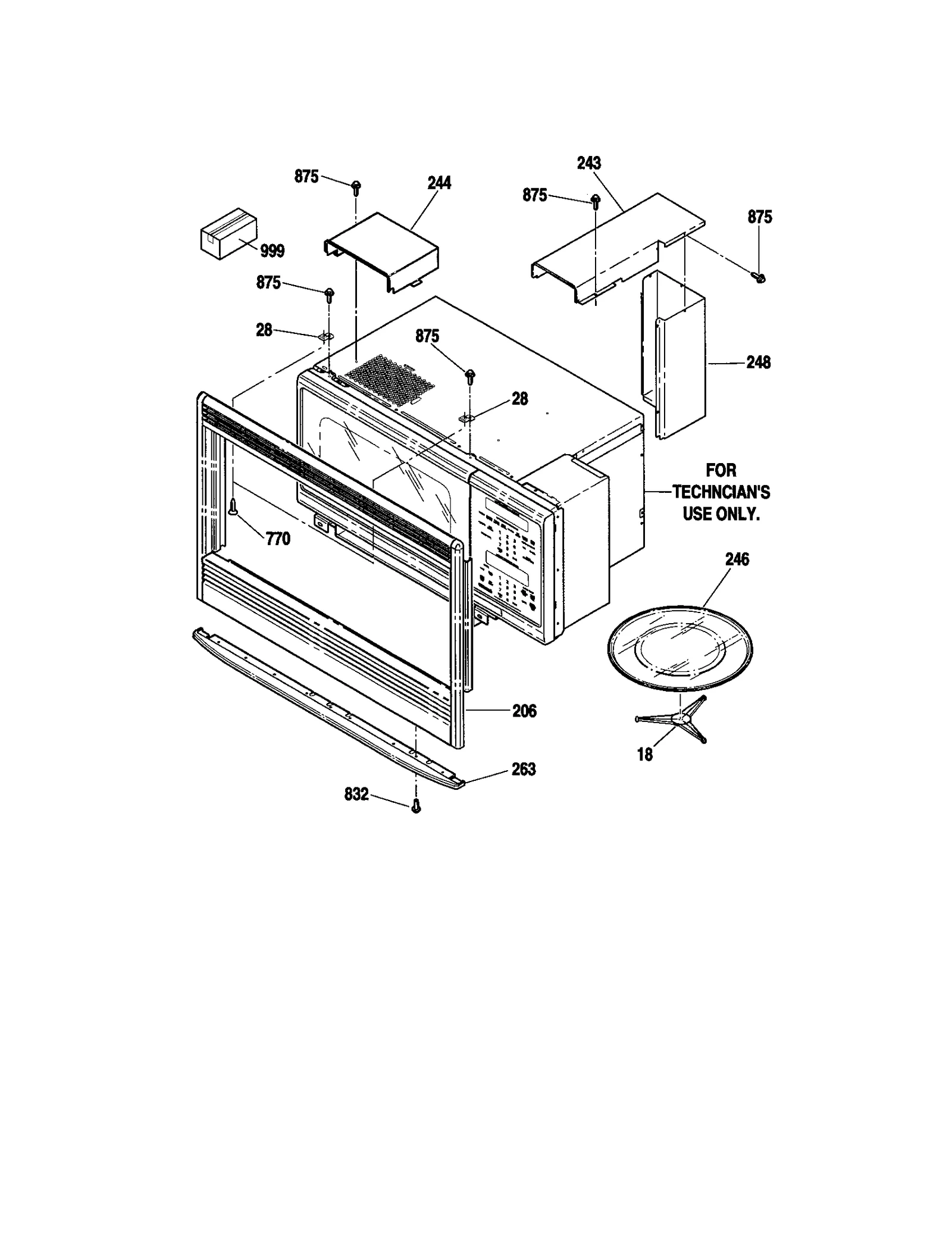

MICROWAVE ENCLOSURES

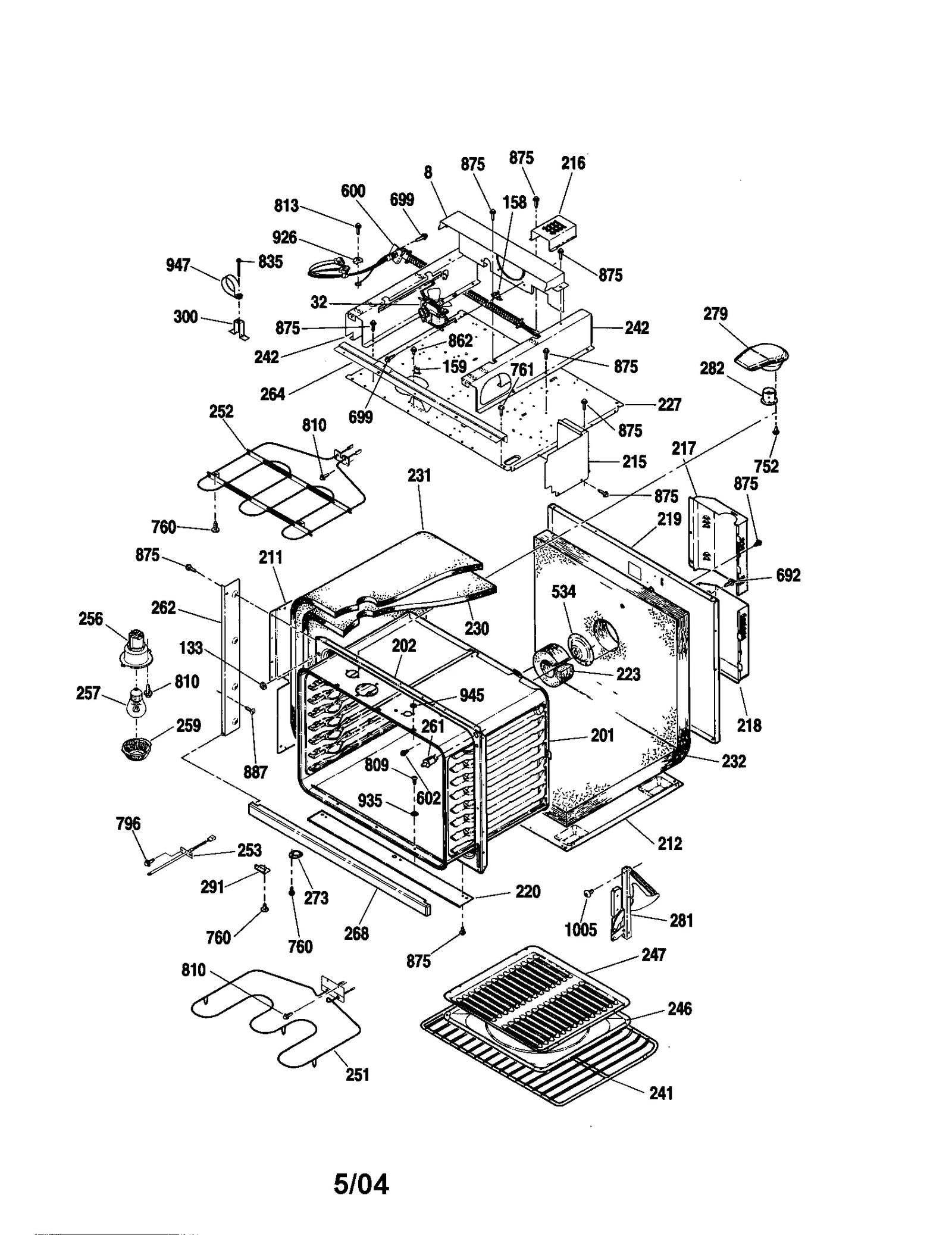

BODY

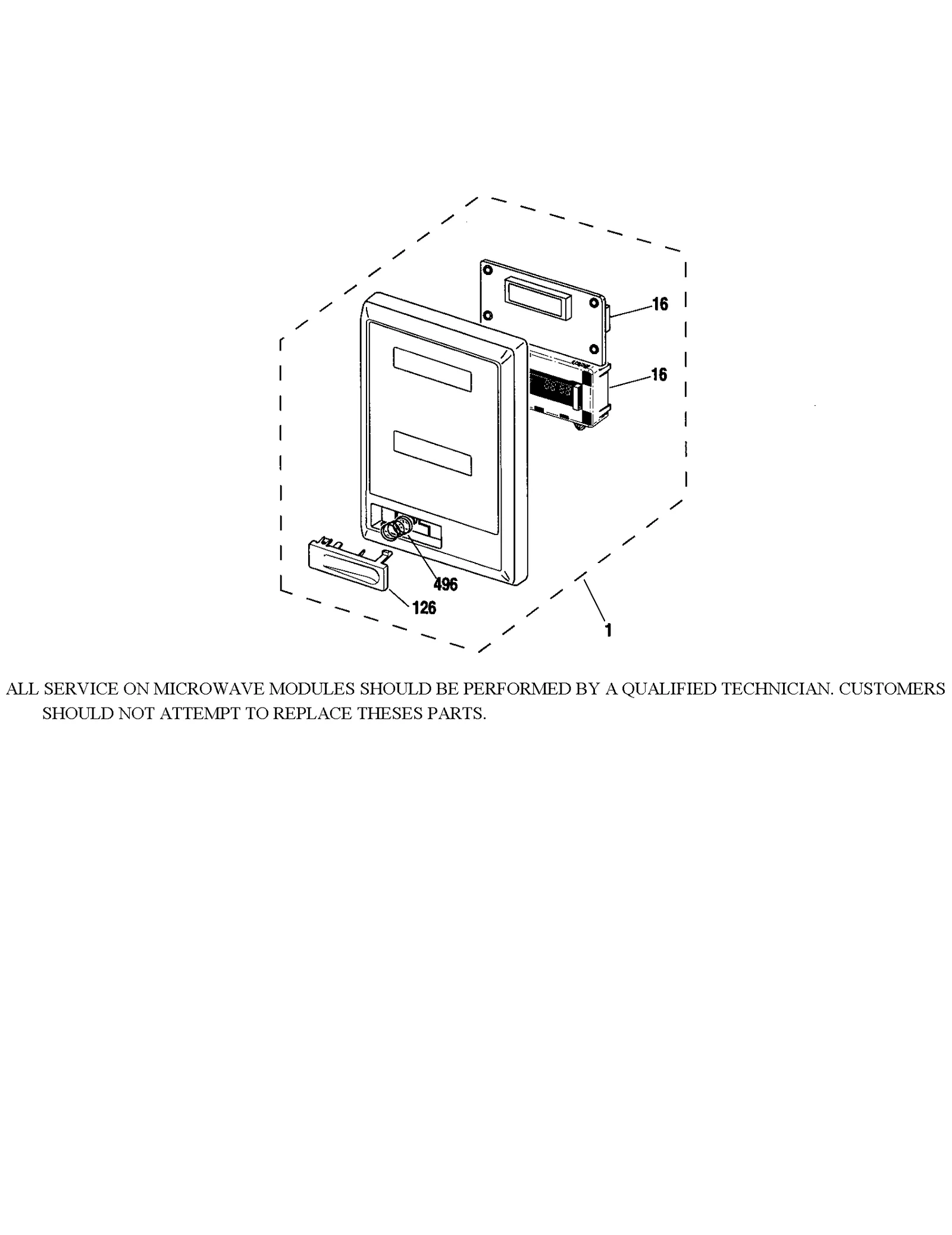

MICROWAVE CONTROL PANEL

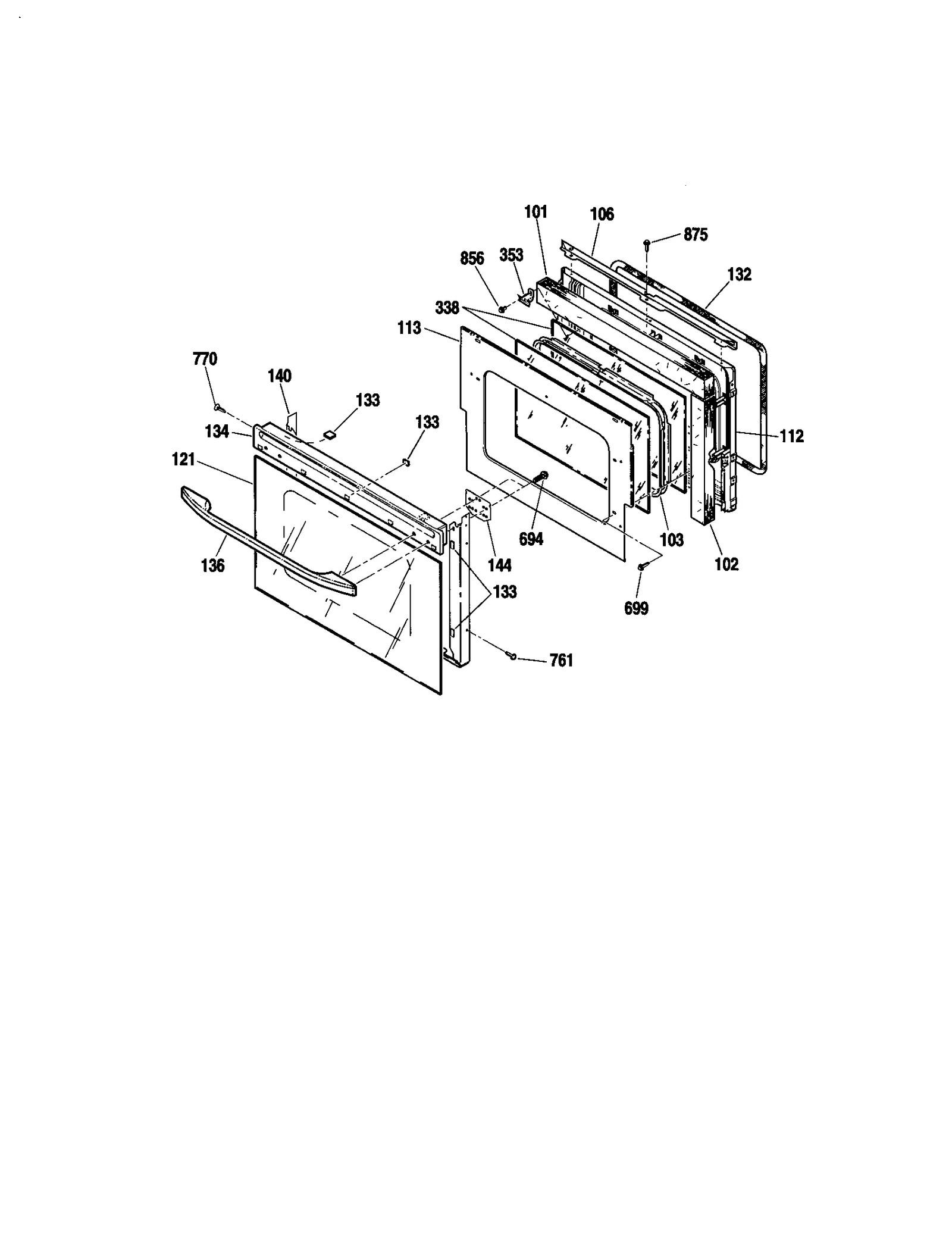

DOOR
Common parts from model GE 911.41489995 30" Built-In Oven with Microwave (Kenmore 91141489995)
1
Console (White) GEN WB36X10097 Contact Us For Availability
1A
Console GEN WB36X10095 Contact Us For Availability
8
Fan Support GEN WB02T10020 Contact Us For Availability
16
Oven Control GEN WB27T10319 Contact Us For Availability
16A
Control Board GEN WB27T10112 Contact Us For Availability
18
Assy-guide R GEN WB06X10168 Contact Us For Availability
28
Bracket Support GEN WB02T10033 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Filler Trim Shield GEN WB07T10138 Contact Us For Availability
112
Ov Dr Lining GEN WB55T10017 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Oven Door Glass GEN WB57T10171 Contact Us For Availability
121A
Oven Glass GEN WB57T10173 Contact Us For Availability
126
Button-black GEN WB03X0885 Contact Us For Availability
126A
Button-white GEN WB03X0887 Contact Us For Availability
134
Door Vent Trim GEN WB07T10044 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10045 Contact Us For Availability
136
Oven Door Handle GEN WB15K10006 Contact Us For Availability
136A
Oven Door Handle GEN WB15K10005 Contact Us For Availability
140
Oven Door Frame GEN WB55T10078 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10080 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
159
Limit Switch GEN WB24T10045 Contact Us For Availability
201
Oven Wrapper GEN WB63T10068 Contact Us For Availability
202
Frame GEN WB63T10064 Contact Us For Availability
206
Trim Assembly (White) GEN WB07T10103 Contact Us For Availability
206A
Wall Oven Door Outer Panel GEN WB07T10104 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
BTM. INSULATION RETAINER GEN WB02K10047 Contact Us For Availability
215
Cover Wire S GEN WB34T10009 Contact Us For Availability
216
Wire Cover GEN WB34K5234 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
BACK INSULATION RETAINER GEN WB56X10189 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Insulation Retainer GEN WB02T10109 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
242
Slide Rail-r GEN WB02K5384 Contact Us For Availability
242A
Slide Rail-l GEN WB02K5385 Contact Us For Availability
243
Air Duct Top GEN WB34T10010 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
246
Glass Tray GEN WB49X0690 Contact Us For Availability
246
Grid Broiler GEN WB48T10017 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Vert Sde Trm GEN WB07K5517 Contact Us For Availability
262A
Vert Sde Trm GEN WB07K5518 Contact Us For Availability
262B
Sde Trm-rt GEN WB07K5416 Contact Us For Availability
262C
Sde Trm-lt GEN WB07K5417 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10179 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Condenser Kit GEN WB50T10039 Contact Us For Availability
281
Range Oven Door Hinge Assembly, Right GEN WB14T10009 Contact Us For Availability
281A
Hinge Asm-lt GEN WB14T10010 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
Spacer GEN WB02X9896 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
582
Microwave High-Voltage Transformer GEN WB27X10189 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
835
Screw-10-32 GEN WB01X1123 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
947
Cable Clip GEN WB01K5043 Contact Us For Availability
999
Wire Harness GEN WB18T10109 Contact Us For Availability
999
Installation Instructions GEN 31-10308 Contact Us For Availability
999A
Main Wire Harness GEN WB18T10204 Contact Us For Availability
999A
Wall Oven Owner's Manual GEN 31-13682 Contact Us For Availability
999B
Wire Harness GEN WB18T10056 Contact Us For Availability
999B
MANUAL MINI & WD ASM GEN 31-13666 Contact Us For Availability
999C
Oven Owner's Manual GEN SR10426 Contact Us For Availability
999D
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
999D
Parts List GEN 31-13914 Contact Us For Availability
× ![]()
