Model GE 911.41489890 Built-In Oven with Microwave (Kenmore 91141489890) – Common Parts & Diagrams
BODY
ENCLOSURE

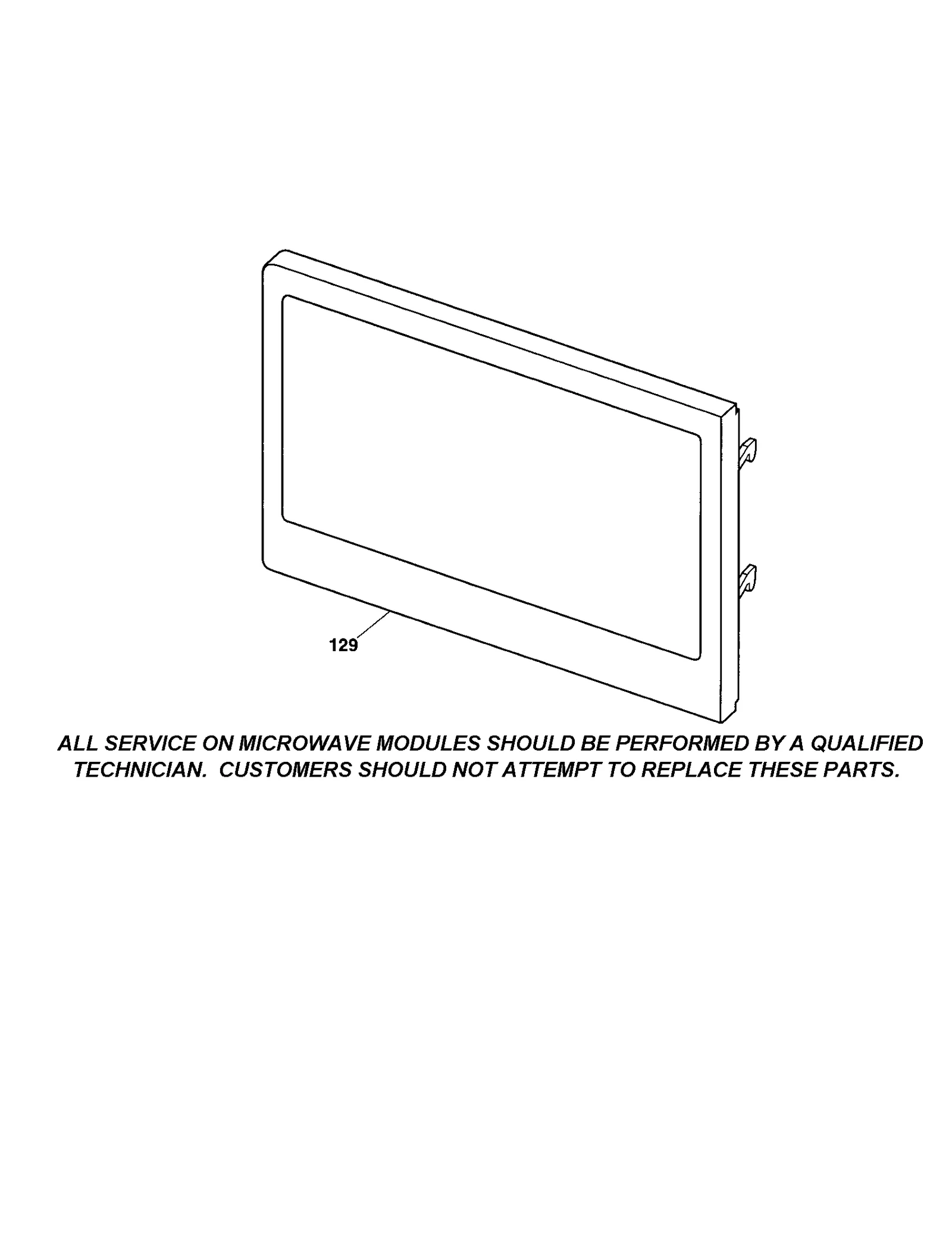

MICROWAVE DOOR

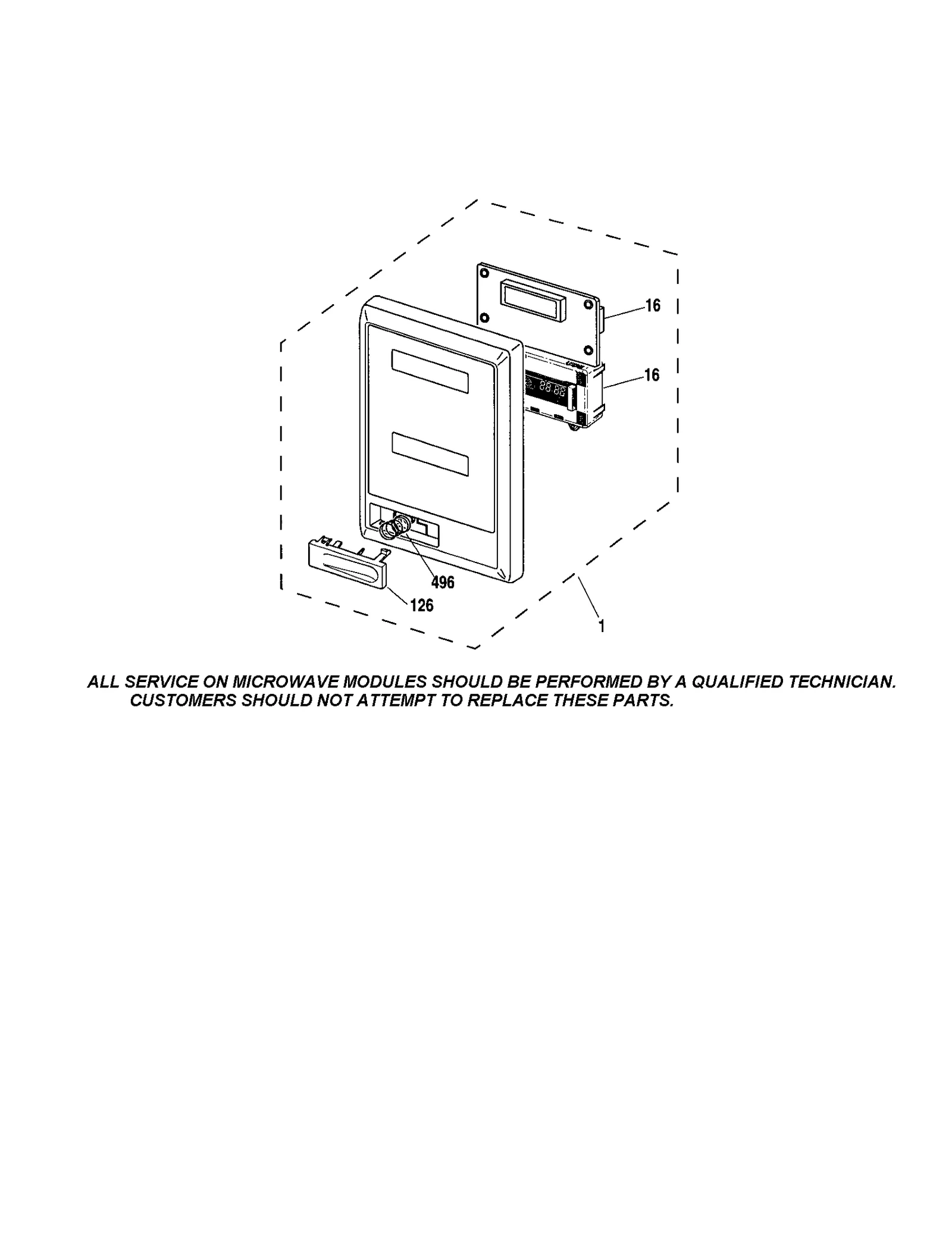

MICROWAVE CONTROL PANEL

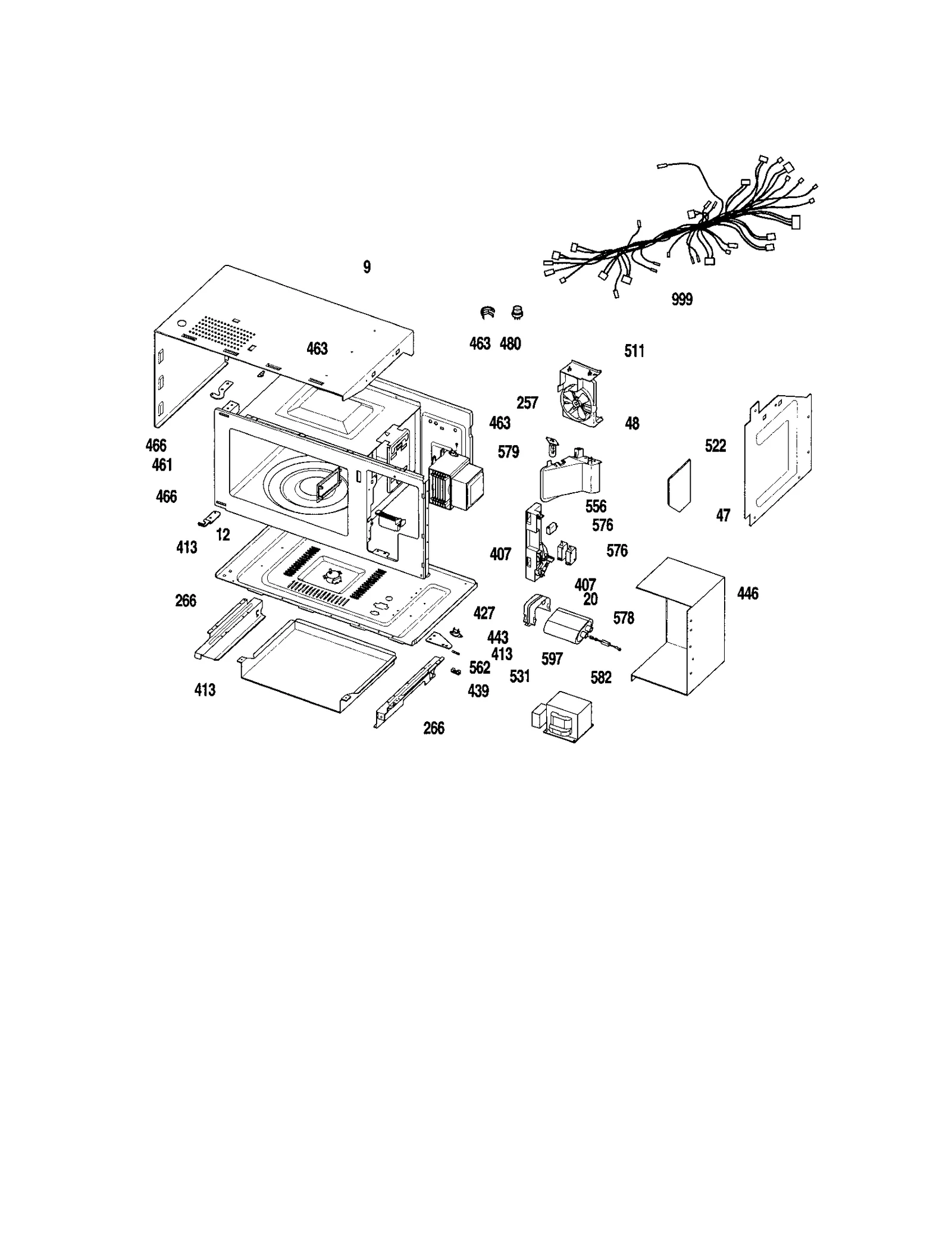

MICROWAVE BODY

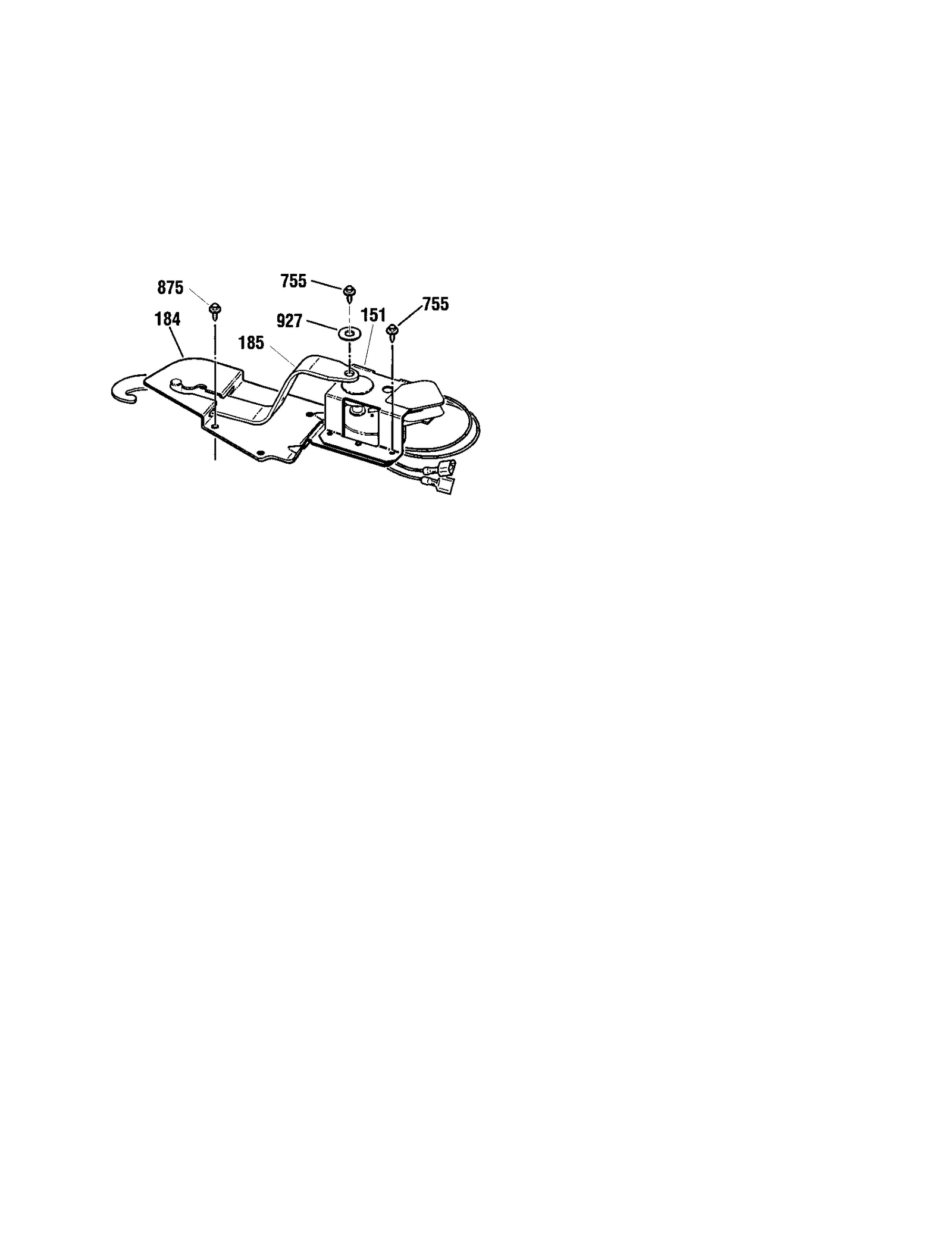

DOOR LOCK

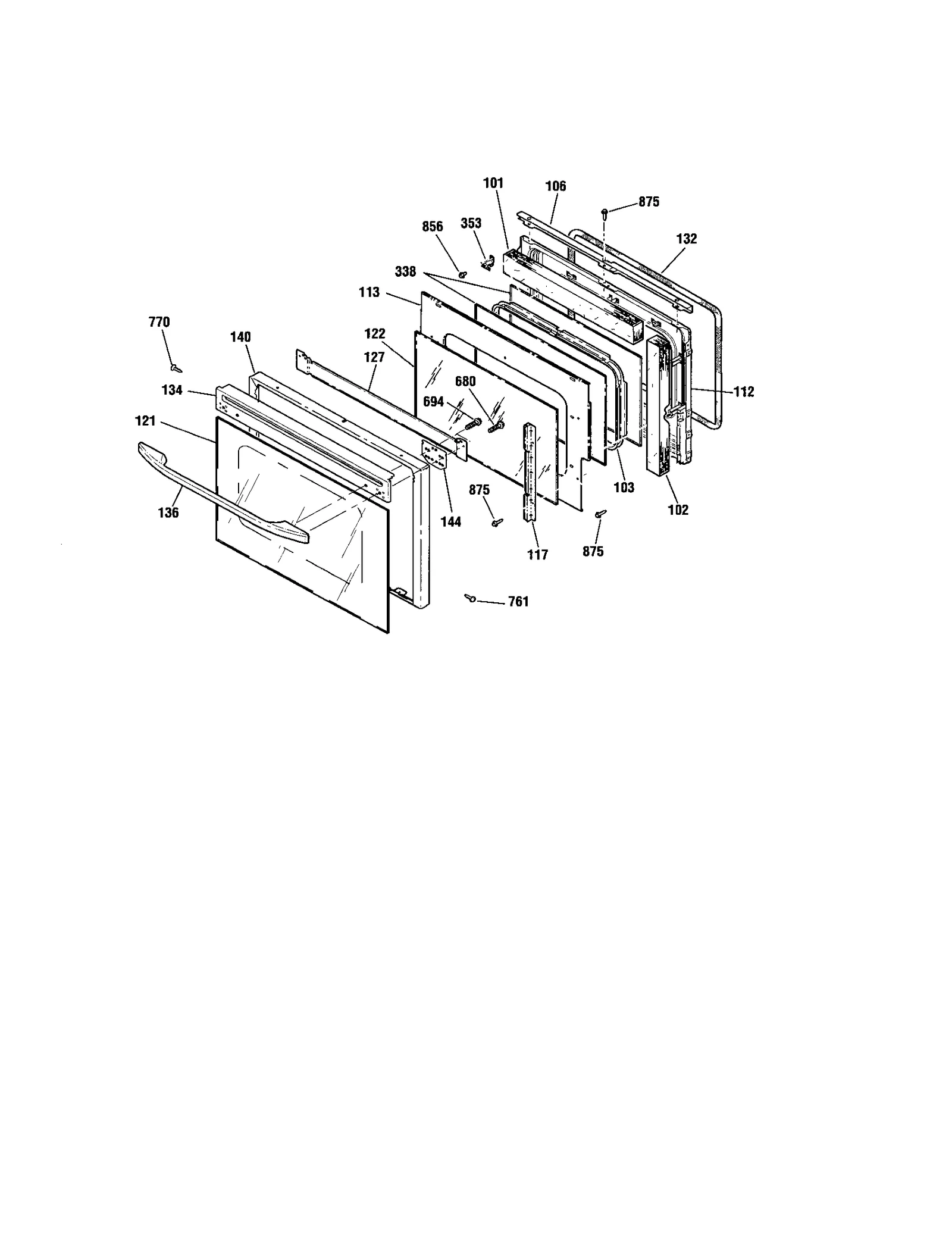

DOOR

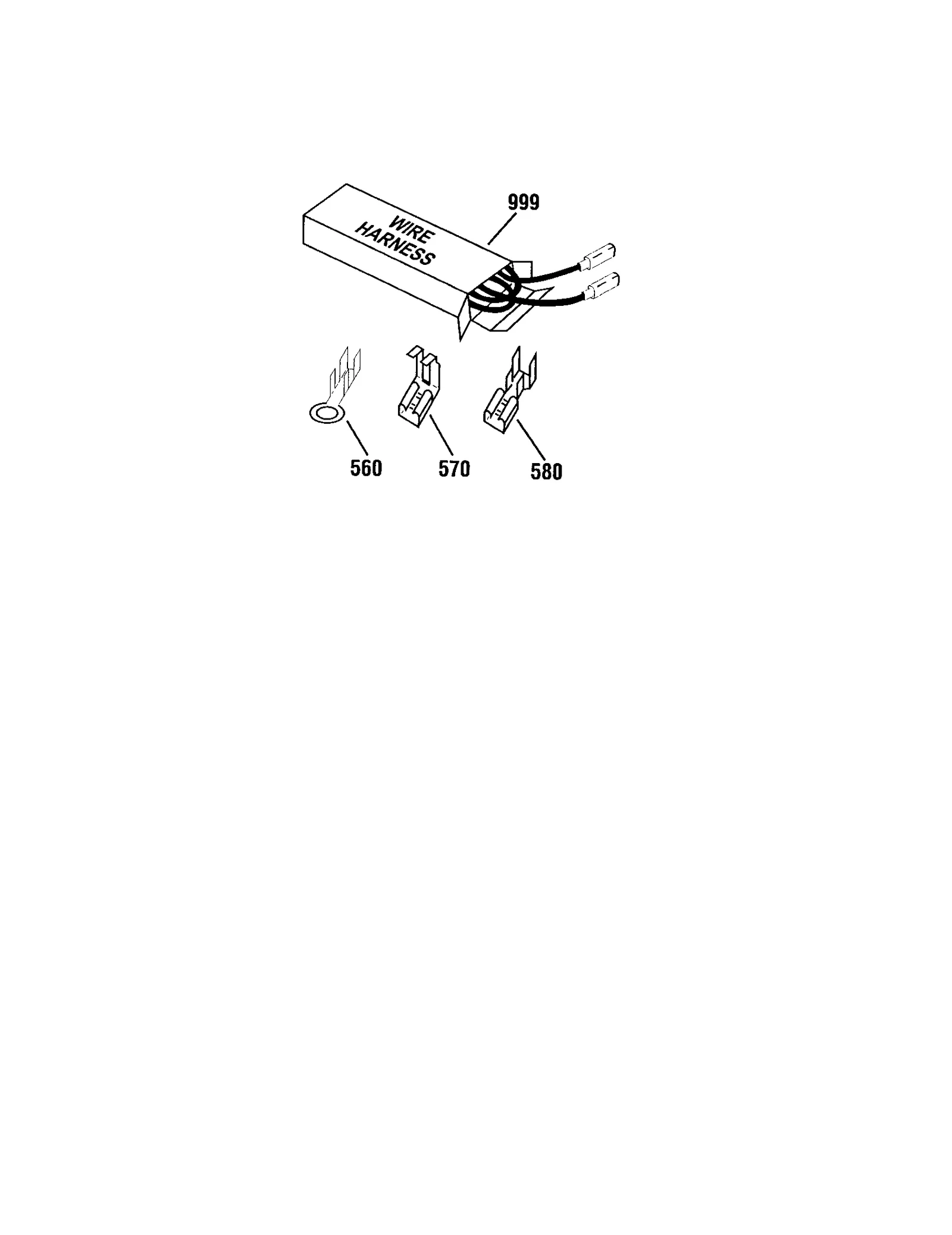

WIRE HARNESSES/WIRING COMPONENTS
Common parts from model GE 911.41489890 Built-In Oven with Microwave (Kenmore 91141489890)
1
Console (White) GEN WB36X10097 Contact Us For Availability
1A
Console GEN WB36X10095 Contact Us For Availability
9
Out Drive Frame GEN WB63T10039 Contact Us For Availability
12
"cover,wave G" GEN WB06X0538 Contact Us For Availability
16
Oven Control Electronic Range Control GEN WB27T10089 Contact Us For Availability
16A
Control Board GEN WB27T10112 Contact Us For Availability
18
Assy-guide R GEN WB06X10168 Contact Us For Availability
20
Bracket GEN WB06X0537 Contact Us For Availability
28
Bracket Support GEN WB02T10033 Contact Us For Availability
47
DUCT RIGHT - A GEN WB34T10016 Contact Us For Availability
48
Air Cover GEN WB06X0535 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Trim Shield GEN WB07T10036 Contact Us For Availability
112
Ov Dr Lining GEN WB55T10017 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Oven Door Glass GEN WB57T10075 Contact Us For Availability
121A
Oven Door Outer Glass GEN WB57K5281 Contact Us For Availability
126
Button-black GEN WB03X0885 Contact Us For Availability
126A
Button-white GEN WB03X0887 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
129
Complete Door GEN WB55T10033 Contact Us For Availability
129A
Oven Door Assembly (Black) GEN WB55T10036 Contact Us For Availability
132
Wall Oven Door Seal GEN WB32K5039 Contact Us For Availability
133
Felt Pad GEN WB01K5115 Contact Us For Availability
134
Door Vent Trim GEN WB07T10044 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10045 Contact Us For Availability
136
Oven Door Handle GEN WB15K10006 Contact Us For Availability
136A
Oven Door Handle GEN WB15K10005 Contact Us For Availability
140
Oven Door Frame GEN WB55T10020 Contact Us For Availability
140A
Oven Door Frame GEN WB55T10021 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
206
Trim Assembly (White) GEN WB07T10103 Contact Us For Availability
206A
Wall Oven Door Outer Panel GEN WB07T10104 Contact Us For Availability
243
Air Duct Top GEN WB34T10010 Contact Us For Availability
244
Air Duct-lt GEN WB38K5056 Contact Us For Availability
248
Duct Air Bac GEN WB34T10013 Contact Us For Availability
257
Microwave Light Bulb GEN WB08X10012 Contact Us For Availability
262A
Vert Sde Trm GEN WB07K5518 Contact Us For Availability
262B
Sde Trm-rt GEN WB07K5416 Contact Us For Availability
262C
Sde Trm-lt GEN WB07K5417 Contact Us For Availability
263
I-brow Trim GEN WB07K5433 Contact Us For Availability
263A
I-brow Trim GEN WB07K5435 Contact Us For Availability
264
Trim Vent Bl GEN WB07K5466 Contact Us For Availability
266
Bkt Slide-a: GEN WB63X10013 Contact Us For Availability
266A
Slide Bracket GEN WB63X10016 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Vent Box GEN WB38K5028 Contact Us For Availability
281
Hinge Assembly GEN WB14K5014 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
407
Lever Switch GEN WB10X10015 Contact Us For Availability
407A
Latch Hook GEN WB10X10016 Contact Us For Availability
413
Oven Base Plate GEN WB63X10011 Contact Us For Availability
413A
Base Bracket GEN WB63X10015 Contact Us For Availability
427
Microwave Turntable Motor GEN WB26X0194 Contact Us For Availability
439
Fuse Holder GEN WB06X10050 Contact Us For Availability
443
Microwave Cooling Fan Thermostat GEN WB24X10034 Contact Us For Availability
446
DUCT RIGHT - B GEN WB34T10017 Contact Us For Availability
461
Cavity GEN WB63X10012 Contact Us For Availability
463A
Therm-magntr GEN WB21X0536 Contact Us For Availability
463B
Range Safety Thermostat GEN WB24X10025 Contact Us For Availability
466
Lower Hinge GEN WB10X10017 Contact Us For Availability
466A
Hinge GEN WB14X0211 Contact Us For Availability
496
Microwave Door Release Button Spring GEN WB09X10009 Contact Us For Availability
511
Microwave Cooling Fan Motor GEN WB26X10026 Contact Us For Availability
522
Cushion GEN WB35X10001 Contact Us For Availability
531
Cushion High-Voltage Transformer GEN WB35X10002 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
582
Microwave High-Voltage Transformer GEN WB27X10189 Contact Us For Availability
600
Wall Oven Wire Harness GEN WB18K5628 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
999
Installation Instructions GEN 31-10308 Contact Us For Availability
999
Wire Harness GEN WB18T10044 Contact Us For Availability
999A
MINI MANUAL AND WIRE DIAGRAM ASSEMBLY GEN 31-13667 Contact Us For Availability
999A
Wire Harness GEN WB18T10056 Contact Us For Availability
999B
MANUAL MINI & WD ASM GEN 31-13666 Contact Us For Availability
999B
WIRE HARNESS - M/W GEN WB18T10046 Contact Us For Availability
999C
Oven Owner's Manual GEN SR10426 Contact Us For Availability
999D
Parts List GEN 31-13674 Contact Us For Availability
× ![]()
