Model Whirlpool 8ET20NKXFW01 REFRIGERATOR – Common Parts & Diagrams
05 - SHELF, LIT/OPTIONAL
01 - CABINET

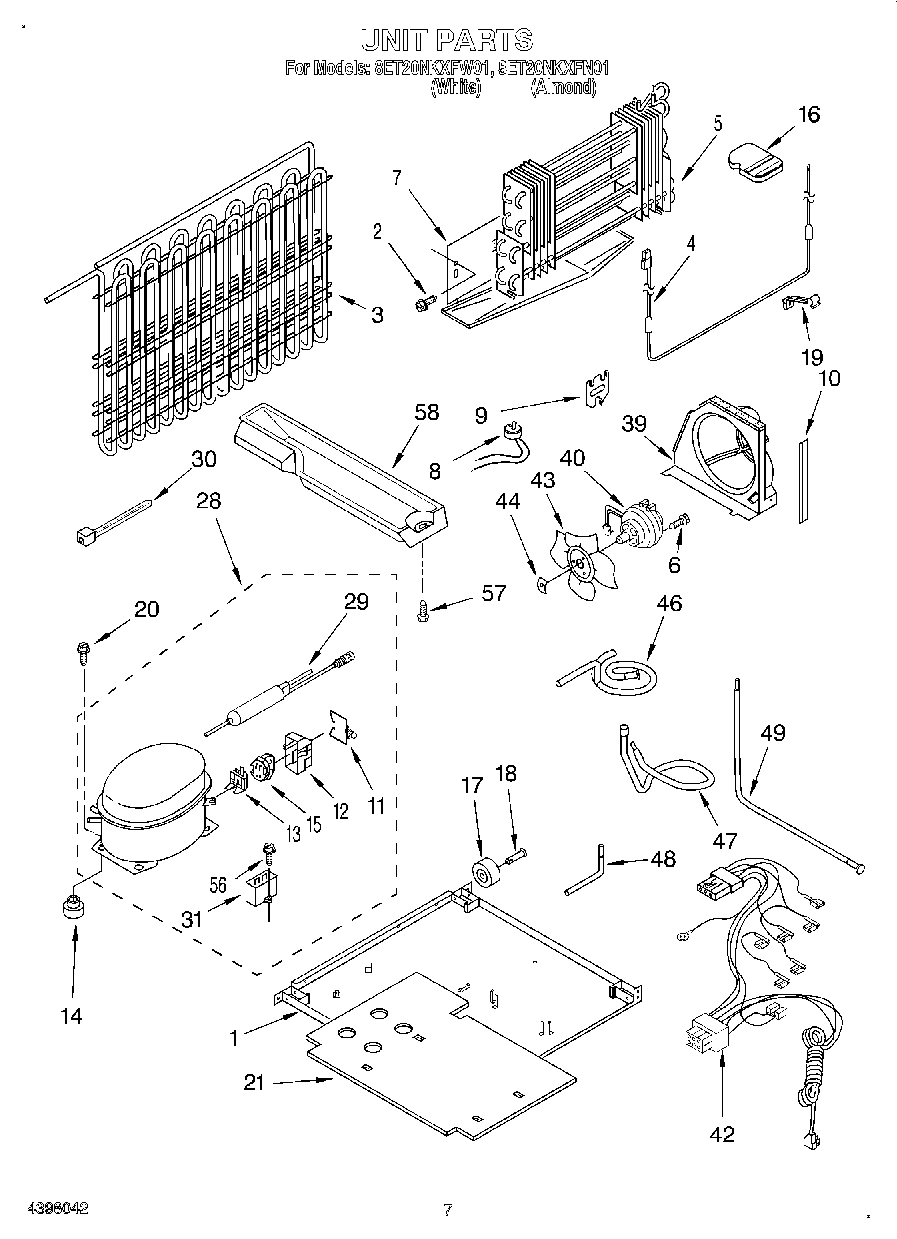

04 - UNIT

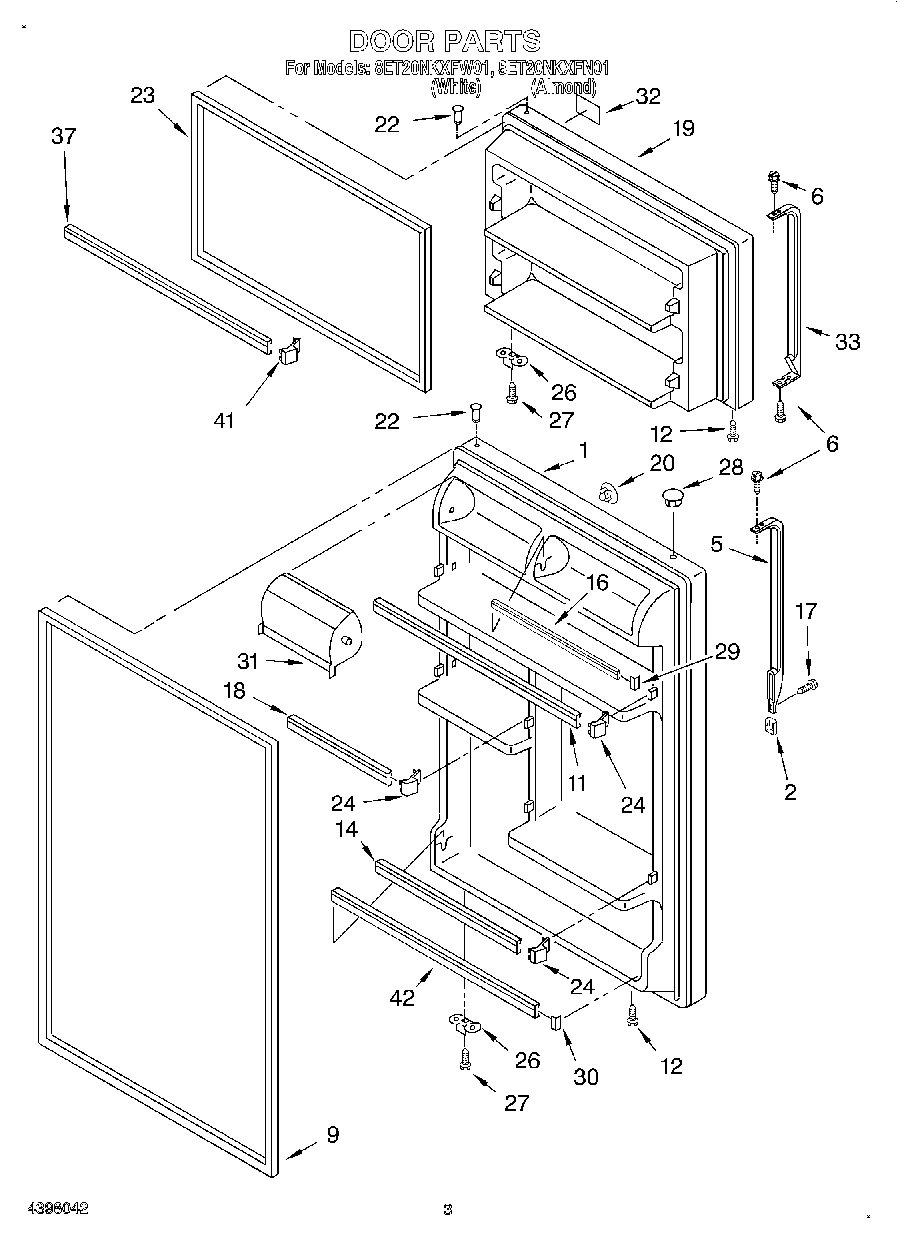

02 - DOOR

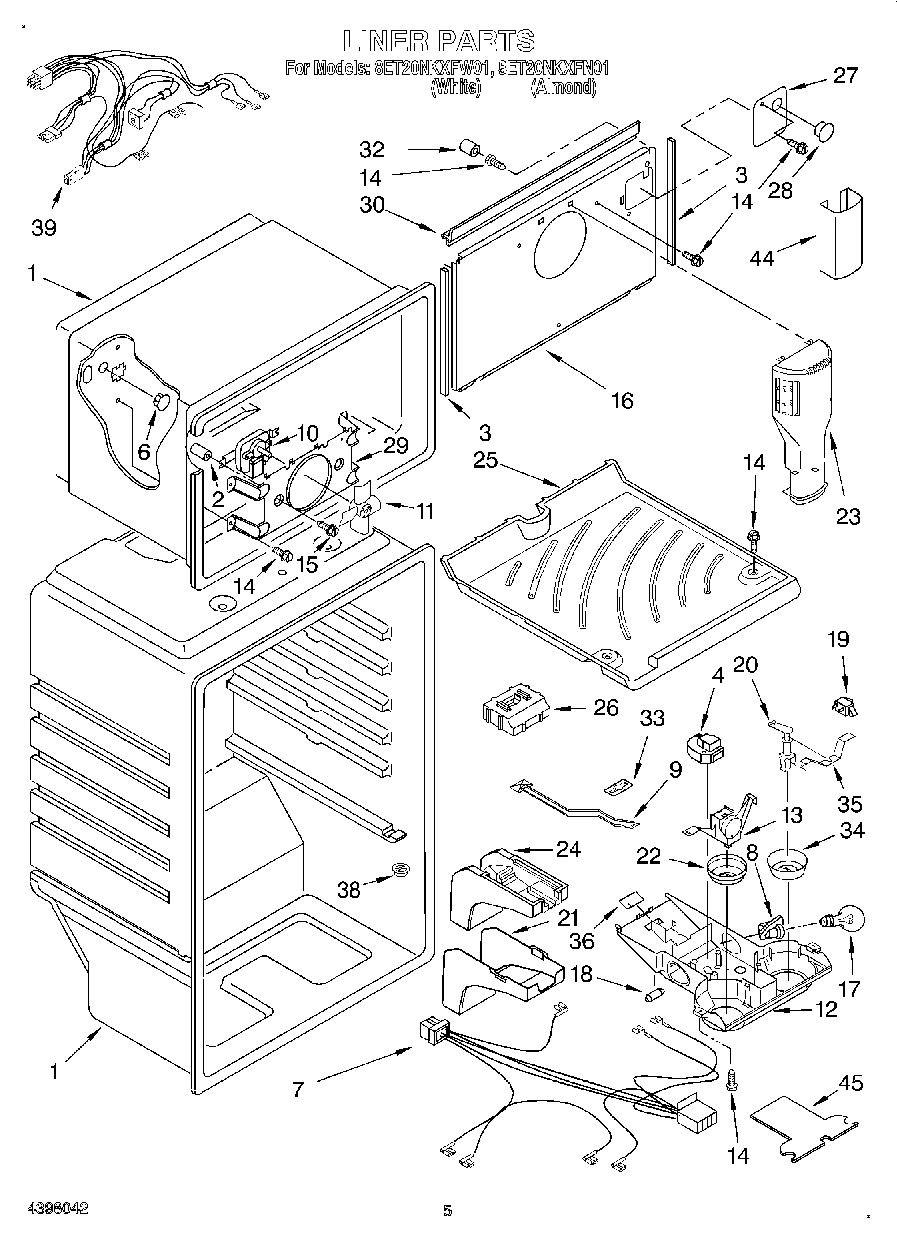

03 - LINER
Common parts from model Whirlpool 8ET20NKXFW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Wh WPL 2183946 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Al WPL 2183947 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI19049A5 Contact Us For Availability
2
Handle, Trim (Almond) WPL 2193353N Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
4
Screw Support WPL 2189314 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Handle (Almond) WPL 2193351N Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Trim, Door Shelf WPL 2195944 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever (2) WPL 2195398 Contact Us For Availability
16
Cover-Evaporator WPL 2189823 Contact Us For Availability
18
Trim, Door Shelf WPL 2195945 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2184400 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Cover, Unit WPL 2198740 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Floor, Freezer WPL 2184617 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
32
Nameplate (White) WPL 2175383 Contact Us For Availability
32
Nameplate (Almond) WPL 2175384 Contact Us For Availability
33
Handle (Almond) WPL 2193350N Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
39
Wire Assembly, F.C. WPL 2195656 Contact Us For Availability
42
Wire Assy. Unit WPL 2189997 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Sleeve WPL 2179712 Contact Us For Availability
45
Shield WPL 2190519 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,24,29,30, 3 WPL 2182576 Contact Us For Availability
× ![]()
