Model Whirlpool 8ET20NKXDW01 REFRIGERATOR – Common Parts & Diagrams
04 - UNIT
01 - CABINET

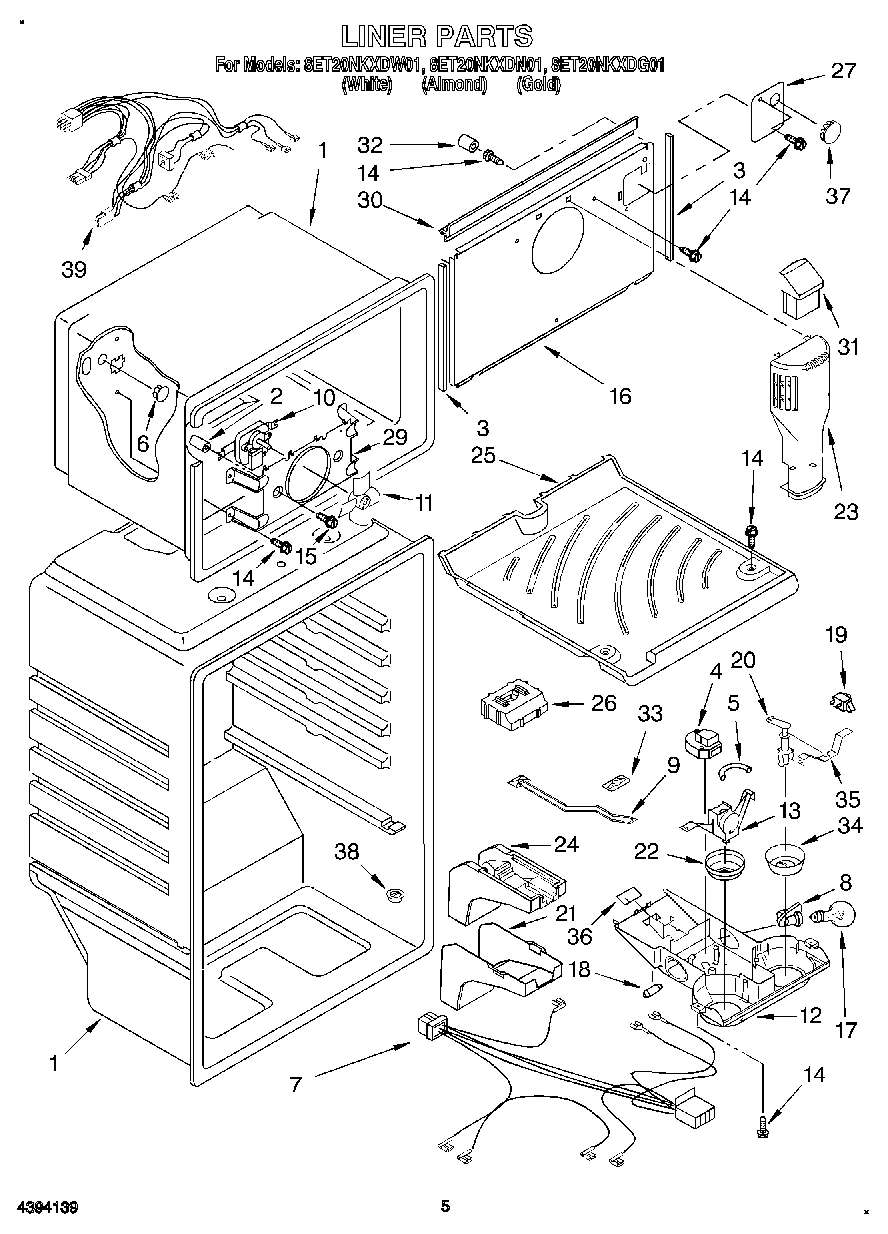

03 - LINER

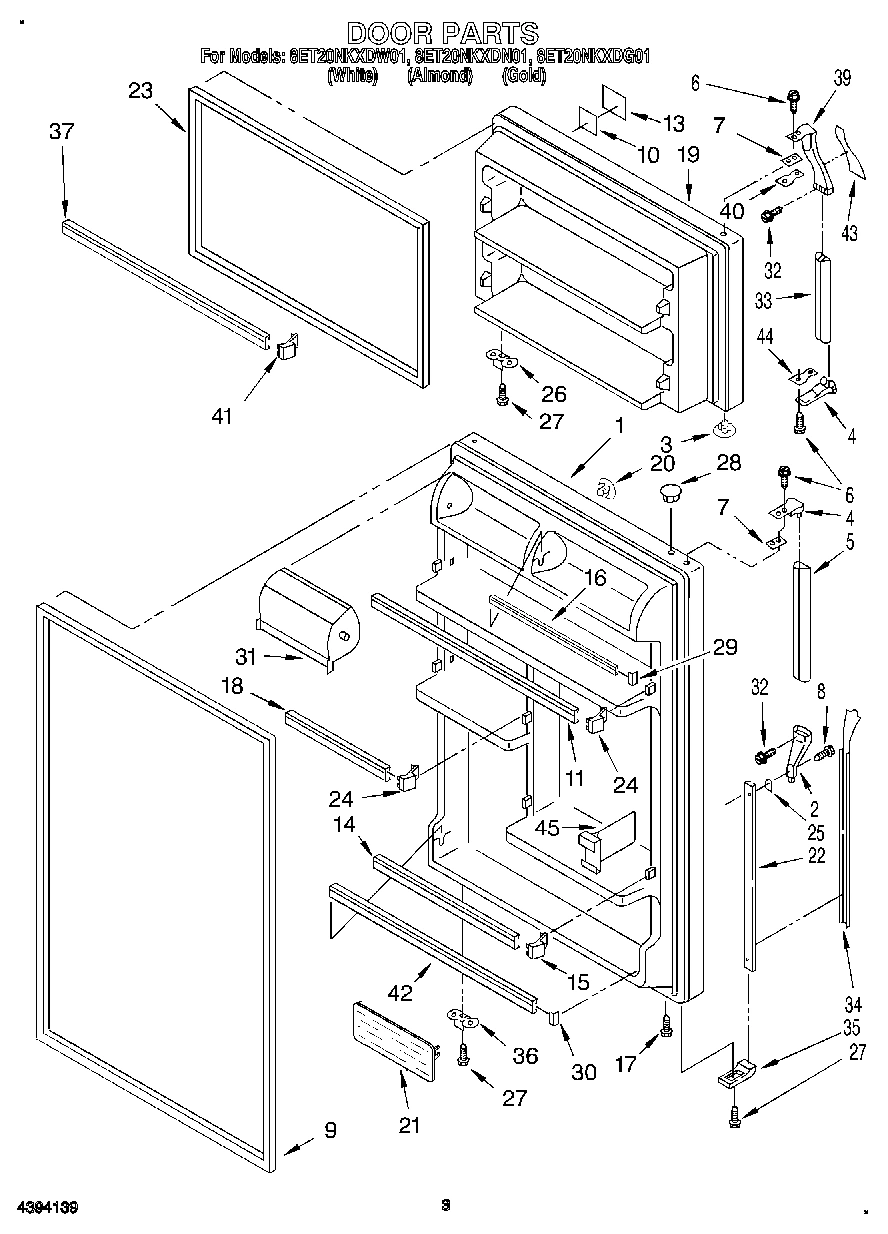

02 - DOOR

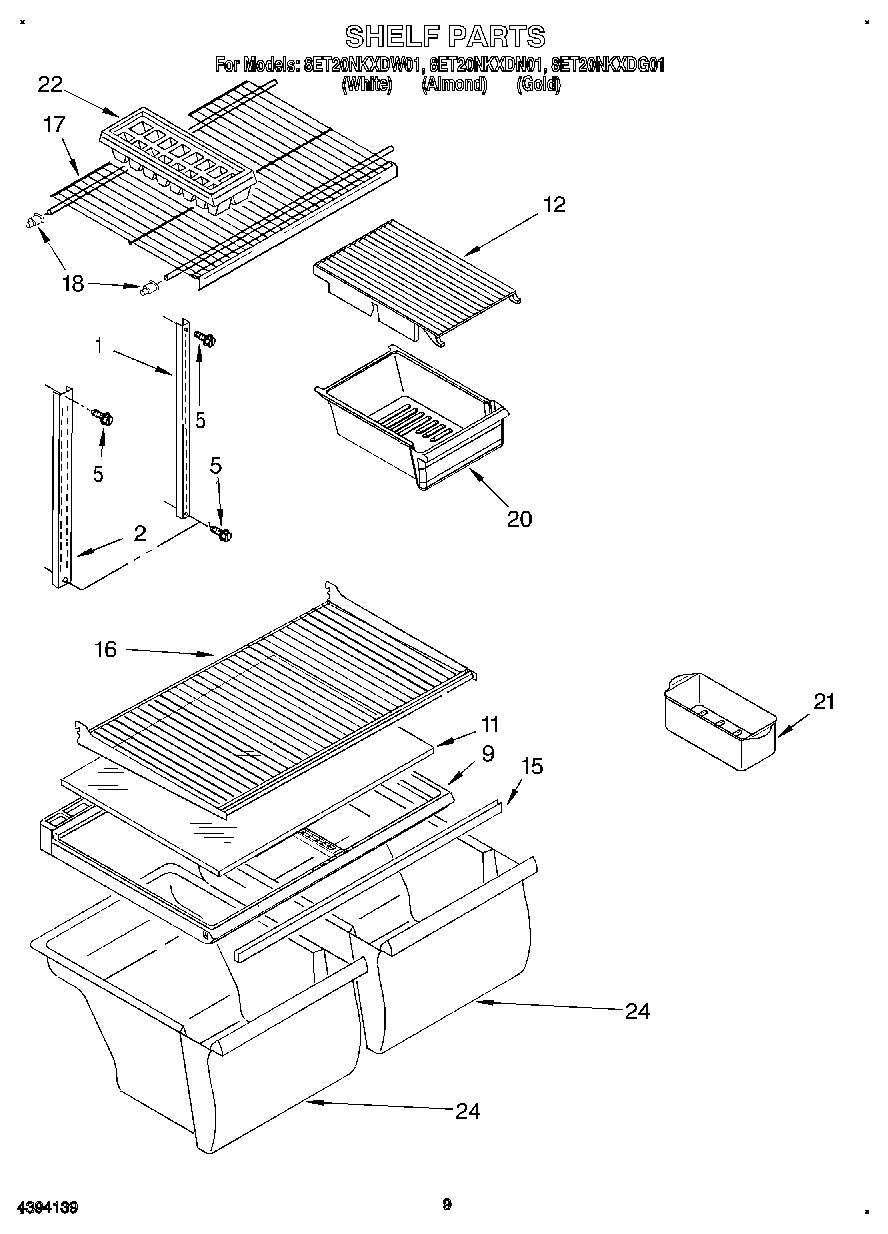

05 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool 8ET20NKXDW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143827A Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (White) WPL 2159276 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Almond) WPL 2159277 Contact Us For Availability
1
Refrigerator Door (Includes Item 9) (Gold) WPL 2170453 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
2
End Cap, Center WPL 1109189 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
5
Handle, Center (Gold) WPL 1120781 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Handle Center (Almond) WPL 943068 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Tape WPL 991259 Contact Us For Availability
11
Trim, Door Shelf WPL 2171147 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
12
Cover, Meat Pan WPL 2166213 Contact Us For Availability
13
Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability
13
Nameplate (White Model) WPL 2165148 Contact Us For Availability
14
Trim-Door Shelf WPL 2171041 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Plug-Trim WPL 2156001 Contact Us For Availability
16
Cover, Evaporator WPL 2183155 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2179836 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Door WPL 2171149 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes Item 23) (White) WPL 2159273 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Almond) WPL 2159274 Contact Us For Availability
19
Freezer Door (Includes Item 23) (Gold) WPL 2170454 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Knob, Thermostat WPL 2176296 Contact Us For Availability
22
Retainer, Insert WPL 2159417 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
Door Reversal Instructions WPL 2172516 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
25
Freezer Floor WPL 2163825 Contact Us For Availability
25
Shim, Handle End (Center) WPL 935075 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Screw WPL 489022 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2170424 Contact Us For Availability
33
Handle, F.C. (Gold) WPL 2173619 Contact Us For Availability
33
Handle, F.C. (White) WPL 2173622 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
34
Insert, Handle (Gold) WPL 2159416 Contact Us For Availability
34
Insert, Handle (White WPL 2166438 Contact Us For Availability
34
WPL 2166784 WPL 2166784 Contact Us For Availability
35
Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
WPL 1105804 WPL 1105804 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Grille (Black) WPL 2182434 Contact Us For Availability
36
WPL 2159368 WPL 2159368 Contact Us For Availability
37
WPL 2171153 WPL 2171153 Contact Us For Availability
39
WPL 944163 WPL 944163 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Wire Assembly, Freezer Compartment WPL 2179823 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
WPL 935074 WPL 935074 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI143826A Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
WPL 2171148 WPL 2171148 Contact Us For Availability
43
WPL 1108828 WPL 1108828 Contact Us For Availability
43
WPL 1108830 WPL 1108830 Contact Us For Availability
43
WPL 1114390 WPL 1114390 Contact Us For Availability
44
WPL 943187 WPL 943187 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
45
WPL 2160050 WPL 2160050 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
