Model Whirlpool 8ET17NKXBN00 REFRIGERATOR – Common Parts & Diagrams

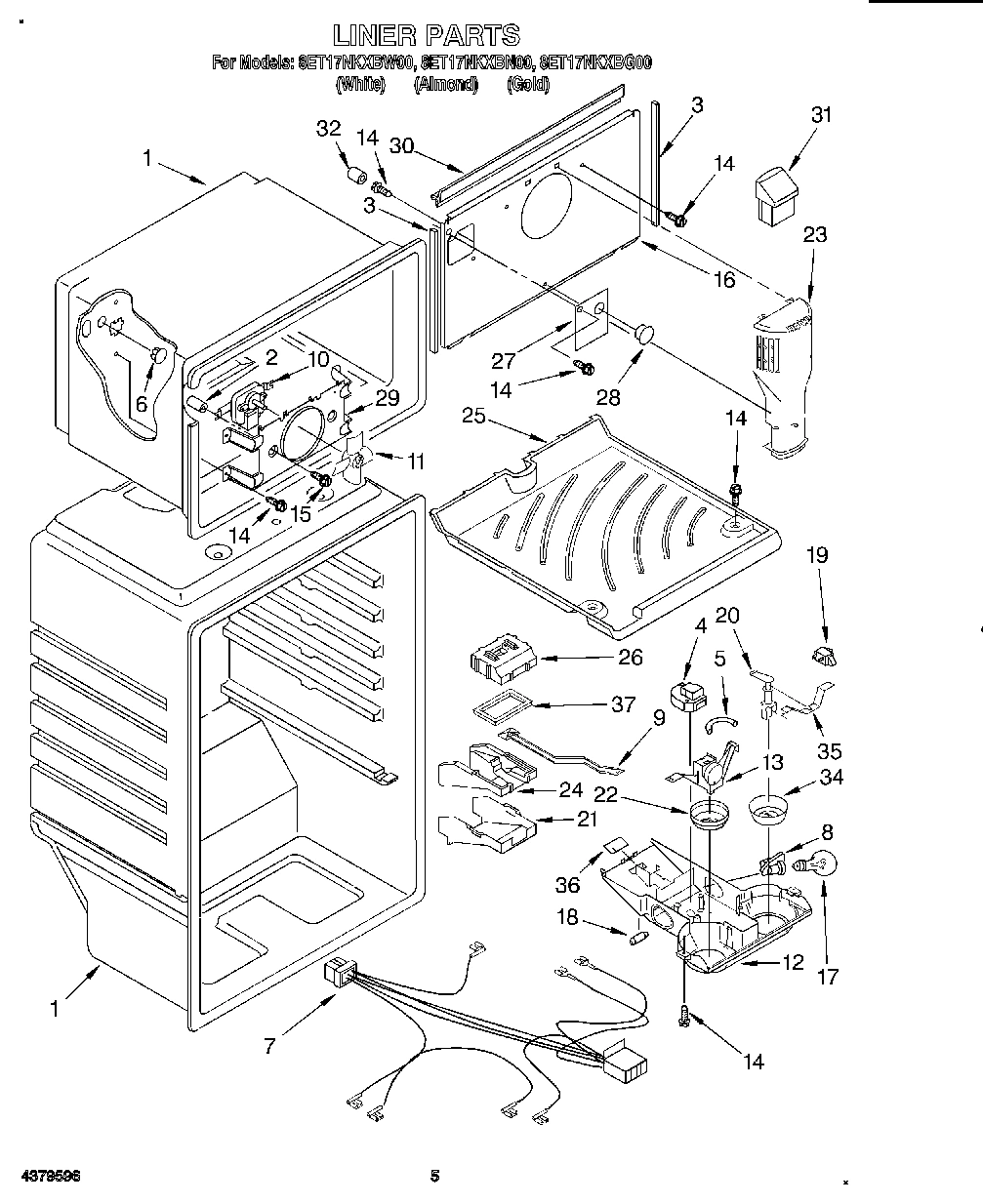

03 - LINER

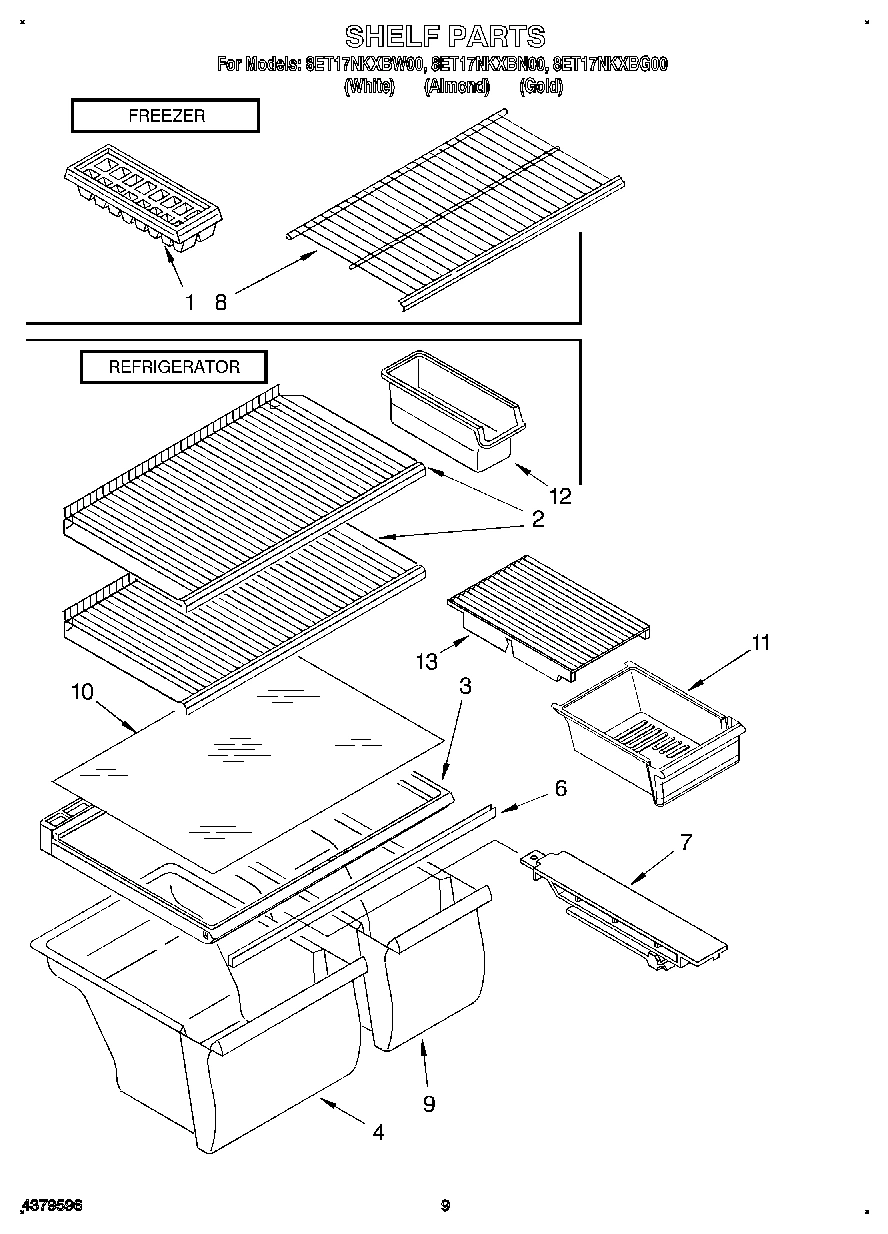

05 - SHELF, LIT/OPTIONAL

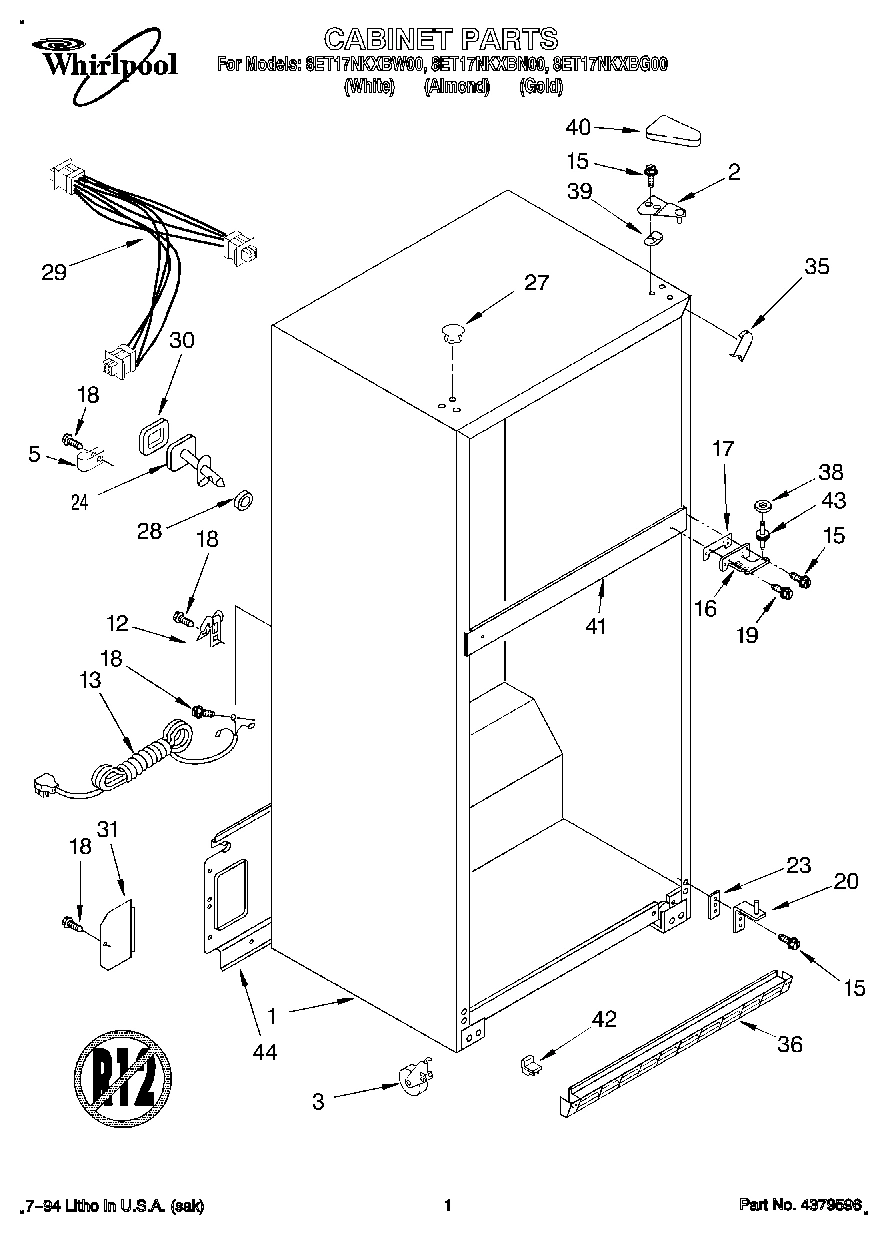

01 - CABINET

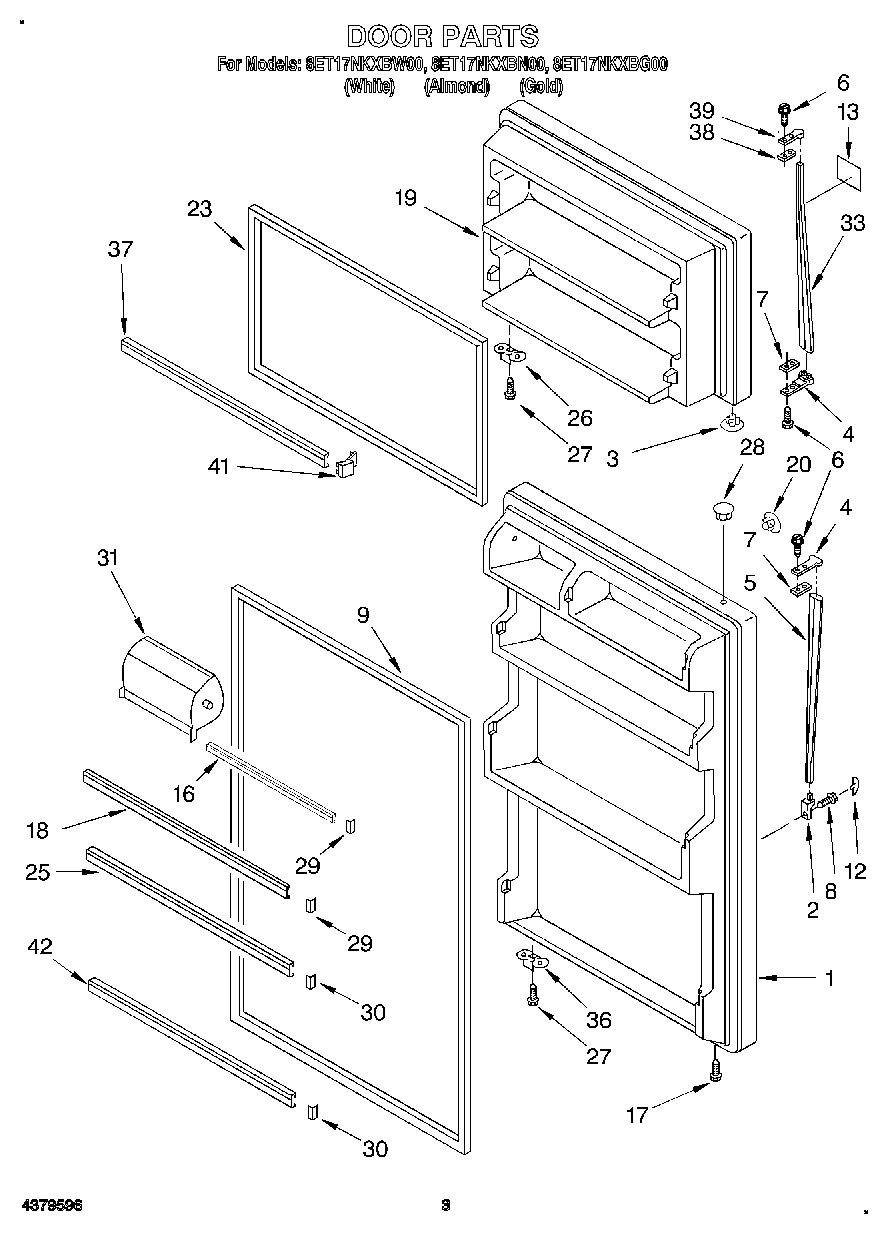

02 - DOOR

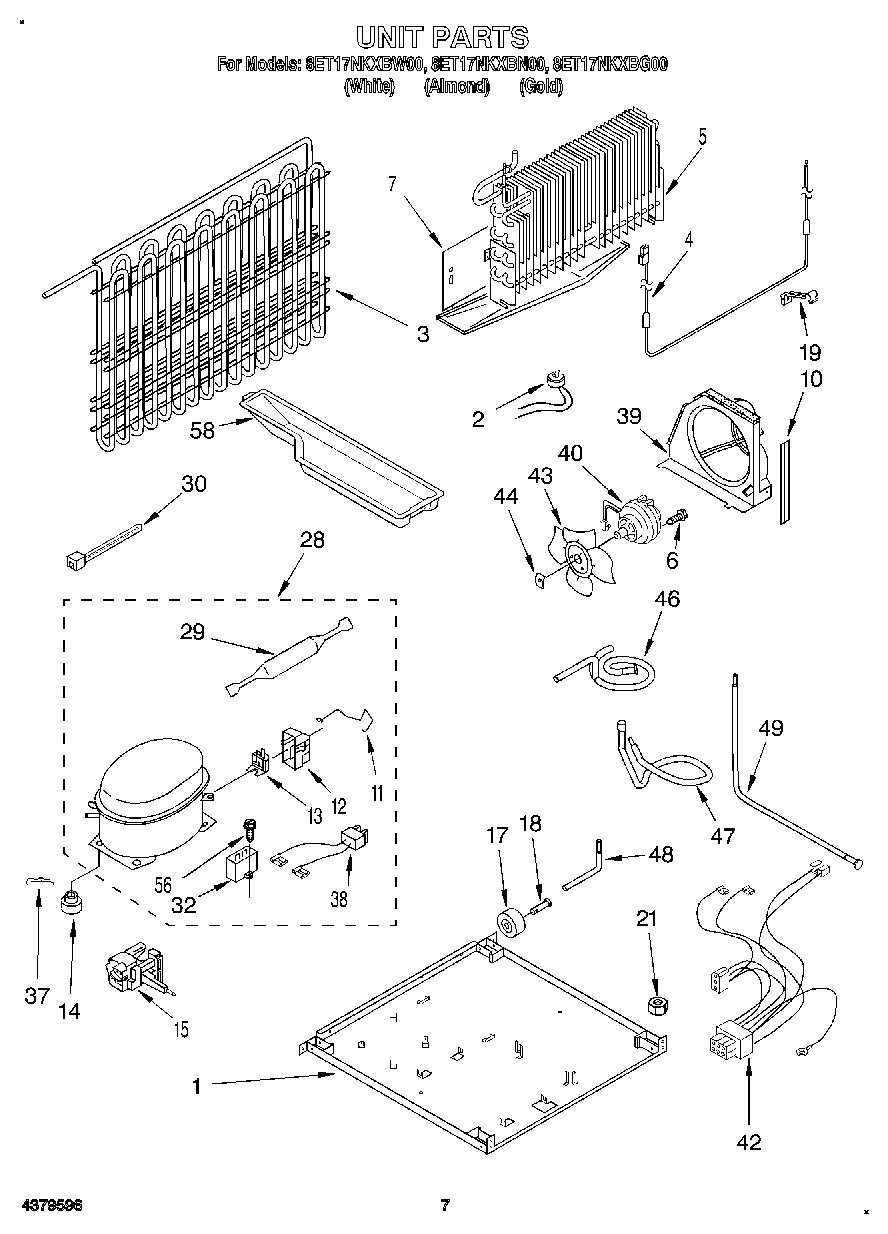

04 - UNIT
Common parts from model Whirlpool 8ET17NKXBN00 REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI18590A6 Contact Us For Availability
1
Refrigerator Door (Gold) WPL 2166866 Contact Us For Availability
1
Refrigerator Door (White) WPL 2171269 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 2171270 Contact Us For Availability
1
Support Plate, Compressor WPL 2176202 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Hole Plug (2) (Gold) WPL 989879 Contact Us For Availability
3
Condenser WPL 2172670 Contact Us For Availability
5
Handle, Center (Black) WPL 1109166 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2172669 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Heat Shield and Drain Pan WPL 2172618 Contact Us For Availability
8
Shelf WPL 2163828 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production) WPL 2162400 Contact Us For Availability
11
Clamp (Service) WPL 938384 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover (Service Compressor Only) WPL 1108115 Contact Us For Availability
13
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
13
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
Torx Key WPL 1117510 Contact Us For Availability
13
Cover, Meat Pan WPL 2163848 Contact Us For Availability
13
Door Reversal Instructions WPL 2172516 Contact Us For Availability
13
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
13
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
13
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
13
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
13
Cord, Service WPL 937360 Contact Us For Availability
13
Nameplate (Almond And Gold Models) WPL 2165147 Contact Us For Availability
13
Nameplate (White Model) WPL 2165148 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
19
Screw WPL 489426 Contact Us For Availability
19
Freezer Door (White) WPL 2159446 Contact Us For Availability
19
Freezer Door (Almond) WPL 2159447 Contact Us For Availability
19
Freezer Door (Gold) WPL 2166782 Contact Us For Availability
19
Clip, Heater WPL 2166244 Contact Us For Availability
20
Hinge Butt WPL 2172577 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Hole Plug (Gold) WPL 1122694 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI18596A6 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Chocolate) WPL 2159050 Contact Us For Availability
23
Door Gasket, Magnetic (Service) (Mist Begie) WPL 2159056 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI18591A4 Contact Us For Availability
25
Trim, Door Shelf WPL 2171140 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Hole Plug (6) (Gold) WPL 2151654 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI18592A9 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Cabinet, Wiring Assembly WPL 2163763 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI18593A9 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Black) WPL 2159424 Contact Us For Availability
33
Handle, F.C. (White) WPL 2159453 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2159471 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Corner Filler (2) (Gold) WPL 2166188 Contact Us For Availability
36
Grille (White) WPL 2163889 Contact Us For Availability
36
Grille (Almond) WPL 2166133 Contact Us For Availability
36
Grille (Black) WPL 2166134 Contact Us For Availability
36
WPL 2159368 WPL 2159368 Contact Us For Availability
37
Clip, Compressor WPL 2163787 Contact Us For Availability
38
WPL 943187 WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2172697 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI18594A9 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Corner Filler, Grille (Black) WPL 2166205 Contact Us For Availability
42
WPL 2171141 WPL 2171141 Contact Us For Availability
42
Wire Assy., Unit WPL 2172600 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2163814 Contact Us For Availability
46
Tube, Discharge WPL 2172673 Contact Us For Availability
47
Tube, Suction WPL 2172677 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
