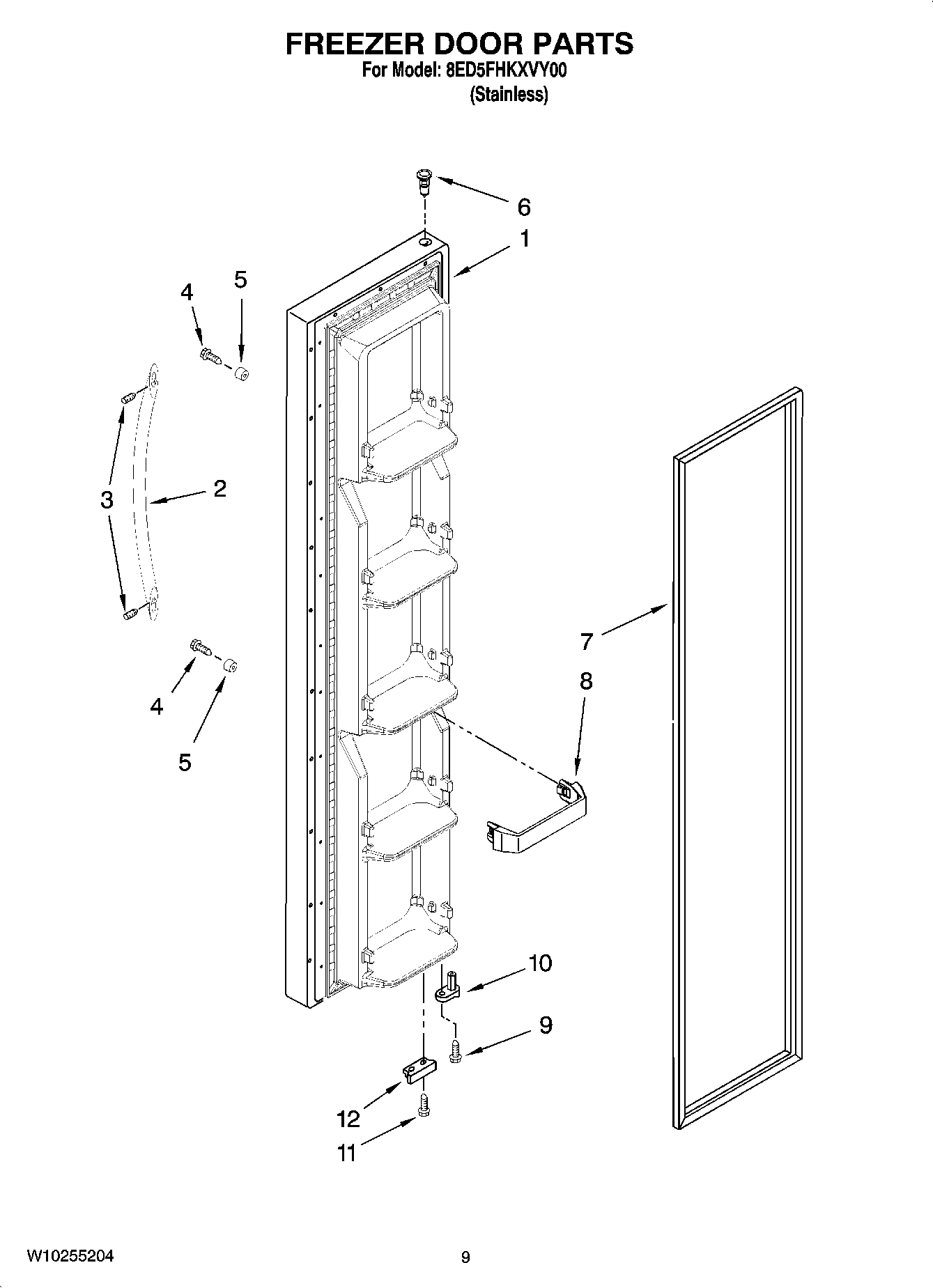

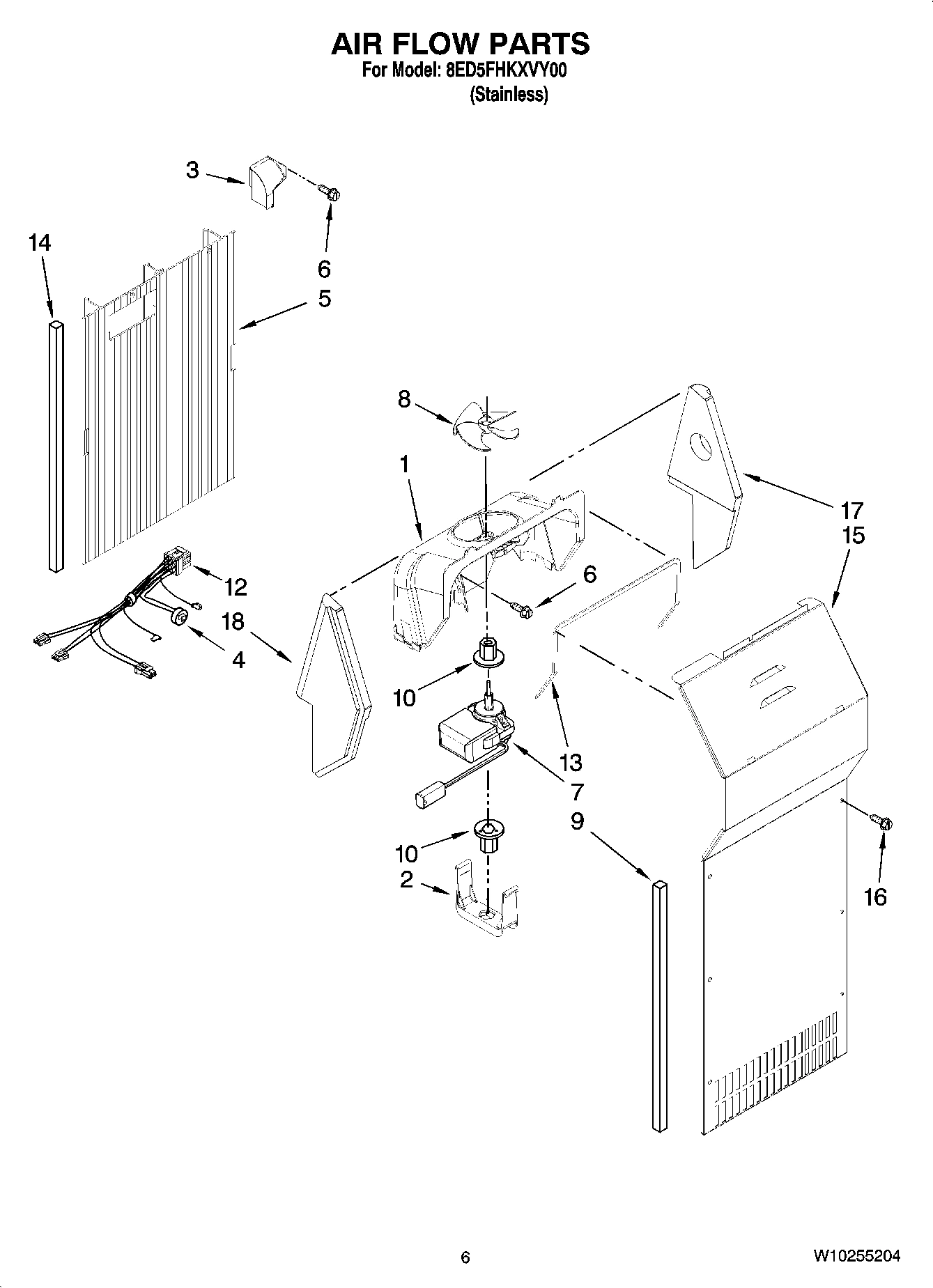

Model Whirlpool 8ED5FHKXVY00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPW10190943 Whirlpool Refrigerator Icemaker Backorder WPL WPW10190943 $174.94

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI143500A Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134) WPL ARI143501A Contact Us For Availability

1

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $34.51

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $54.65

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

5

Air Duct Freezer WPL 2203594 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

6

Shelf Bin (3) WPL W10158506 Contact Us For Availability

7

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $30.23

7

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $55.78

7

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

9

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $132.20

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

9

Shim (2) WPL 2209697 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $62.54

WP2312007 Whirlpool Refrigerator Start Device Backorder WPL WP2312007 $66.84

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

12

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

12

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

12

Clip, Heat WPL 2155547 Contact Us For Availability

13

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

13

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

13

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

14

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

14

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

14

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

GUARD-FAN Backorder WPL 1110663 $25.31

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Nameplate WPL 2220214 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

16

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

16

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

17

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $49.21

17

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

18

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

18

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.50

19

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

19

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

20

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

22

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

23

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

23

Fastener, Push-On WPL 489285 Contact Us For Availability

23

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

24

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

24

W10723843 Whirlpool Refrigerator Thermostat K Backorder WPL W10723843 $11.14

25

2311615 Whirlpool Refrigerator Knob In Stock WPL 2311615 $32.26

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

26

HARNS-WIRE Backorder WPL 2310063 $35.04

27

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

W10139460 Whirlpool Refrigerator Compressor In Stock WPL W10139460 $276.71

29

W10196321 Whirlpool Refrigerator Frame Backorder WPL W10196321 $177.89

30

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

30

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

31

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

32

Clip WPL 2161324 Contact Us For Availability

34

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

35

Air Baffle WPL W10163483 Contact Us For Availability

36

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $54.42
