Model Whirlpool 8ED27DQXAW05 REFRIGERATOR – Common Parts & Diagrams

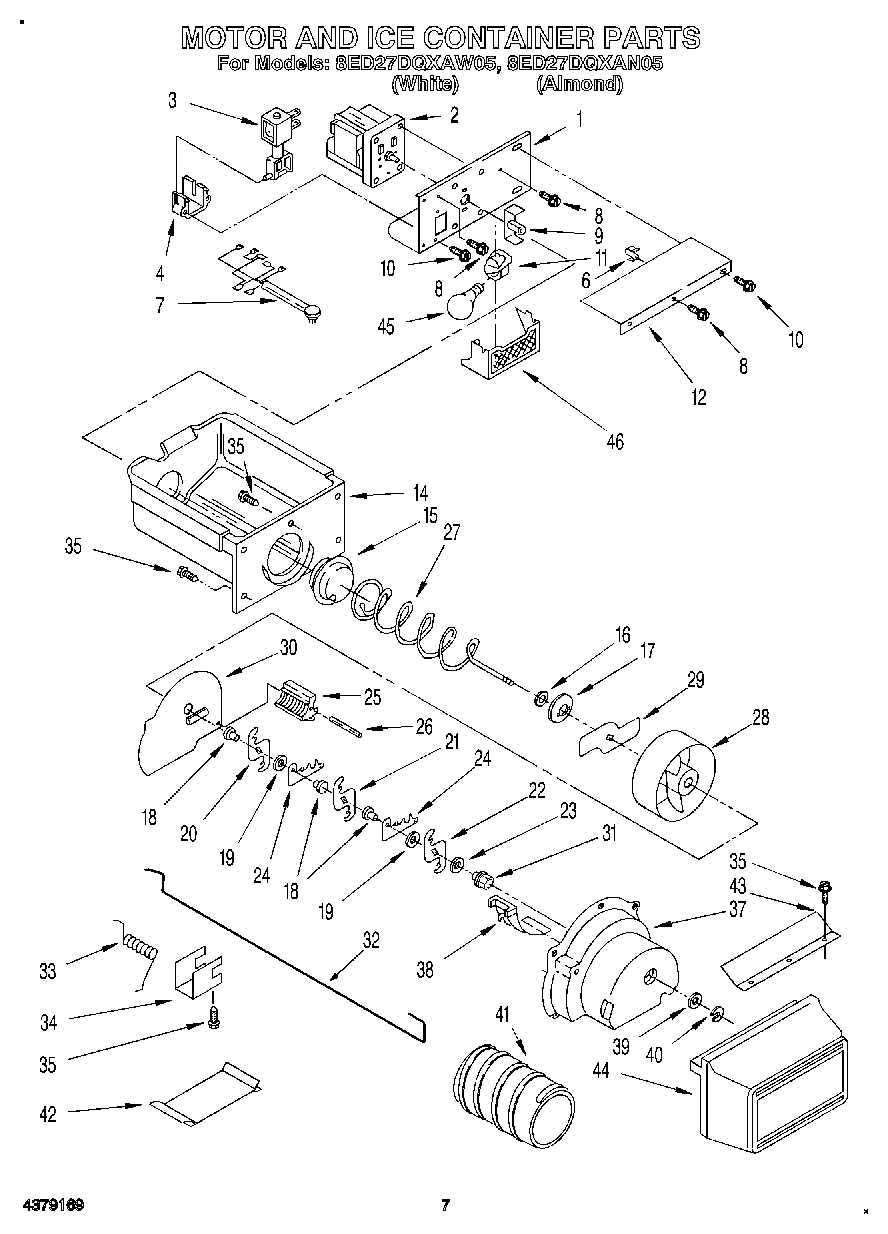

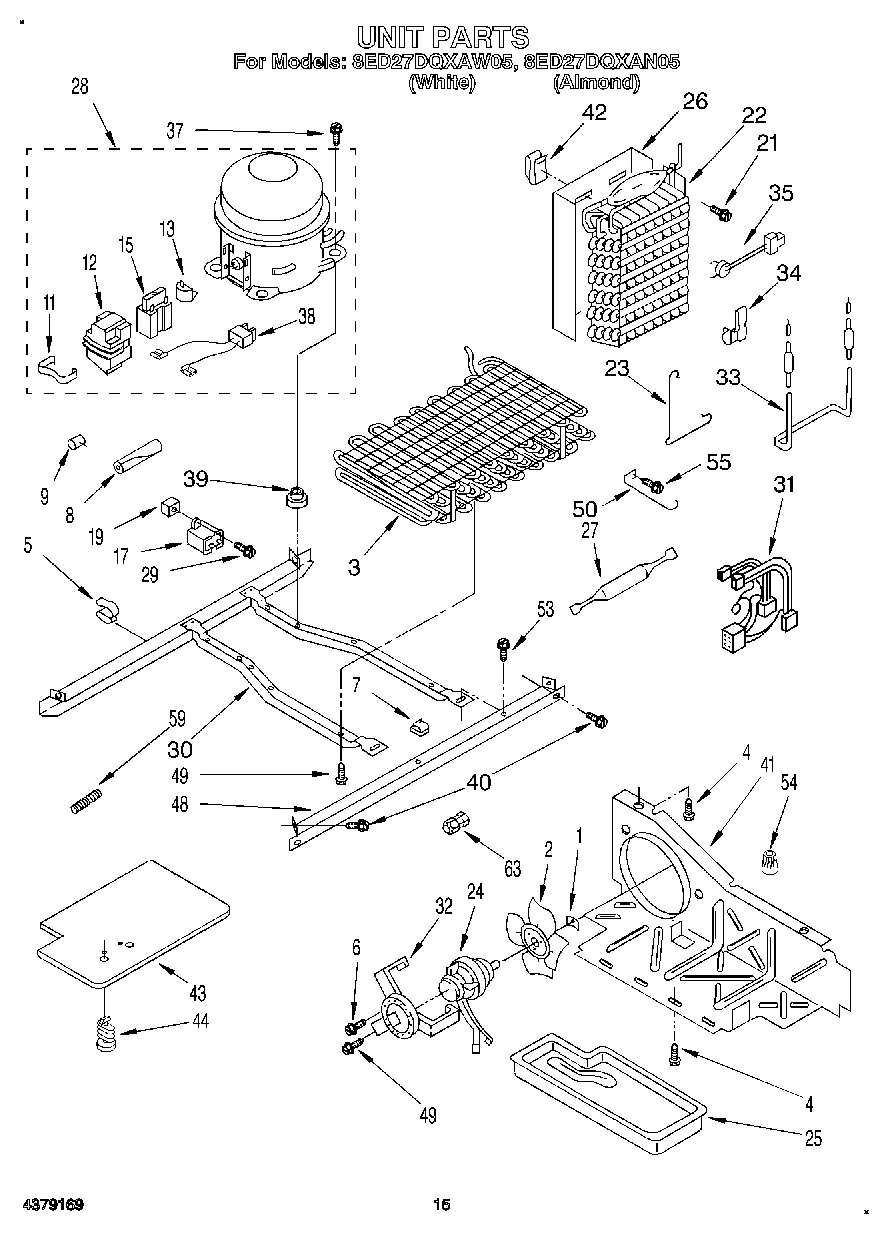

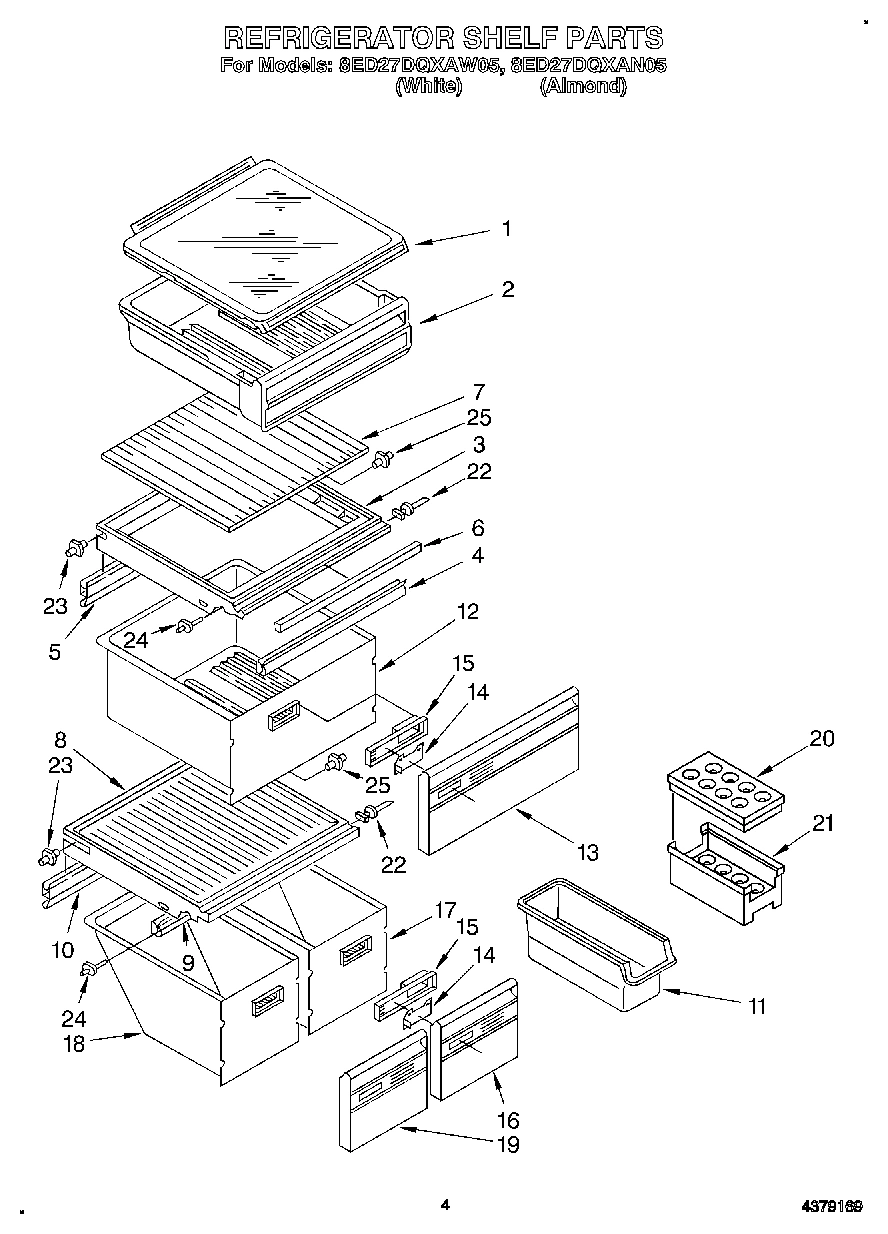

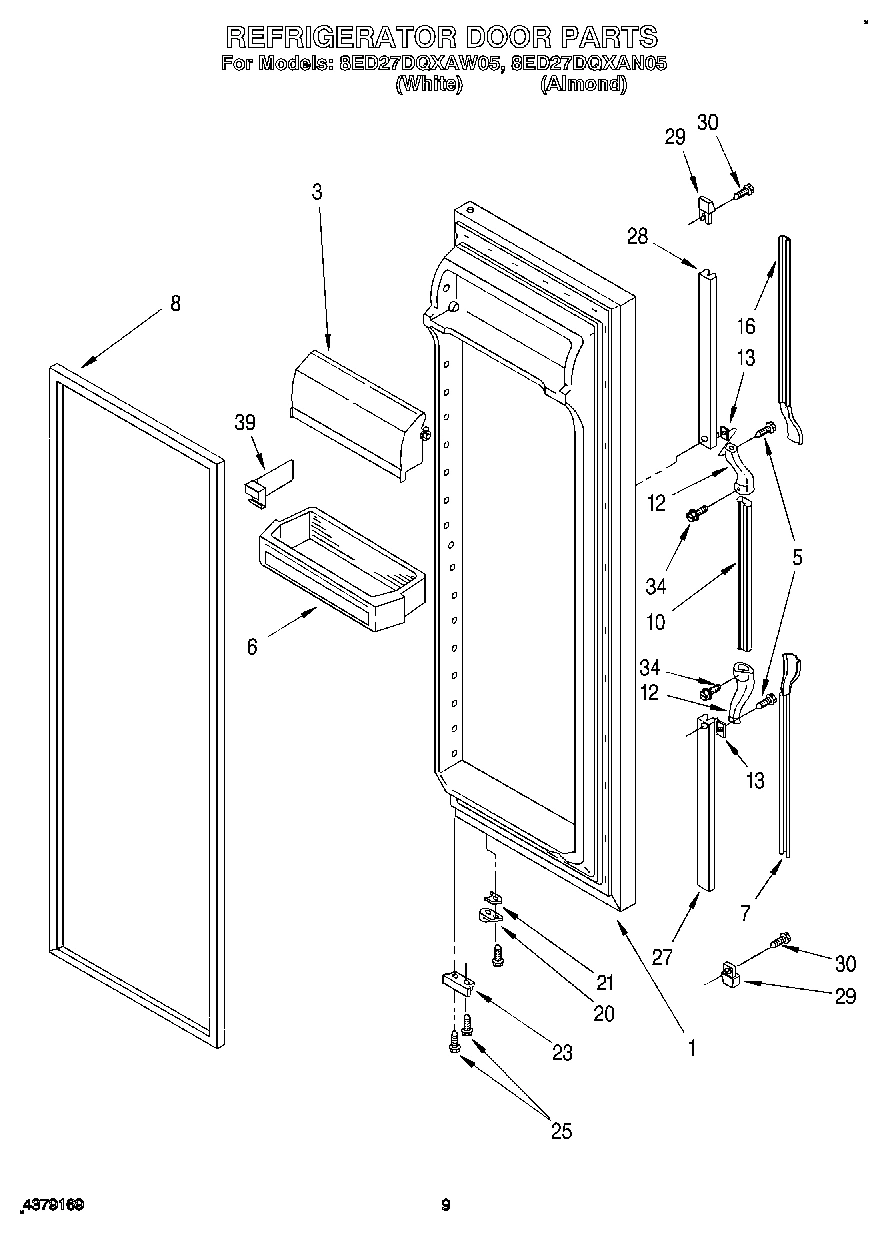

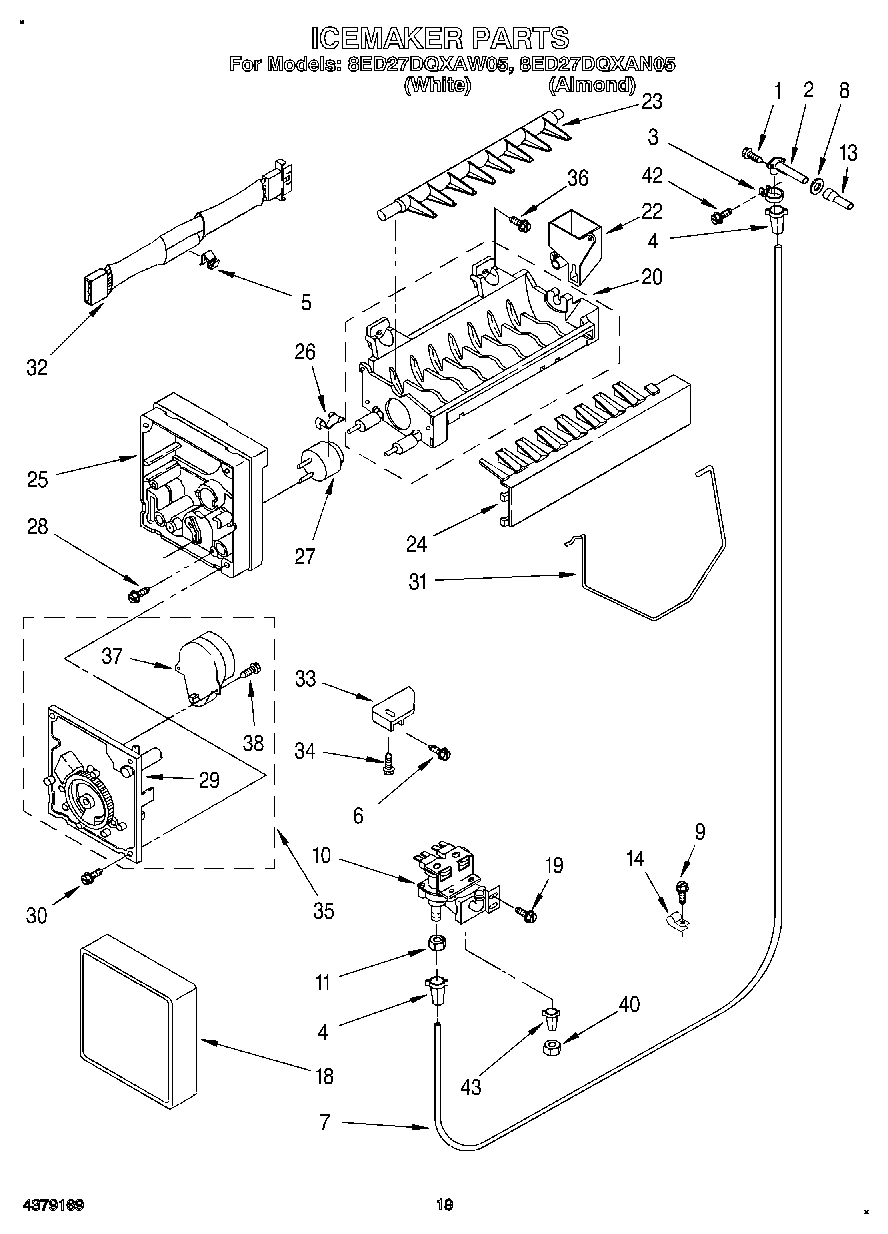

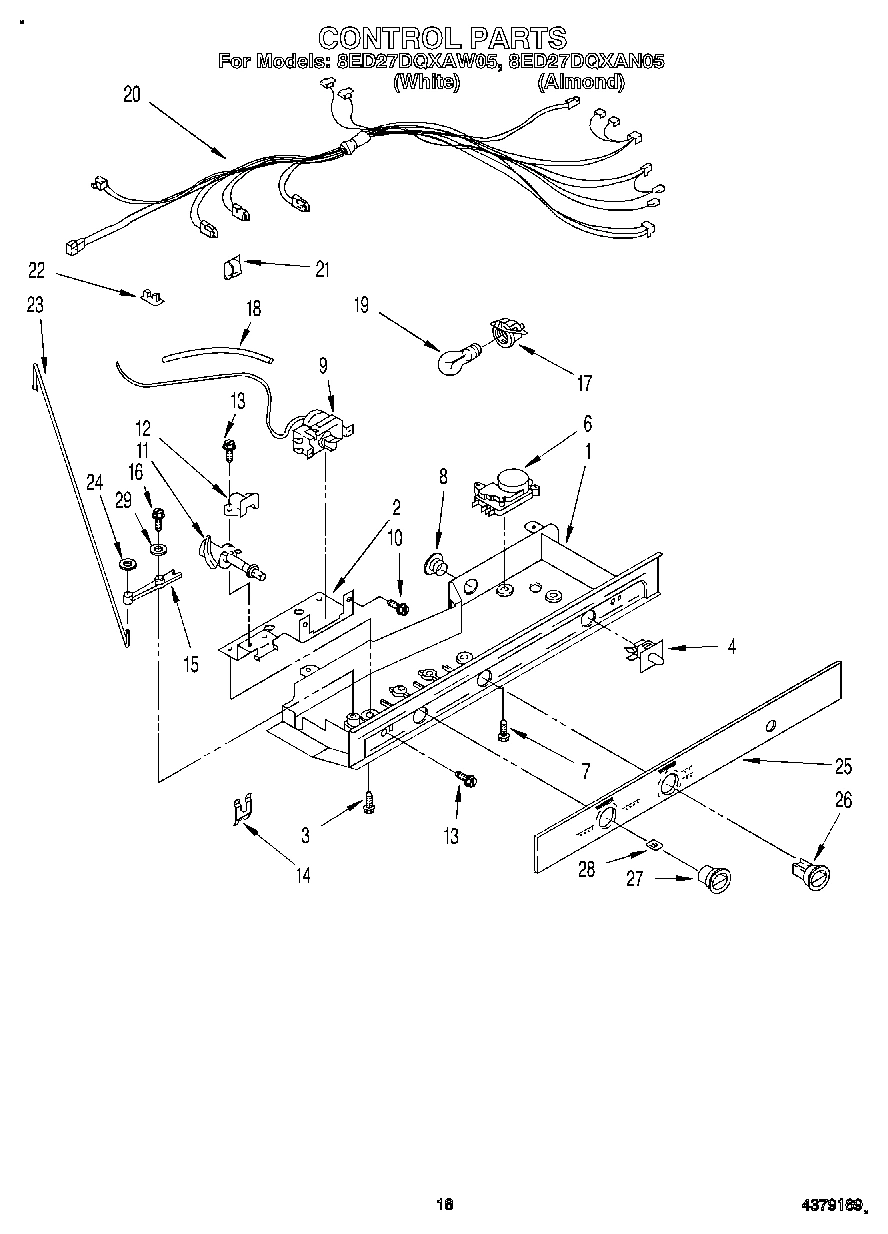

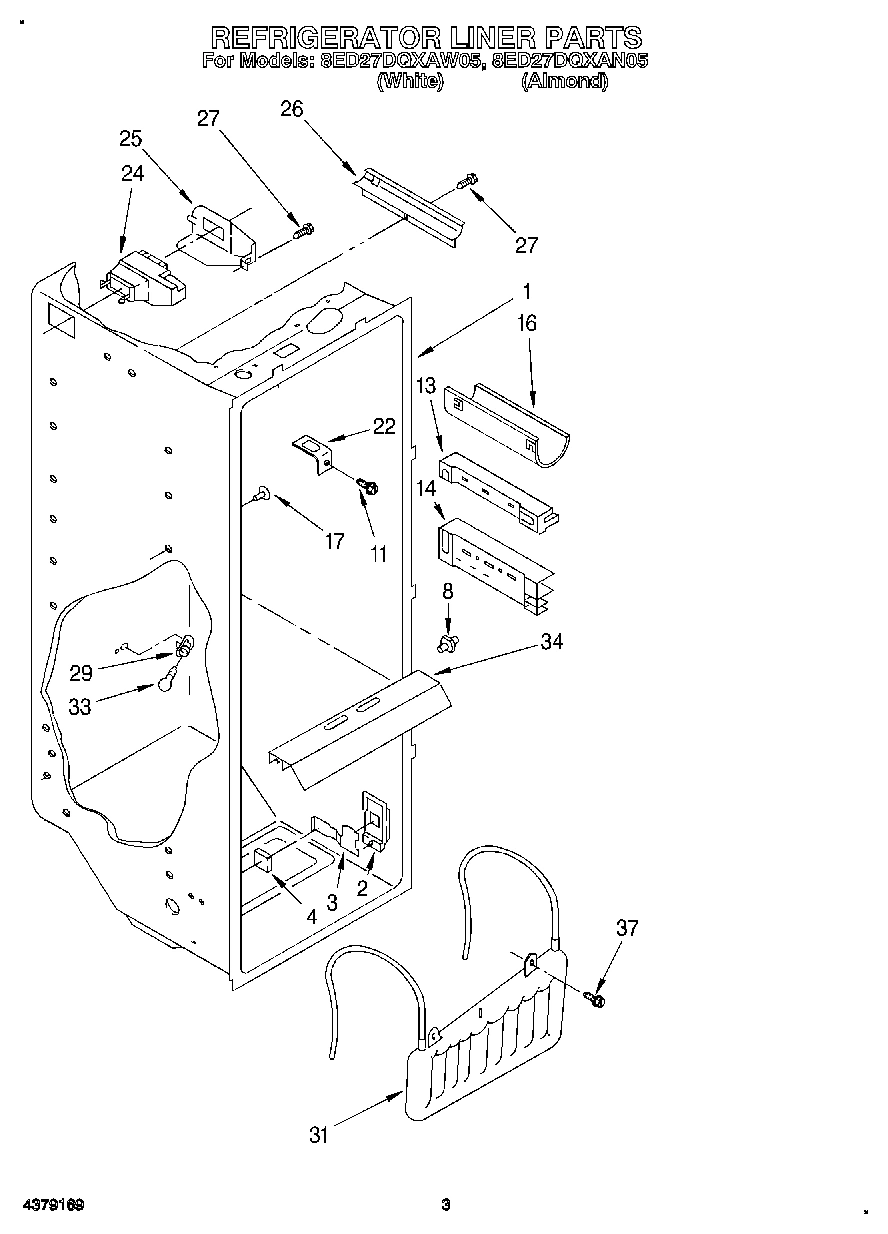

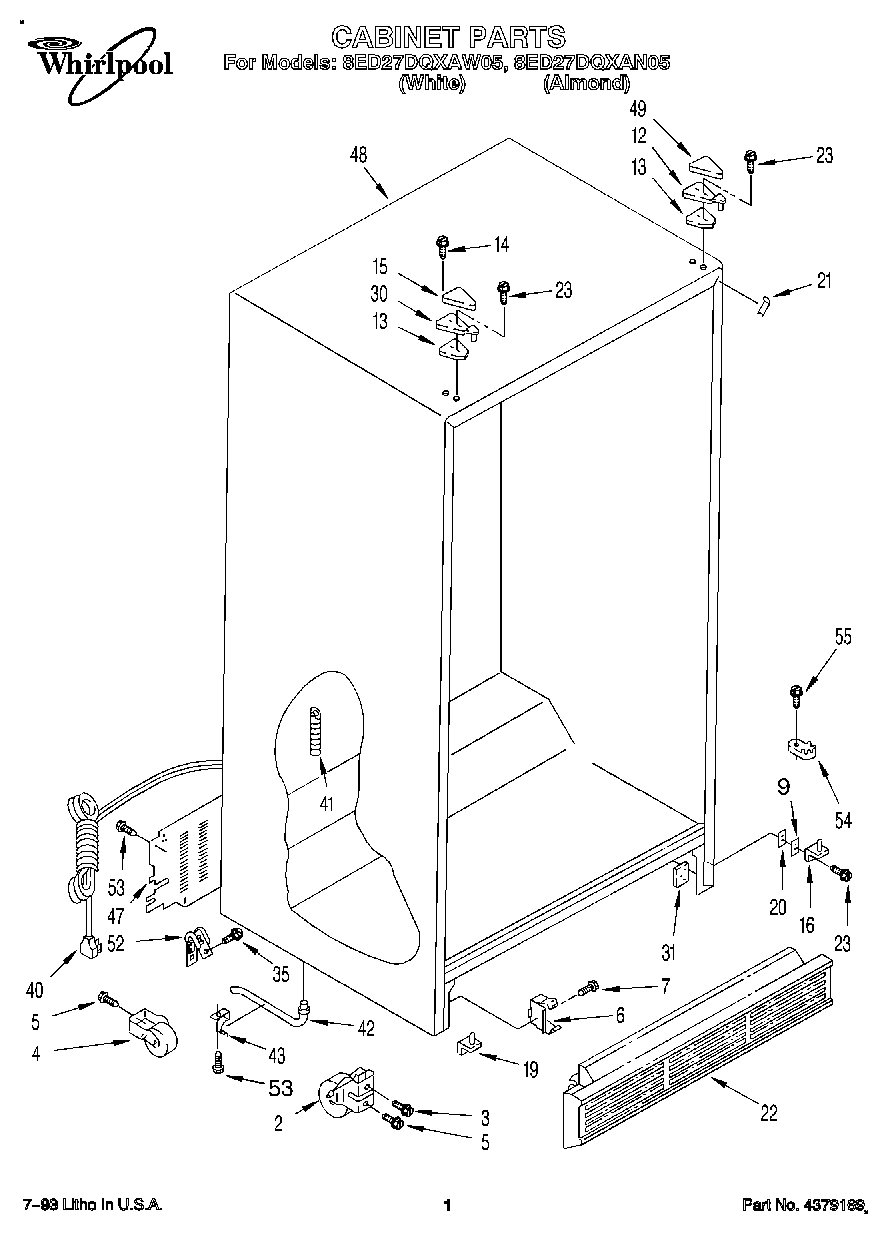

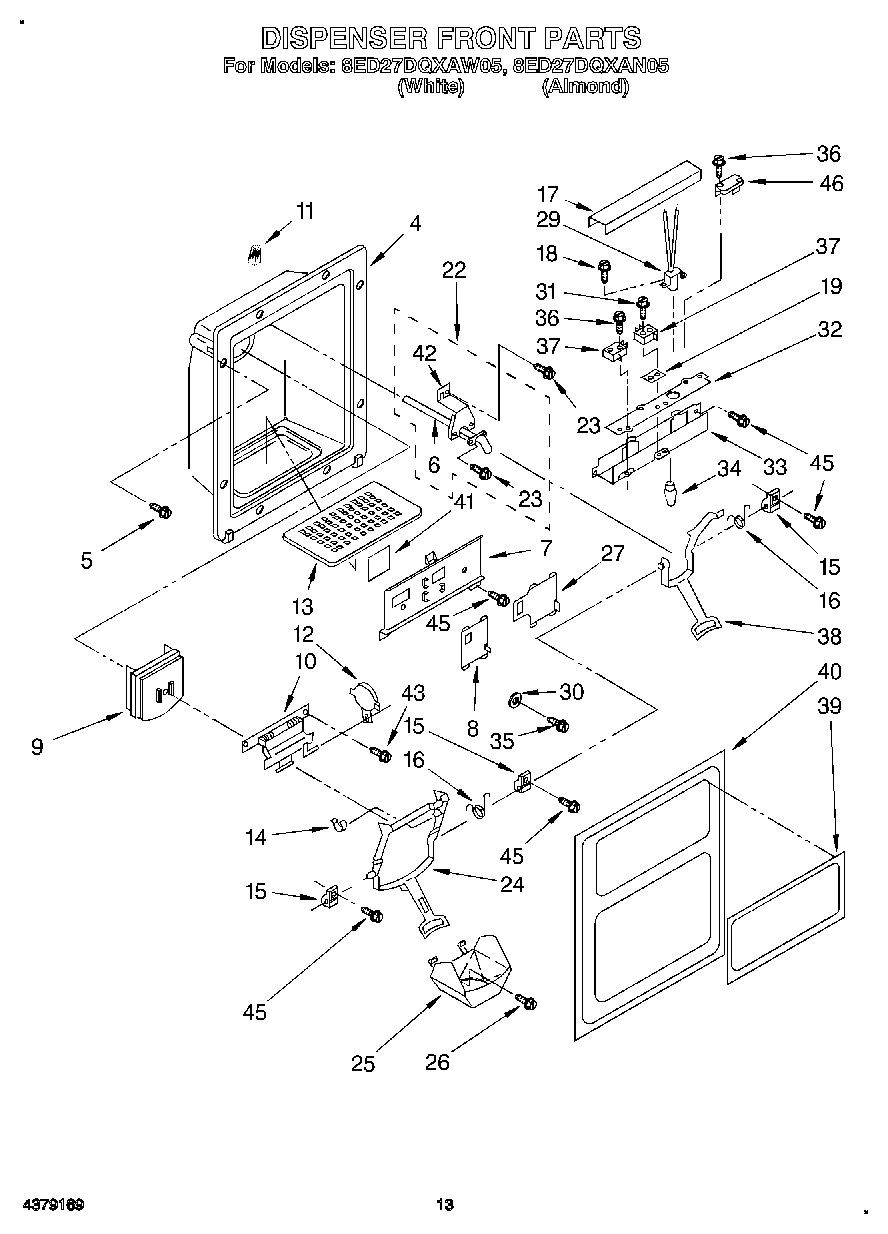

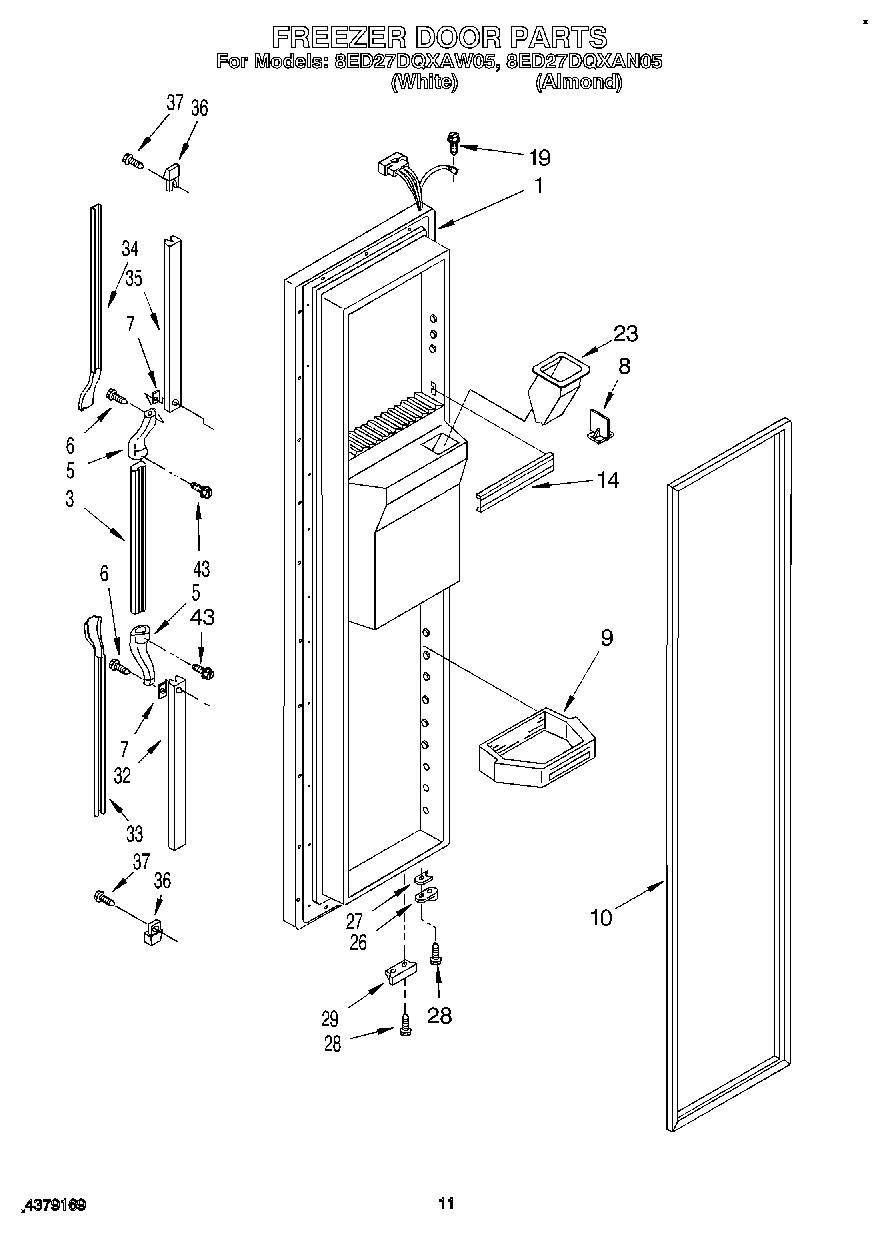

Common parts from model Whirlpool 8ED27DQXAW05 REFRIGERATOR
1

Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1

Control Box WPL 2169147 Contact Us For Availability
1

Liner (Not A Serviceable Part) WPL ARI18401A1 Contact Us For Availability
2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2

Fan, Blade WPL 1108179 Contact Us For Availability
2

Mounting Bracket WPL 1110629 Contact Us For Availability
2

Front Roller (2) WPL 2152011 Contact Us For Availability
2

Snack Bin WPL 1124829 Contact Us For Availability
2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3

Screw WPL 489393 Contact Us For Availability
3

Air Scoop WPL 2161231 Contact Us For Availability
3

Screw (2) WPL 489397 Contact Us For Availability
3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3

Condenser Assembly WPL 2154011 Contact Us For Availability
4

Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4

Housing, Dispenser (Not a Serviceable Part) WPL ARI18403A2 Contact Us For Availability
4

Pad, Foam WPL 992358 Contact Us For Availability
5

Screw, WPL 488454 Contact Us For Availability
5

Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5

Air Duct Freezer WPL 2155575 Contact Us For Availability
5

Clip, Wire WPL 2155658 Contact Us For Availability
6

Screw WPL 486214 Contact Us For Availability
6

Trim, Crisper Cover WPL 1119190 Contact Us For Availability
6

Tube, Water (See Item No.22) WPL ARI18404A9 Contact Us For Availability
6

Defrost Timer WPL 2162046 Contact Us For Availability
7

Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7

Insert, Handle (White) WPL 1119373 Contact Us For Availability
7

Frame, Slides (White) WPL 2152717 Contact Us For Availability
7

Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7

Clip, Tube (3) WPL 934011 Contact Us For Availability
8

Cover, Meat Pan WPL 1124812 Contact Us For Availability
8

Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8

Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9

Shim WPL 836196 Contact Us For Availability
9

Gasket (Front) WPL 1115292 Contact Us For Availability
10

Handle, Center (White) WPL 1124713 Contact Us For Availability
10

Handle, Center (Almond) WPL 943079 Contact Us For Availability
10

Gasket (Rear) WPL 1121384 Contact Us For Availability
10

Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
10

Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11

Wire Connector WPL 850145 Contact Us For Availability
11

Cam Assembly WPL 2161250 Contact Us For Availability
11

Strap (Service) WPL 938384 Contact Us For Availability
11

Strap (Production) WPL 943322 Contact Us For Availability
12

End Cap, Center Handle WPL 1119359 Contact Us For Availability
12

Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
12

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12

Cover (Production) WPL 1105055 Contact Us For Availability
12

Cover (Service) WPL 1108115 Contact Us For Availability
13

Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13

Grille, Overflow WPL 983900 Contact Us For Availability
13

Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13

Shim, Hinge Top WPL 1123515 Contact Us For Availability
13

Shim WPL 935075 Contact Us For Availability
13

Tube, Water Inlet WPL 2155247 Contact Us For Availability
13

Front, Crisper Pan WPL 1124825 Contact Us For Availability
13

Overload (Service (Includes Relay)) WPL 1118841 Contact Us For Availability
14

Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14

Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14

Screw WPL 489284 Contact Us For Availability
14

Slide, Humidity Control WPL 1124819 Contact Us For Availability
14

Clip, Bearing (2) WPL 987917 Contact Us For Availability
14

Retainer, Damper WPL 938439 Contact Us For Availability
15

Hinge Cover (White) WPL 1129262 Contact Us For Availability
15

Pivot Arm WPL 1110559 Contact Us For Availability
15

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15

Housing, Humidity Control WPL 1124820 Contact Us For Availability
15

Bearing, Lever (3) WPL 983697 Contact Us For Availability
15

Relay (See Overload) WPL ARI18405A2 Contact Us For Availability
16

Spring, Lever (2) WPL 983696 Contact Us For Availability
16

Insert, Handle (White) WPL 1119361 Contact Us For Availability
16

Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
16

Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16

Front, Crisper Pan WPL 1124817 Contact Us For Availability
16

Wine Rack WPL 1124828 Contact Us For Availability
17

Pan, Crisper WPL 1114690 Contact Us For Availability
17

Shield, Wiring WPL 2147165 Contact Us For Availability
17

Cover, Evaporator WPL 2155612 Contact Us For Availability
18

Cover WPL 628355 Contact Us For Availability
18

Meat Pan WPL 1114691 Contact Us For Availability
19

Spacer, Switch WPL 625834 Contact Us For Availability
19

Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19

Front, Meat Pan WPL 1124814 Contact Us For Availability
19

Screw Grommet WPL 509812 Contact Us For Availability
20

Spacer, Hinge WPL 1129868 Contact Us For Availability
20

Egg Container, Top WPL 1107388 Contact Us For Availability
20

Control Box Harness WPL 2149186 Contact Us For Availability
21

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21

Egg Container, Bottom WPL 1107384 Contact Us For Availability
22

Grille (White) WPL 1125715 Contact Us For Availability
22

Grille (Almond) WPL 1125717 Contact Us For Availability
22

CLIP, WIRING WPL 1115375 Contact Us For Availability
22

Evaporator WPL 2155501 Contact Us For Availability
23

Shelf Stud WPL 1115290 No Longer Available
23

Clamp WPL 2161324 Contact Us For Availability
23

Bracket, Door Stop (Black) WPL 2157609 Contact Us For Availability
23

Bracket, Door Stop (Chrome) WPL 2157611 Contact Us For Availability
23

Connecting Rod WPL 1123960 Contact Us For Availability
24

Fastener, Push-On WPL 489285 Contact Us For Availability
24

Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24

Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
25

Guide, Ice (White) WPL 1124730 Contact Us For Availability
25

Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25

Escutcheon, Control Box WPL 2161213 Contact Us For Availability
25

Tray, Evaporator WPL 1110674 Contact Us For Availability
26

Screw WPL 488892 Contact Us For Availability
26

Heat Shield WPL 2149294 Contact Us For Availability
27

Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27

Cement Alumilastic) WPL 542369 Contact Us For Availability
27

Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27

Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27

Knob, Air Control WPL 1116853 Contact Us For Availability
28

Retainer, Insert WPL 1119372 Contact Us For Availability
28

Knob, Retainer WPL 837444 Contact Us For Availability
28

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
29

End Cap (2) WPL 2156220 Contact Us For Availability
29

Lamp Holder WPL 2147131 Contact Us For Availability
30

Screw WPL 489075 Contact Us For Availability
30

Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30

Washer WPL 489336 Contact Us For Availability
31

Tap Plate (2) WPL 2147310 Contact Us For Availability
31

Screw WPL 488361 Contact Us For Availability
31

Unit, Harness WPL 2167064 Contact Us For Availability
32

Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33

Heater, Defrost WPL 2161323 Contact Us For Availability
33

Bracket, Control WPL 2147163 Contact Us For Availability
34

Screw WPL 489022 Contact Us For Availability
34

Screw, WPL 489365 Contact Us For Availability
34

Light Lens WPL 1115330 Contact Us For Availability
34

Clip WPL 2161330 Contact Us For Availability
35

Screw WPL 489360 Contact Us For Availability
36

Screw, WPL 489155 Contact Us For Availability
37

Screw (2) WPL 488280 Contact Us For Availability
37

Screw WPL 489387 Contact Us For Availability
38

Lever Assembly, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38

Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
39

Divider (2) WPL 2152335 Contact Us For Availability
39

Plaque, Front Cover (White) WPL 2150318 Contact Us For Availability
39

Plaque, Front Cover (Almond) WPL 2162690 Contact Us For Availability
39

Grommet (4) WPL 2162067 Contact Us For Availability
40

Nut, Compression WPL 1129179 Contact Us For Availability
40

Cord, Service WPL 937360 Contact Us For Availability
40

Front Cover, Housing (Includes Item 39) (Whit WPL 2150313 Contact Us For Availability
40

Front Cover, Housing (Includes Item 39) (Almo WPL 2162702 Contact Us For Availability
41

Heat Shiel WPL 2147172 Contact Us For Availability
42

WPL 987049 WPL 987049 Contact Us For Availability
42

Clip, Heat Shield WPL 2155547 Contact Us For Availability
43

Insert WPL 1129177 Contact Us For Availability
43

Unit Cover, Bottom WPL 2161363 Contact Us For Availability
48

Cabinet (Not A Serviceable Part) WPL ARI18400A6 Contact Us For Availability
49

Screw WPL 488624 Contact Us For Availability
54

Wire Connector WPL 227991 Contact Us For Availability
59

Spring-Tube WPL 983659 Contact Us For Availability
63

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100

WPL 876029 WPL 876029 Contact Us For Availability
100

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100

WPL 799344 WPL 799344 Contact Us For Availability
100

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100

WPL 799340 WPL 799340 Contact Us For Availability
100

WPL 799833 WPL 799833 Contact Us For Availability
100

WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
