Model Whirlpool 8ED22PWXBG01 REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR
09 - UNIT

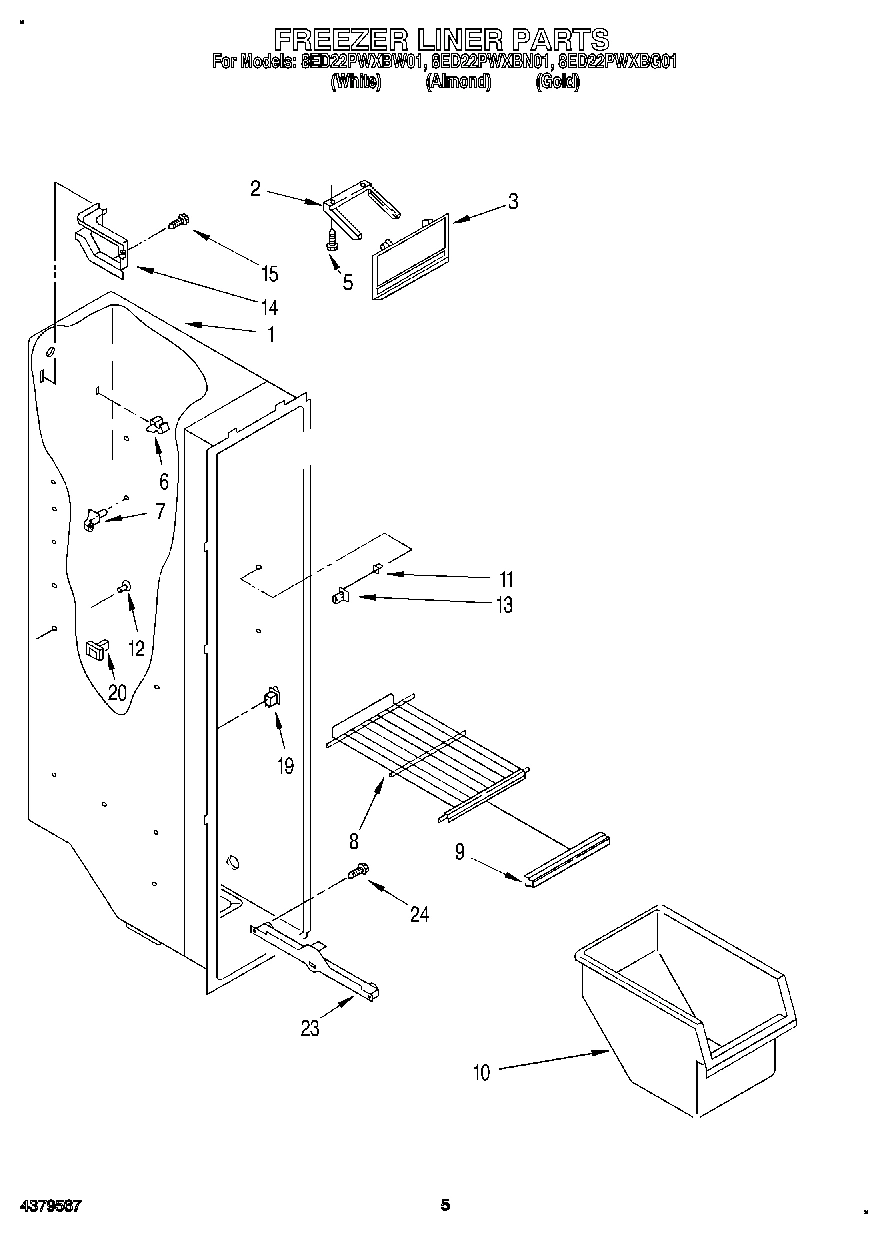

04 - FREEZER LINER

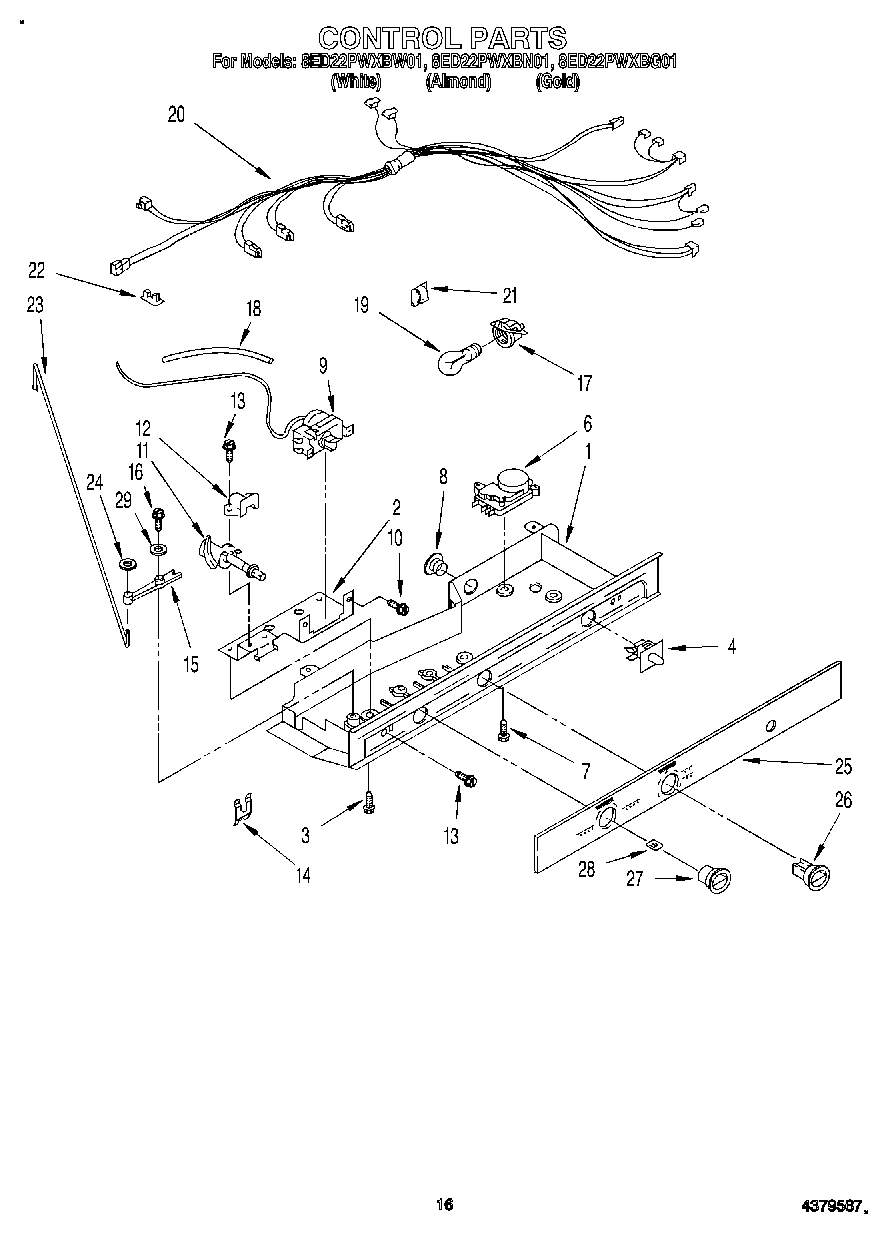

11 - CONTROL

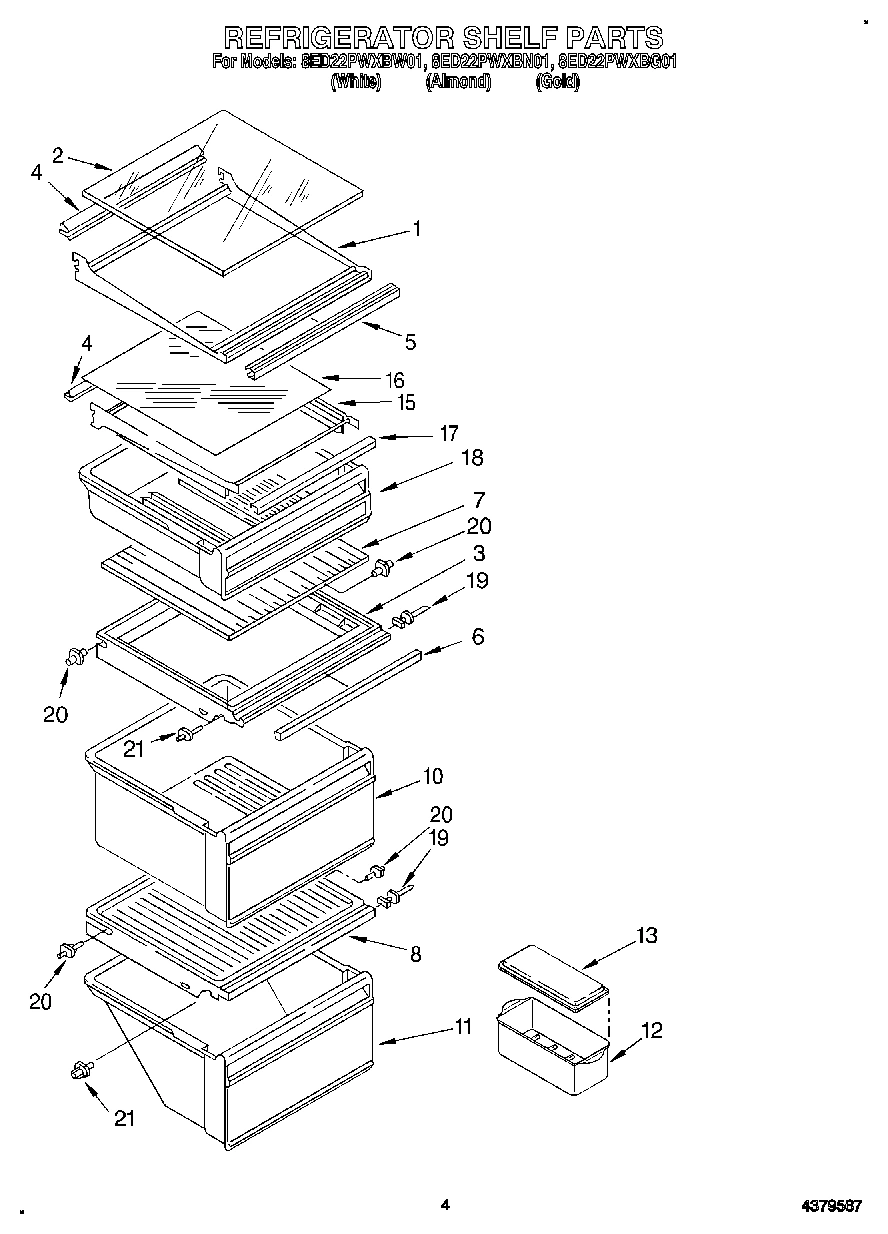

03 - REFRIGERATOR SHELF

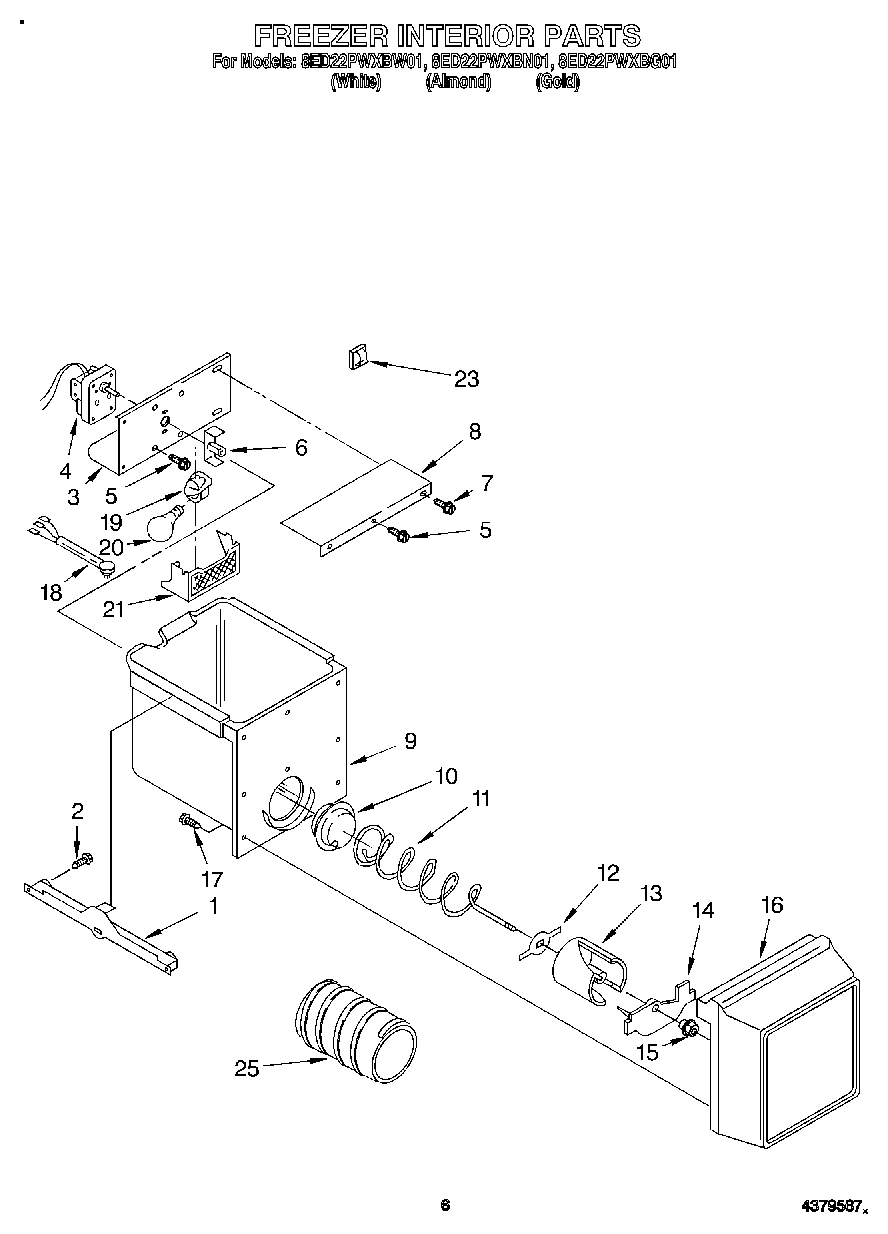

05 - FREEZER INTERIOR

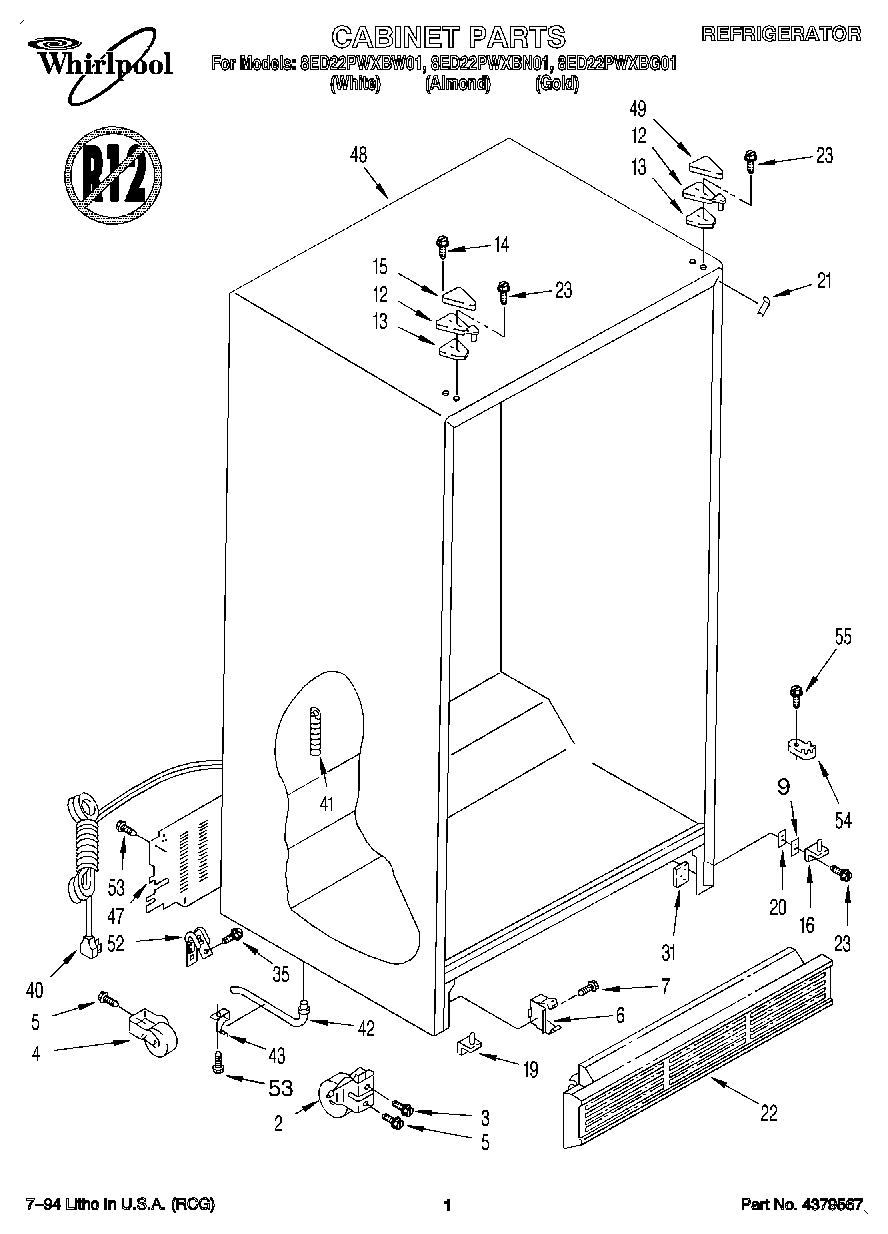

01 - CABINET

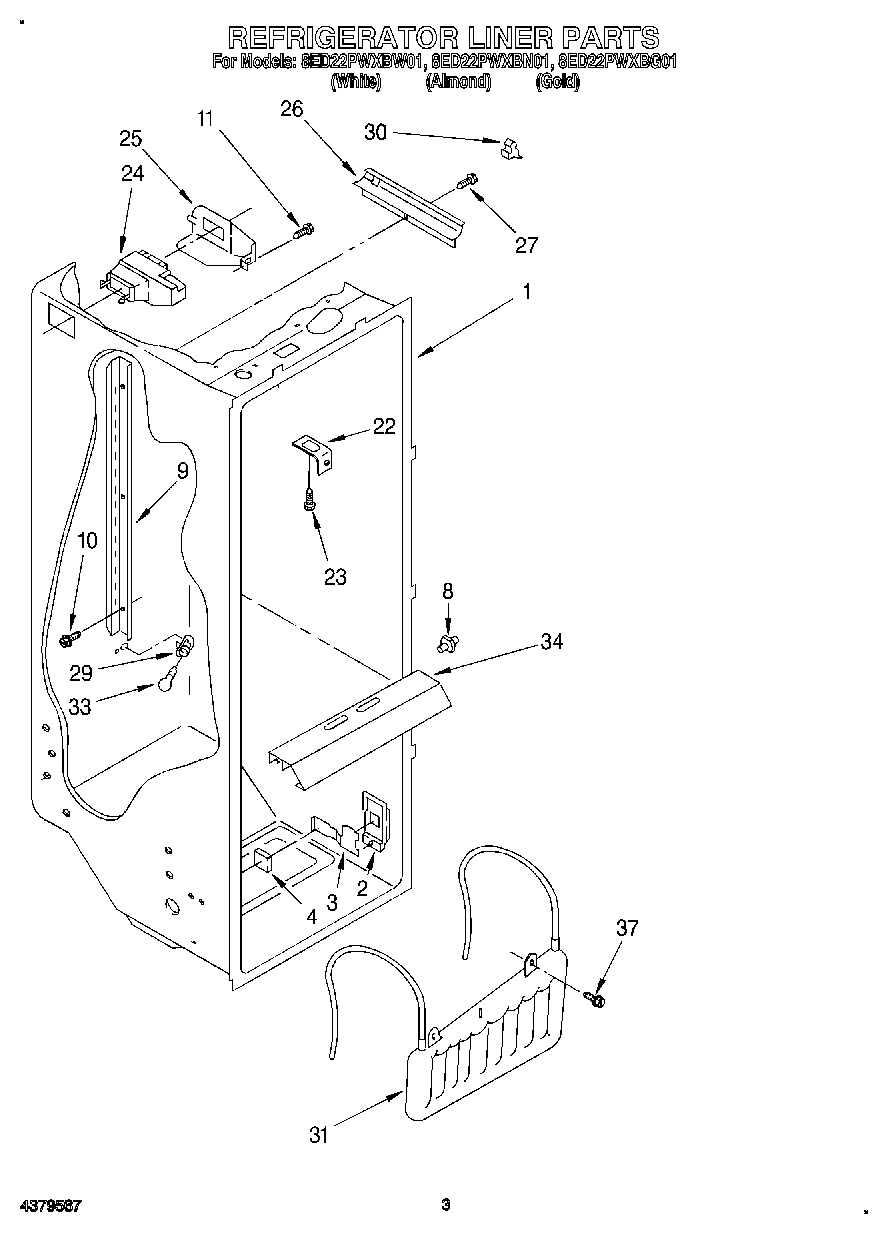

02 - REFRIGERATOR LINER

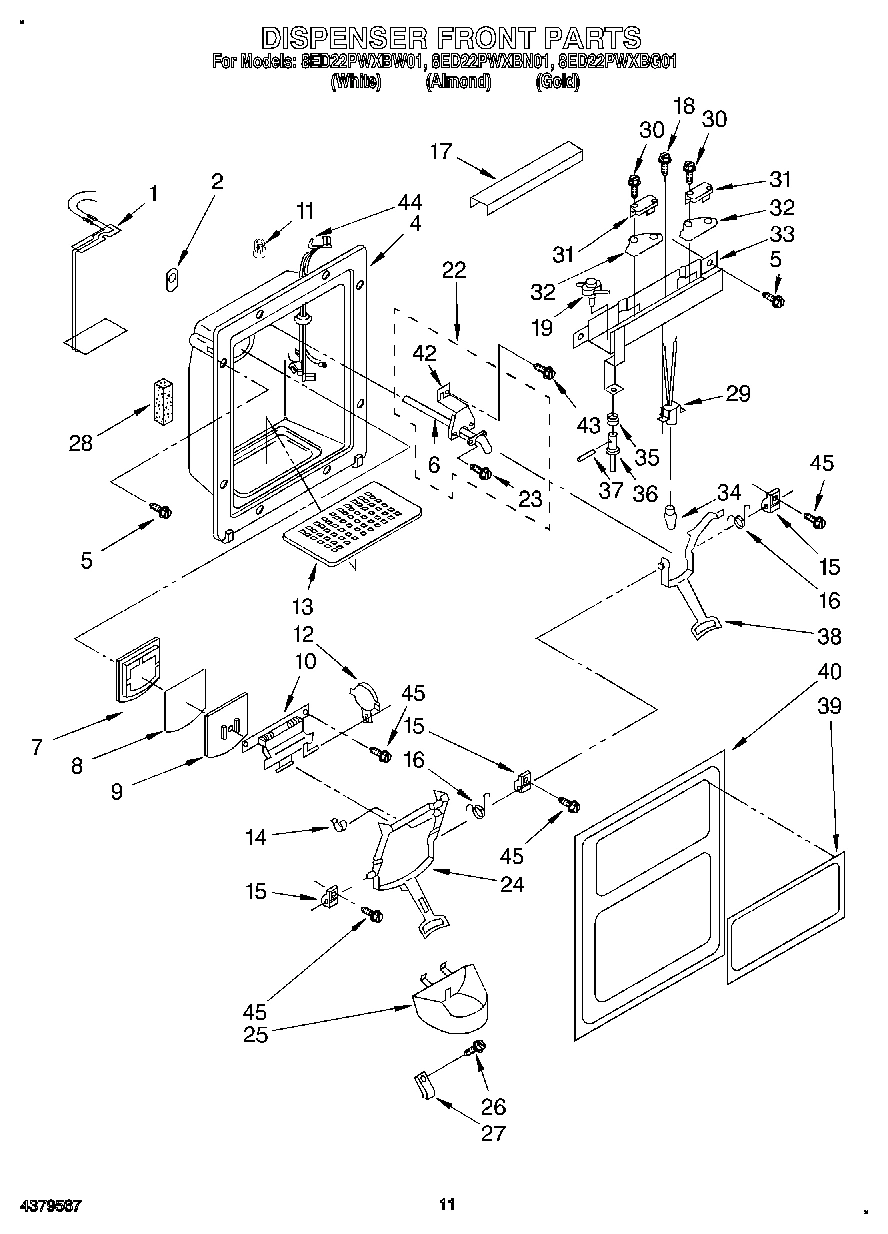

08 - DISPENSER FRONT

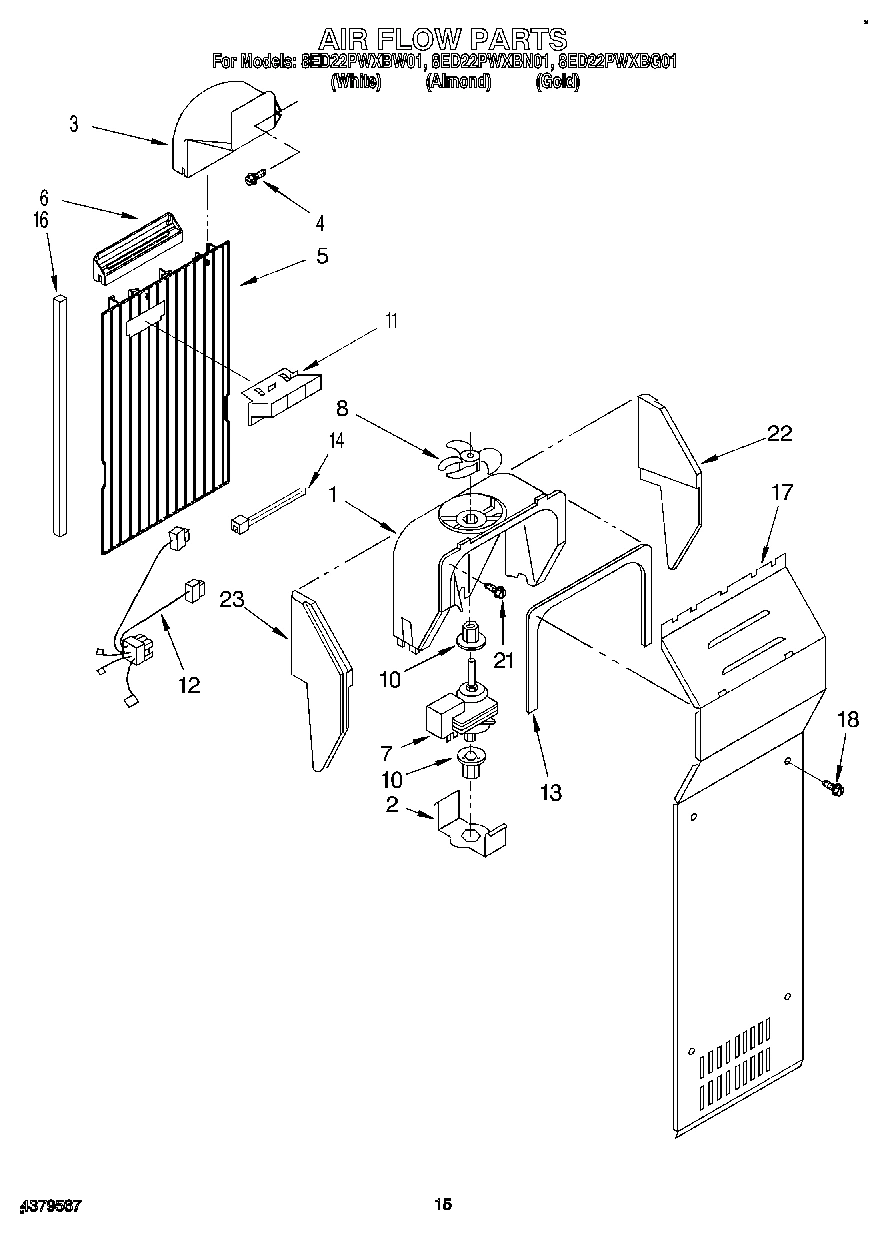

10 - AIR FLOW

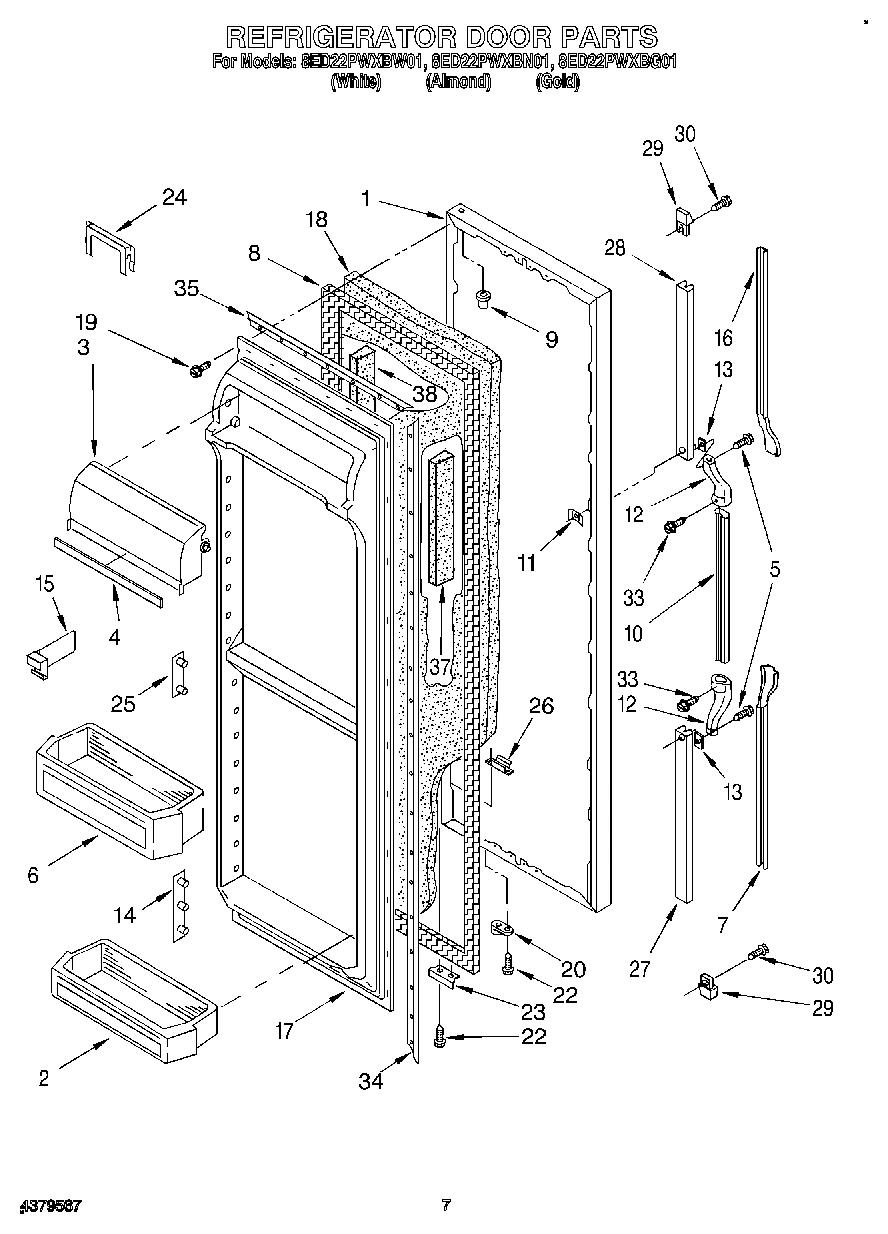

06 - REFRIGERATOR DOOR

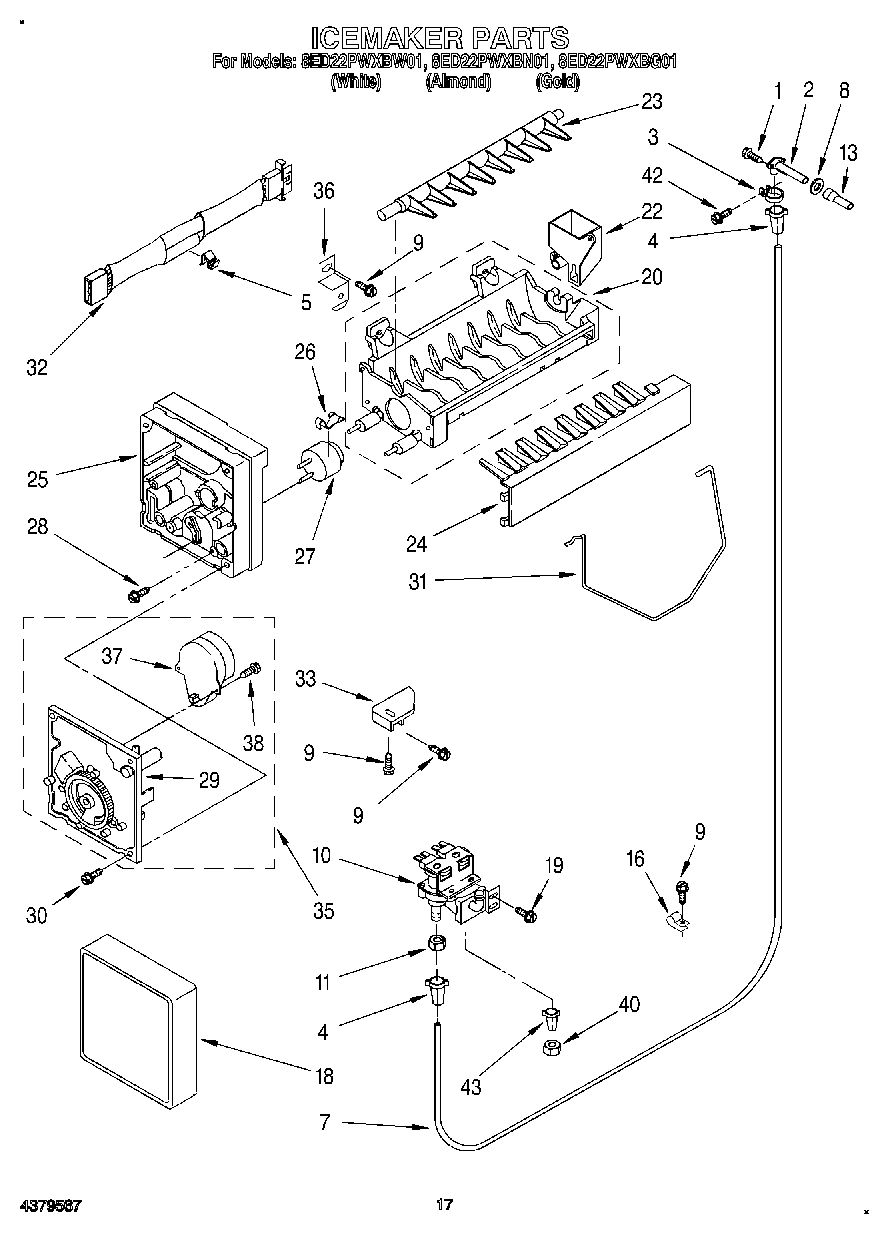

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 8ED22PWXBG01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2170147 WPL LIT2170147 Contact Us For Availability
WPL LIT2176611 WPL LIT2176611 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143424A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143423A Contact Us For Availability
1
Heater, Dispenser WPL 2167078 Contact Us For Availability
1
Refrigerator Door (White) WPL 4362040 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 4362041 Contact Us For Availability
1
Refrigerator Door (Gold (Also Order Item 18)) WPL 4362042 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Grommet WPL 987048 Contact Us For Availability
2
Shelf Bin (2) WPL 2170613 Contact Us For Availability
3
Door, Ice Compartment WPL 2170788 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2170966 Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Housing, Dispenser WPL 1107943 Contact Us For Availability
4
Trim, Compartment Door WPL 2162896 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154984 Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI143425A Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Shelf Bin (2) WPL 2170614 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Insert, Handle (Gold) WPL 1118436 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Shelf (Long) WPL 1114609 Contact Us For Availability
8
Shelf (Short) WPL 1118165 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Trim, Shelf WPL 2162938 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Bin, Freezer WPL 2148194 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Meat Pan WPL 2170961 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Grommet (8) WPL 1110779 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Cover WPL 2170969 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Pin Plate WPL 1116986 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Hinge Cover (Gold) WPL 2150342 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Divider, Bin WPL 2152335 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
16
Front Cover Ice Container WPL 2171259 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
16
Insert, Handle (Gold) WPL 1118435 Contact Us For Availability
16
Insert, Handle (White) WPL 1119367 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
18
Snack Bin WPL 2170964 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Gold) WPL 1110710 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Bracket, Door Stop WPL 2155334 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
24
Retainer, Bottle WPL 2163566 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Guide, Ice WPL 1118269 Contact Us For Availability
25
Pin Plate WPL 1118048 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
26
Tap, Plate WPL 2155335 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Screw WPL 489022 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
38
Lever, Water Dispenser WPL 2159196 Contact Us For Availability
38
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
front cover, housing (includes item 39) WPL 2150340 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI143422A Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
