Model Whirlpool 8ED22PWXAW01 REFRIGERATOR – Common Parts & Diagrams
11 - CONTROL
01 - CABINET

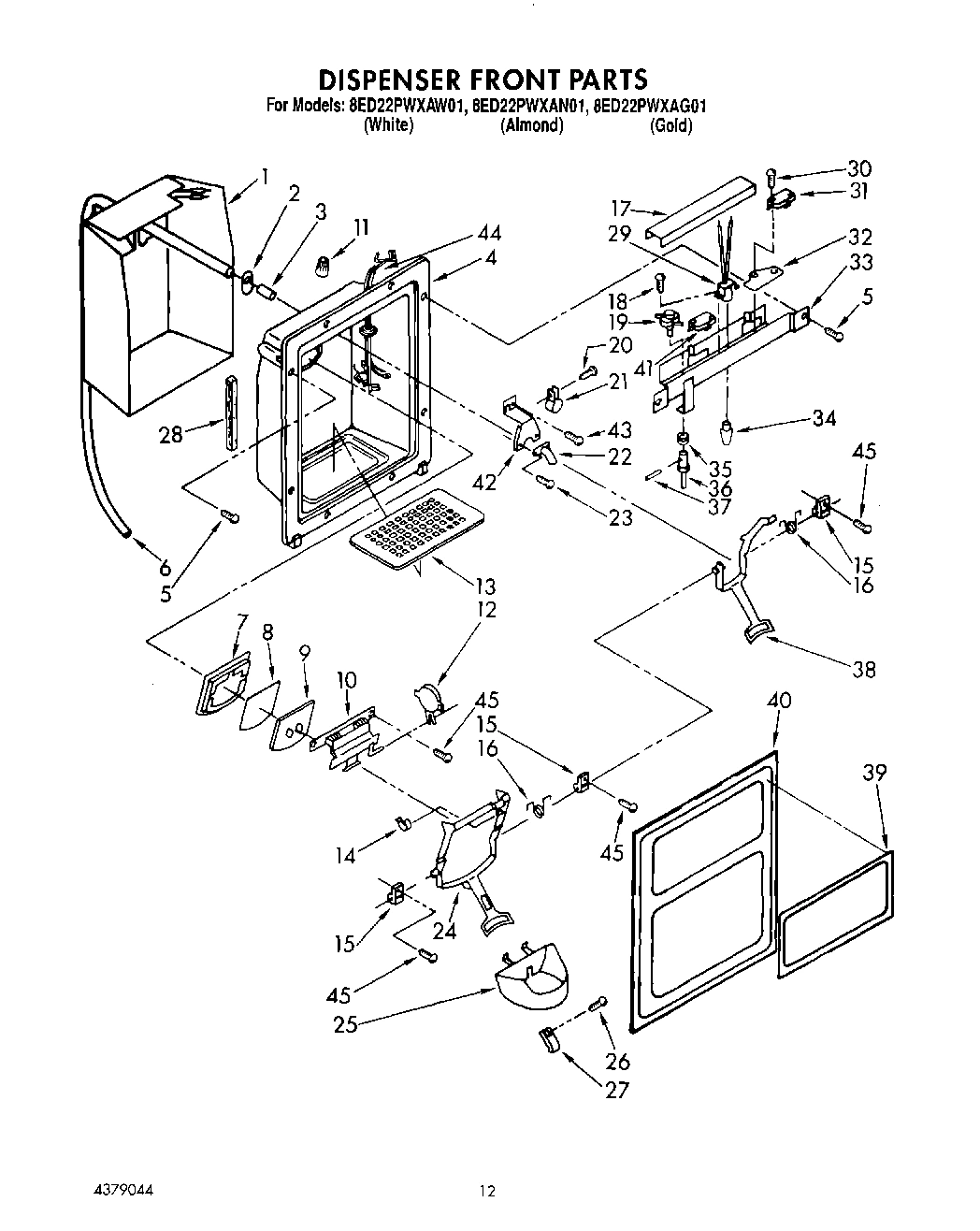

08 - DISPENSER FRONT

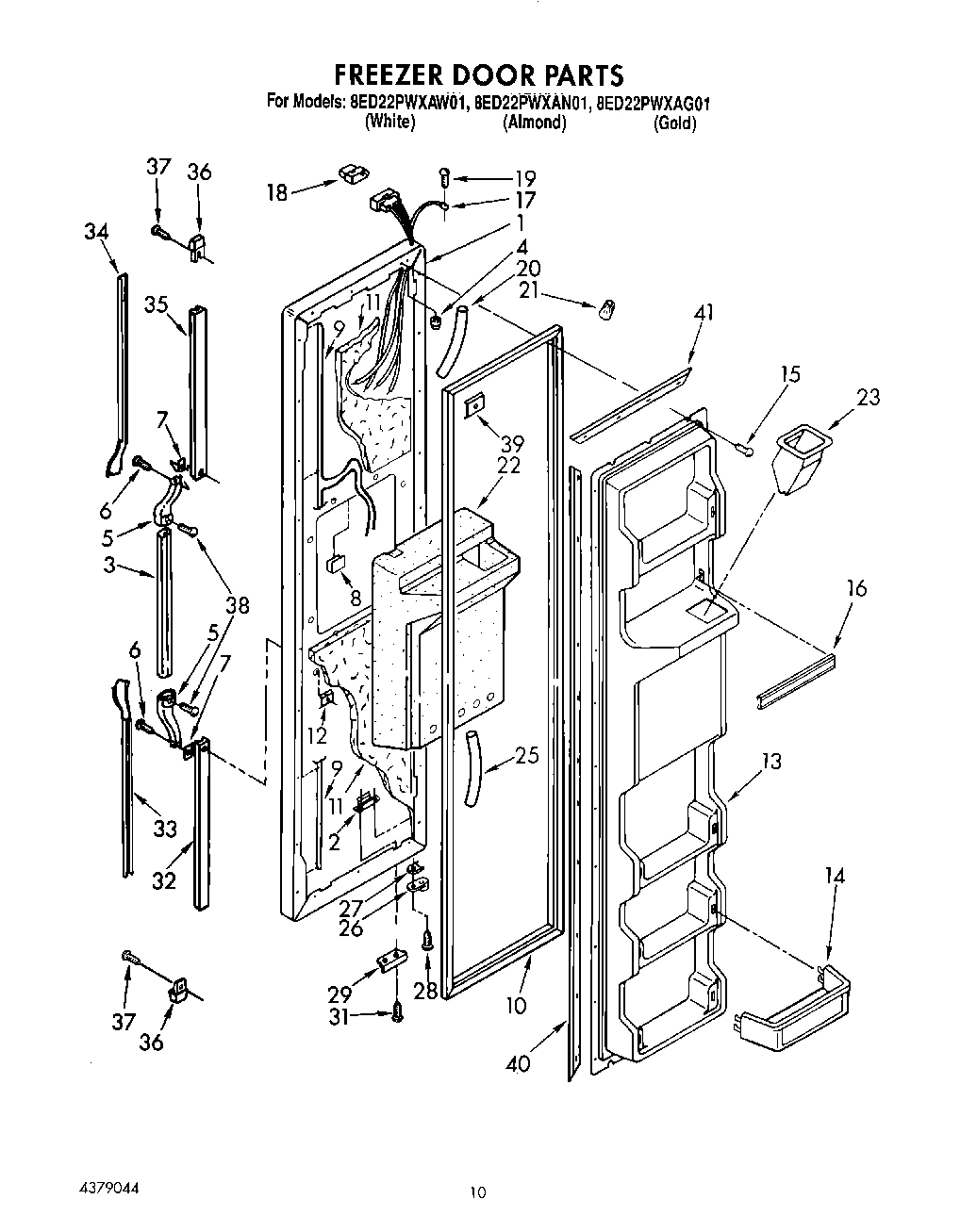

07 - FREEZER DOOR

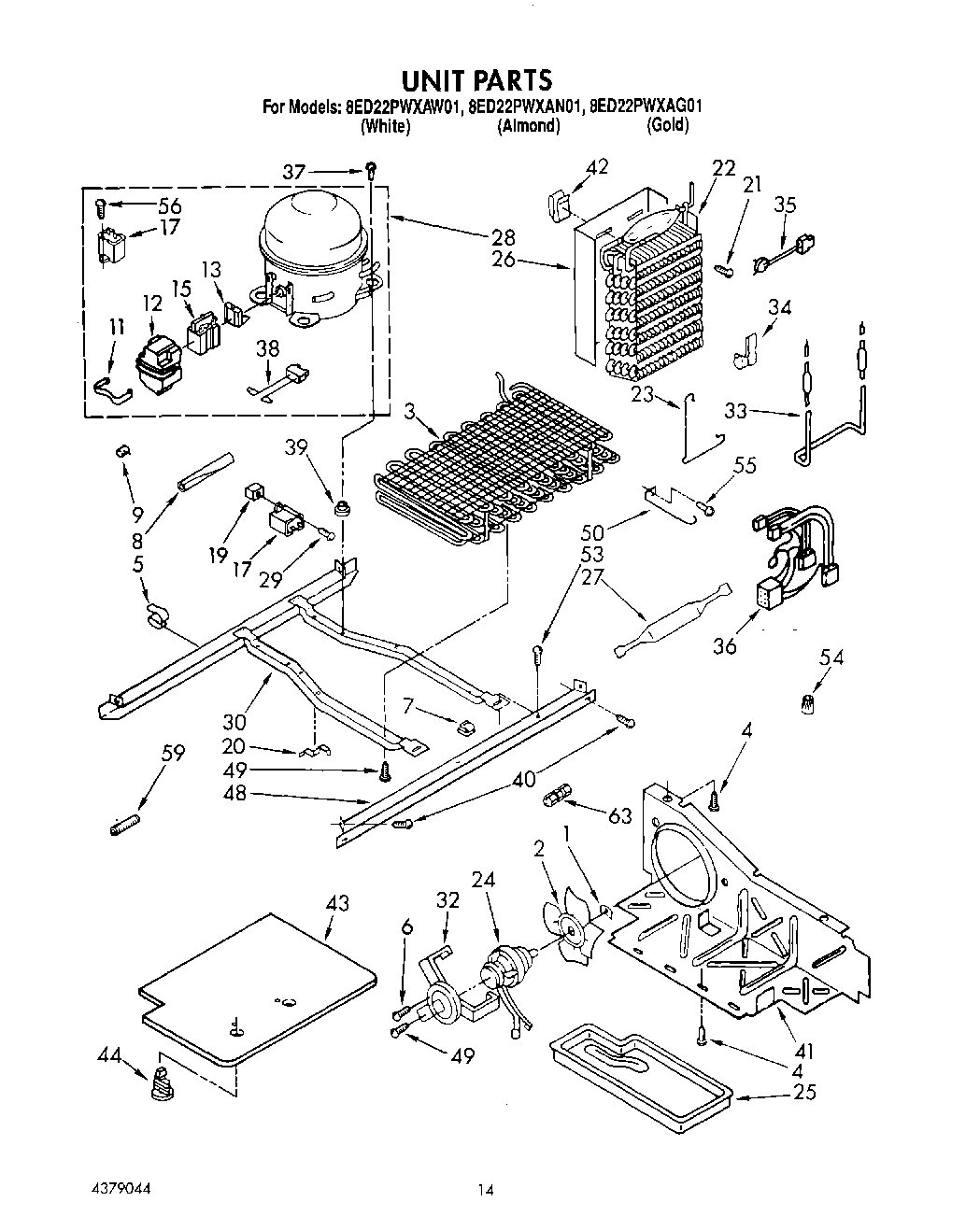

09 - UNIT

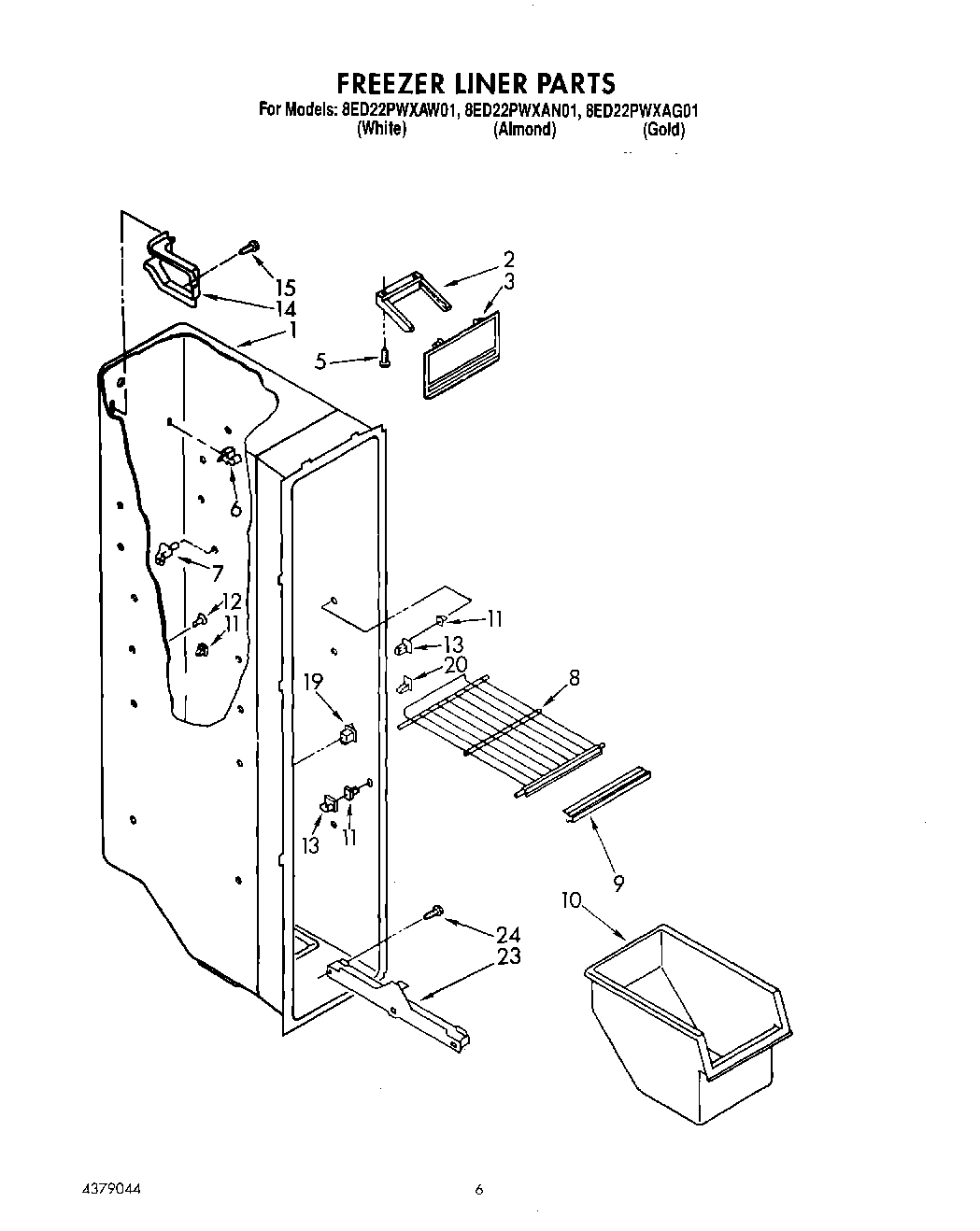

04 - FREEZER LINER

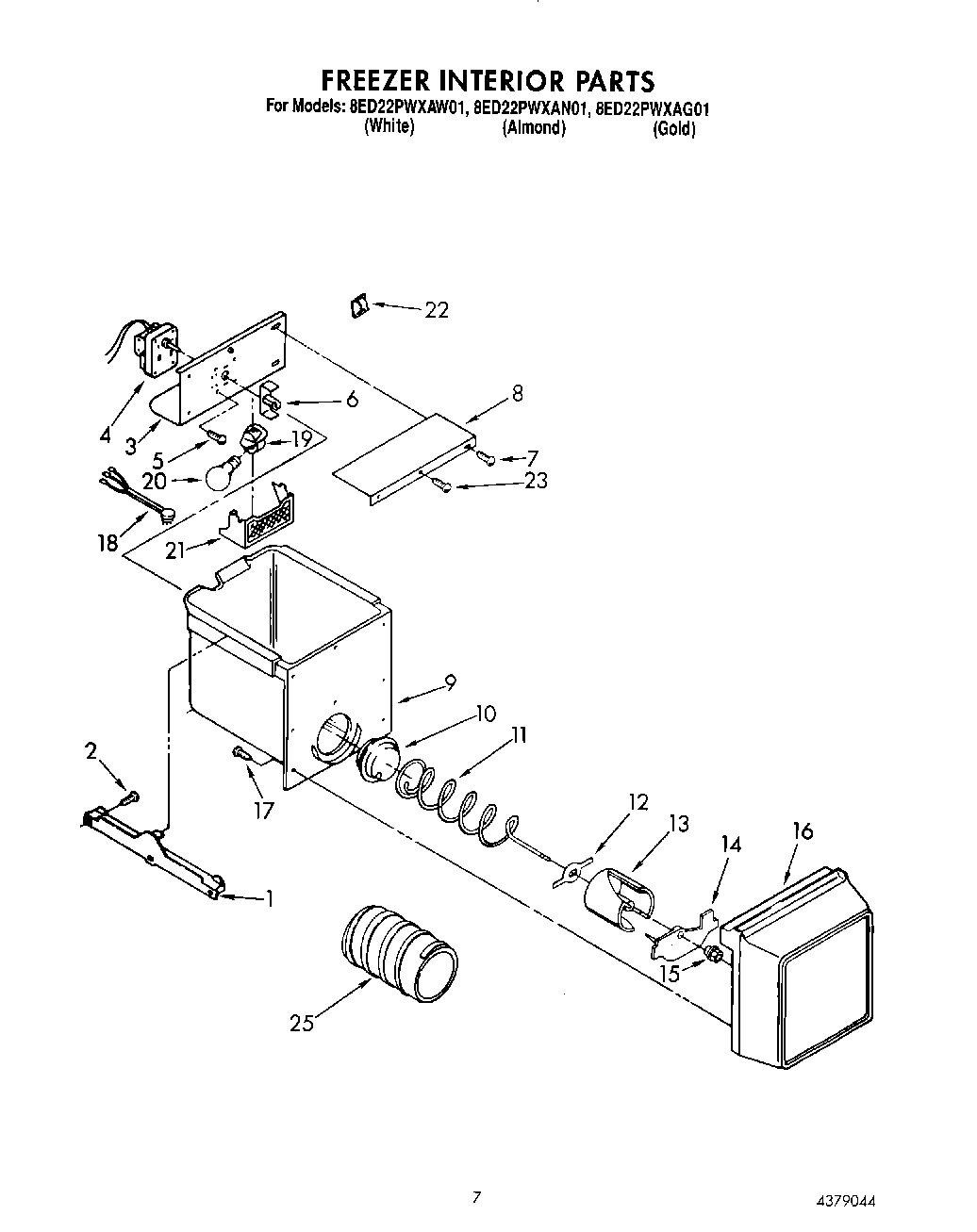

05 - FREEZER INTERIOR

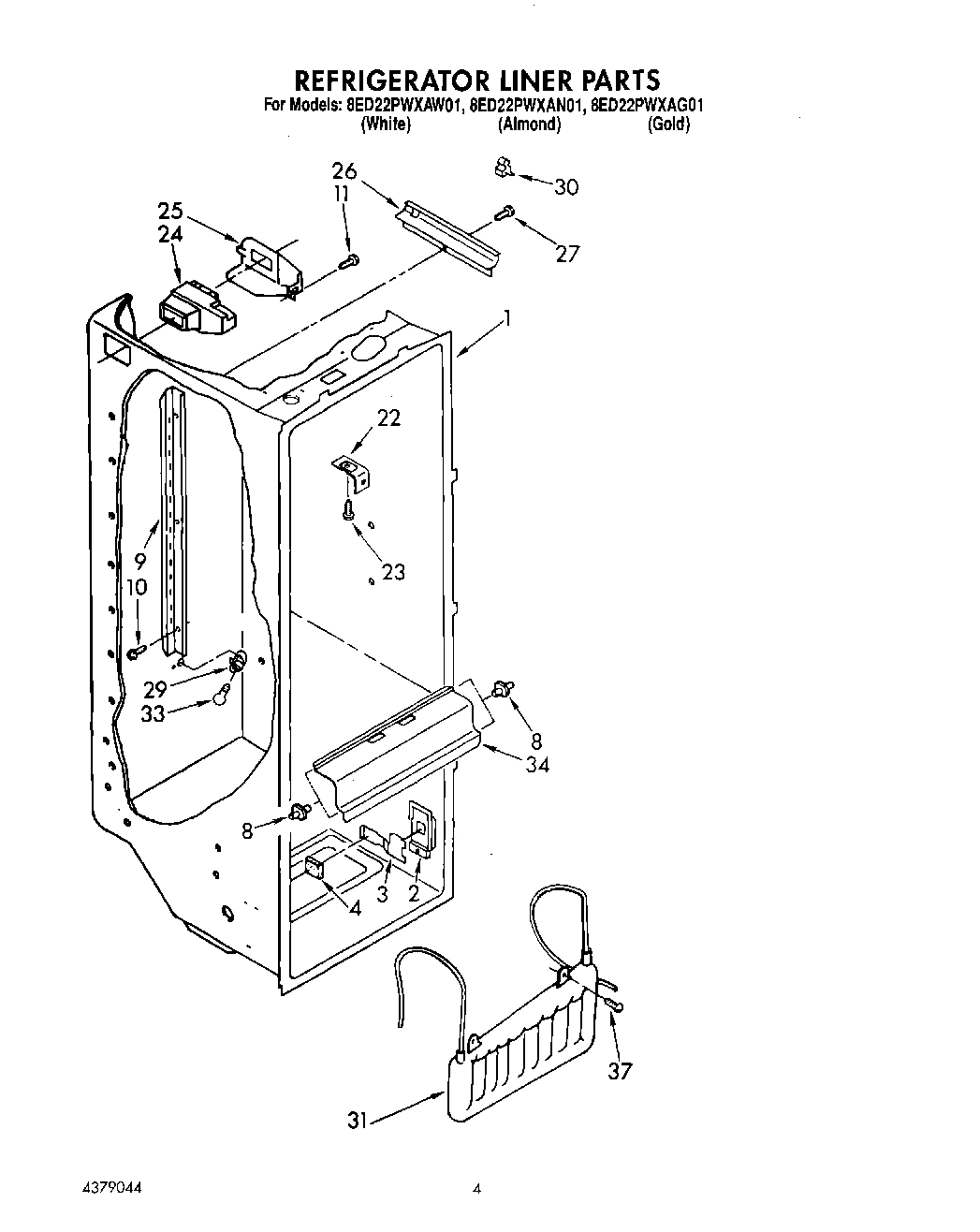

02 - REFRIGERATOR LINER

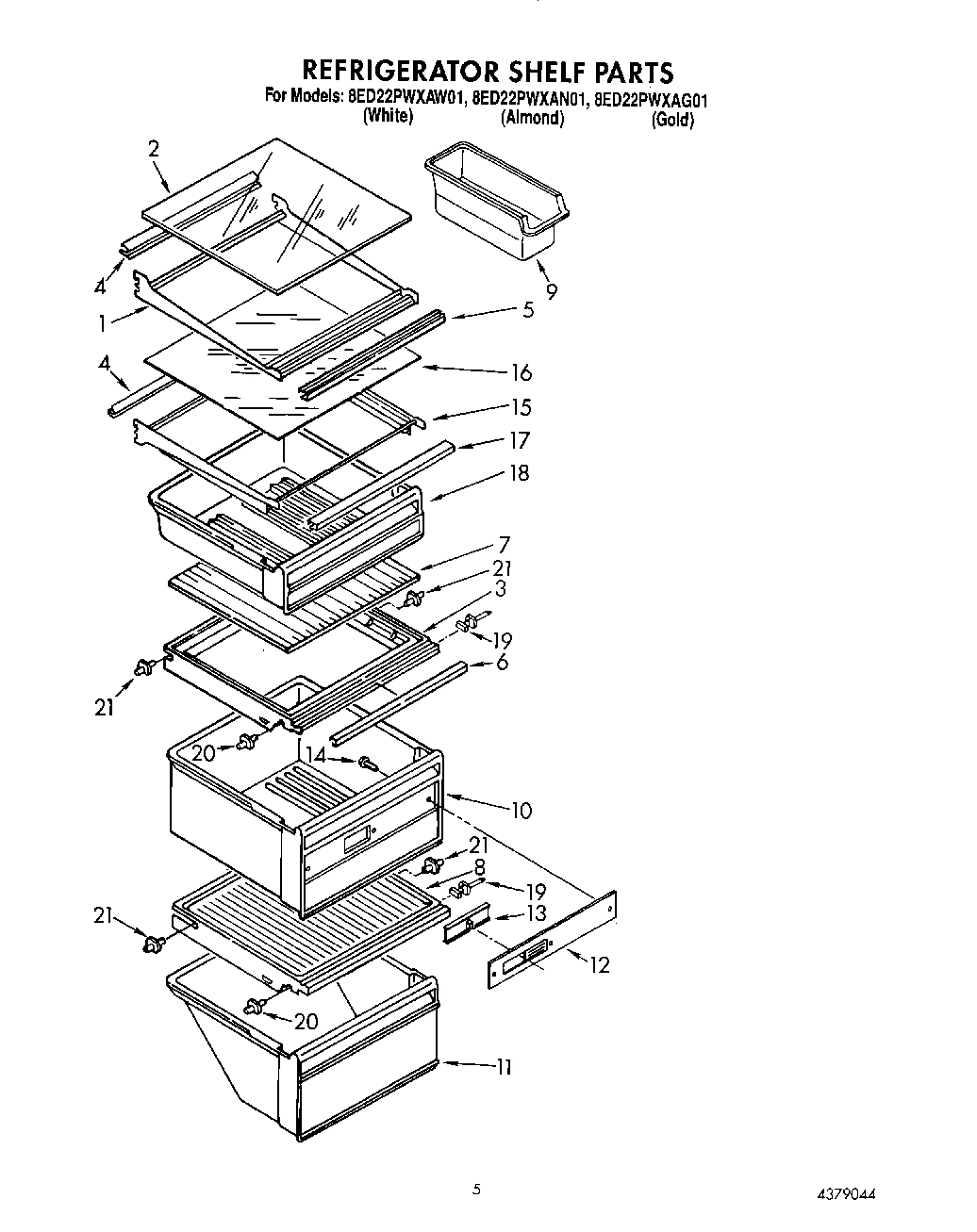

03 - REFRIGERATOR SHELF

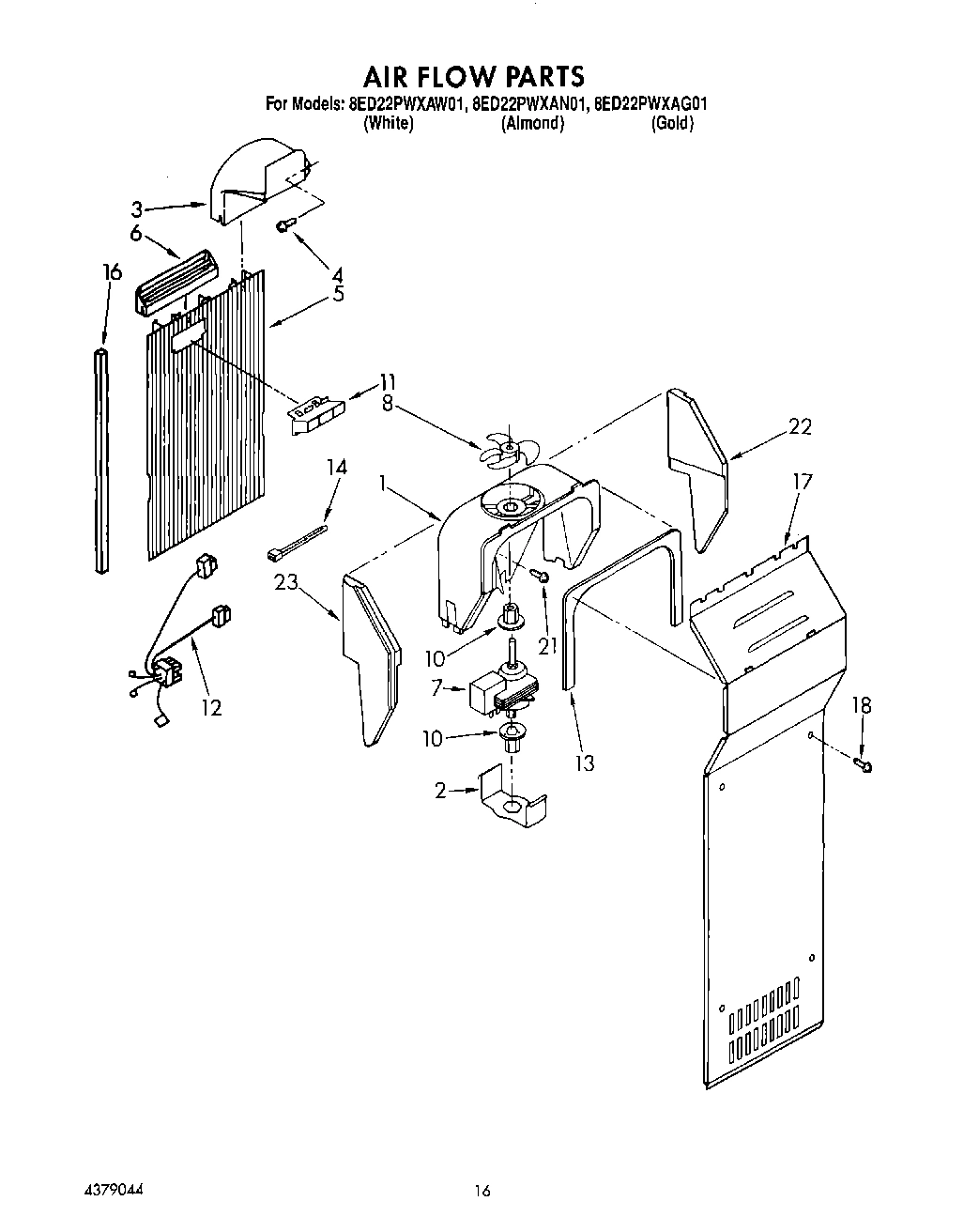

10 - AIR FLOW

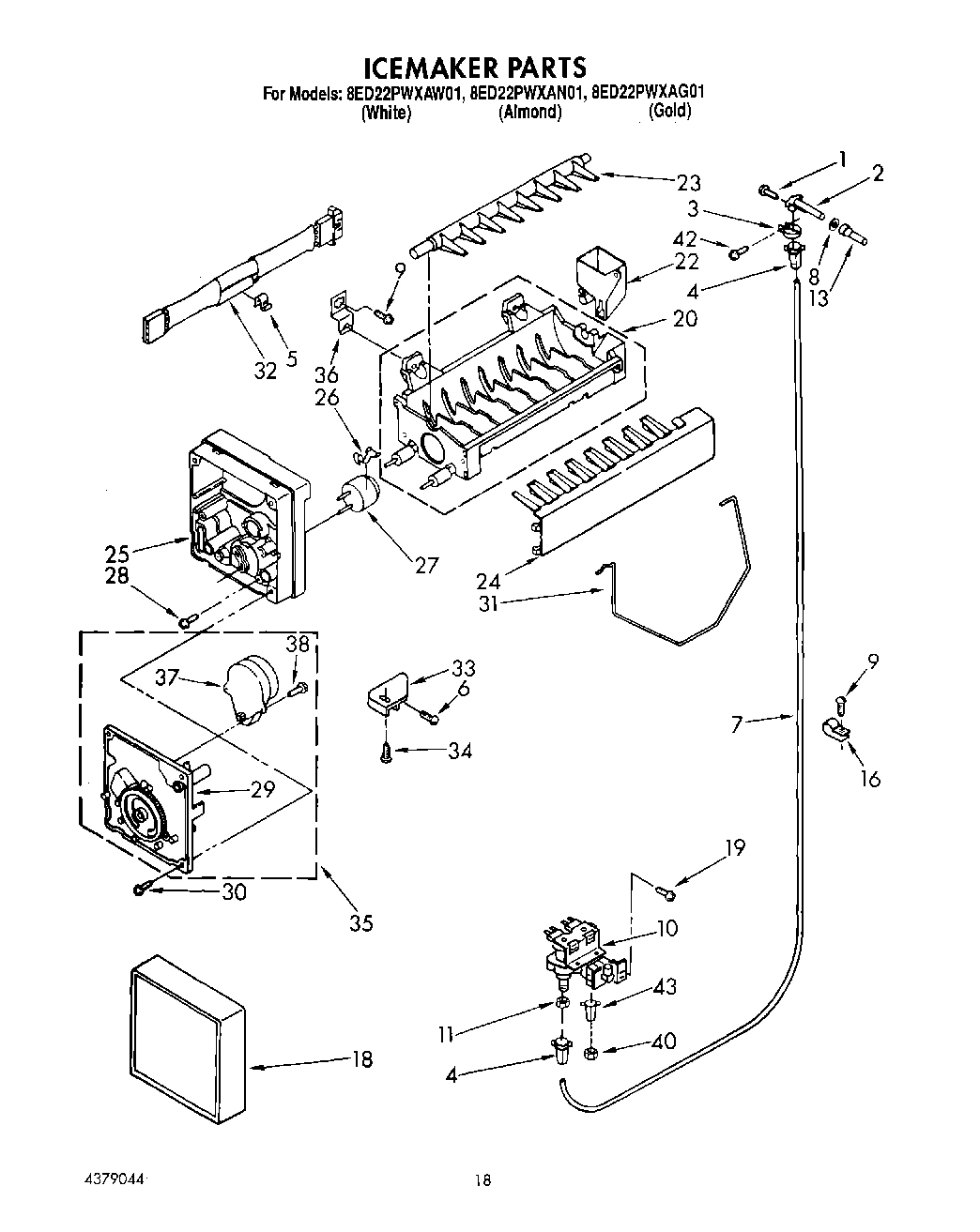

12 - ICEMAKER, LIT/OPTIONAL

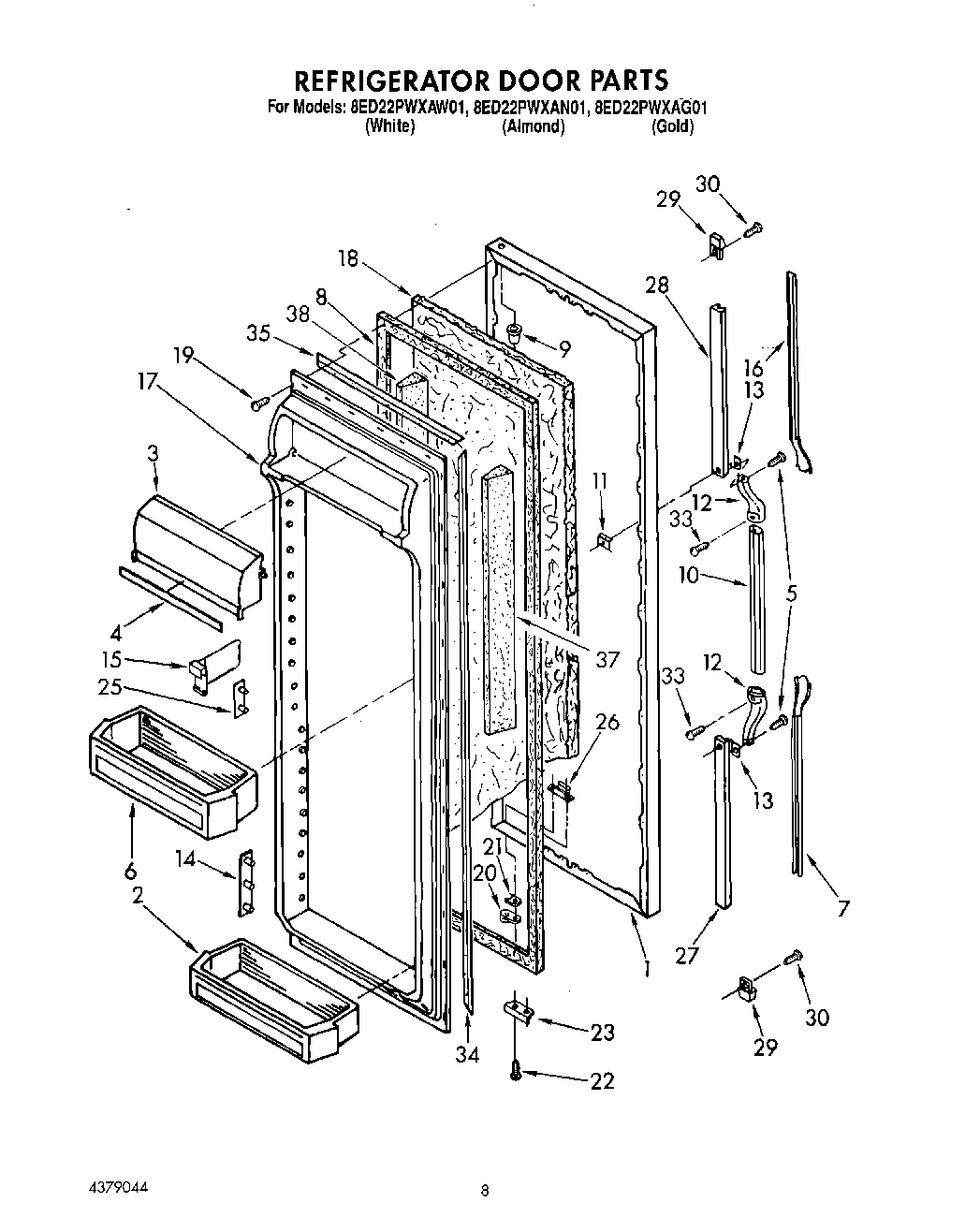

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool 8ED22PWXAW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2160159 WPL LIT2160159 Contact Us For Availability
WPL LIT2162709 WPL LIT2162709 Contact Us For Availability
WPL LIT2167062 WPL LIT2167062 Contact Us For Availability
WPL LIT2167113 WPL LIT2167113 Contact Us For Availability
WPL LIT4379044 WPL LIT4379044 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
Freezer, Door Panel (Gold (Also Order Item 11 WPL 1115237 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 1115238 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143410A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143409A Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
refrigerator door (white) WPL 1115273 Contact Us For Availability
1
Refrigerator Door (Gold (Also Order Item 18)) WPL 1115275 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 1115276 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Shelf Bin (2) WPL 2163337 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Door, Ice Compartment WPL 2148696 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2148702 Contact Us For Availability
4
Seal, Hinge Pin WPL 939886 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Reflector, Shelf WPL 1114306 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Trim, Shelf WPL 1114302 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Screw WPL 486214 Contact Us For Availability
6
Shelf Bin (2) WPL 2163336 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Insert, Handle (Gold) WPL 1118435 Contact Us For Availability
7
Insert, Handle (White) WPL 1119361 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Wiring Protector WPL 939143 Contact Us For Availability
8
Shelf (Long) WPL 1114609 Contact Us For Availability
8
Shelf (Short) WPL 1118165 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Heater, Door WPL 2165375 Contact Us For Availability
9
Trim Shelf WPL 1110782 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
10
Bin, Freezer WPL 2148194 Contact Us For Availability
10
Pan, Crisper WPL 2148980 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Pan, Meat WPL 2148192 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Grommet (8) WPL 1110779 Contact Us For Availability
12
Front, Crisper Pan WPL 2148378 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 1118841 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2154857 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Slide, Crisper WPL 1116718 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
trim, door shelf (4) WPL 2148265 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Screw WPL 489226 Contact Us For Availability
14
Pin Plate WPL 1116986 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI143411A Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Divider, Bin WPL 2152336 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2148252 Contact Us For Availability
16
Insert, Handle (Gold) WPL 1118436 Contact Us For Availability
16
Insert, Handle (White) WPL 1119367 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
16
Front Cover Ice Container WPL 2148249 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
17
Harness, Door (Includes Item 18) WPL 2167054 Contact Us For Availability
17
Trim, Shelf WPL 2148301 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Snack Bin WPL 2148005 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
23
Clamp WPL 2161329 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Tube, Door Wiring WPL 2147080 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Pin Plate WPL 1118048 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Also Order Cement Alumilastic WPL 542369 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154561 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
30
Screw WPL 489075 Contact Us For Availability
31
Switch (2) WPL 1127898 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
33
Screw WPL 489022 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
34
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1114624 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
35
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
36
Unit, Harness WPL 2167064 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Reinforcement, Shelf WPL 1115379 Contact Us For Availability
38
Lever, Water Dispenser WPL 1115349 Contact Us For Availability
38
Reinforcement, Shelf WPL 1119055 Contact Us For Availability
38
Timeless Black Decor Panel WPL 4210353 Contact Us For Availability
38
Black Handle Insert WPL 4210377 Contact Us For Availability
38
woodgrain handle insert WPL 4210445 Contact Us For Availability
39
Plaque, Front Cover WPL 2150335 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
front cover, housing (includes item 39) WPL 2150340 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Screw WPL 488316 Contact Us For Availability
43
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
44
Wiring Assembly, Door WPL 2149783 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
