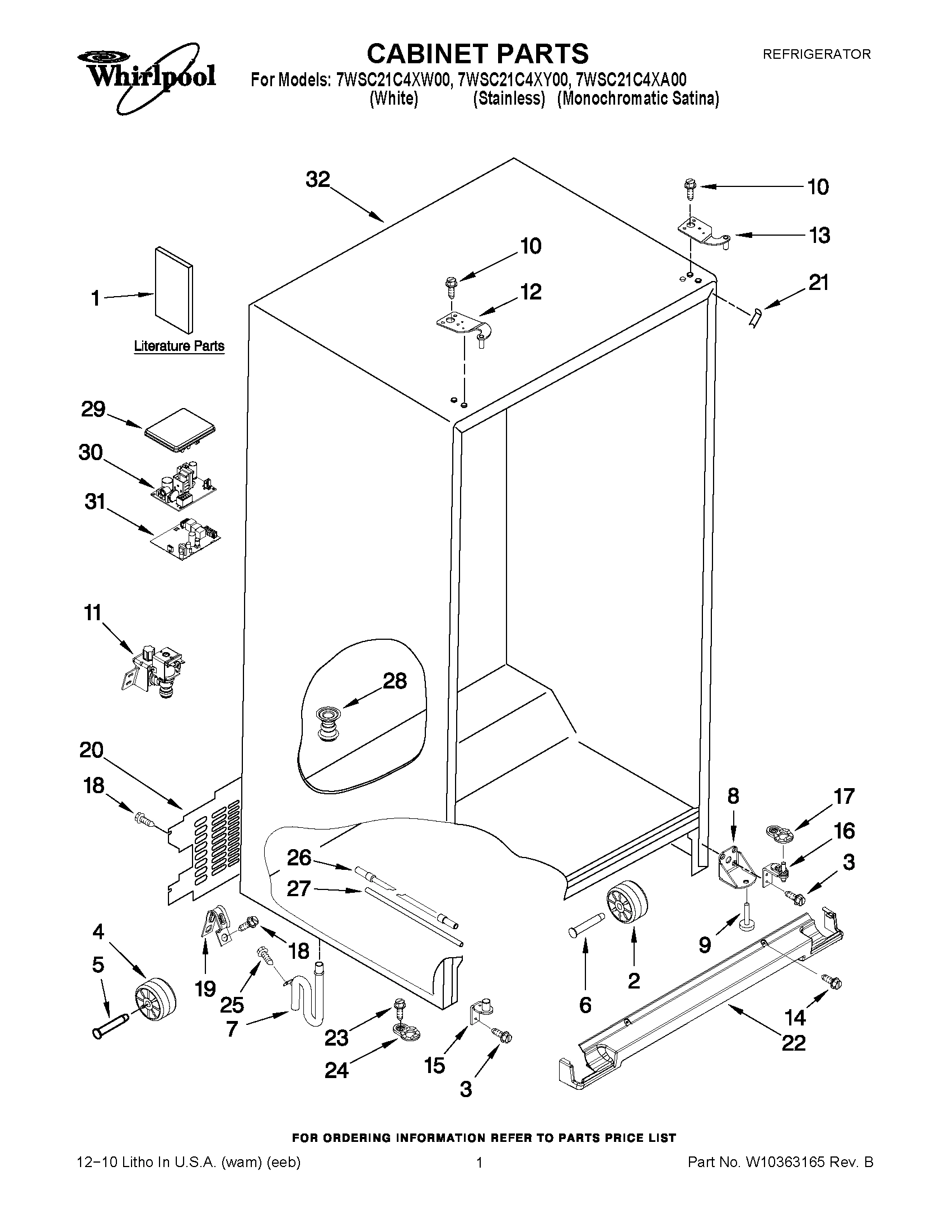

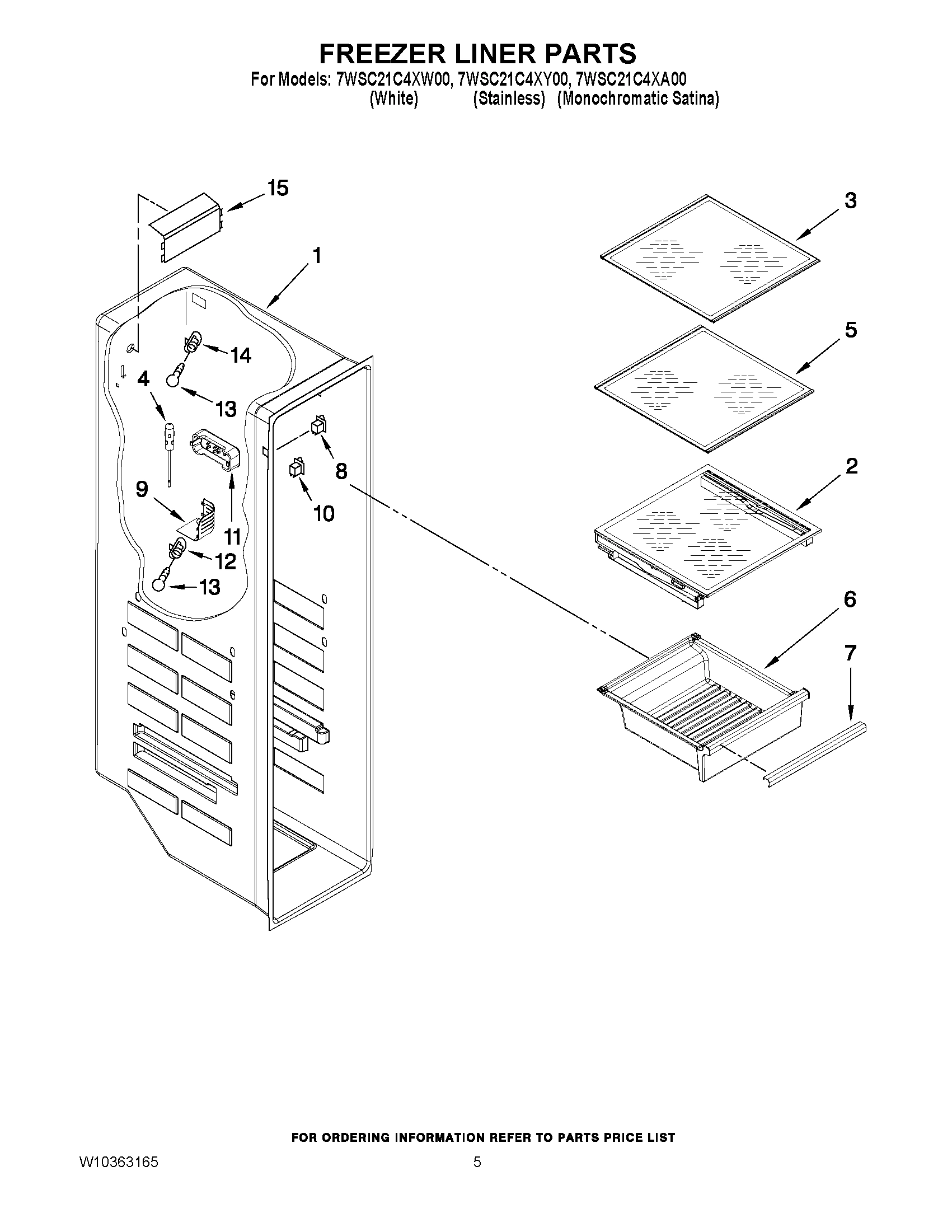

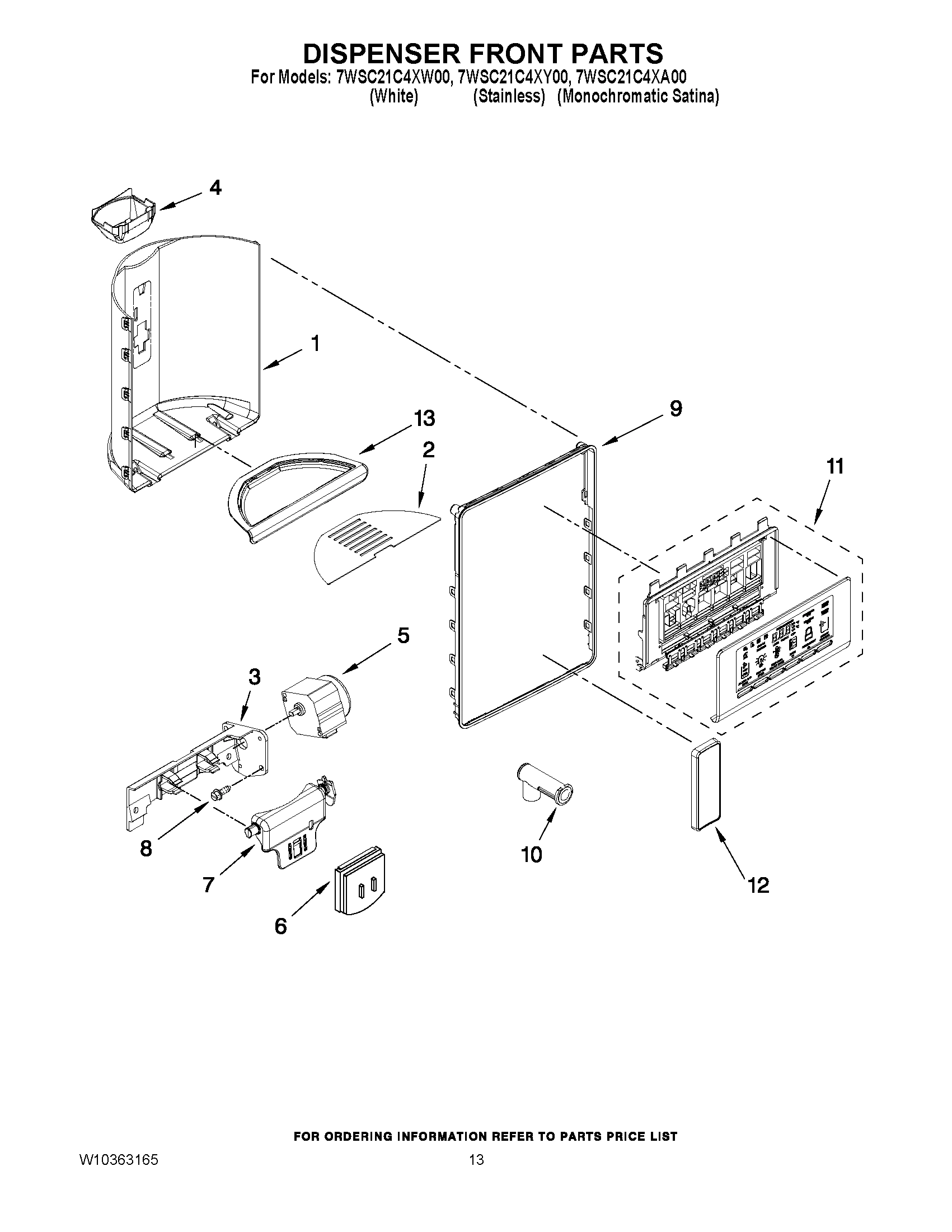

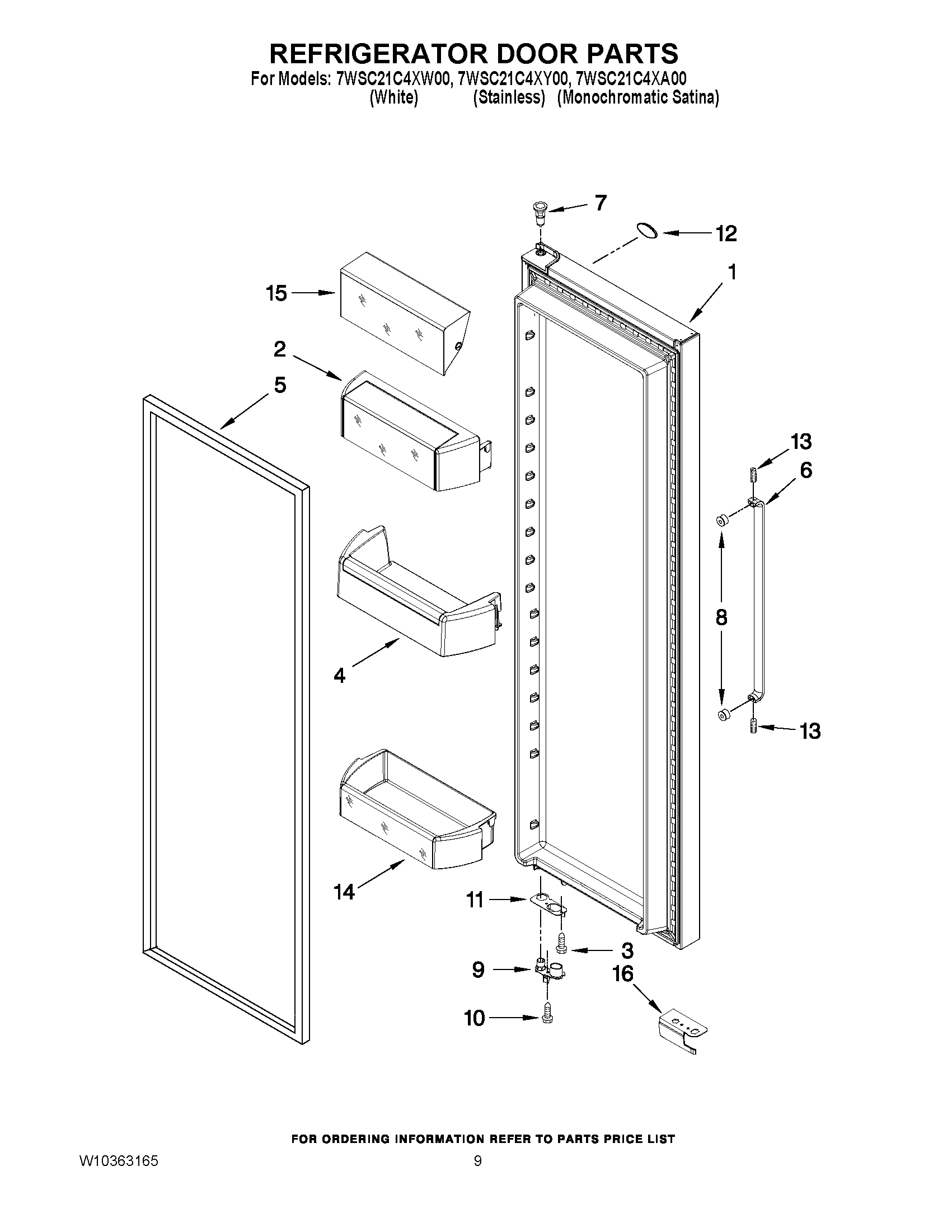

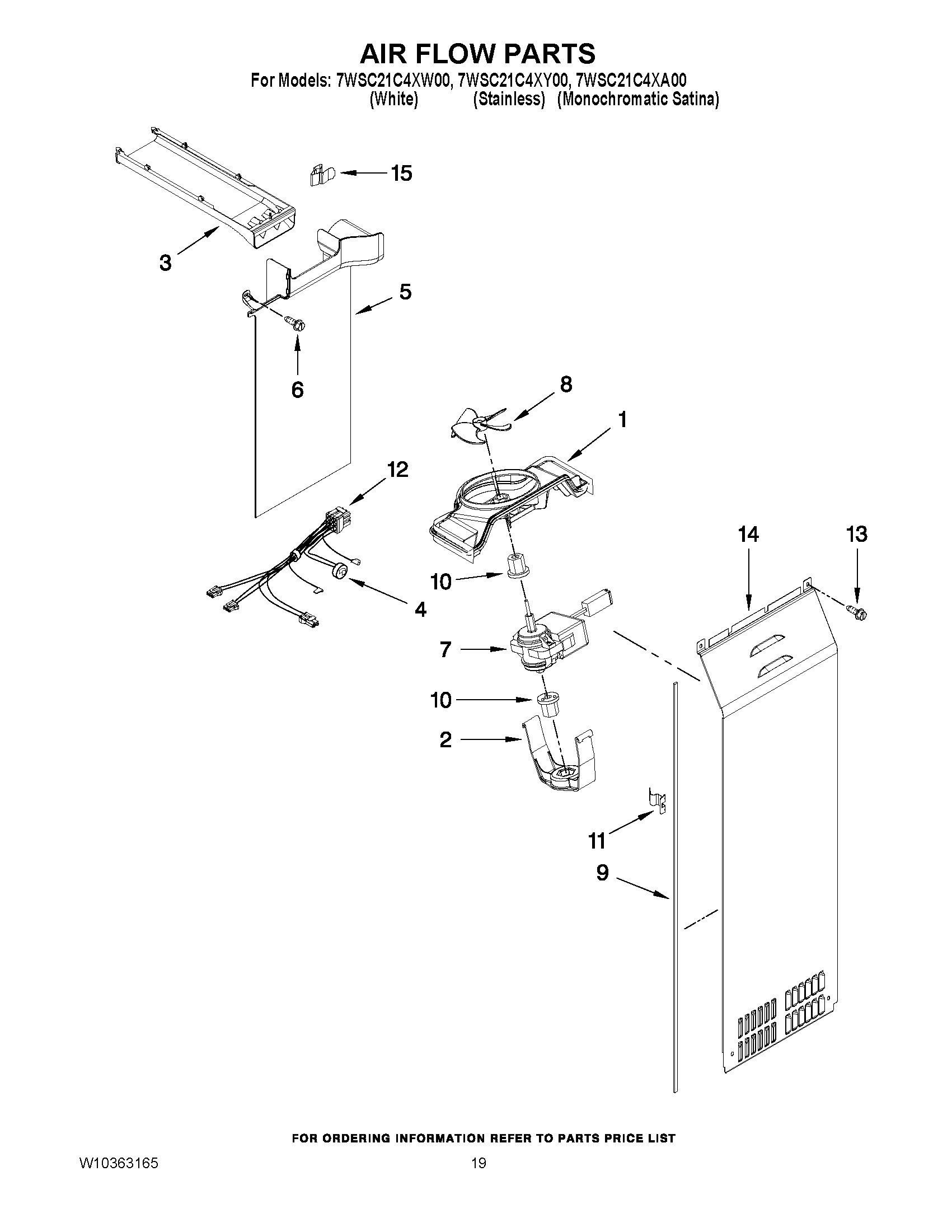

Model Whirlpool 7WSC21C4XA00 REFRIGERATOR – Common Parts &amp; Diagrams

1

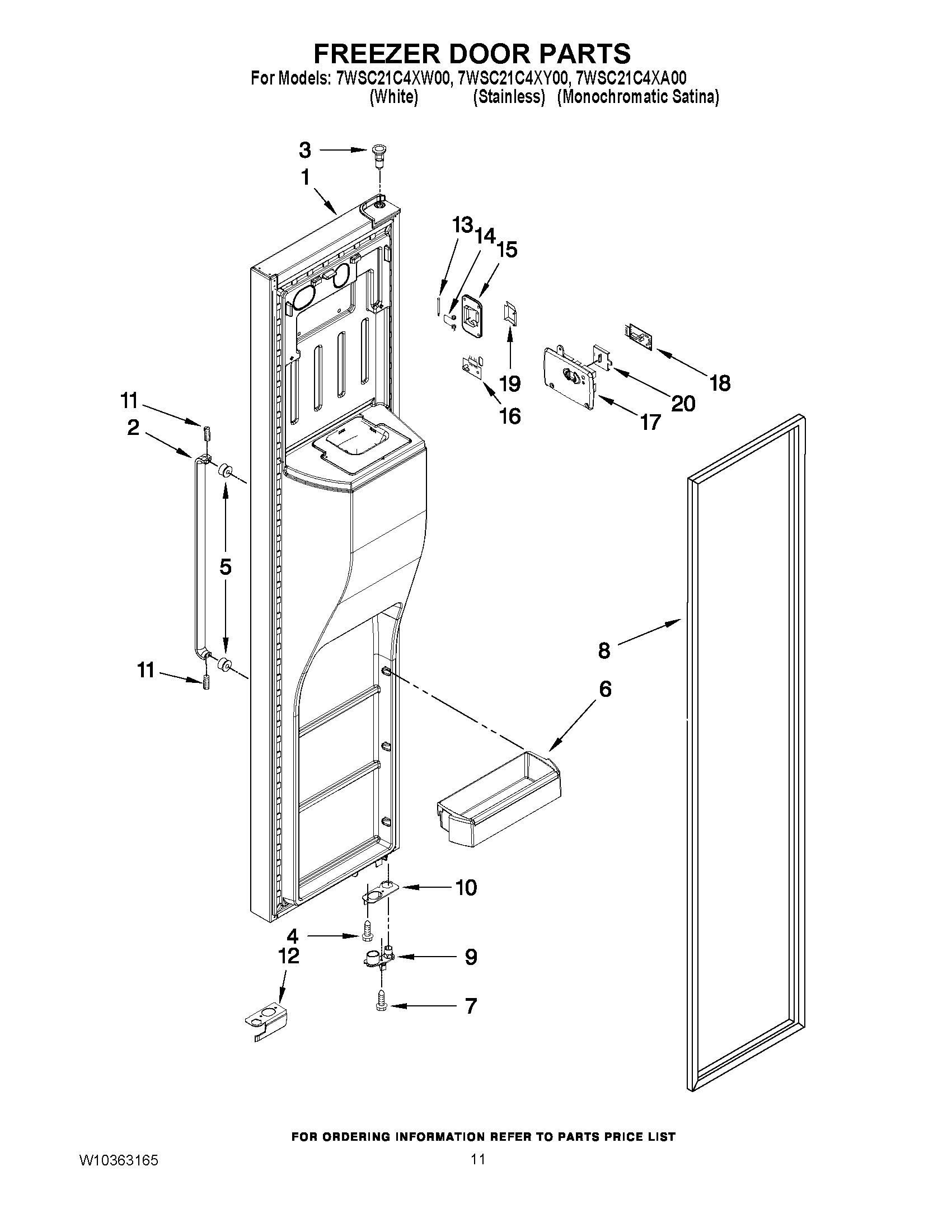

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10304308 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10328302 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10328303 Contact Us For Availability

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10276197 Whirlpool Refrigerator Grille Backorder WPL WPW10276197 $41.85

2

ICE BIN WPL W10286610 Contact Us For Availability

2

HANDLE WPL W10277354 Contact Us For Availability

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly Backorder WPL W11708426 $98.26

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WPW10238092 Whirlpool Refrigerator Water Tube In Stock WPL WPW10238092 $54.72

3

AIR DUCT, UPPER WPL W10260380 Contact Us For Availability

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

4

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $44.18

4

Washer WPL 2258220 Contact Us For Availability

5

W10260378 Whirlpool Refrigerator Air Duct Backorder WPL W10260378 $49.03

5

WPW10205978 Whirlpool Motor Backorder WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

6

W11106313 Whirlpool Refrigerator Freezer Bin Backorder WPL W11106313 $67.68

6

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

6

WPW10296857 Whirlpool Refrigerator Cantilever In Stock WPL WPW10296857 $46.34

6

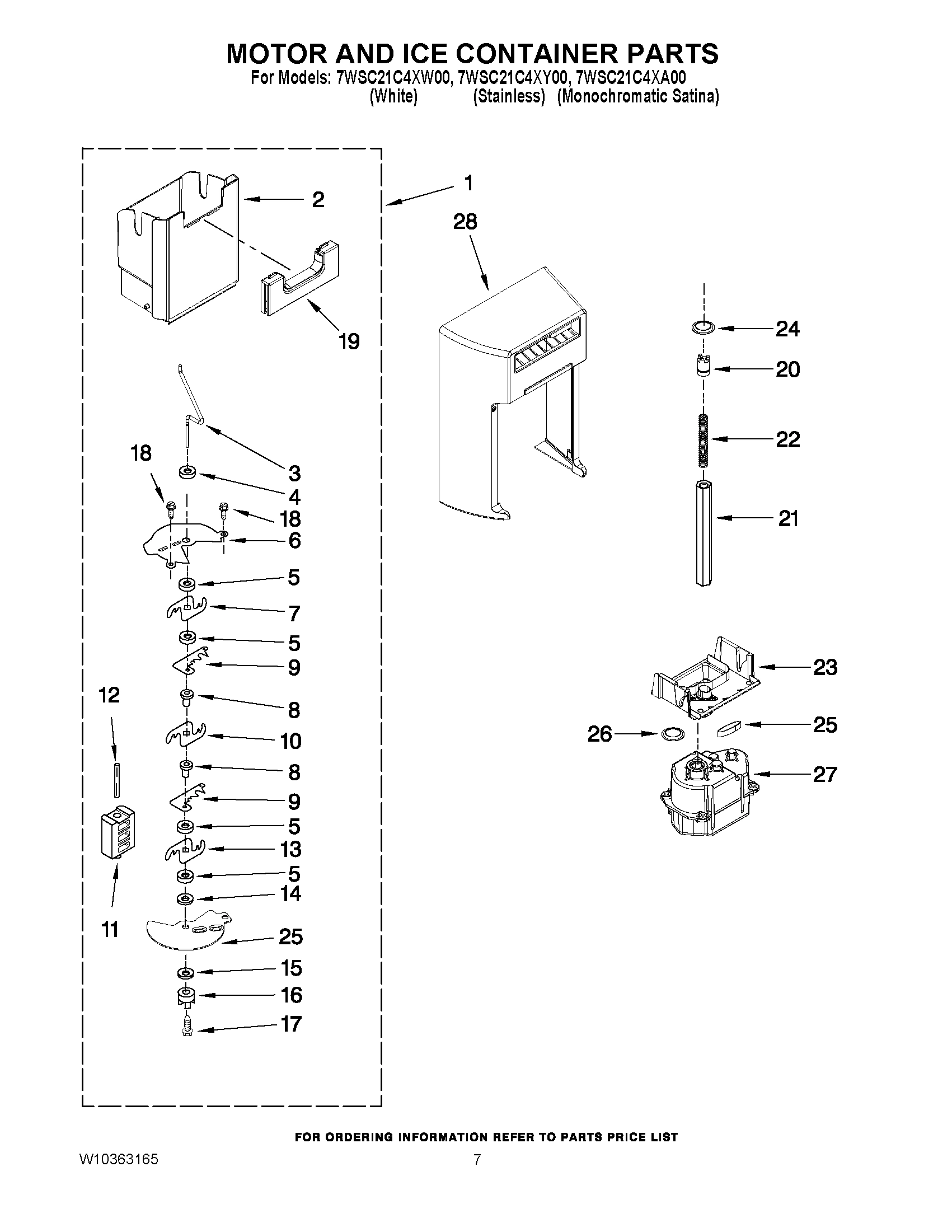

COVER, CRUSHER WPL W10178232 Contact Us For Availability

7

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

7

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $31.82

7

WPW10277958 Whirlpool Refrigerator Fitting In Stock WPL WPW10277958 $29.15

7

COVER WPL W10251088 Contact Us For Availability

7

SCREW WPL W10296816 Contact Us For Availability

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $25.27

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WPW10247885 Whirlpool Door Gasket In Stock WPL WPW10247885 $151.09

8

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $45.66

8

WPW10355585 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10355585 $120.14

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W10260382 Whirlpool Refrigerator Cover Backorder WPL W10260382 $35.43

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

9

WPW10248011 Whirlpool Refrigerator White Door In Stock WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9

WPW10257203 Whirlpool Refrigerator Lower Door In Stock WPL WPW10257203 $8.80

9

WPW10257206 Whirlpool Refrigerator Door Cam Backorder WPL WPW10257206 $9.17

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

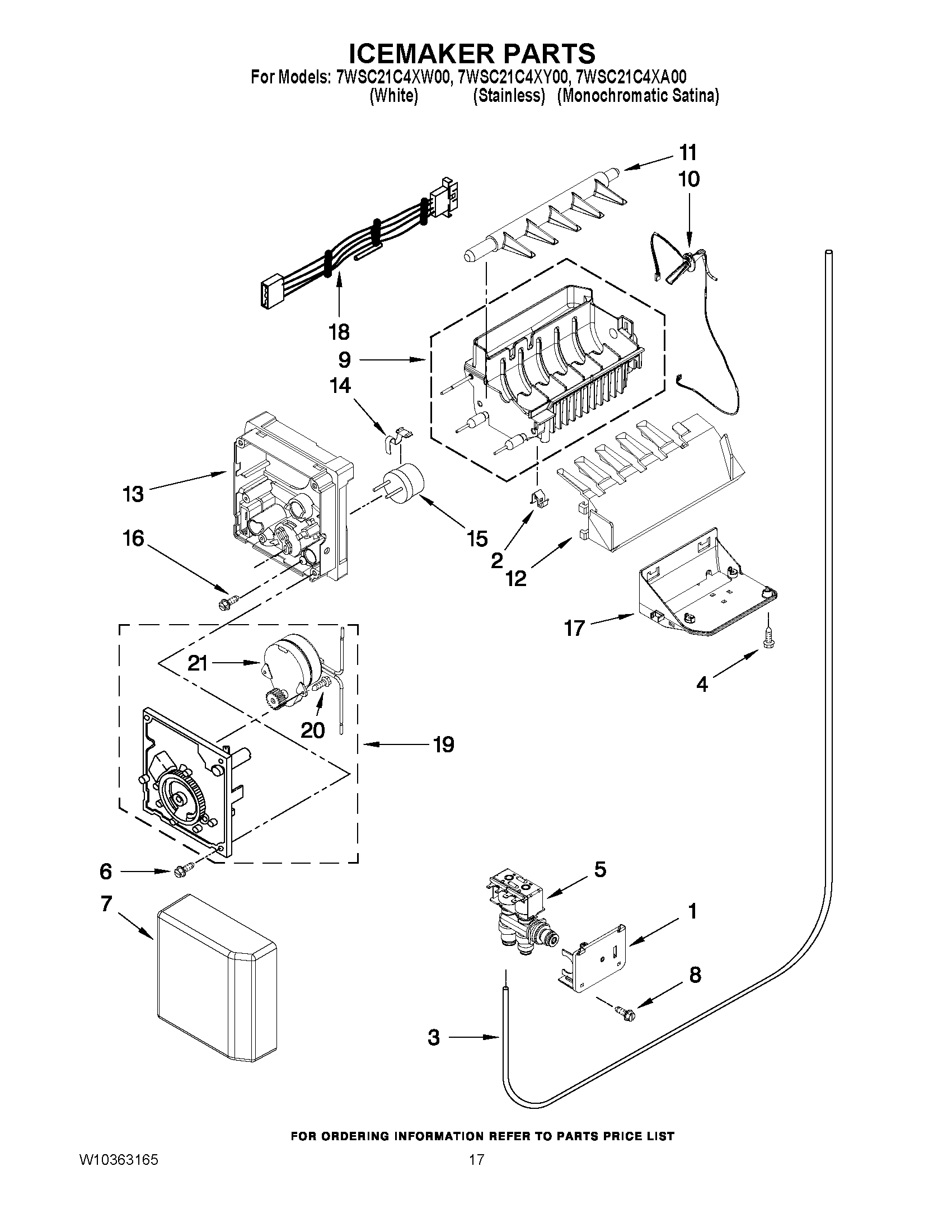

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 WPL W10251081 Contact Us For Availability

9

TRIM RING WPL W10254306 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $24.28

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $26.21

FILL TUBE ASSY. WPL W10347034 Contact Us For Availability

11

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

11

WPW10223328 Whirlpool Refrigerator Tube In Stock WPL WPW10223328 $50.51

W10632059 Whirlpool Refrigerator Wire Cover Backorder WPL W10632059 $8.45

W10901051 Whirlpool Refrigerator Door Hinge Backorder WPL W10901051 $26.55

W11590581 Whirlpool Refrigerator Door Hinge Backorder WPL W11590581 $8.55

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WPW10632062 Whirlpool Refrigerator Wire Cover Backorder WPL WPW10632062 $3.70

W10276193 Whirlpool Refrigerator Disp Tray Backorder WPL W10276193 $38.61

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

W11409290 Whirlpool Top Hinge In Stock WPL W11409290 $24.69

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $143.57

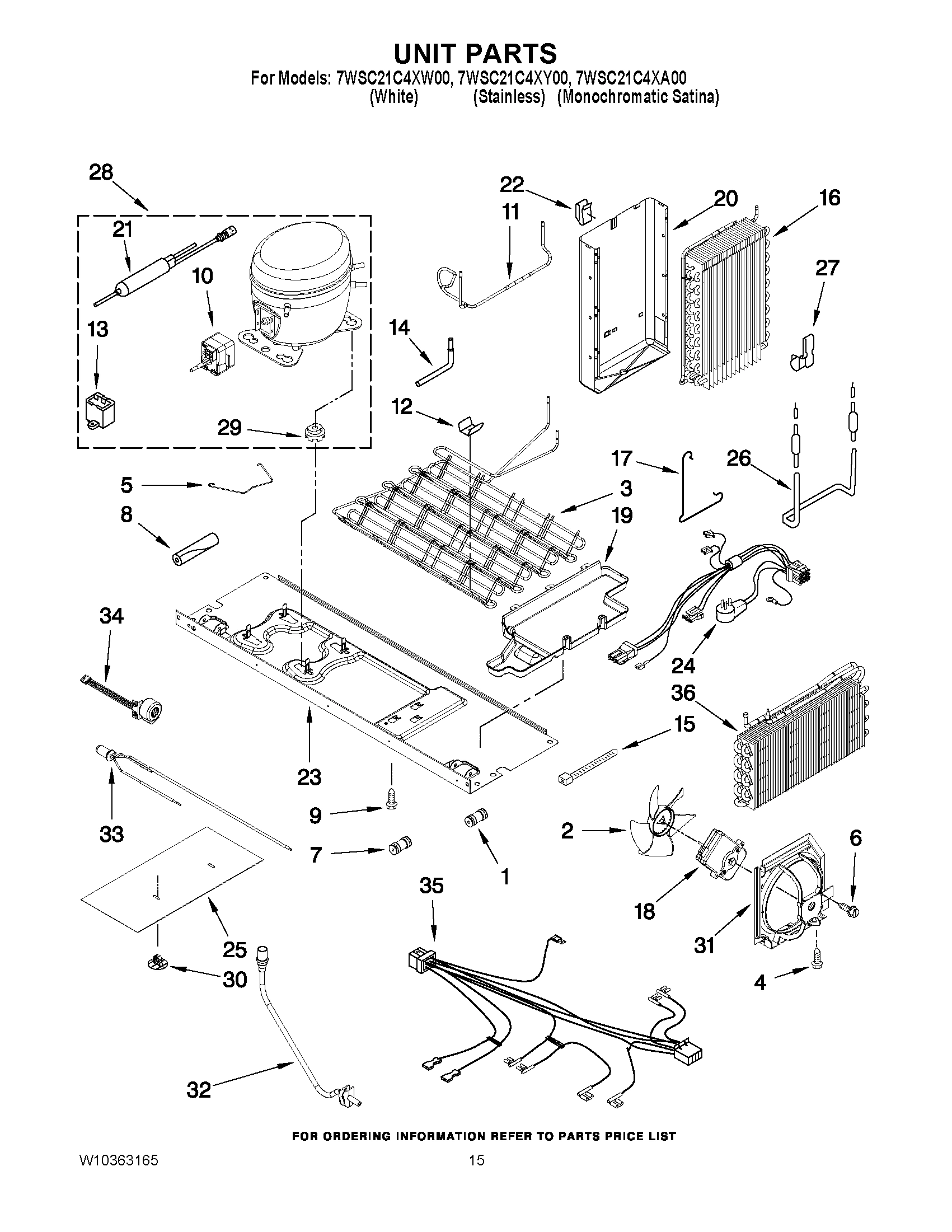

W10239739 Whirlpool Refrigerator Evaporator C Backorder WPL W10239739 $114.49

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $48.82

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $31.59

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $25.57

W11293374 Whirlpool Refrigerator Door Hinge Backorder WPL W11293374 $25.57

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $33.89

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W10789144 Whirlpool Refrigerator Wire Cover Backorder WPL W10789144 $11.11

W10870822 Whirlpool Refrigerator Electronic C In Stock WPL W10870822 $131.95

W11661847 Whirlpool Wire Cover Backorder WPL W11661847 $11.51

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

W10251080 Whirlpool Refrigerator Bracket Backorder WPL W10251080 $42.93

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

COVER, EMITTER WPL W10258510 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

18

W10242384 Whirlpool Refrigerator Wire Harness Backorder WPL W10242384 $49.10

18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W11652042 Whirlpool Bin Latch Backorder WPL W11652042 $8.20

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

WPW10251469 Whirlpool Refrigerator Evaporator Backorder WPL WPW10251469 $65.63

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $28.90

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

HEAT SHIELD WPL W10348669 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

W10280420 Whirlpool Refrigerator Light Lens Backorder WPL W10280420 $40.00

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WPW10258544 Whirlpool Refrigerator Shaft In Stock WPL WPW10258544 $13.71

22

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

22

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

23

W10277704 Whirlpool Refrigerator Support Backorder WPL W10277704 $108.63

23

W11573761 Whirlpool Mounting Bracket In Stock WPL W11573761 $20.39

24

W10876191 Whirlpool Refrigerator Door Cam In Stock WPL W10876191 $10.69

24

W10876198 Whirlpool Refrigerator Door Cam Backorder WPL W10876198 $5.09

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

W10859809 Whirlpool Refrigerator Evaporator C Backorder WPL W10859809 $111.02

25

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

25

UNIT COVER, BOTTOM WPL W10284726 Contact Us For Availability

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

DISPENSER, MOTOR WPL W10337064 Contact Us For Availability

28

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $27.27

28

WPW10287594 Whirlpool Refrigerator Front Cove Backorder WPL WPW10287594 $106.23

31

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

31

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $48.39

32

W11409190 Whirlpool Refrigerator Drain Tube Backorder WPL W11409190 $22.91

35

W11676780 Whirlpool Refrigerator Wire Harness Backorder WPL W11676780 $26.70

100

W11109888 Whirlpool Refrigerator Ice Containe Backorder WPL W11109888 $181.72

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
