Model Maytag 7MMHW6000BW0 WASHER – Common Parts & Diagrams

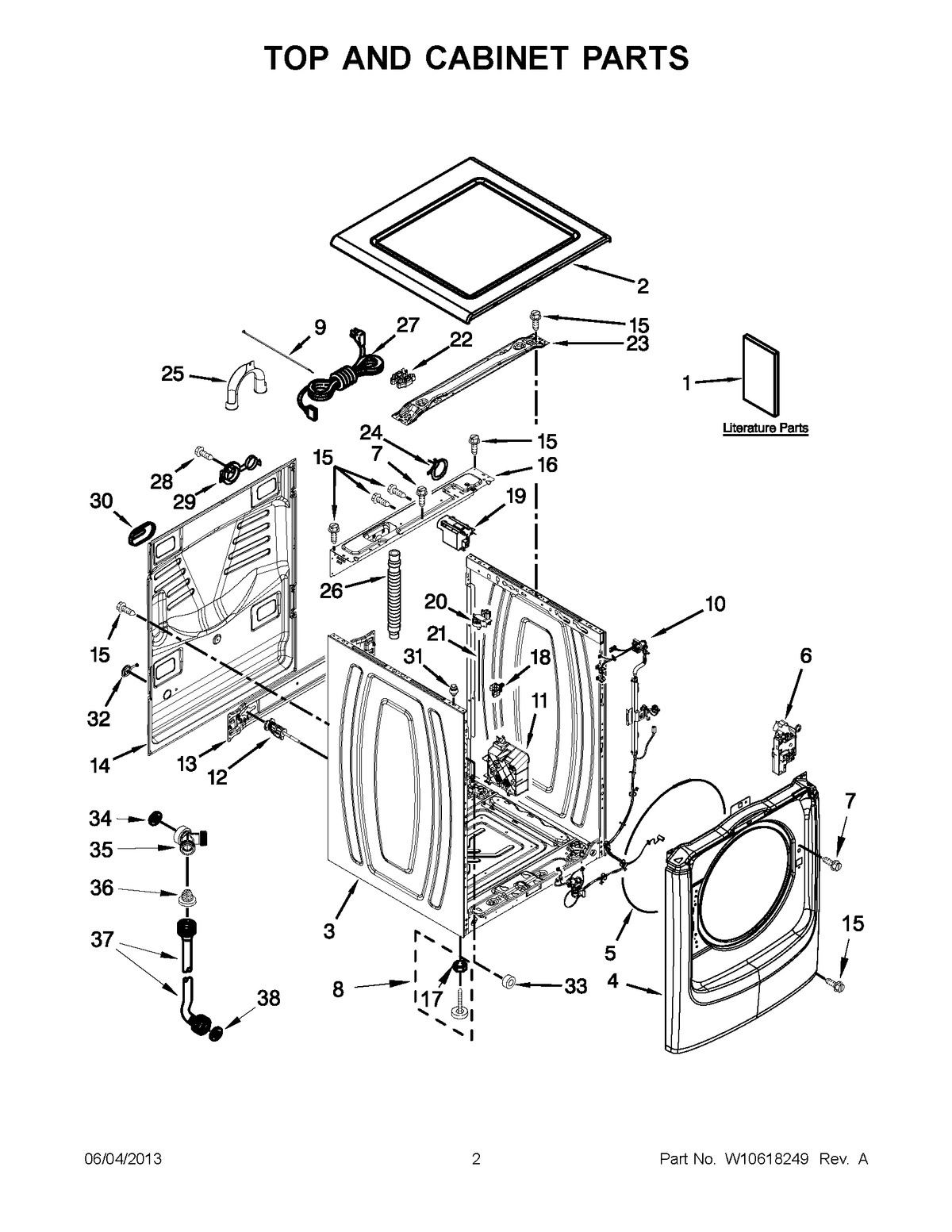

01 - TOP AND CABINET PARTS

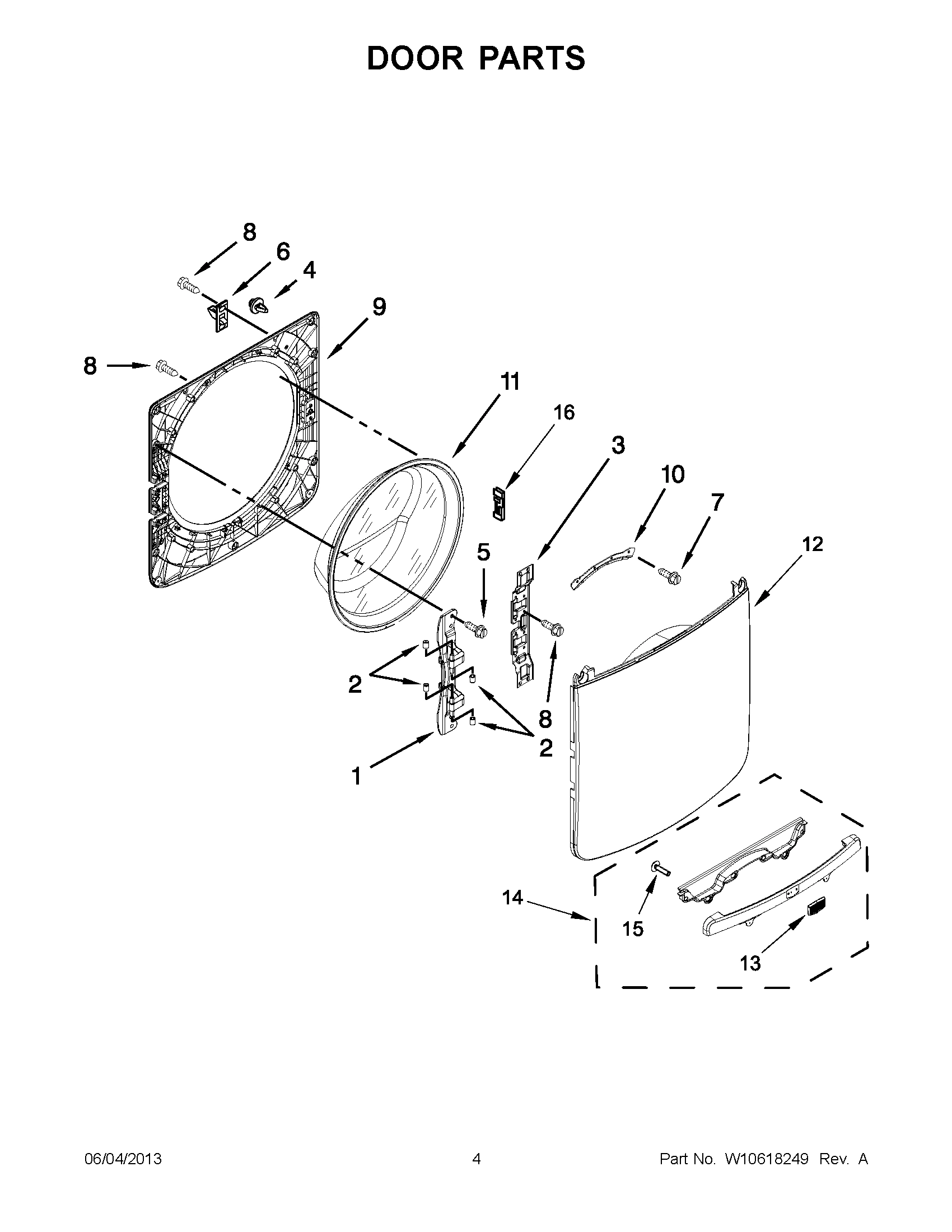

02 - DOOR PARTS

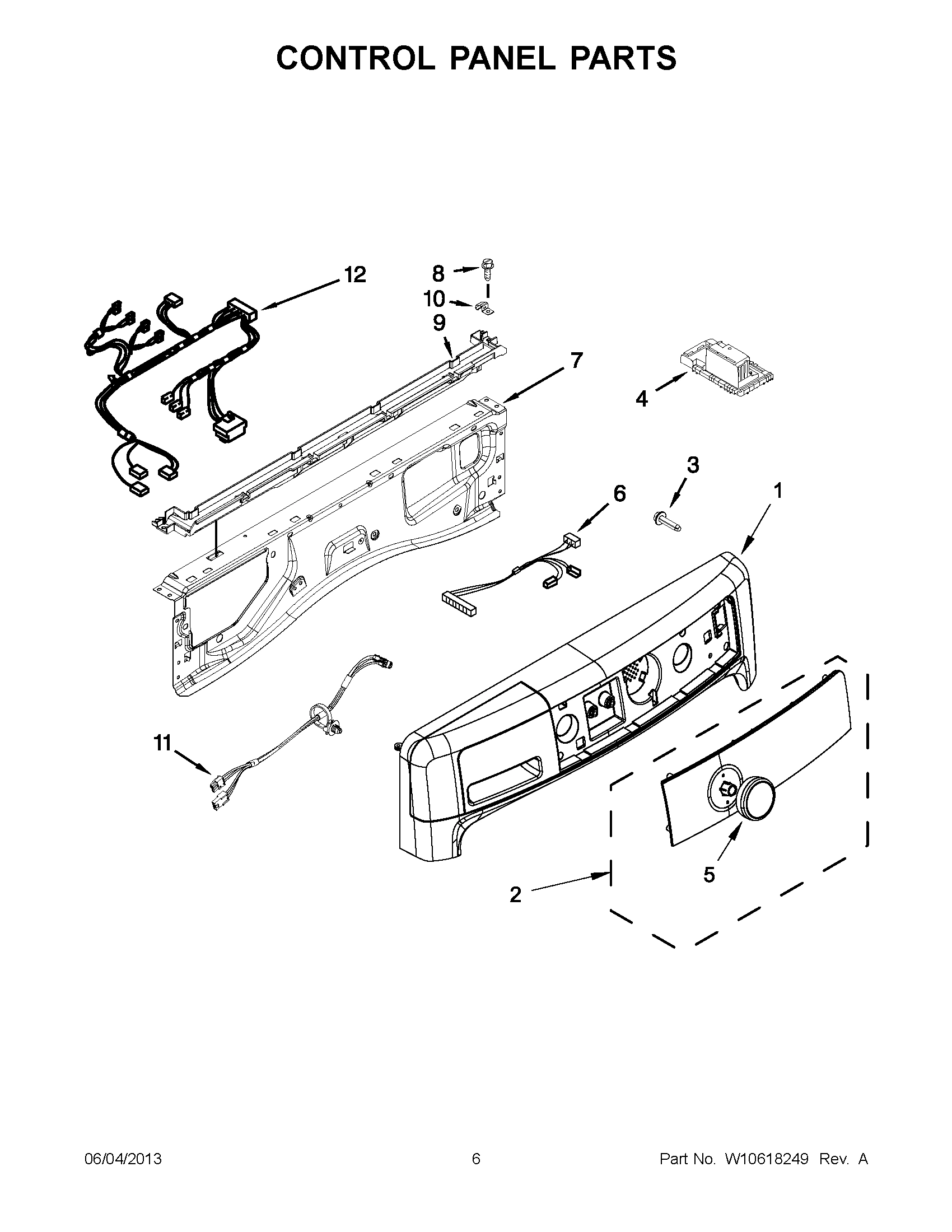

03 - CONTROL PANEL PARTS

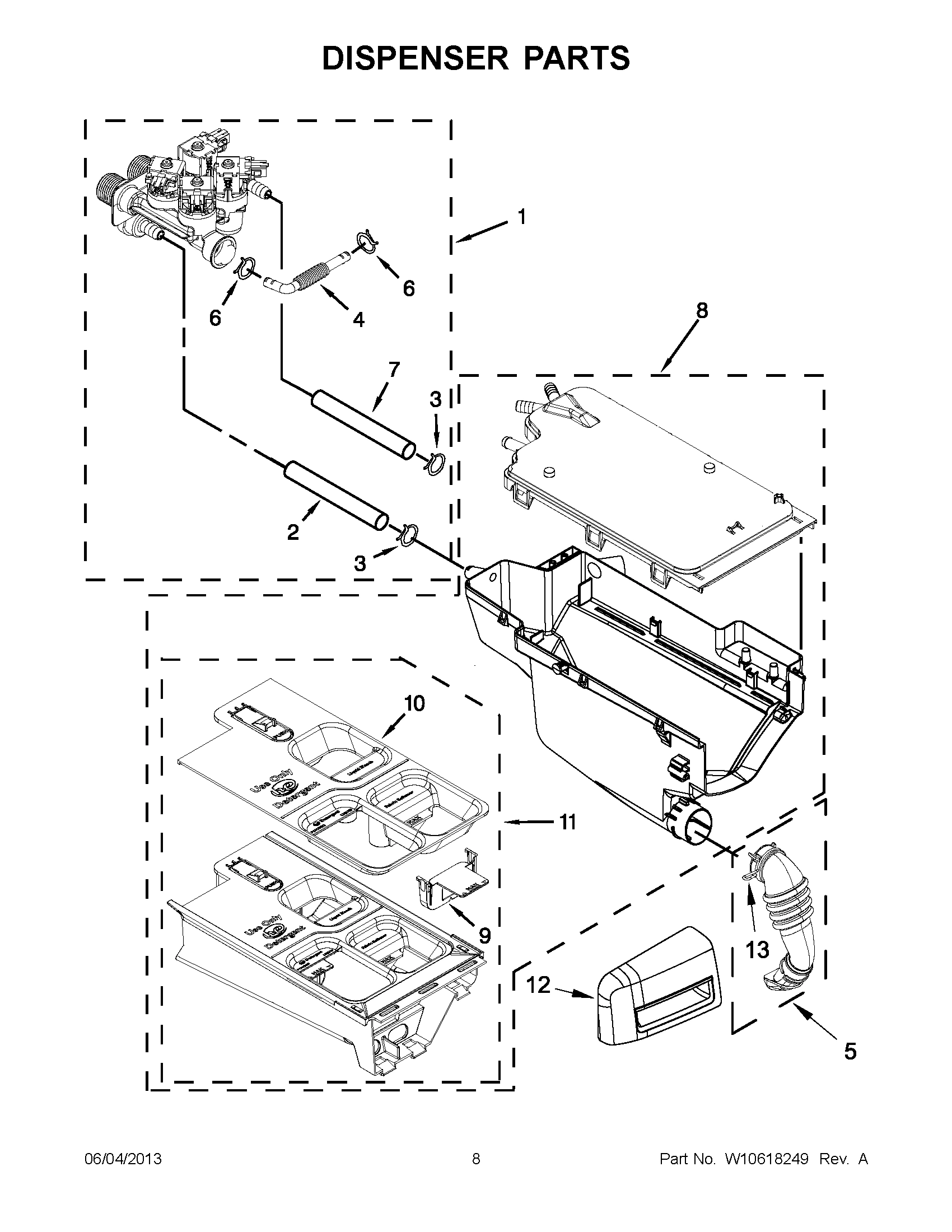

04 - DISPENSER PARTS

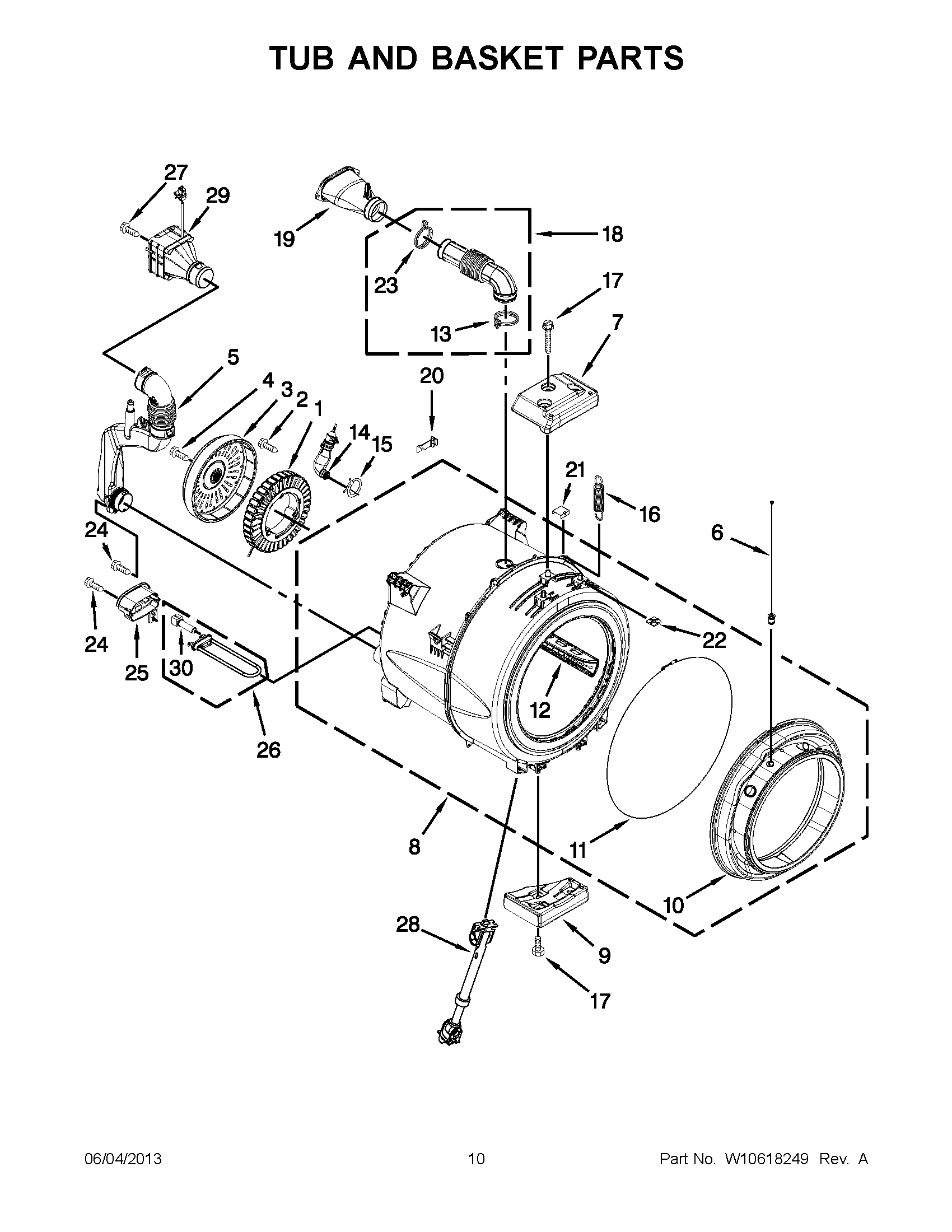

05 - TUB AND BASKET PARTS

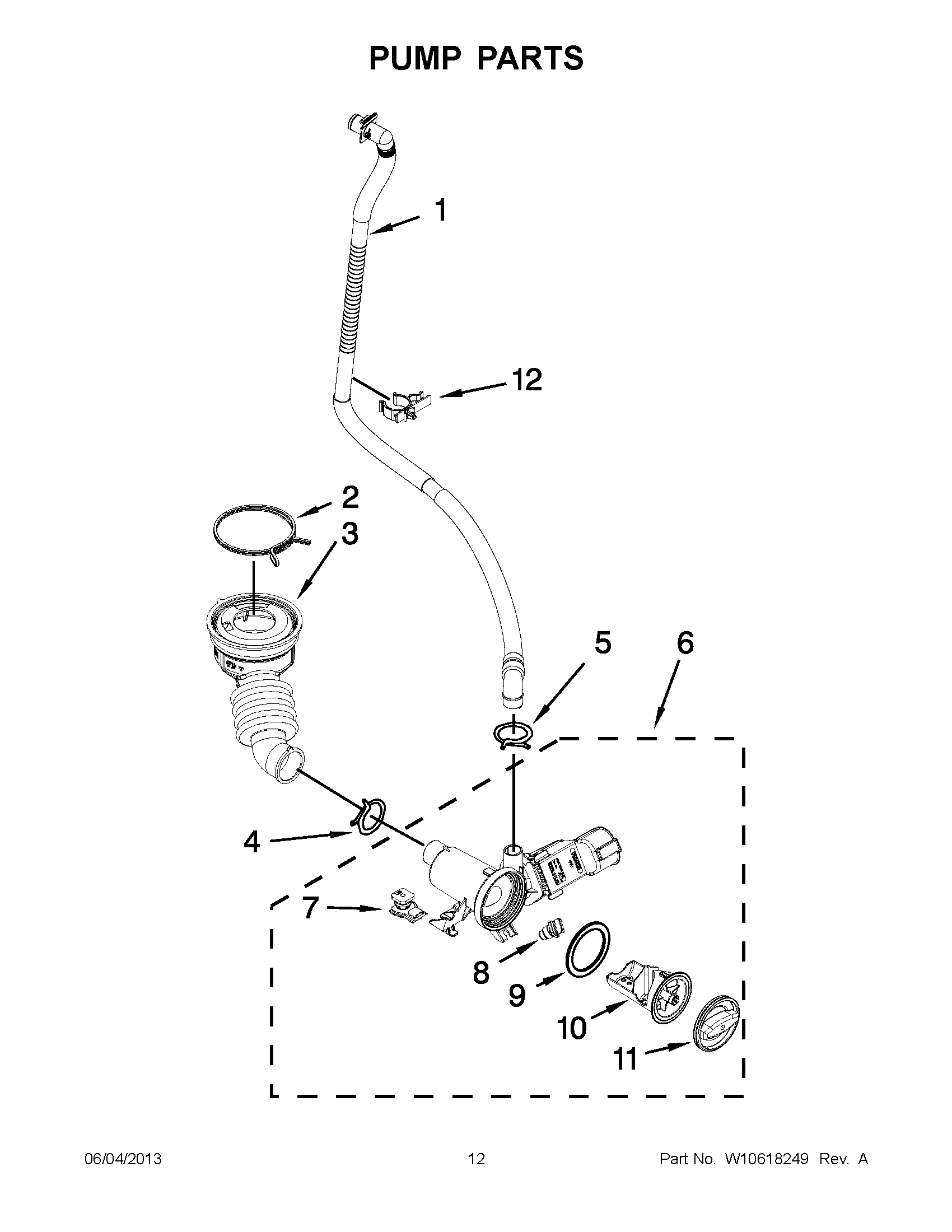

06 - PUMP PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MMHW6000BW0 WASHER
1
MAY W10441081 MAY W10441081 Contact Us For Availability
1
MAY W10586451 MAY W10586451 Contact Us For Availability
1
MAY W10588899 MAY W10588899 Contact Us For Availability
1
MAY W10599090 MAY W10599090 Contact Us For Availability
1
HINGE BASE MAY W10208415 Contact Us For Availability
1
MAY W10469294 MAY W10469294 Contact Us For Availability
1
MAY W10435242 MAY W10435242 Contact Us For Availability
1
MAY W10213978 MAY W10213978 Contact Us For Availability
1
MAY W10267642 MAY W10267642 Contact Us For Availability
2
MAY W10208373 MAY W10208373 Contact Us For Availability
2
MAY W10208398 MAY W10208398 Contact Us For Availability
2
MAY W10468516 MAY W10468516 Contact Us For Availability
2
MAY W10435239 MAY W10435239 Contact Us For Availability
2
MAY W10253476 MAY W10253476 Contact Us For Availability
2
CLAMP, HOSE MAY 8181734 Contact Us For Availability
3
MAY W10441110 MAY W10441110 Contact Us For Availability
3
MAY W10312805 MAY W10312805 Contact Us For Availability
3
MAY W10489172 MAY W10489172 Contact Us For Availability
3
MAY 9724997 MAY 9724997 Contact Us For Availability
3
MAY W10213980 MAY W10213980 Contact Us For Availability
3
MAY W10467168 MAY W10467168 Contact Us For Availability
4
MAY W10441121 MAY W10441121 Contact Us For Availability
4
MAY 8572266 MAY 8572266 Contact Us For Availability
4
MAY W10445518 MAY W10445518 Contact Us For Availability
4
MAY W10435238 MAY W10435238 Contact Us For Availability
4
MAY W10253477 MAY W10253477 Contact Us For Availability
4
MAY W10273036 MAY W10273036 Contact Us For Availability
5
RETAINER, BELLOW TO FRONT PANEL MAY W10237503 Contact Us For Availability
5
MAY 356138 MAY 356138 Contact Us For Availability
5
MAY W10288126 MAY W10288126 Contact Us For Availability
5
MAY W10519048 MAY W10519048 Contact Us For Availability
5
MAY W10239966 MAY W10239966 Contact Us For Availability
5
MAY W10261582 MAY W10261582 Contact Us For Availability
6
LOCK,DOOR MAY 8183197 Contact Us For Availability
6
MAY W10488048 MAY W10488048 Contact Us For Availability
6
MAY W10486216 MAY W10486216 Contact Us For Availability
6
MAY W10096852 MAY W10096852 Contact Us For Availability
6
SENSOR, TEMP MAY W10467289 Contact Us For Availability
6
MAY W10454196 MAY W10454196 Contact Us For Availability
7
MAY 8540513 MAY 8540513 Contact Us For Availability
7
MAY W10208197 MAY W10208197 Contact Us For Availability
7
MAY W10435240 MAY W10435240 Contact Us For Availability
7
MAY W10253014 MAY W10253014 Contact Us For Availability
7
MAY W10338326 MAY W10338326 Contact Us For Availability
8
MAY W10073890 MAY W10073890 Contact Us For Availability
8
MAY 8534022 MAY 8534022 Contact Us For Availability
8
SCREW MAY W10142290 Contact Us For Availability
8
HOUSING, DISPENSER ASSEMBLY (INCLUDES ITEMS 2 MAY W10365881 Contact Us For Availability
8
MAY W10355161 MAY W10355161 Contact Us For Availability
8
MAY W10526202 MAY W10526202 Contact Us For Availability
9
TIE, CABLE MAY W10339879 Contact Us For Availability
9
MAY W10272396 MAY W10272396 Contact Us For Availability
9
MAY W10317570 MAY W10317570 Contact Us For Availability
9
MAY W10411442 MAY W10411442 Contact Us For Availability
9
MAY W10237535 MAY W10237535 Contact Us For Availability
9
MAY 8181736 MAY 8181736 Contact Us For Availability
10
MAY W10586876 MAY W10586876 Contact Us For Availability
10
MAY W10003440 MAY W10003440 Contact Us For Availability
10
MAY W10317566 MAY W10317566 Contact Us For Availability
10
MAY W10365887 MAY W10365887 Contact Us For Availability
10
MAY W10474367 MAY W10474367 Contact Us For Availability
10
MAY W10241027 MAY W10241027 Contact Us For Availability
11
MAY W10374126 MAY W10374126 Contact Us For Availability
11
MAY W10208263 MAY W10208263 Contact Us For Availability
11
MAY W10486571 MAY W10486571 Contact Us For Availability
11
MAY W10365885 MAY W10365885 Contact Us For Availability
11
MAY W10237502 MAY W10237502 Contact Us For Availability
11
MAY W10338322 MAY W10338322 Contact Us For Availability
12
MAY W10271590 MAY W10271590 Contact Us For Availability
12
MAY W10424239 MAY W10424239 Contact Us For Availability
12
MAY W10422436 MAY W10422436 Contact Us For Availability
12
MAY W10468536 MAY W10468536 Contact Us For Availability
12
MAY W10292810 MAY W10292810 Contact Us For Availability
12
MAY W10441646 MAY W10441646 Contact Us For Availability
13
MAY W10237498 MAY W10237498 Contact Us For Availability
13
MAY W10424964 MAY W10424964 Contact Us For Availability
13
MAY W10239910 MAY W10239910 Contact Us For Availability
13
MAY W10353599 MAY W10353599 Contact Us For Availability
14
MAY W10502639 MAY W10502639 Contact Us For Availability
14
MAY W10466620 MAY W10466620 Contact Us For Availability
14
MAY W10260500 MAY W10260500 Contact Us For Availability
15
SCREW MAY 357640 Contact Us For Availability
15
Screw MAY 9742177 Contact Us For Availability
15
Clamp, Hose MAY 371499 Contact Us For Availability
16
MAY W10467483 MAY W10467483 Contact Us For Availability
16
MAY W10003430 MAY W10003430 Contact Us For Availability
16
MAY W10312146 MAY W10312146 Contact Us For Availability
17
NUT, HEX MAY 3359452 Contact Us For Availability
17
MAY W10261496 MAY W10261496 Contact Us For Availability
18
MAY W10181028 MAY W10181028 Contact Us For Availability
18
MAY W10568614 MAY W10568614 Contact Us For Availability
19
MAY W10367632 MAY W10367632 Contact Us For Availability
19
VENT TUBE & COVER MAY W10352818 Contact Us For Availability
20
MAY W10448876 MAY W10448876 Contact Us For Availability
20
MAY W10316388 MAY W10316388 Contact Us For Availability
21
MAY W10251962 MAY W10251962 Contact Us For Availability
21
MAY 8540092 MAY 8540092 Contact Us For Availability
22
MAY W10245452 MAY W10245452 Contact Us For Availability
22
MAY 8540072 MAY 8540072 Contact Us For Availability
23
MAY W10467484 MAY W10467484 Contact Us For Availability
23
MAY W10273034 MAY W10273034 Contact Us For Availability
24
MAY W10306501 MAY W10306501 Contact Us For Availability
25
MAY W10280024 MAY W10280024 Contact Us For Availability
25
MAY W10318155 MAY W10318155 Contact Us For Availability
26
MAY W10267638 MAY W10267638 Contact Us For Availability
26
MAY W10426377 MAY W10426377 Contact Us For Availability
27
MAY 8540282 MAY 8540282 Contact Us For Availability
27
MAY W10434975 MAY W10434975 Contact Us For Availability
28
SCREW MAY 3351614 Contact Us For Availability
28
MAY W10312625 MAY W10312625 Contact Us For Availability
29
COVER, POWER CORD-TRANSPORT MAY W10275820 Contact Us For Availability
29
MAY W10467494 MAY W10467494 Contact Us For Availability
30
MAY 8182700 MAY 8182700 Contact Us For Availability
31
SCREW, BUSH ASSEMBLY MAY W10208380 Contact Us For Availability
32
MAY W10304004 MAY W10304004 Contact Us For Availability
33
MAY W10323182 MAY W10323182 Contact Us For Availability
34
WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
35
MAY W10269488 MAY W10269488 Contact Us For Availability
36
WASHER, FILTER HOSE, WATER INLET MAY 353362 Contact Us For Availability
37
COLD WATER MAY W10194210 Contact Us For Availability
37
HOT WATER MAY W10194211 Contact Us For Availability
38
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
NI
ACCESSORY PARTS, LAUNDRY SUPPLY STORAGE CART MAY 1903WH Contact Us For Availability
NI
ACCESSORY PARTS, 4` DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
MAY 31682 MAY 31682 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4396899 MAY 4396899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAID MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, AFFRESH ODOR REMOVER MAY W10135699 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MERCURY SILVER) MAY W10268217 Contact Us For Availability
NI
MAY W10298318RP MAY W10298318RP Contact Us For Availability
× ![]()
