Model Whirlpool 7MED20TWDN00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
02 - REFRIGERATOR LINER

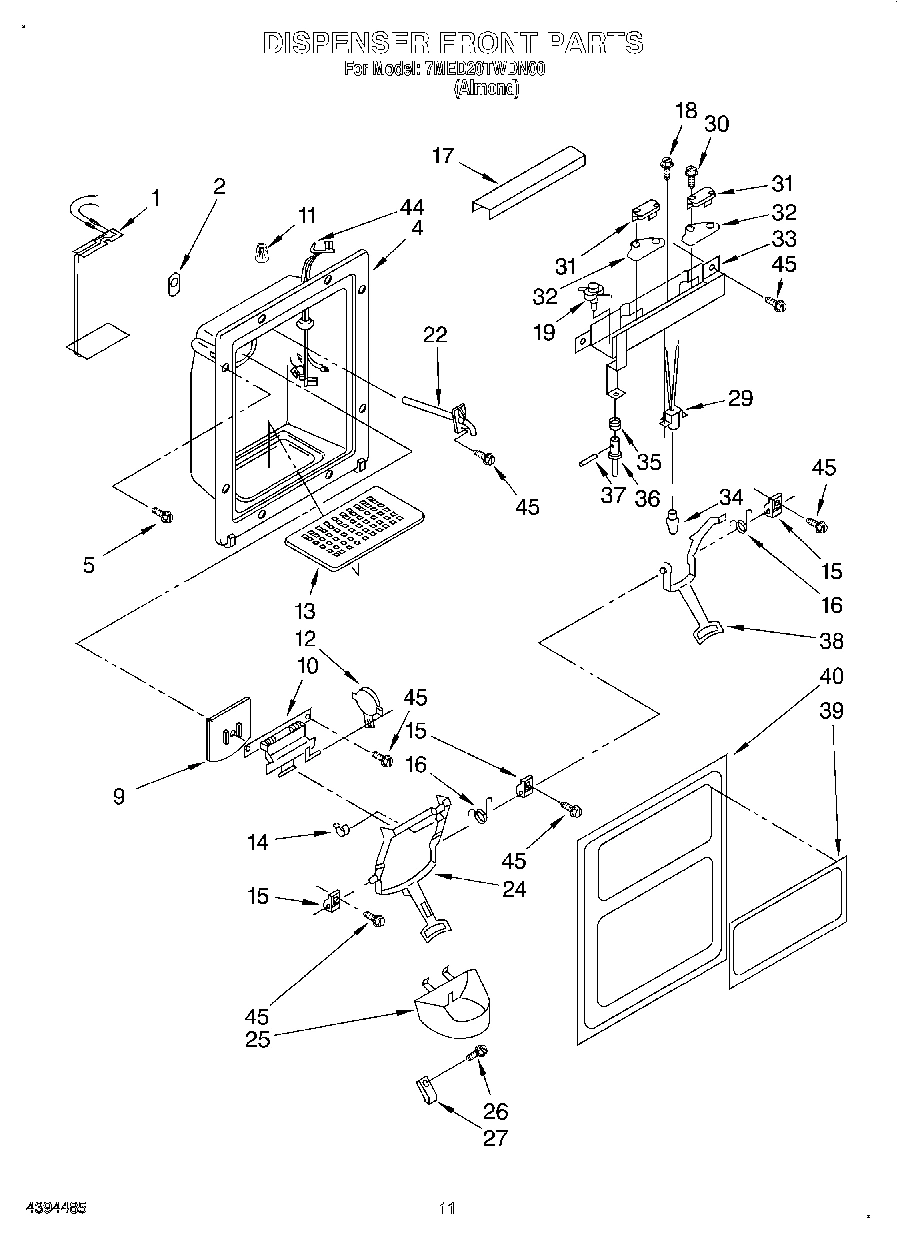

07 - DISPENSER FRONT

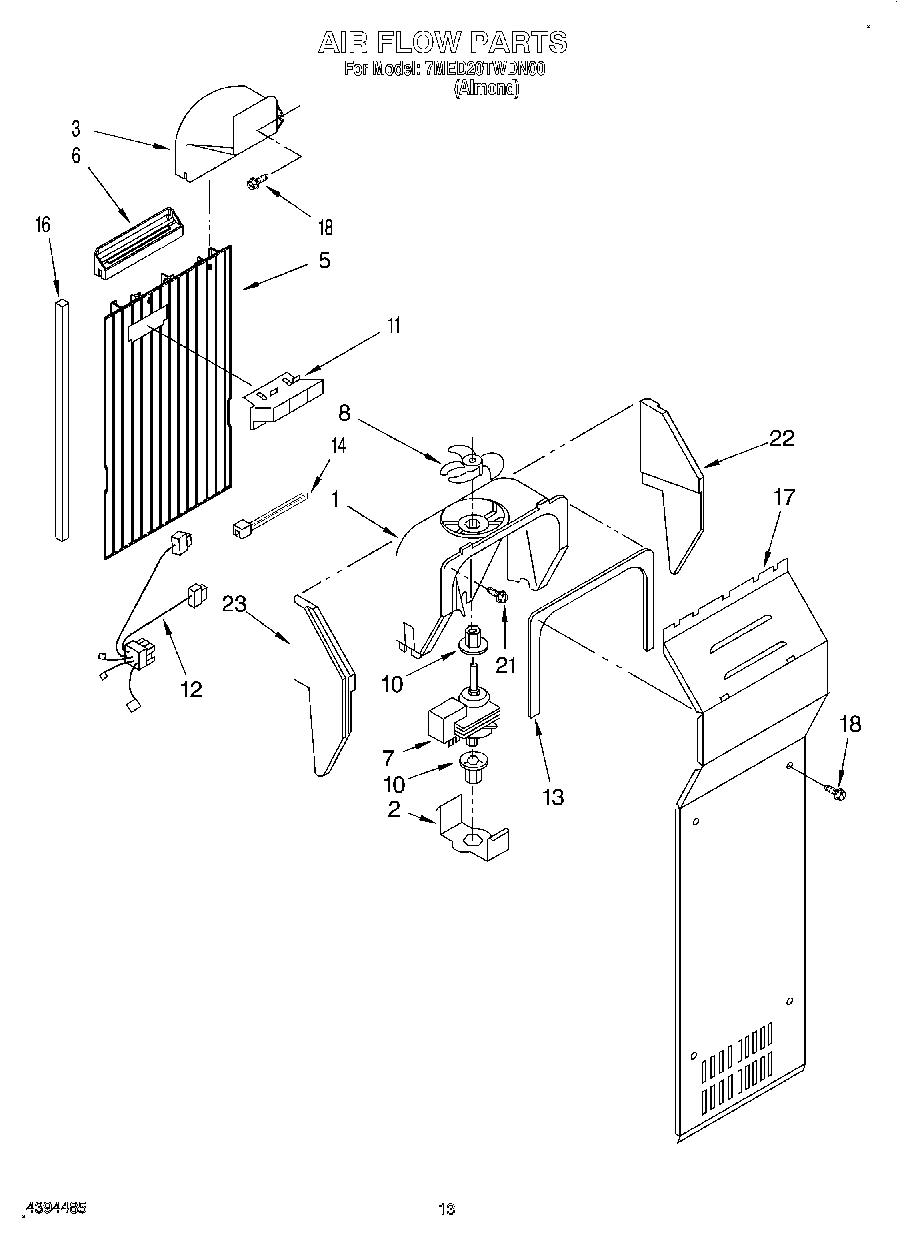

08 - AIR FLOW

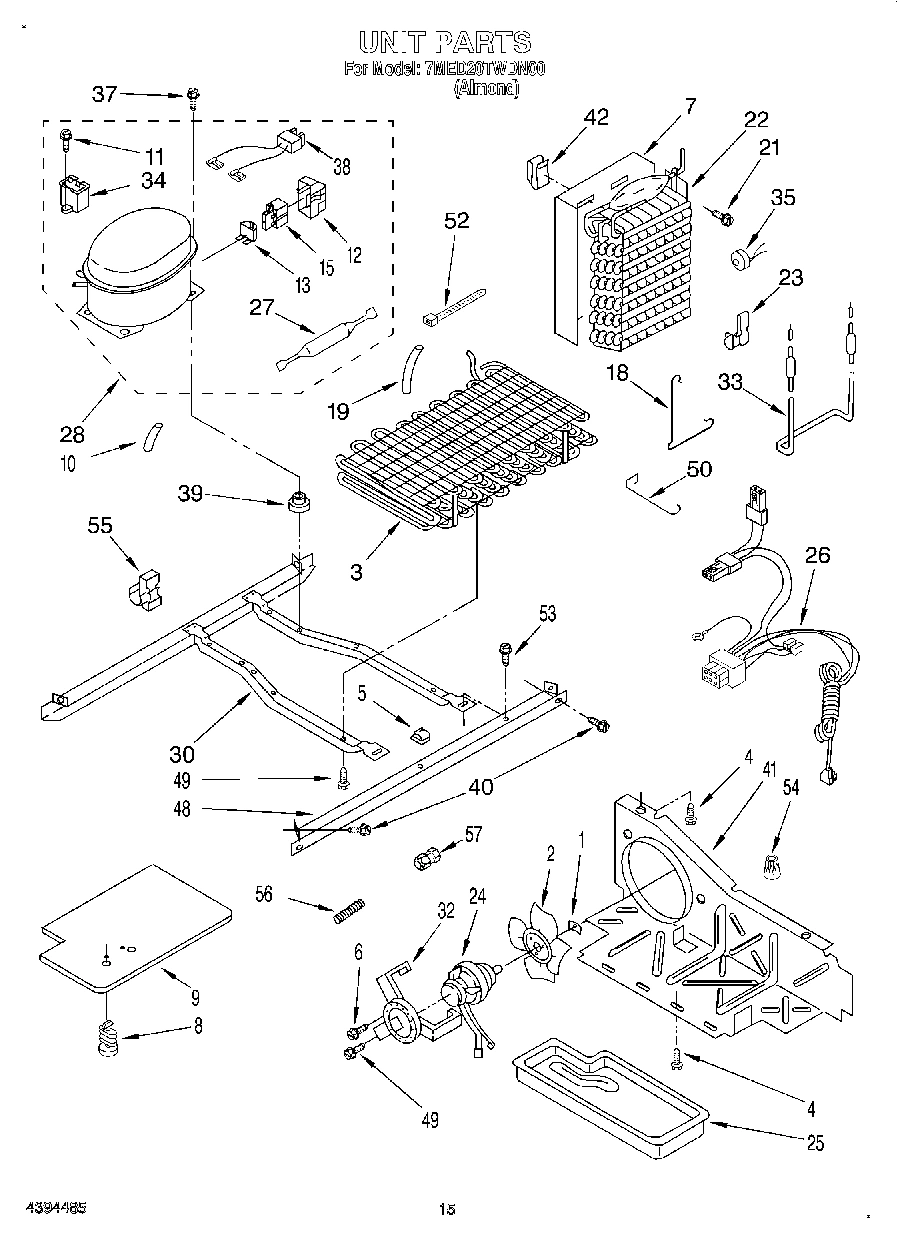

10 - UNIT

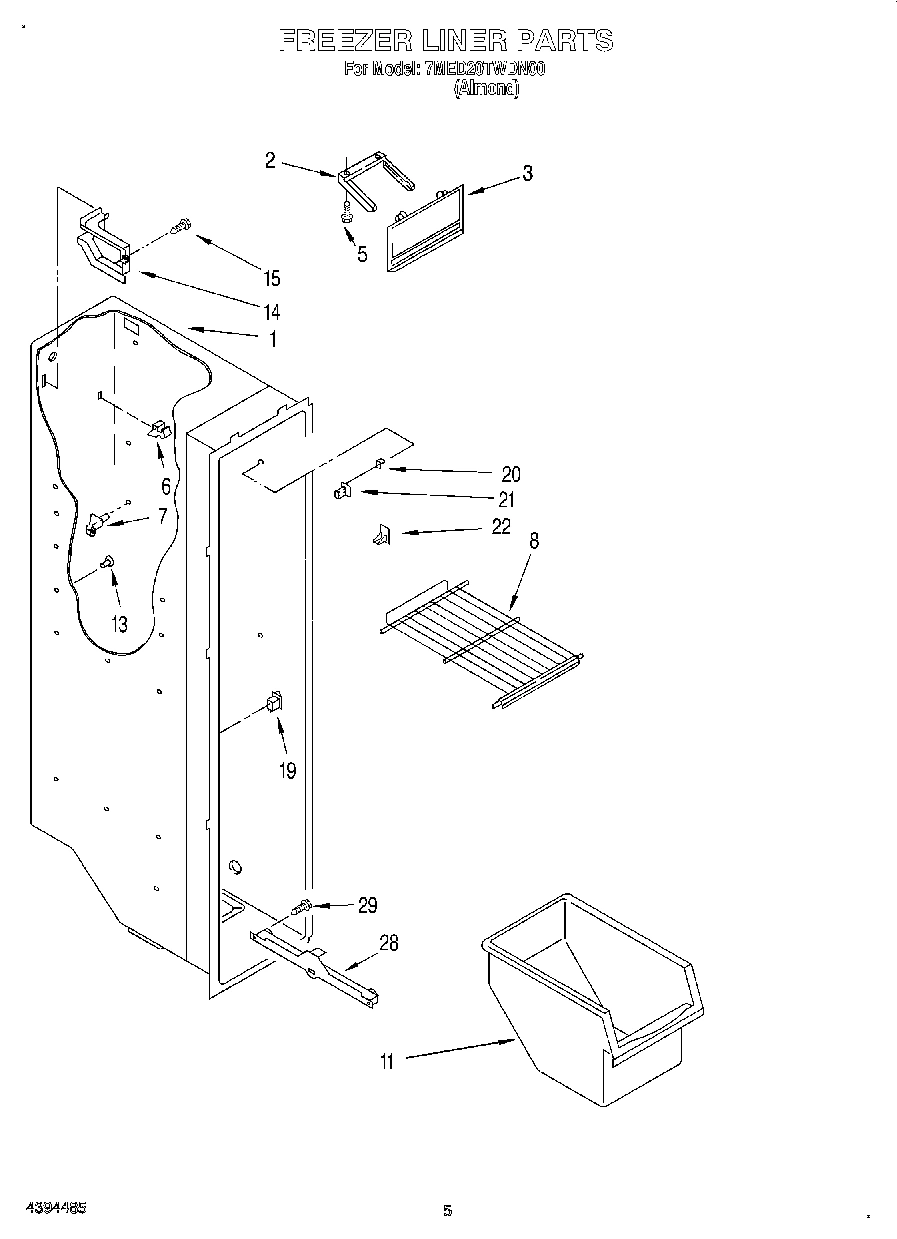

03 - FREEZER LINER

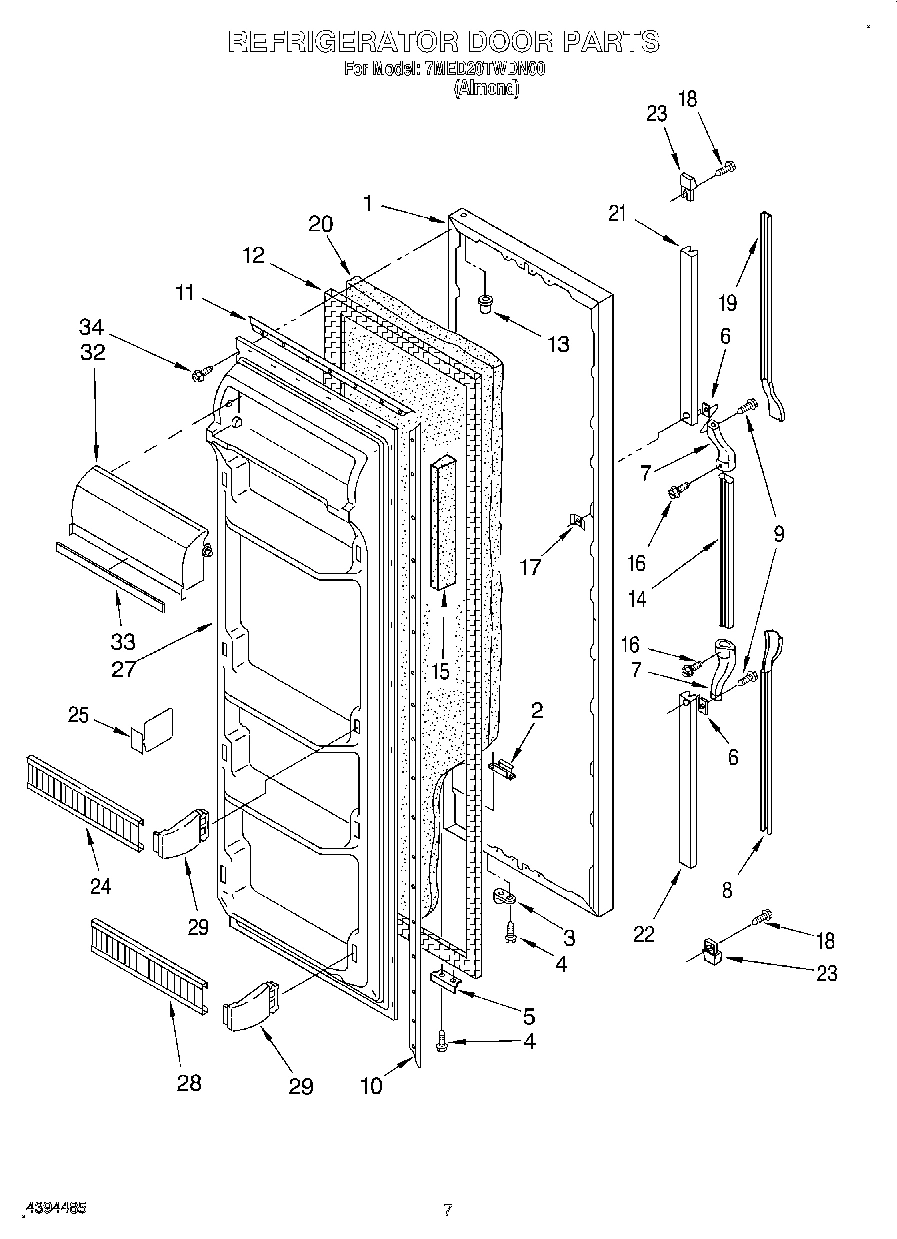

05 - REFRIGERATOR DOOR

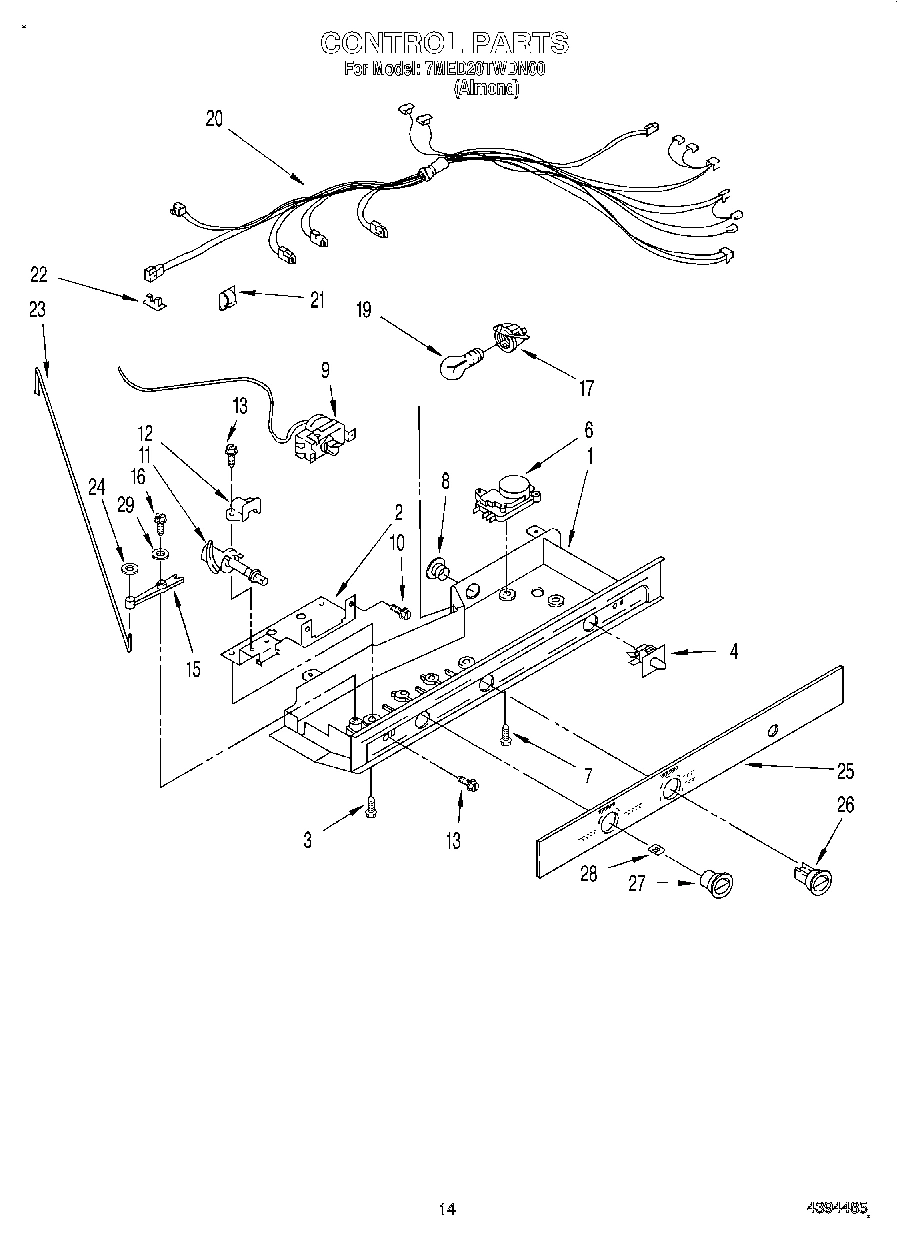

09 - CONTROL
11 - ICE MAKER, LIT/OPTIONAL

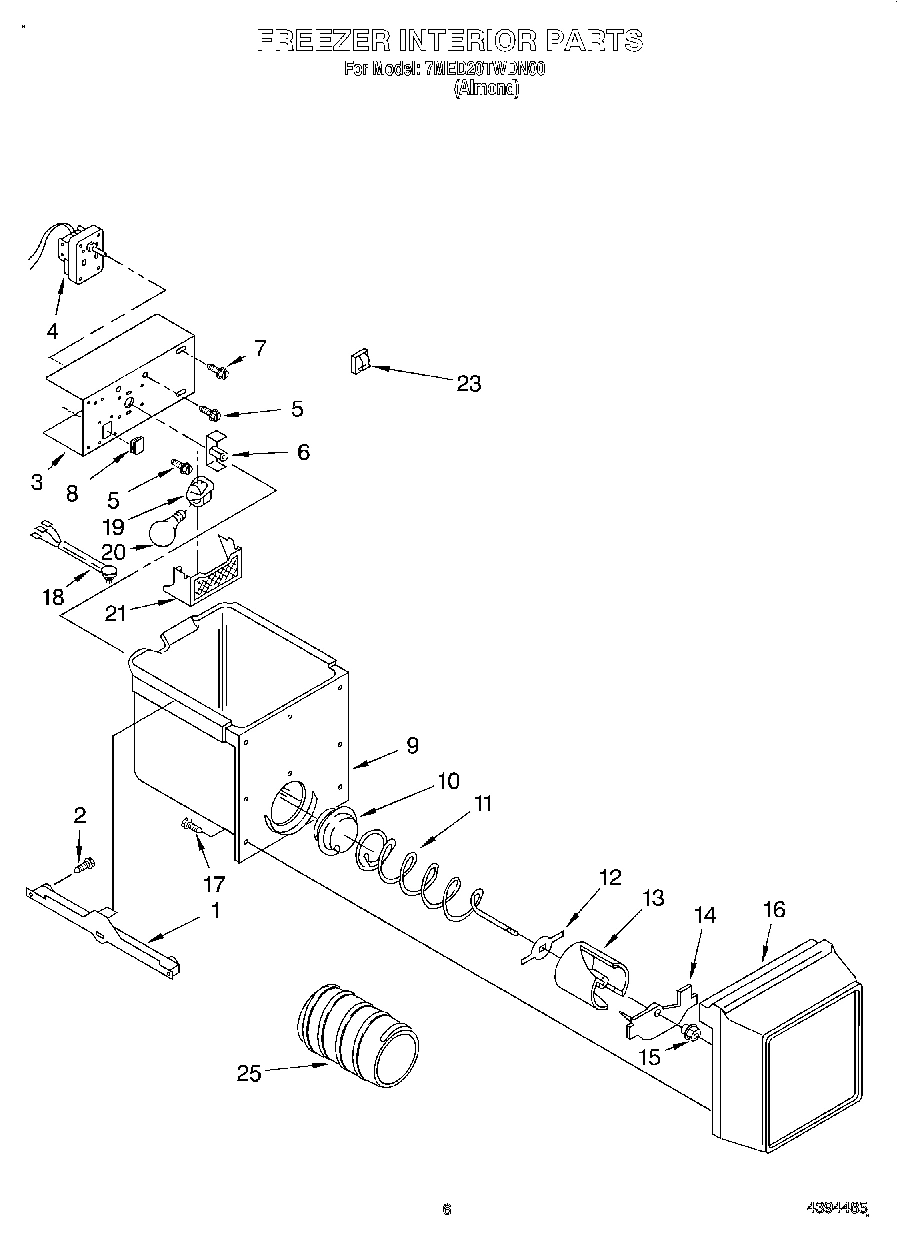

04 - FREEZER INTERIOR

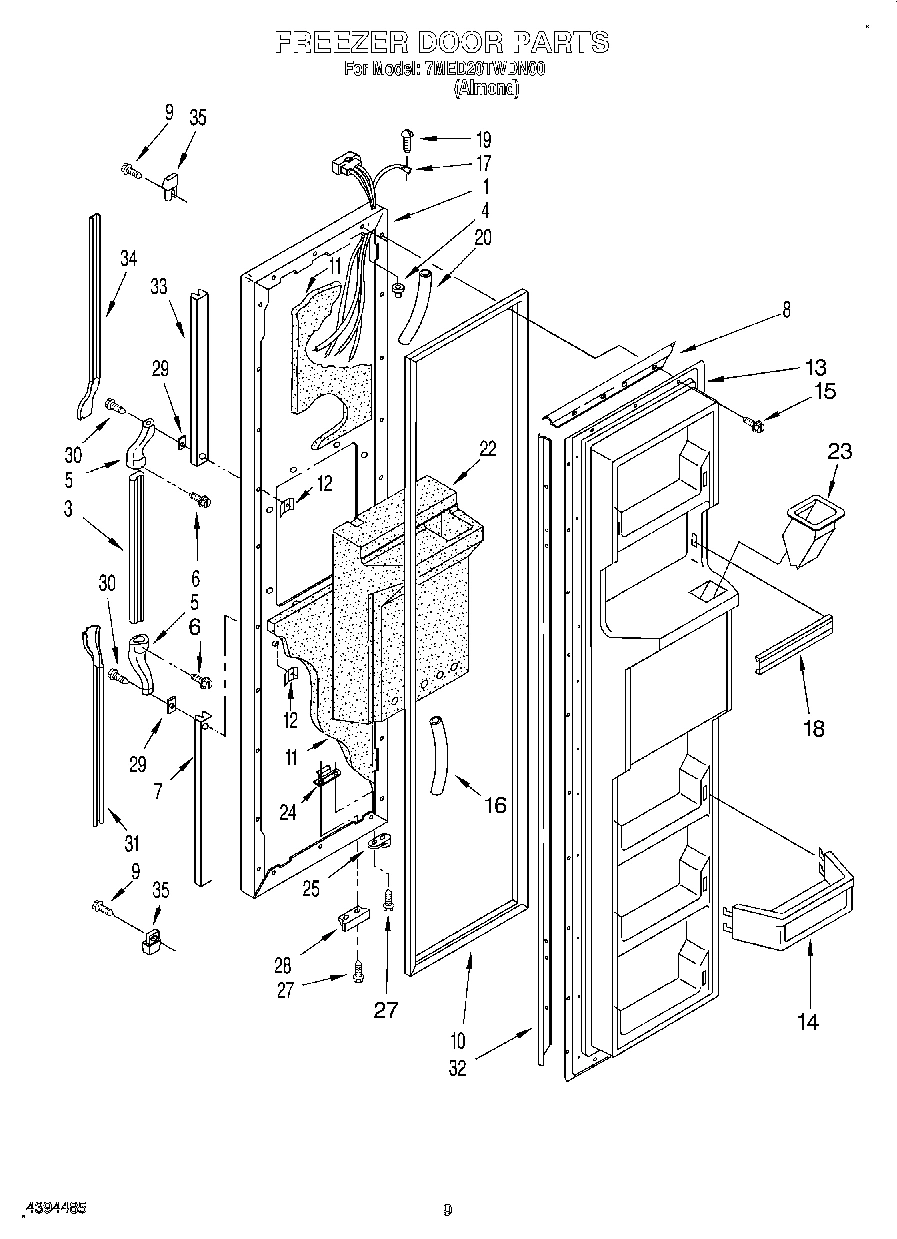

06 - FREEZER DOOR
Common parts from model Whirlpool 7MED20TWDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2179910 WPL LIT2179910 Contact Us For Availability
WPL LIT2195044 WPL LIT2195044 Contact Us For Availability
WPL LIT2195052 WPL LIT2195052 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI17642A1 Contact Us For Availability
1
Refrigerator Door Panel (Also Order Item 20) WPL 4362011 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 11) WPL 1115238 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Handle WPL 943079 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 2183728 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 939886 Contact Us For Availability
5
End Cap WPL 1119359 Contact Us For Availability
6
Screw WPL 489022 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Insert Retainer (Bottom) WPL 1119360 Contact Us For Availability
8
Shelf (1) WPL 2174269 Contact Us For Availability
8
Shelf (2) WPL 2174270 Contact Us For Availability
8
Plug, Bracket WPL 2195013 Contact Us For Availability
8
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Door, Ice WPL 2147168 Contact Us For Availability
9
Cover, Unit Compartment WPL 2182057 Contact Us For Availability
9
Screw WPL 489075 Contact Us For Availability
10
Door Mechanism Assembly WPL 2147167 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Conveyor WPL 2181954 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Trim, Door Shelf (4) WPL 2170705 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI17643A6 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
16
Tube, Water Line WPL 2147080 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Harness, Door WPL 2179915 Contact Us For Availability
18
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2194732 Contact Us For Availability
18
Trim, Door Shelf WPL 2170582 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1115206 Contact Us For Availability
23
Clip, Heater (2) WPL 2161330 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Chute, Ice WPL 987188 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Tap, Plate WPL 2155335 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2170586 Contact Us For Availability
25
Divider, Shelf WPL 2160050 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Harness, Intermediate WPL 2181709 Contact Us For Availability
27
Interior Door Panel (Also Order Item No.15) WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 2182110 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Container (Left Side) WPL 1115383 Contact Us For Availability
28
Bracket, Door Stop WPL 2155332 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2170587 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Shim WPL 935075 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Insert, Bottom WPL 1119363 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Retainer, Gasket WPL 1117766 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
33
Insert Retainer (Top) WPL 1119366 Contact Us For Availability
33
Trim, Door Compartment WPL 2162896 Contact Us For Availability
34
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
34
Insert, Top WPL 1119369 Contact Us For Availability
35
End Cap WPL 2156220 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Air Baffle WPL 2155301 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
55
Clip, Wire WPL 2155658 Contact Us For Availability
56
Spring-Tube WPL 983659 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
