Model Whirlpool 6GD5SHGXSS09 REFRIGERATOR – Common Parts &amp; Diagrams

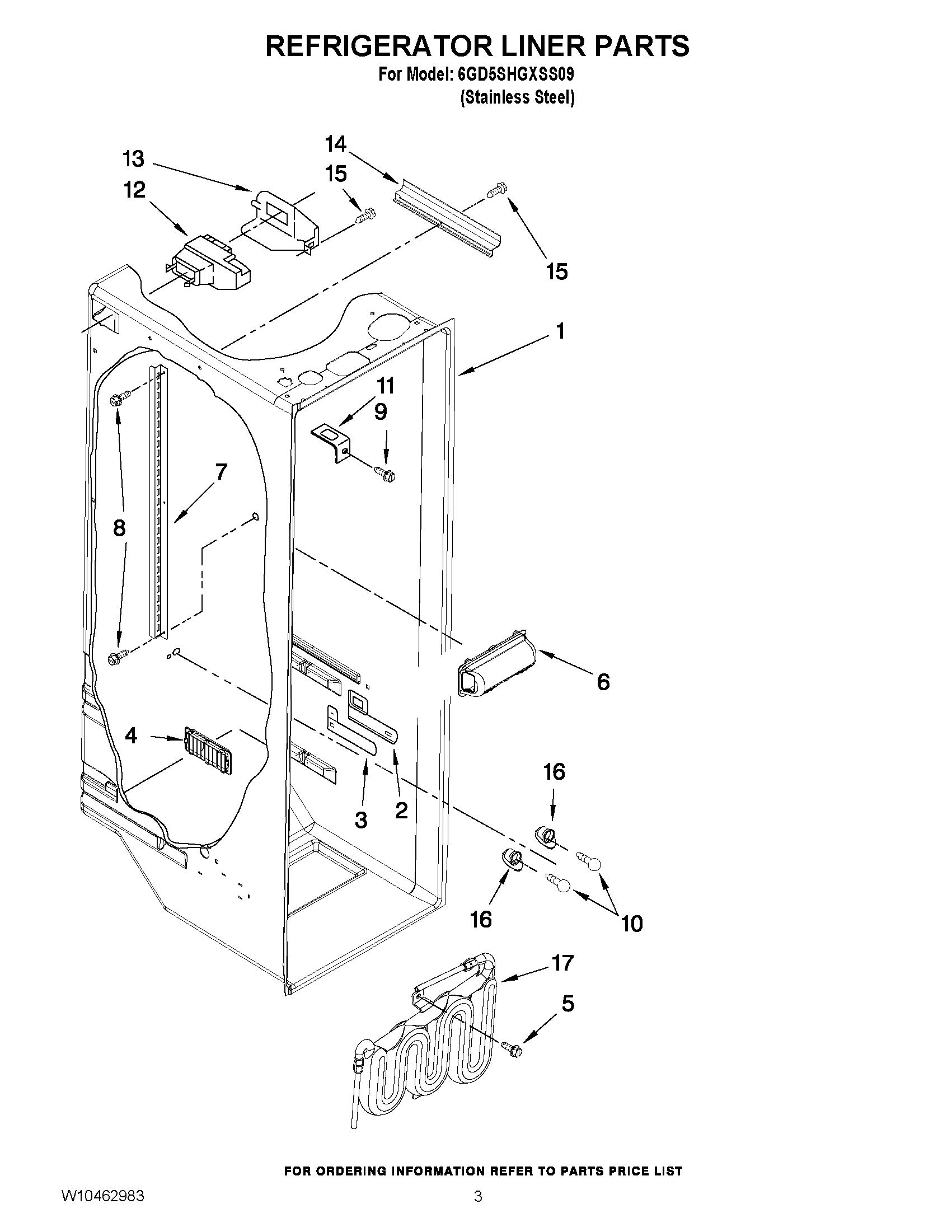

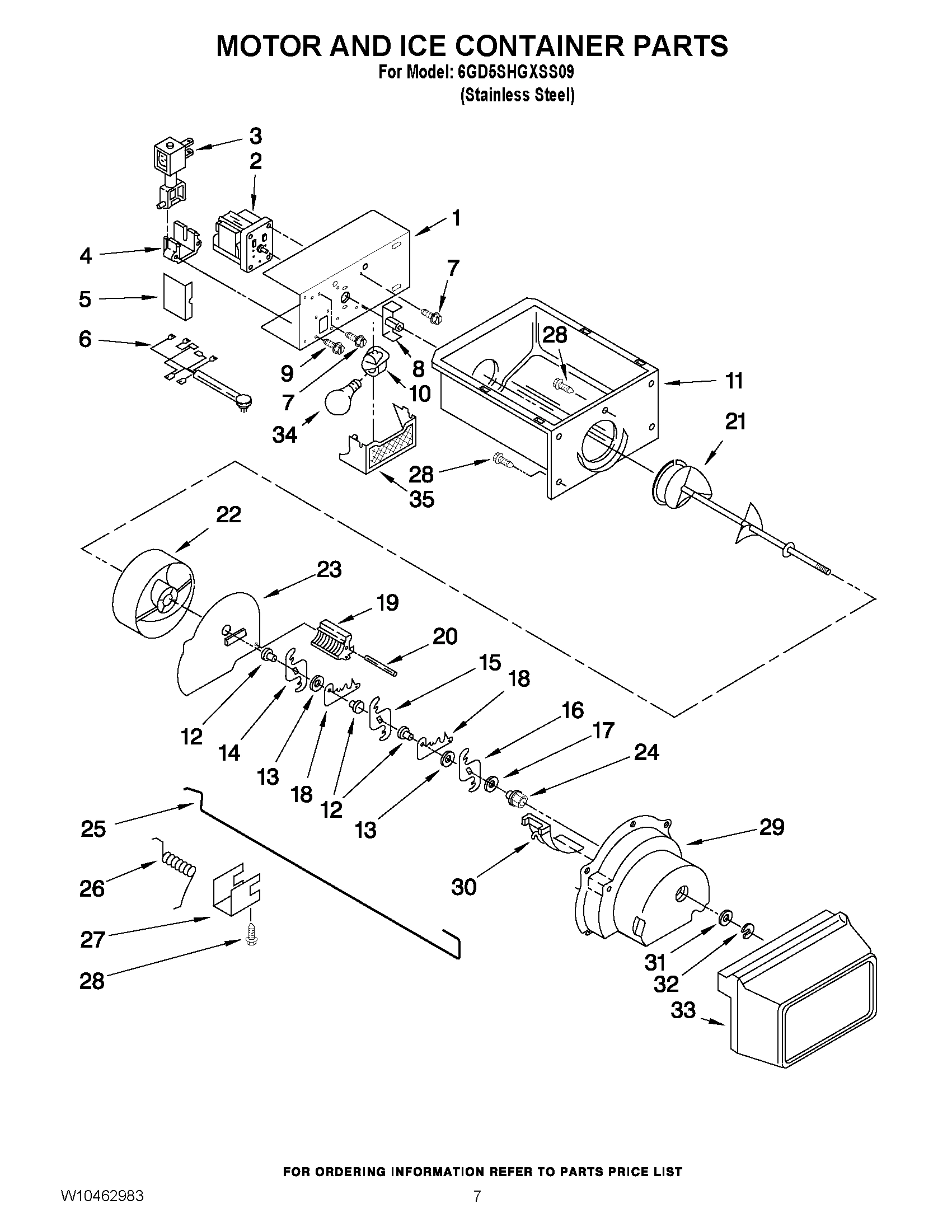

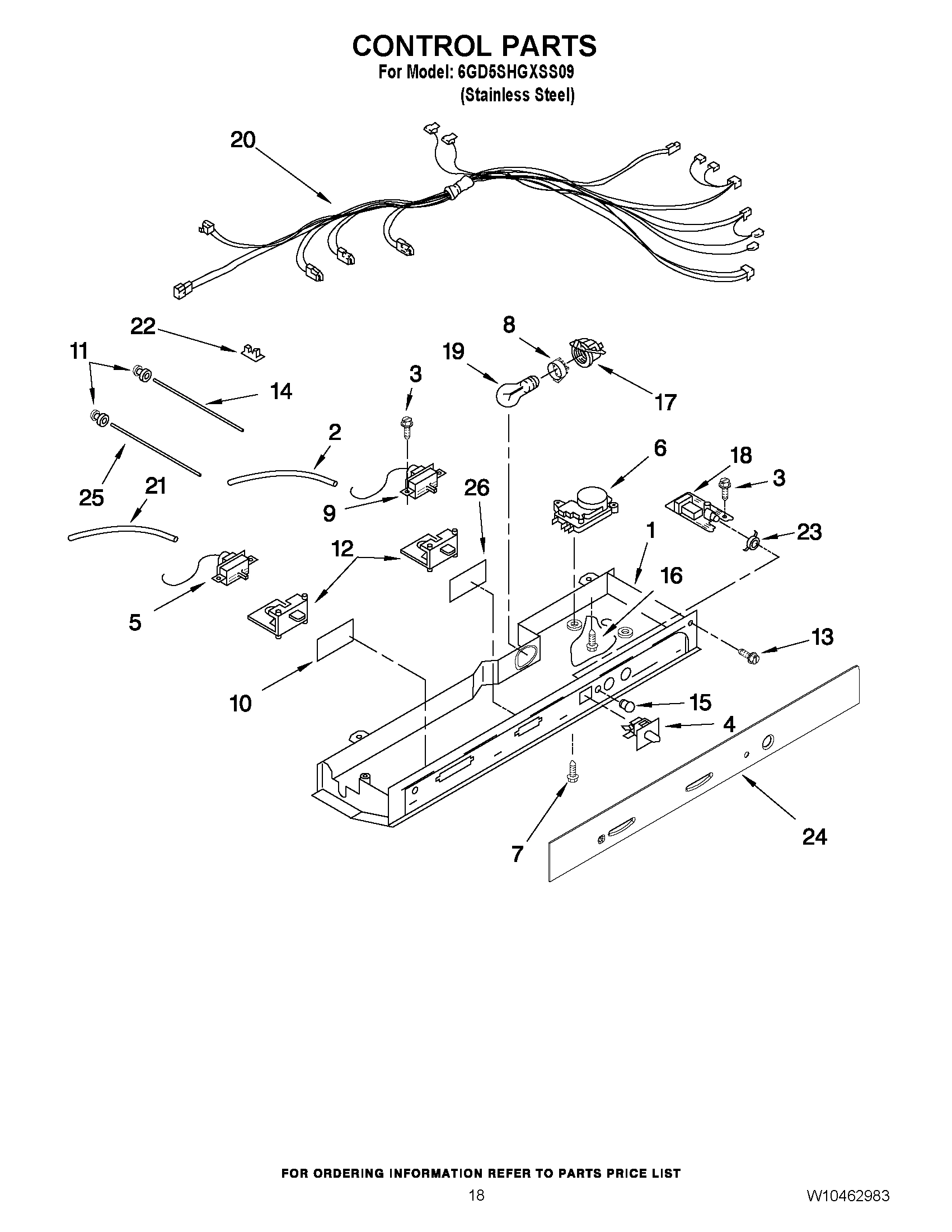

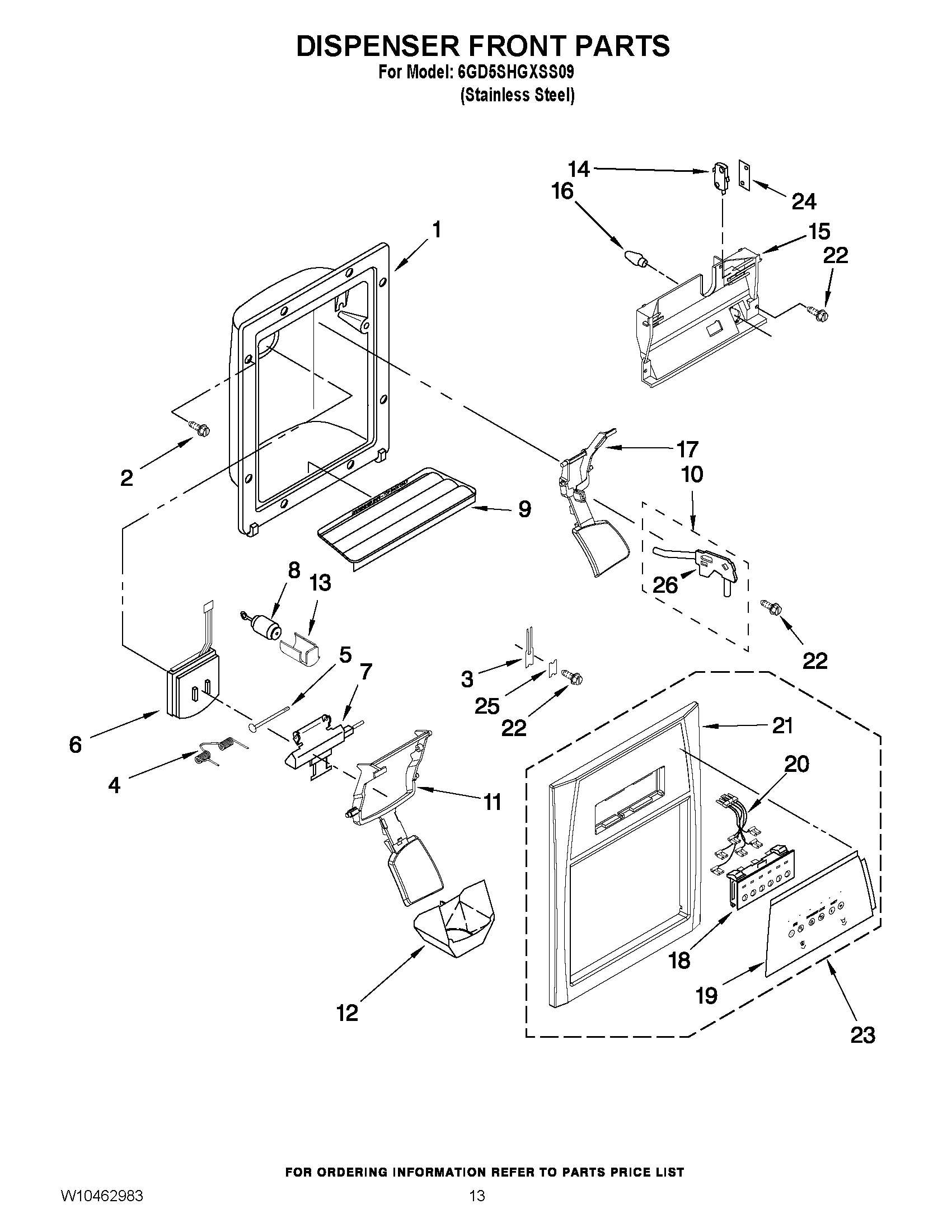

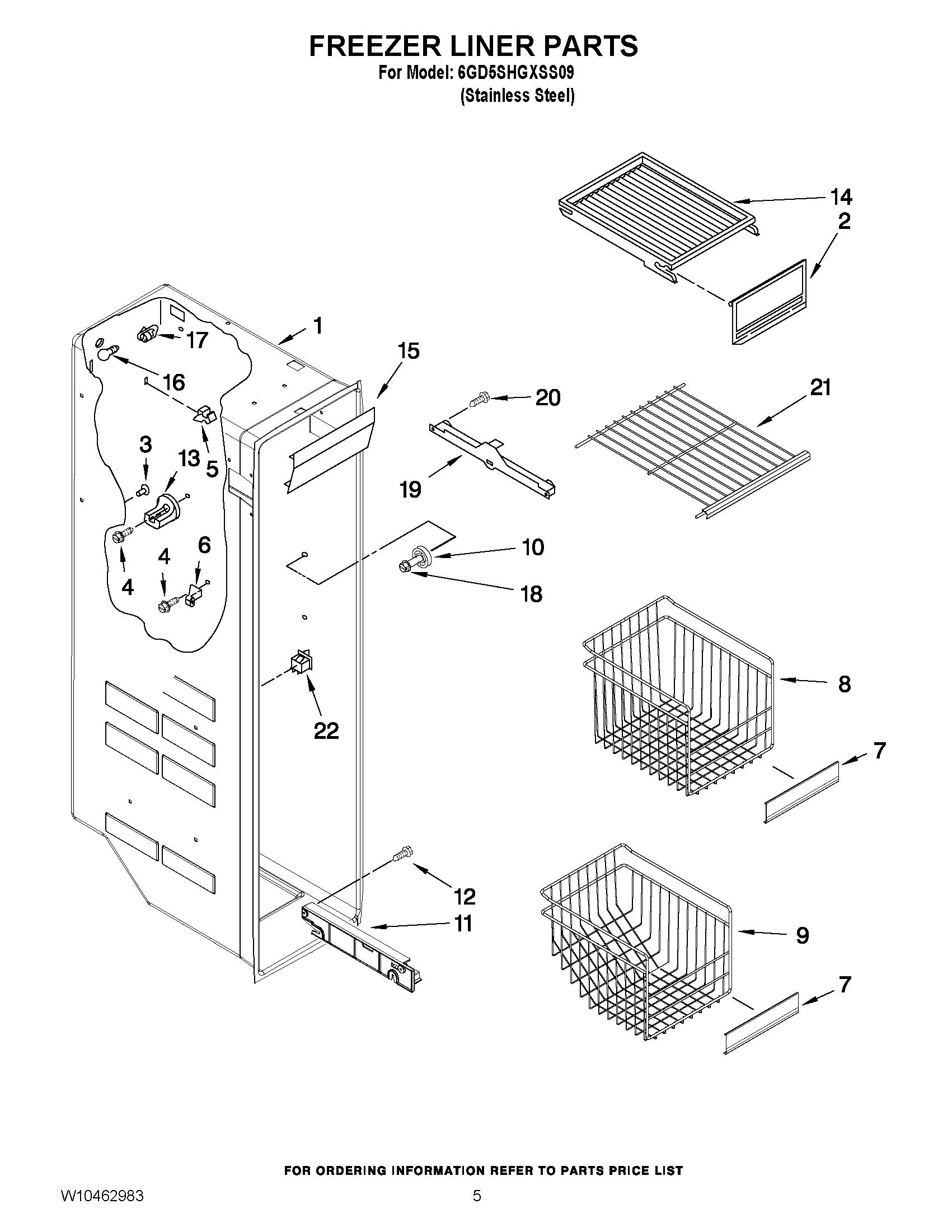

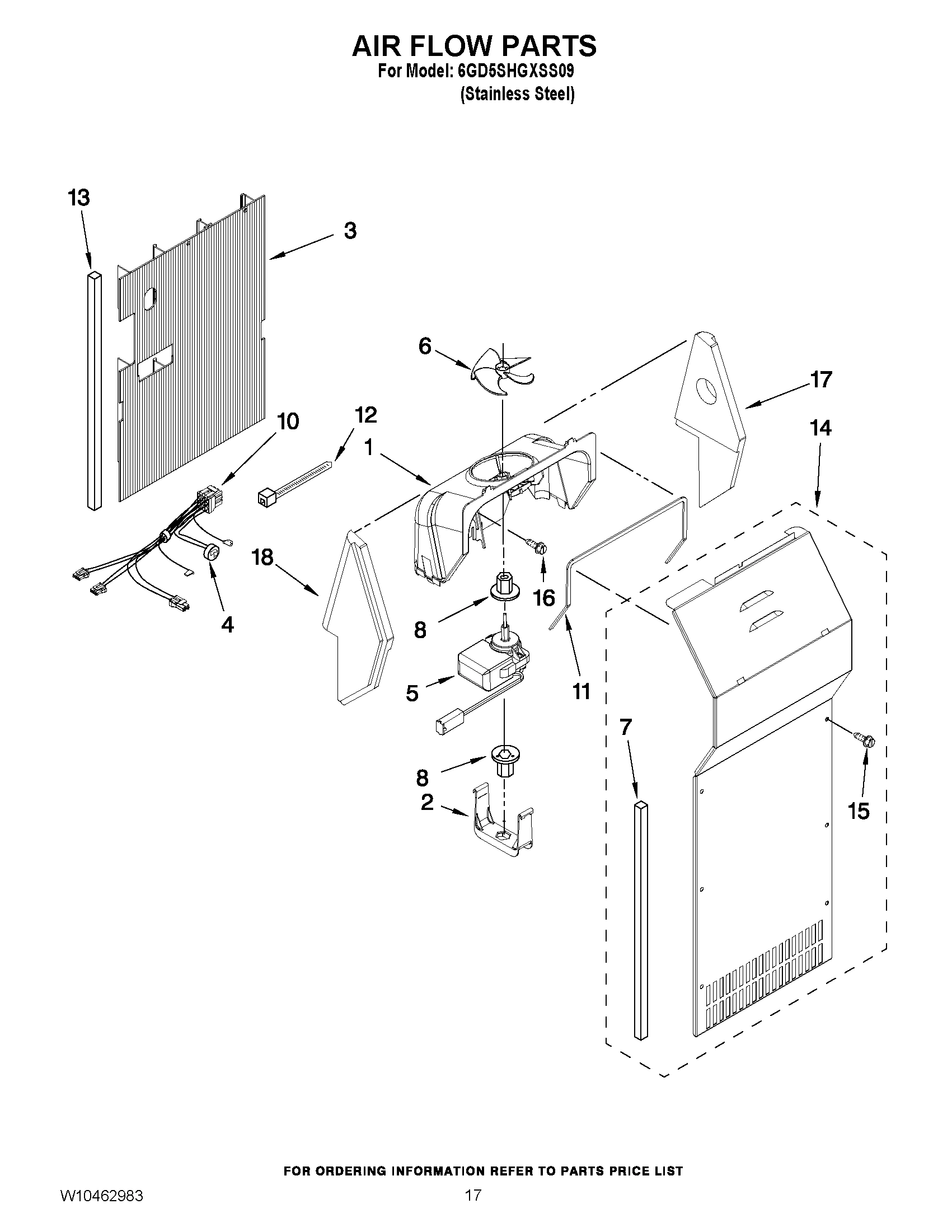

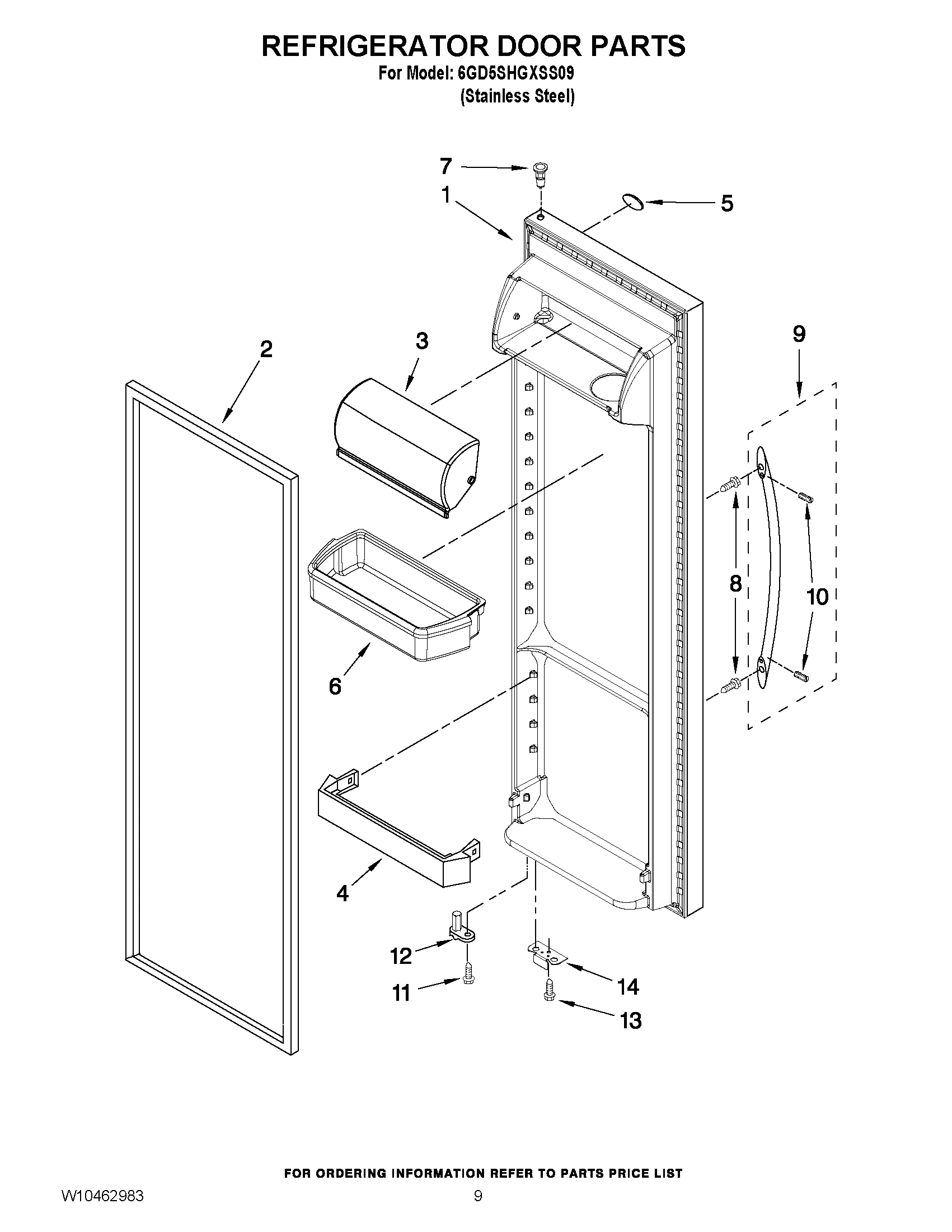

1

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

BRACKET, MOTOR WPL W10304376 Contact Us For Availability

1

SHELF ASSEMBLY, GLASS SLIDING WPL 2255160 Contact Us For Availability

1

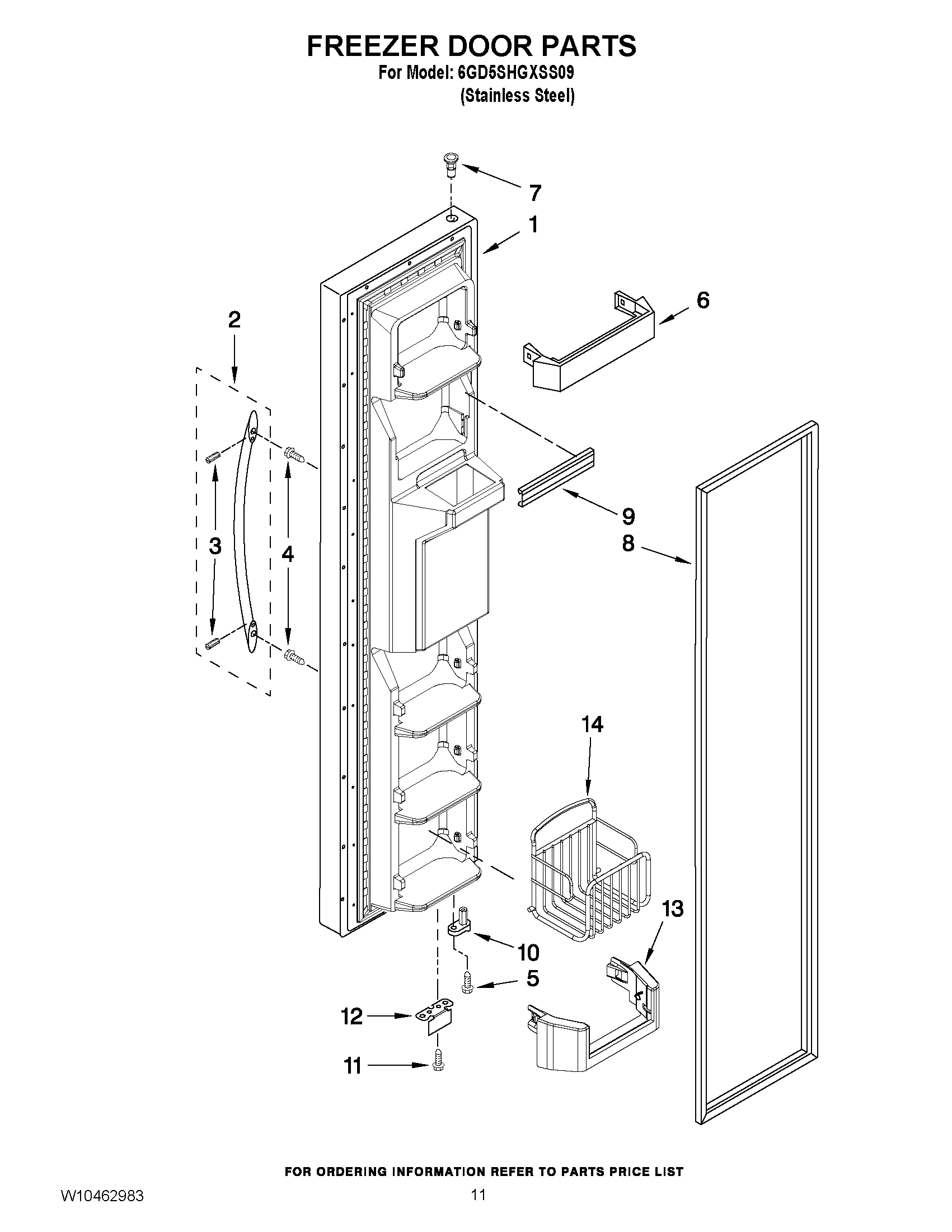

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10329873 Contact Us For Availability

2

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

HANDLE (INCLUDES ITEM 3) WPL 2319727S Contact Us For Availability

2

SNACK BIN WPL W10233485 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

3

Grommet WPL 2176134 Contact Us For Availability

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Clip, Wire WPL 2208280 Contact Us For Availability

5

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

5

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

5

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

5

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

5

WPW10158157 Whirlpool Refrigerator Inlet Valv Backorder WPL WPW10158157 $104.53

6

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

6

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

6

Glass, Cover WPL 2223714 Contact Us For Availability

7

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

7

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

7

Ladder, Shelf WPL 2319866 Contact Us For Availability

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

Strap, Bale WPL 2302129 Contact Us For Availability

9

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

9

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $46.87

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $145.34

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WPW10142233 Whirlpool Refrigerator Screw Backorder WPL WPW10142233 $2.71

Start-Device, Combination (Start Relay and Ov WPL 2312003 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

BRACKET, DOOR STOP WPL W10219814 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

Sleeve, Dashpot WPL 2252127 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

TRIVET, TILT-OUT WPL 2223334 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

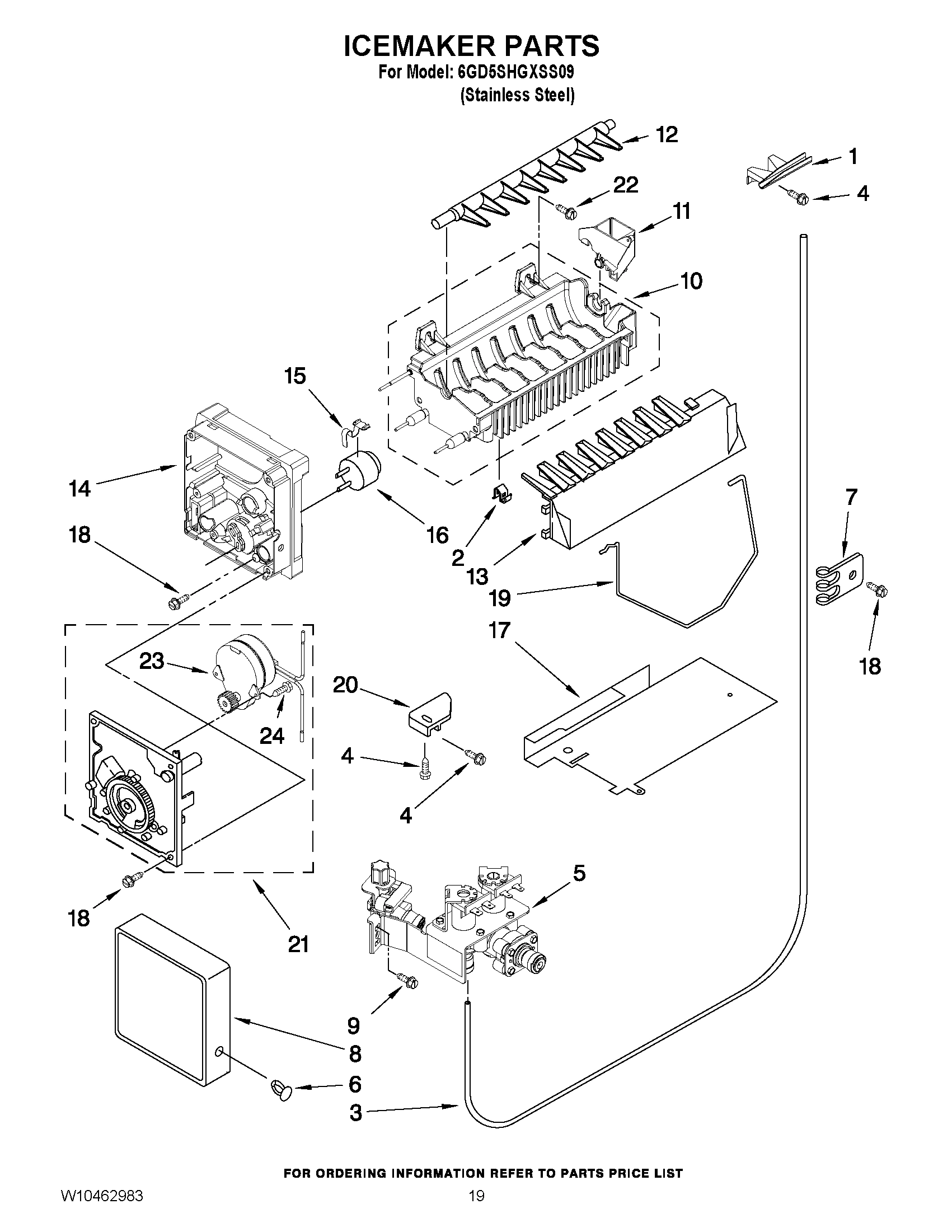

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

Light Bar (RC) WPL 2179920 Contact Us For Availability

BRACKET, DOOR STOP WPL W10219812 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Basket, Tilt Out WPL 2304309 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $29.81

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

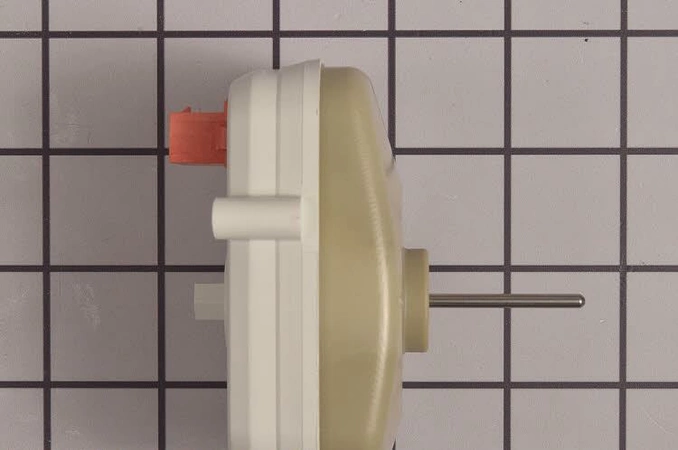

WP2321271 Whirlpool Refrigerator Condenser Mo Backorder WPL WP2321271 $231.95

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

16

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

16

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $33.89

16

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

18

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

18

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

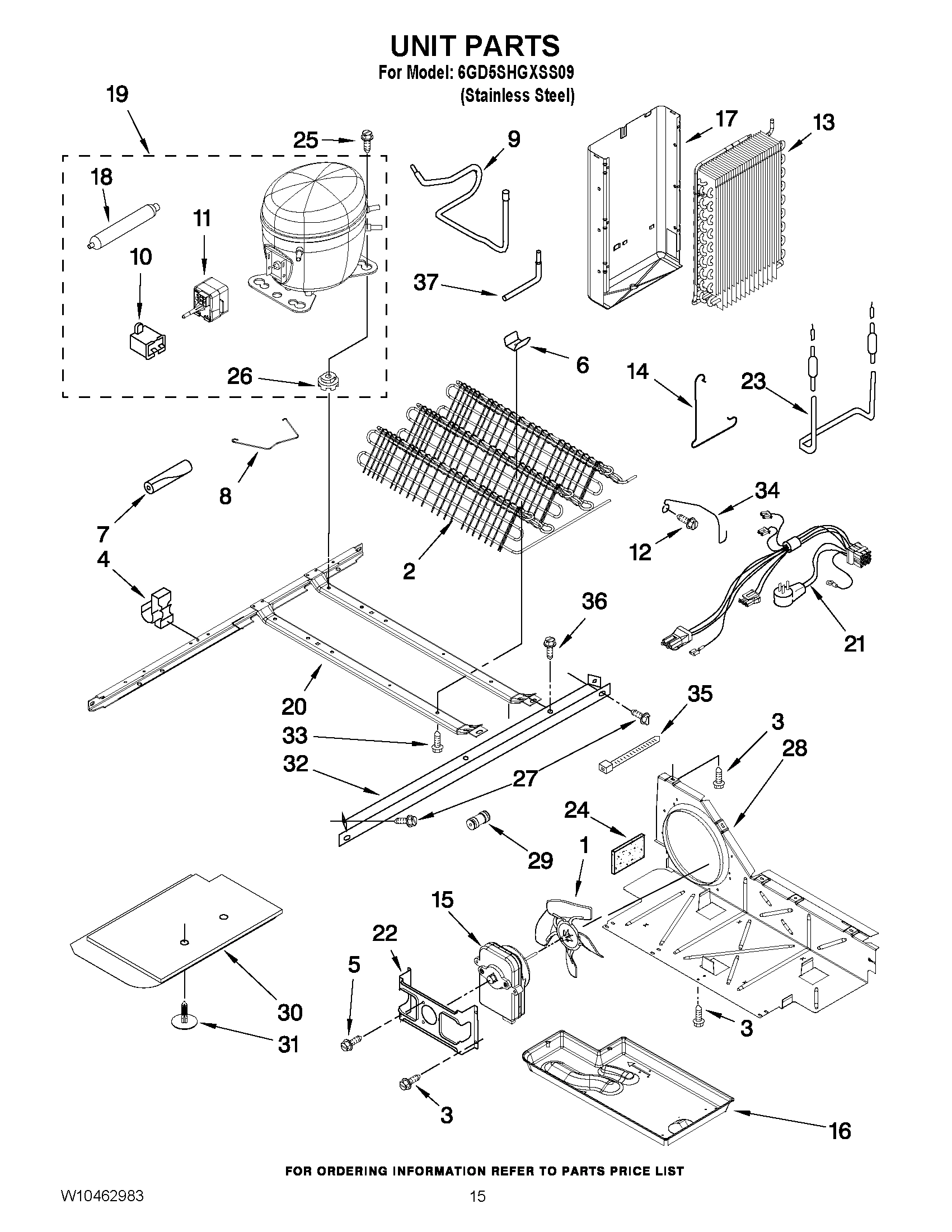

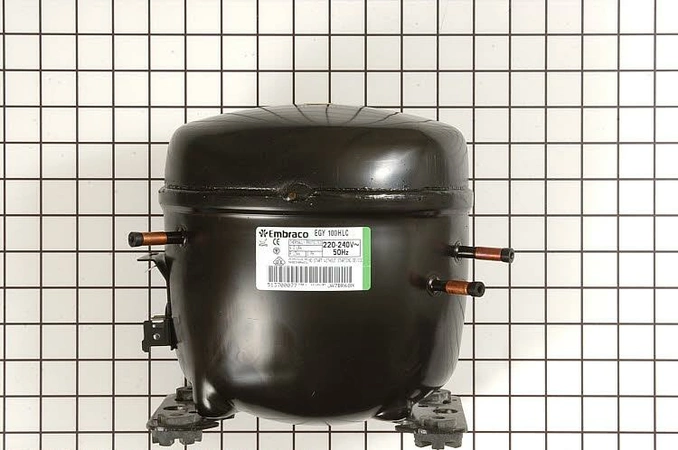

WP8201733 Whirlpool Refrigerator Compressor Backorder WPL WP8201733 $401.42

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

21

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

21

Unit, Harness WPL W10123598 Contact Us For Availability

22

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

22

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

22

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

23

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

WPW10123653 Whirlpool Refrigerator Heater Backorder WPL WPW10123653 $65.27

2217070 Whirlpool Foam Kit Backorder WPL 2217070 $10.76

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Spacer, Switch WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

25

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

W10242649 Whirlpool Refrigerator Door Hinge Backorder WPL W10242649 $33.56

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

28

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

28

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

29

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

29

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

30

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

32

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

33

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

33

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

34

Guard, Fan WPL 2186495 Contact Us For Availability

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

37

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $125.90

100

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (0.142 KG (R-134A)) WPL NP Contact Us For Availability
