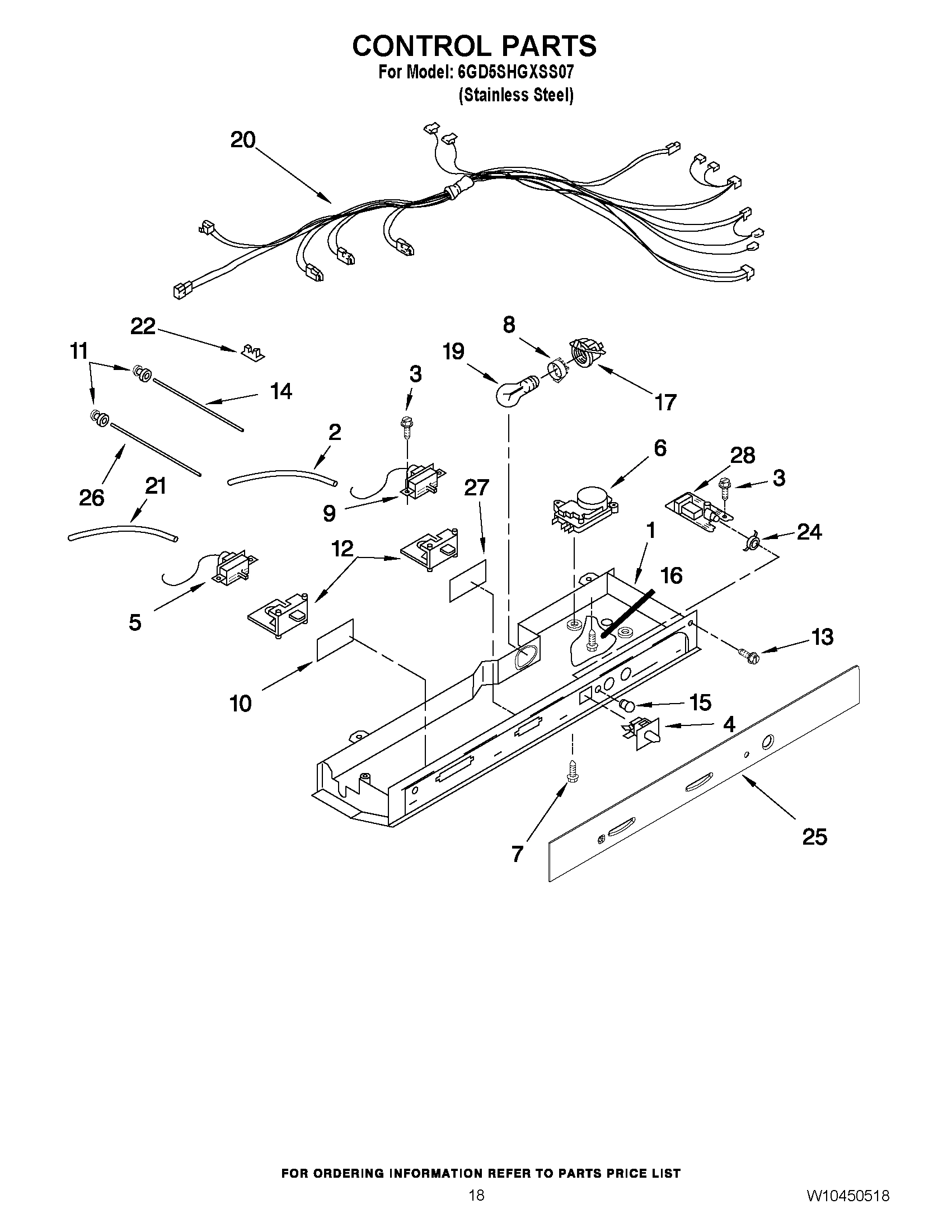

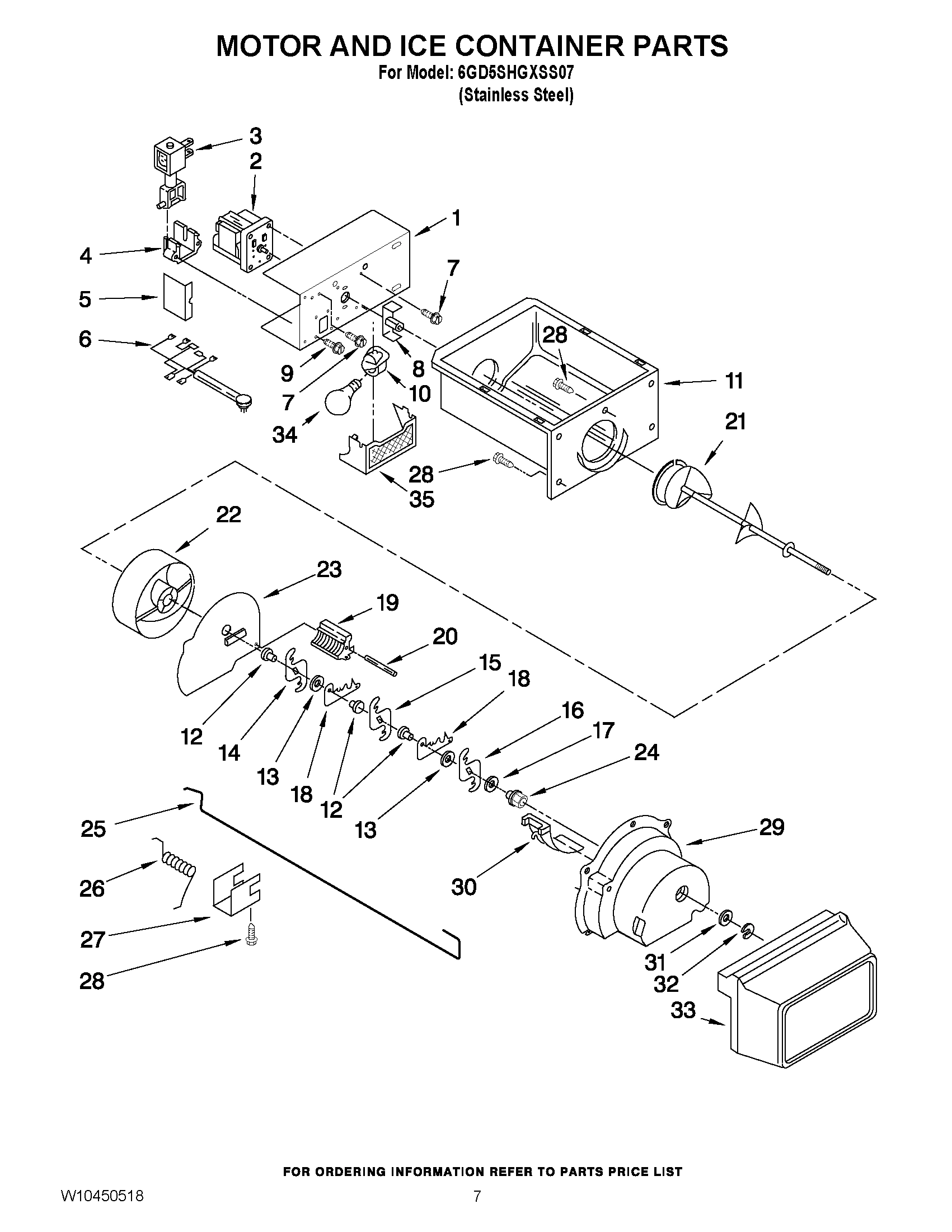

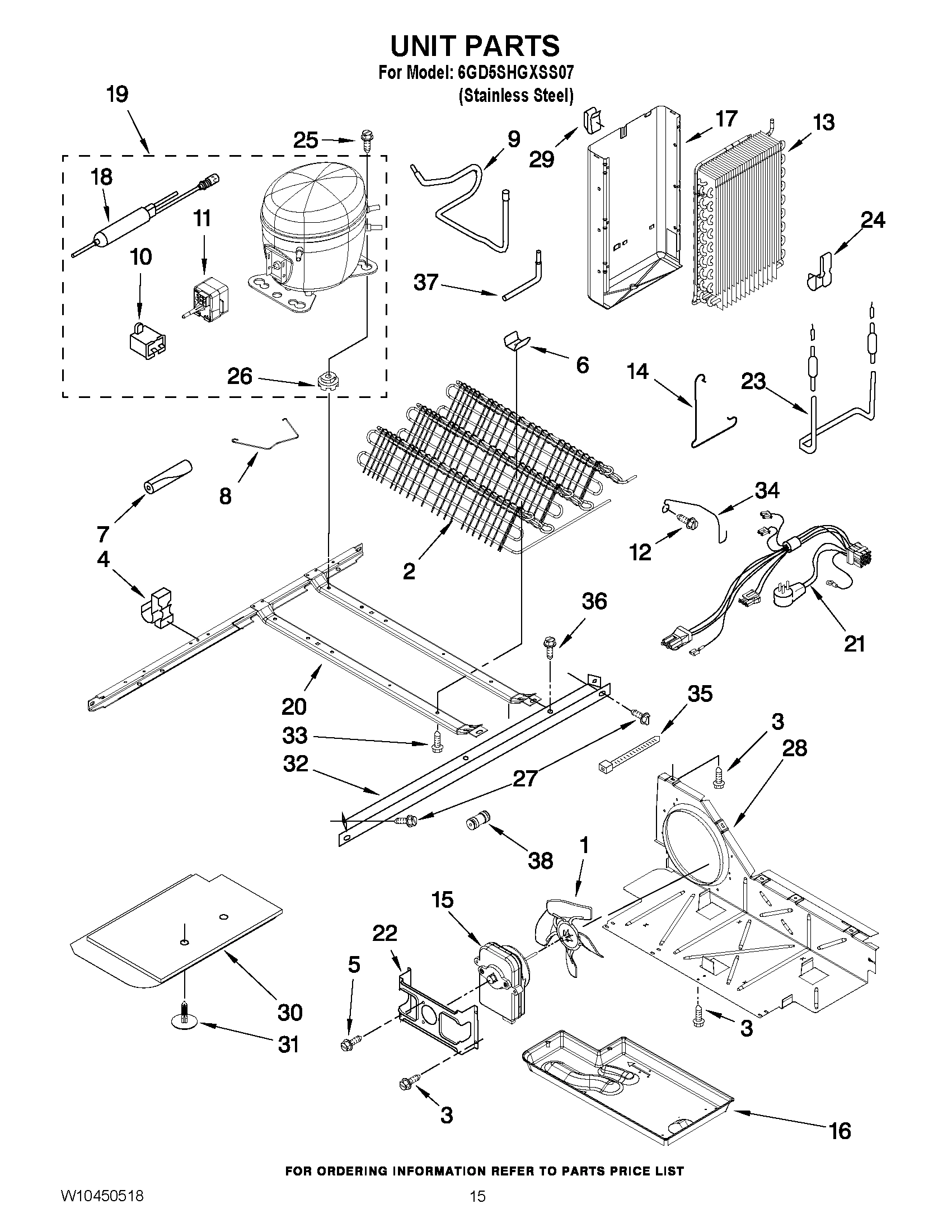

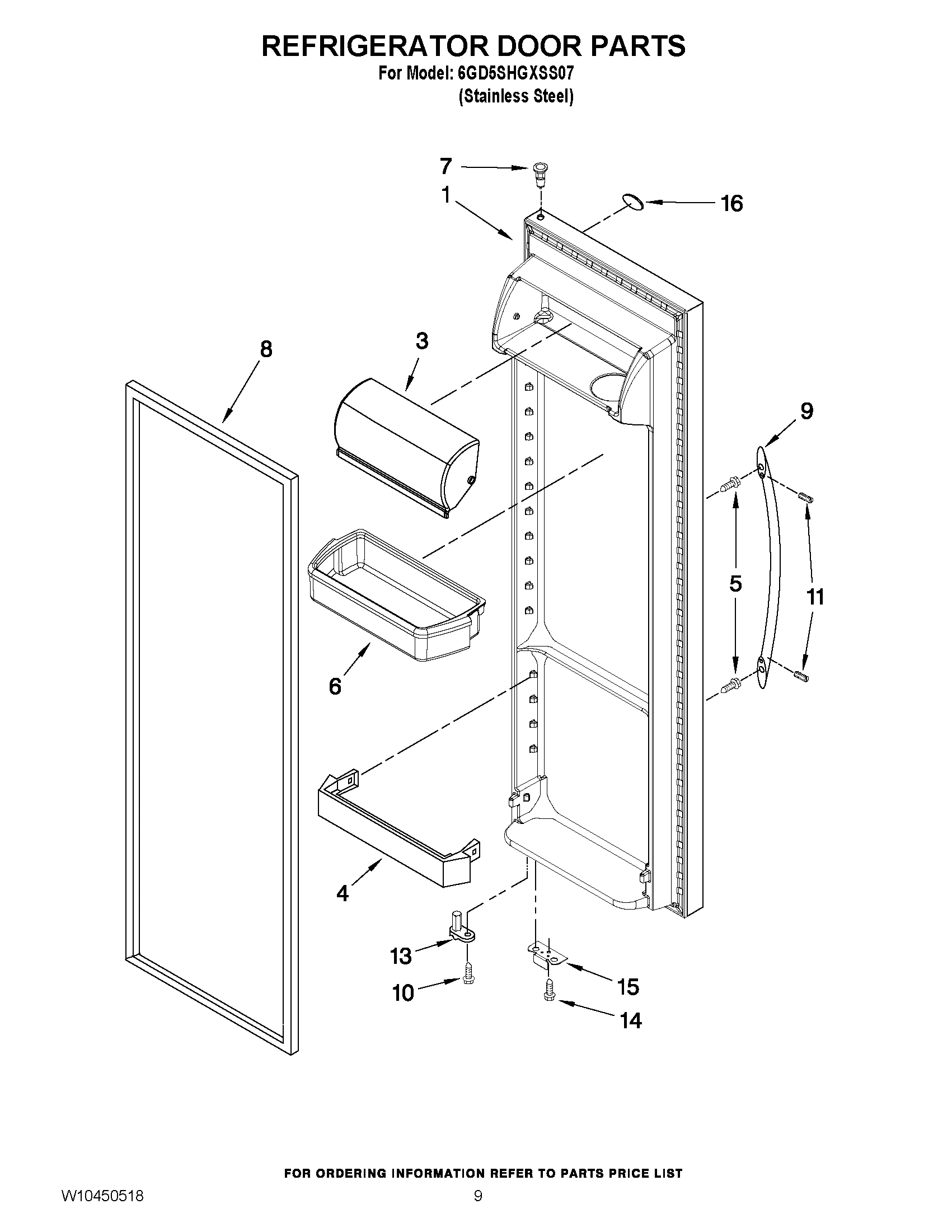

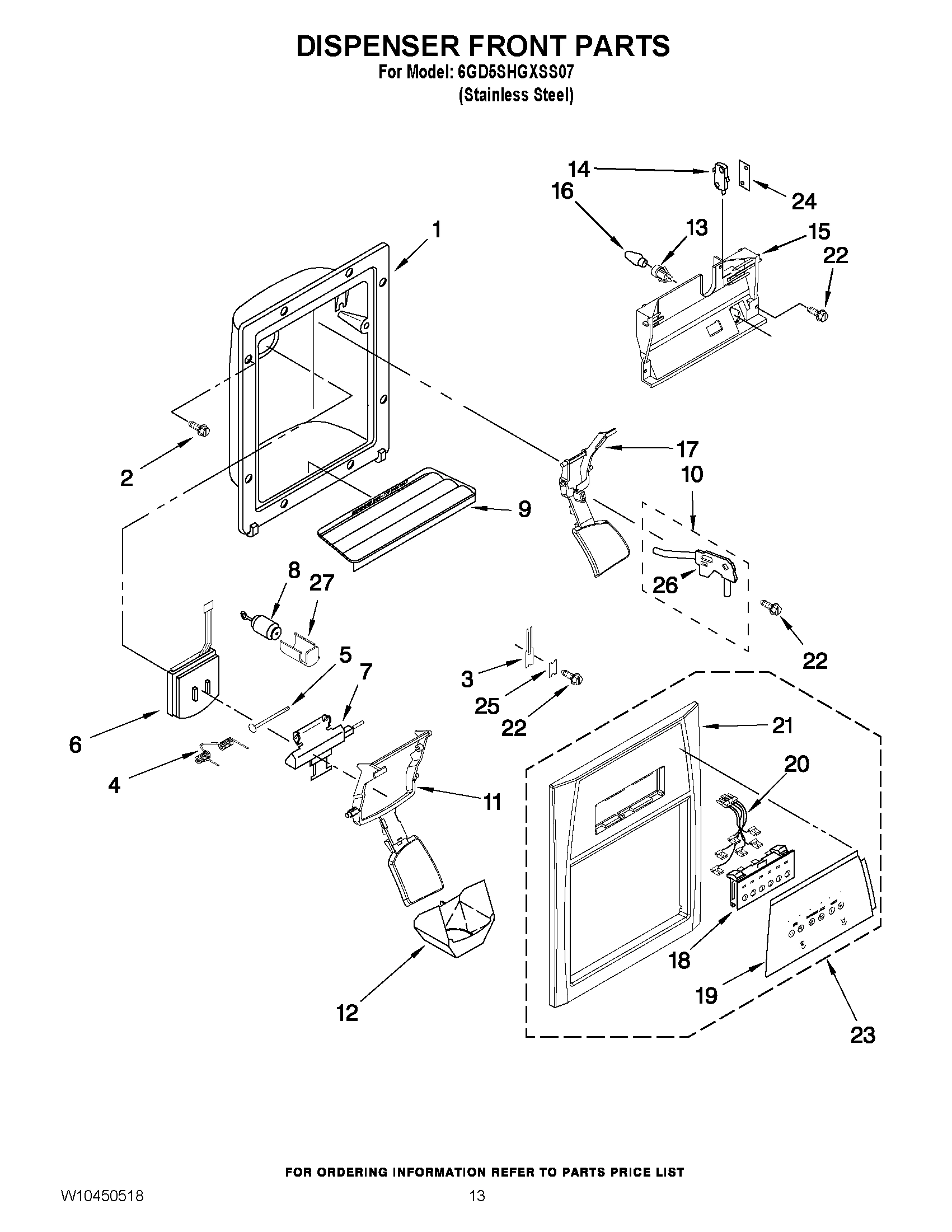

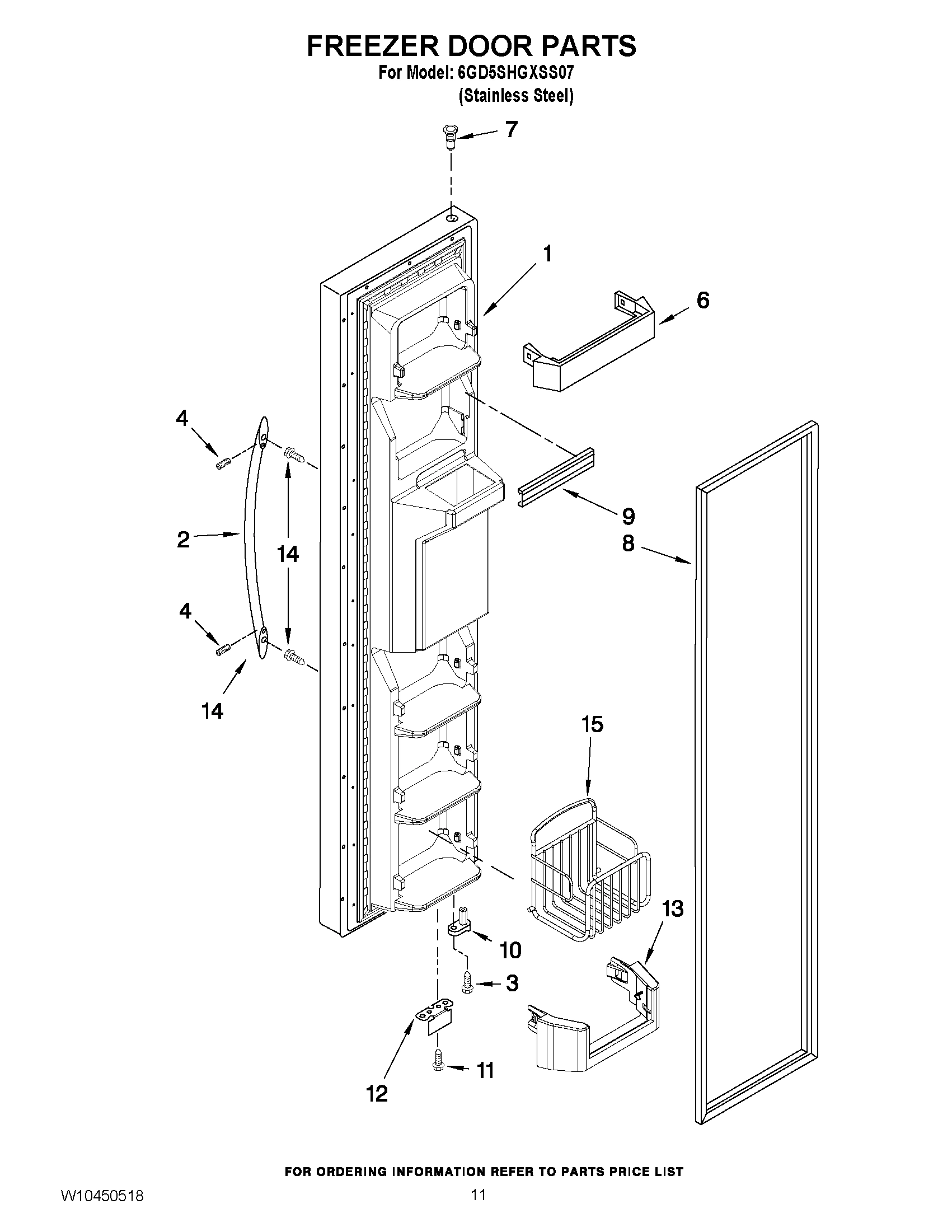

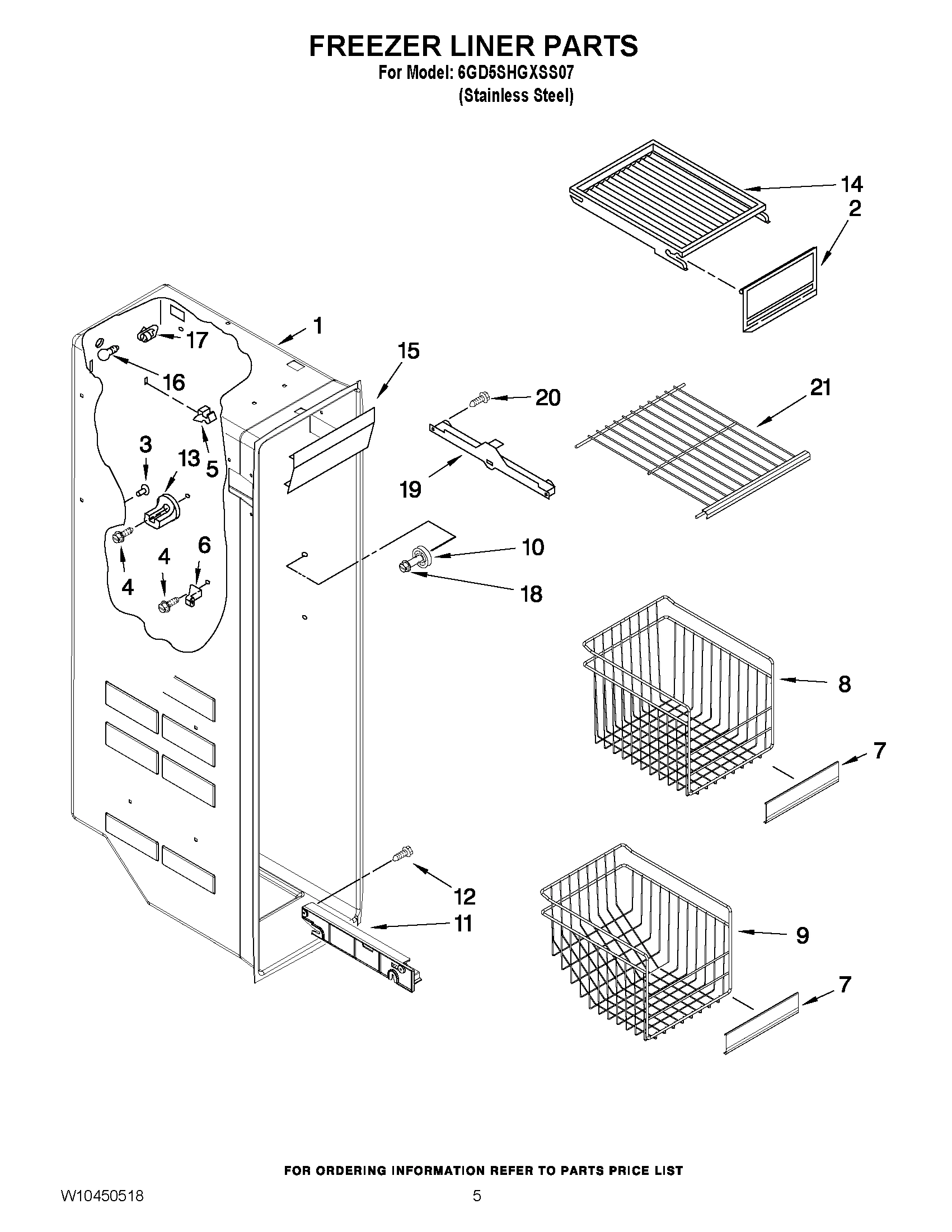

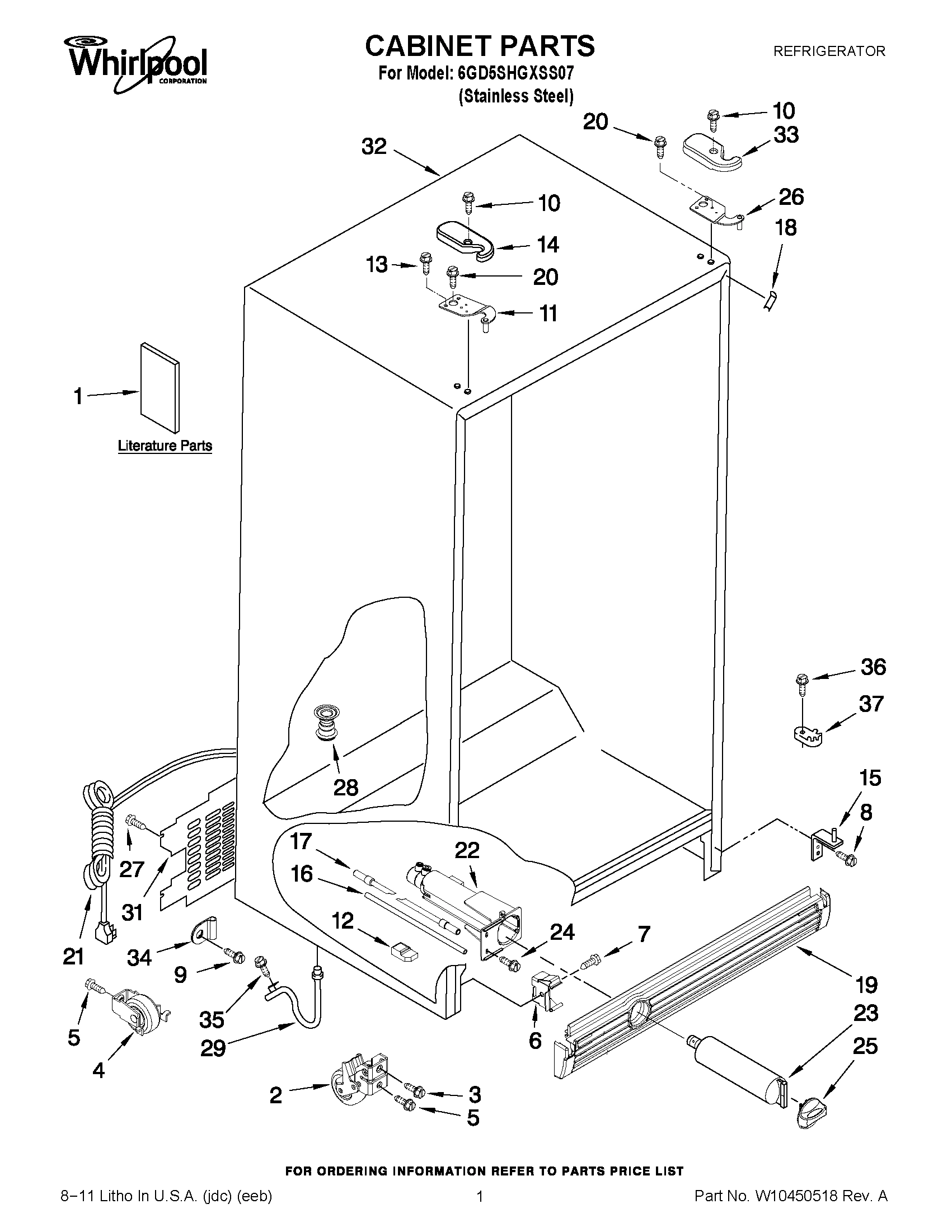

Model Whirlpool 6GD5SHGXSS07 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

BRACKET, MOTOR WPL W10304376 Contact Us For Availability

2

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $30.25

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Grommet WPL 2176134 Contact Us For Availability

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WPW10158157 Whirlpool Refrigerator Inlet Valv Backorder WPL WPW10158157 $107.94

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

7

Ladder, Shelf WPL 2319866 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

HANDLE (INCLUDES No.11) (STAINLESS STEEL) WPL 2319727S Contact Us For Availability

9

TUBE, SUCTION WPL 2205765 Contact Us For Availability

10

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.92

10

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

10

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

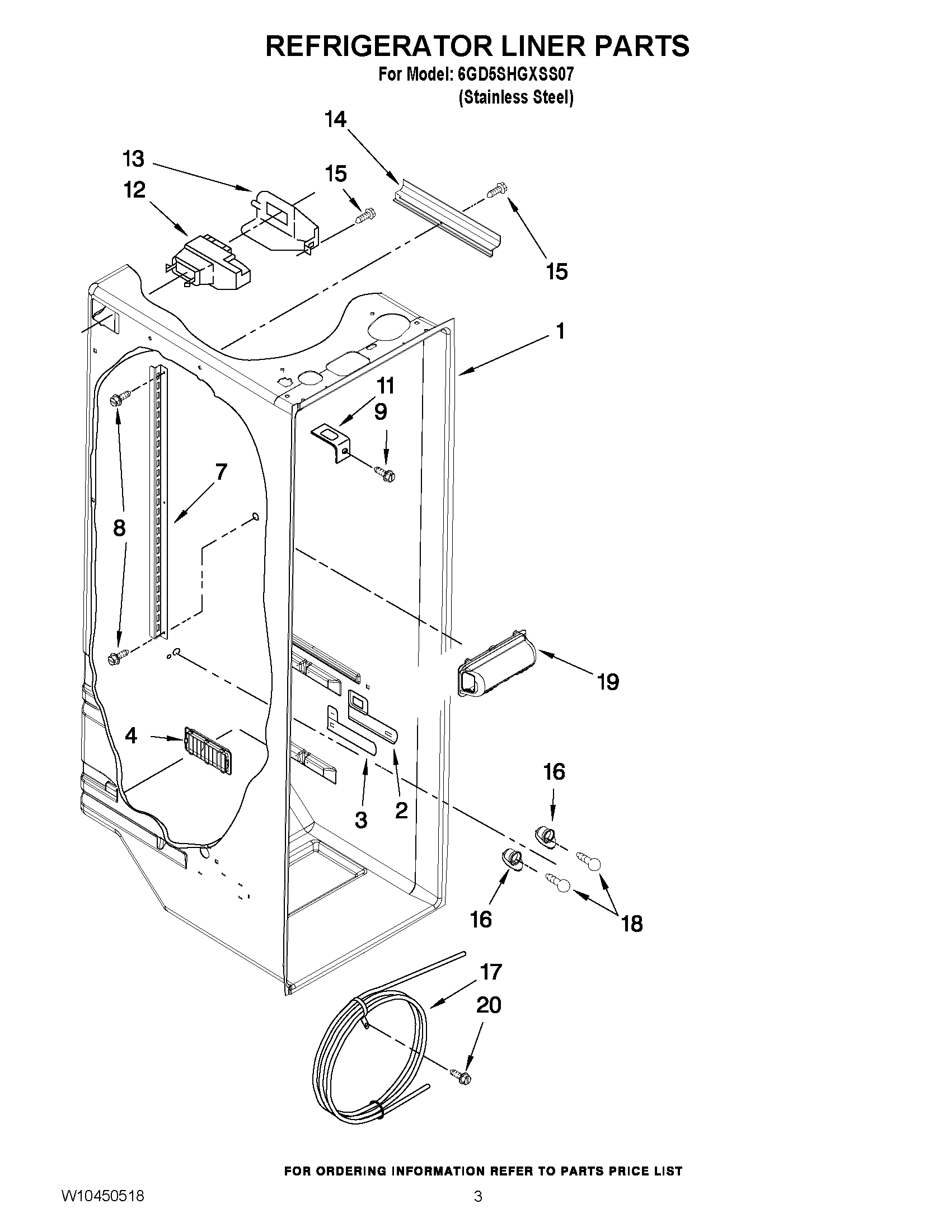

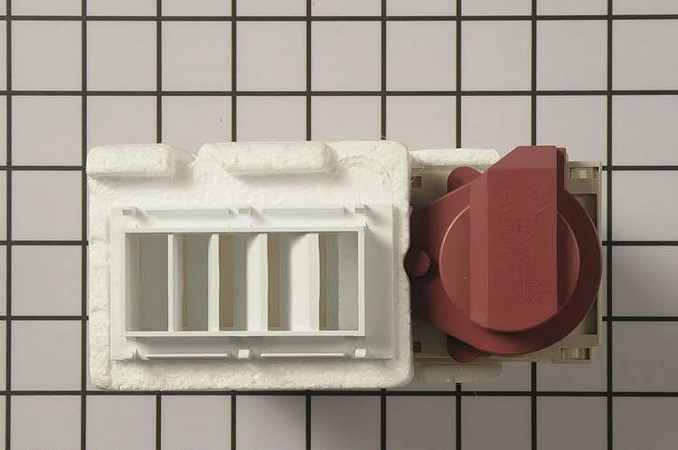

WPW10151378 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151378 $174.28

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $84.33

Stud, Rear WPL 2196207 Contact Us For Availability

Lamp Holder WPL W10129972 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

BRACKET, DOOR STOP WPL W10219812 Contact Us For Availability

Bracket, Control WPL W10129975 Contact Us For Availability

16

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

16

WP2321258 Whirlpool Refrigerator Bimetallic D Backorder WPL WP2321258 $35.59

16

Bulb, Light WPL W10159206 Contact Us For Availability

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.65

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $55.78

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

18

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $3.39

18

Screw WPL W10191952 Contact Us For Availability

18

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $49.83

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

Screw (2) WPL W10141645 Contact Us For Availability

W10199314 Whirlpool Refrigerator Power Cord Backorder WPL W10199314 $32.15

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No WPL NP Contact Us For Availability

22

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

22

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

22

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

23

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

Front Cover Assembly (Includes Items 18, 19, WPL W10129880 Contact Us For Availability

24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

24

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

27

Sleeve, Dashpot WPL 2252127 Contact Us For Availability

28

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

29

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

31

Cover, Unit WPL 2220758 Contact Us For Availability

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

33

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

33

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

35

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.65

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

36

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

37

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

38

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

100

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $183.83

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
