Model Whirlpool 6GD22DCXHW04 REFRIGERATOR – Common Parts & Diagrams

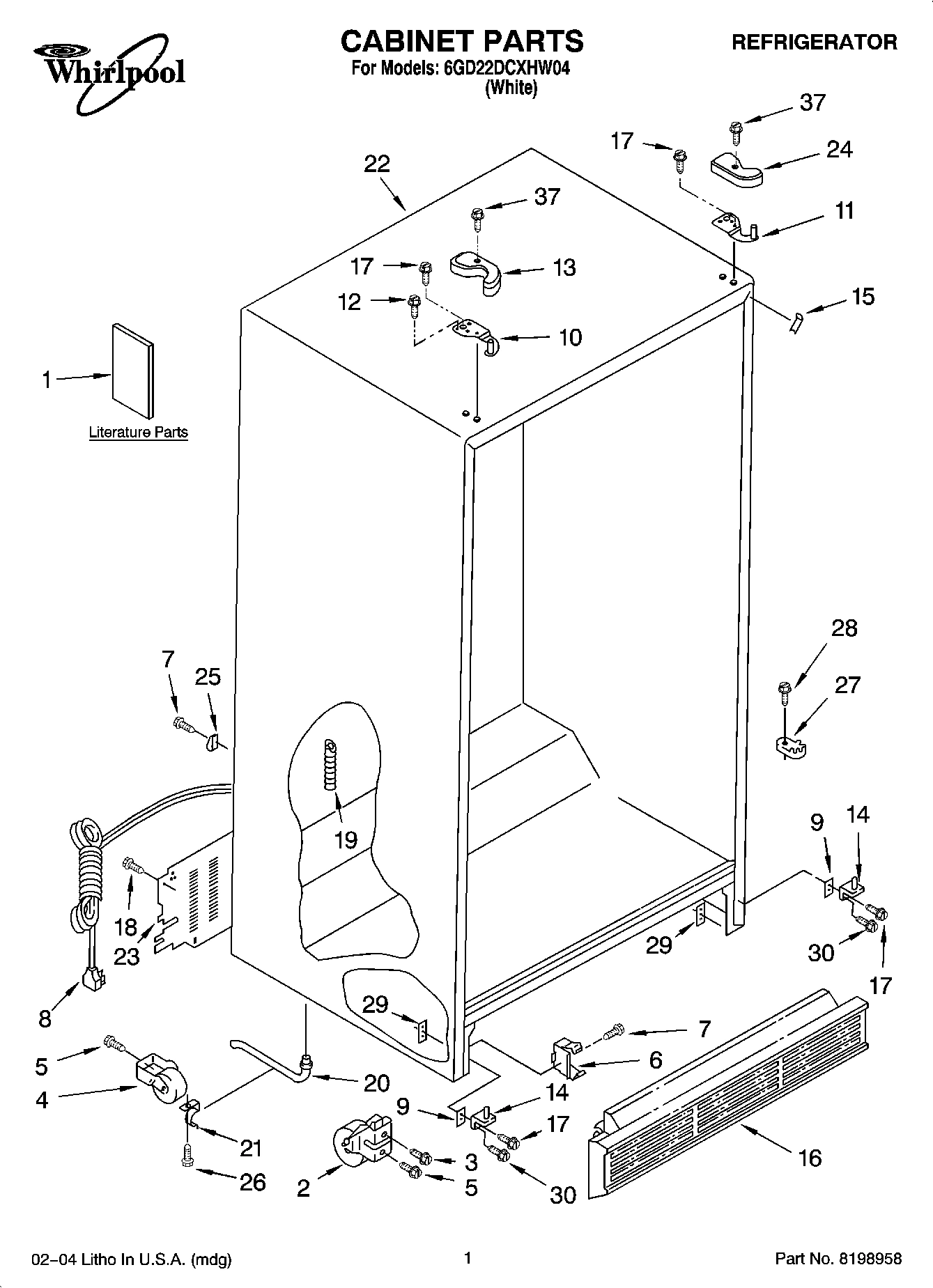

01 - CABINET PARTS

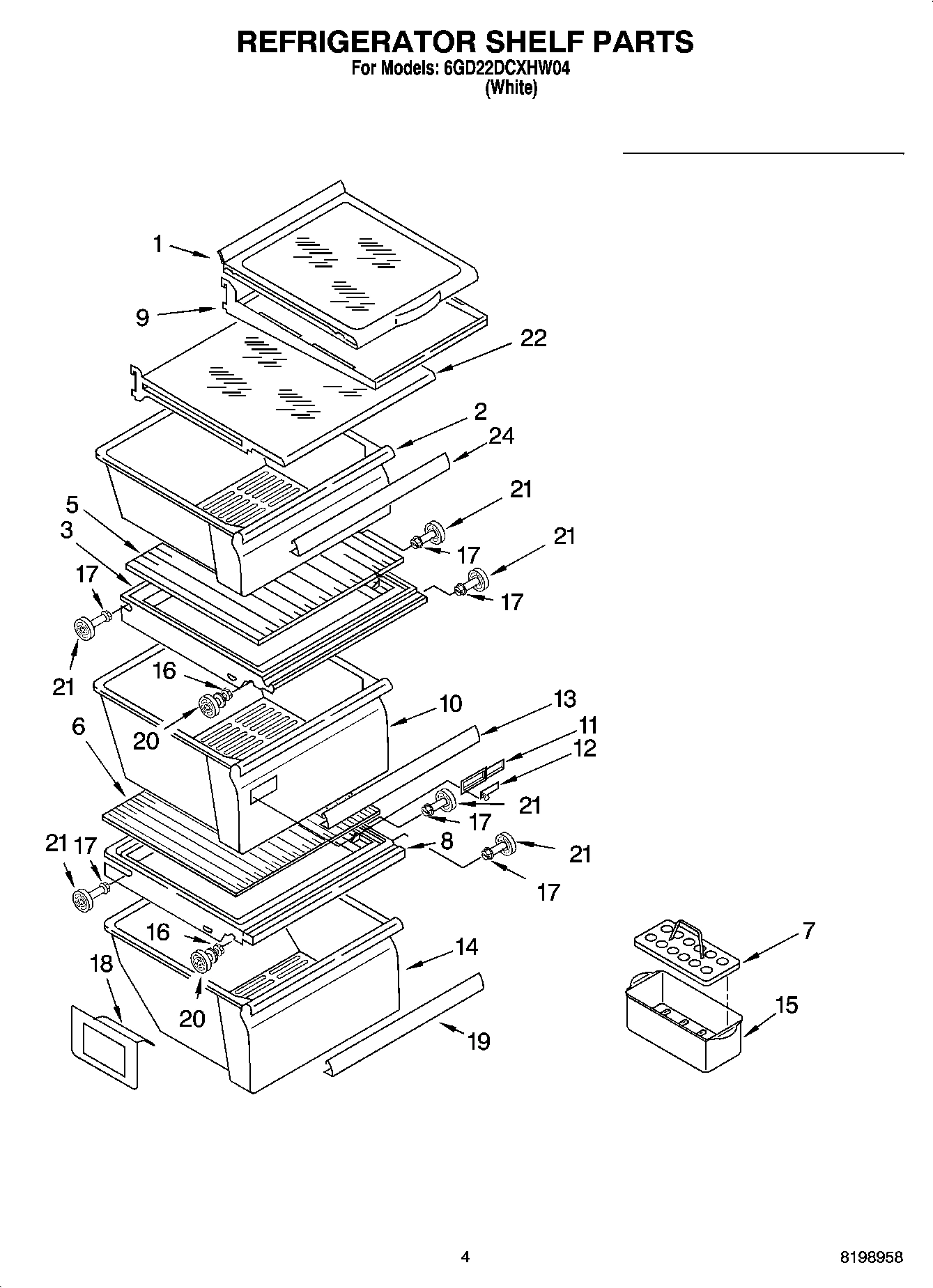

03 - REFRIGERATOR SHELF PARTS
05 - AIR FLOW PARTS
06 - MOTOR AND ICE CONTAINER PARTS
08 - FREEZER DOOR PARTS
10 - UNIT PARTS
11 - ICEMAKER PARTS
09 - DISPENSER FRONT PARTS
12 - CONTROL PARTS, PARTS NOT ILLUSTRATED
02 - REFRIGERATOR LINER PARTS
04 - FREEZER LINER PARTS
07 - REFRIGERATOR DOOR PARTS
Common parts from model Whirlpool 6GD22DCXHW04 REFRIGERATOR
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
Enamel, Almond (12 Oz. Spray Can) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1 WPL 876029 Contact Us For Availability
Kit, Terminal Connector WPL 833938 Contact Us For Availability
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI16087A9 WPL ARI16087A9 Contact Us For Availability
WPL ARI16088A9 WPL ARI16088A9 Contact Us For Availability
WPL ARI16089A9 WPL ARI16089A9 Contact Us For Availability
WPL ARI16090A5 WPL ARI16090A5 Contact Us For Availability
WPL ARI16091A9 WPL ARI16091A9 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI16080A1 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI16078A1 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI16079A7 Contact Us For Availability
1
Refrigerator Door (White (Includes Item 8)) WPL 2207033W Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Ice Compartment WPL 2171712 Contact Us For Availability
4
Louver WPL 2257741 Contact Us For Availability
5
Thermostat (FC) WPL 2187158 Contact Us For Availability
5
Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
7
Extension, Bottom (White) WPL 2217186W Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
9
Shim WPL 2209697 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207048W Contact Us For Availability
9
Shelf Ladder WPL 2206270 Contact Us For Availability
9
Handle, Center (White) WPL 2217185W Contact Us For Availability
10
Window WPL 2172940 Contact Us For Availability
10
Basket, Tall WPL 2223582 Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
TUBE, SUCTION WPL 2205764 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Basket, Slope WPL 2223278 Contact Us For Availability
12
Slide, Thermostat WPL 2161466 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top (White) WPL 2217191W Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
15
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
16
Bulb, Light WPL 989331 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2261448 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2261449 Contact Us For Availability
17
Butter, Dish WPL 2165792 Contact Us For Availability
18
Heat Shield WPL 2172931 Contact Us For Availability
18
Switch Assembly (Not Available Order 23) WPL ARI16081A3 Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order 23 WPL ARI16082A3 Contact Us For Availability
20
Control Box Harness WPL 2206509 Contact Us For Availability
21
Front Cover, Housing (Not Available Order 23 WPL ARI16083A2 Contact Us For Availability
21
Light Lens WPL 2209769 Contact Us For Availability
22
Stud, Rear WPL 2196207 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw (2) WPL 488280 Contact Us For Availability
23
Front Cover Assembly (White (Includes Items 1 WPL 2207085W Contact Us For Availability
23
Hole Plug WPL 940014 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
25
Clamp-Cord WPL 489348 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
Escutcheon, Control Box WPL 2261750 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
26
Connector WPL 1128252 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
× ![]()
