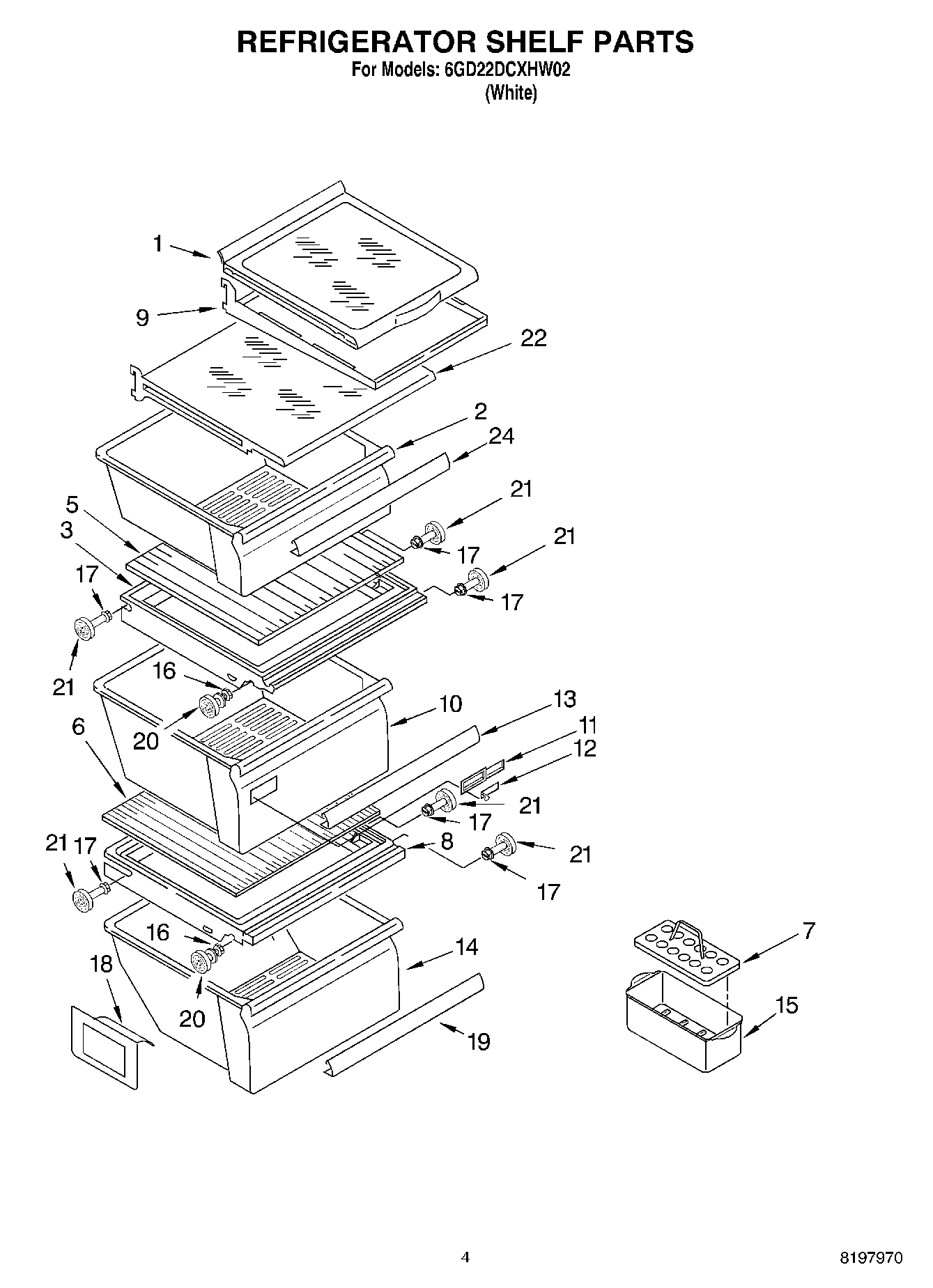

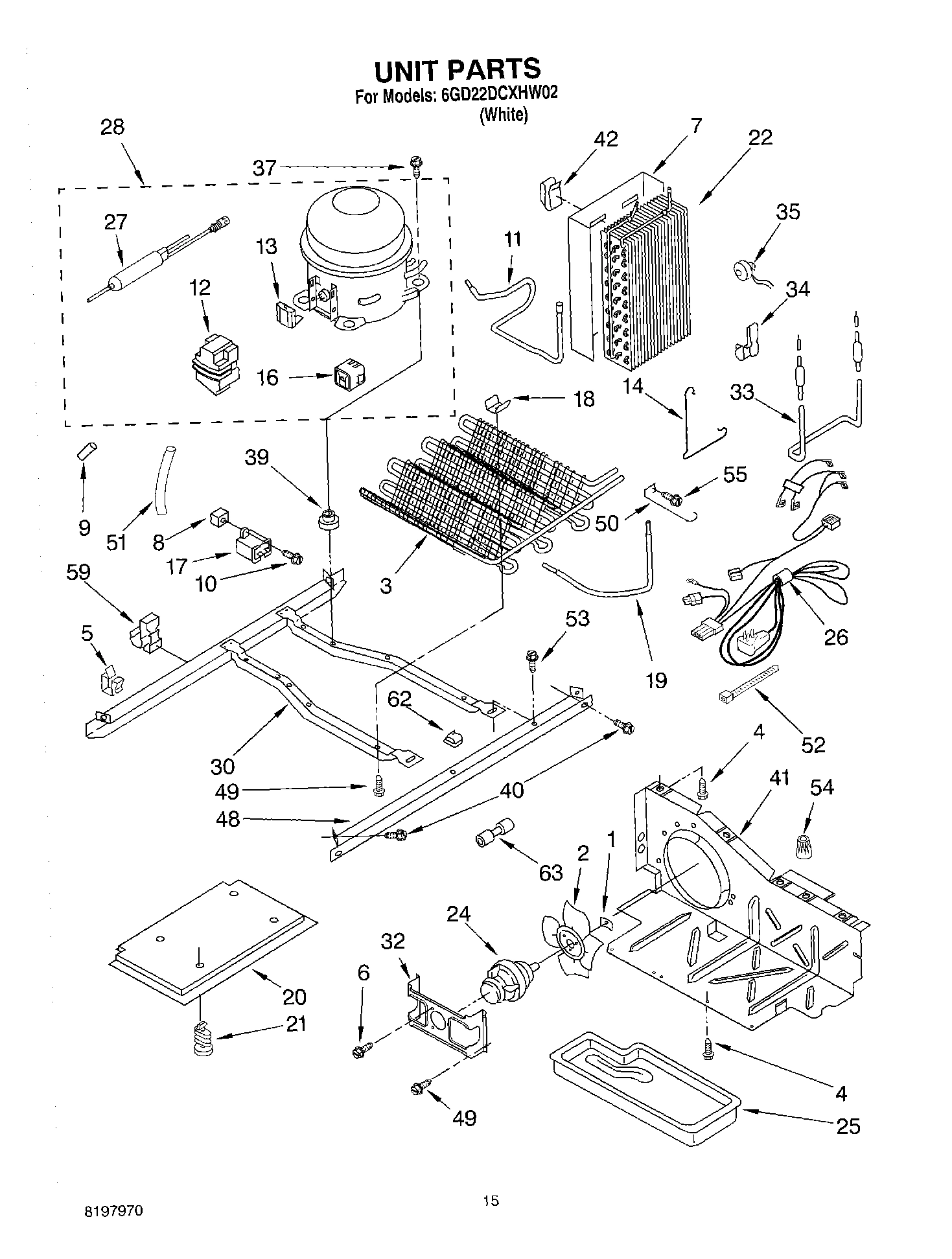

Model Whirlpool 6GD22DCXHW02 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI16071A3 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI16073A2 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $101.56

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

Grille, Overflow (White) WPL 2207048W Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $10.25

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Valve, Solenoid WPL 2187233 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2203562W Whirlpool Refrigerator Dispenser A Backorder WPL WP2203562W $38.10

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

Backorder WPL 2179404 $8.47

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $69.97

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Grommet (4) WPL 2176134 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

15

WPW10129864 Whirlpool Refrigerator Diffuser Backorder WPL WPW10129864 $177.34

15

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Bulb, Light WPL 989331 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Extension, Bottom (White) WPL 2217186W Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Extension, Top (White) WPL 2217191W Contact Us For Availability

Switch Assembly (Not Available, Order No.23) WPL ARI16074A8 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Overlay, Front Cover (Not Available, Order No WPL ARI16075A5 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

WPW10122523 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122523 $85.43

Control Box Harness WPL 2206509 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

Light Lens WPL 2206269 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI16076A1 Contact Us For Availability

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Stud, Rear WPL 2196207 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Screw (2) WPL 488280 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Front Cover Assembly (White (Includes Items 1 WPL 2207085W Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Escutcheon, Control Box WPL 2175064 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Light Bar (FC) WPL 2179921 Contact Us For Availability

Connector WPL 2169477 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Window WPL 2172941 Contact Us For Availability

27

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Unc WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

W10190933 Whirlpool Refrigerator Motor Assemb Backorder WPL W10190933 $191.63

37

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
