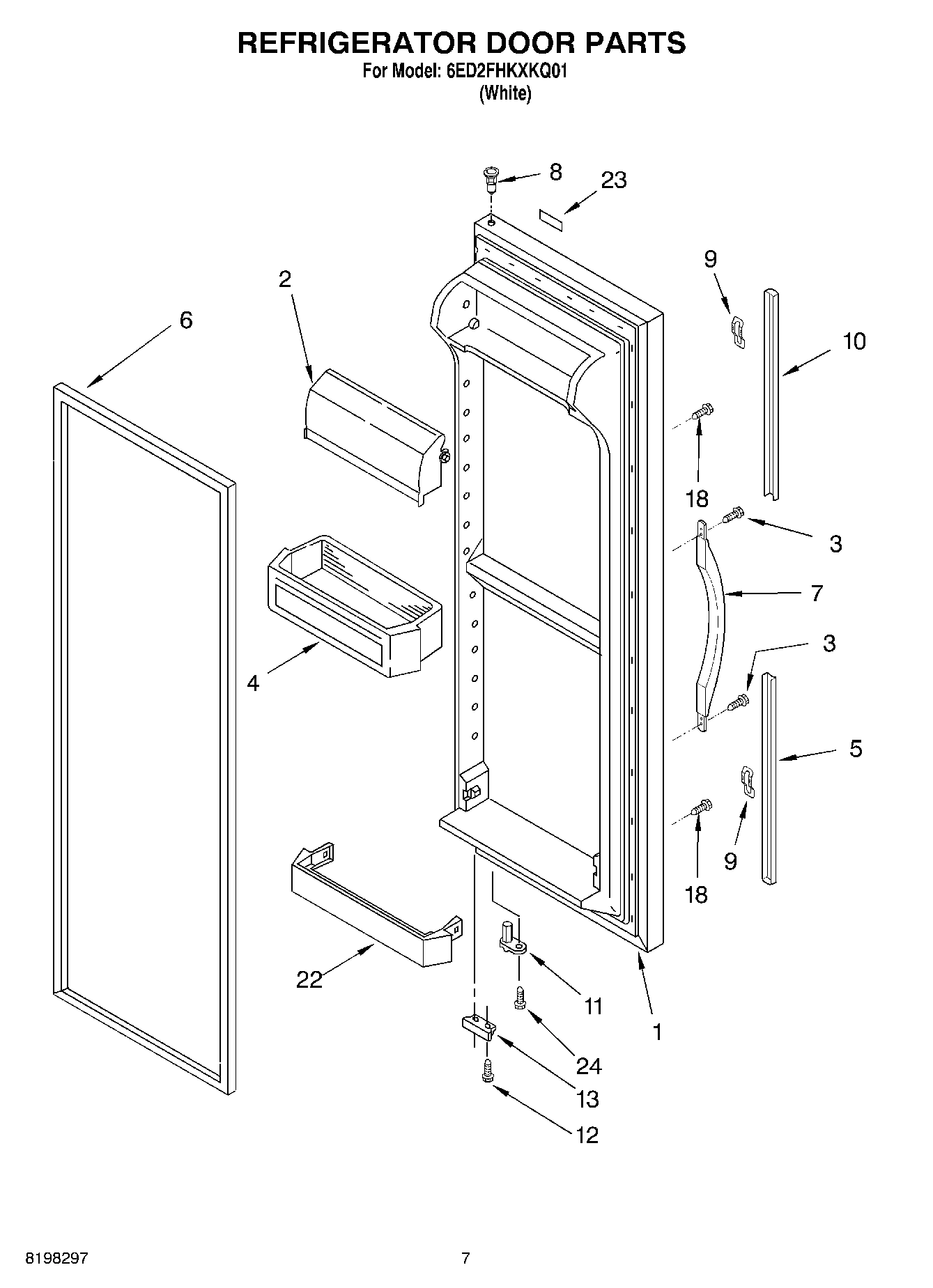

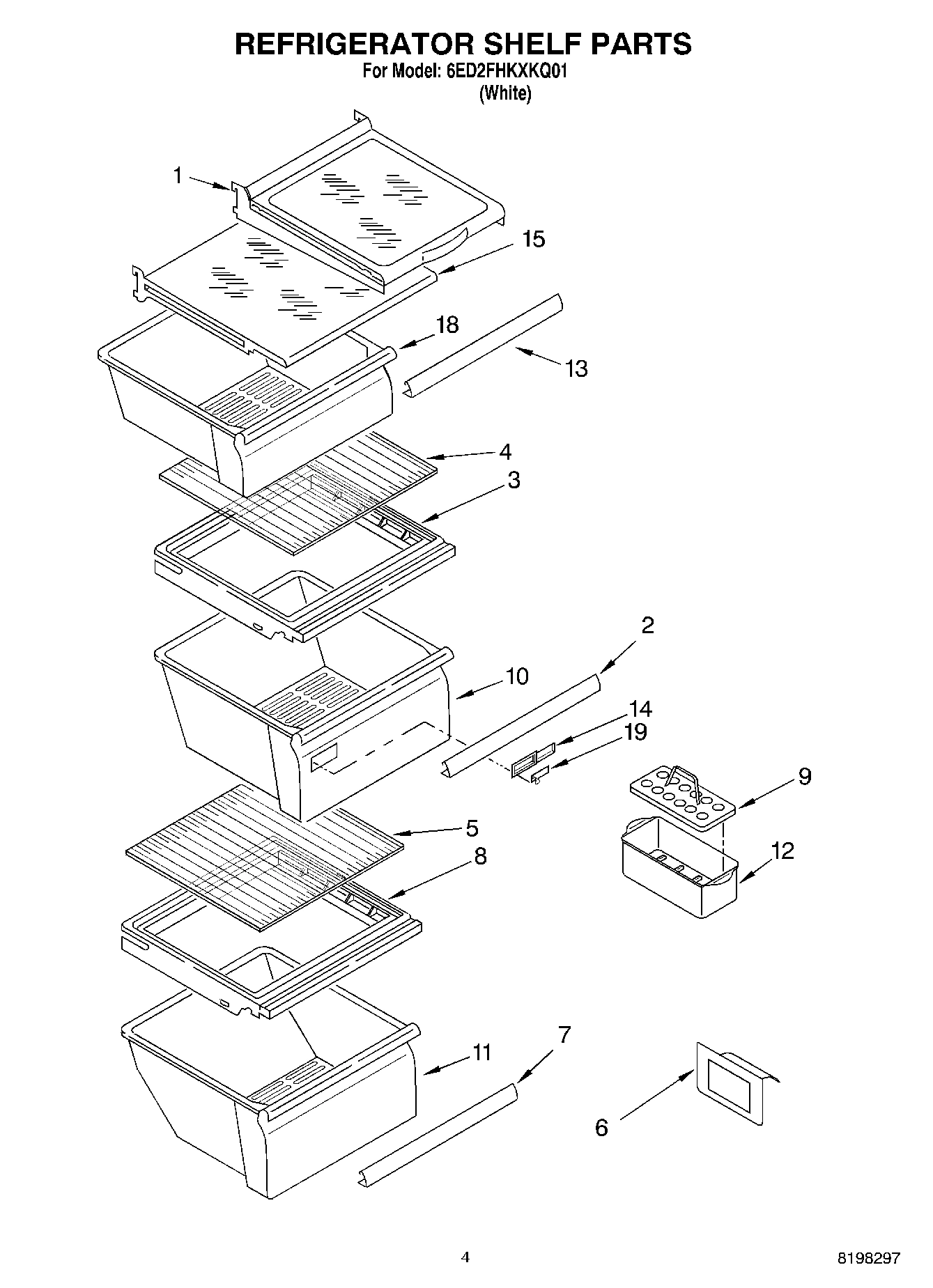

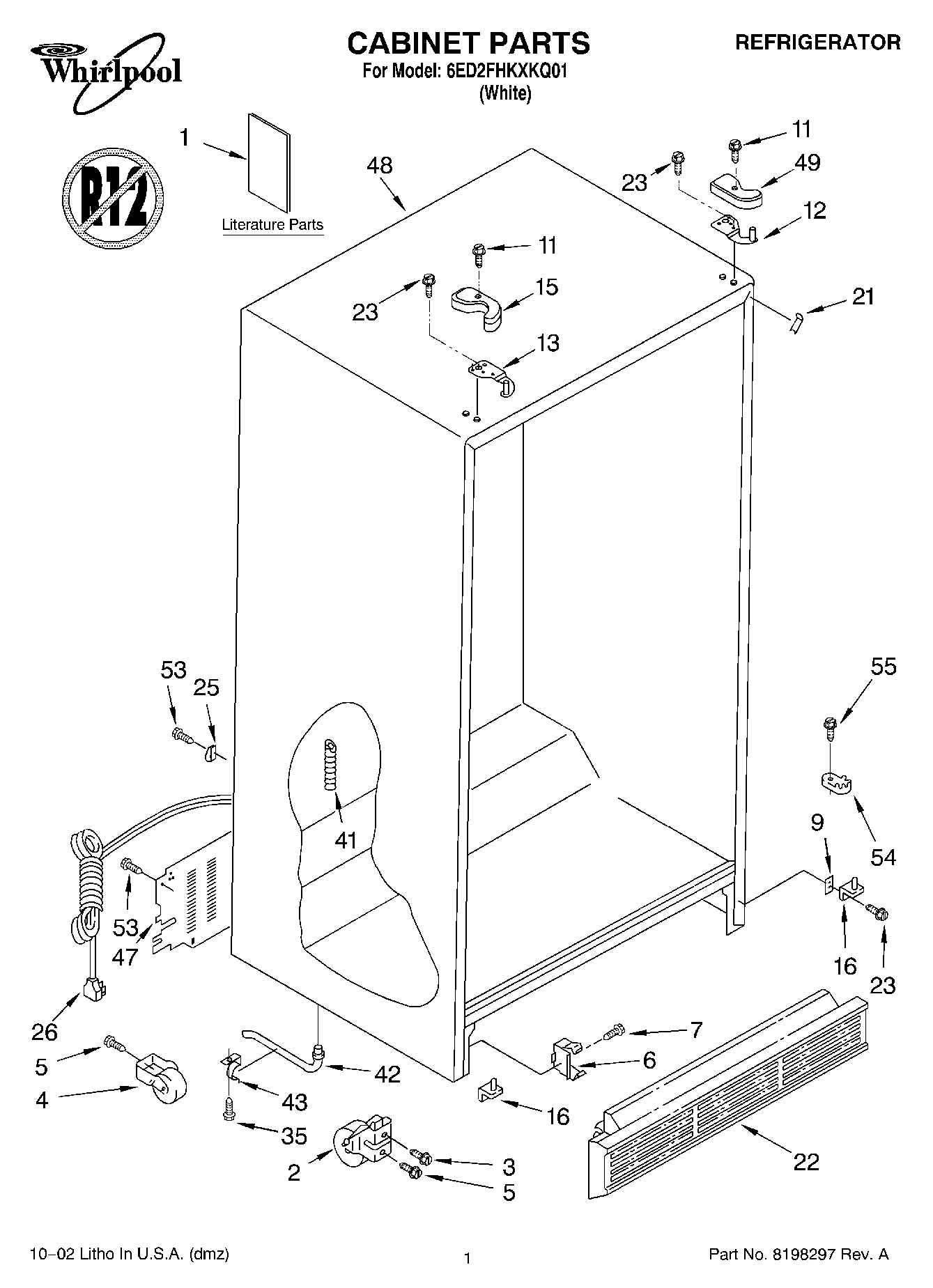

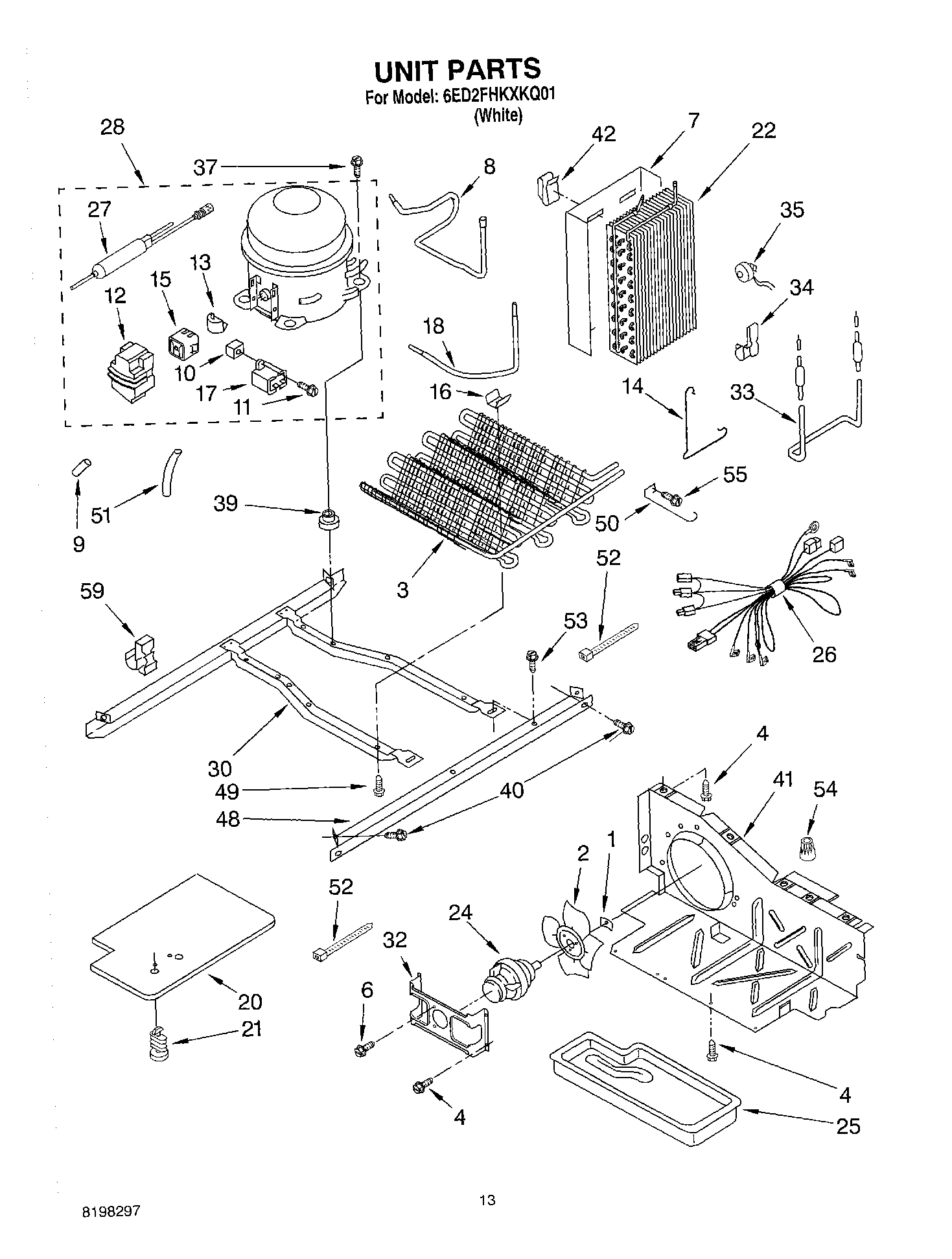

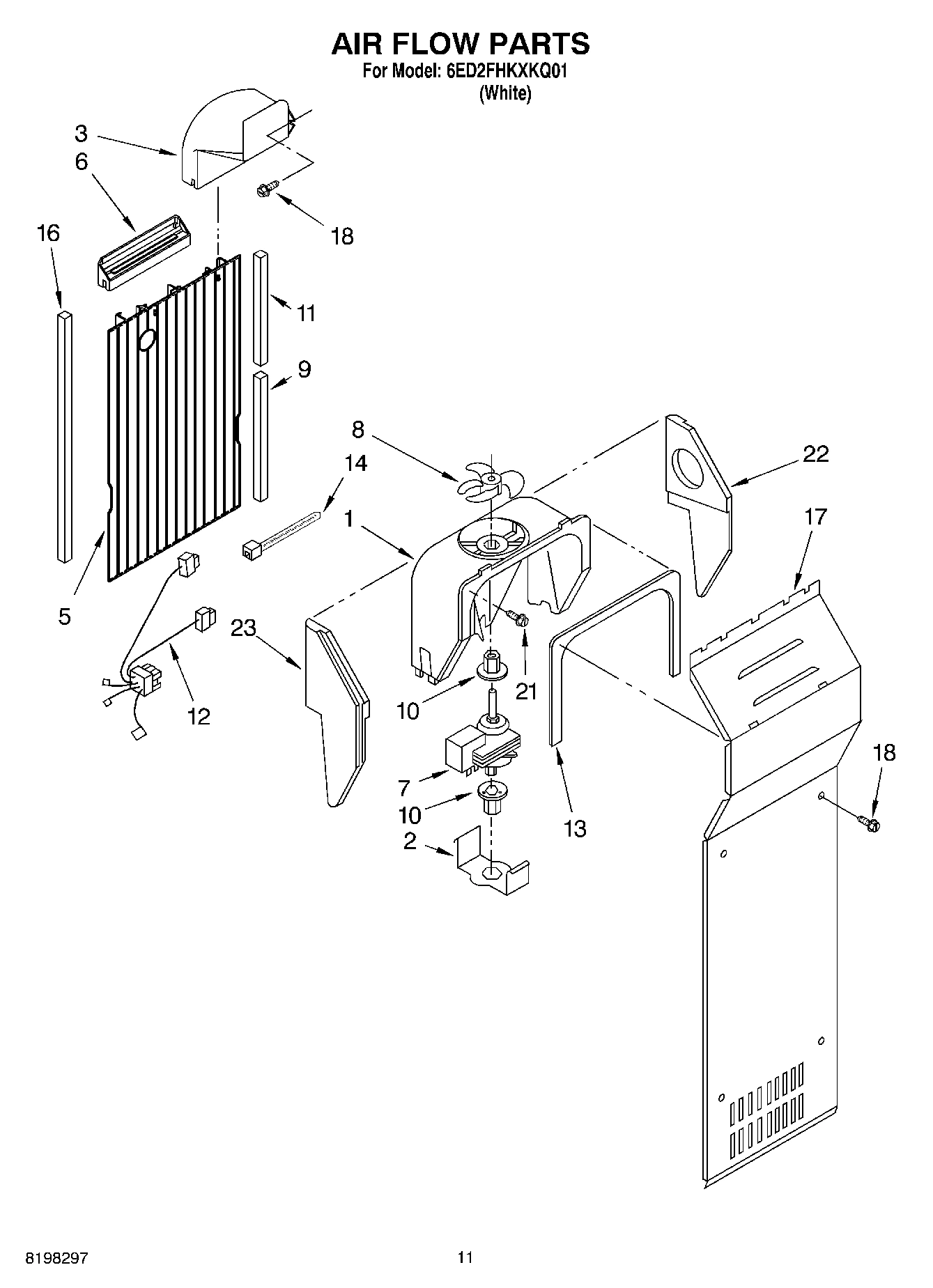

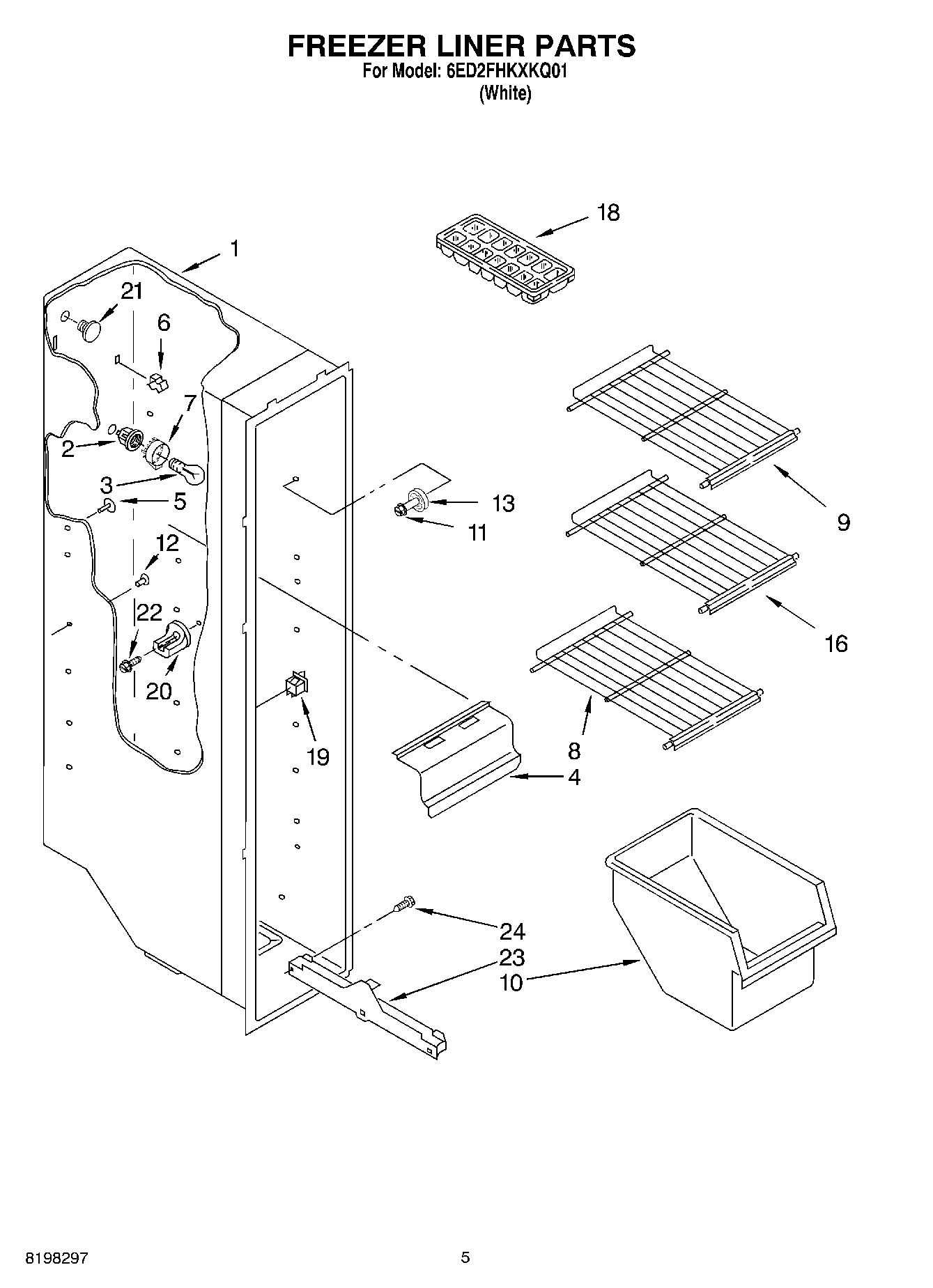

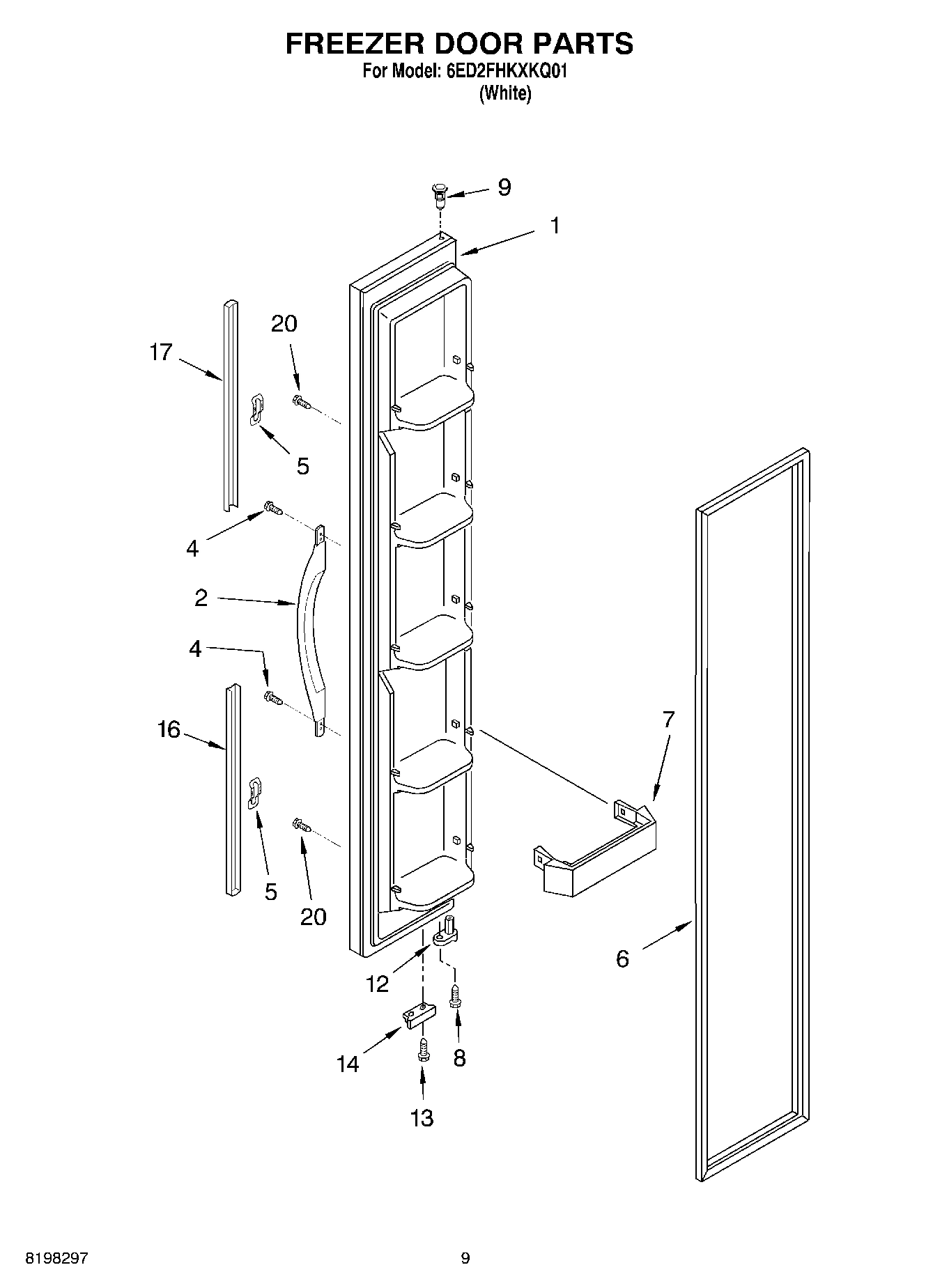

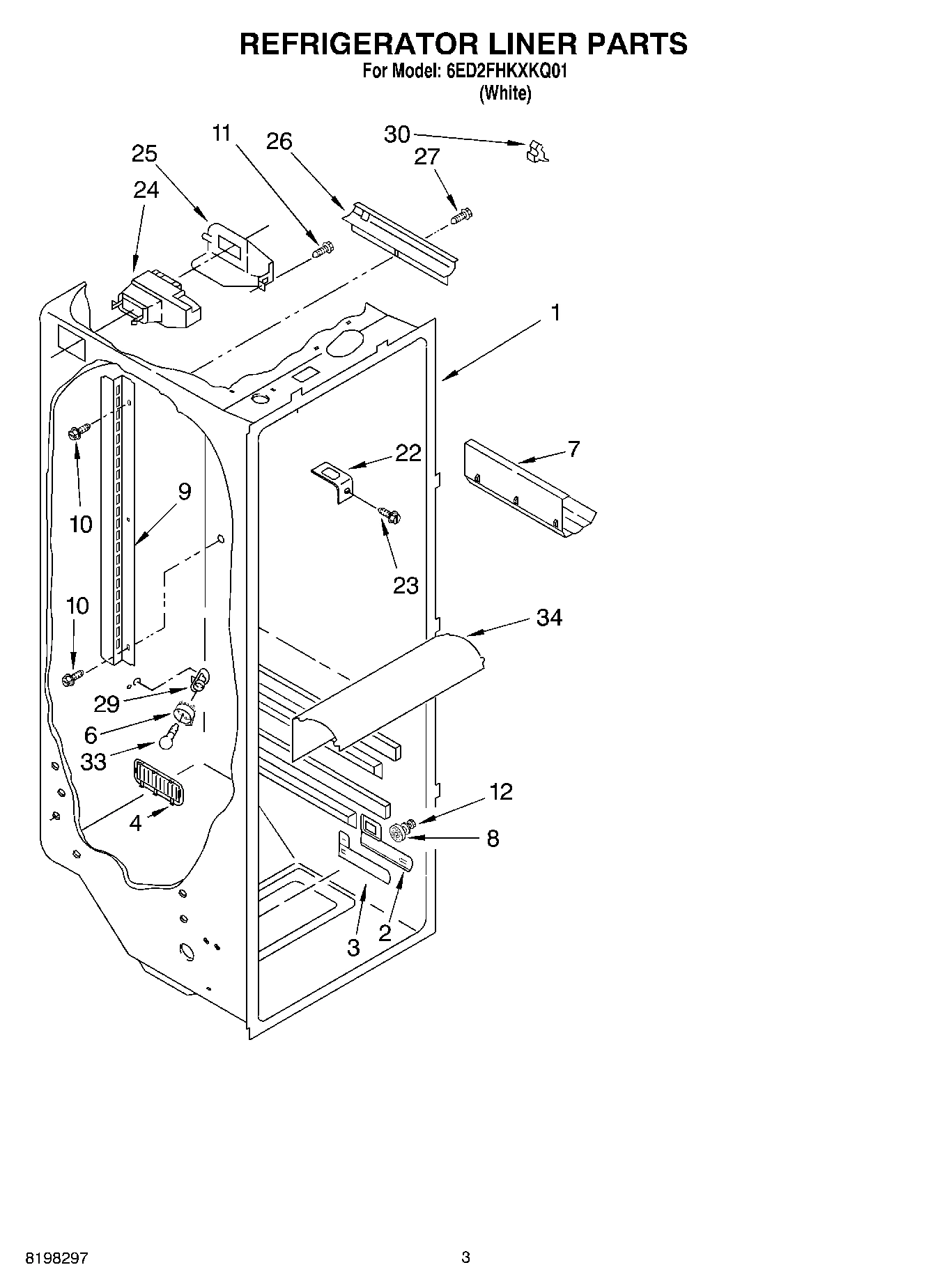

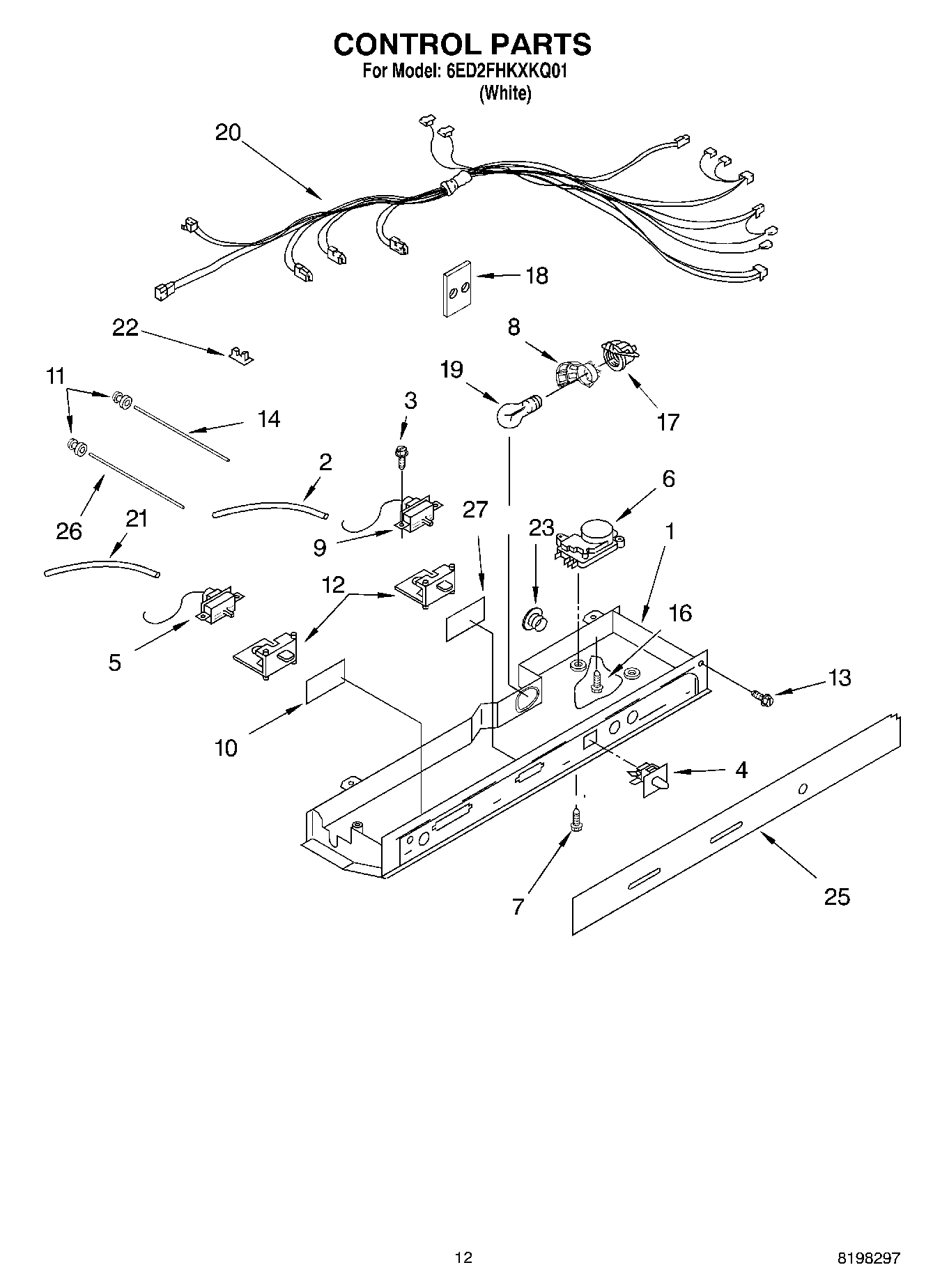

Model Whirlpool 6ED2FHKXKQ01 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

LITERATURE PARTS (Energy Label) WPL LIT2220240 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2254915 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2255047 Contact Us For Availability

1

Shelf, Cantilever (2) WPL 2194281 Contact Us For Availability

1

Freezer Door (Includes No.6) (White) WPL 2206725W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

5

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

6

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

7

Handle, Center (White) WPL 2186649W Contact Us For Availability

7

Trivet, Door Shelf (5) WPL 2194286 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

10

Etension, Top (White) WPL 2194971W Contact Us For Availability

11

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

11

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Grommet (10) WPL 2176134 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

15

Shelf Assembly WPL 2206347 Contact Us For Availability

16

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

20

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

20

Stud, Rear WPL 2196207 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

22

W10804014 Whirlpool Refrigerator Grille Backorder WPL W10804014 $73.81

23

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

23

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

24

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

25

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

Service Cord WPL 2205330 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

Screw WPL 489473 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

47

Cover, Unit WPL 2214573 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI15947A5 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10190943 Whirlpool Refrigerator Icemaker Backorder WPL WPW10190943 $174.94

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

CEMENT WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
