Model Whirlpool 6ED22PKXEW00 REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER DOOR
08 - CONTROL

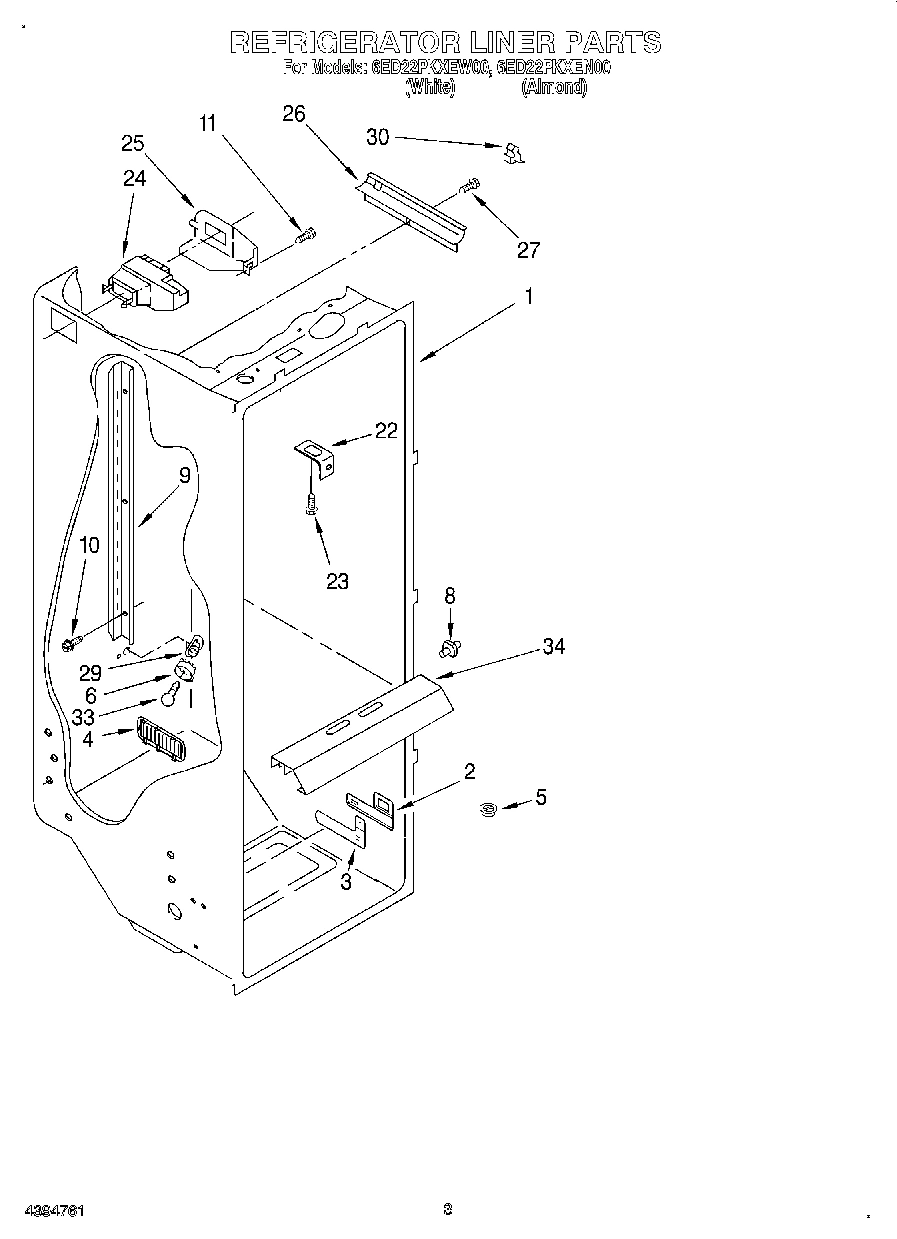

02 - REFRIGERATOR LINER

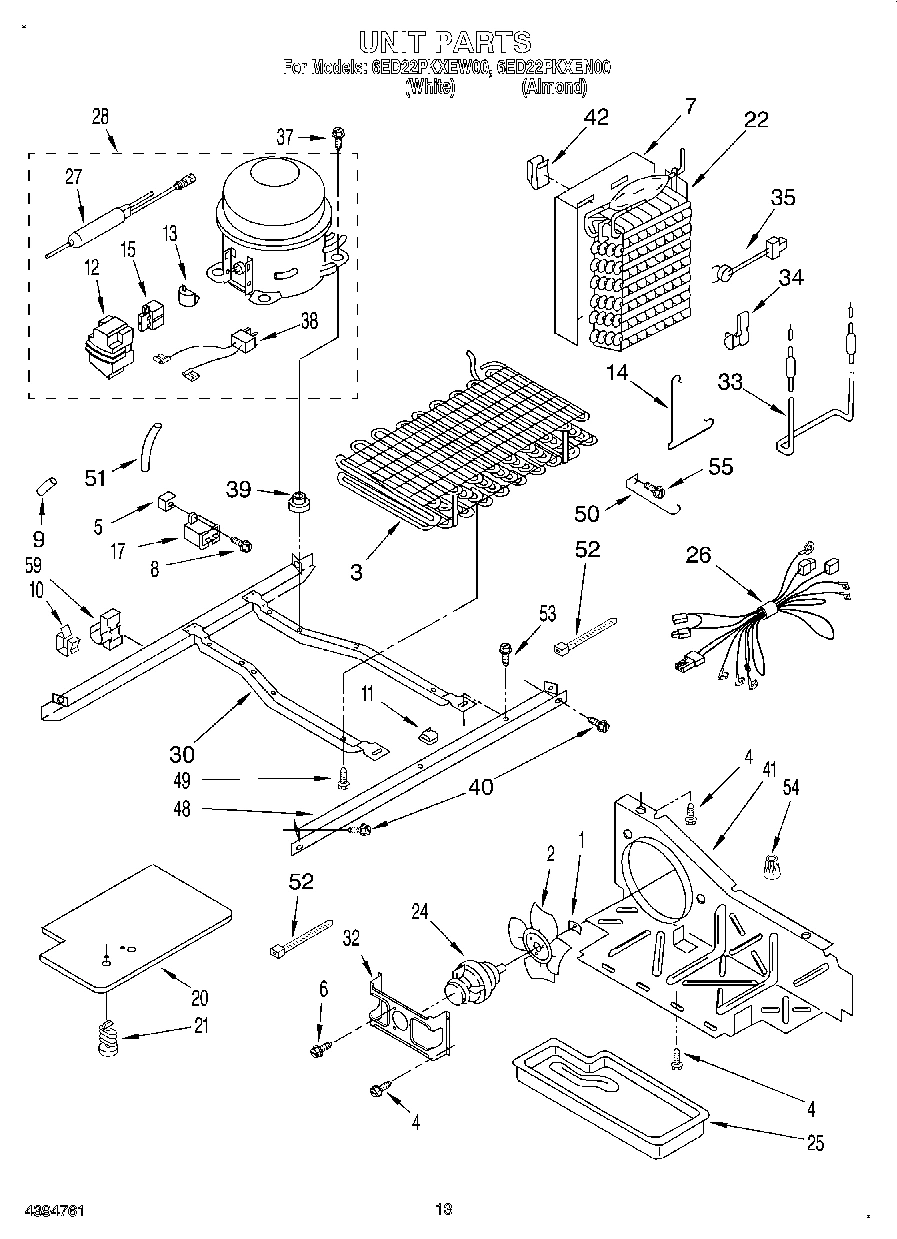

09 - UNIT, LIT/OPTIONAL

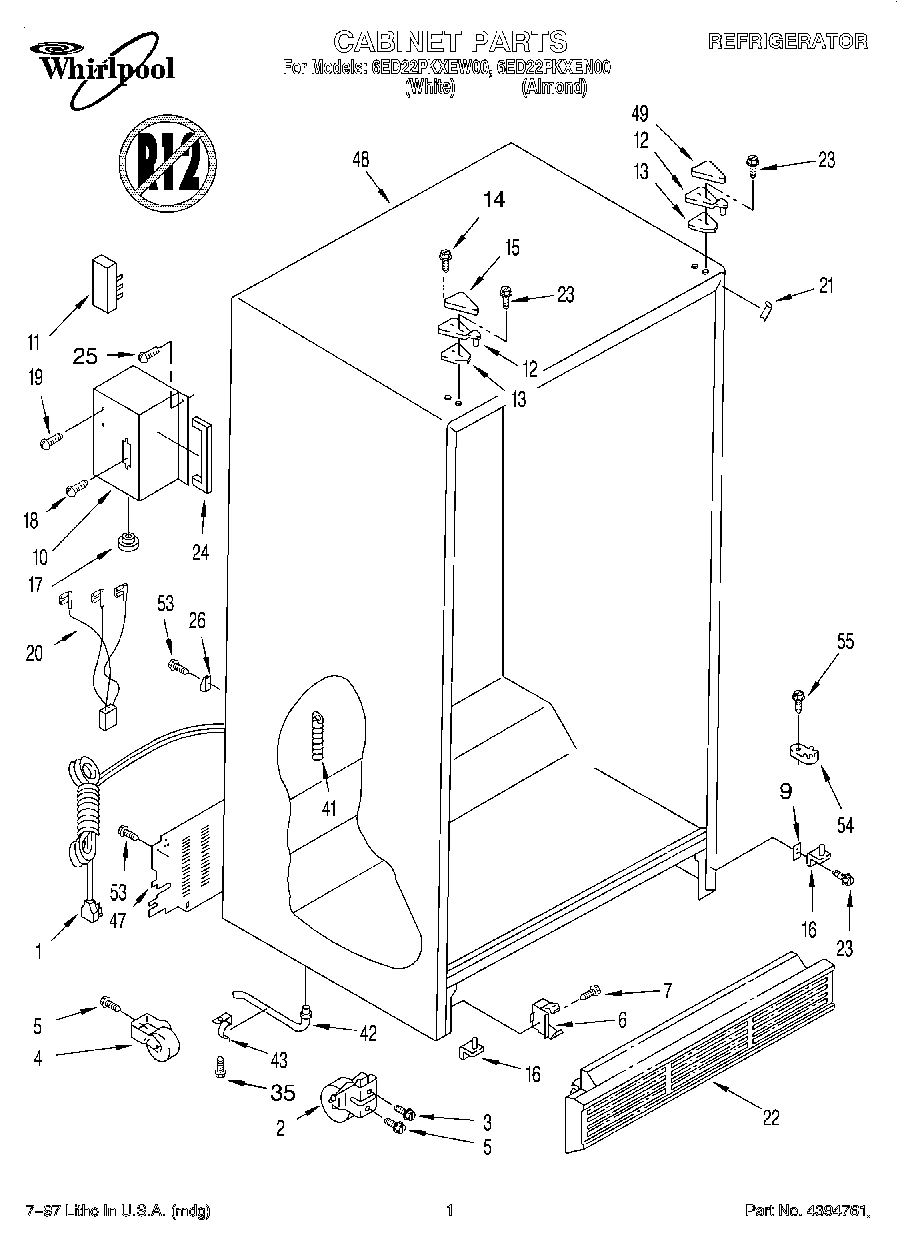

01 - CABINET
03 - REFRIGERATOR SHELF

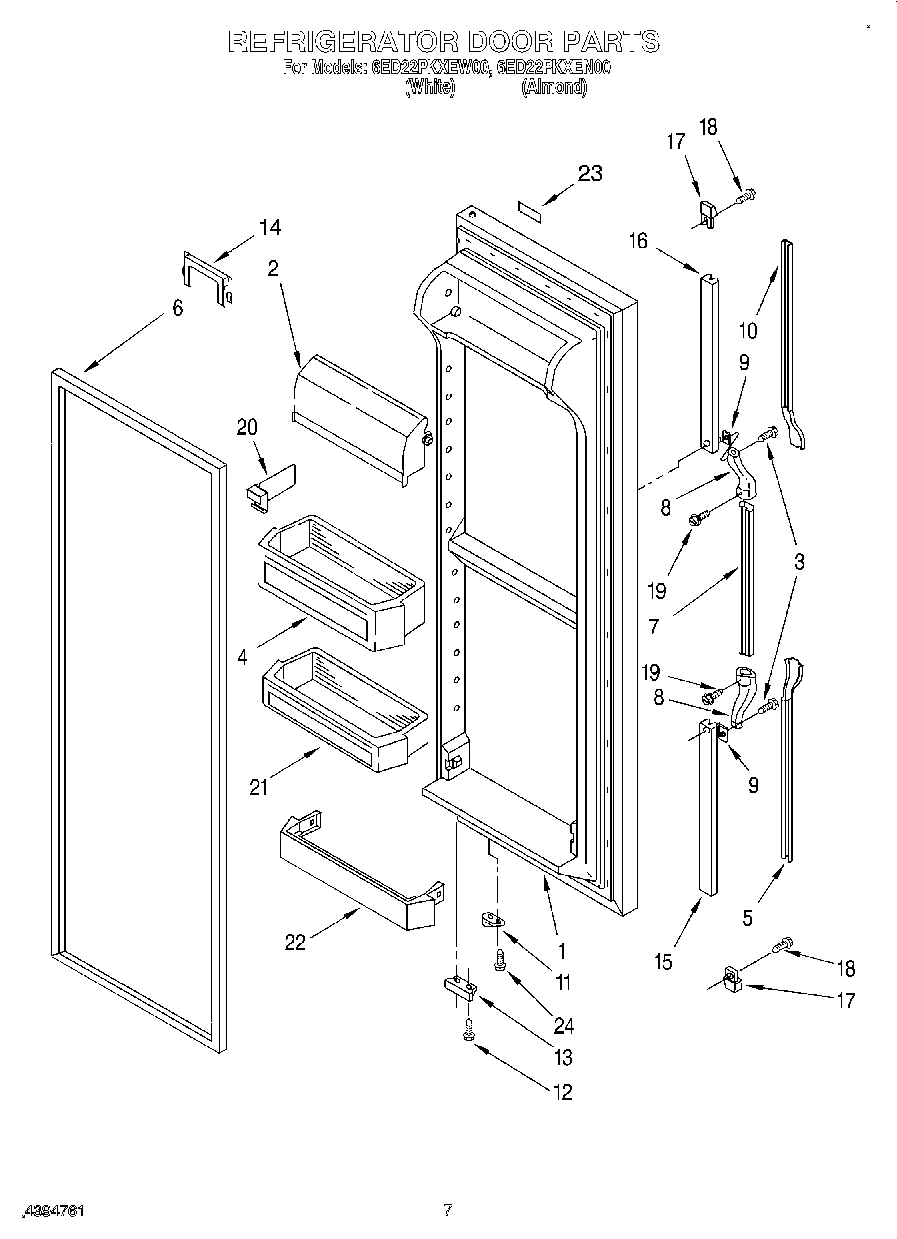

05 - REFRIGERATOR DOOR

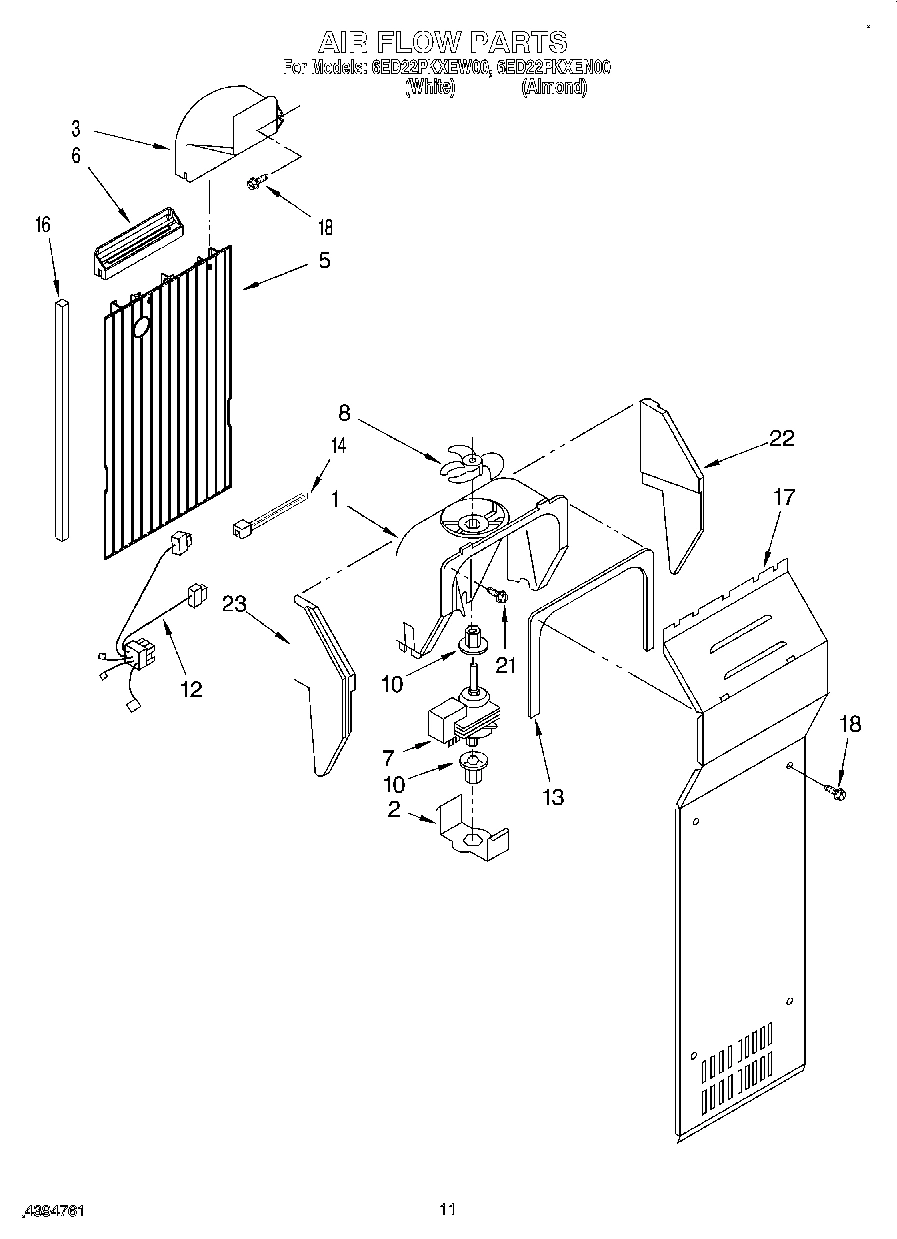

07 - AIR FLOW

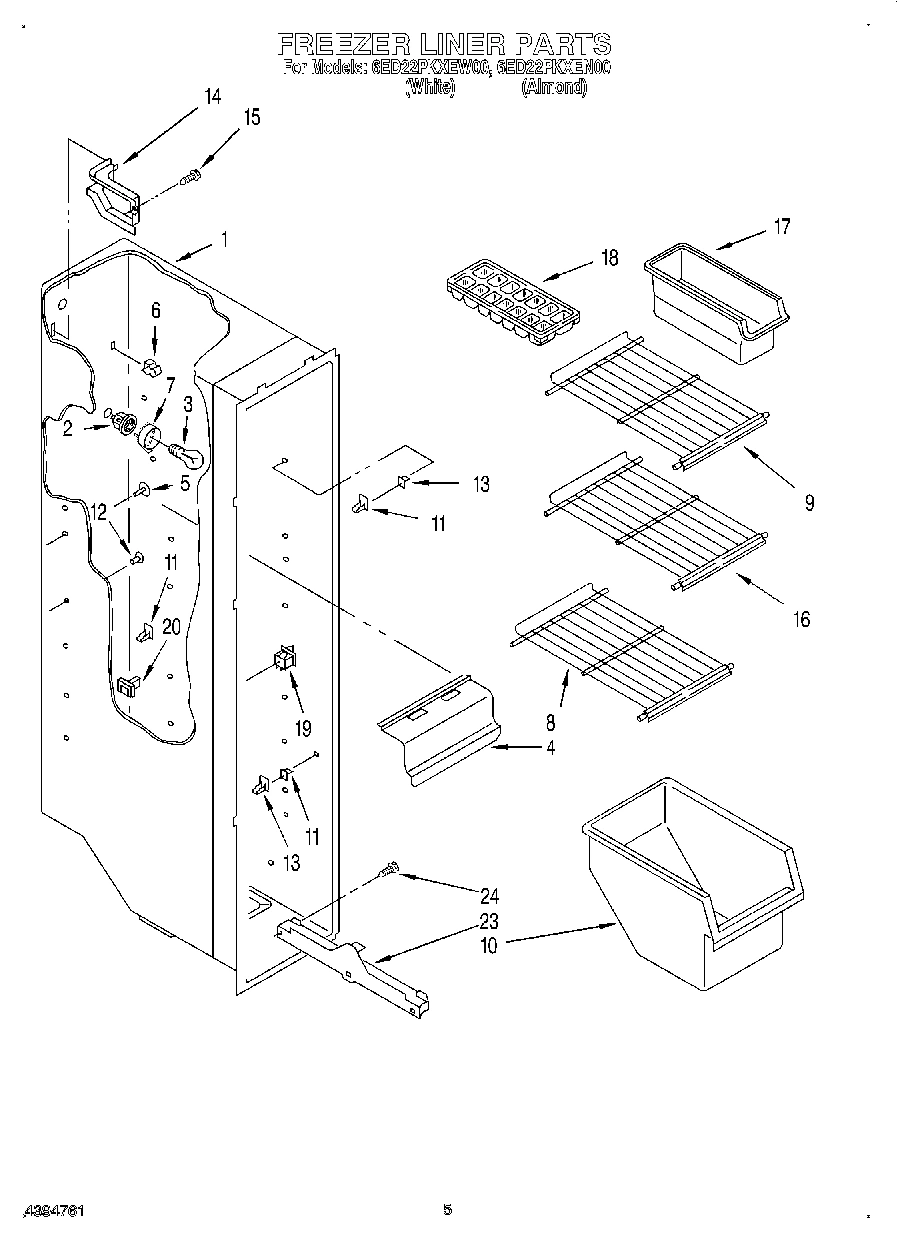

04 - FREEZER LINER
Common parts from model Whirlpool 6ED22PKXEW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Service Cord WPL 1129331 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2194275W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15829A1 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Slide Meat WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
5
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
5
Insert, Handle (White) WPL 2194773W Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
7
Handle, Center (White) WPL 2194767W Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
7
Shroud, Light WPL 2167012 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Shelf WPL 2179325 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2194774N Contact Us For Availability
10
Insert, Handle (White) WPL 2194774W Contact Us For Availability
10
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Grommet (10) WPL 2176134 Contact Us For Availability
12
Light Bar (RC) WPL 2179920 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Cover, Wiring WPL 2155571 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 2194770 Contact Us For Availability
16
Retainer, Insert WPL 2194771 Contact Us For Availability
16
Shelf WPL 2174266 Contact Us For Availability
17
Bushing WPL 1129449 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Divider, Bin WPL 2195498 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Nameplate (White) WPL 2175383 Contact Us For Availability
23
Nameplate (Almond) WPL 2175384 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
47
Cover, Unit WPL 2189681 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15827A4 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Hinge Cover (Almond) WPL 1119789 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
WPL 978029 WPL 978029 Contact Us For Availability
59
WPL 876029 WPL 876029 Contact Us For Availability
59
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
59
WPL 799344 WPL 799344 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
59
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
59
WPL 799340 WPL 799340 Contact Us For Availability
59
WPL 799833 WPL 799833 Contact Us For Availability
59
WPL 978028 WPL 978028 Contact Us For Availability
59
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
