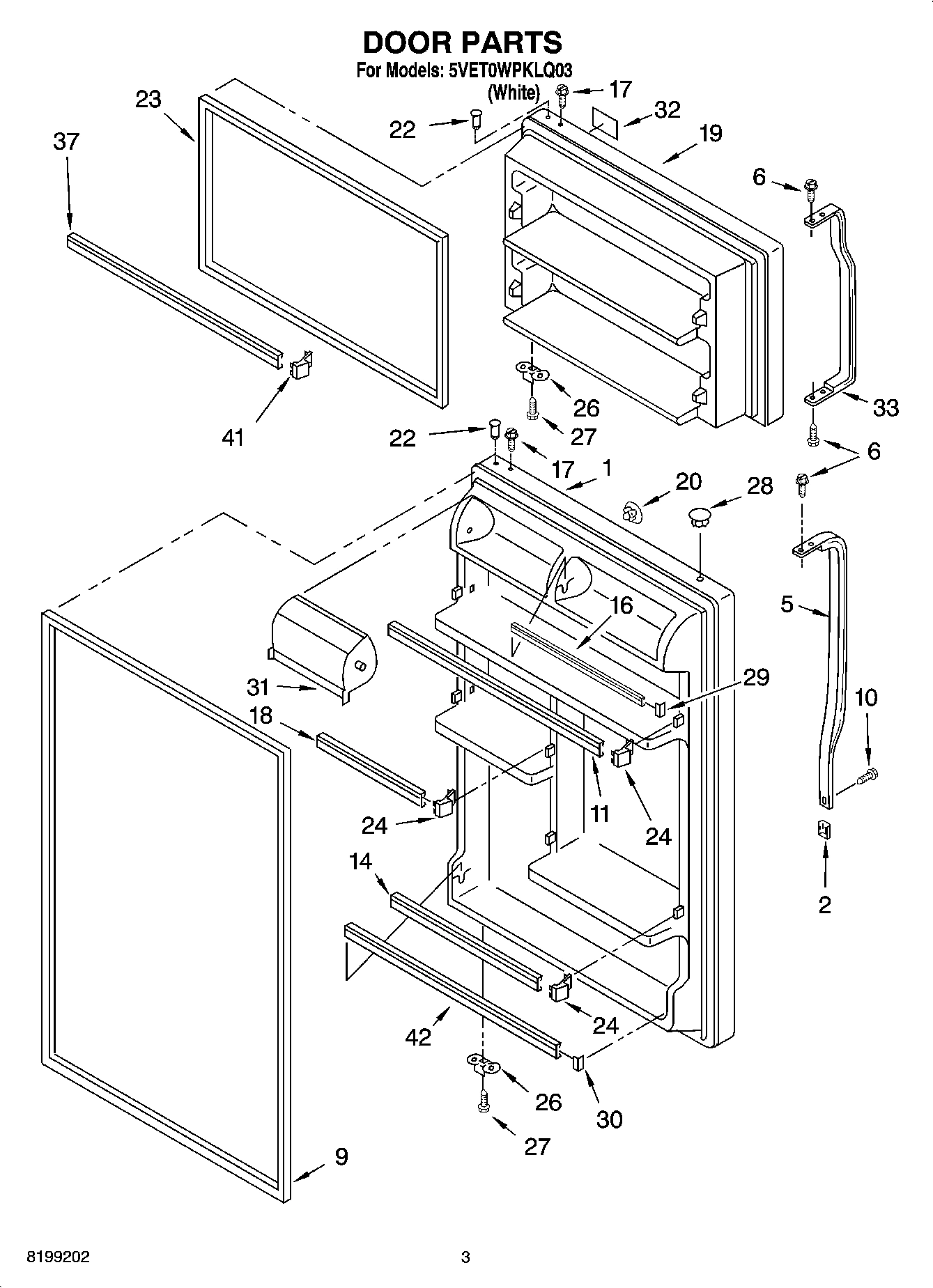

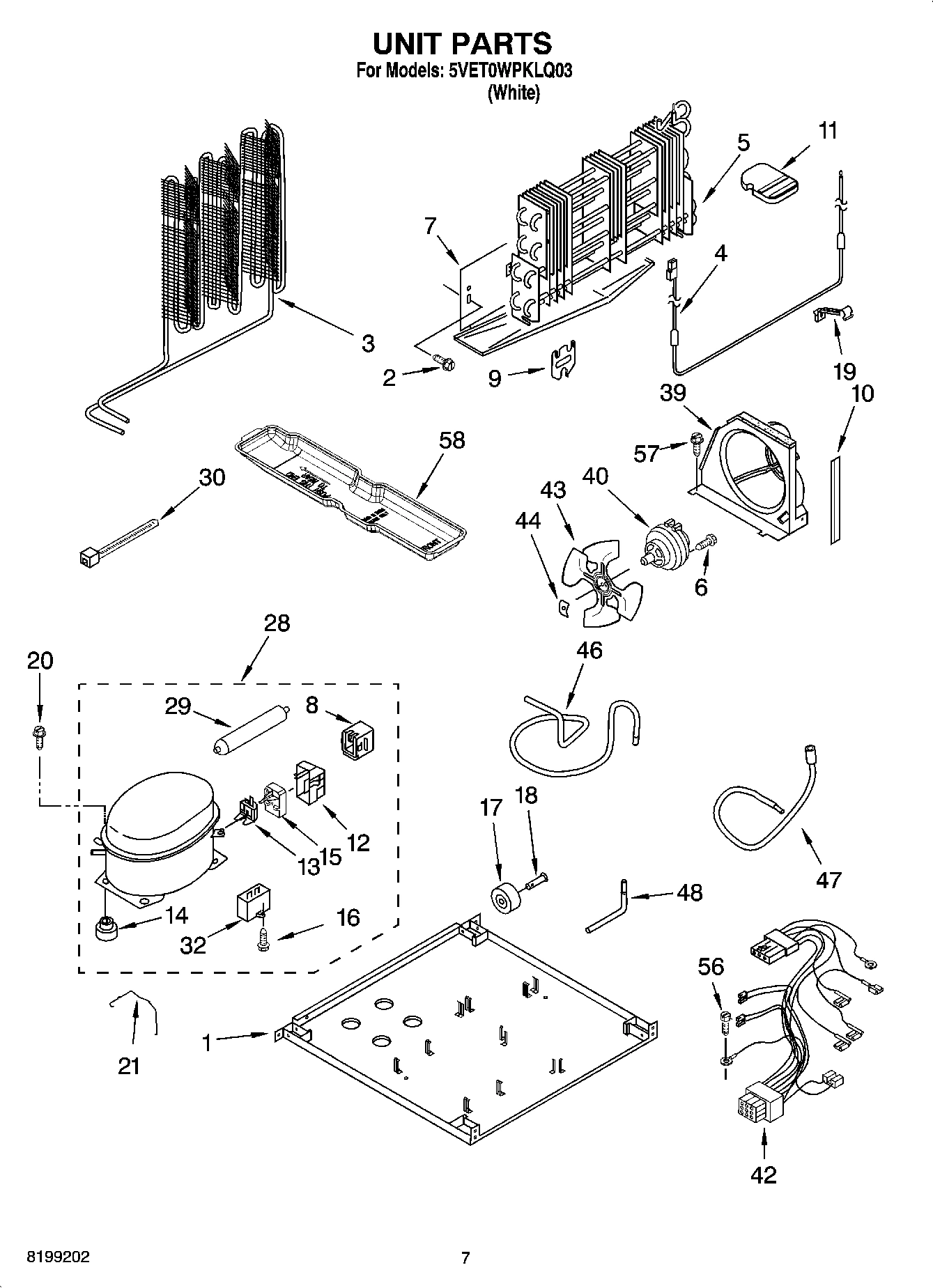

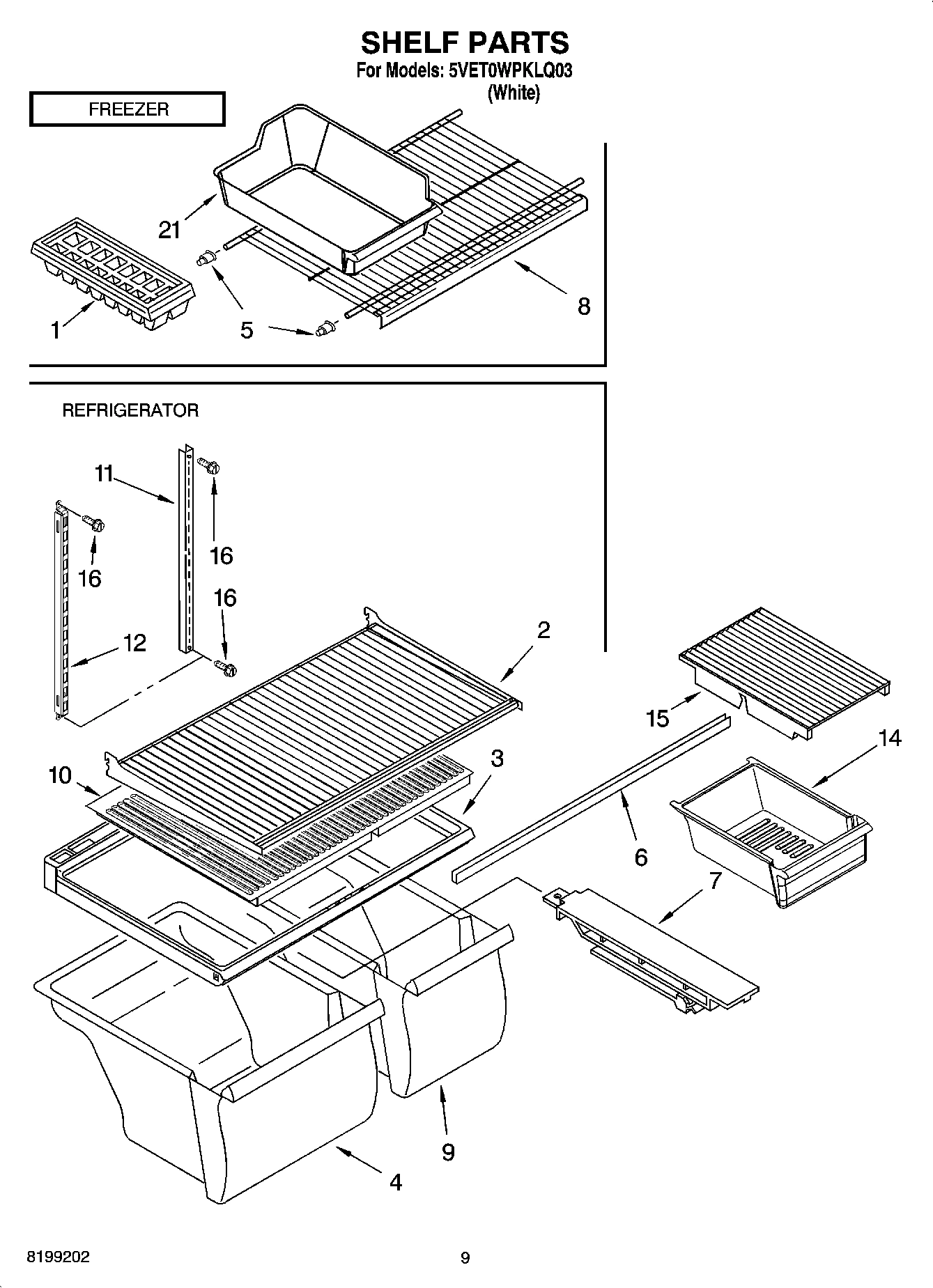

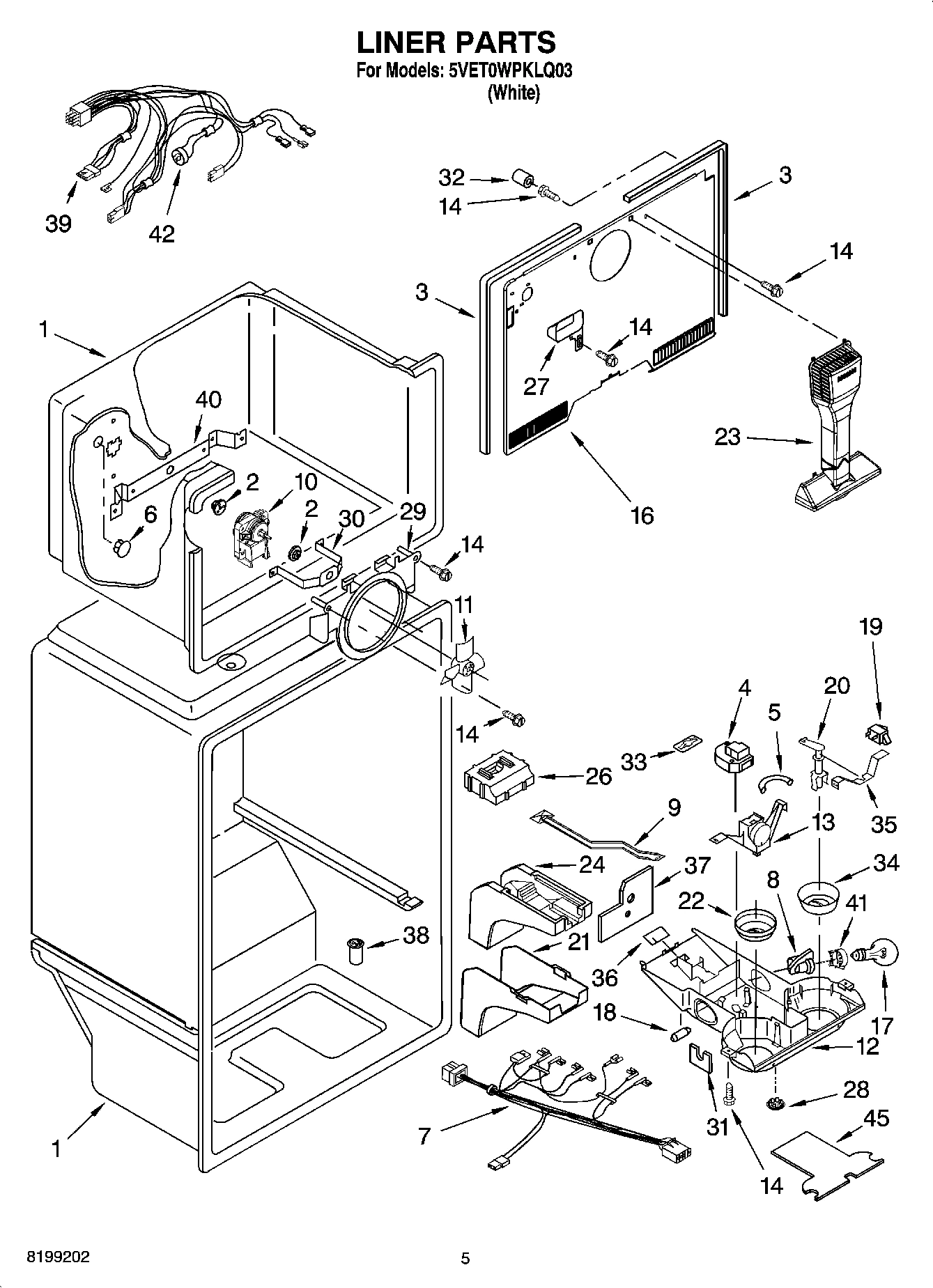

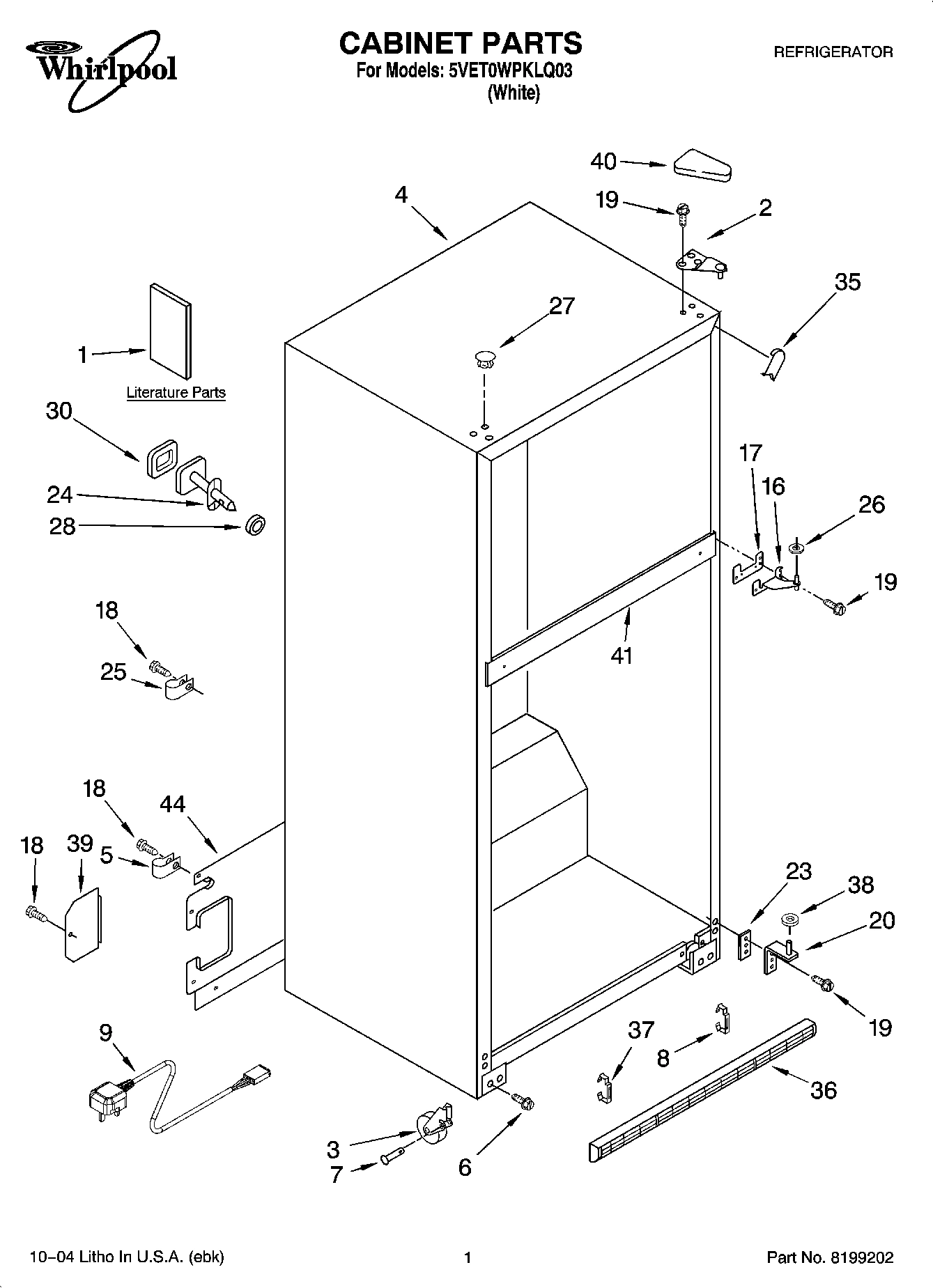

Model Whirlpool 5VET0WPKLQ03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

2

WP2202819W Whirlpool Refrigerator Cover Backorder WPL WP2202819W $3.70

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

4

Heater, Defrost WPL 2166657 Contact Us For Availability

5

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

5

WP2202807W Whirlpool Handle Door In Stock WPL WP2202807W $84.85

5

Evaporator Assy. WPL 2254250 Contact Us For Availability

6

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

7

Drain Pan WPL 2254294 Contact Us For Availability

8

2254385 Whirlpool Refrigerator Clip Backorder WPL 2254385 $31.31

8

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

8

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $41.23

9

Bracket, Heater WPL 2176301 Contact Us For Availability

10

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

10

Insert, Crisper Cover WPL 2166149 Contact Us For Availability

10

Extension, Air Baffle WPL 2300638 Contact Us For Availability

11

Support Block WPL 2201184 Contact Us For Availability

11

Trim, Door Shelf WPL 2195941 Contact Us For Availability

12

WP61002138 Whirlpool Refrigerator Terminal Co Backorder WPL WP61002138 $4.48

13

2169410 Whirlpool Refrigerator Overload Backorder WPL 2169410 $34.81

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2195943 Whirlpool Shelf Retainer Bar Backorder WPL WP2195943 $26.72

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

Meat Pan WPL 2200920K Contact Us For Availability

15

Cover, Meat Pan WPL 2163848 Contact Us For Availability

15

Start-Device, Combination (Start Relay and Ov WPL 2302127 Contact Us For Availability

16

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

16

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $38.41

16

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

Trim, Door WPL 2195942 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

19

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

19

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Strap WPL 2302129 Contact Us For Availability

22

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

Spacer, Hinge WPL 2172743 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

25

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

27

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

27

Cover, Hole WPL 2205003 Contact Us For Availability

28

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

28

Compressor (Includes Items 8,12,13,14, 29 & 3 WPL 2218964 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

29

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $25.51

32

2321245 Whirlpool Refrigerator Capacitor Backorder WPL 2321245 $46.87

32

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

33

WP2202806W Whirlpool Refrigerator Handle In Stock WPL WP2202806W $72.51

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

36

WP2254386 Whirlpool Refrigerator Grille Backorder WPL WP2254386 $31.60

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

38

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

Air Baffle WPL 2302250 Contact Us For Availability

40

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $132.02

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

41

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

42

Wire Assembly, Unit WPL 2187586 Contact Us For Availability

43

Fan, Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $28.80

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $34.18

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

57

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI141179A Contact Us For Availability

REFRIGERANT CHARGE 4.23 Ozs. (R134A) WPL ARI141180A Contact Us For Availability
