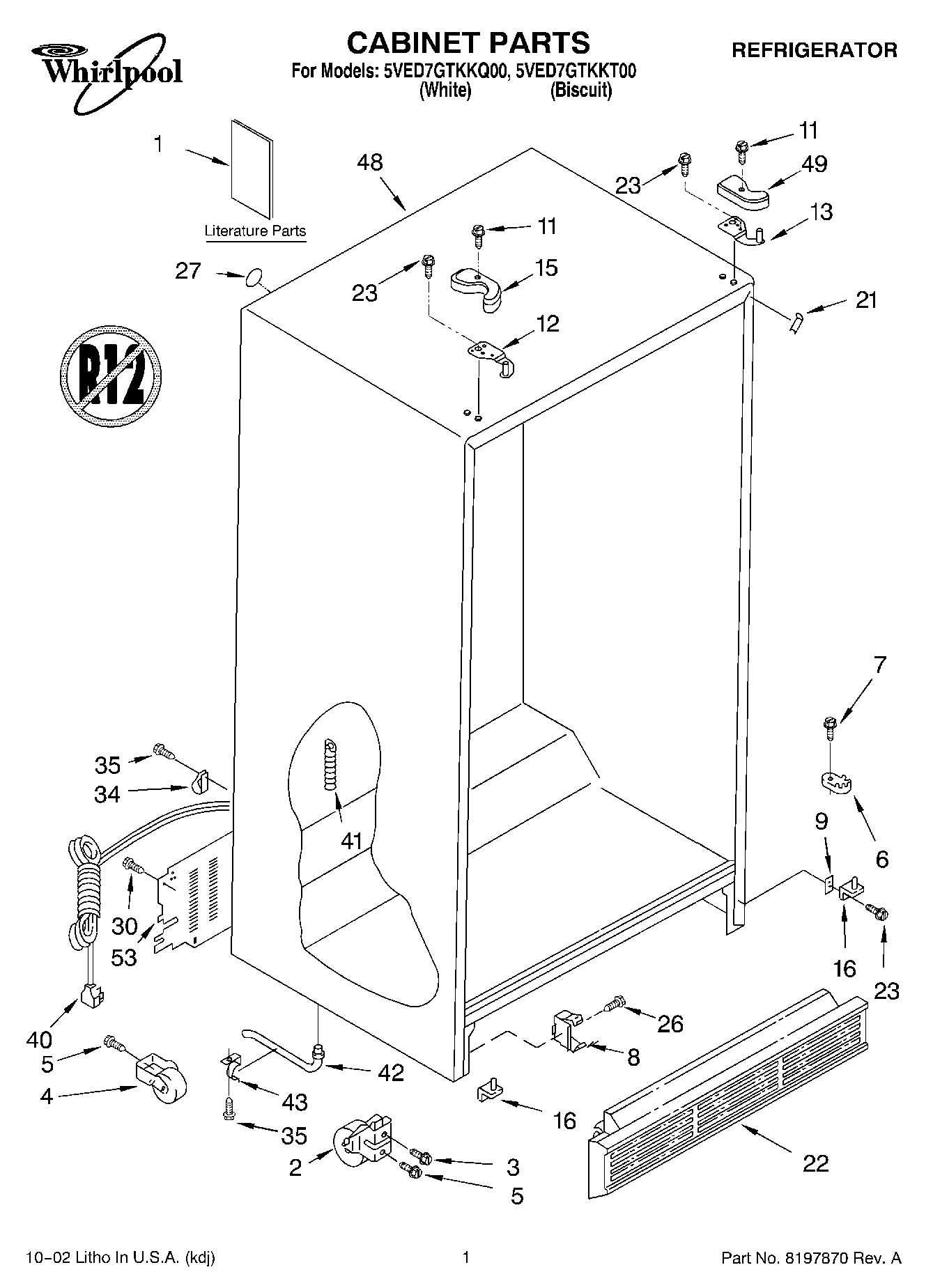

Model Whirlpool 5VED7GTKKQ00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

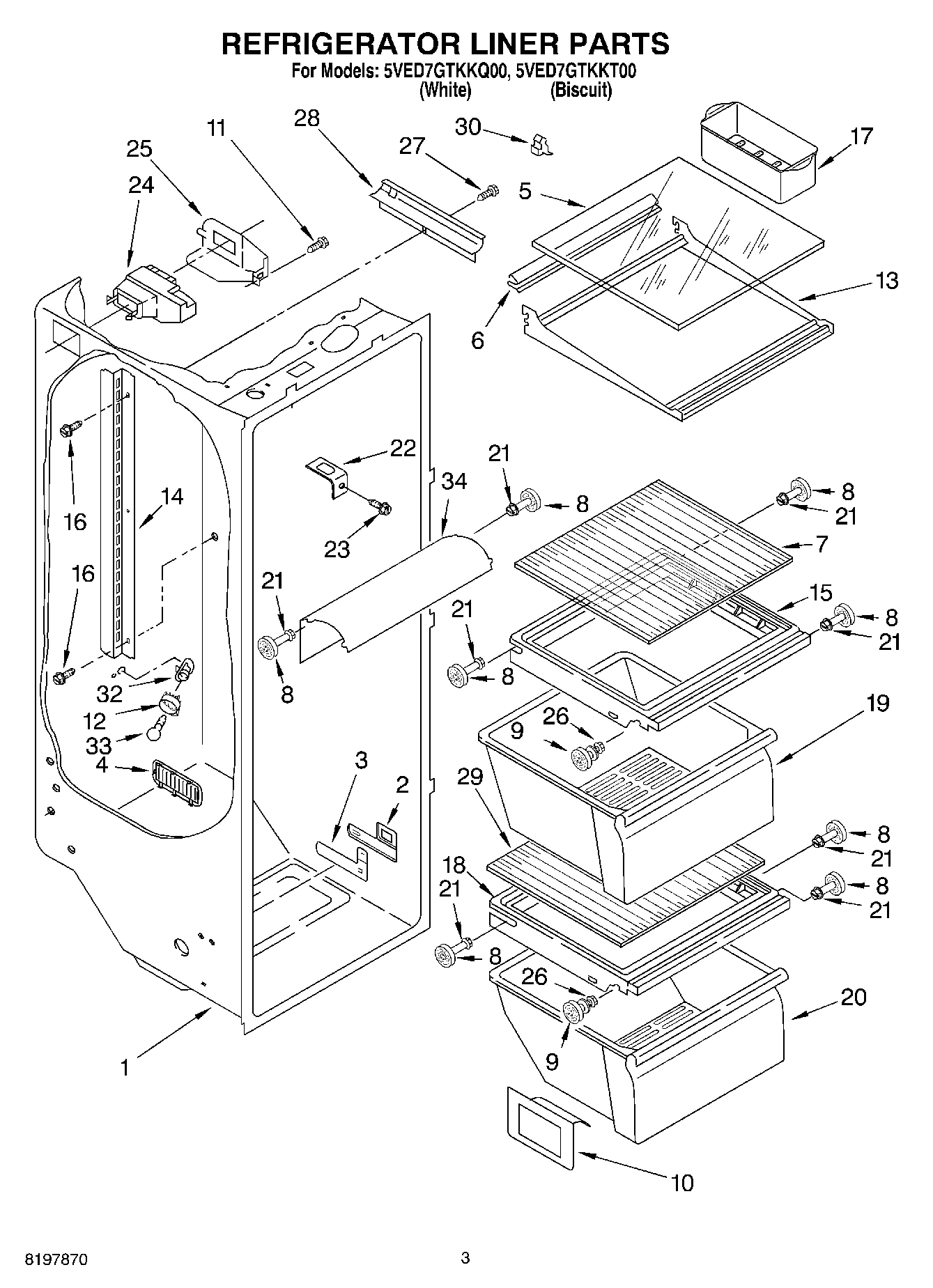

Liner (Not A Seviceable Part) WPL ARI15399A7 Contact Us For Availability

1

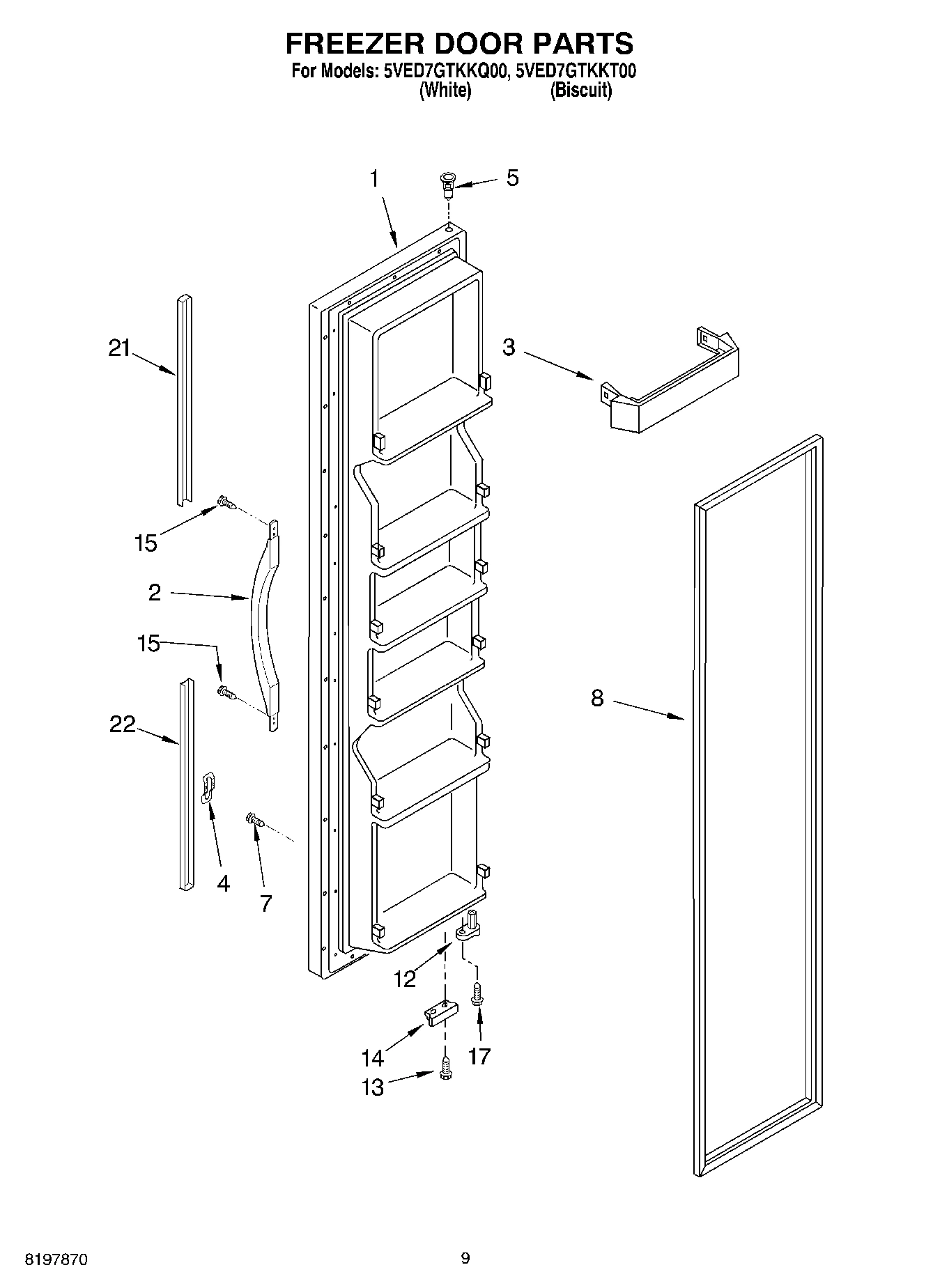

Freezer Door (Includes No.8) (Biscuit) WPL 2206730T Contact Us For Availability

1

Freezer Door (Includes No.8) (White) WPL 2206730W Contact Us For Availability

1

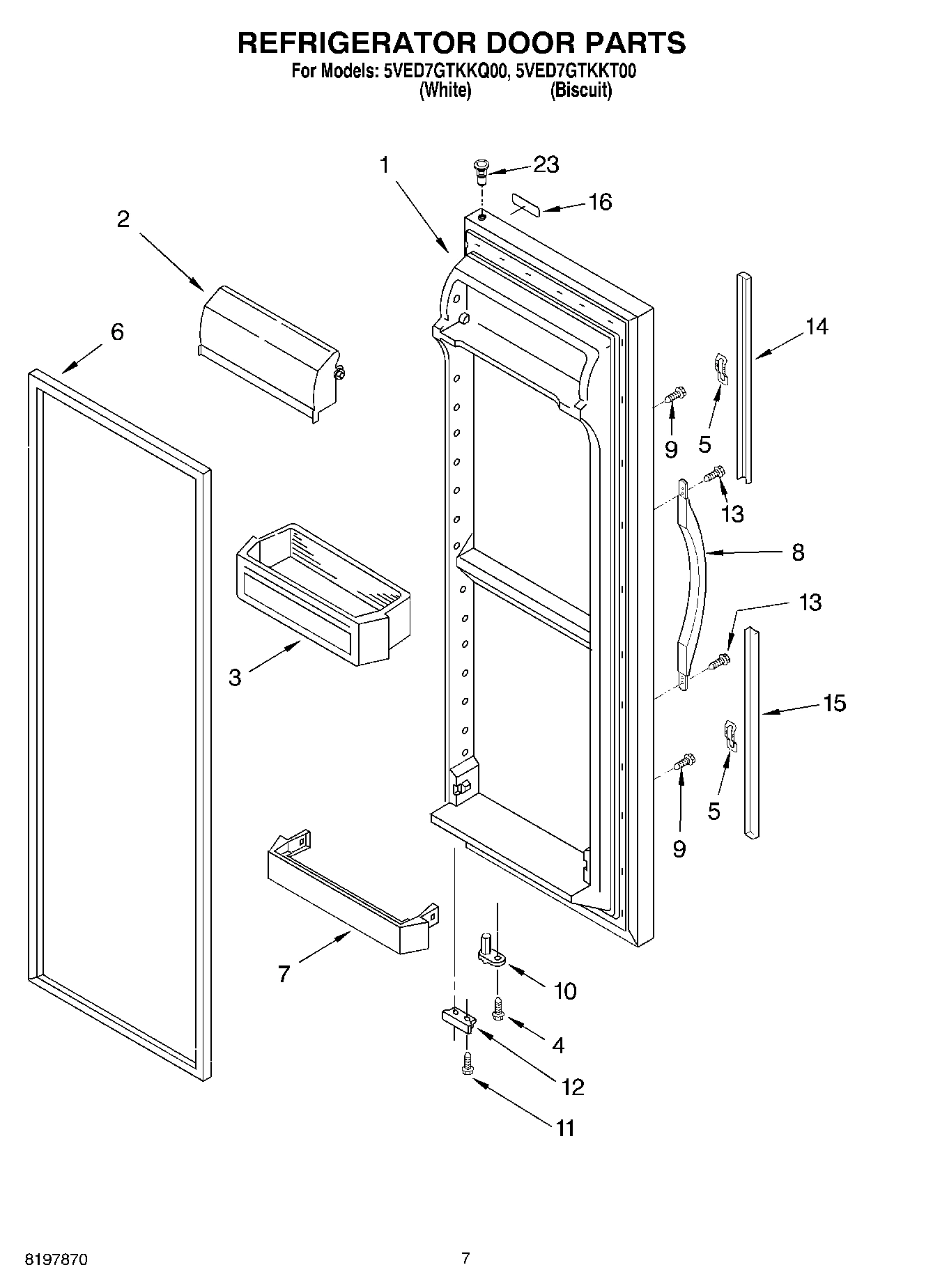

Refrigerator Door (Includes Item No.6) (Biscu WPL 2206682T Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (White WPL 2206682W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

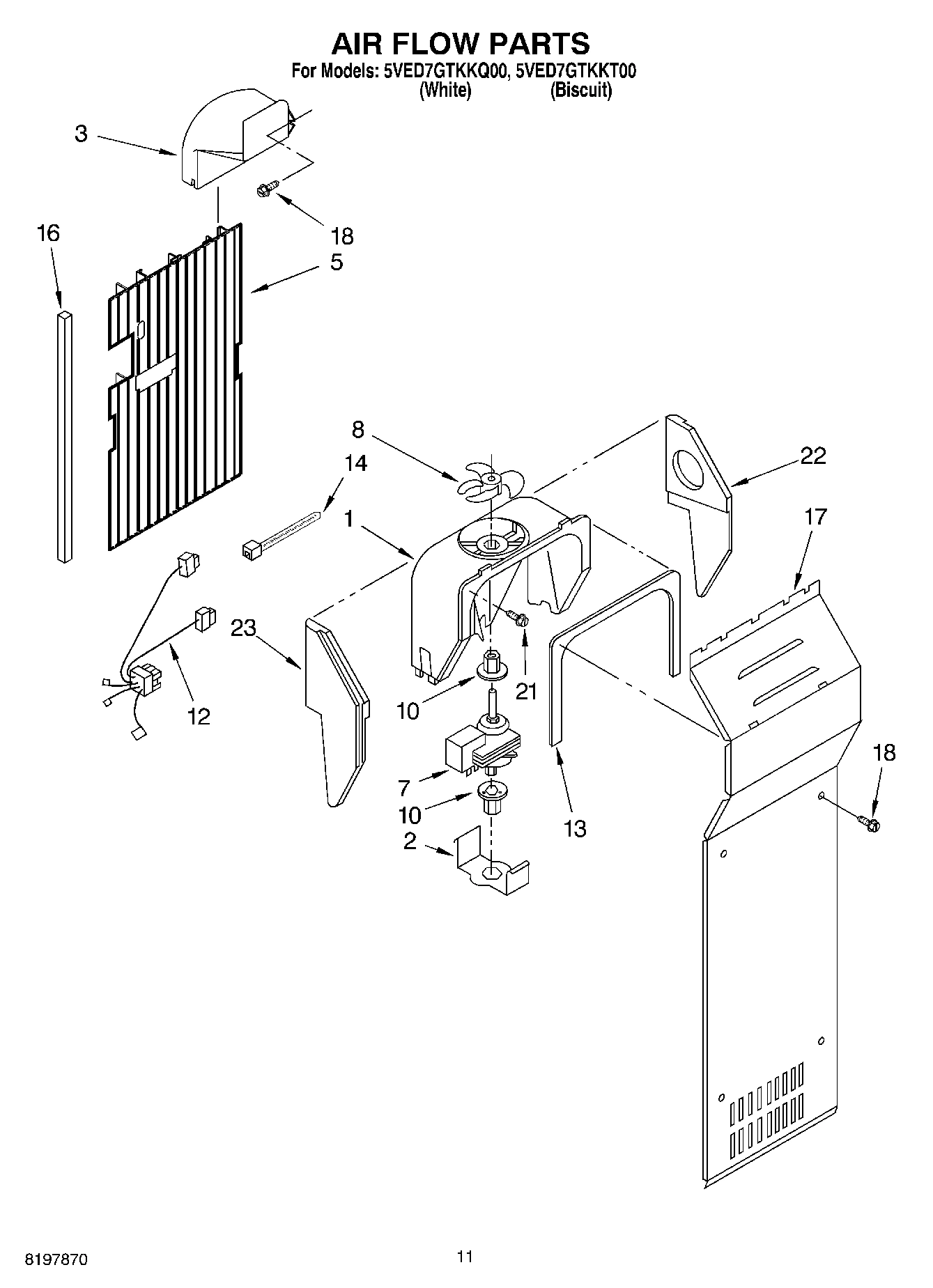

Fan, Blade WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (White) WPL 2186649W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

3

Stud, Rear WPL 2196207 Contact Us For Availability

3

Trivet WPL 2182794 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2198479 Whirlpool Refrigerator Light Lens Backorder WPL 2198479 $26.21

5

Air Duct Freezer WPL 2203594 No Longer Available

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

Glass (3) WPL 2177986 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $34.07

7

Fan Motor WPL 2187151 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

Handle (Biscuit) WPL 2186649T Contact Us For Availability

9

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

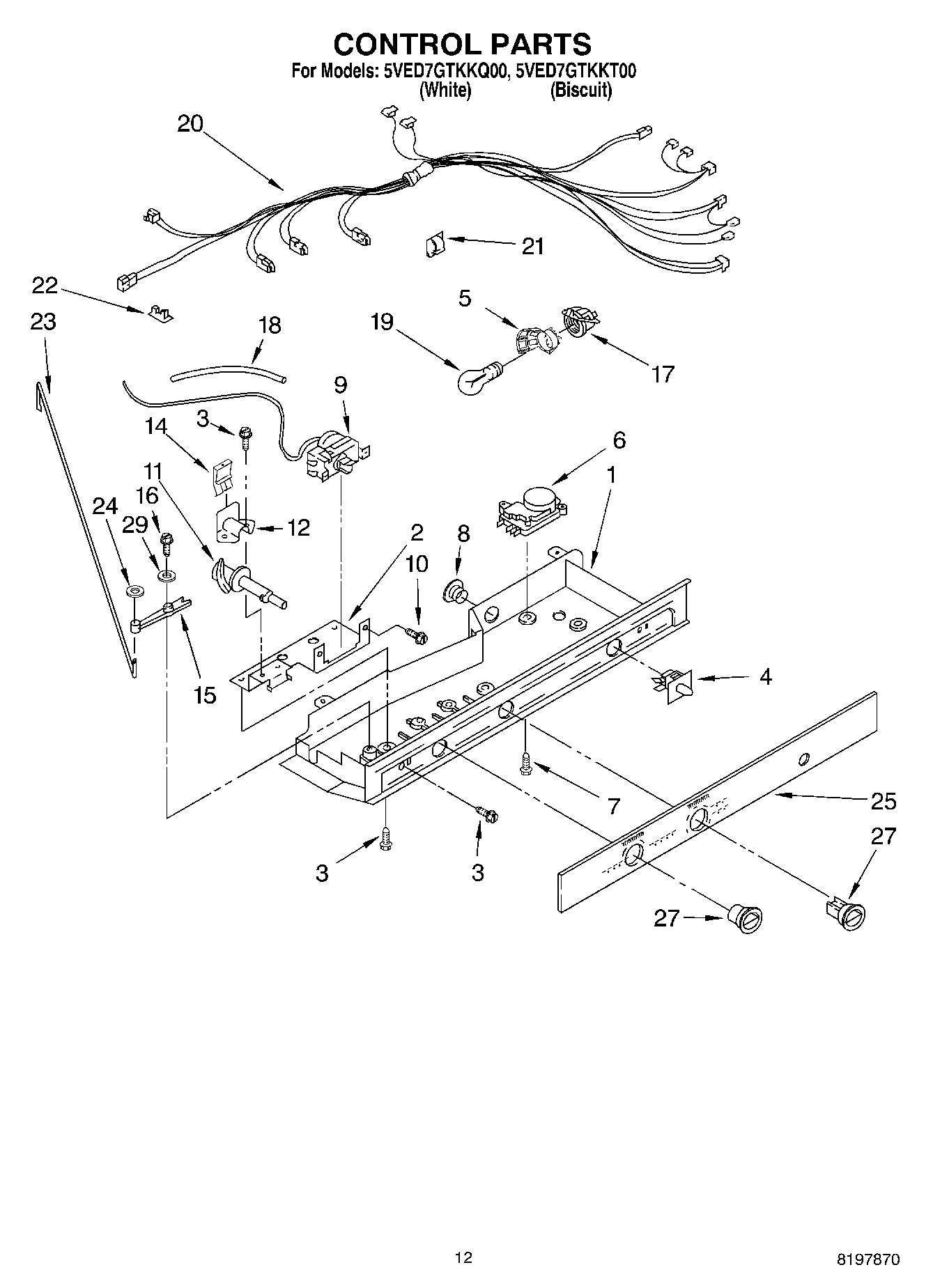

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Grommet (8) WPL 2176134 Contact Us For Availability

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Shelf WPL 2198478 Contact Us For Availability

Harness, Fan, Evaporator, And Heater WPL 2206505 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

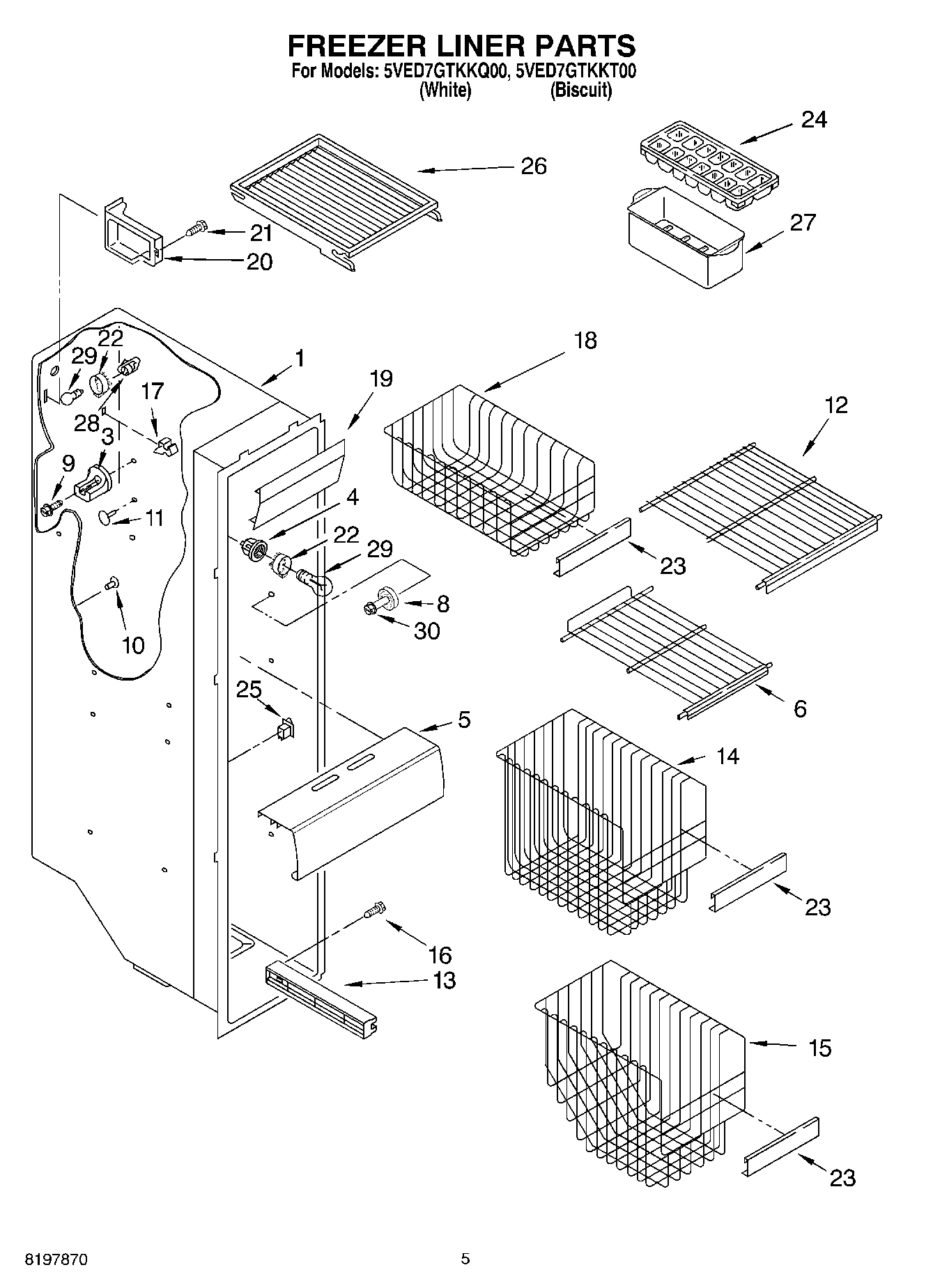

Basket, Square WPL 2181765 Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2194973T Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Pivot Arm WPL 1110559 Contact Us For Availability

Basket, Sloped WPL 2181764 Contact Us For Availability

Trim, Door-Bottom (Biscuit) WPL 2194969T Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Nameplate (White) WPL 2195063 Contact Us For Availability

Nameplate (Biscuit) WPL 2212596 Contact Us For Availability

17

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

17

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

17

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

Basket, Shallow WPL 2181763 Contact Us For Availability

19

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

20

Cover, Wiring WPL 2160912 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

22

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

22

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

22

Trim, Door-Bottom (White) WPL 2194969W Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clip WPL 2161324 Contact Us For Availability

Trim, Basket WPL 2195905 Contact Us For Availability

24

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

26

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

27

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

28

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

29

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

30

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

49

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

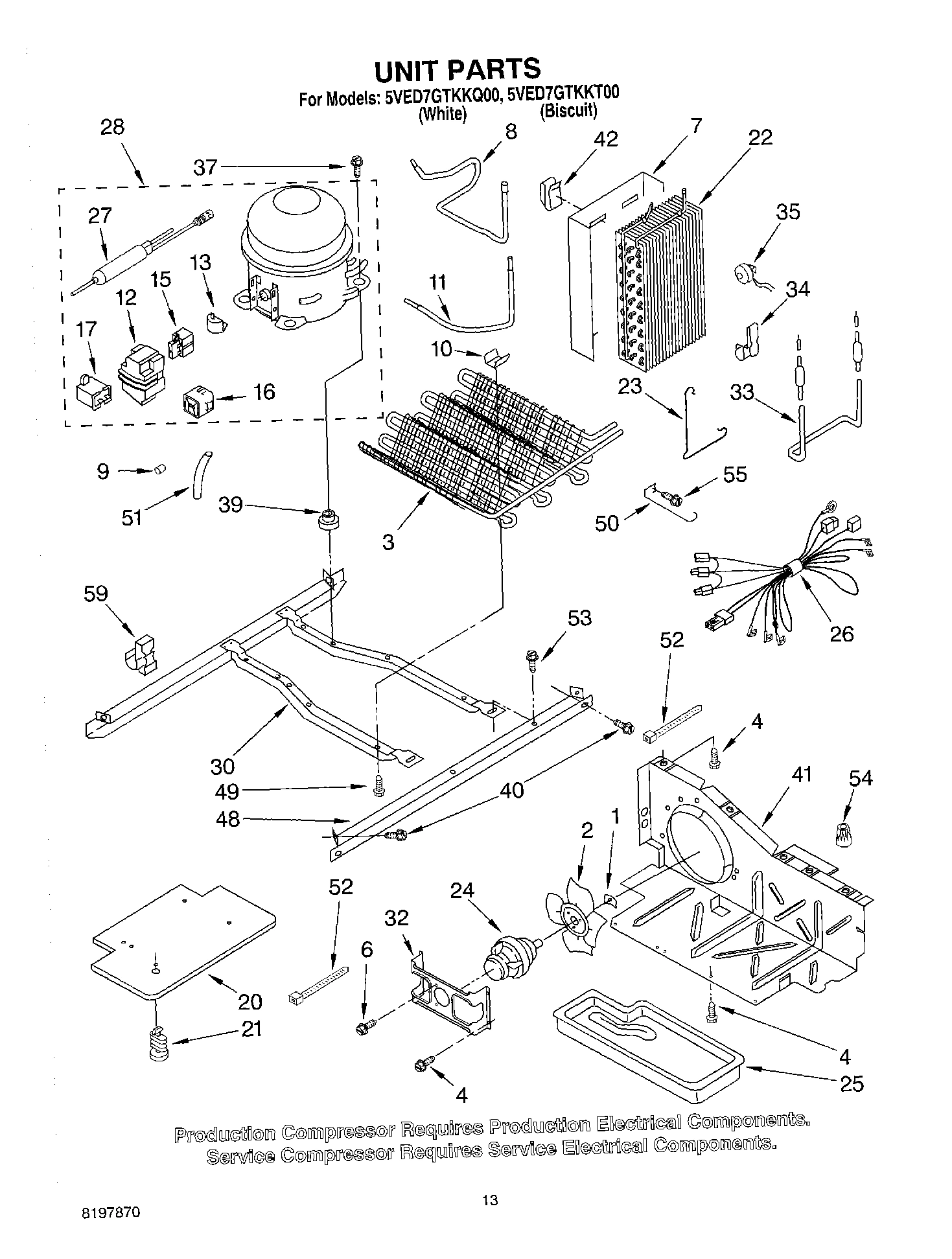

Cover, Unit WPL 2214575 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
