Model Kenmore 587.15272205A DISHWASHER – Common Parts &amp; Diagrams

*

154406801 Frigidaire Dishwasher Anchor Kit (A Backorder WCI 154406801 $66.78

*

154647101 Frigidaire Dishwasher Pin Hinge Backorder WCI 154647101 $9.06

*

154686401 Frigidaire Dishwasher Bearing Backorder WCI 154686401 $6.79

*

5304525043 Frigidaire Dishwasher Insulation Backorder WCI 5304525043 $28.53

*

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.26

*#

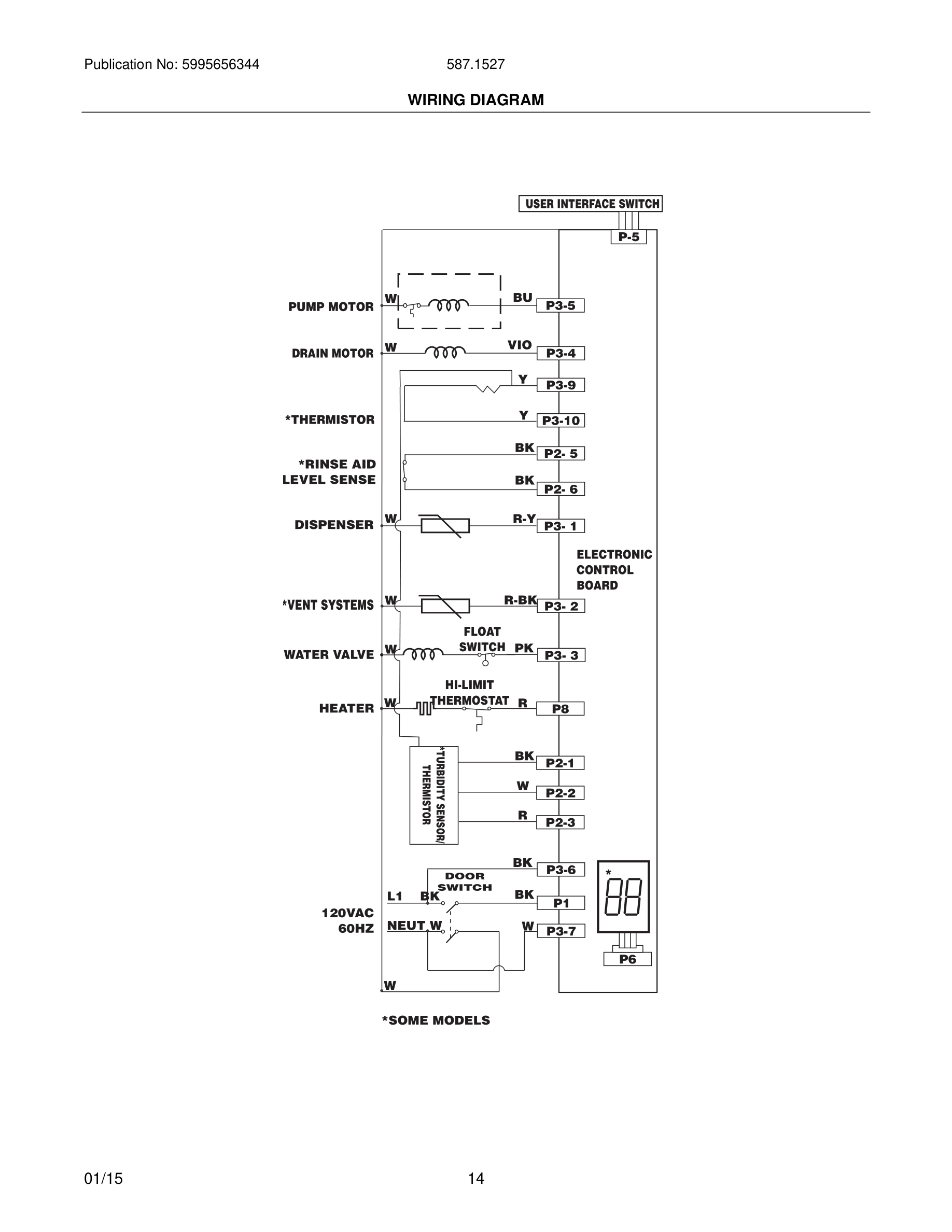

5304500408 Frigidaire Dishwasher Harness Backorder WCI 5304500408 $86.28

1

154579101 Frigidaire Dishwasher Door Spring In Stock WCI 154579101 $26.70

1

5304533200 Frigidaire Dishwasher Rack with Wh Backorder WCI 5304533200 $91.56

1

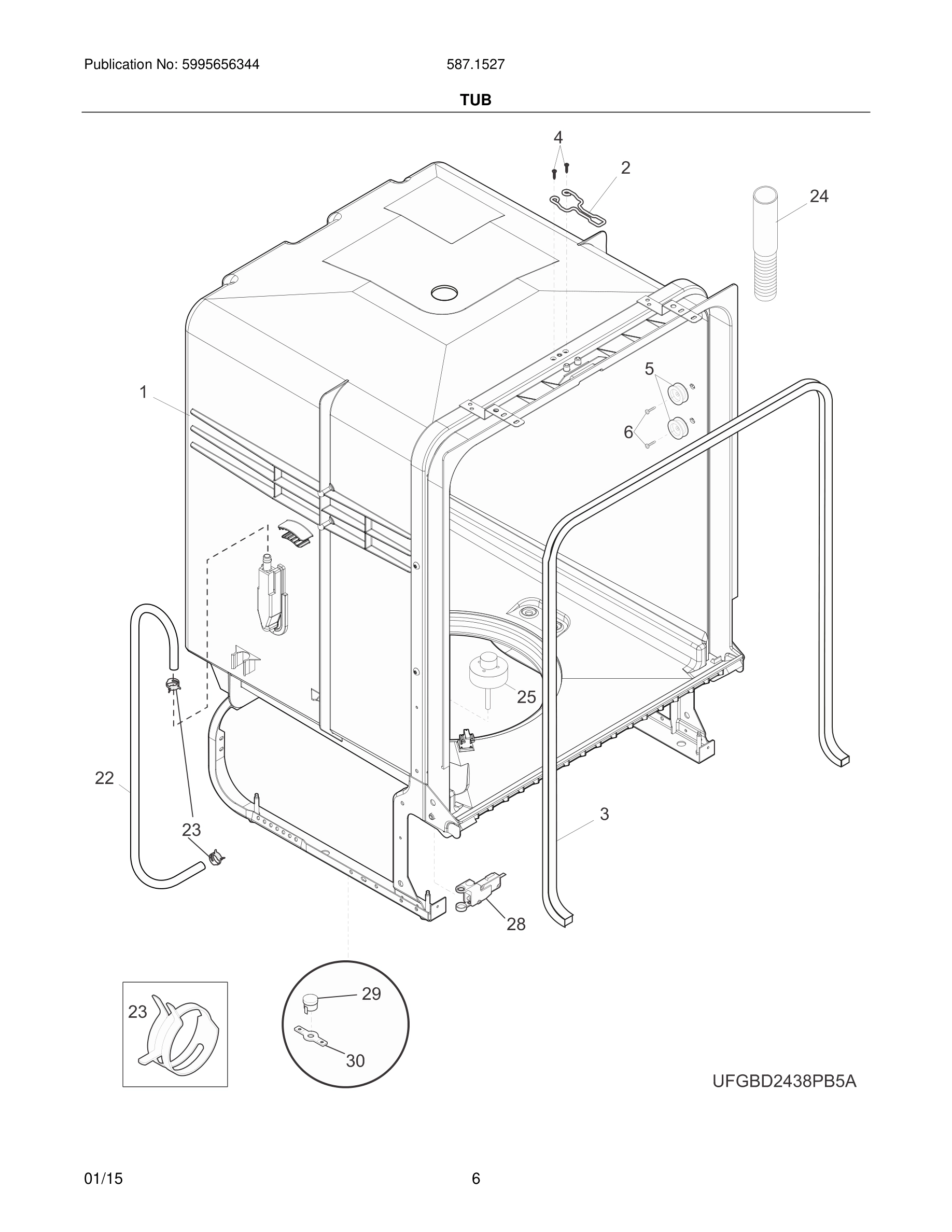

Tub assy, w/frame parts, dark grey, DF WCI 154729403 Contact Us For Availability

1#

Heater, round WCI 154825001 Contact Us For Availability

1*

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.88

1*

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.97

1A

154756401 Frigidaire Hinge Cable In Stock WCI 154756401 $2.37

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.35

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $7.25

2

5304532796 Frigidaire Dishwasher Strike In Stock WCI 5304532796 $7.23

3

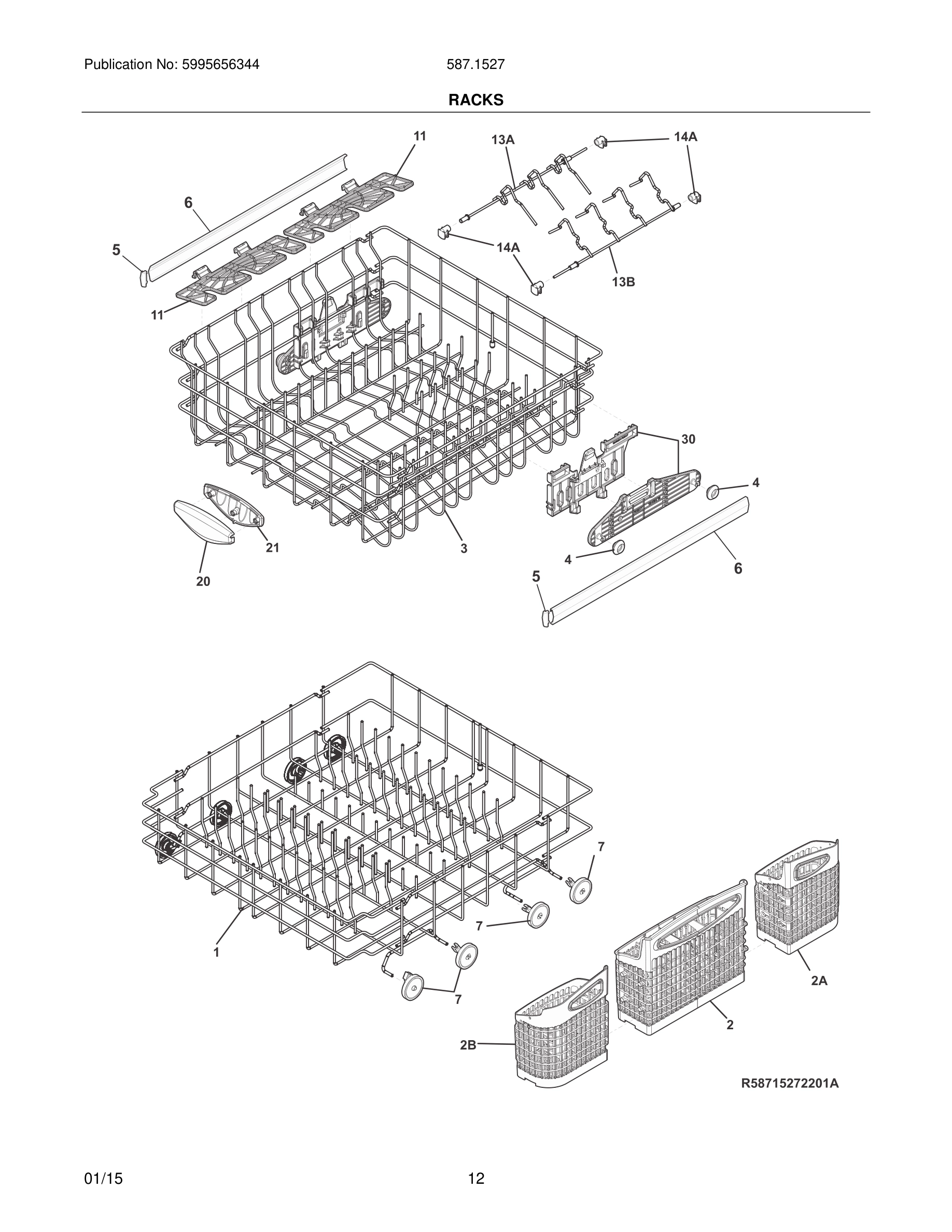

5304535250 Frigidaire Dishwasher Upper Rack A In Stock WCI 5304535250 $80.85

3#

154827601 Frigidaire Dishwasher Tub Gasket In Stock WCI 154827601 $18.93

3#

807024601 Frigidaire Dishwasher Electrical Co Backorder WCI 807024601 $160.96

3#

807047901 Frigidaire Dishwasher Inlet Water V In Stock WCI 807047901 $42.87

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $43.03

4

154718801 Frigidaire Dishwasher Cover Backorder WCI 154718801 $20.38

4

5304508587 Frigidaire Dishwasher Brace Backorder WCI 5304508587 $18.12

4

5304535381 Frigidaire Dishwasher Dishrack Whe In Stock WCI 5304535381 $1.94

4

808326801 Frigidaire Dishwasher Screw Backorder WCI 808326801 $1.79

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $4.51

5

5304506916 Frigidaire Dishwasher Assembly-Rol In Stock WCI 5304506916 $10.87

5#

Display Board, 7 segment WCI 154734301 Contact Us For Availability

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.68

6

154783101 Frigidaire Dishwasher Screw Backorder WCI 154783101 $4.51

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki In Stock WCI 5303943103 $11.32

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $3.18

7

Liner, door assembly, dark grey, complete WCI 154743504 Contact Us For Availability

8

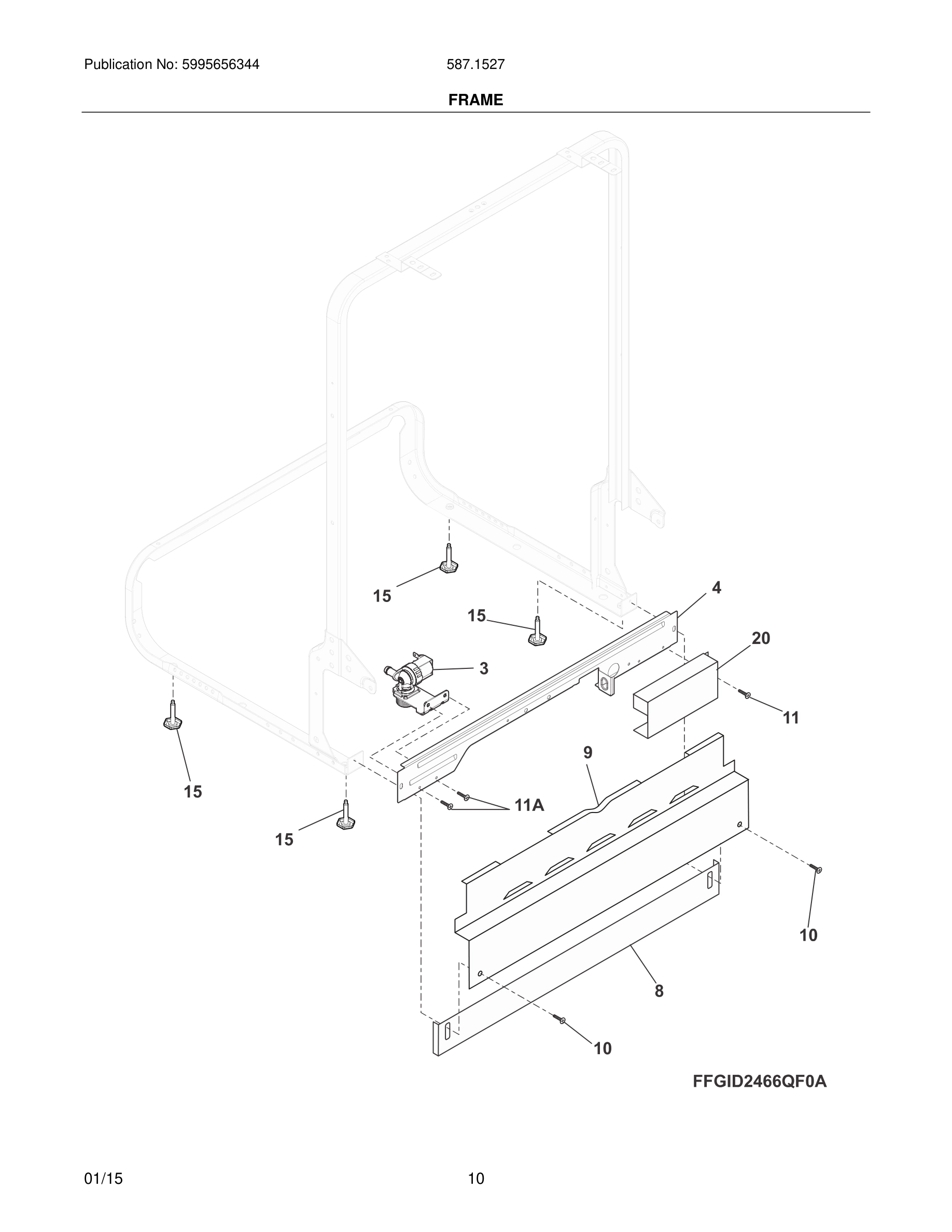

154745501 Frigidaire Dishwasher Toekick Plate In Stock WCI 154745501 $13.59

8

154745503 Frigidaire Dishwasher Toe Panel In Stock WCI 154745503 $10.41

9

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.86

9

5304501482 Frigidaire Dishwasher Kick Plate A In Stock WCI 5304501482 $32.62

9

5304501484 Frigidaire Dishwasher Assembly Toe In Stock WCI 5304501484 $32.62

9#

5304506521 Frigidaire Dishwasher Dispenser In Stock WCI 5304506521 $56.48

9*

5304525214 Frigidaire Dishwasher Shield Backorder WCI 5304525214 $6.32

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.60

154371301 Frigidaire Dishwasher Screw Backorder WCI 154371301 $8.14

154724001 Frigidaire Lower Arm Support In Stock WCI 154724001 $6.32

154754801 Frigidaire Dishwasher Screw Backorder WCI 154754801 $1.35

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.60

11

154579201 Frigidaire Dishwasher Pulley In Stock WCI 154579201 $30.34

11

5304532945 Frigidaire Cup Shelf Backorder WCI 5304532945 $4.62

11A

154579202 Frigidaire Dishwasher Pulley In Stock WCI 154579202 $30.36

12#

5304525218 Frigidaire Door Latch Assembly In Stock WCI 5304525218 $23.97

13

154246801 Frigidaire Dishwasher Primary Gaske In Stock WCI 154246801 $31.71

13

Duct Assembly, vent, w/tape WCI 154755801 No Longer Available

13A

154740304 Frigidaire Dishwasher Fold-Down Tin In Stock WCI 154740304 $20.84

13B

5304532950 Frigidaire Multifence In Stock WCI 5304532950 $12.63

14

154723801 Frigidaire Dishwasher SUMP Assembly In Stock WCI 154723801 $38.55

14

Vent assy, dry, w/gaskets WCI 154784401 Contact Us For Availability

14*

Screw, dry duct, (3) WCI 154793401 Contact Us For Availability

14A

5304506508 Frigidaire Bracket Support In Stock WCI 5304506508 $3.59

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.79

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.79

16*

154754901 Frigidaire Dishwasher Screw In Stock WCI 154754901 $2.70

154758501 Frigidaire Power Cord Cover Backorder WCI 154758501 $12.67

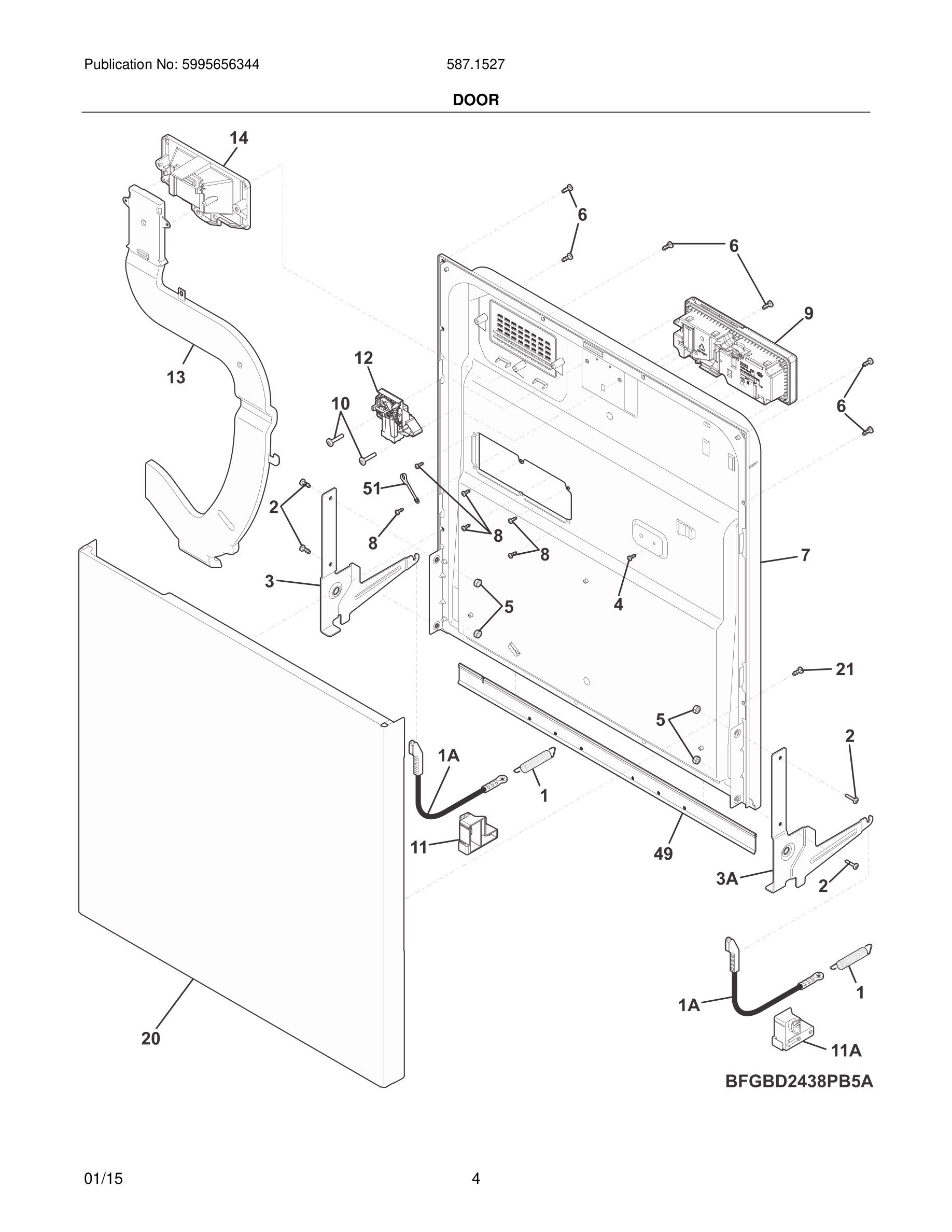

Door Assembly, w/insullation, stainless WCI 154874705 No Longer Available

Door Assembly, w/insullation, black WCI 154874703 Contact Us For Availability

Door Assembly, w/insullation, white WCI 154874701 Contact Us For Availability

20*

5304538695 Frigidaire Door Insulation Backorder WCI 5304538695 $0.92

21

154754701 Frigidaire Dishwasher Screw Backorder WCI 154754701 $2.26

21

5304504913 Frigidaire Dishwasher Handle Backorder WCI 5304504913 $8.60

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.15

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $0.92

24

807117001 Frigidaire Dishwasher Drain Hose In Stock WCI 807117001 $21.49

24A

5304506740 Frigidaire Dishwasher Spray Arm Ce In Stock WCI 5304506740 $24.98

24B

5304506516 Frigidaire Dishwasher Upper Spray In Stock WCI 5304506516 $14.48

25#

5304506520 Frigidaire Dishwasher Float Assemb In Stock WCI 5304506520 $4.31

28#

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $35.33

29#

5304525221 Frigidaire Dishwasher Thermostat In Stock WCI 5304525221 $10.39

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.26

30

5304532268 Frigidaire Dishwasher Rack Adjustm In Stock WCI 5304532268 $16.81

30*

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.60

32

5304507087 Frigidaire Dishwasher Tube In Stock WCI 5304507087 $43.03

32*

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.26

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $6.99

33

154478901 Frigidaire Dishwasher Gasket Backorder WCI 154478901 $39.00

49

5304500204 Frigidaire Gasket Bottom Door Seal In Stock WCI 5304500204 $16.54

51

Clamp, drip loop, wire WCI 154320301 Contact Us For Availability

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.46

55*

154779601 Frigidaire Dishwasher Screw Backorder WCI 154779601 $0.87

58

154246402 Frigidaire Dishwasher P-1 Ball Asse In Stock WCI 154246402 $35.78

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $36.24

59A

154247001 Frigidaire Dishwasher Pump Gasket S Backorder WCI 154247001 $36.24

60*

154741501 Frigidaire Dishwasher Screw Backorder WCI 154741501 $8.60

60*

807048001 Frigidaire Dishwasher Check Valve In Stock WCI 807048001 $5.88

61

5304506517 Frigidaire Dishwasher Grommet Asse In Stock WCI 5304506517 $9.95

62

5304518968 Frigidaire Lower Spray Arm Support In Stock WCI 5304518968 $7.25

63

5304506533 Frigidaire Dishwasher Filter Base In Stock WCI 5304506533 $14.03

65

154283005 Frigidaire Dishwasher Filter Assemb In Stock WCI 154283005 $151.31

66

5304532206 Frigidaire Trap In Stock WCI 5304532206 $4.73

70#

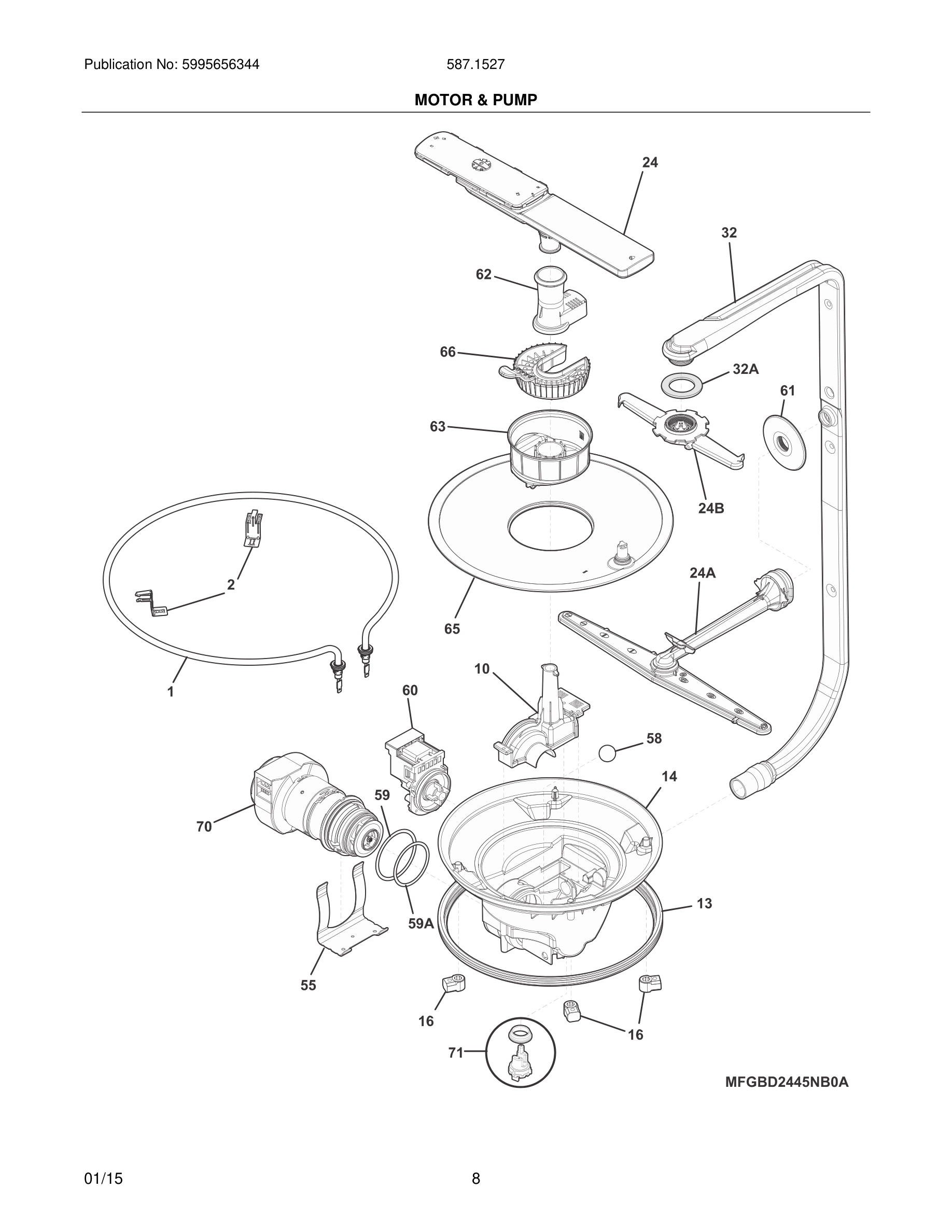

Motor & Pump Assy, w/o-rings WCI 154844301 Contact Us For Availability

71#

154762601 Frigidaire Dishwasher Turbidity Sen In Stock WCI 154762601 $49.31
