Model Whirlpool 4YED22PWDW00 REFRIGERATOR – Common Parts & Diagrams

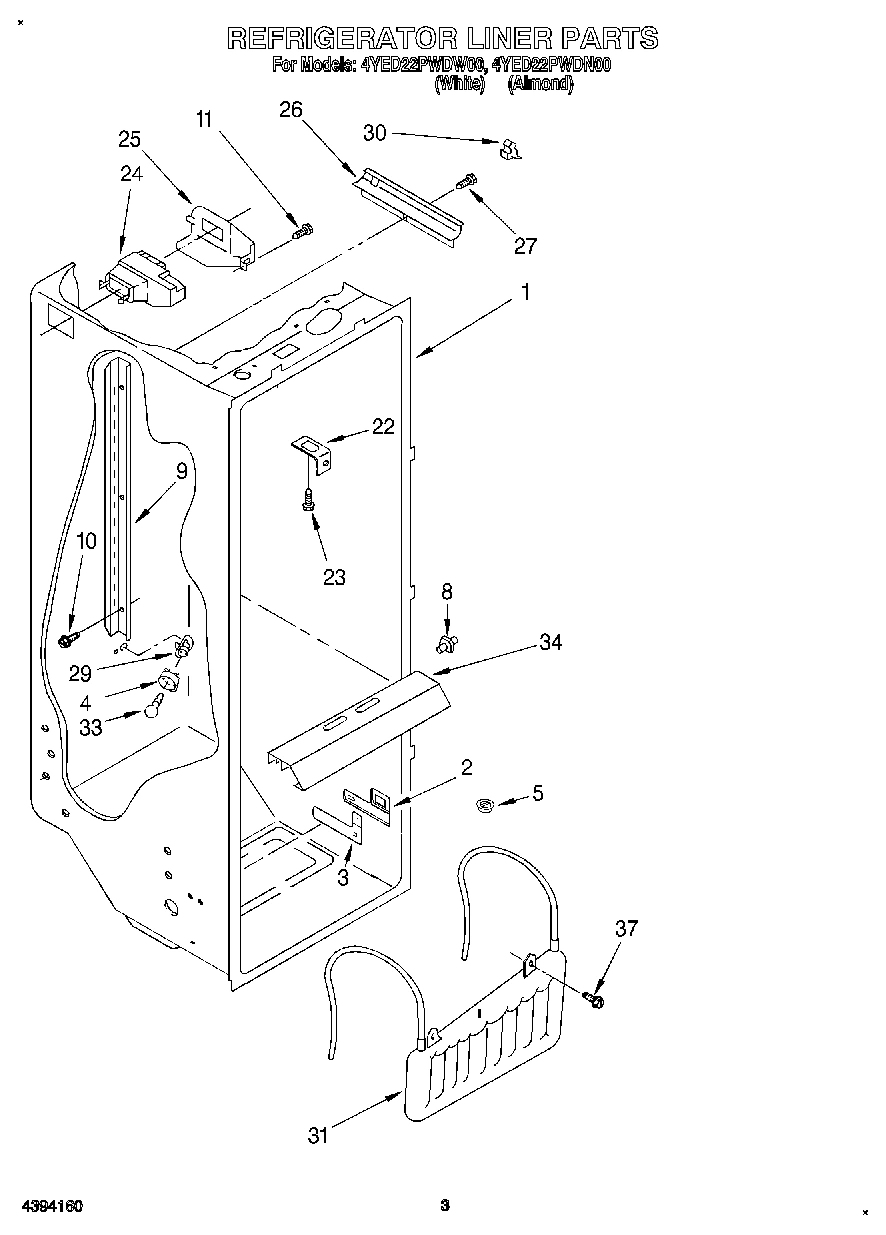

02 - REFRIGERATOR LINER

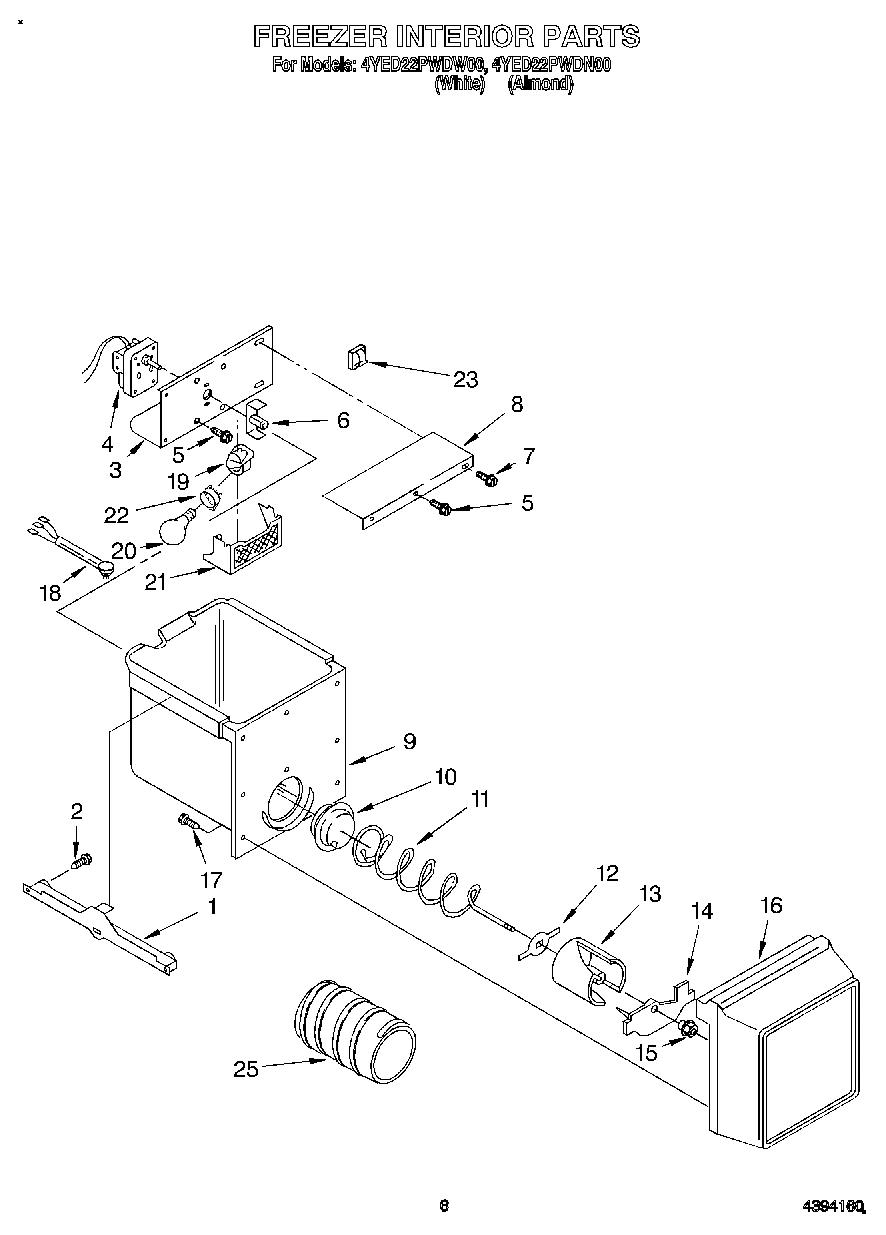

05 - FREEZER INTERIOR

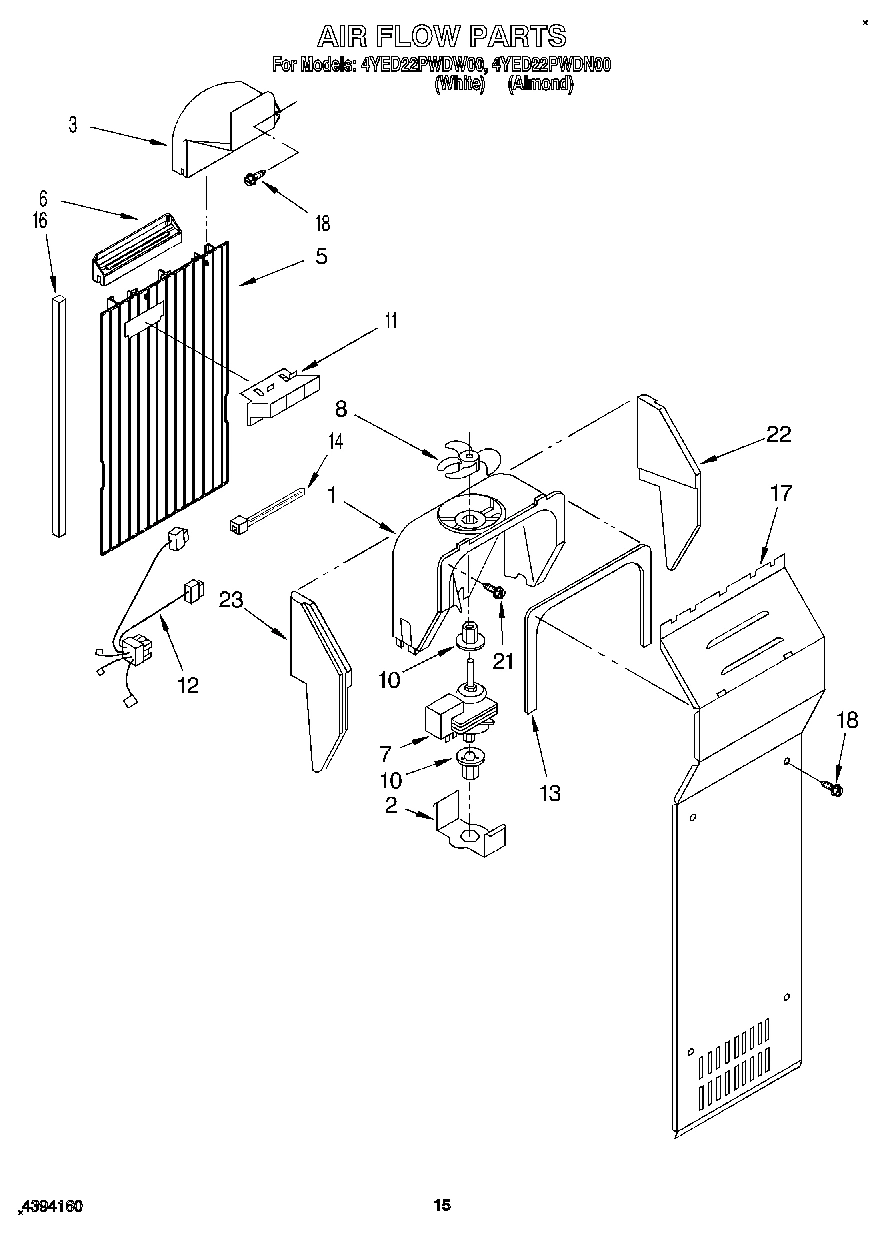

10 - AIR FLOW

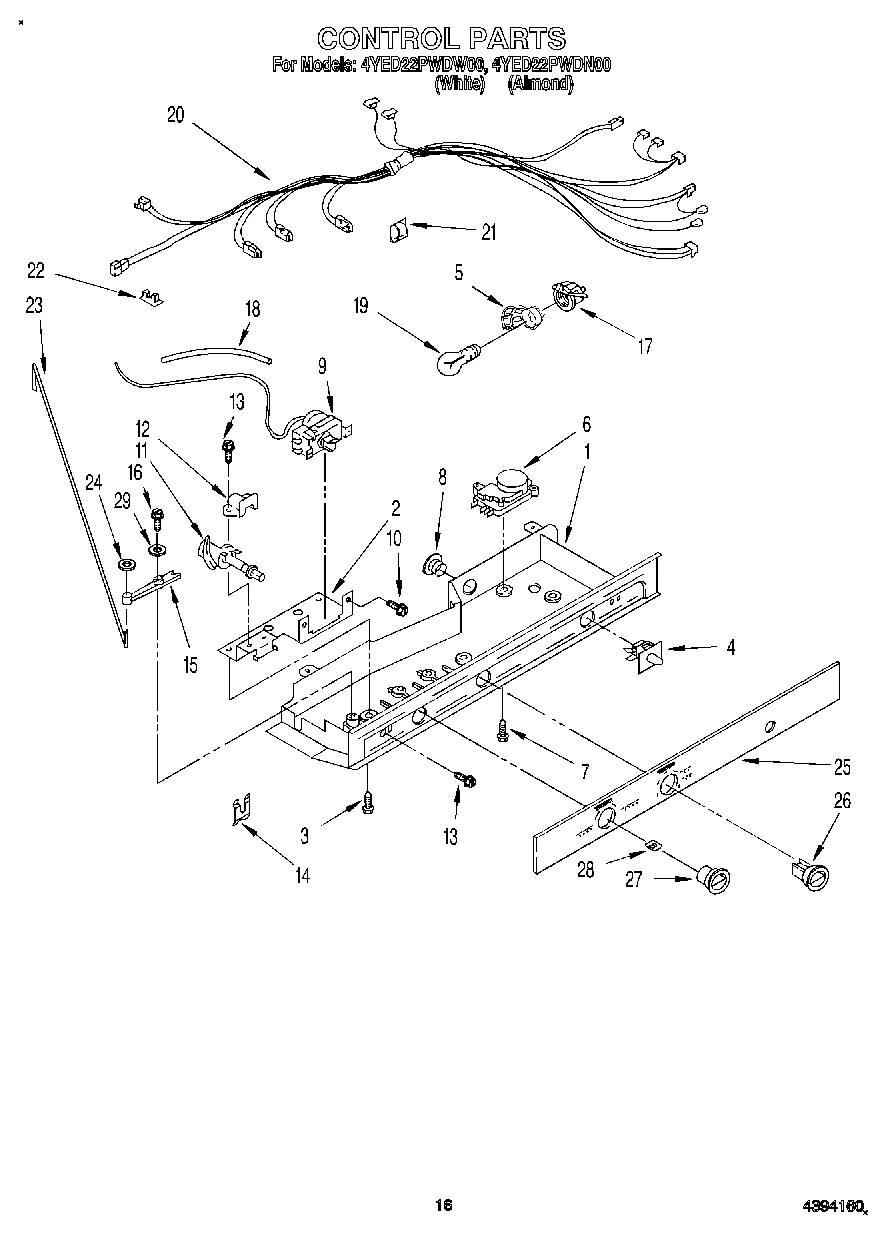

11 - CONTROL

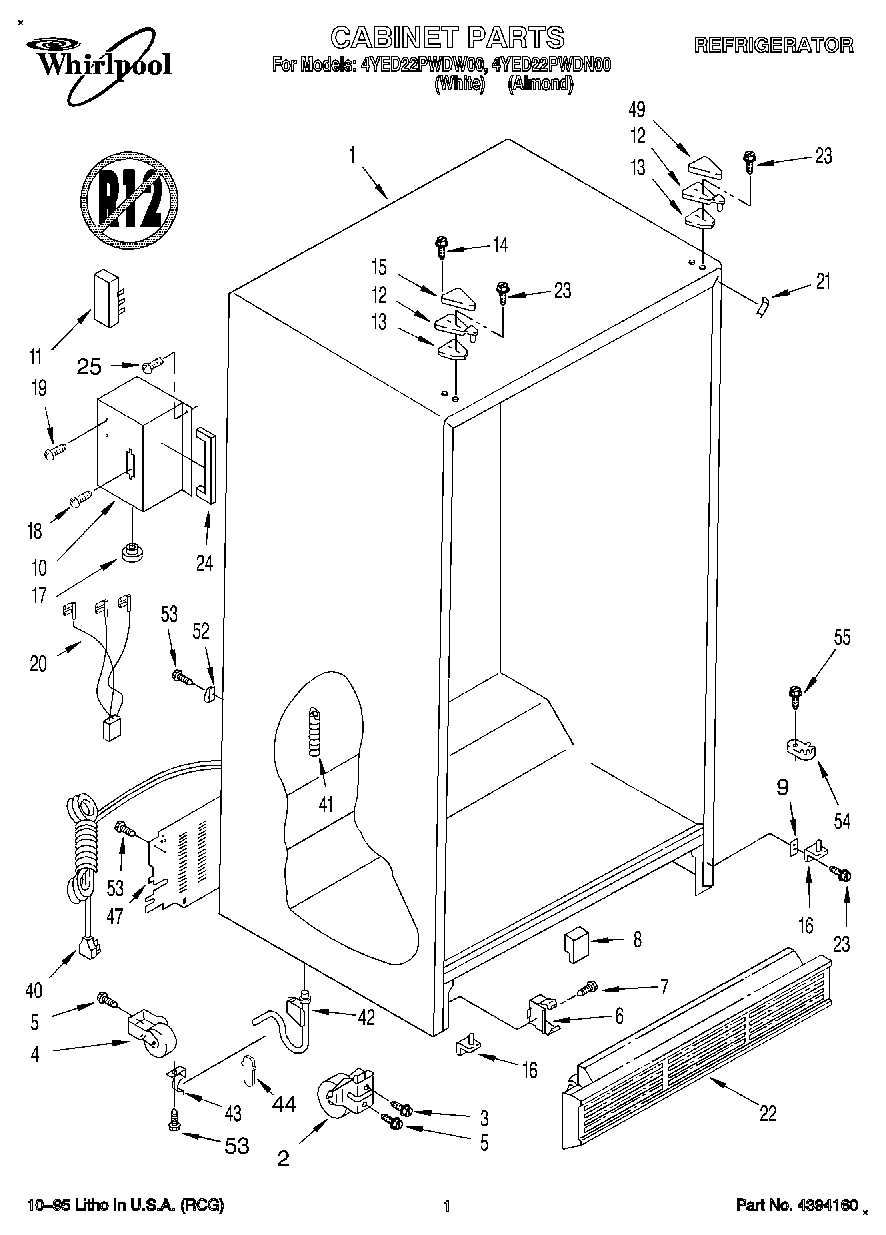

01 - CABINET

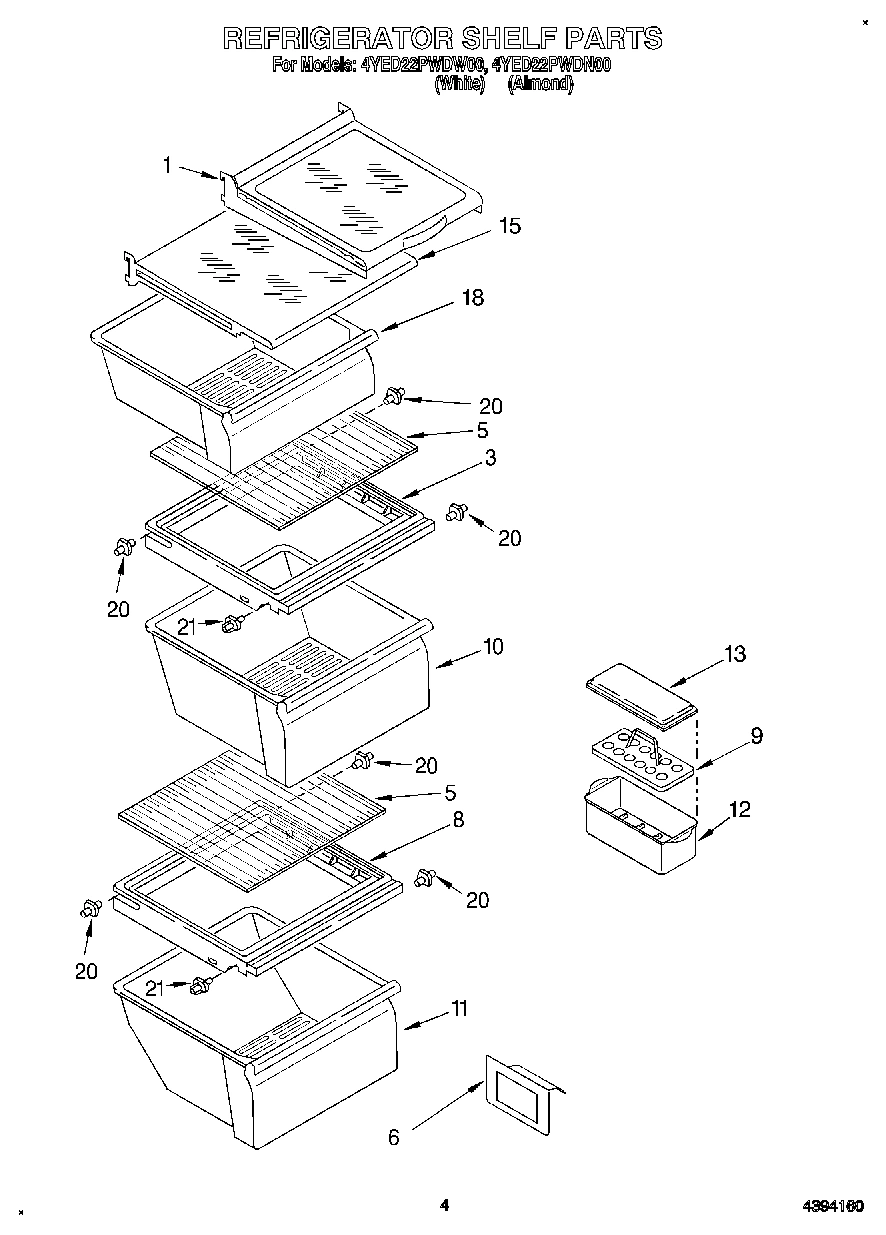

03 - REFRIGERATOR SHELF

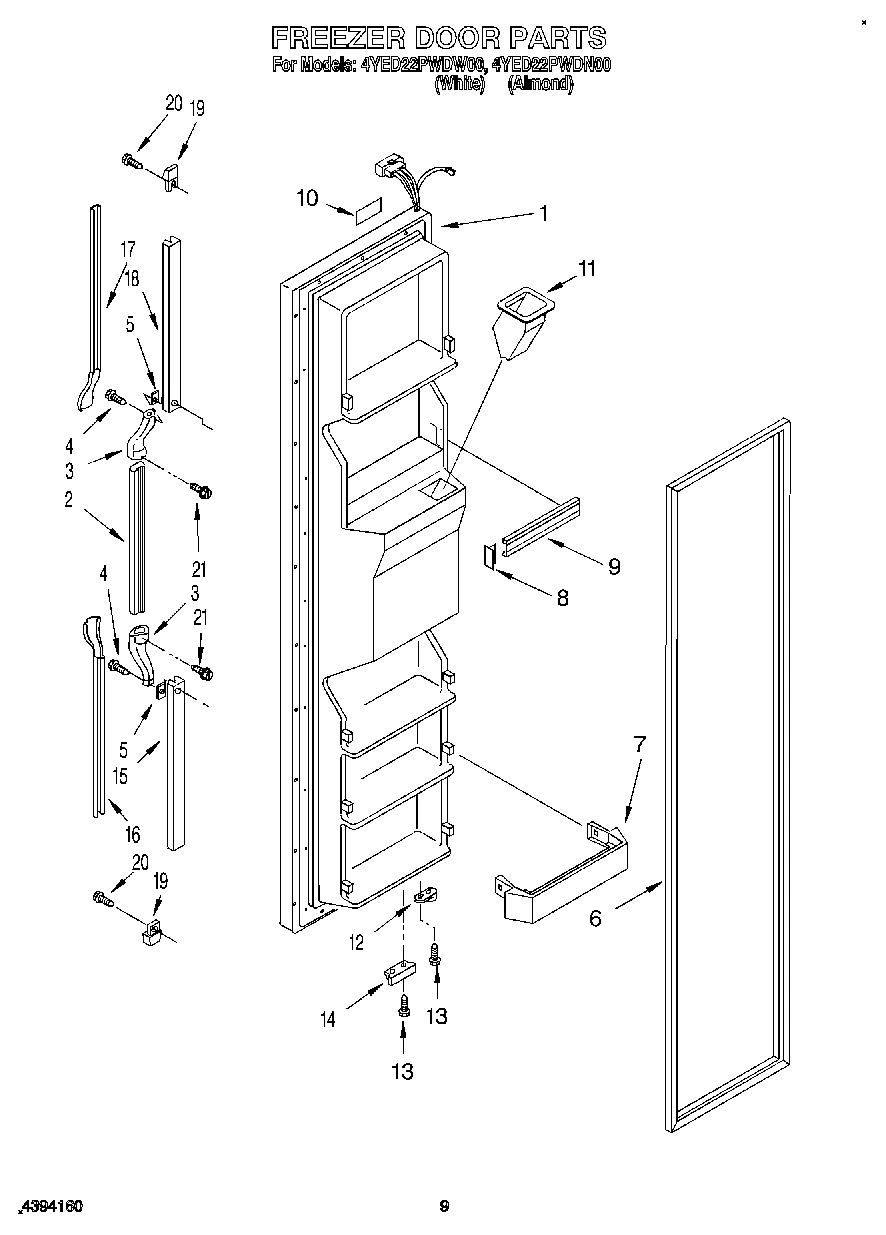

07 - FREEZER DOOR

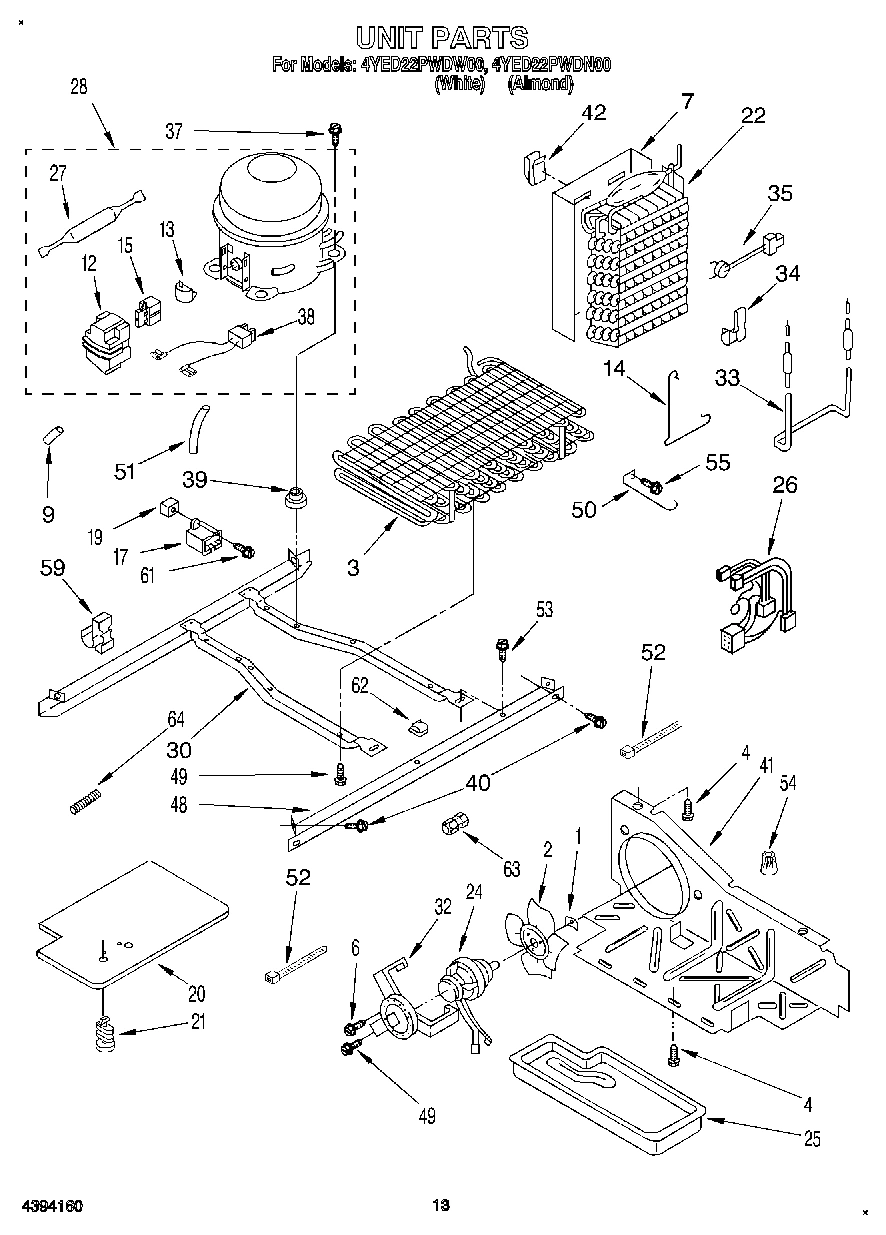

09 - UNIT

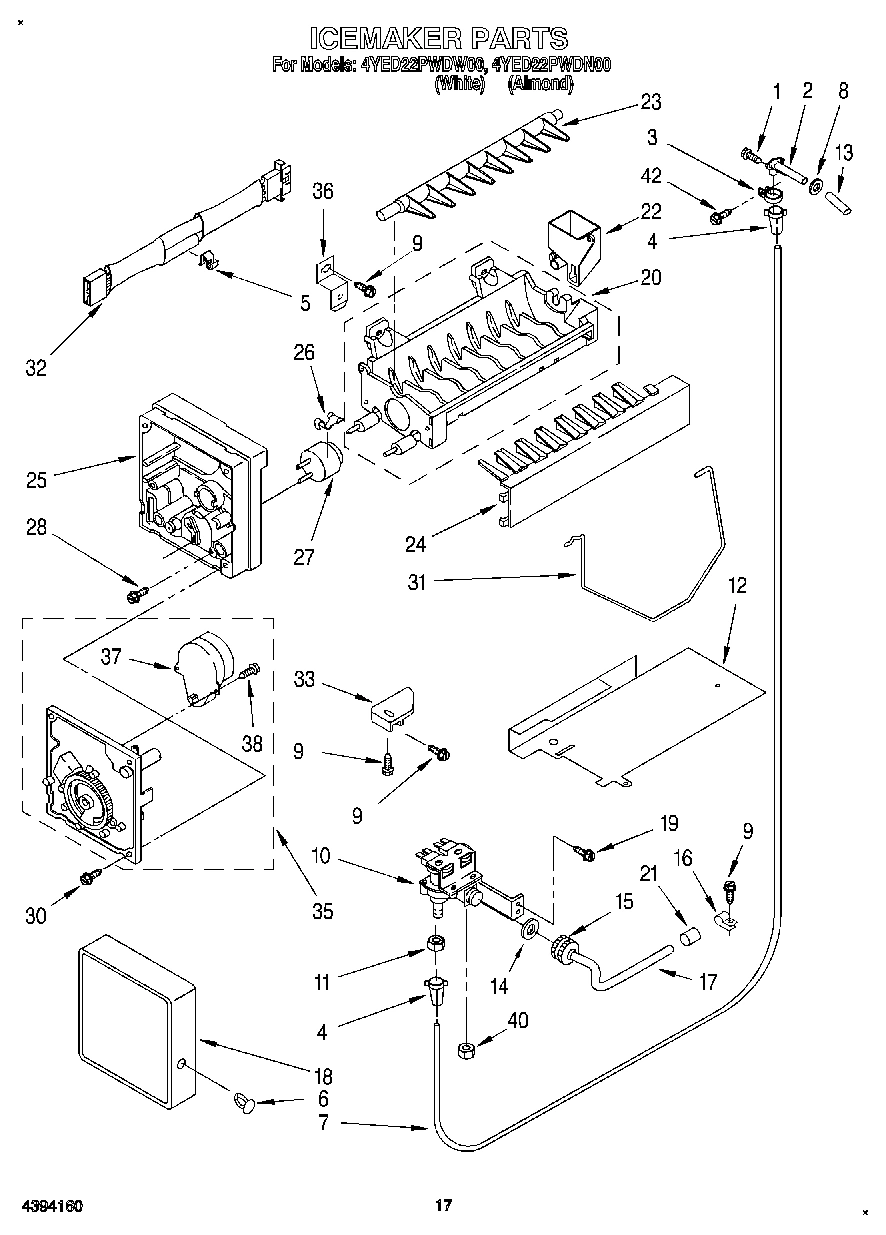

12 - ICEMAKER, LIT/OPTIONAL

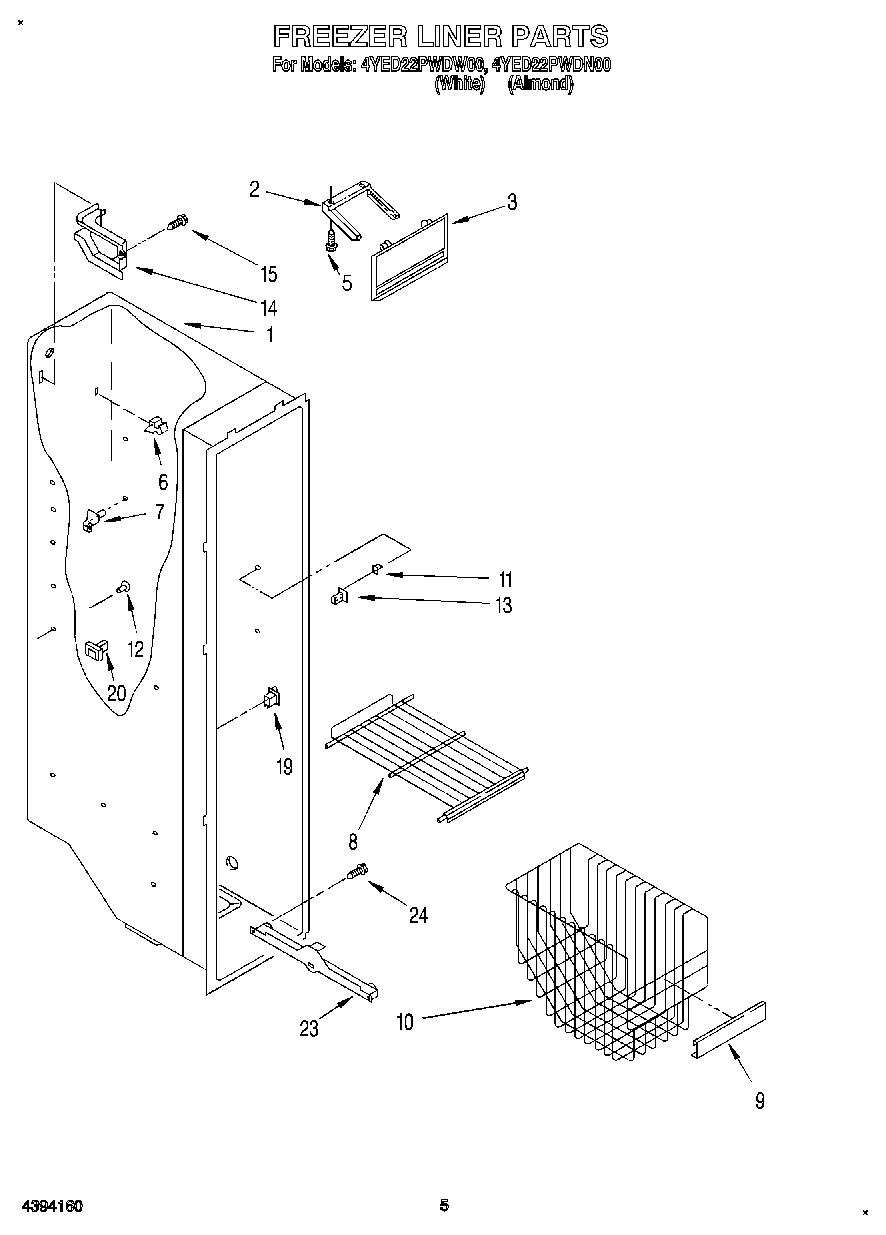

04 - FREEZER LINER

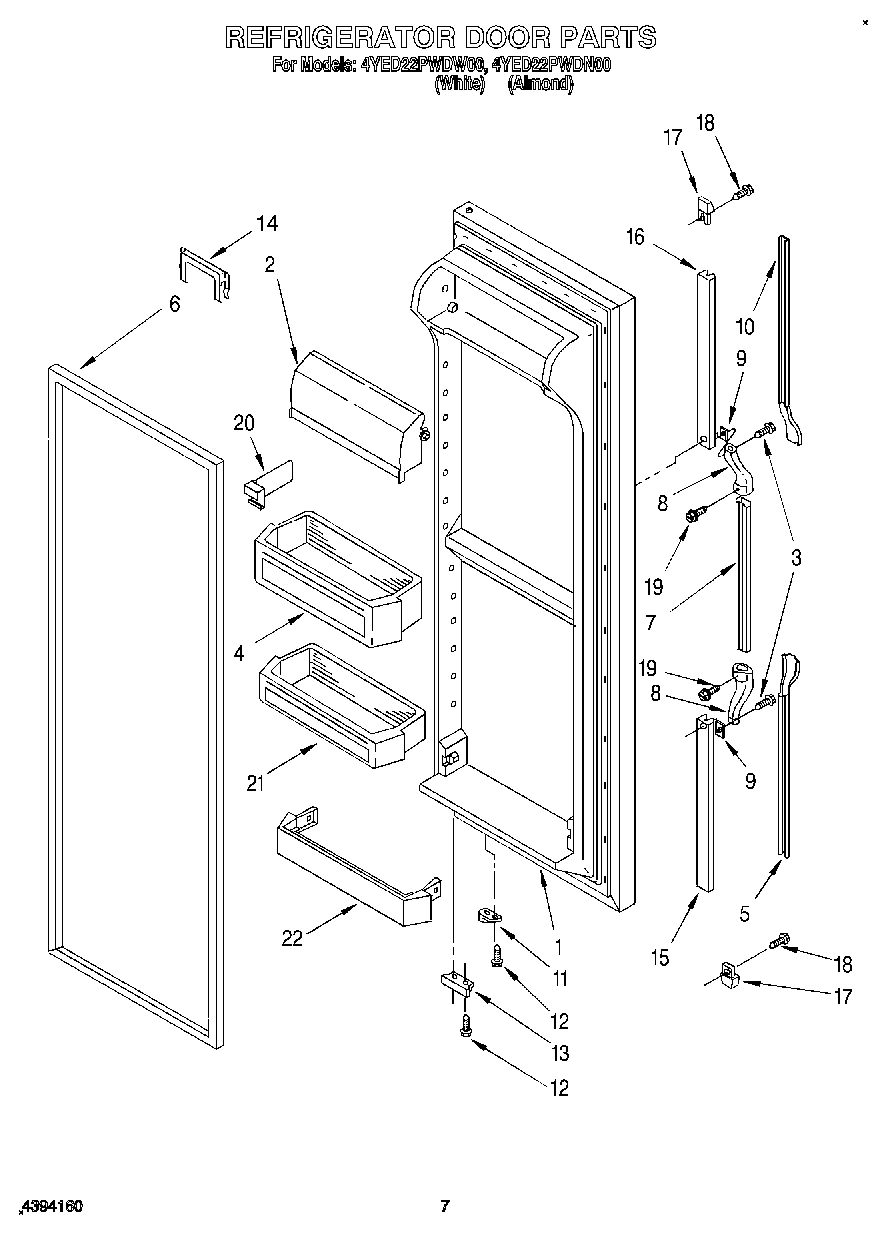

06 - REFRIGERATOR DOOR

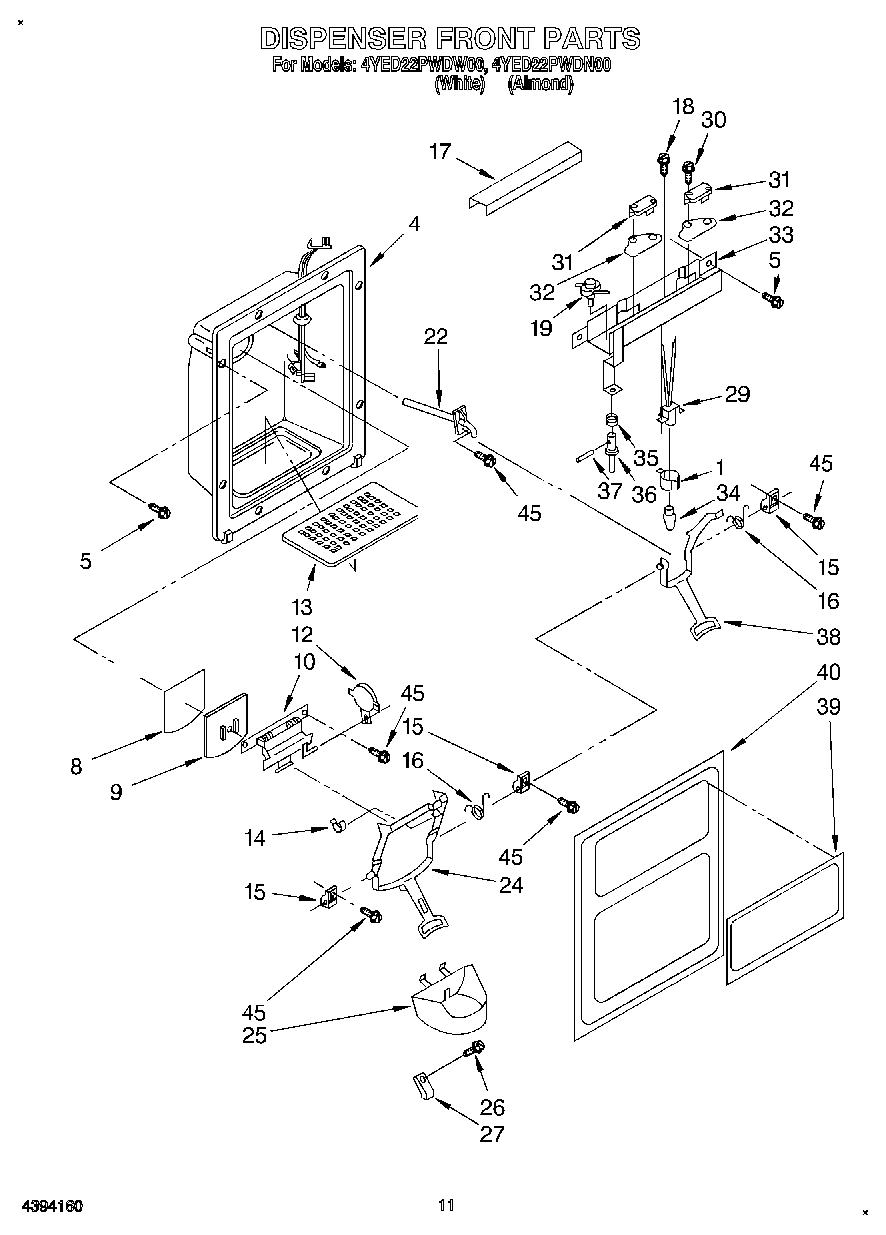

08 - DISPENSER FRONT
Common parts from model Whirlpool 4YED22PWDW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175117 WPL LIT2175117 Contact Us For Availability
WPL LIT2176768 WPL LIT2176768 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2175112 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2175113 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14718A6 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2171082 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2171083 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI14719A8 Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Handle, Center (White) WPL 1124713 Contact Us For Availability
7
Handle, Center (Almond) WPL 943079 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Trim, Basket WPL 2171775 Contact Us For Availability
10
Nameplate (Almond) WPL 2165147 Contact Us For Availability
10
Nameplate (White) WPL 2165148 Contact Us For Availability
10
Insert, Handle (White) WPL 1119367 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Freezer Basket WPL 2181762 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Cover WPL 2170949 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
15
Tuge, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119366 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 2181759 Contact Us For Availability
23
Slide, Freezer Bin (Right Side) WPL 2181760 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
26
Harness, Intermediate WPL 2167065 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water (White) WPL 2177149 Contact Us For Availability
38
Lever, Water (Almond Dispenser) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175032 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2175033 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2175028 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2175030 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
