Model Whirlpool 4RF310PXDQ0 ELECTRIC RANGE – Common Parts & Diagrams

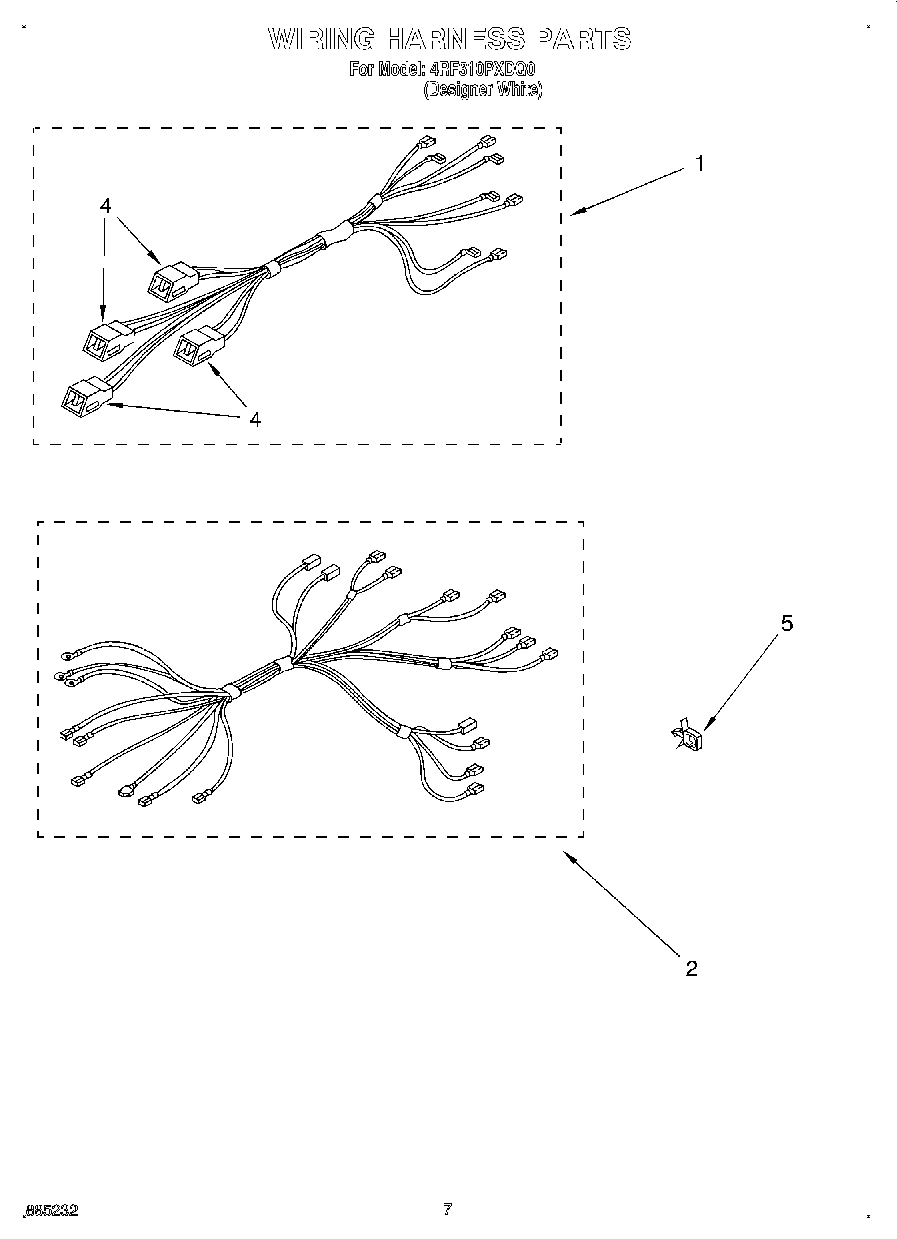

05 - WIRING HARNESS, LIT/OPTIONAL

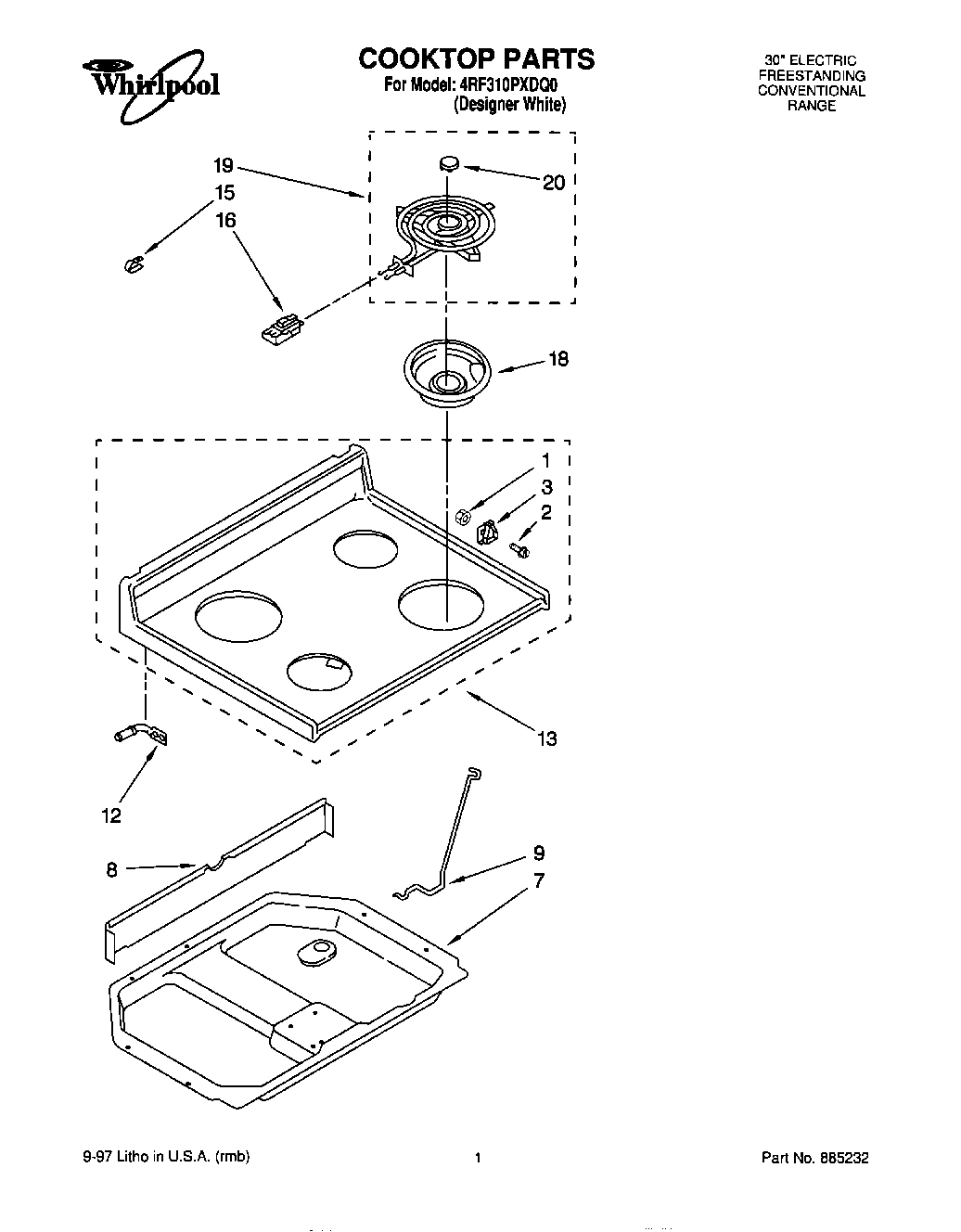

01 - COOKTOP
02 - CONTROL PANEL
04 - DOOR AND DRAWER
03 - OVEN
Common parts from model Whirlpool 4RF310PXDQ0 ELECTRIC RANGE
1
End Trim, R.H. (Designer White End Trim, L.H. WPL 3188992 Contact Us For Availability
1
End Trim, R.H. (Designer White) WPL 3188993 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
2
End Cap, R.H. (Designer White End Cap, L.H.) WPL 3187793 Contact Us For Availability
2
End Cap, R.H. (Designer White) WPL 3187794 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Timer, Clock (Designer White) WPL 3189299 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
4
Glass, Inner WPL 3169202 Contact Us For Availability
4
Screw (2) WPL 311056 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176714 Contact Us For Availability
5
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
5
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
5
Toast WPL 285365 Contact Us For Availability
5
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
5
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
5
Platinum (Uncut) WPL 285368 Contact Us For Availability
5
Clip, Snap-In WPL 3169449 Contact Us For Availability
5
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
5
WPL 72112 WPL 72112 Contact Us For Availability
5
WPL 799832 WPL 799832 Contact Us For Availability
5
WPL 978883 WPL 978883 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Screw, 8-18x3/8 (6) WPL 3185647 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Shield (2) WPL 313608 Contact Us For Availability
6
Cap, Top (Designer Models Only) (Designer Whi WPL 3189001 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Panel, Control (Designer White) WPL 3188672 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Rod, Cooktop (2) WPL 3148659 Contact Us For Availability
9
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
9
Outer Glass (Designer White) WPL 3188738 Contact Us For Availability
9
Oven (30`` Conv.) WPL 3176611 Contact Us For Availability
10
Thermostat, Oven WPL 3169302 Contact Us For Availability
11
Light, Indicator (Oven) WPL 314031 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
12
Light, Indicator (Surface Unit) WPL 3169457 Contact Us For Availability
12
Handle, Door (Designer White) WPL 3188696 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Rocker Switch (Designer White) WPL 3182718 Contact Us For Availability
13
Seal, Heat WPL 3169283 Contact Us For Availability
14
Switch, Door WPL 310345 Contact Us For Availability
14
Frame, Door (Screw, Bottom (3)) WPL 3185918 Contact Us For Availability
14
Frame, Door (Screw, Side (4)) WPL 3188403 Contact Us For Availability
14
Frame, Door (Designer White) WPL 3188998 Contact Us For Availability
15
Knob (Temp) (Designer White) WPL 3188725 Contact Us For Availability
15
Door Top, Vent (Designer White) WPL 3188693 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
17
Rear Cover WPL 3187332 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Lens, Amber (2) WPL 313101 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Spring, Stop WPL 308207 Contact Us For Availability
19
Sleeve, Adaptor WPL 3169525 Contact Us For Availability
19
Panel Drawer (White) WPL 3169422 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Handle, Drawer (White) WPL 3169473 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
26
Bracket, Rail (2) WPL 3169420 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
28
Plate, Service WPL 307972 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Cover, Rear WPL 3148975 Contact Us For Availability
34
Oven Rack (2) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Bracket, Service WPL 3150190 Contact Us For Availability
37
Ground Strap WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
41
Support, Foot (2) WPL 3169418 Contact Us For Availability
42
Plug, Button (2) WPL 3169107 Contact Us For Availability
43
Insulation, Oven Wrap WPL 309961 Contact Us For Availability
43
Cover, Foot (2) WPL 3169448 Contact Us For Availability
× ![]()
