Model Maytag 4KMEDC100BQ1 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

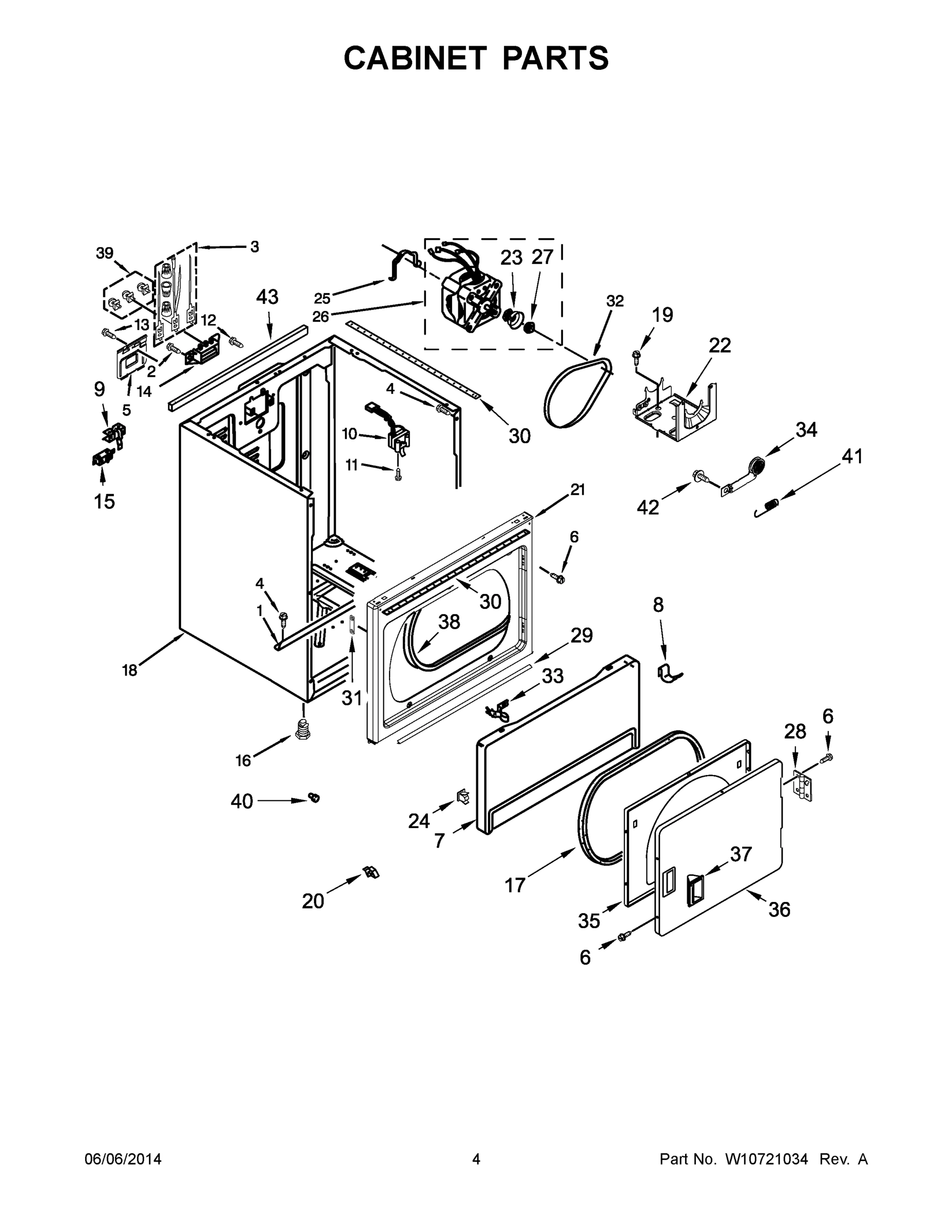

03 - CABINET PARTS

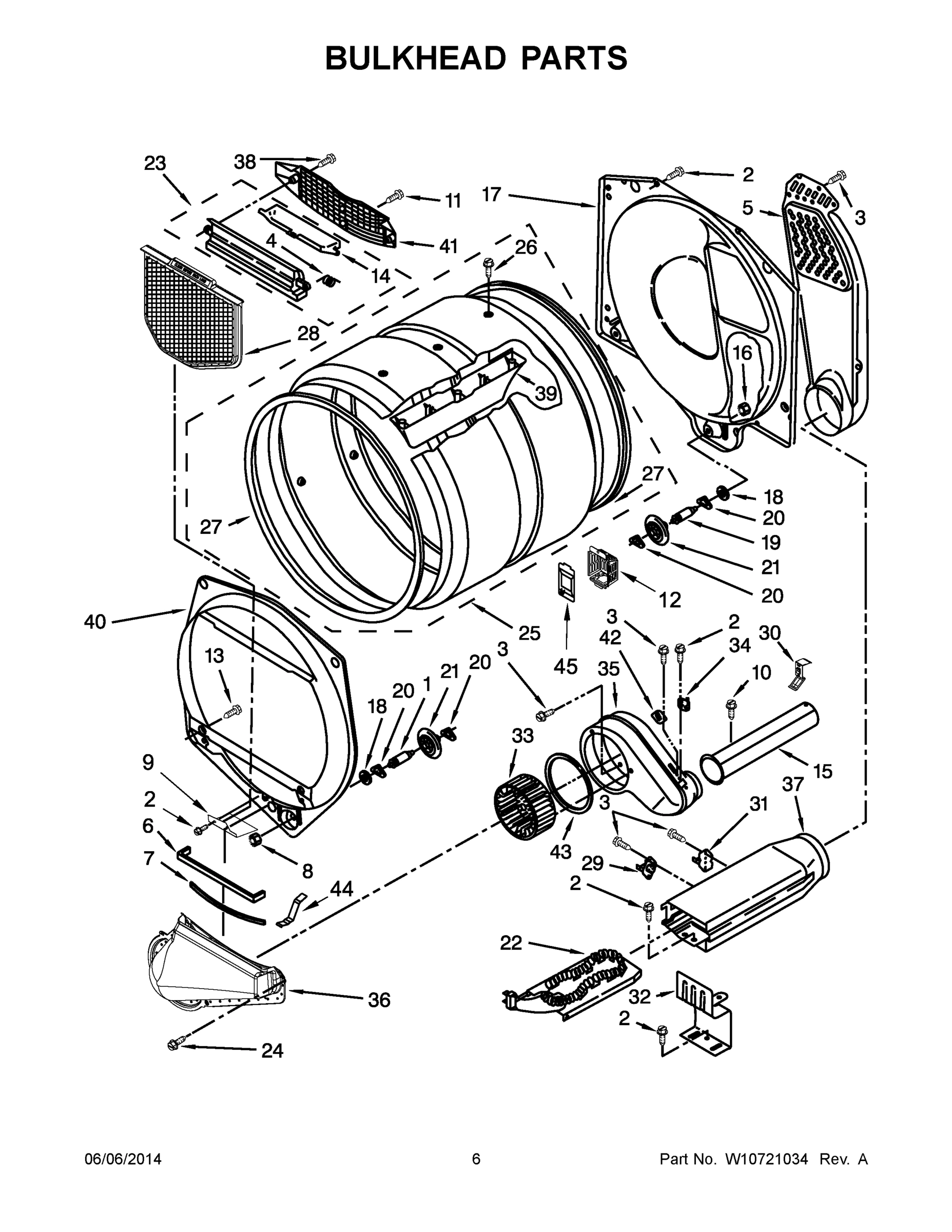

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMEDC100BQ1 ELECTRIC DRYER
1
MAY W10629448 MAY W10629448 Contact Us For Availability
1
MAY W10629455 MAY W10629455 Contact Us For Availability
1
MAY W10649094 MAY W10649094 Contact Us For Availability
1
MAY W10236068 MAY W10236068 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
2
MAY 8533974 MAY 8533974 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
3
MAY 3404233 MAY 3404233 Contact Us For Availability
3
SCREW MAY 90767 Contact Us For Availability
3
MAY 279318 MAY 279318 Contact Us For Availability
4
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
4
SCREW MAY 343641 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
5
MAY W10640700 MAY W10640700 Contact Us For Availability
5
MAY W10601020 MAY W10601020 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
MAY 342055 MAY 342055 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY 3348629 MAY 3348629 Contact Us For Availability
7
MAY 697215 MAY 697215 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
8
MAY W10291934 MAY W10291934 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
MAY W10121161 MAY W10121161 Contact Us For Availability
9
MAY W10083220 MAY W10083220 Contact Us For Availability
9
MAY W10128629 MAY W10128629 Contact Us For Availability
10
MAY W10237959 MAY W10237959 Contact Us For Availability
10
Screw MAY 8533971 Contact Us For Availability
11
MAY W10598018 MAY W10598018 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
SCREW MAY 695240 Contact Us For Availability
12
SCREW MAY 3390631 Contact Us For Availability
12
MAY 8578825 MAY 8578825 Contact Us For Availability
13
Screw MAY 693995 Contact Us For Availability
13
MAY 359625 MAY 359625 Contact Us For Availability
13
SCREW MAY 3387230 Contact Us For Availability
14
CLIP, SPRING MAY 8536939 Contact Us For Availability
14
MAY 3397659 MAY 3397659 Contact Us For Availability
14
MAY W10685668 MAY W10685668 Contact Us For Availability
15
MAY 8559781 MAY 8559781 Contact Us For Availability
15
MAY 8318457 MAY 8318457 Contact Us For Availability
15
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
16
ASSEMBLY, PUSH-TO-START KNOB (GREY) MAY W10317455 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
MAY W10185972 MAY W10185972 Contact Us For Availability
17
MAY 3390735 MAY 3390735 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
ASSEMBLY, TIMER KNOB (GREY) MAY W10317454 Contact Us For Availability
18
MAY W10547697 MAY W10547697 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
Strap, Console MAY 8568314 Contact Us For Availability
19
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
CLIP, SPRING MAY 688805 Contact Us For Availability
20
Retainer MAY 3388229 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10112604 MAY W10112604 Contact Us For Availability
21
PANEL, FRONT (WHITE) MAY W10193554 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY 3952439 MAY 3952439 Contact Us For Availability
22
MAY 3387118 MAY 3387118 Contact Us For Availability
22
MAY 3387747 MAY 3387747 Contact Us For Availability
23
MAY W10323734 MAY W10323734 Contact Us For Availability
23
MAY 3393657 MAY 3393657 Contact Us For Availability
23
MAY W10685669 MAY W10685669 Contact Us For Availability
24
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
24
Screw MAY 489463 Contact Us For Availability
25
MAY 660658 MAY 660658 Contact Us For Availability
25
MAY W10545923 MAY W10545923 Contact Us For Availability
26
MAY W10489550 MAY W10489550 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY 3389729 MAY 3389729 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10596627 MAY W10596627 Contact Us For Availability
28
DOOR HINGE ASSEMBLY (SILVER) MAY W10279703 Contact Us For Availability
29
MAY W10576519 MAY W10576519 Contact Us For Availability
29
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
30
SEAL, FOAM MAY W10336128 Contact Us For Availability
30
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
31
PLUG, HINGE HOLE (WHITE) MAY W10191265 Contact Us For Availability
31
MAY 8318314 MAY 8318314 Contact Us For Availability
32
MAY W10112954 MAY W10112954 Contact Us For Availability
32
MAY 8066099 MAY 8066099 Contact Us For Availability
33
MAY 696144 MAY 696144 Contact Us For Availability
33
MAY W10349492 MAY W10349492 Contact Us For Availability
34
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
34
MAY W10168174 MAY W10168174 Contact Us For Availability
35
MAY W10323061 MAY W10323061 Contact Us For Availability
35
MAY 8544363 MAY 8544363 Contact Us For Availability
36
MAY W10322546 MAY W10322546 Contact Us For Availability
36
MAY 8066168 MAY 8066168 Contact Us For Availability
37
MAY W10116360 MAY W10116360 Contact Us For Availability
37
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
38
MAY 3387242 MAY 3387242 Contact Us For Availability
38
SCREW MAY 3357011 Contact Us For Availability
39
MAY 279393 MAY 279393 Contact Us For Availability
39
Baffle, Drum MAY 697693 Contact Us For Availability
40
MAY 693152 MAY 693152 Contact Us For Availability
40
MAY 697557 MAY 697557 Contact Us For Availability
41
MAY W10446781 MAY W10446781 Contact Us For Availability
41
MAY W10692558 MAY W10692558 Contact Us For Availability
42
SCREW MAY 3389420 Contact Us For Availability
42
LIMITER, THERMAL (192F) MAY W10167627 Contact Us For Availability
43
Seal, Foam MAY 8318396 Contact Us For Availability
43
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
44
MAY W10345456 MAY W10345456 Contact Us For Availability
45
MAY 3402841 MAY 3402841 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY 689790 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
× ![]()
