Model Maytag 4GAED4900YW0 ELECTRIC DRYER – Common Parts & Diagrams
01 - CABINET PARTS
02 - TOP AND CONSOLE PARTS

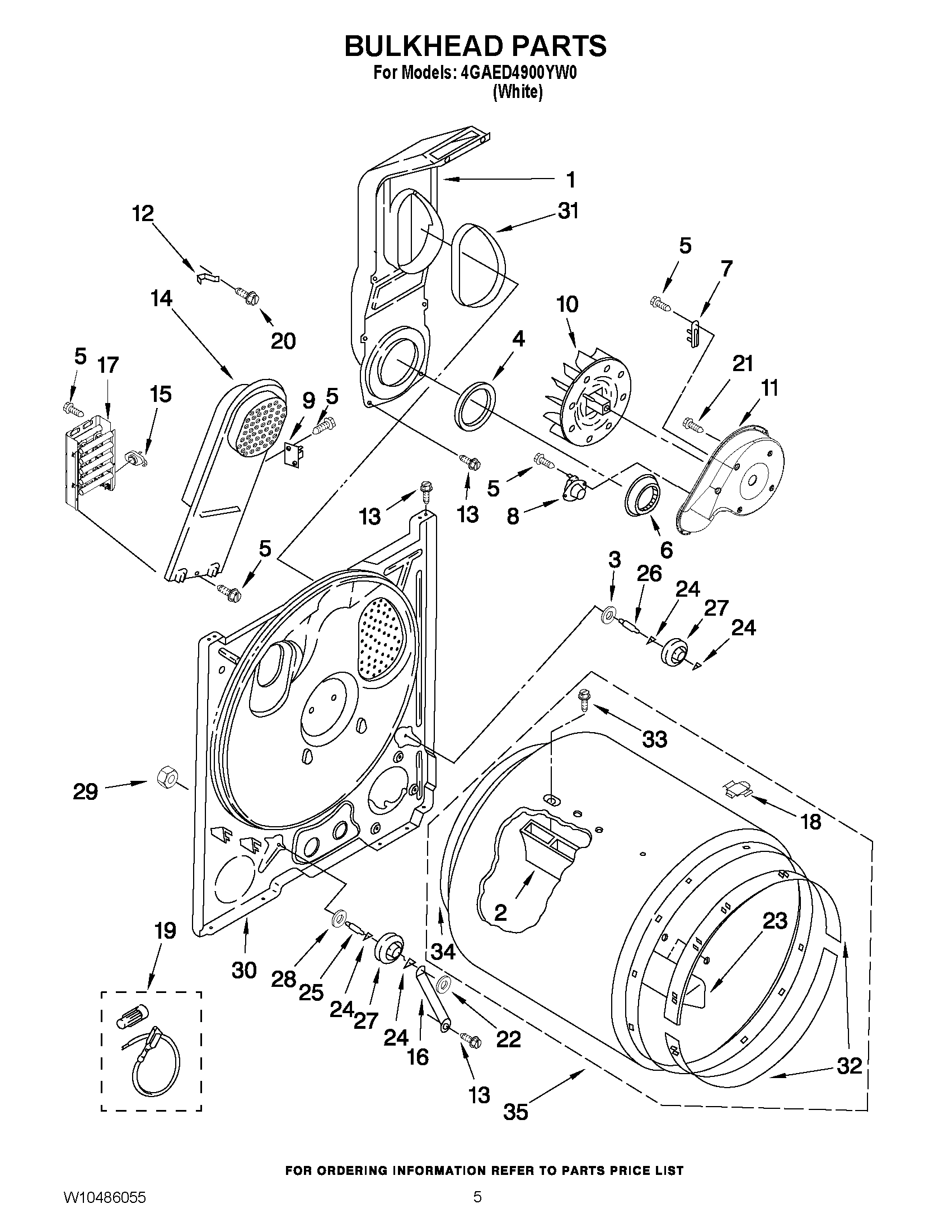

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4GAED4900YW0 ELECTRIC DRYER
1
MAY W10396180 MAY W10396180 Contact Us For Availability
1
MAY W10454274 MAY W10454274 Contact Us For Availability
1
MAY W10462985 MAY W10462985 Contact Us For Availability
1
MAY 8274261 MAY 8274261 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
Wire, Jumper Mini-Buzzer MAY W10113080 Contact Us For Availability
2
MAY 692490 MAY 692490 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
4
MAY W10236073 MAY W10236073 Contact Us For Availability
4
MAY W10251358 MAY W10251358 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
SWITCH, WRINKLE SHIELD MAY 3405156 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
Screw, 10-32 x 3/8 MAY 342043 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
MAY 3952439 MAY 3952439 Contact Us For Availability
7
Thermal Fuse MAY 3392519 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
8
MAY W10251355 MAY W10251355 Contact Us For Availability
8
THERMOSTAT, INTERNAL BIAS MAY 3387137 Contact Us For Availability
9
MAY 3390731 MAY 3390731 Contact Us For Availability
9
Switch, Temperature MAY 3399639 Contact Us For Availability
9
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
10
MAY 3406109 MAY 3406109 Contact Us For Availability
10
MAY 8557857 MAY 8557857 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY 3404162 MAY 3404162 Contact Us For Availability
12
SCREW, 8-18 X 5/16 MAY 3348629 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
MAY 3357011 MAY 3357011 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
14
Spring-Door (2) MAY W10041960 Contact Us For Availability
14
SCREW, GROUNDING MAY 8533974 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
15
TOP MAY 8559800 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
Knob, Control MAY W10196503 Contact Us For Availability
16
MAY 3976434 MAY 3976434 Contact Us For Availability
17
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
17
MAY W10123956 MAY W10123956 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
MAY W10112668 MAY W10112668 Contact Us For Availability
18
MAY 8066086 MAY 8066086 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 3979618 MAY 3979618 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
LOCK, FRONT TOP (2) MAY 8066092 Contact Us For Availability
20
MAY 3397695 MAY 3397695 Contact Us For Availability
20
MAY 489463 MAY 489463 Contact Us For Availability
21
MAY 695620 MAY 695620 Contact Us For Availability
21
MAY 3396029 MAY 3396029 Contact Us For Availability
21
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
22
MAY W10121316 MAY W10121316 Contact Us For Availability
22
MAY W10484642 MAY W10484642 Contact Us For Availability
22
MAY 90296 MAY 90296 Contact Us For Availability
23
Clip, Felt Pad (3) MAY 685203 Contact Us For Availability
23
MAY W10386312 MAY W10386312 Contact Us For Availability
23
MAY 3403636 MAY 3403636 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
Timer Knob Assembly MAY W10196507 Contact Us For Availability
24
MAY 690997 MAY 690997 Contact Us For Availability
25
MAY W10289660 MAY W10289660 Contact Us For Availability
25
SHAFT, L.H. MAY W10359270 Contact Us For Availability
26
Clip, Hinge (2) MAY 337189 Contact Us For Availability
26
SHAFT, R.H. MAY W10359269 Contact Us For Availability
27
Screw, 8-18 x 3/8 MAY 342055 Contact Us For Availability
27
MAY 3397590 MAY 3397590 Contact Us For Availability
28
Hinge, R.H. MAY 8066056 Contact Us For Availability
28
Hinge, L.H. MAY 8066057 Contact Us For Availability
28
MAY 348197 MAY 348197 Contact Us For Availability
29
Screw, Set MAY 690046 Contact Us For Availability
29
NUT, 3/8-16 MAY W10298789 Contact Us For Availability
30
MAY 3400500 MAY 3400500 Contact Us For Availability
30
MAY 3403410 MAY 3403410 Contact Us For Availability
31
MAY 348780 MAY 348780 Contact Us For Availability
31
MAY 339956 MAY 339956 Contact Us For Availability
32
MAY W10131364 MAY W10131364 Contact Us For Availability
32
Ring, Bearing (2) MAY 692526 Contact Us For Availability
33
MAY 696144 MAY 696144 Contact Us For Availability
33
SCREW, 8-16X 1/2 MAY W10219342 Contact Us For Availability
34
MAY 691366 MAY 691366 Contact Us For Availability
34
MAY W10352407 MAY W10352407 Contact Us For Availability
35
MAY 695737 MAY 695737 Contact Us For Availability
35
MAY 695587 MAY 695587 Contact Us For Availability
36
MAY 3393549 MAY 3393549 Contact Us For Availability
37
MAY W10095180 MAY W10095180 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
39
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
40
SCREW, 10-32 X 5/8 MAY 3390631 Contact Us For Availability
41
MAY 3397659 MAY 3397659 Contact Us For Availability
42
MAY 8066217 MAY 8066217 Contact Us For Availability
43
PULLEY, MOROR 60 HZ. MAY 685011 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Dry Rack MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY W10470574 MAY W10470574 Contact Us For Availability
× ![]()
