Model Whirlpool 4ET20ZKXDN01 REFRIGERATOR – Common Parts & Diagrams

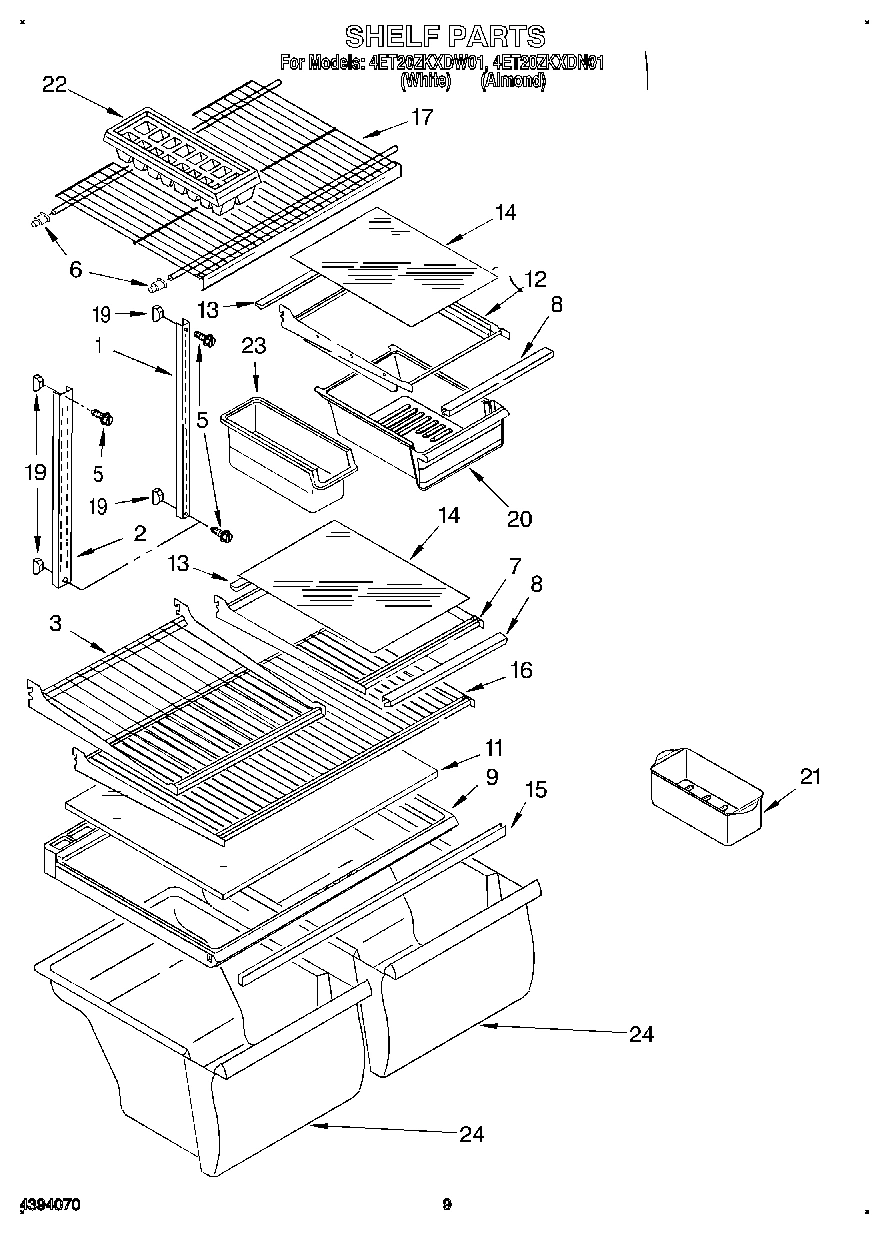

05 - SHELF, LIT/OPTIONAL

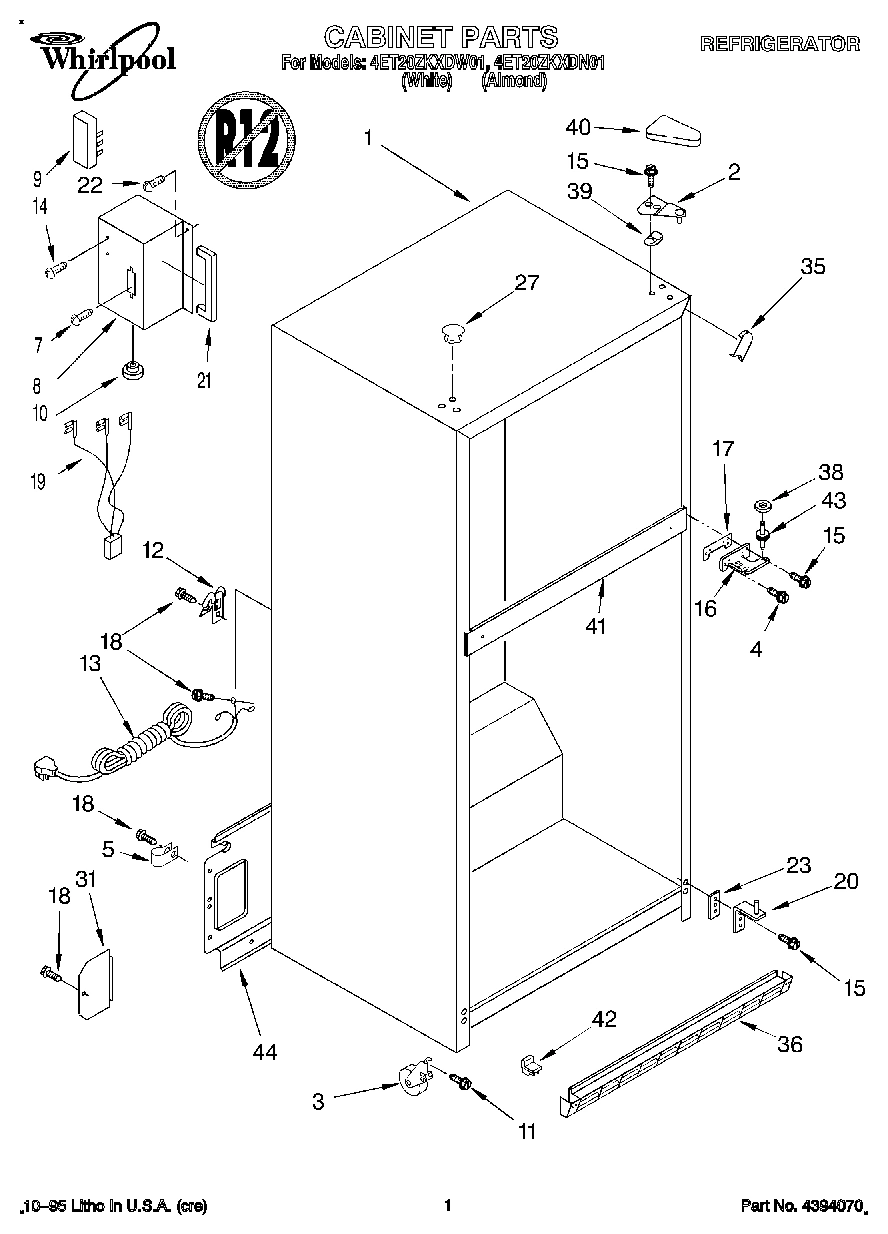

01 - CABINET
02 - DOOR
03 - LINER
04 - UNIT
Common parts from model Whirlpool 4ET20ZKXDN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9) (White) WPL 2159276 Contact Us For Availability
1
Refrigerator Door (Includes No.9) (Almond) WPL 2159277 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13646A1 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182403 Contact Us For Availability
2
End Cap WPL 1109189 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
3
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
End Cap, Handle (2) WPL 944157 Contact Us For Availability
4
Heater, Defrost WPL 2166872 Contact Us For Availability
5
Handle, Center (Black) WPL 1120781 Contact Us For Availability
5
Handle, Center (White) WPL 2150150 Contact Us For Availability
5
Evaporator Assy. WPL 2166209 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Insert (White) WPL 1108828 Contact Us For Availability
10
Insert (Almond) WPL 1108830 Contact Us For Availability
10
Fan Motor WPL 2166924 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2171147 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
12
Divider, Door Shelf WPL 2160050 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2165147 Contact Us For Availability
13
Nameplate (White Model) WPL 2165148 Contact Us For Availability
14
Trim-Door Shelf WPL 2171041 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Plug-Trim WPL 2156001 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183155 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Trim, Door WPL 2171149 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.23) (White) WPL 2159273 Contact Us For Availability
19
Freezer Door (Includes No.23) (Almond) WPL 2159274 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2179824 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI13647A7 Contact Us For Availability
22
Shim WPL 935075 Contact Us For Availability
22
Knob, Thermostat WPL 2182421 Contact Us For Availability
22
Clip, Wire WPL 489435 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
25
Freezer Floor WPL 2163825 Contact Us For Availability
26
Bracket, Door Stop WPL 2159367 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
28
Post, Damper WPL 2179859 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 29 WPL 2169447 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Screw WPL 489022 Contact Us For Availability
32
Capacitor (Production) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2170424 Contact Us For Availability
33
Handle, F.C. (White) WPL 2173622 Contact Us For Availability
34
Insert, Handle (White) WPL 2166438 Contact Us For Availability
34
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Retainer WPL 2159417 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Bracket, Door Stop WPL 2159368 Contact Us For Availability
37
Trim-Door (2) WPL 2171153 Contact Us For Availability
37
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
38
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
39
Handle End, WPL 944163 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Endcap WPL 1105804 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI13645A4 Contact Us For Availability
41
Clip WPL 2166683 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Trim, Door WPL 2171148 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
43
Shim WPL 935074 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
