Model Whirlpool 3XKVN600F00 REFRIGERATOR – Common Parts & Diagrams
04 - UNIT
03 - SHELF

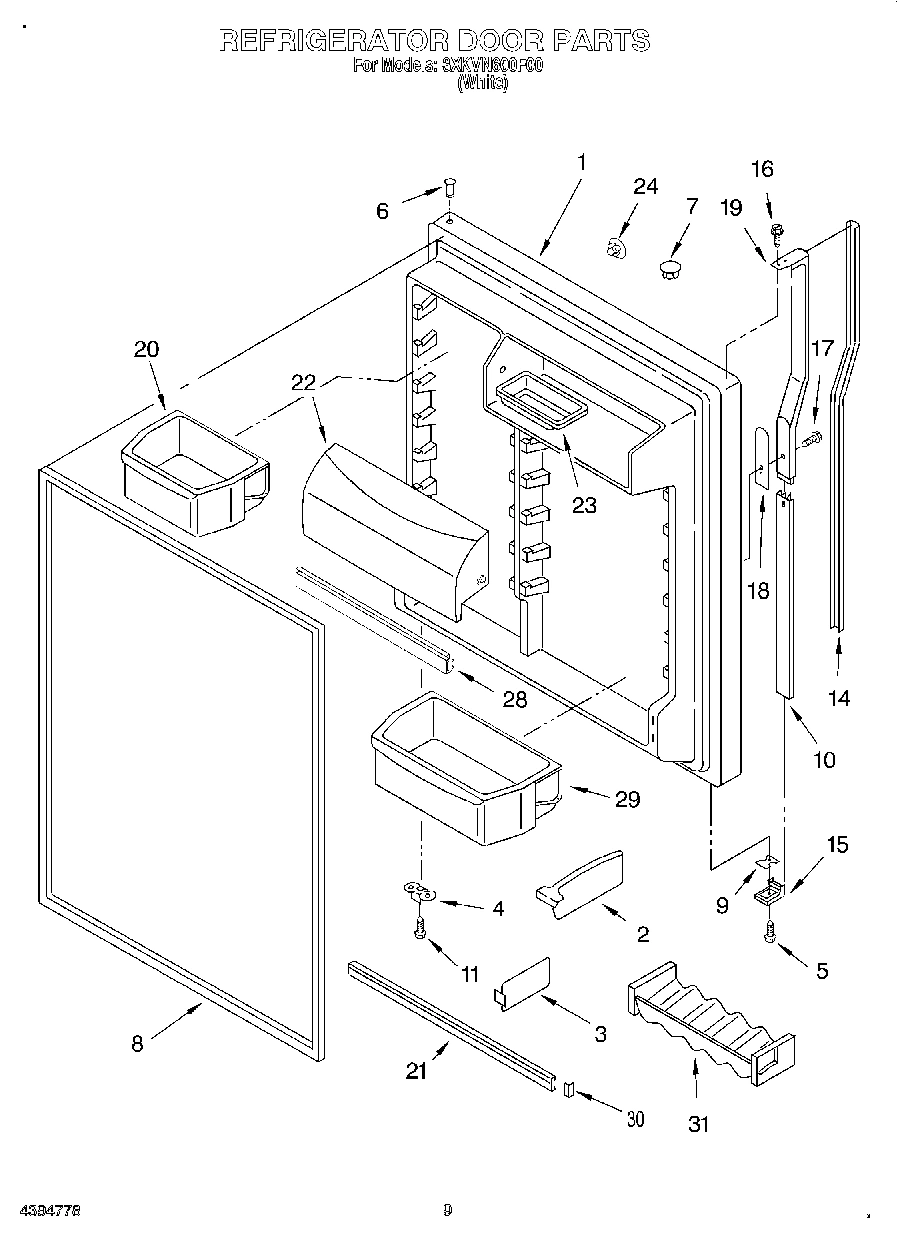

05 - REFRIGERATOR DOOR

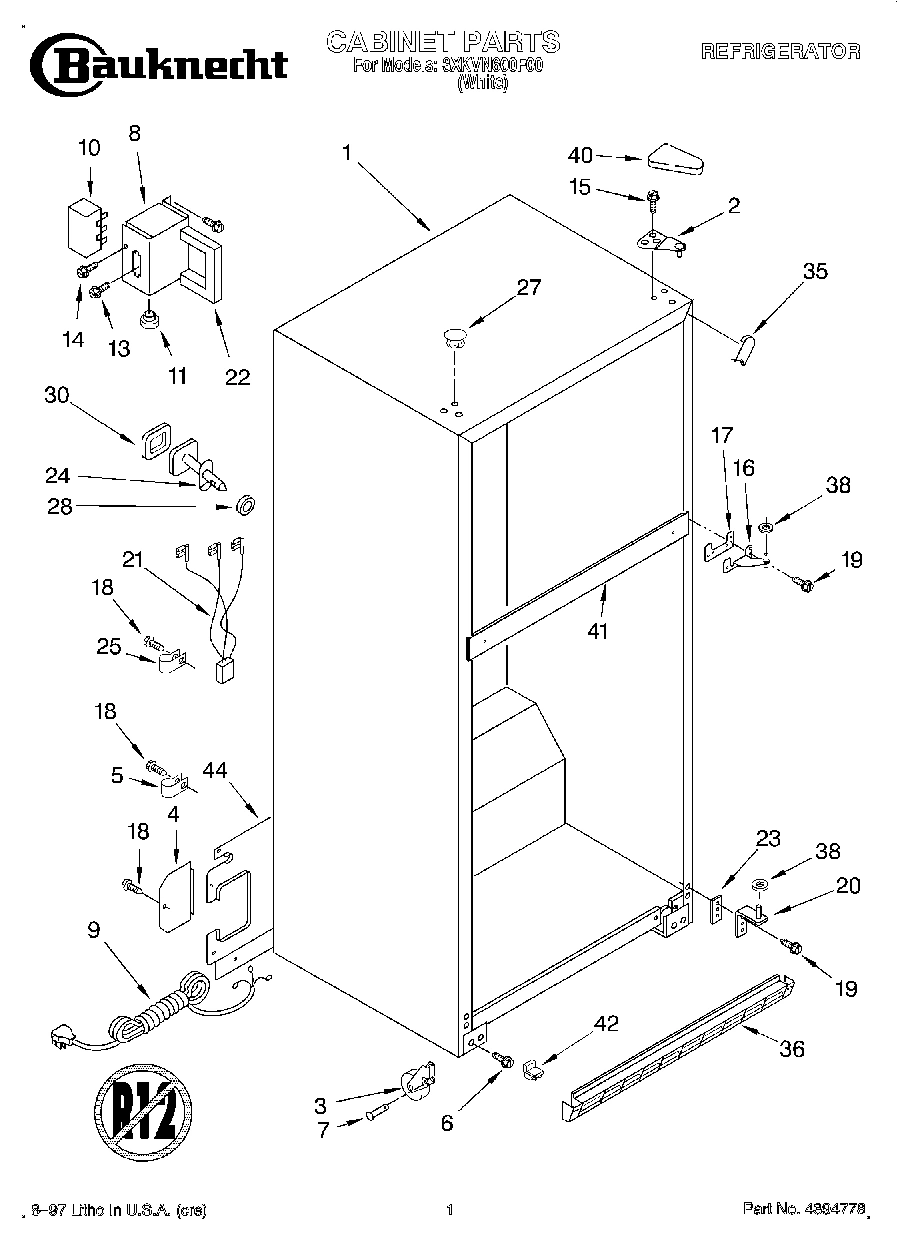

01 - CABINET

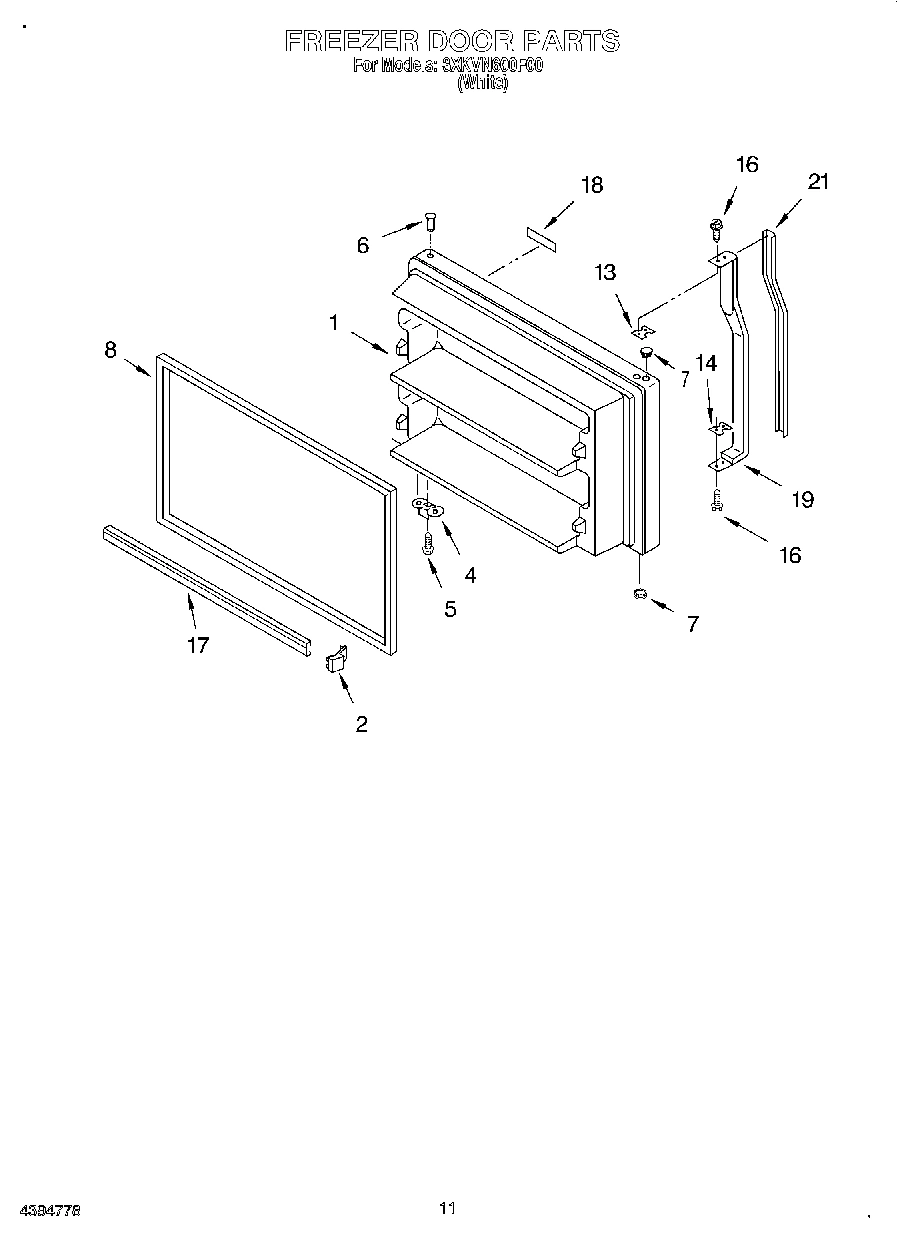

06 - FREEZER DOOR, LIT/OPTIONAL

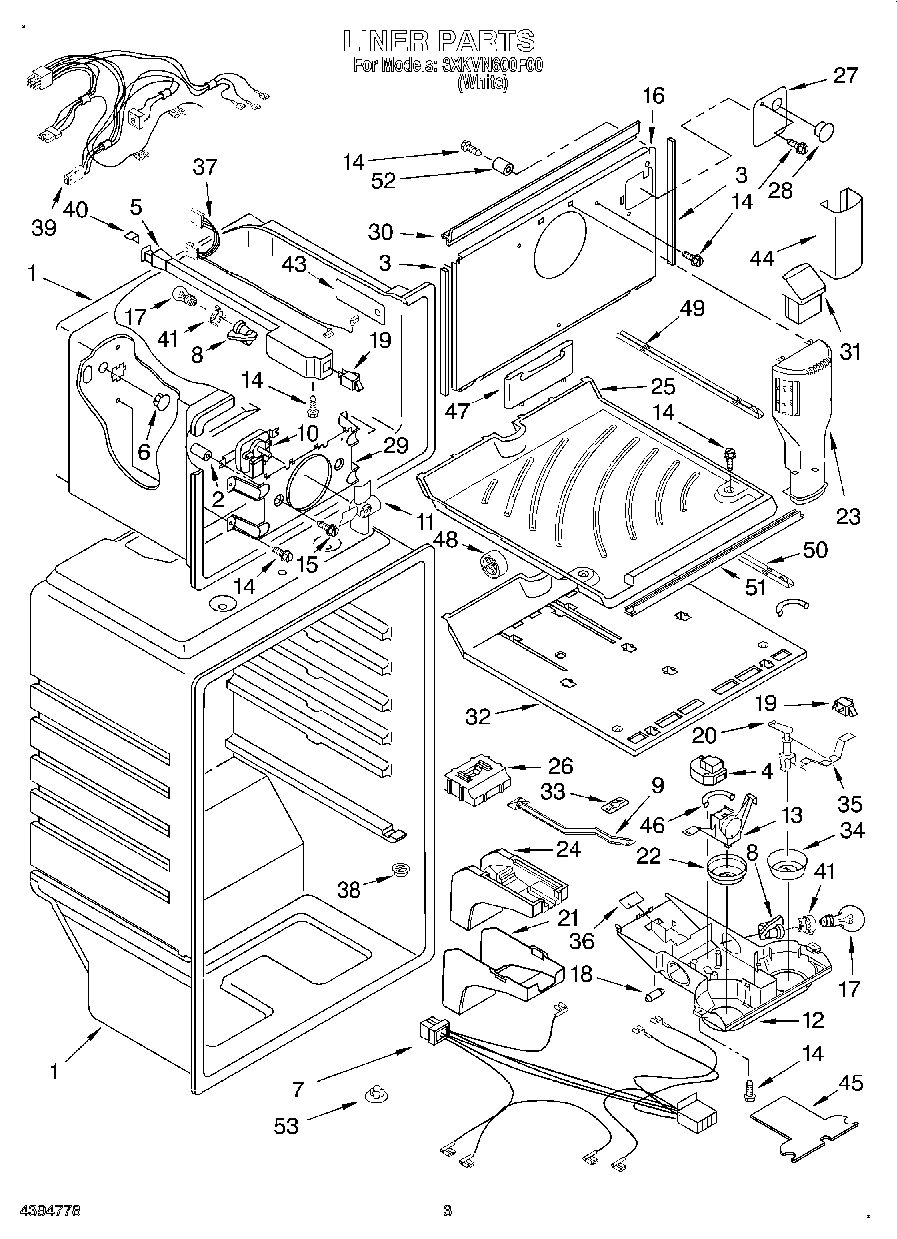

02 - LINER
Common parts from model Whirlpool 3XKVN600F00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2183770 WPL LIT2183770 Contact Us For Availability
WPL LIT2195676 WPL LIT2195676 Contact Us For Availability
WPL LIT2198830 WPL LIT2198830 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Refrigerator Door (Includes No.8) WPL 2183935 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13286A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13291A8 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Divider, Door Shelf WPL 1123293 Contact Us For Availability
4
Cover, Water Valve WPL 2166251 Contact Us For Availability
5
Housing Base WPL 2184633 Contact Us For Availability
6
Screw WPL 2174650 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193492 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
9
Service Cord WPL 1129332 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Retainer, Insert WPL 2168900 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Fan Motor WPL 2183828 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Insert, Handle WPL 2168896 Contact Us For Availability
15
End Cap, Handle WPL 1107236 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Nameplate WPL 2195062 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle WPL 2161509 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171066 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Wire Assembly WPL 2166651 Contact Us For Availability
21
Insert, Handle WPL 2168898 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Featurepak (Includes 2, 17. See also Shelf Pa WPL 2182582 Contact Us For Availability
22
Gasket WPL 2167227 Contact Us For Availability
22
Door Reversal Instructions WPL 2172516 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI13287A6 Contact Us For Availability
25
Support WPL 2189314 Contact Us For Availability
25
Pullout, Freezer Floor WPL 2189846 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI13288A7 Contact Us For Availability
29
Bin, Door Shelf WPL 2171063 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI13289A5 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Freezer Floor WPL 2190589 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Grille WPL 2183991 Contact Us For Availability
37
Wiring Harness, Freezer Light WPL 2189994 Contact Us For Availability
39
Wire Assembly, F.C. WPL 2195657 Contact Us For Availability
40
Gasket, Rear WPL 2166284 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI13290A7 Contact Us For Availability
42
Corner Filler, Grille WPL 2166156 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Electric Shield WPL 2193491 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
44
Sleeve WPL 2179712 Contact Us For Availability
45
Shield WPL 2190519 Contact Us For Availability
47
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
48
Roller, Slide WPL 2176246 Contact Us For Availability
49
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
50
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
51
Trim, Pullout Freezer Floor WPL 2189992 Contact Us For Availability
53
Hole Plug WPL 2166844 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
