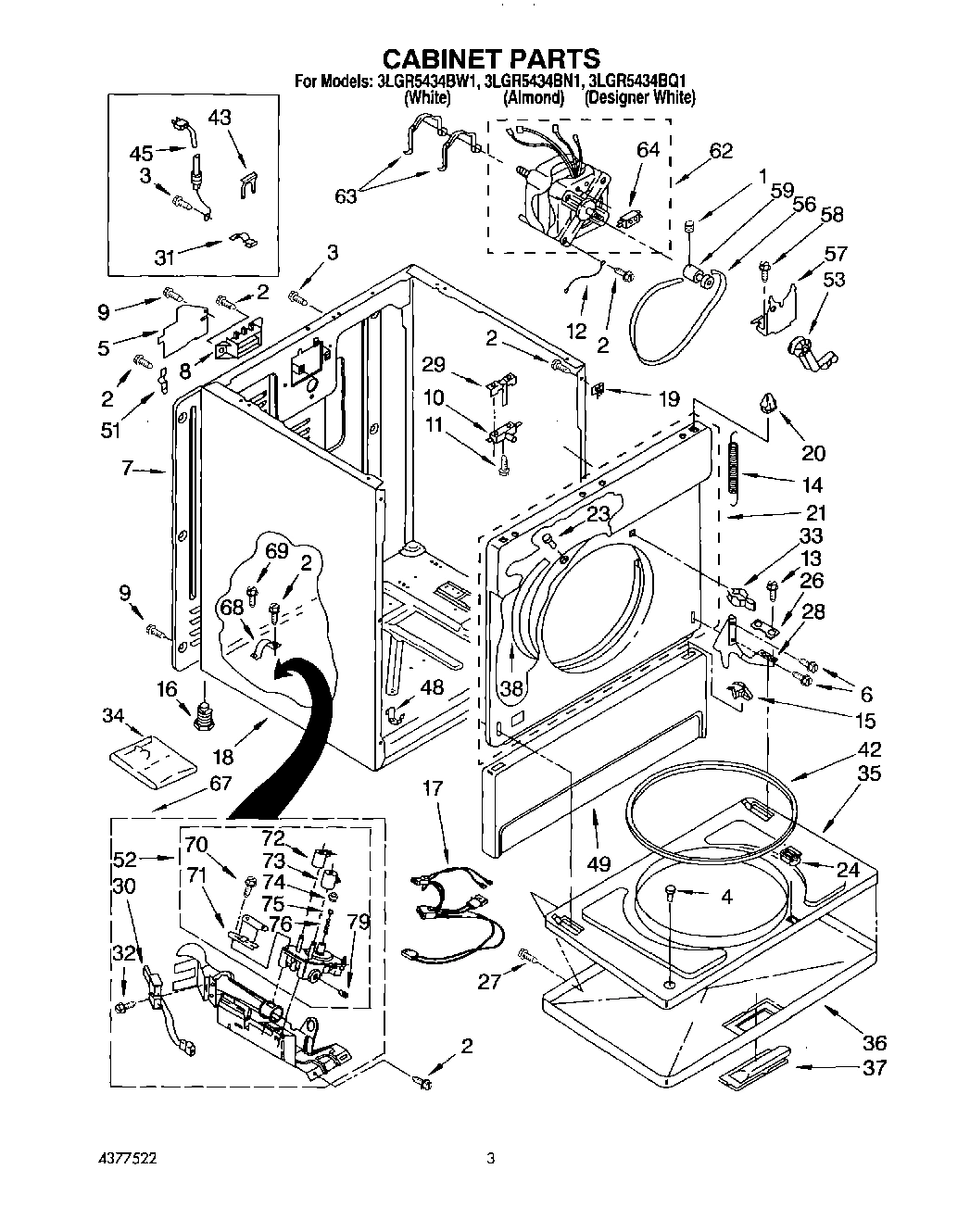

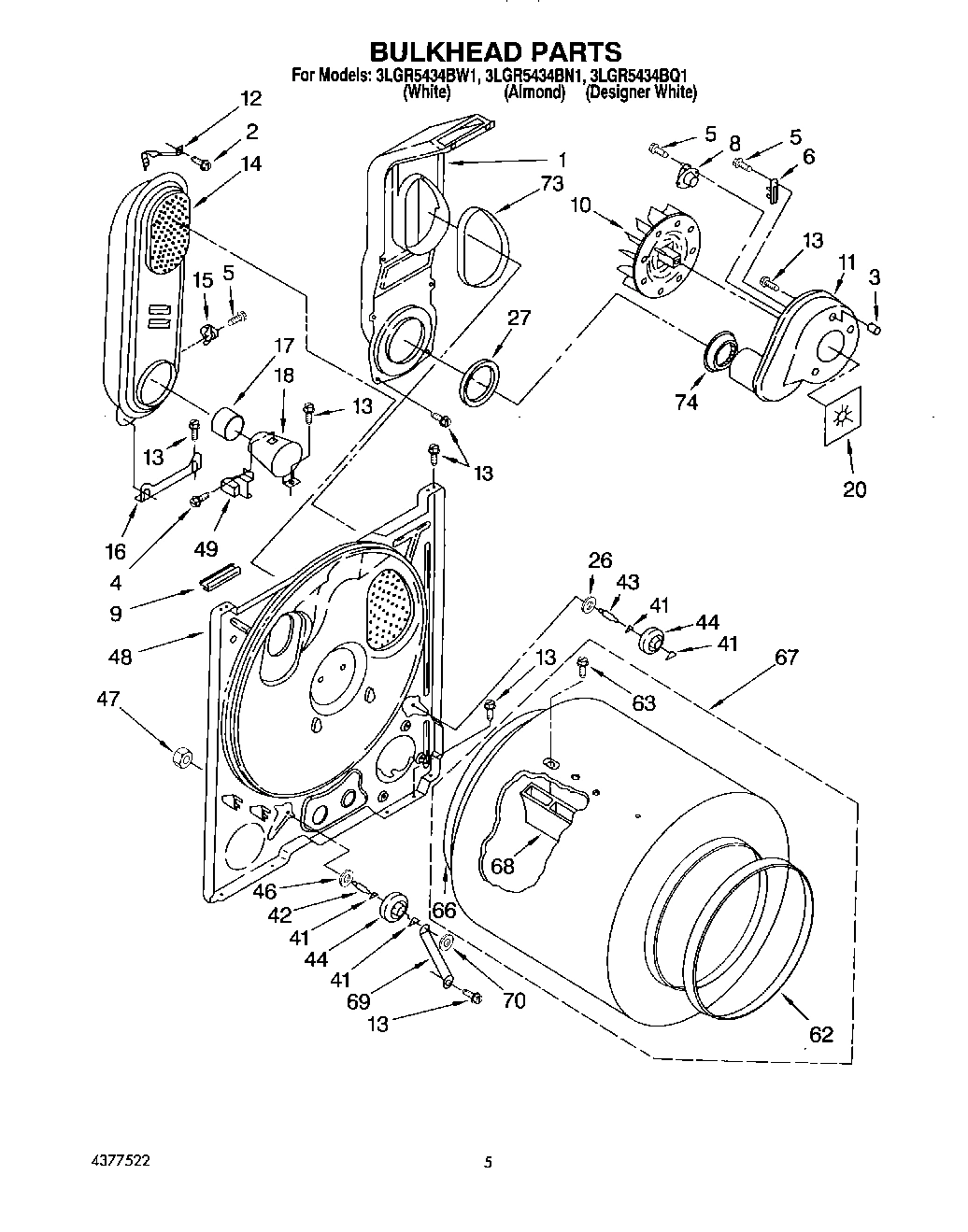

Model Whirlpool 3LGR5434BW1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPL 799344 WPL 799344 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3395333 WPL LIT3395333 Contact Us For Availability

WPL LIT3401011 WPL LIT3401011 Contact Us For Availability

WPL LIT3401070 WPL LIT3401070 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $131.33

1

Panel, Rear Console WPL 3397545 Contact Us For Availability

1

Burner Assembly 50 Hz. (Type 1, 2 & 3) (White WPL 3401772 Contact Us For Availability

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

2

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $3.33

3

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $3.81

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

4

Cap, End (L.H.) (3LGR5434BW1) WPL 3358528 Contact Us For Availability

4

Cap, End (L.H.) (3LGR5434BN1) WPL 3358529 Contact Us For Availability

5

8283286 Whirlpool Wire Harness Backorder WPL 8283286 $27.52

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

7

Cap, End (R.H.) (3LGR5434BW1) WPL 3358513 Contact Us For Availability

7

Cap, End (R.H.) (3LGR5434BN1) WPL 3358514 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

3399638 Whirlpool Switch Backorder WPL 3399638 $46.99

8

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $46.23

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

9

686889 Whirlpool Pad Backorder WPL 686889 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

9

ORIFICE, BURNER TYPE 1 WPL 234660 Contact Us For Availability

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

10

WP8281918 Whirlpool Gas Valve Backorder WPL WP8281918 $148.40

10

SCREEN WPL 339392 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.52

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.52

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP307930 Whirlpool Coil Valve Backorder WPL WP307930 $55.66

14

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

14

WPY307931 Whirlpool Valve Coil Backorder WPL WPY307931 $63.49

15

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

15

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.70

15

Clip, Retainer WPL 689180 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

Support, Heater Box (2) WPL 348484 Contact Us For Availability

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

17

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $32.48

17

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $34.55

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Seal, Blower WPL 3392123 Contact Us For Availability

20

Connector 6-Circuit WPL 3347243 Contact Us For Availability

21

WP3396215 Whirlpool Timer Backorder WPL WP3396215 $221.69

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

25

Connector, 3-Position (Gas Valve) WPL 691707 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.36

27

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.98

28

Hinge, R.H. WPL 687905 Contact Us For Availability

29

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

Harness, Wiring WPL 3401146 Contact Us For Availability

39

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $35.38

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $39.67

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.52

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $35.83

48

Bulkhead WPL 3397264 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (3LGR5434BW1) WPL 3401060 Contact Us For Availability

54

Panel, Control (3LGR5434BQ1) WPL 3401061 Contact Us For Availability

54

Panel, Control (3LGR5434BN1) WPL 3401062 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $44.08

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.33

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $30.40

67

697760 Whirlpool Drum Assembly Primary OS2 Backorder WPL 697760 $241.06

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

74

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.99

W10851673 Whirlpool Transformer Backorder WPL W10851673 $227.00

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $31.71

Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability

Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability

Screw, No. 10 WPL 3394926 Contact Us For Availability

Knob, Push-To-Start (3LGR5434BW1) WPL 3396160 Contact Us For Availability
