Model Whirlpool 3ET18ZKXDN01 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR
03 - SHELF

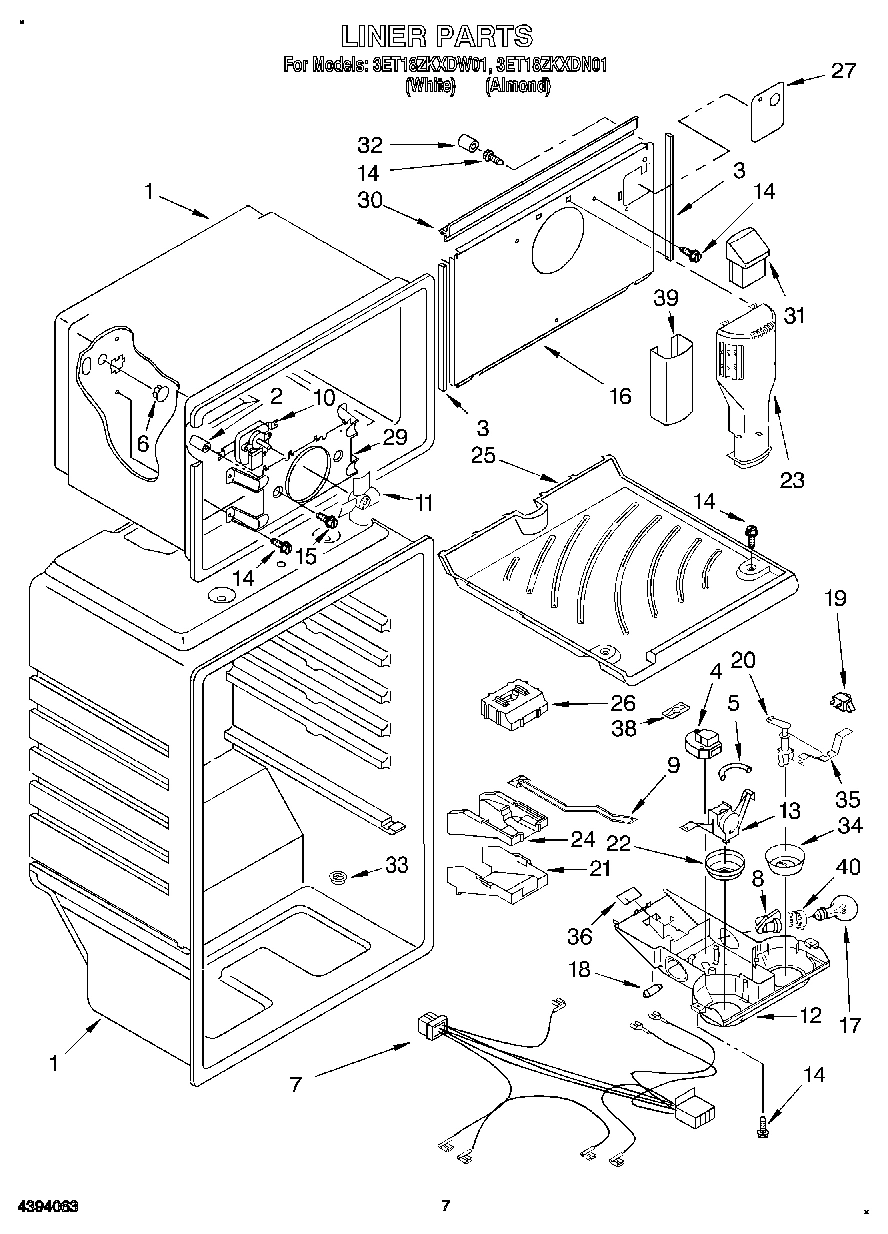

05 - LINER
01 - CABINET

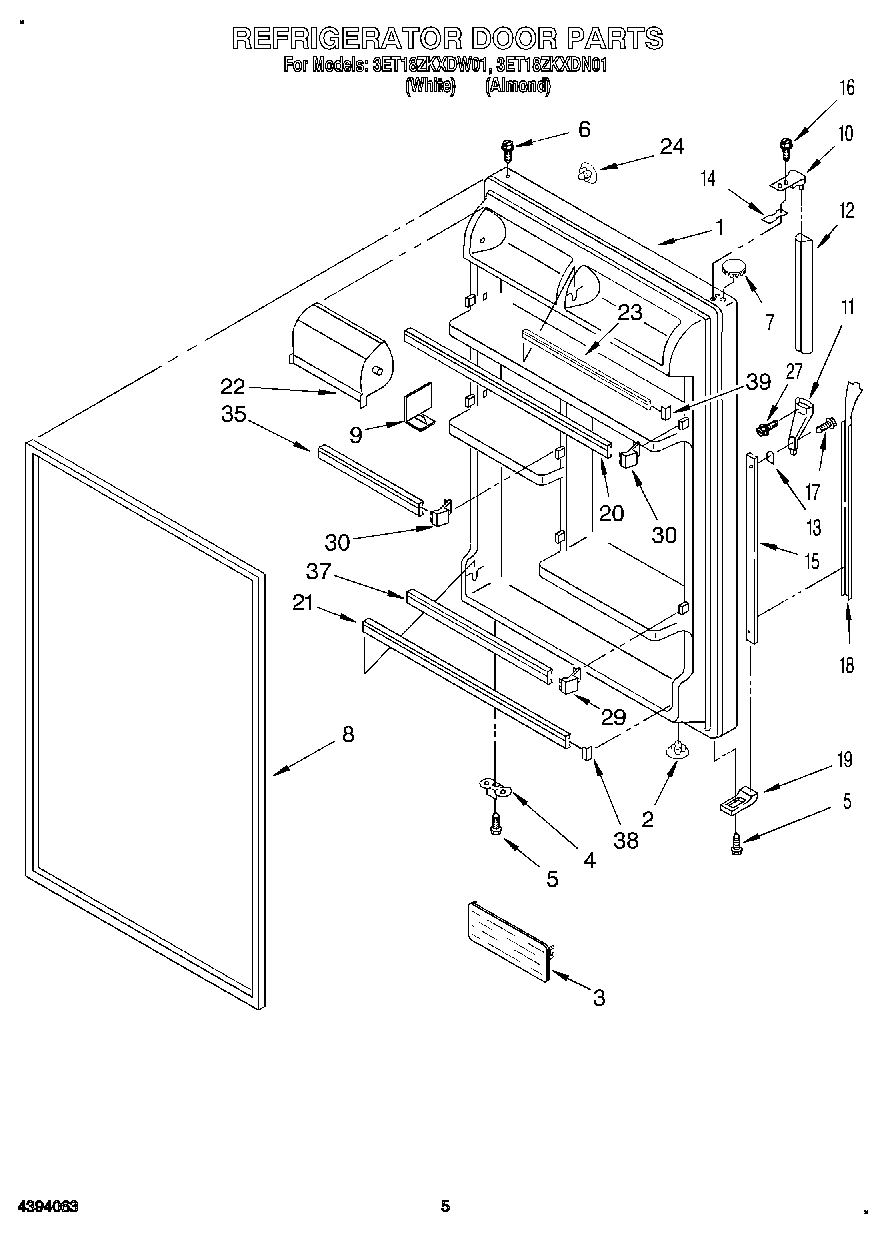

04 - REFRIGERATOR DOOR

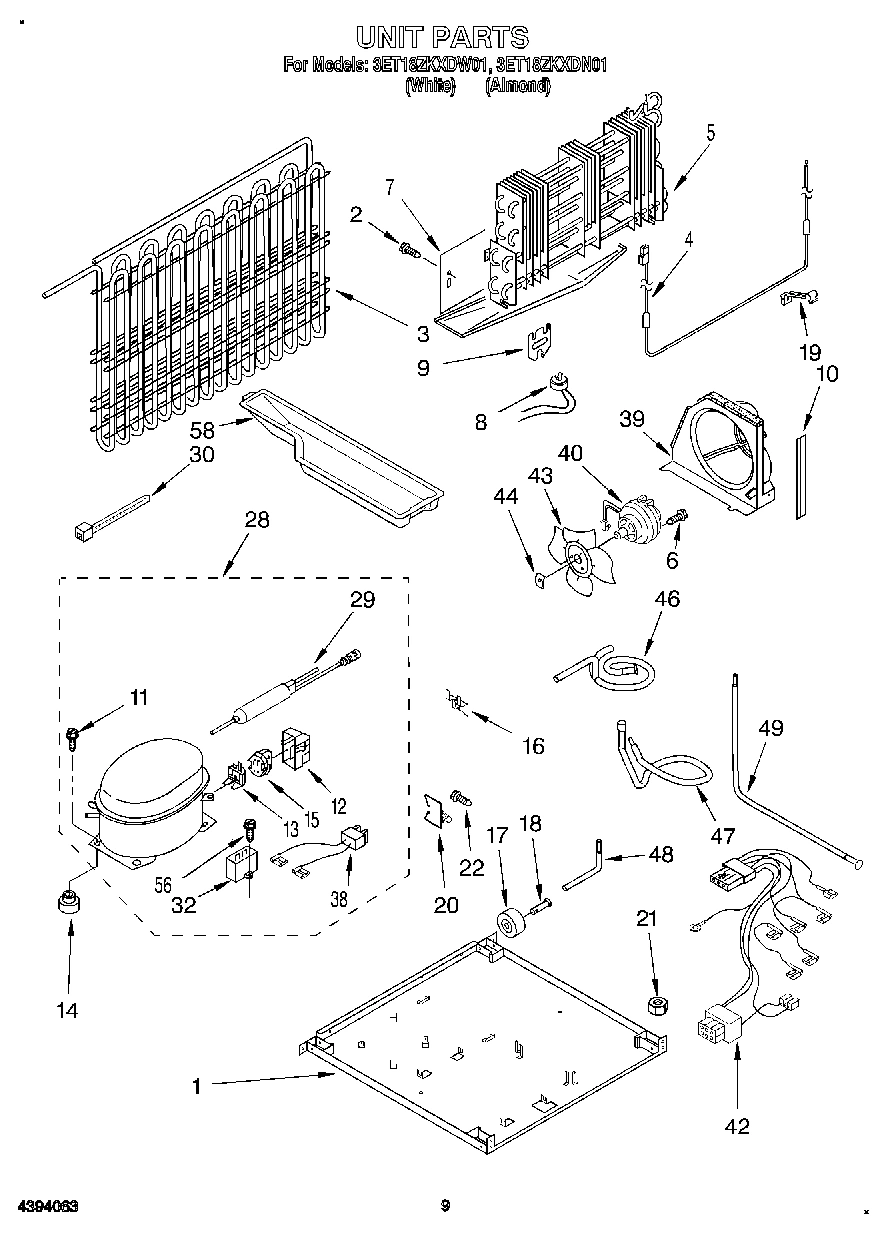

06 - UNIT, LIT/OPTIONAL
Common parts from model Whirlpool 3ET18ZKXDN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2166777 WPL LIT2166777 Contact Us For Availability
WPL LIT2170417 WPL LIT2170417 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12019A3 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2171029 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2171030 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
9
Terminal Block WPL 1129346 Contact Us For Availability
9
Divider, Door Shelf WPL 2160050 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Bushing WPL 1129449 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
11
Screw WPL 489473 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle, Center (Almond) WPL 943276 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Overload (Includes Relay) WPL 2169411 Contact Us For Availability
14
Shim (Top) WPL 943187 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Screw WPL 489346 Contact Us For Availability
15
Screw WPL 489459 Contact Us For Availability
15
Retainer WPL 2159417 Contact Us For Availability
15
Relay (See Overload) WPL ARI12025A8 Contact Us For Availability
16
Clip WPL 2166683 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Insert, Handle (White) WPL 2166438 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2166784 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Wire Assembly, Terminal Box WPL 2166651 Contact Us For Availability
19
Endcap WPL 1105804 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Trim, Door Shelf WPL 2171038 Contact Us For Availability
20
Clip, Wire WPL 489435 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket WPL 2167227 Contact Us For Availability
21
Trim, Door Shelf WPL 2184570 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI12026A1 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
23
Trim, Door Shelf WPL 2171040 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12020A2 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (12) (Almond) WPL 2151653 Contact Us For Availability
27
Screw WPL 489022 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI12021A1 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI12022A5 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Trim, Door Shelf WPL 2171039 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Trim-Door Shelf WPL 2171041 Contact Us For Availability
38
Clip, Defrost (2) WPL 2176341 Contact Us For Availability
39
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI12023A4 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Door Reversal Instructions WPL 2172516 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
58
WPL 799832 WPL 799832 Contact Us For Availability
58
WPL 799833 WPL 799833 Contact Us For Availability
58
WPL 978028 WPL 978028 Contact Us For Availability
58
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
