Model Whirlpool 3ED27DQXAN01 REFRIGERATOR – Common Parts & Diagrams
03 - REFRIGERATOR SHELF
10 - AIR FLOW

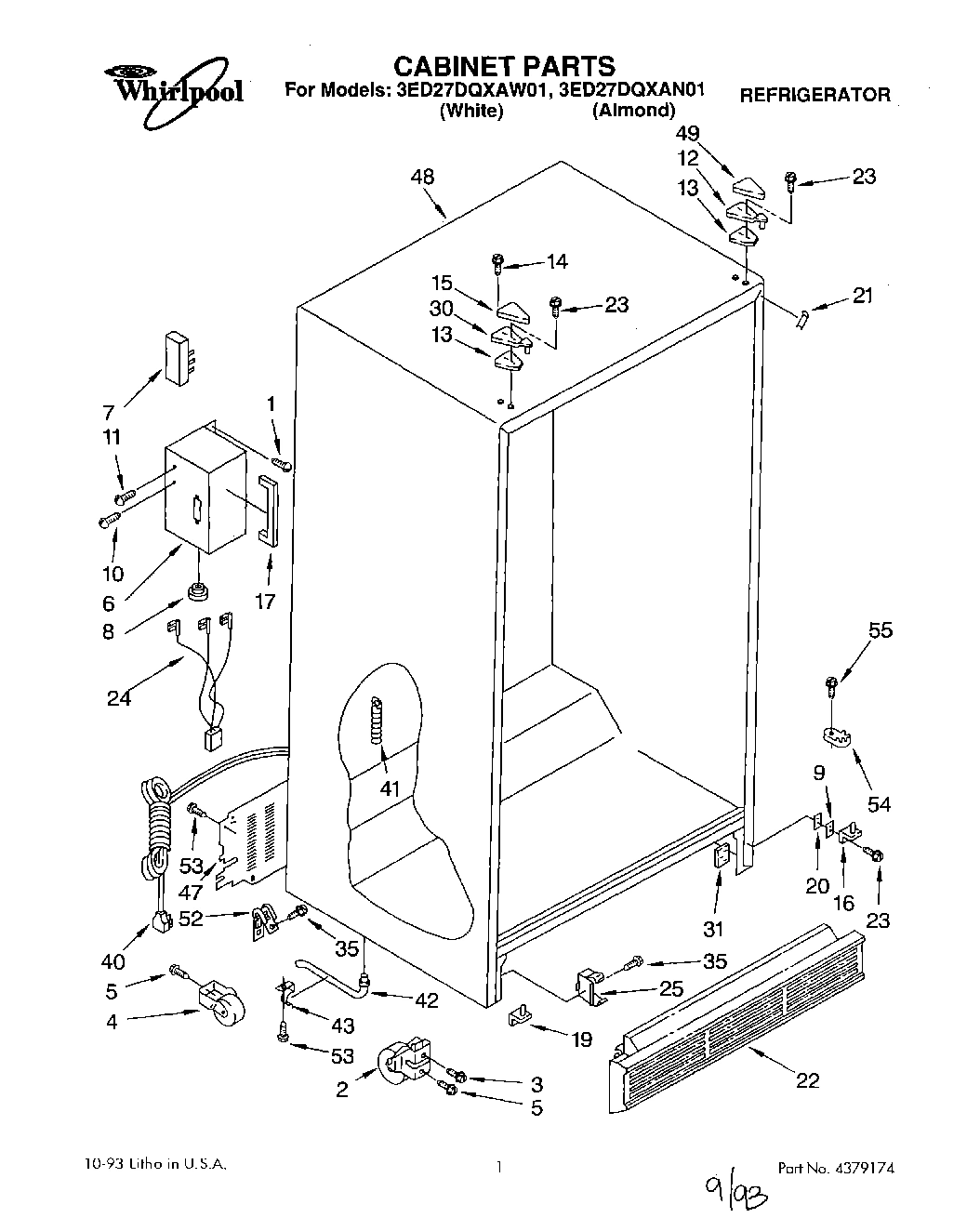

01 - CABINET

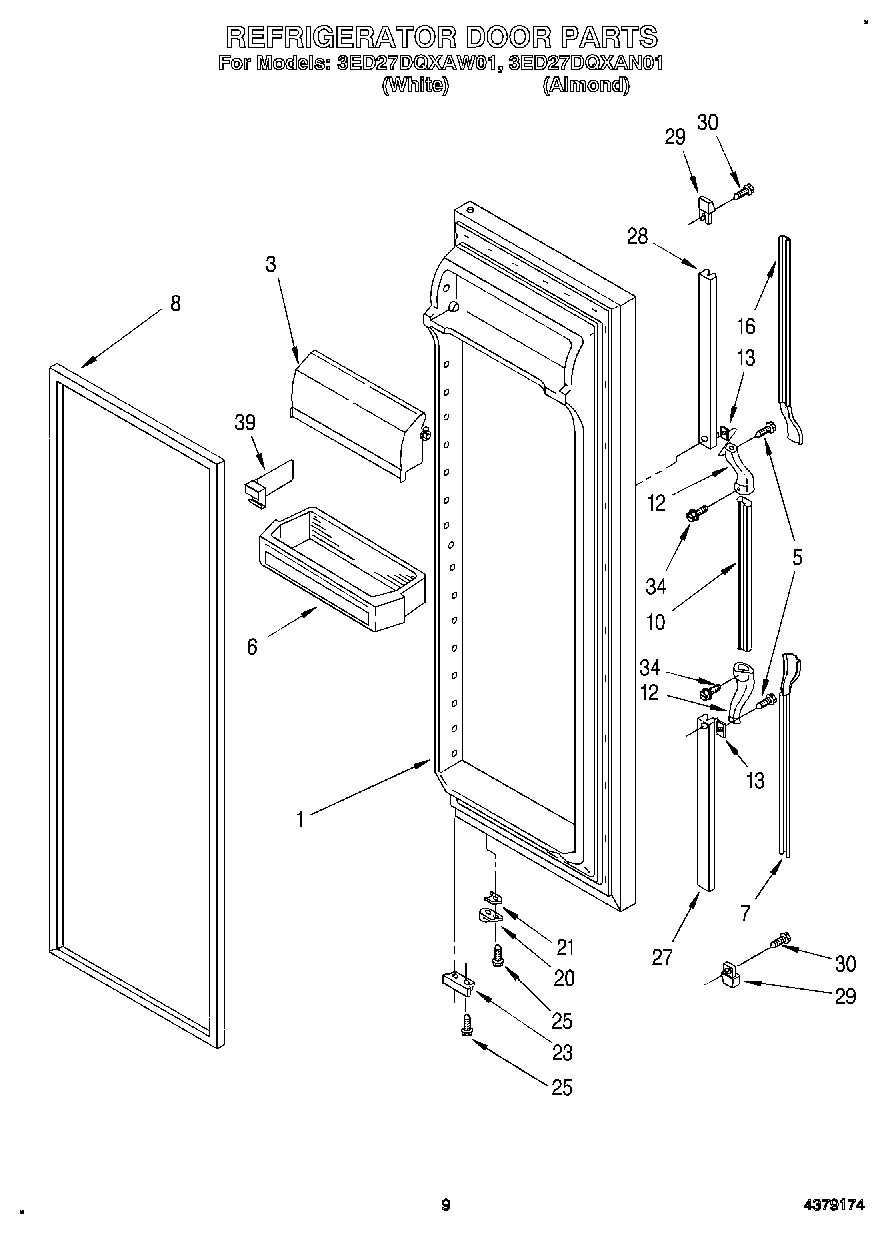

06 - REFRIGERATOR DOOR
07 - FREEZER DOOR

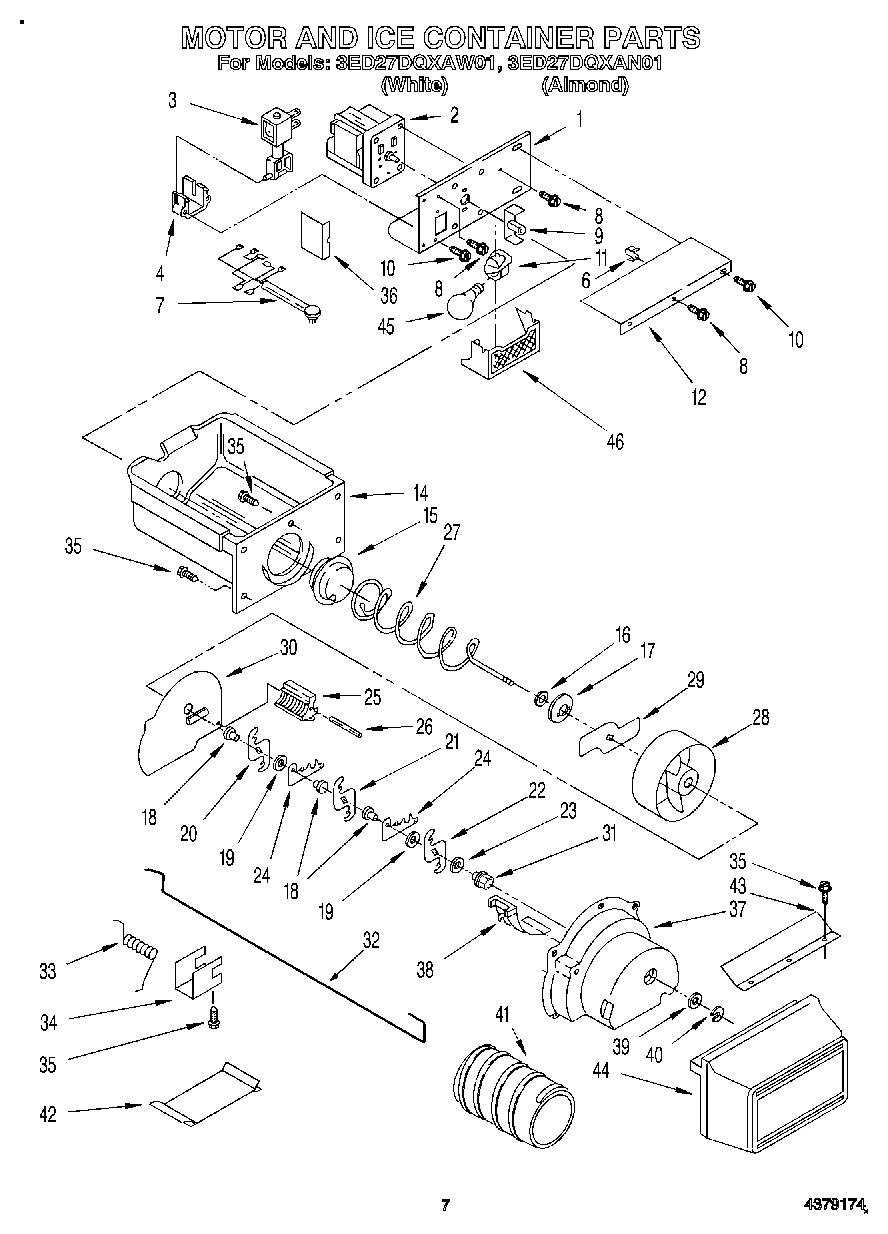

05 - MOTOR AND ICE CONTAINER

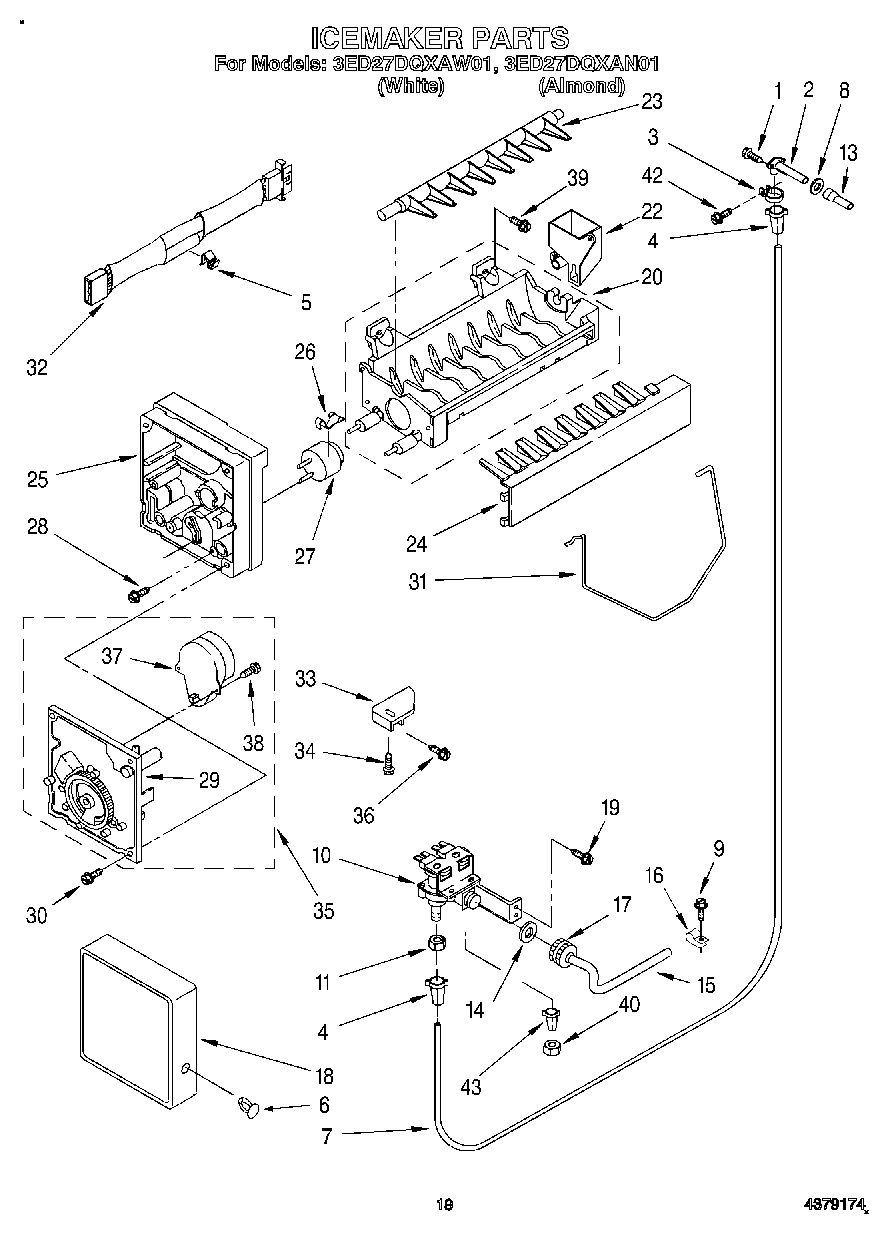

12 - ICEMAKER, LIT/OPTIONAL

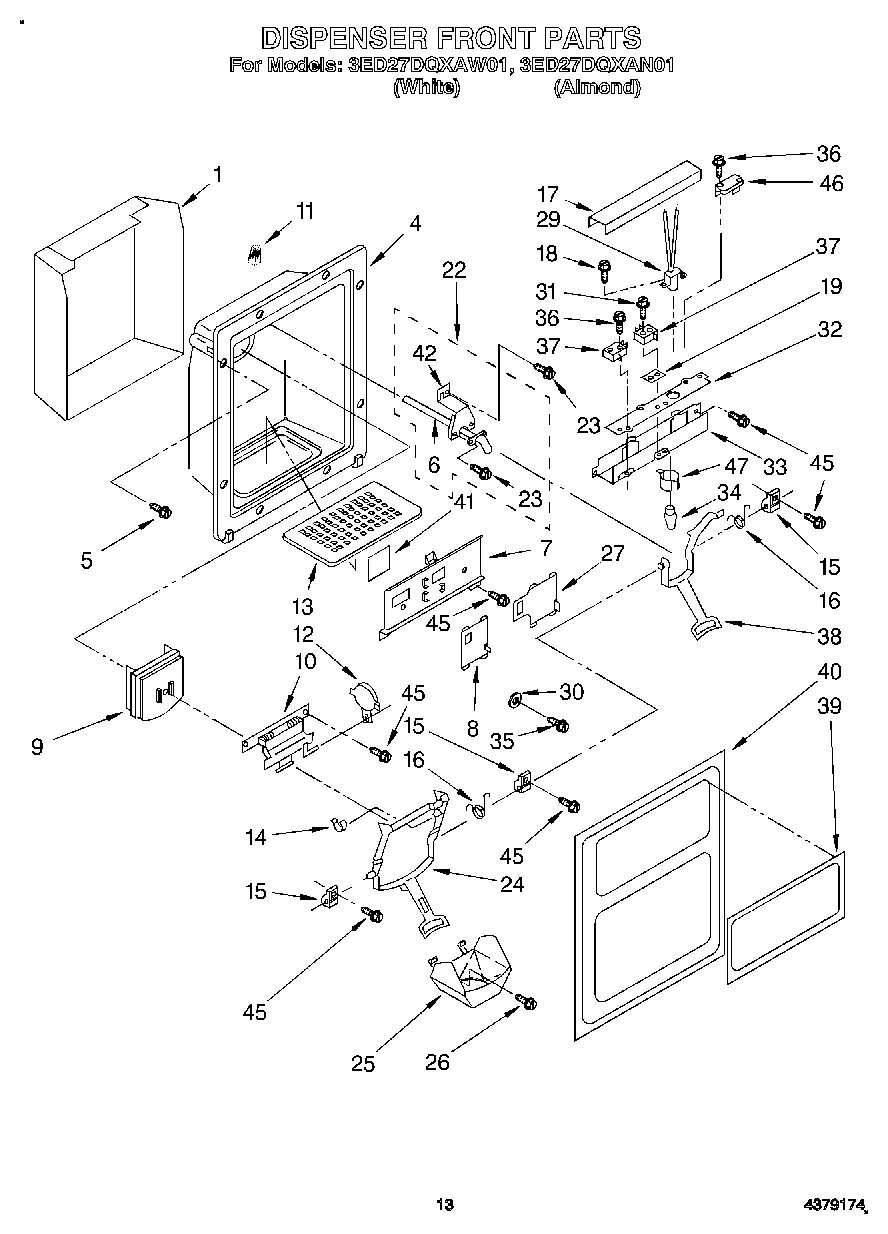

08 - DISPENSER FRONT

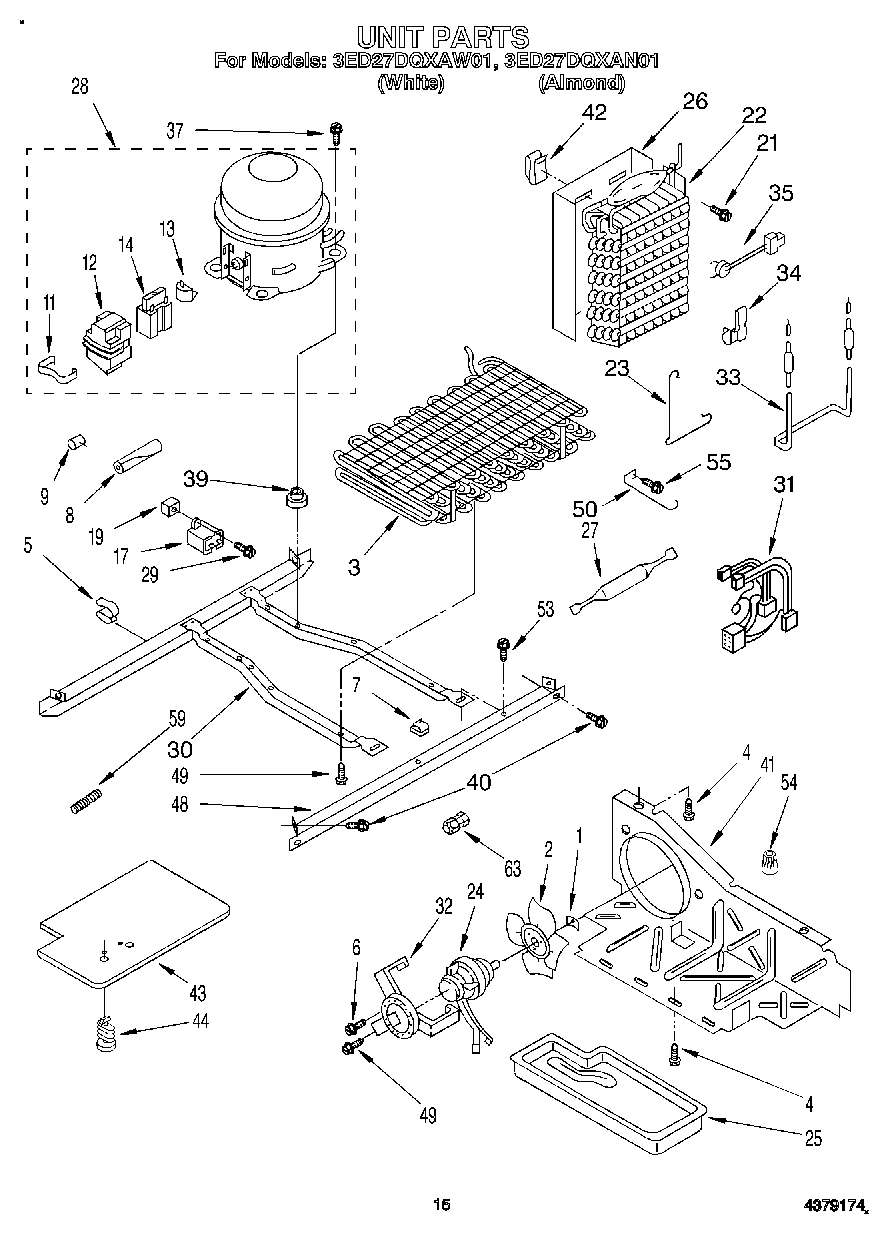

09 - UNIT

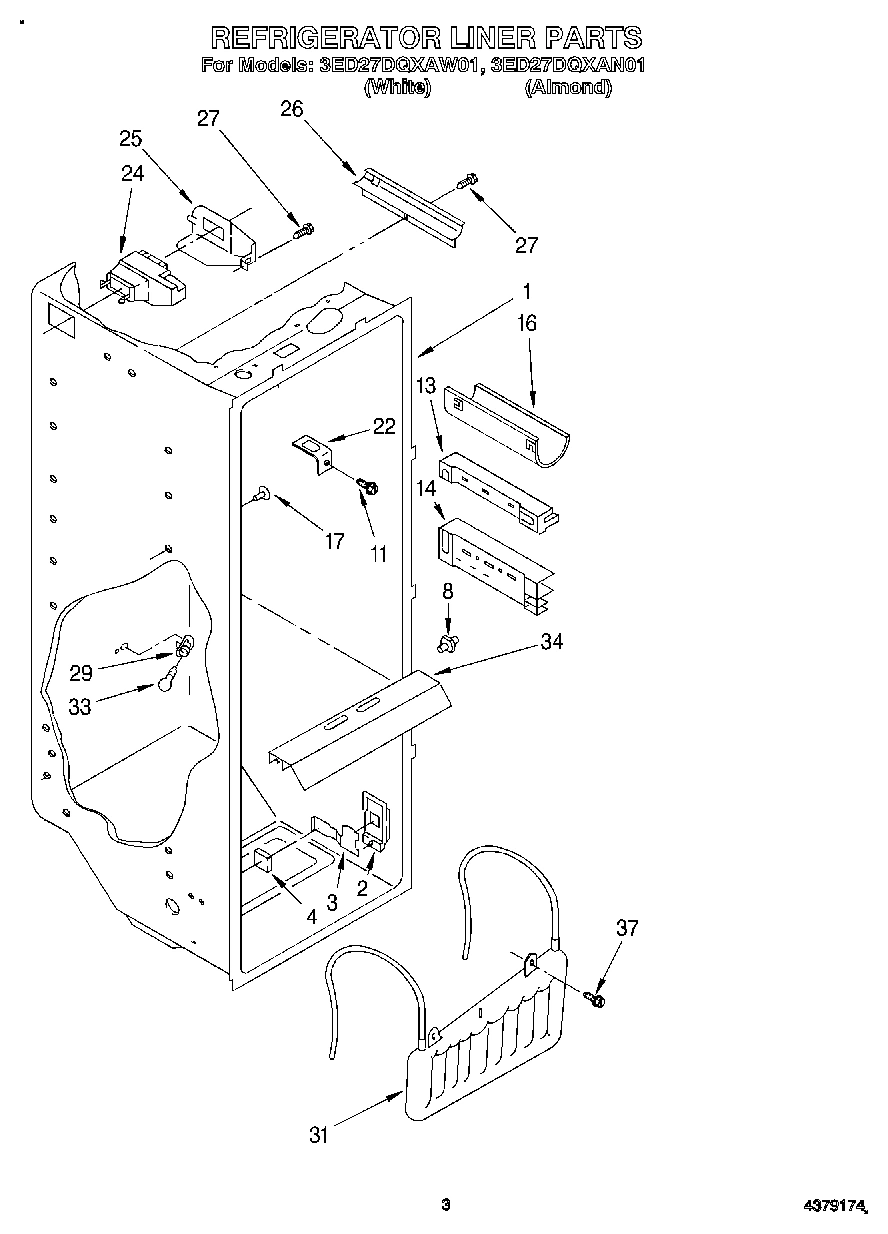

02 - REFRIGERATOR LINER

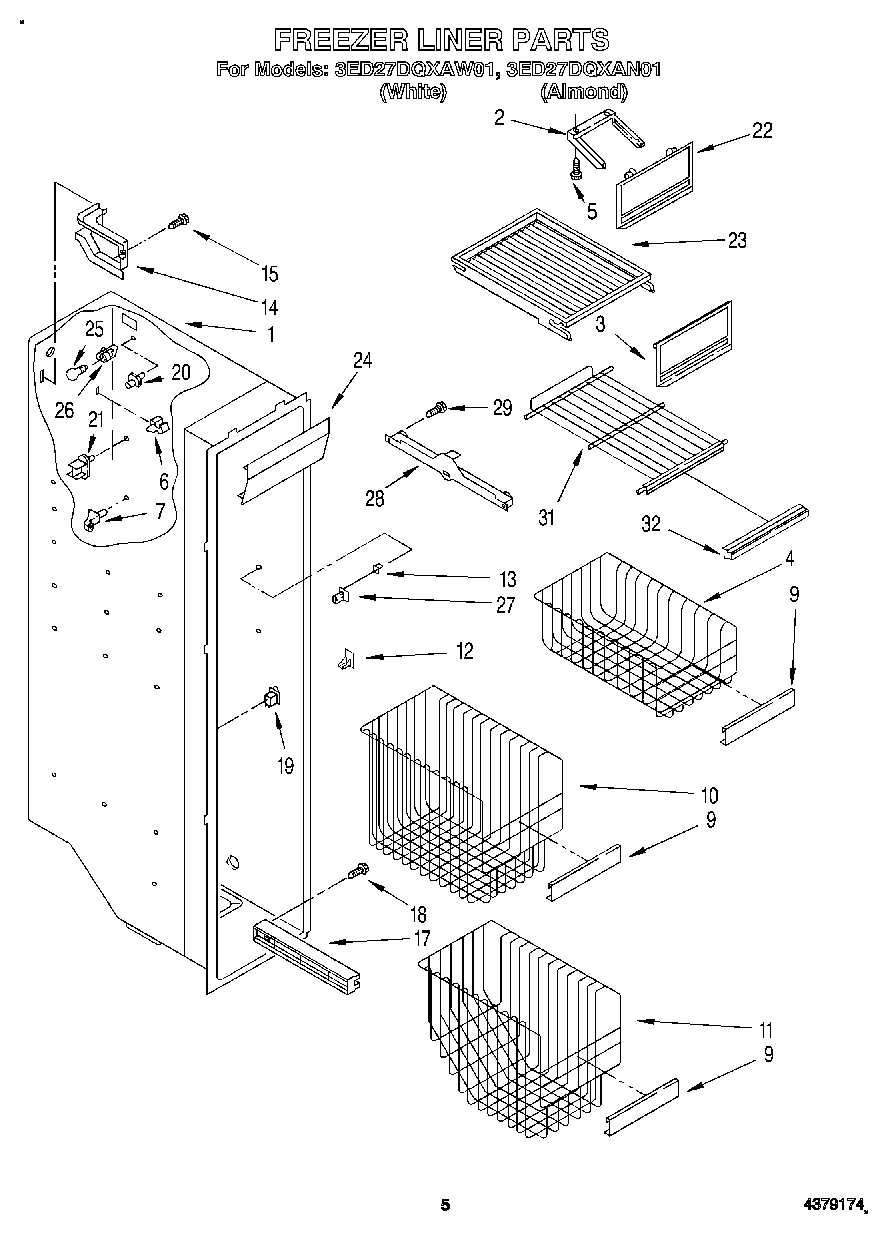

04 - FREEZER LINER

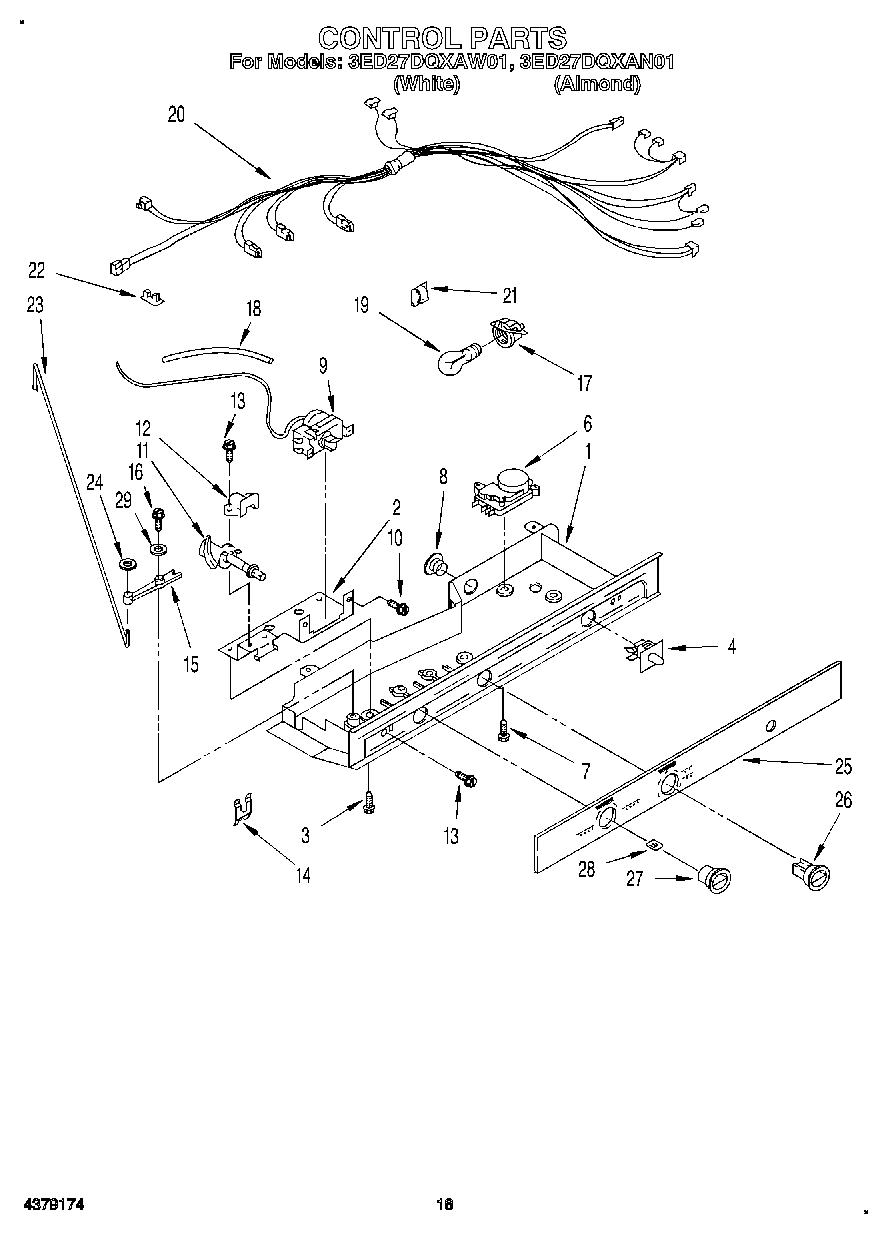

11 - CONTROL
Common parts from model Whirlpool 3ED27DQXAN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2165246 WPL LIT2165246 Contact Us For Availability
WPL LIT2167329 WPL LIT2167329 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Freezer Door (Includes Item No.10 And Dispens WPL 2167320 Contact Us For Availability
1
Freezer Door (Includes Item No.10 And Dispens WPL 2167321 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI11843A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI11844A6 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Handle, Center (White) WPL 1124713 Contact Us For Availability
3
Handle, Center (Almond) WPL 943079 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1124834 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI11845A9 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Basket WPL 2155600 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI11846A9 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Shelf Bin (4) WPL 2150137 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
10
Valve, Solenoid WPL 2165238 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Overload (Includes Relay) WPL 2154758 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Trim, Door Shelf WPL 2159192 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Relay (See Overload) WPL ARI11847A5 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Cover WPL 628329 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Evaporator WPL 2155501 Contact Us For Availability
22
Door, Top Compartment WPL 1124833 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf Stud WPL 1115290 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Chute, Ice WPL 2156145 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14 & 1 WPL 2154754 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Bracket, Door Stop WPL 2157611 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
34
Insert, Handle (White) WPL 1119373 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
36
Screw WPL 486214 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
39
Divider (2) WPL 2152335 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2150318 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162690 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2150313 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2162702 Contact Us For Availability
41
Heat Shield, Fra WPL 2147172 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Screw WPL 489022 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
WPL 1129333 WPL 1129333 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
