  • Whirlpool 3CE2110XMW1 Parts List

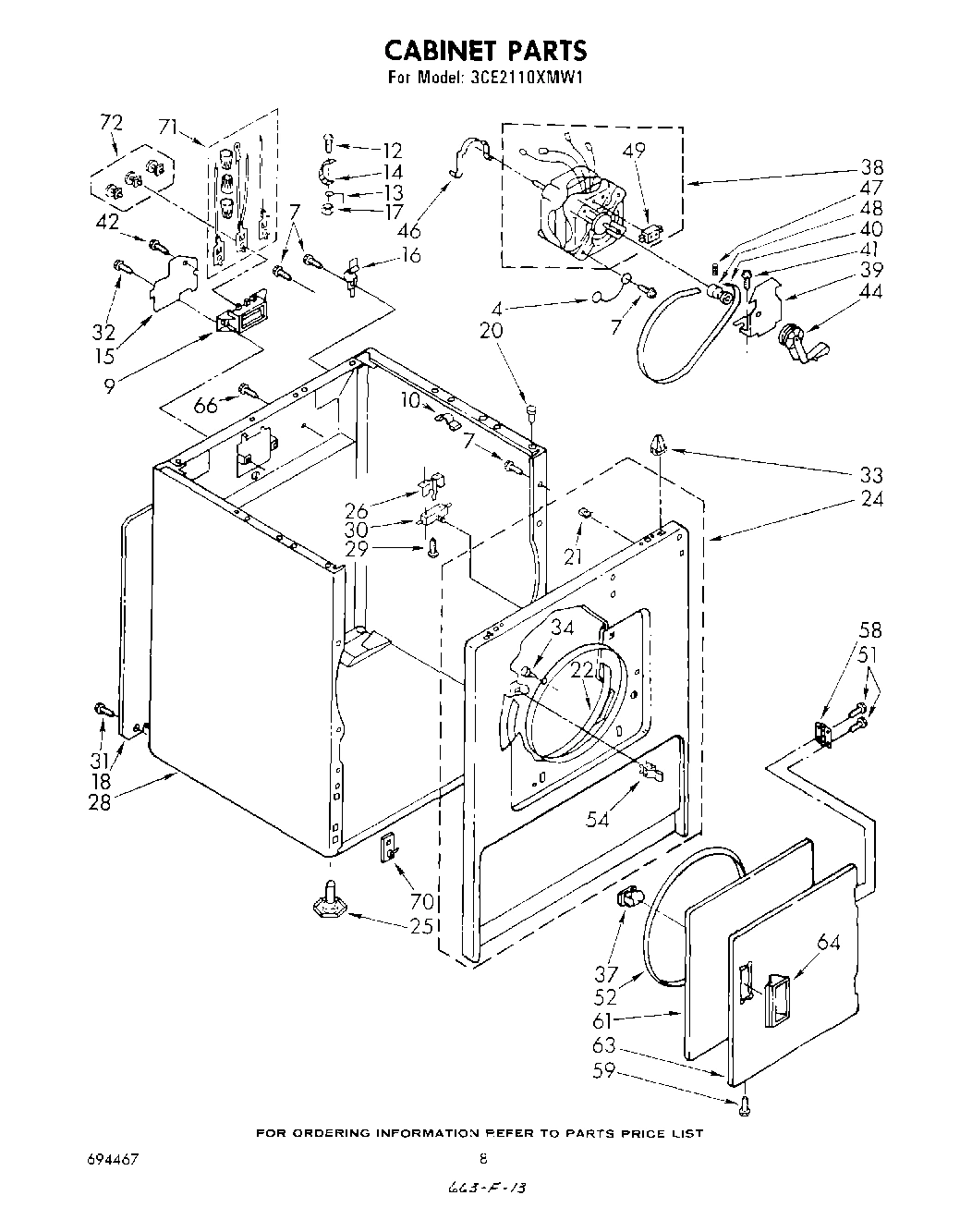

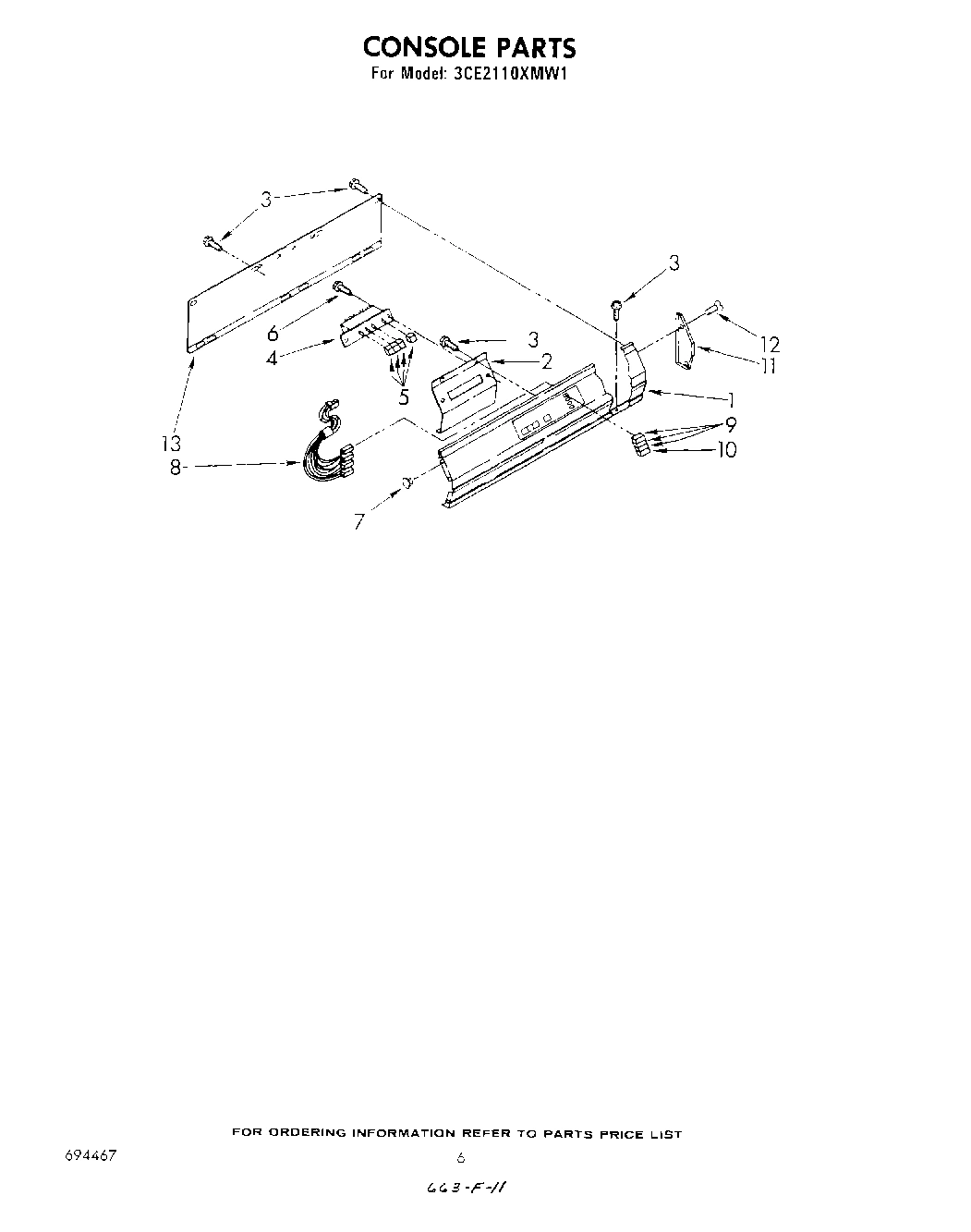

Model Whirlpool 3CE2110XMW1 ELECTRIC DRYER – Common Parts & Diagrams

1
billboard, console
billboard, console WPL 695006 Contact Us For Availability
View on Model
1
Box, Control (White)
Box, Control (White) WPL 694870 Contact Us For Availability
View on Model
1
Harness, Console
Harness, Console WPL 695077 Contact Us For Availability
View on Model
2
Bracket, Control
Bracket, Control WPL 386567 Contact Us For Availability
View on Model
2
Plate, Timer Mounting
Plate, Timer Mounting WPL 386791 Contact Us For Availability
View on Model
2
Cap, Terminal (6-Way) (Uses Terminal 94614)
Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability
View on Model
3
Cap, Terminal (9 Way) (Uses Terminal 94613)
Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability
View on Model
4
Switch, Pushbutton
Switch, Pushbutton WPL 693987 Contact Us For Availability
View on Model
4
Lever, Timer
Lever, Timer WPL 694583 Contact Us For Availability
View on Model
4
harness, lower
harness, lower WPL 695515 Contact Us For Availability
View on Model
4
seal
seal WPL 347129 Contact Us For Availability
View on Model
5
Pushbutton (4)
Pushbutton (4) WPL 385798 Contact Us For Availability
View on Model
5
Screw, Lever To Timer
Screw, Lever To Timer WPL 98831 Contact Us For Availability
View on Model
5
Plug, Terminal (9 Way) (Uses Terminal 94614)
Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability
View on Model
6
Timer (Includes 6 Pin Timing Cam)
Timer (Includes 6 Pin Timing Cam) WPL 688621 Contact Us For Availability
View on Model
6
thermostat 180.o F (82.2.o C) (alt.)
thermostat 180.o F (82.2.o C) (alt.) WPL 341197 Contact Us For Availability
View on Model
6
thermostat 180.o F (82.2.o C)
thermostat 180.o F (82.2.o C) WPL 660368 Contact Us For Availability
View on Model
7
Plug, Button
Plug, Button WPL 54690 Contact Us For Availability
View on Model
8
Lights, Indicator
Lights, Indicator WPL 358750 Contact Us For Availability
View on Model
8
Harness, Timer
Harness, Timer WPL 695569 Contact Us For Availability
View on Model
9
Lens, Amber (3)
Lens, Amber (3) WPL 301006 Contact Us For Availability
View on Model
9
Plug, Terminal (6 Way)
Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability
View on Model
10
Lens, Yellow (1)
Lens, Yellow (1) WPL 358741 Contact Us For Availability
View on Model
11
Cap, End (R.H.)
Cap, End (R.H.) WPL 385800 Contact Us For Availability
View on Model
11
Bushing, Snap
Bushing, Snap WPL 352481 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 348494 Contact Us For Availability
View on Model
12
Cover, Control Box
Cover, Control Box WPL 694568 Contact Us For Availability
View on Model
13
Panel, Rear Billboard
Panel, Rear Billboard WPL 386370 Contact Us For Availability
View on Model
14
Button, Timer Set
Button, Timer Set WPL 386276 Contact Us For Availability
View on Model
14
Box, Heater
Box, Heater WPL 685457 Contact Us For Availability
View on Model
16
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
16
Seal, Blower
Seal, Blower WPL 694630 Contact Us For Availability
View on Model
17
Heater Element
Heater Element WPL 694430 Contact Us For Availability
View on Model
18
Panel, Control Box Rear
Panel, Control Box Rear WPL 295871 Contact Us For Availability
View on Model
19
Cover, Lint Screen
Cover, Lint Screen WPL 688150 Contact Us For Availability
View on Model
21
Top (White)
Top (White) WPL 695009 Contact Us For Availability
View on Model
22
Nut, Push-In (8)
Nut, Push-In (8) WPL 98219 Contact Us For Availability
View on Model
24
Relay, 50 Hz.
Relay, 50 Hz. WPL 688642 Contact Us For Availability
View on Model
25
Shield, Relay
Shield, Relay WPL 691220 Contact Us For Availability
View on Model
47
Set Screw
Set Screw WPL 690046 Contact Us For Availability
View on Model
48
Bulkhead
Bulkhead WPL 3387227 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8 (3)
Screw, 11-16 x 7/8 (3) WPL 690372 Contact Us For Availability
View on Model
74
Bracket, Support Shaft
Bracket, Support Shaft WPL 348945 Contact Us For Availability
View on Model
76
WPL 799344
WPL 799344 WPL 799344 Contact Us For Availability
View on Model
76
Instructions, Multi-Venting
Instructions, Multi-Venting WPL 348772 Contact Us For Availability
View on Model
76
Leveler (Thinner)
Leveler (Thinner) WPL 350941 Contact Us For Availability
View on Model
76
Instructions, Installation
Instructions, Installation WPL 687456 Contact Us For Availability
View on Model
76
list, service
list, service WPL 694467 Contact Us For Availability
View on Model
