Model GE 363.59577996 Refrigerator (Kenmore 36359577996) – Common Parts & Diagrams
DISPENSER
ICE BUCKET

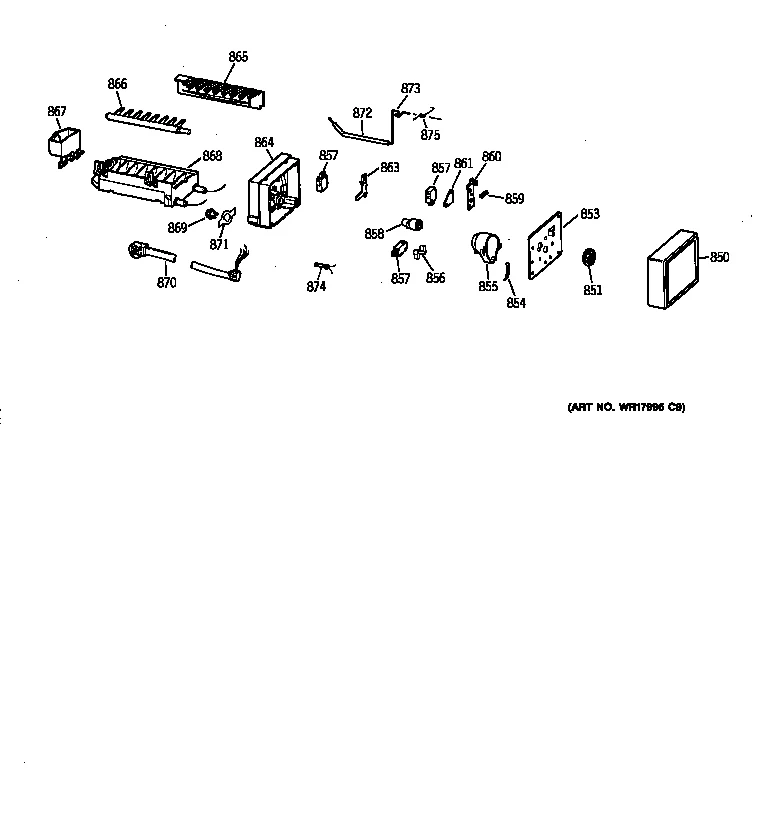

ICEMAKER WR30X0327

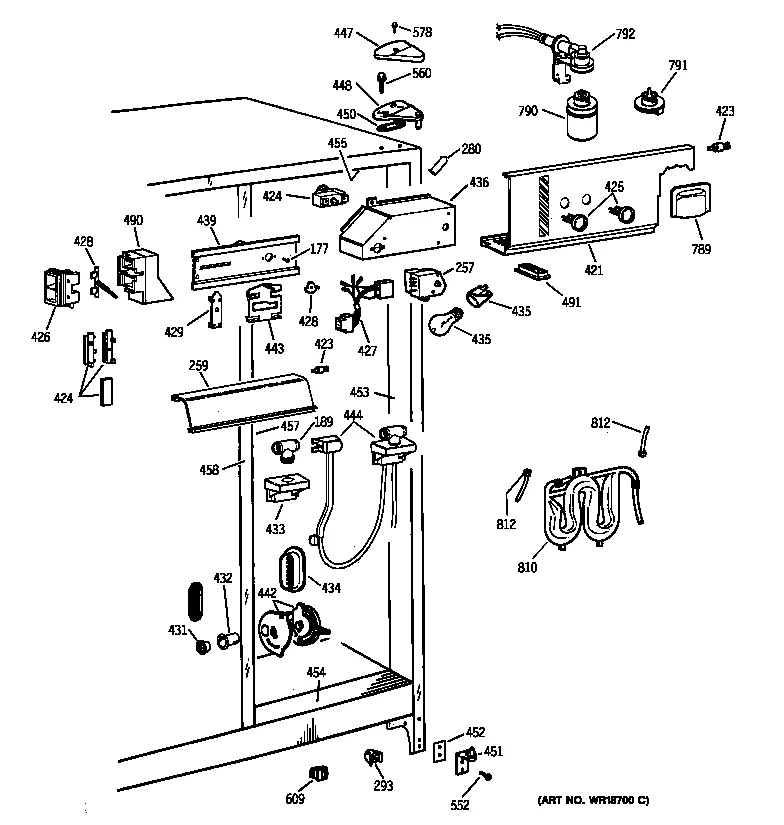

FRESH FOOD SECTION

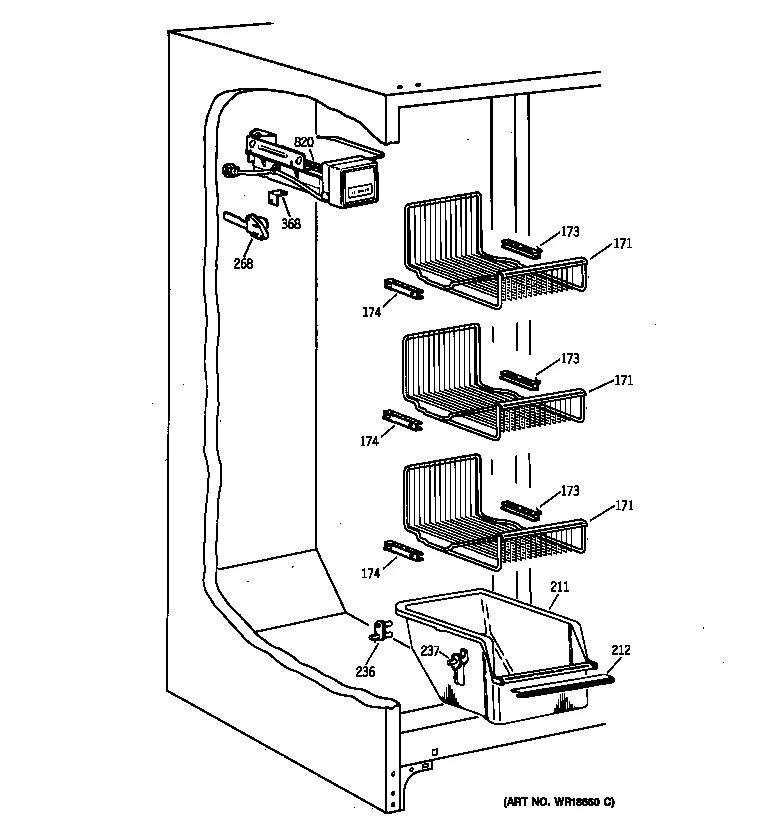

FREEZER SECTION
All Parts

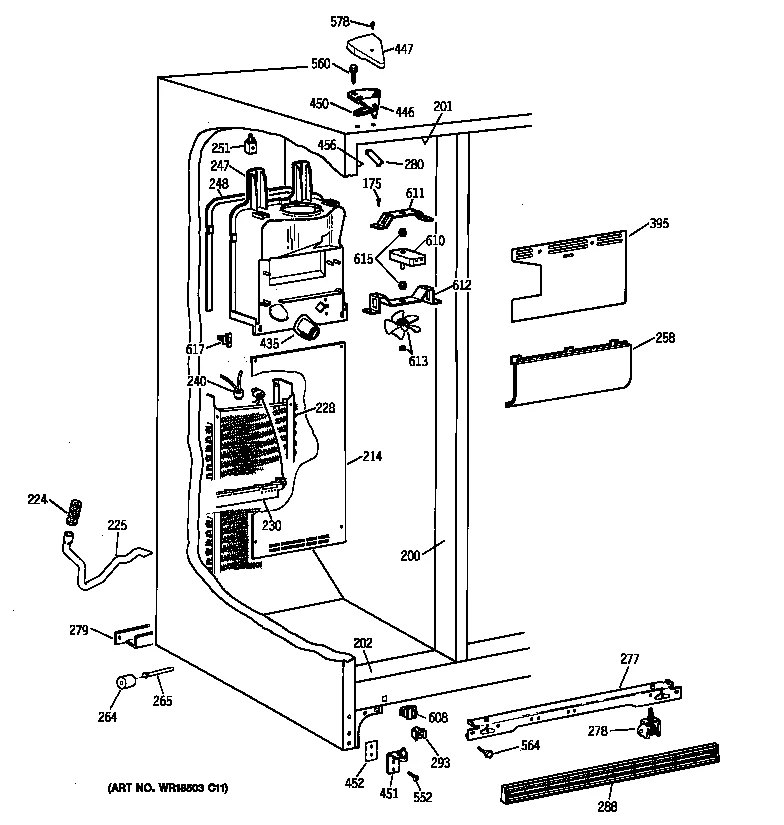

FREEZER SECTION

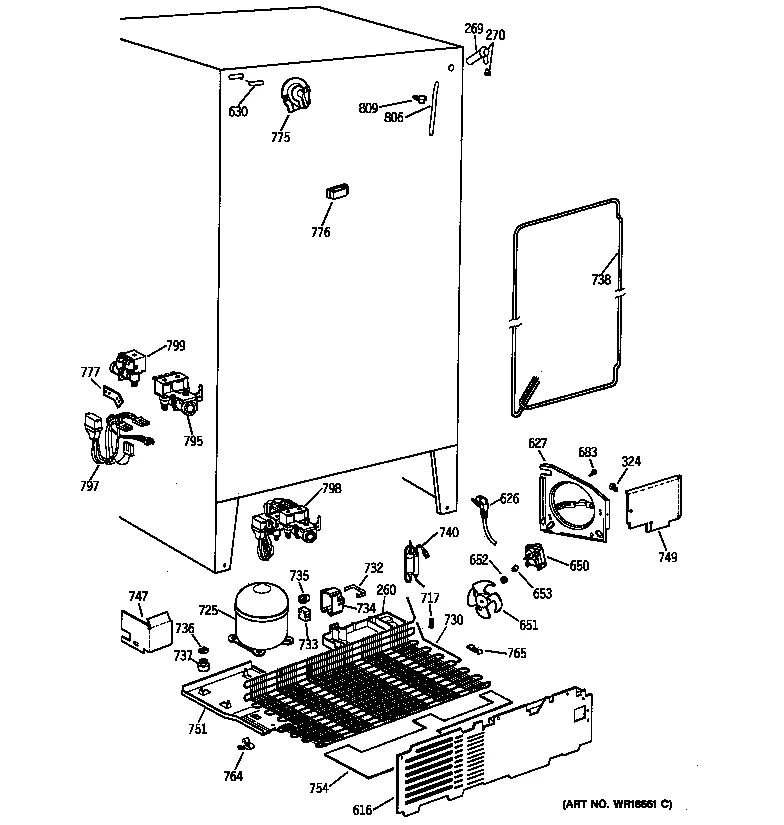

UNIT PARTS

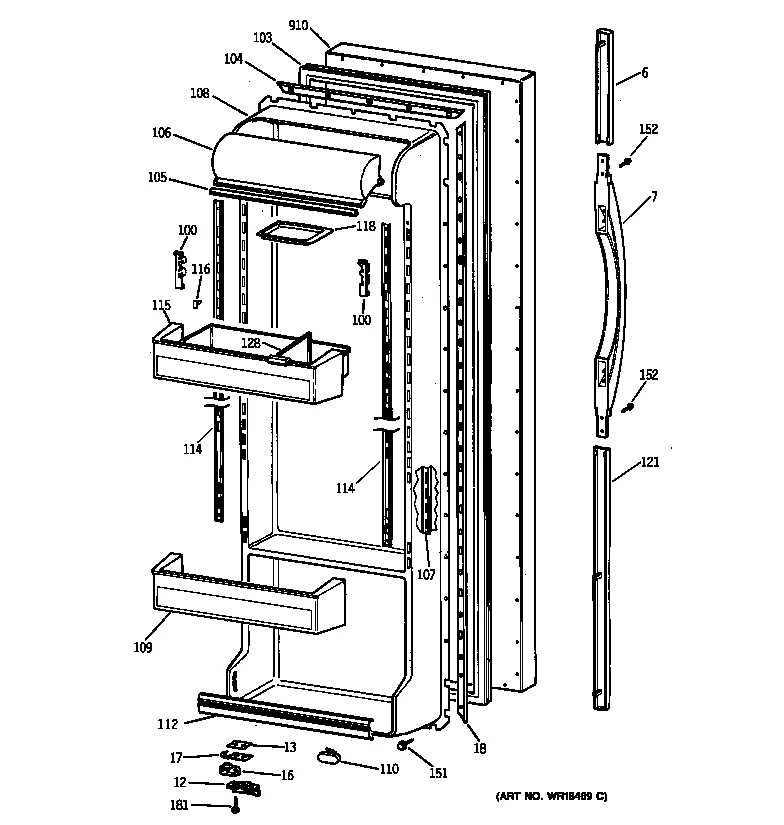

FRESH FOOD DOOR

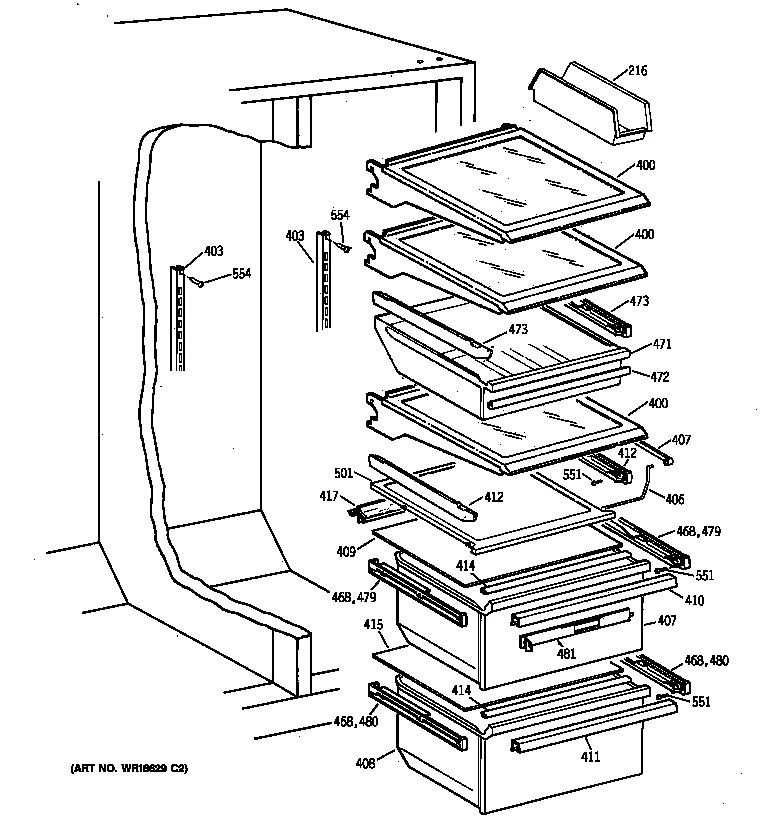

FRESH FOOD SHELVES

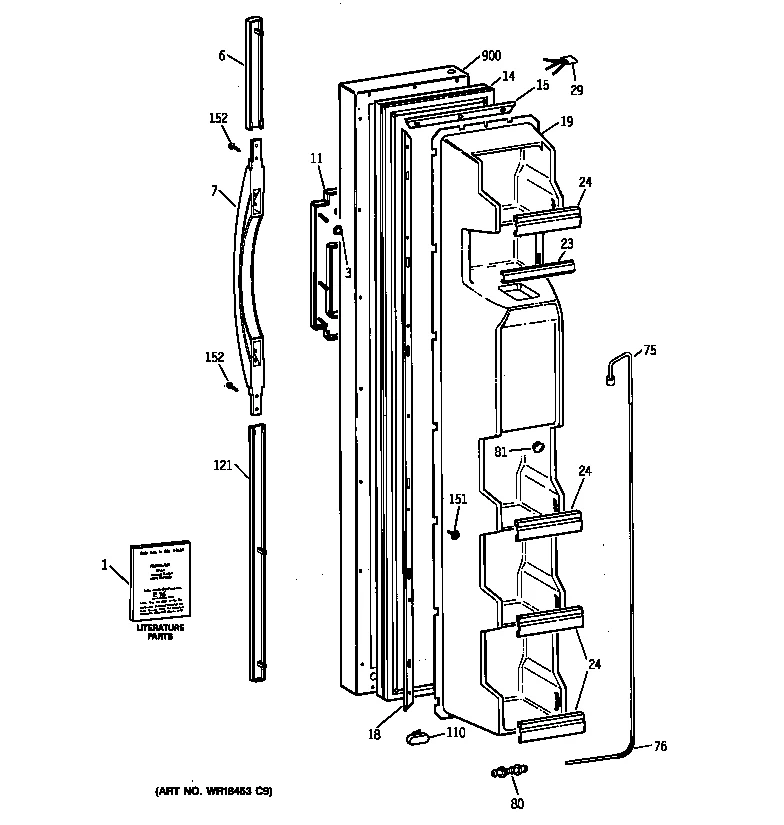

FREEZER DOOR
Common parts from model GE 363.59577996 Refrigerator (Kenmore 36359577996)
1A
Refrigerator Owner's Manual GEN 31-51297 Contact Us For Availability
3
Refrigerator Fastener GEN WR2X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10051 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10052 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10055 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Al Disp Trim GEN WR38X10060 Contact Us For Availability
11
Refrigerator Dispenser Trim GEN WR38X10064 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10065 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X7213 Contact Us For Availability
12
Refrigerator Door Stop GEN WR2X9302 Contact Us For Availability
12
Refrigerator Door Closer GEN WR2X9300 Contact Us For Availability
13
Refrigerator Door Hinge Spacer GEN WR2X7490 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (White) GEN WR24X525 Contact Us For Availability
14
Refrigerator Freezer Door Gasket (Black) GEN WR24X531 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X1167 Contact Us For Availability
16
Refrigerator Riser Cam GEN WR2X10140 Contact Us For Availability
17A
Riser Shim GEN WR2X9147 Contact Us For Availability
17B
Refrigerator Door Hinge Shim GEN WR2X7491 Contact Us For Availability
18
Refrigerator Freezer Door Gasket Retainer GEN WR17X2092 Contact Us For Availability
19
Refrigerator Inner Door GEN WR77X680 Contact Us For Availability
23
Refrigerator Freezer Door Shelf GEN WR17X10118 Contact Us For Availability
24
Refrigerator Door Shelf GEN WR17X10106 Contact Us For Availability
29
Refrigerator Harness GEN WR23X10115 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10190 Contact Us For Availability
33
Refrigerator Dispenser Heater GEN WR51X353 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X129 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
46
Refrigerator Dispenser Actuator Pad GEN WR2X8702 Contact Us For Availability
47
Refrigerator Dispenser Actuator Pad Support GEN WR2X8681 Contact Us For Availability
48
Recovery Knob GEN WR2X9154 Contact Us For Availability
63
Refrigerator Spring GEN WR2X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funn GEN WR2X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Refrigerator Dispenser Switch GEN WR23X366 Contact Us For Availability
75
Refrigerator Dispenser Fitting and Water Tube GEN WR17X3670 Contact Us For Availability
76
Refrigerator Water Tubing Sleeve GEN WR2X8933 Contact Us For Availability
100A
Refrigerator Hook, Center GEN WR2X8410 Contact Us For Availability
100B
Middle Hook GEN WR2X8409 Contact Us For Availability
103
Refrigerator Door Gasket (White) GEN WR24X526 Contact Us For Availability
103
Refrigerator Door Gasket (Black) GEN WR24X532 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10068 Contact Us For Availability
106
Refrigerator Dairy Bin Cover GEN WR22X383 Contact Us For Availability
107
Drive Track GEN WR72X256 Contact Us For Availability
108B
Refrigerator Inner Door GEN WR77X681 Contact Us For Availability
109
Refrigerator Door Shelf GEN WR71X10052 Contact Us For Availability
110
Refrigerator Freezer Drawer Frame Bumper GEN WR2X8989 Contact Us For Availability
112
Refrigerator Door Shelf Rail GEN WR17X10451 Contact Us For Availability
114
Refrigerator Drive Shelf Track GEN WR72X257 Contact Us For Availability
115
Refrigerator Door Shelf GEN WR71X10051 Contact Us For Availability
116
Refrigerator Door Trim Cap GEN WR2X7829 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Door Handle Trim, Lower GEN WR12X10037 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10040 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10054 Contact Us For Availability
128
Snugger Module GEN WR2X7971 Contact Us For Availability
152
Scr 8-18 GEN WR1X10038 Contact Us For Availability
171
Refrigerator Wire Basket GEN WR71X10147 Contact Us For Availability
174
Refrigerator Slide Support GEN WR2X8667 Contact Us For Availability
181
SCR 10-32 MA HX 1 S XTW GEN WZ6X105 Contact Us For Availability
211
Refrigerator Freezer Bin GEN WR21X190 Contact Us For Availability
212
Refrigerator Freezer Basket Trim GEN WR38X10059 Contact Us For Availability
214A
Refrigerator Evaporator Cover Gasket GEN WR14X456 Contact Us For Availability
216
Refrigerator Egg Bin GEN WR32X1435 Contact Us For Availability
236
Refrigerator Support GEN WR2X4548 Contact Us For Availability
237
Refrigerator Freezer Basket Slide Clip GEN WR2X7036 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X493 Contact Us For Availability
251
Refrigerator Support GEN WR2X2880 Contact Us For Availability
258
Refrigerator Light Cover GEN WR17X3489 Contact Us For Availability
259
Refrigerator Light Cover GEN WR17X3909 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265A
Refrigerator Wheel Axle GEN WR2X3595 Contact Us For Availability
268
Refrigerator Ice Maker Wire Harness GEN WR23X312 Contact Us For Availability
269
Refrigerator Water Tube GEN WR2X8668 Contact Us For Availability
277
Rail Mach Mt GEN WR17X2113 Contact Us For Availability
278
Refrigerator Front Wheel GEN WR2X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10434 Contact Us For Availability
280
C Cap Oc GEN WR2X8518 Contact Us For Availability
280
C Cap Oc GEN WR2X8519 Contact Us For Availability
280
Bk Corner GEN WR2X8524 Contact Us For Availability
288
Refrigerator Grille GEN WR74X199 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X206 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X209 Contact Us For Availability
293
Refrigerator Toe Grille Clip GEN WR2X7080 Contact Us For Availability
320
Nut GEN WR1X1585 Contact Us For Availability
324A
Refrigerator Discharge Baffle Plug Button GEN WR2X7051 Contact Us For Availability
324B
Button Plug GEN WR2X7069 Contact Us For Availability
326
Washer GEN WR1X1366D No Longer Available
328A
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
328C
Refrigerator Ice Container Ice Deflector Spri GEN WR2X4561 Contact Us For Availability
330
Refrigerator Spring GEN WR2X4145 Contact Us For Availability
338
Refrigerator Dispenser Blade Rest GEN WR2X4140 Contact Us For Availability
345
Refrigerator Ice Crusher Housing Plate GEN WR17X2062 Contact Us For Availability
349
Refrigerator Auger Drive Cup GEN WR2X4550 Contact Us For Availability
352
Refrigerator Ice Container GEN WR30X256 Contact Us For Availability
365
Refrigerator Ice Crusher Coupler GEN WR2X4854 Contact Us For Availability
366
J Nut GEN WR1X1547 Contact Us For Availability
368
Refrigerator Ice Maker Mounting Bracket GEN WR2X8459 Contact Us For Availability
388
Refrigerator Ice Container Front Cover Door GEN WR17X10275 Contact Us For Availability
395
Fan Shield GEN WR17X10243 Contact Us For Availability
400
Refrigerator Cantilever Shelf GEN WR71X10054 Contact Us For Availability
403
Refrigerator Cantilever Shelf Mounting Rail GEN WR72X254 Contact Us For Availability
406
Refrigerator Shelf Hanger GEN WR2X8953 Contact Us For Availability
407B
Shelf Link GEN WR17X3487 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10105 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
412A
Refrigerator Slide-Out Shelf GEN WR17X2854 Contact Us For Availability
412B
Refrigerator Slide-Out Shelf GEN WR17X2853 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gasket Shield GEN WR17X10506 Contact Us For Availability
423B
Refrigerator Shelf Support GEN WR2X6347 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
446
Refrigerator Freezer Door Hinge, Upper GEN WR13X660 Contact Us For Availability
447
Cvr Hg Ff GEN WR2X8845 Contact Us For Availability
447
Hinge Freezer Cover GEN WR2X8846 Contact Us For Availability
447A
Cvr Hg Ff GEN WR2X8824 Contact Us For Availability
447A
Cvr Hg Ff GEN WR2X8843 Contact Us For Availability
447B
Refrigerator Freezer Door Hinge Cover (White) GEN WR2X8825 Contact Us For Availability
447B
Hinge Freezer Cover GEN WR2X8844 Contact Us For Availability
448
Refrigerator Door Hinge, Upper GEN WR13X659 Contact Us For Availability
450
Refrigerator Shim GEN WR2X4194 Contact Us For Availability
452A
Refrigerator Hinge Shim GEN WR2X4497 Contact Us For Availability
452B
Refrigerator Door Hinge Shim GEN WR2X7011 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1733 Contact Us For Availability
471
Refrigerator Deli Drawer GEN WR32X1339 Contact Us For Availability
472
Refrigerator Trim GEN WR38X10062 Contact Us For Availability
473A
Refrigerator Snack Pan Slide Rail, Right GEN WR72X210 No Longer Available
473B
Refrigerator Snack Drawer Slide Rail, Left GEN WR72X211 Contact Us For Availability
480A
Refrigerator Crisper Drawer Slide Rail, Right GEN WR72X253 Contact Us For Availability
480B
Refrigerator Crisper Drawer Slide Rail, Left GEN WR72X252 Contact Us For Availability
481
Slide Pan GEN WR1X2079 Contact Us For Availability
501
Quick Shelf GEN WR32X10081 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ4X244 Contact Us For Availability
552
Scr 12-24 GEN WR1X10034 Contact Us For Availability
560
Refrigerator Screw GEN WR1X2140 Contact Us For Availability
564
Screw, 2-pack GEN WR1X1194 Contact Us For Availability
611
Bracket GEN WR2X10100 Contact Us For Availability
611
Refrigerator Evaporator Fan Bracket GEN WR2X1100 Contact Us For Availability
612
Bracket GEN WR2X10101 Contact Us For Availability
613B
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
615
Grommet GEN WR2X10098 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10042 Contact Us For Availability
627
Housing Condenser GEN WR17X10449 Contact Us For Availability
630
Refrigerator Button Plug GEN WR2X8525 Contact Us For Availability
650
Refrigerator Condenser Fan Motor GEN WR60X10026 Contact Us For Availability
651
Condenser Fan Blade GEN WR60X10023 Contact Us For Availability
652
Refrigerator Complete Ring GEN WR2X10323 Contact Us For Availability
653
Refrigerator Dust Cap GEN WR2X10360 Contact Us For Availability
683
Scr 8-32 GEN WR1X10127 Contact Us For Availability
717
Clip Condenser GEN WR2X10335 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X207 Contact Us For Availability
732
Cover Clip GEN WR2X7226 Contact Us For Availability
733
Refrigerator Compressor Start Relay GEN WR7X277 Contact Us For Availability
734
Cover Relay GEN WR2X7834 Contact Us For Availability
735
Refrigerator Overload GEN WR8X10006 Contact Us For Availability
737
Refrigerator Grommet GEN WR2X10099 Contact Us For Availability
738A
Refrigerator Condenser GEN WR84X168 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X10427 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4148 Contact Us For Availability
754
Condenser Floor Baffle GEN WR82X10067 Contact Us For Availability
775
Refrigerator Water Cover GEN WR2X10047 Contact Us For Availability
776
Tub Clamp GEN WR2X10048 Contact Us For Availability
777
Bracket W GEN WR2X10370 Contact Us For Availability
789
Refrigerator Filter Cover GEN WR17X10132 Contact Us For Availability
810
Refrigerator Water Reservoir Assembly GEN WR17X10507 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
868
Refrigerator Ice Maker Ice Mold GEN WR29X204 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10197 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10199 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10202 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10198 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10200 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10203 Contact Us For Availability
NI
Term Housi GEN WH12X497 Contact Us For Availability
NI
Connection Block GEN WB17X5062 Contact Us For Availability
NI
HOUSING TERMINAL GEN WD1X1440 Contact Us For Availability
NI
Refrigerator Foam Tape GEN WR14X264 Contact Us For Availability
NI
SCR 8-36 T IHW 3/8 S N GEN WR1K01 Contact Us For Availability
NI
Refrigerator Screw GEN WR1X10019 Contact Us For Availability
NI
Scr 8-18 GEN WR1X10065 Contact Us For Availability
NI
Refrigerator Rivet Plate GEN WR1X1987 Contact Us For Availability
NI
Refrigerator Fastener Plug GEN WR1X2110 Contact Us For Availability
NI
SCR 8-18 AB HXW 1/2 S GEN WZ6X136 Contact Us For Availability
× ![]()
Login and Registration Form
