Model GE 363.58252892 Refrigerator (Kenmore 36358252892) – Common Parts & Diagrams
FREEZER SECTION
ICE BUCKET

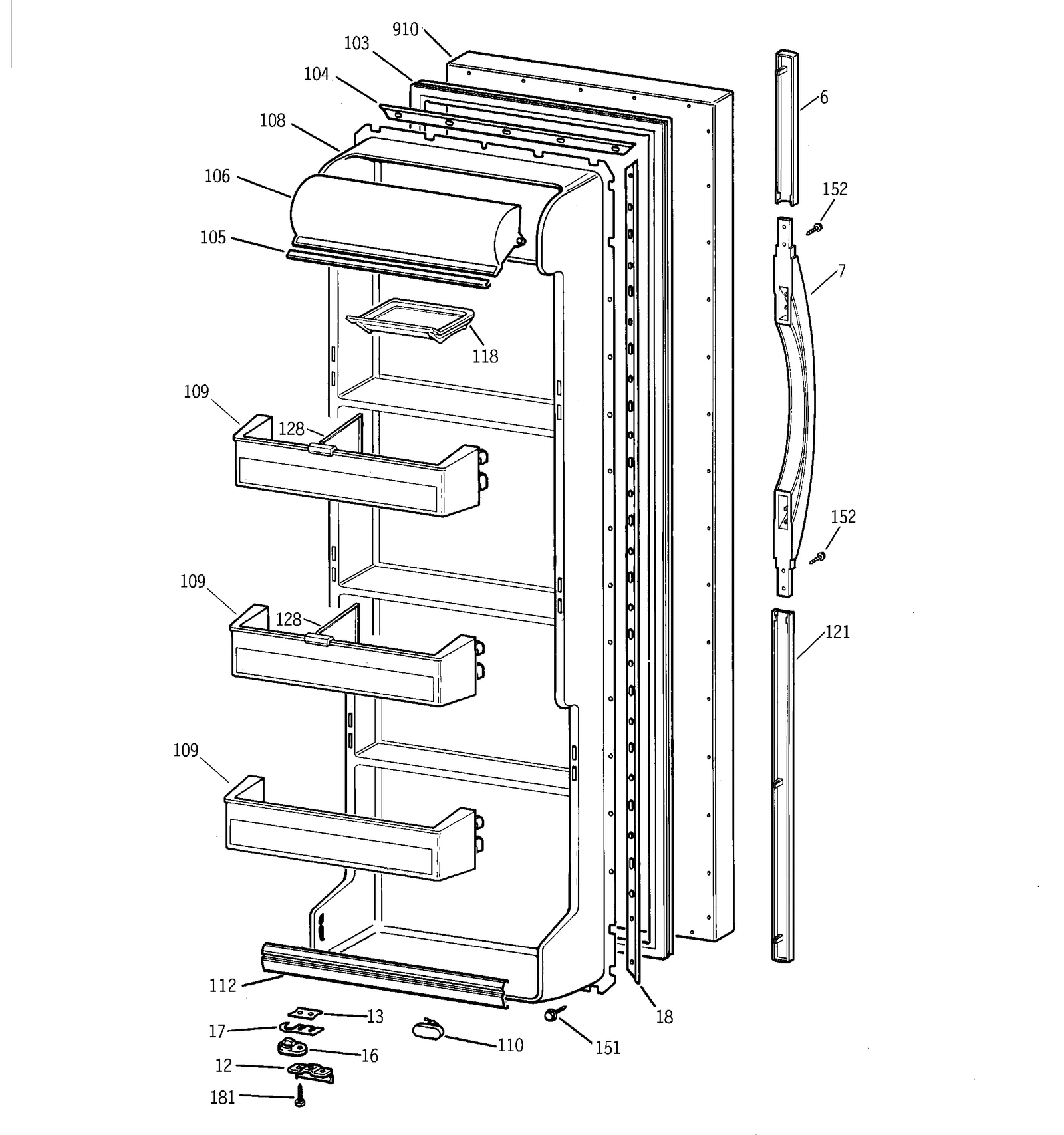

FRESH FOOD DOOR

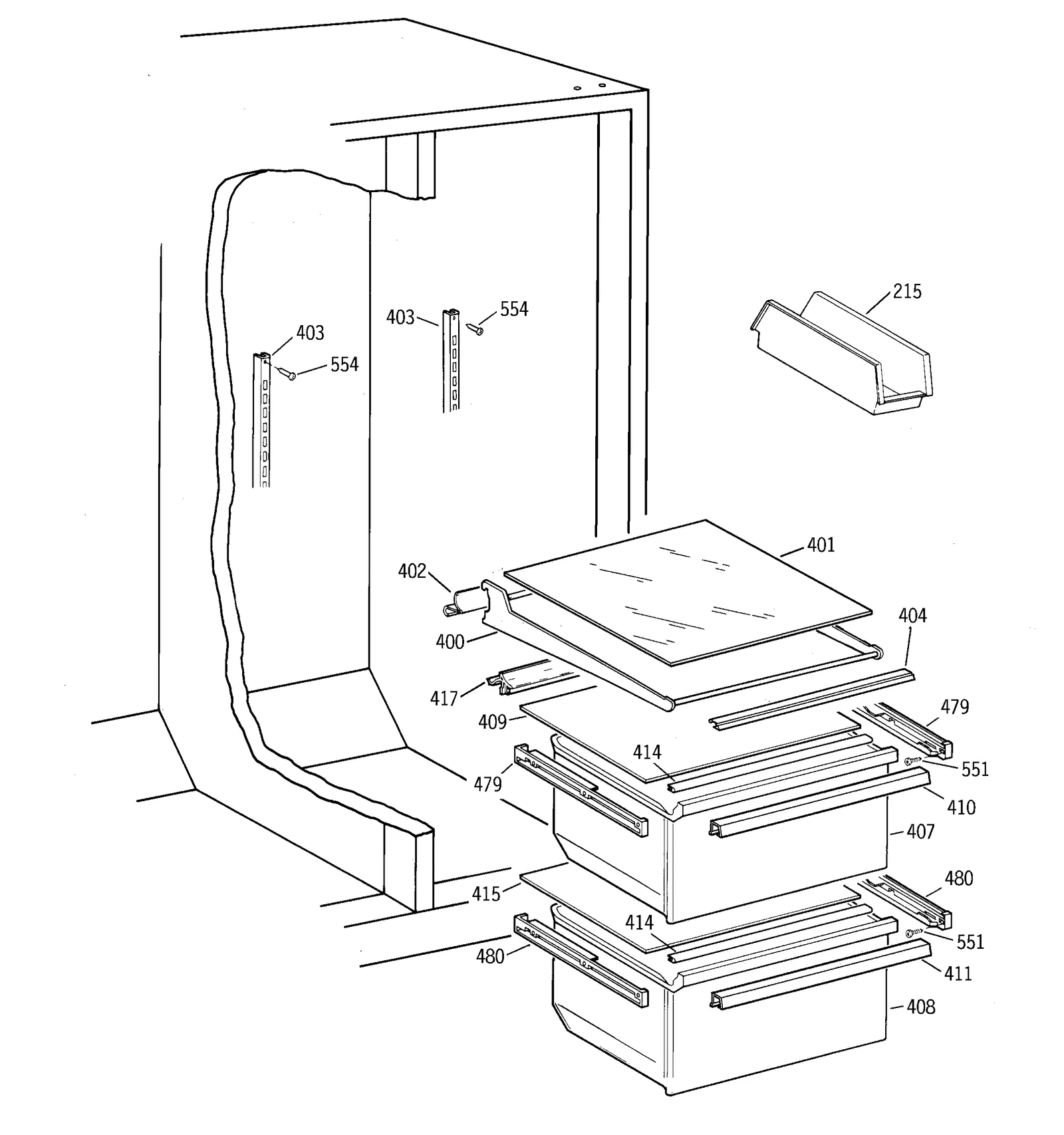

FRESH FOOD SECTION

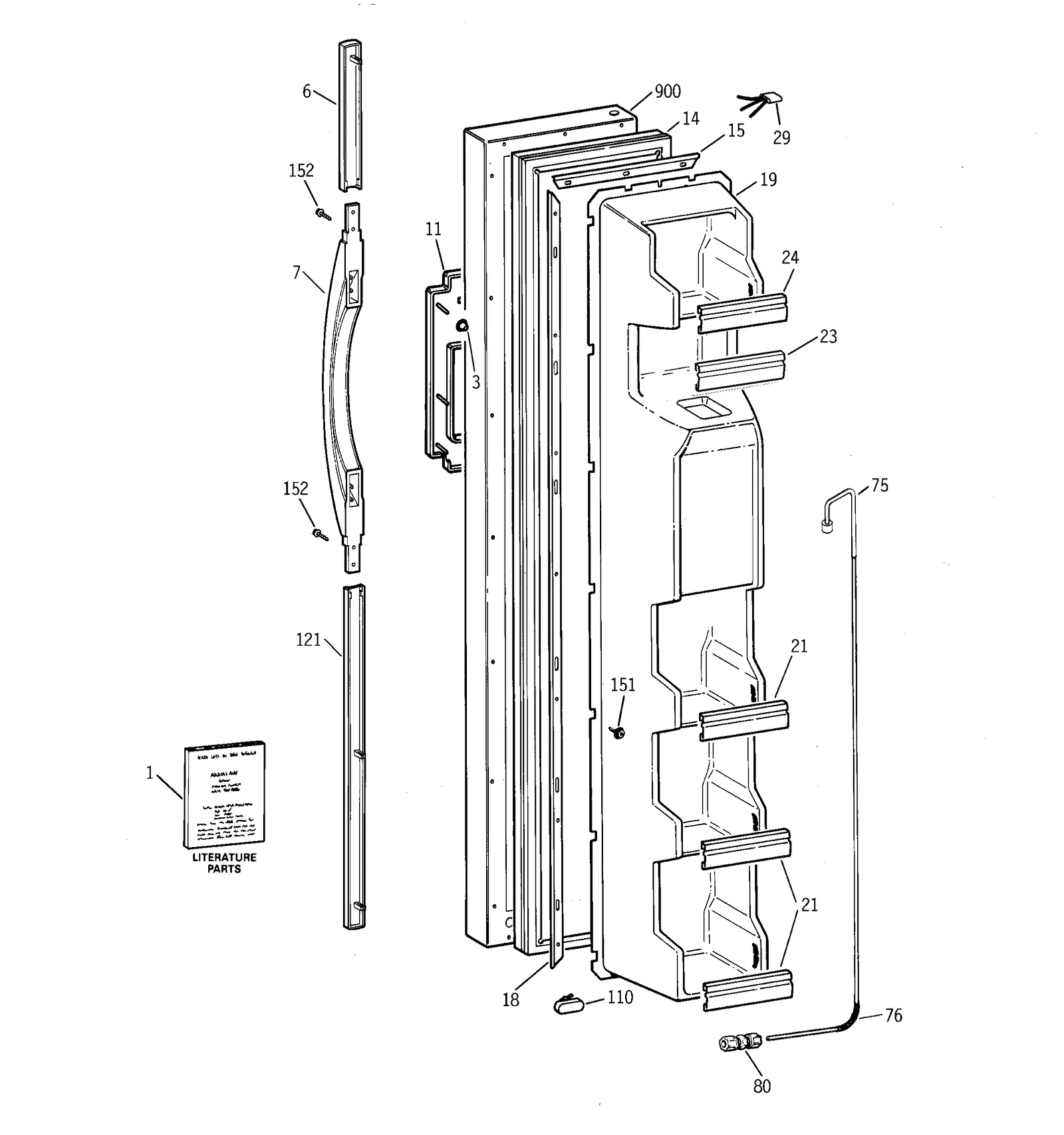

FREEZER DOOR

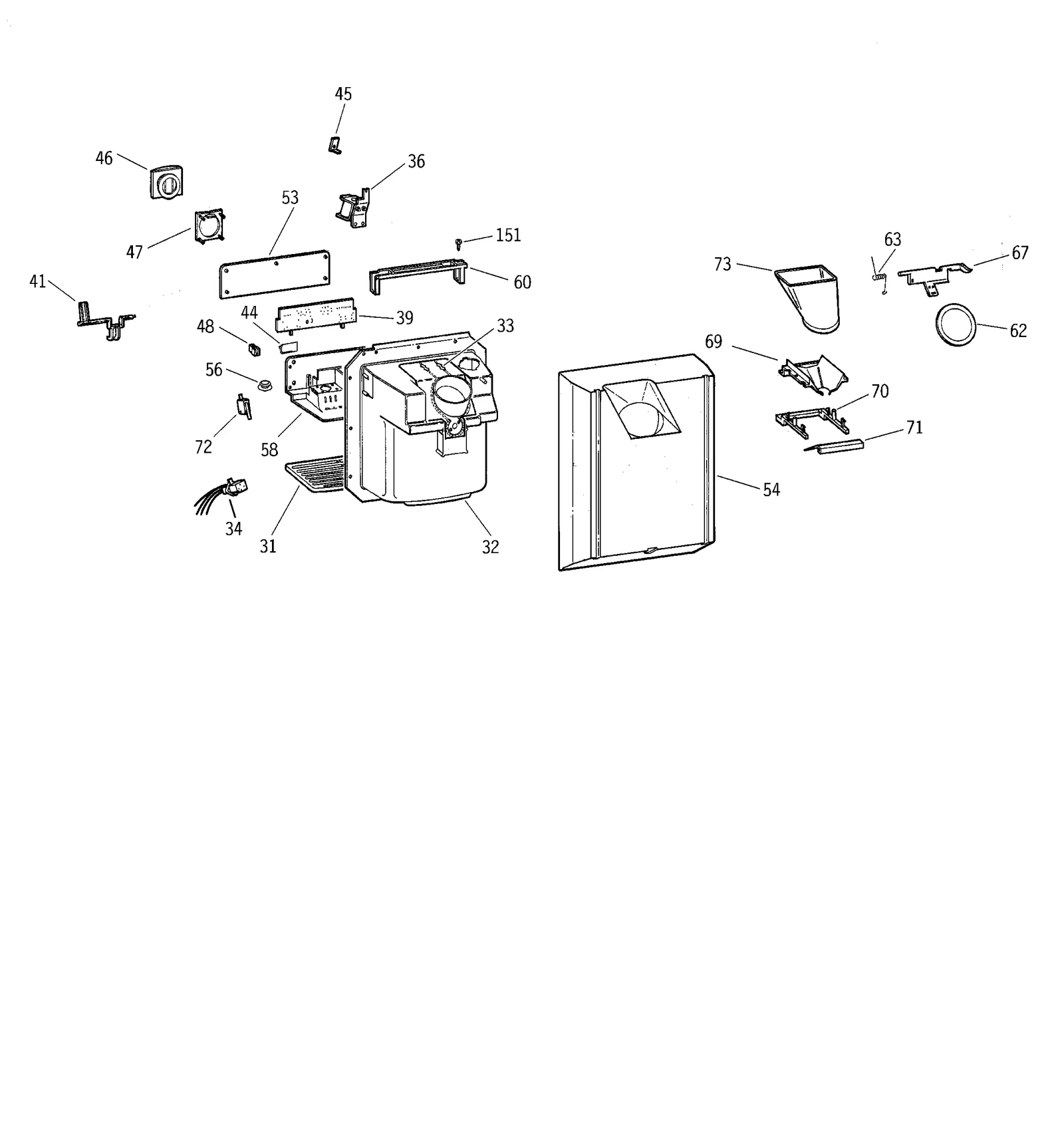

DISPENSER

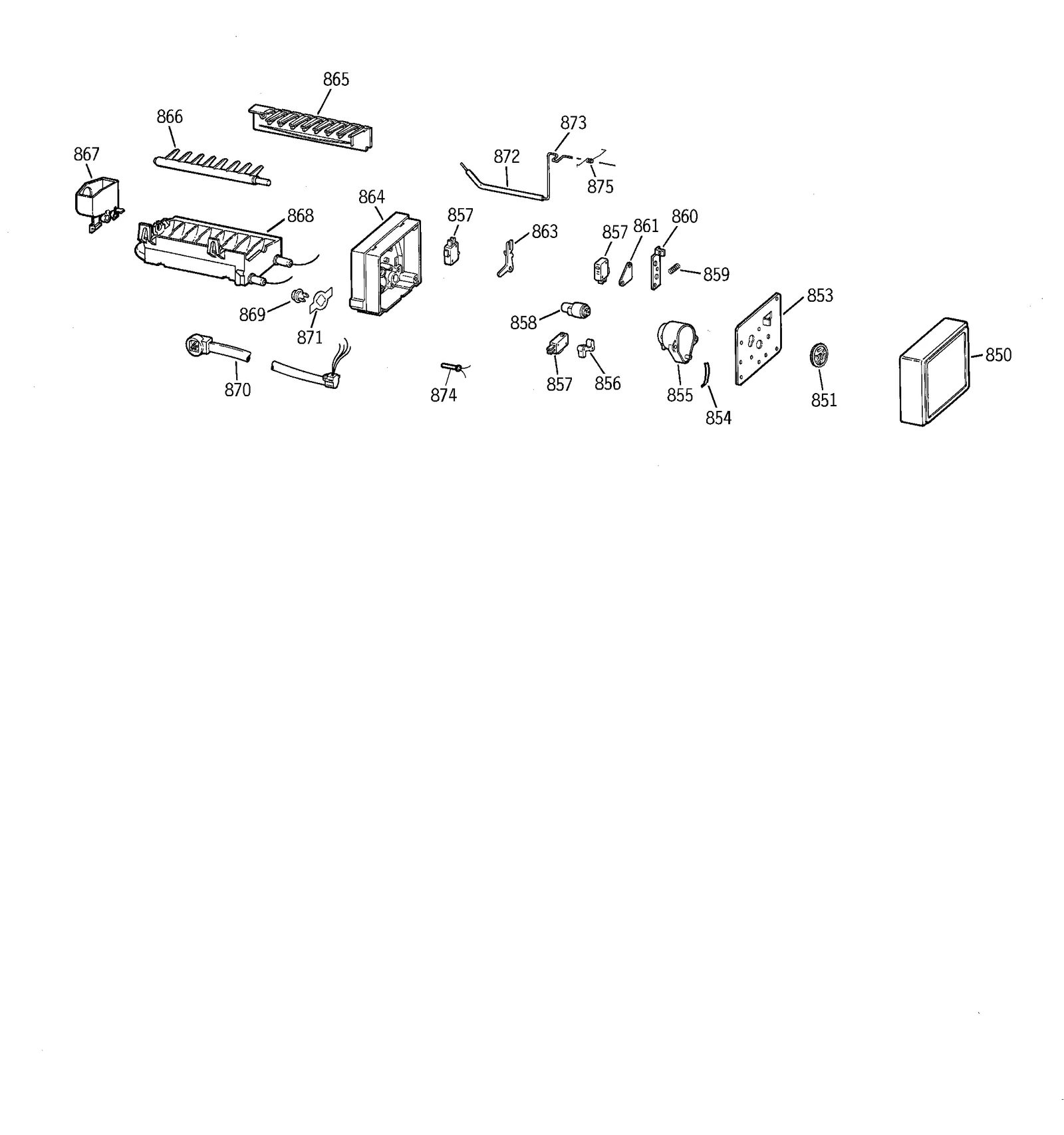

ICEMAKER WR30X0327

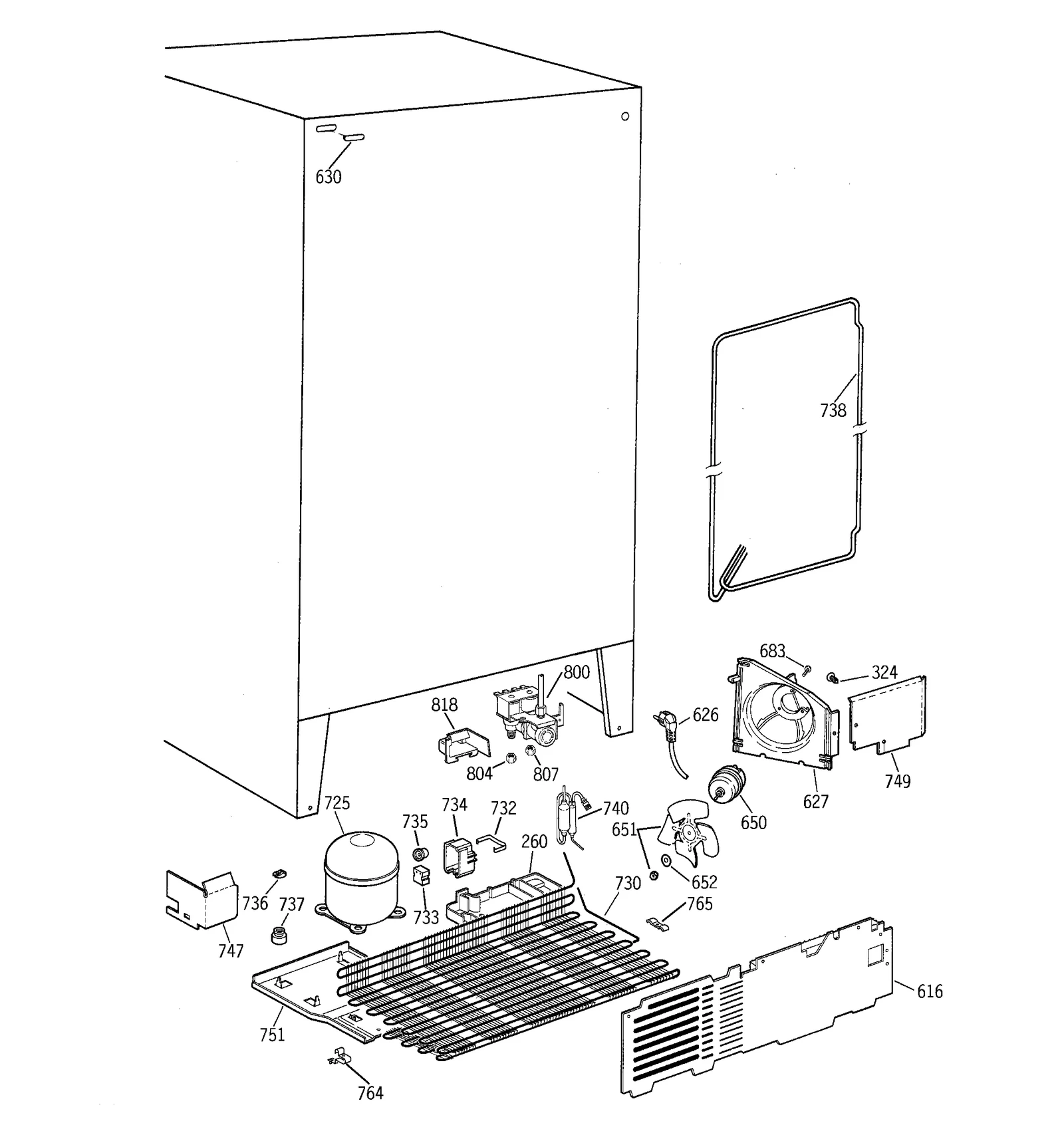

UNIT PARTS

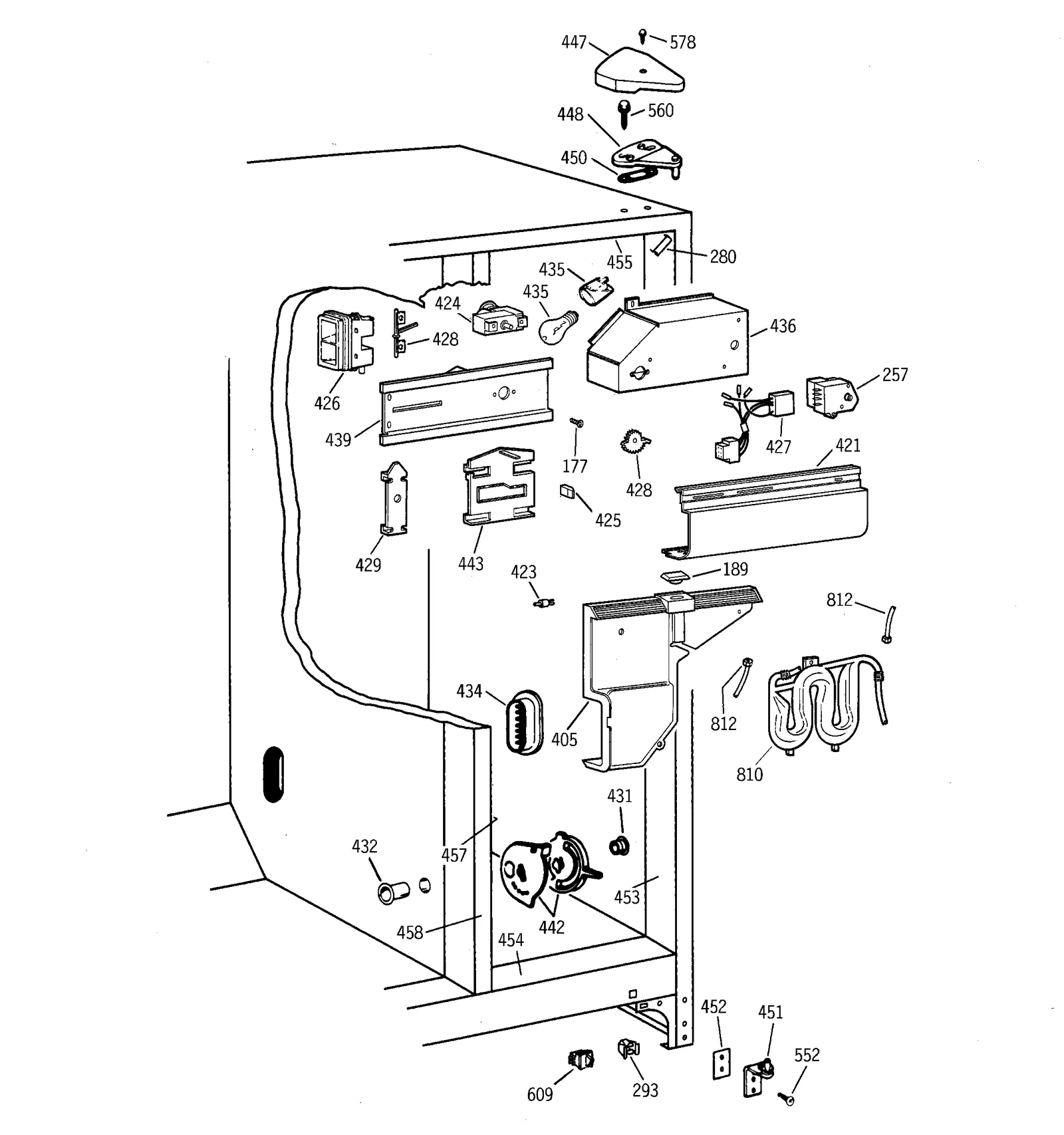

FRESH FOOD SECTION
FREEZER SECTION
Common parts from model GE 363.58252892 Refrigerator (Kenmore 36358252892)
1
Refrigerator Mini Wiring Manual GEN 31-51187 Contact Us For Availability
1
Refrigerator Owner's Manual GEN SR1087 Contact Us For Availability
1
Refrigerator Energy Guide GEN SR1236 Contact Us For Availability
1
Refrigerator Parts List GEN SR3877 Contact Us For Availability
1
Refrigerator User's Manual GEN SR6179 Contact Us For Availability
3
Refrigerator Fastener Tub GEN WR02X8669 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10264 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10266 Contact Us For Availability
6
Refrigerator Handle Trim GEN WR12X10268 Contact Us For Availability
7
Handle Sxs A GEN WR12X10085 Contact Us For Availability
7
Refrigerator Door Handle GEN WR12X10086 Contact Us For Availability
7
Handle Sxs A GEN WR12X10089 Contact Us For Availability
11
Refrigerator Dispenser Trim (White) GEN WR38X10039 Contact Us For Availability
11
Refrigerator Trim Recess GEN WR38X10041 Contact Us For Availability
11
Refrigerator Dispenser Trim (Black) GEN WR38X10070 Contact Us For Availability
12
Stop Door Wh GEN WR02X9300 Contact Us For Availability
12
Stop Door Ad GEN WR02X9302 Contact Us For Availability
13
Shim Cam GEN WR02X7490 Contact Us For Availability
14
Refrigerator Door Gasket GEN WR24X0527 Contact Us For Availability
15
Refrigerator Retainer Strip GEN WR17X3119 Contact Us For Availability
18
Refrigerator Retainer Strip GEN WR17X1169 Contact Us For Availability
19
I.d.panel Fz GEN WR77X0600 Contact Us For Availability
21
Door Front GEN WR17X10090 Contact Us For Availability
23
Door Front GEN WR17X10091 Contact Us For Availability
24
Door Front GEN WR17X10092 Contact Us For Availability
29
Refrigerator Drive Hinge Harness GEN WR23X0443 Contact Us For Availability
31
Grill Rec Wh GEN WR17X4153 Contact Us For Availability
31
Grill Rec Ad GEN WR17X4151 Contact Us For Availability
31
Grill Rec Bk GEN WR17X4152 Contact Us For Availability
32
Recess Disp GEN WR17X10198 Contact Us For Availability
32
Recess Disp GEN WR17X10203 Contact Us For Availability
32
Refrigerator Dispenser Housing GEN WR17X10205 Contact Us For Availability
33
Recessed Heater GEN WR51X0353 Contact Us For Availability
34
Harness Light Switch GEN WR23X0457 Contact Us For Availability
39
Refrigerator Dispenser Control Board GEN WR55X0130 Contact Us For Availability
41
Refrigerator Dispenser Cradle Actuator GEN WR17X3493 Contact Us For Availability
44
Stop Selector Switch GEN WR02X8680 Contact Us For Availability
44
Stop Selector Switch GEN WR02X8705 Contact Us For Availability
44
Stop Selector Switch GEN WR02X9155 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8702 Contact Us For Availability
46
Refrigerator Actuator Pad GEN WR02X8704 Contact Us For Availability
46
Pad Act Ad GEN WR02X8726 Contact Us For Availability
47
Sup Act Pad GEN WR02X8681 Contact Us For Availability
48
Refrigerator Knob Recess GEN WR02X8676 Contact Us For Availability
48
Knob Rec Dis GEN WR02X8696 Contact Us For Availability
48
Knob Rec Dis GEN WR02X9154 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10115 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10116 Contact Us For Availability
53
Refrigerator Nameplate GEN WR17X10117 Contact Us For Availability
54
Insul Recess GEN WR17X3927 Contact Us For Availability
56
Plug Lamphol GEN WR02X8679 Contact Us For Availability
58
Recessed Display Shield GEN WR17X3139 Contact Us For Availability
58
Recessed Shield GEN WR17X3178 Contact Us For Availability
58
Shd Rec Disp GEN WR17X3206 Contact Us For Availability
60
Electronic Cover GEN WR02X8674 Contact Us For Availability
63
Refrigerator Spring GEN WR02X8663 Contact Us For Availability
67
Refrigerator Dispenser Lever GEN WR17X3089 Contact Us For Availability
69
Refrigerator Dispenser Ice Chute Funnel GEN WR17X3095 Contact Us For Availability
70
Supt Funnel GEN WR02X8943 Contact Us For Availability
70
Supt Funnel GEN WR02X8954 Contact Us For Availability
70
Supt Funnel GEN WR02X8956 Contact Us For Availability
71
Refrigerator Dispenser Ice Chute Funnel Defle GEN WR17X10282 Contact Us For Availability
72
Sw Cradl Act GEN WR23X0366 Contact Us For Availability
73
Refrigerator Dispenser Ice Chute GEN WR17X3125 Contact Us For Availability
75
Grommet Tube GEN WR17X3669 Contact Us For Availability
76
Refrigerator Sleeve GEN WR02X8933 Contact Us For Availability
103
Refrigerator Door Gasket GEN WR24X0529 Contact Us For Availability
104
Refrigerator Door Gasket Retainer GEN WR17X1168 Contact Us For Availability
105
Refrigerator Door Trim GEN WR38X10069 Contact Us For Availability
106
Refrigerator Dairy Door GEN WR22X0408 Contact Us For Availability
108
I.d.panel Ff GEN WR77X0599 Contact Us For Availability
109
Refrigerator Door Bin GEN WR71X10053 Contact Us For Availability
110
Support Bumper GEN WR02X8989 Contact Us For Availability
112
Refrigerator Door Shelf GEN WR17X10114 Contact Us For Availability
118
Butter Dish GEN WR19X5003 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10263 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10265 Contact Us For Availability
121
Refrigerator Handle Trim GEN WR12X10267 Contact Us For Availability
128
Refrigerator Snugger Module GEN WR02X7971 Contact Us For Availability
152
Refrigerator Screw GEN WR01X10038 Contact Us For Availability
177
Refrigerator Screw GEN WR01X5034 Contact Us For Availability
181
Refrigerator Screw GEN WZ06X0105 Contact Us For Availability
189
Refrigerator Button Plug GEN WR01X2115 Contact Us For Availability
200
Refrigerator Breaker Strip GEN WR40X1741 Contact Us For Availability
201
Refrigerator Breaker Strip GEN WR40X1742 Contact Us For Availability
202
Refrigerator Breaker Strip GEN WR40X1743 Contact Us For Availability
214
Refrigerator Cover Clip Evaporator GEN WR01X2128 Contact Us For Availability
214
Refrigerator Evaporator Cover Gasket GEN WR14X0455 Contact Us For Availability
214
Refrigerator Evaporator Cover GEN WR17X3919 Contact Us For Availability
215
Util Bucket GEN WR32X0897 Contact Us For Availability
224
Refrigerator Grommet GEN WR02X8657 Contact Us For Availability
225
Refrigerator Clamp GEN WR01X5042 Contact Us For Availability
225
Refrigerator Drain Tube GEN WR02X8293 Contact Us For Availability
230
Refrigerator Defrost Heater Bracket GEN WR02X8671 Contact Us For Availability
247
Refrigerator Orifice Evaporator GEN WR17X10226 Contact Us For Availability
248
Refrigerator Foam Strip GEN WR14X0493 Contact Us For Availability
251
Refrigerator Support GEN WR02X2880 Contact Us For Availability
258
Refrigerator Freezer Light Cover GEN WR17X3484 Contact Us For Availability
260
Refrigerator Water Dispenser Pan GEN WR32X1427 Contact Us For Availability
265
Refrigerator Axle GEN WR02X3595 Contact Us For Availability
265
Refrigerator Cotter Pin GEN WR02X3598 Contact Us For Availability
265
Axle & Cotte GEN WR02X4742 Contact Us For Availability
277
Rail Mach Mt GEN WR17X3136 Contact Us For Availability
278
Refrigerator Wheel GEN WR02X4858 Contact Us For Availability
279
Rail Mach Mt GEN WR17X10057 Contact Us For Availability
280
C Cap Oc Wh GEN WR02X8518 Contact Us For Availability
280
C Cap Oc Ad GEN WR02X8519 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0216 Contact Us For Availability
288
Refrigerator Base Grille GEN WR74X0217 Contact Us For Availability
288
Base Grille GEN WR74X0224 Contact Us For Availability
293
Grille Clip GEN WR02X7080 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7051 Contact Us For Availability
324
Refrigerator Button Plug GEN WR02X7069 Contact Us For Availability
328
Refrigerator Ice Container Ice Deflector GEN WR17X2059 Contact Us For Availability
345
Refrigerator Ice Dispenser Container Mounting GEN WR17X2760 Contact Us For Availability
348
Blade In Dip GEN WR02X7351 Contact Us For Availability
349
Drive Cup GEN WR02X4550 Contact Us For Availability
350
Refrigerator Helix Auger GEN WR17X4309 Contact Us For Availability
352
Refrigerator Ice Dispenser GEN WR30X0257 Contact Us For Availability
360
Refrigerator Protector GEN WR02X8730 Contact Us For Availability
360
Shelf Bucket GEN WR71X2444 Contact Us For Availability
361
Refrigerator Motor Cover GEN WR17X10308 Contact Us For Availability
362
Refrigerator Shelf Bracket GEN WR02X8839 Contact Us For Availability
363
Supprt Twist GEN WR02X8952 Contact Us For Availability
364
Twist Support GEN WR02X7310 Contact Us For Availability
365
Hub Auger GEN WR02X4854 Contact Us For Availability
366
J Nut GEN WR01X1547 Contact Us For Availability
368
Refrigerator Ice Maker Mounting Bracket GEN WR02X8459 Contact Us For Availability
375
Refrigerator Motor Harness GEN WR23X10059 Contact Us For Availability
387
Refrigerator Ice Bin Cover, Front GEN WR17X10339 Contact Us For Availability
395
Fan Shield GEN WR17X10220 Contact Us For Availability
400
Refrigerator Cantilever Shelf Frame GEN WR71X2292 Contact Us For Availability
401
Refrigerator Glass Shelf GEN WR32X10031 Contact Us For Availability
402
Refrigerator Glass Shelf GEN WR38X10067 Contact Us For Availability
403
Refrigerator Shelf Support GEN WR71X2588 Contact Us For Availability
404
Refrigerator Glass Trim GEN WR38X10066 Contact Us For Availability
405
Duct Air Ret GEN WR17X3890 Contact Us For Availability
408
Refrigerator Crisper Drawer GEN WR32X1493 Contact Us For Availability
409
Refrigerator Glass Shelf GEN WR32X10029 Contact Us For Availability
410
Refrigerator Pan Handle GEN WR17X10113 Contact Us For Availability
411
Refrigerator Pan Handle GEN WR17X10103 Contact Us For Availability
414
Gkt Pn Cv Ft GEN WR14X0431 Contact Us For Availability
415
Refrigerator Crisper Drawer Cover Glass Inser GEN WR32X1473 Contact Us For Availability
417
Gasket Shield GEN WR14X10006 Contact Us For Availability
421
Refrigerator Light Shield GEN WR17X10104 Contact Us For Availability
423
Grommet Support GEN WR02X10050 Contact Us For Availability
424
Refrigerator Temperature Control GEN WR09X0570 Contact Us For Availability
425
Refrigerator Knob GEN WR02X8398 Contact Us For Availability
426
Foam Nozzle GEN WR02X8425 Contact Us For Availability
426
Housing Nozzle GEN WR02X8514 Contact Us For Availability
427
Refrigerator Harness GEN WR23X0316 Contact Us For Availability
428
Refrigerator Gear Control GEN WR02X8513 Contact Us For Availability
428
Control Damper GEN WR02X8569 Contact Us For Availability
429
Heater Holder GEN WR02X8516 Contact Us For Availability
432
Duct Mullion GEN WR02X8654 Contact Us For Availability
434
Refrigerator Air Duct GEN WR02X9431 Contact Us For Availability
436
Refrigerator Bracket GEN WR02X7736 Contact Us For Availability
439
Channel Control GEN WR17X2922 Contact Us For Availability
442
Ctrl Mt Pan GEN WR17X10060 Contact Us For Availability
443
Refrigerator Rack Control GEN WR02X8570 Contact Us For Availability
446
Hinge Tp Asm GEN WR13X0647 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X8262 Contact Us For Availability
447
Refrigerator Hinge Cover GEN WR02X8263 Contact Us For Availability
448
Hinge Tp Asm GEN WR13X0646 Contact Us For Availability
450
Refrigerator Shim GEN WR02X4194 Contact Us For Availability
452
Refrigerator Hinge Shim GEN WR02X9442 Contact Us For Availability
453
Refrigerator Breaker Strip GEN WR40X1744 Contact Us For Availability
454
Refrigerator Breaker Strip GEN WR40X1745 Contact Us For Availability
455
Refrigerator Breaker Strip GEN WR40X1746 Contact Us For Availability
456
Refrigerator Breaker Strip GEN WR40X1747 Contact Us For Availability
457
Refrigerator Breaker Strip GEN WR40X1748 Contact Us For Availability
458
U Nut GEN WR02X4739 Contact Us For Availability
458
Breaker Mullion GEN WR02X7033 Contact Us For Availability
458
Refrigerator Bracket Mullion GEN WR02X9376 Contact Us For Availability
458
Mullion Ad GEN WR40X1751 Contact Us For Availability
458
Mullion Wh GEN WR40X1749 Contact Us For Availability
480
Refrigerator Slide Assembly, Left GEN WR72X0252 Contact Us For Availability
480
Refrigerator Slide Assembly, Right GEN WR72X0253 Contact Us For Availability
551
Refrigerator Screw GEN WZ04X0244 Contact Us For Availability
560
Refrigerator Screw GEN WR01X2140 Contact Us For Availability
564
Refrigerator Screw GEN WR01X1194 Contact Us For Availability
611
Refrigerator Condenser Fan Motor Bracket GEN WR02X10100 Contact Us For Availability
612
Refrigerator Bracket Evaporator GEN WR02X10101 Contact Us For Availability
613
Refrigerator Evaporator Fan Blade GEN WR60X10011 Contact Us For Availability
616
Refrigerator Access Cover GEN WR82X10041 Contact Us For Availability
627
Hous Con Fan GEN WR17X3811 Contact Us For Availability
651
Refrigerator Fan Blade GEN WR60X0231 Contact Us For Availability
651
Refrigerator Nut GEN WR01X1515 Contact Us For Availability
652
Washer GEN WR01X1714 Contact Us For Availability
683
Refrigerator Screw GEN WR01X1825 Contact Us For Availability
730
Refrigerator Condenser GEN WR84X0188 Contact Us For Availability
732
Cover Clip GEN WR02X7226 Contact Us For Availability
733
Refrigerator Protector GEN WR07X0277 Contact Us For Availability
734
Cover Relay GEN WR02X7834 Contact Us For Availability
735
Refrigerator Compressor Overload Protector GEN WR08X10005 Contact Us For Availability
738
Refrigerator Condenser GEN WR84X0169 Contact Us For Availability
747
Refrigerator Baffle GEN WR17X3643 Contact Us For Availability
749
Refrigerator Baffle GEN WR17X4147 Contact Us For Availability
765
Clip Condenser GEN WR01X1985 Contact Us For Availability
800
Refrigerator Water Valve GEN WR57X10010 Contact Us For Availability
807
Nut & Union GEN WR02X4046 Contact Us For Availability
818
Refrigerator Splash Guard GEN WR02X10106 Contact Us For Availability
850
Ice Maker Cover GEN WR29X0182 Contact Us For Availability
853
Refrigerator Mounting Plate GEN WR29X5111 Contact Us For Availability
856
Spacer GEN WR29X5118 Contact Us For Availability
857
Refrigerator Ice Maker On/Off Switch GEN WR29X5171 Contact Us For Availability
861
Refrigerator Insulator GEN WR29X5117 Contact Us For Availability
867
Inlet Bearing GEN WR29X0153 Contact Us For Availability
868
Mold Body GEN WR29X0204 Contact Us For Availability
870
Wire Harness GEN WR29X0186 Contact Us For Availability
872
Sleeve GEN WR29X5128 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10191 Contact Us For Availability
900
Refrigerator Door Foam Assembly GEN WR78X10192 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10193 Contact Us For Availability
910
Refrigerator Door Foam Assembly GEN WR78X10194 Contact Us For Availability
NI
Block GEN WB17X5060 Contact Us For Availability
NI
Connection Block GEN WB17X5062 Contact Us For Availability
NI
Refrigerator Terminal GEN WD01X1440 Contact Us For Availability
NI
Refrigerator Grommet GEN WR01X1510 Contact Us For Availability
NI
Scr 6-22 Pl GEN WR01X1966 Contact Us For Availability
NI
Refrigerator Rivet GEN WR01X1987 Contact Us For Availability
NI
Plug Fastner GEN WR01X2110 Contact Us For Availability
NI
Refrigerator Screw GEN WZ06X0136 Contact Us For Availability
× ![]()
Login and Registration Form
