Model GE 362.73422201 Gas Range (Kenmore 36273422201) – Common Parts & Diagrams

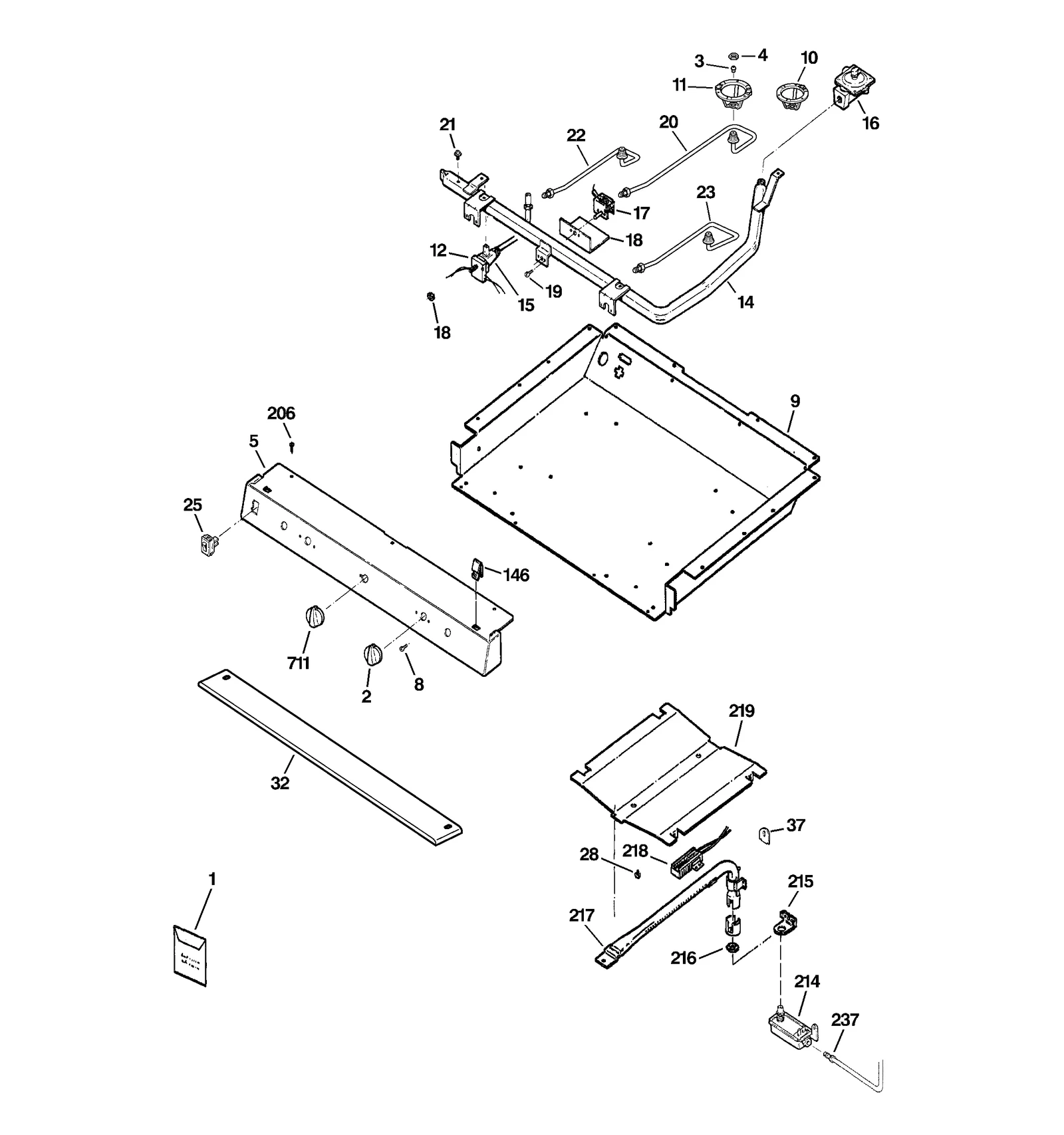

GAS & BURNER PARTS

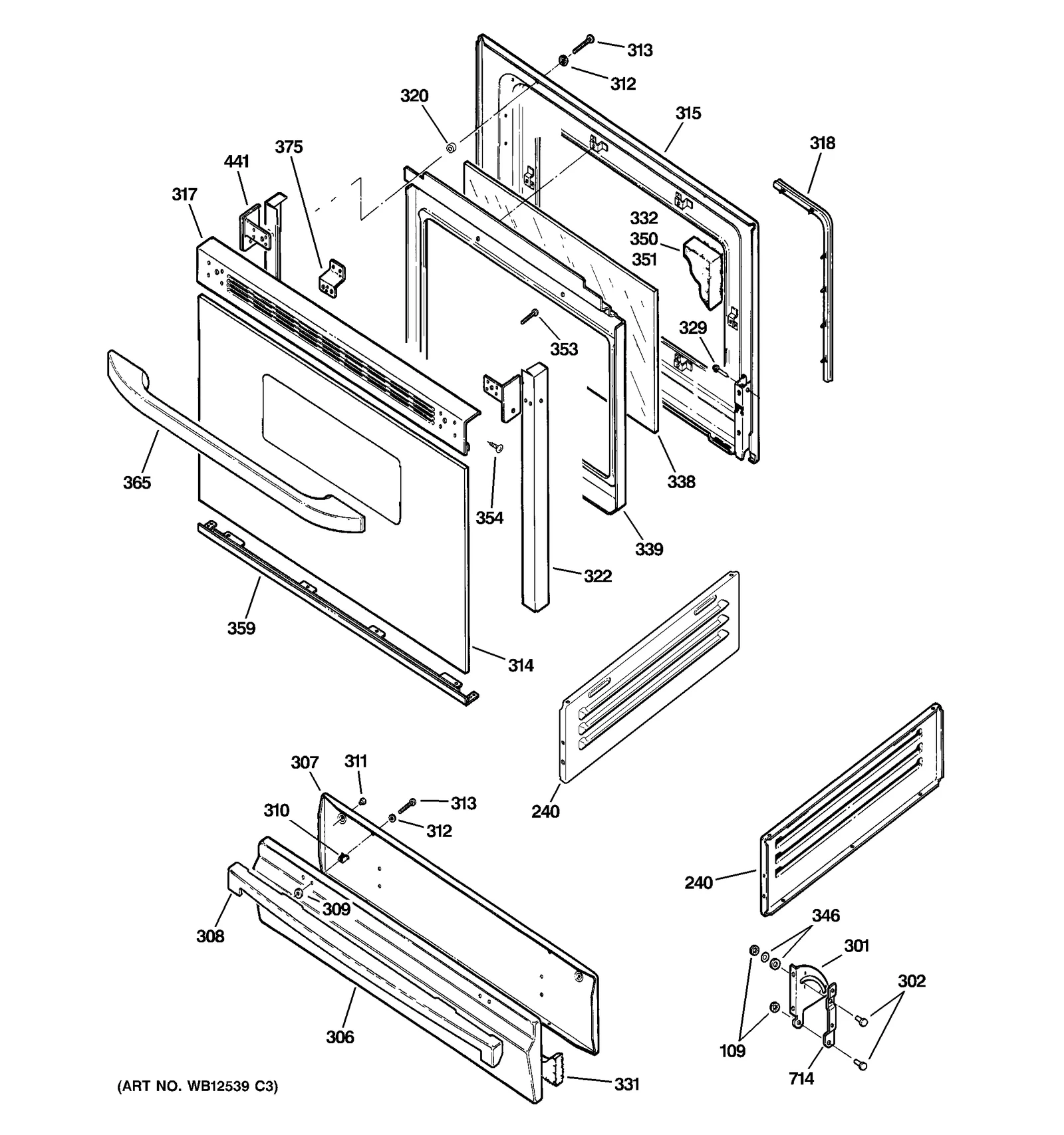

DOOR & DRAWER PARTS

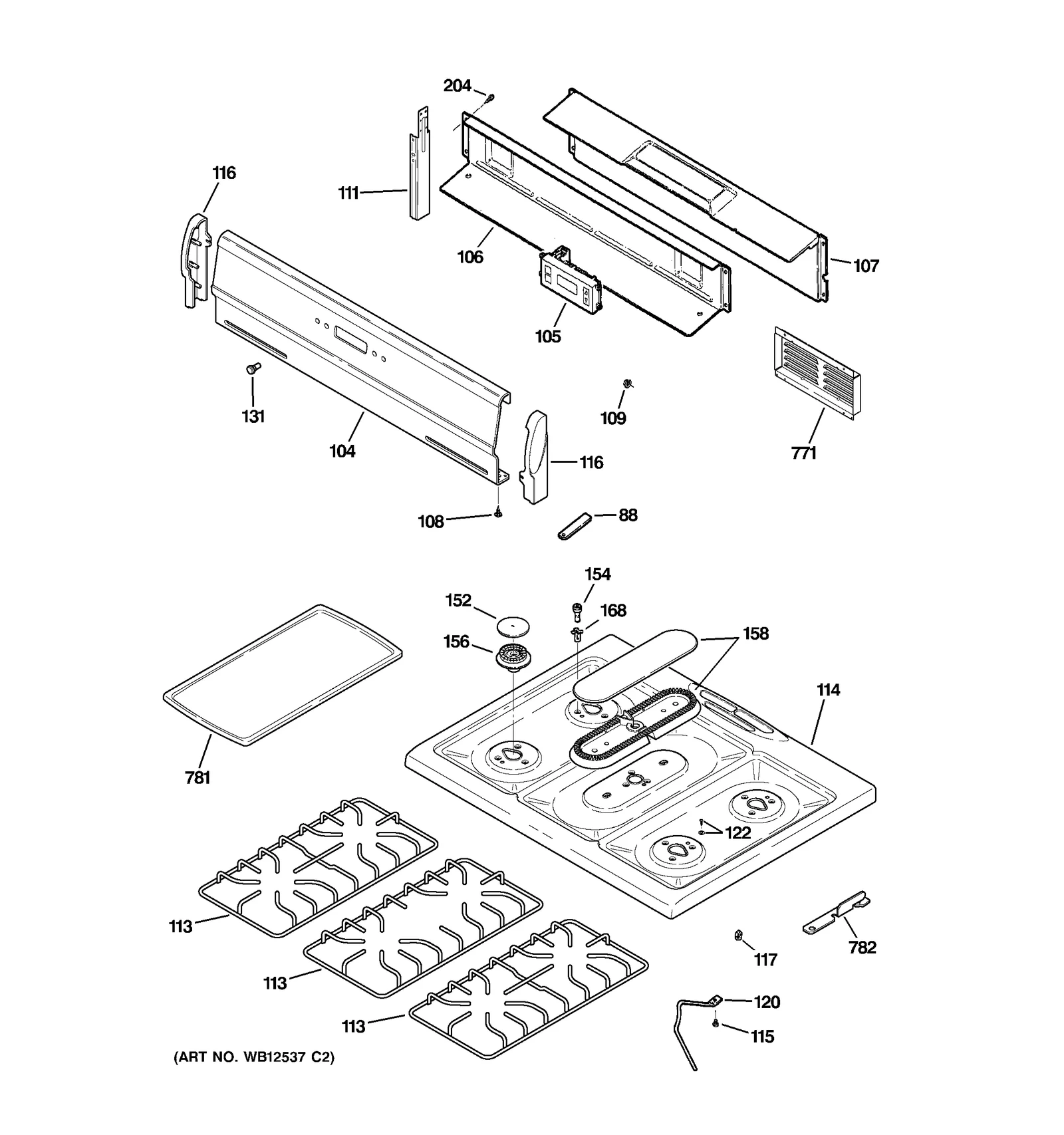

CONTROL PANEL & COOKTOP

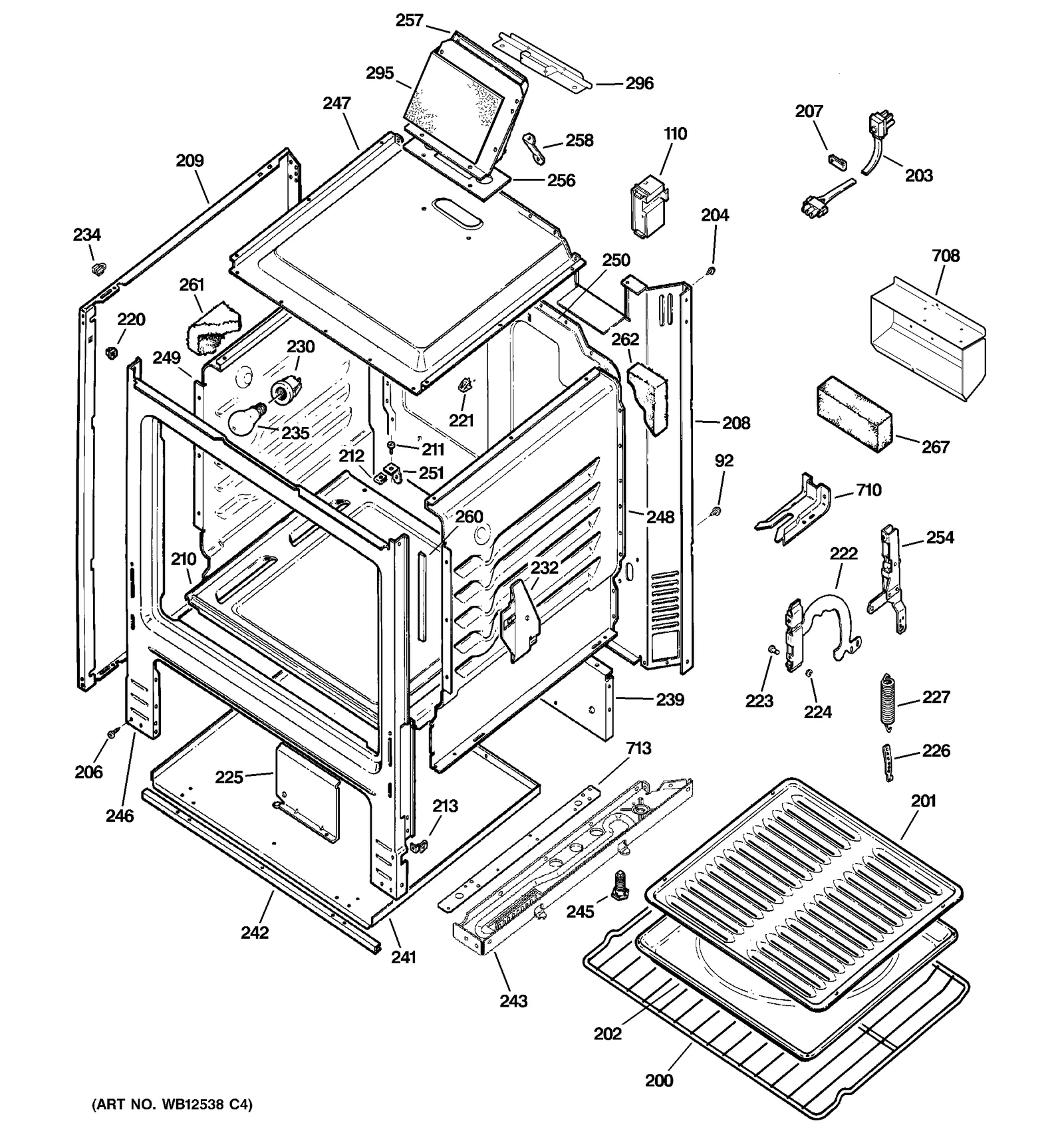

BODY PARTS
Common parts from model GE 362.73422201 Gas Range (Kenmore 36273422201)
1
Range LP Conversion Kit GEN WB28K10112 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10119 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10126 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10024 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10023 Contact Us For Availability
15
Top Burner Valve GEN WB21K10010 Contact Us For Availability
20
Orifice GEN WB28K10194 Contact Us For Availability
22
Orifice GEN WB28K10196 Contact Us For Availability
22
Range Surface Burner Tube and Orifice, Front GEN WB28K10195 Contact Us For Availability
23
Orifice GEN WB28K10197 Contact Us For Availability
88
Pad Felt 2" GEN WB02K0062 Contact Us For Availability
104
Glass Trim GEN WB36K10281 Contact Us For Availability
104
Glass Trim GEN WB36K10283 Contact Us For Availability
104
Glass Trim GEN WB36K10286 Contact Us For Availability
106
Cover GEN WB34K10057 Contact Us For Availability
107
Lower Cover GEN WB34K10058 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
110
Range Spark Module GEN WB13K10010 Contact Us For Availability
110
Range Spark Module Wire Harness GEN WB18K10016 Contact Us For Availability
110
High-Voltage Wire Harness GEN WB18K10021 Contact Us For Availability
111
Bracket Cana GEN WB37K10002 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10069 Contact Us For Availability
113
Top Grate Ce GEN WB31K10070 Contact Us For Availability
114
Cooktop (wh) GEN WB62K10065 Contact Us For Availability
114
Cooktop GEN WB62K10066 Contact Us For Availability
114
Main Top (Black) GEN WB62K10067 Contact Us For Availability
116
End Cap GEN WB07K10174 Contact Us For Availability
116
End Cap GEN WB07K10175 Contact Us For Availability
116
End Cap GEN WB07K10176 Contact Us For Availability
116
End Cap GEN WB07K10177 Contact Us For Availability
116
End Cap GEN WB07K10178 Contact Us For Availability
116
End Cap GEN WB07K10179 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
120
Support Cook GEN WB02K10081 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
131
Clock Button GEN WB03K10163 Contact Us For Availability
131
Clock Button GEN WB03K10164 Contact Us For Availability
131
Clock Button GEN WB03K10165 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10014 Contact Us For Availability
158
Range Surface Burner and Cap, Center GEN WB16K10029 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
208
Range Back GEN WB63K10034 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209
Panel GEN WB63K0052 Contact Us For Availability
209
Side Pnl/bis GEN WB62K10039 Contact Us For Availability
214
Range Oven Gas Valve GEN WB19K10006 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
232
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
232
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
239
Rear Broiler Panel GEN WB63K0001 Contact Us For Availability
240
Broiler Panel GEN WB63K0029 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
246
Frame Weld A GEN WB63K10035 Contact Us For Availability
247
Oven GEN WB53K0001 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K10014 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0004 Contact Us For Availability
258
Brace Vent GEN WB38K0003 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0017 Contact Us For Availability
267
Counterweight GEN WB06K10002 Contact Us For Availability
295
Insulation Vent GEN WB36K10282 Contact Us For Availability
296
Deflector Ve GEN WB34K10059 Contact Us For Availability
296
Vent Complem GEN WB38K10007 Contact Us For Availability
301
Broiler Hinge GEN WB10K0010 Contact Us For Availability
301
Broiler Hinge GEN WB10K0011 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
302
Spring Washer GEN WB01K10036 Contact Us For Availability
306
Pnl Drwr Blk GEN WB39K0010 Contact Us For Availability
306
Drawer Panel GEN WB55K10010 Contact Us For Availability
307
Drawer Liner GEN WB39K0037 Contact Us For Availability
308
Broiler Handle GEN WB15K10029 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
314
Range Oven Door Outer Panel (White) GEN WB57K10013 Contact Us For Availability
314
Door Glass GEN WB57K10060 Contact Us For Availability
315
Liner GEN WB55K0014 Contact Us For Availability
317
Trim Top Doo GEN WB07K10170 Contact Us For Availability
317
Trim Top Doo GEN WB07K10171 Contact Us For Availability
317
Trim Top Doo GEN WB07K10172 Contact Us For Availability
322
Range Trim GEN WB07K10121 Contact Us For Availability
322
Range Bottom Oven Door Trim (Black) GEN WB07K10120 Contact Us For Availability
322
Rh Dr Trim GEN WB07K10122 Contact Us For Availability
322
Lt Dr Trim/w GEN WB07K10123 Contact Us For Availability
322
Door Trim GEN WB07K10161 Contact Us For Availability
322
Door Trim GEN WB07K10162 Contact Us For Availability
331
Reflector GEN WB55K0001 Contact Us For Availability
332
Insulation GEN WB35K0011 Contact Us For Availability
338
Crystal Window GEN WB56K0014 Contact Us For Availability
339
Guard Insulation GEN WB56K0015 Contact Us For Availability
346
Washer GEN WB01K0038 Contact Us For Availability
350
Insulation GEN WB35K0013 Contact Us For Availability
351
Insulation GEN WB35K0014 Contact Us For Availability
353
Screw-mtg Hd GEN WB01K10013 Contact Us For Availability
365
Handle GEN WB15K10018 Contact Us For Availability
365
Dr Handle-wh GEN WB15K10019 Contact Us For Availability
365
Door Handle GEN WB15K10027 Contact Us For Availability
441
Door End Cap GEN WB07K10158 Contact Us For Availability
441
Door End Cap GEN WB07K10159 Contact Us For Availability
708
Cvr B Pnl Sp GEN WB34K0018 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10009 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10011 Contact Us For Availability
771
Cover Timer GEN WB35K10032 Contact Us For Availability
781
Cooktop Griddle GEN WB31K10068 Contact Us For Availability
782
Range Guide GEN WB02K10056 Contact Us For Availability
782
Range Guide GEN WB02K10057 Contact Us For Availability
× ![]()
