GE 362.61121894 Gas Range (Kenmore 36261121894) Parts List

1

WB28K10564 GE Range Conversion Kit Assembly Backorder GEN WB28K10564 $9.36

View on Model

1

MANUAL-MINI ELEC/DIAG GEN 31-21062 Contact Us For Availability

View on Model

1

Range Parts GEN SR4574 Contact Us For Availability

View on Model

1

MANUAL REPAIR PARTS GEN SR4644 Contact Us For Availability

View on Model

1

Sears Range GEN SR85034 Contact Us For Availability

View on Model

2

Range Surface Burner Knob GEN WB03K10007 Contact Us For Availability

View on Model

3

WB28K10033 GE Range Orifice Spud Backorder GEN WB28K10033 $17.54

View on Model

3

WB28K10376 GE Range Orifice Backorder GEN WB28K10376 $6.01

View on Model

4

WB16K10026 GE Oven Range Cooktop Double Burne In Stock GEN WB16K10026 $47.32

View on Model

5

Manifold Panel GEN WB36K10012 Contact Us For Availability

View on Model

6

Grommet GEN WB02K0009 Contact Us For Availability

View on Model

8

WB01K10002 GE Oven Screw 8-32 Backorder GEN WB01K10002 $15.74

View on Model

9

Cooktop Burner Box GEN WB63K10001 Contact Us For Availability

View on Model

10

Nut GEN WB01K0004 Contact Us For Availability

View on Model

11

WB18X26988 GE Range Top Spark Electrode In Stock GEN WB18X26988 $9.47

View on Model

12

Range Surface Burner Igniter Switch GEN WB24K10002 Contact Us For Availability

View on Model

14

Manifold Pipe GEN WB28K10111 Contact Us For Availability

View on Model

15

WB21K38 GE Range Burner Valve Backorder GEN WB21K38 $51.08

View on Model

16

WB19K10055 GE Stove Range Oven Pressure Regul Backorder GEN WB19K10055 $50.39

View on Model

17

WB20K8 GE Range Thermostat Temperature Contro In Stock GEN WB20K8 $118.02

View on Model

18

Thermostat Cover GEN WB02K0006 Contact Us For Availability

View on Model

19

WB1K8 GE Range Thermostat Screw Backorder GEN WB1K8 $5.65

View on Model

20

WB28K10009 GE Range Burner Tube Backorder GEN WB28K10009 $20.59

View on Model

20

WB28K10010 GE Range Front Tube Assembly Backorder GEN WB28K10010 $31.43

View on Model

20

WB28K10011 GE Range Rear Burner Tube Backorder GEN WB28K10011 $31.43

View on Model

20

WB28K10012 GE Range Rear Burner Tube Backorder GEN WB28K10012 $19.55

View on Model

21

WB1K83 GE Range Screw Backorder GEN WB1K83 $5.28

View on Model

28

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $5.65

View on Model

37

WB34K14 GE Igniter Cover Backorder GEN WB34K14 $12.28

View on Model

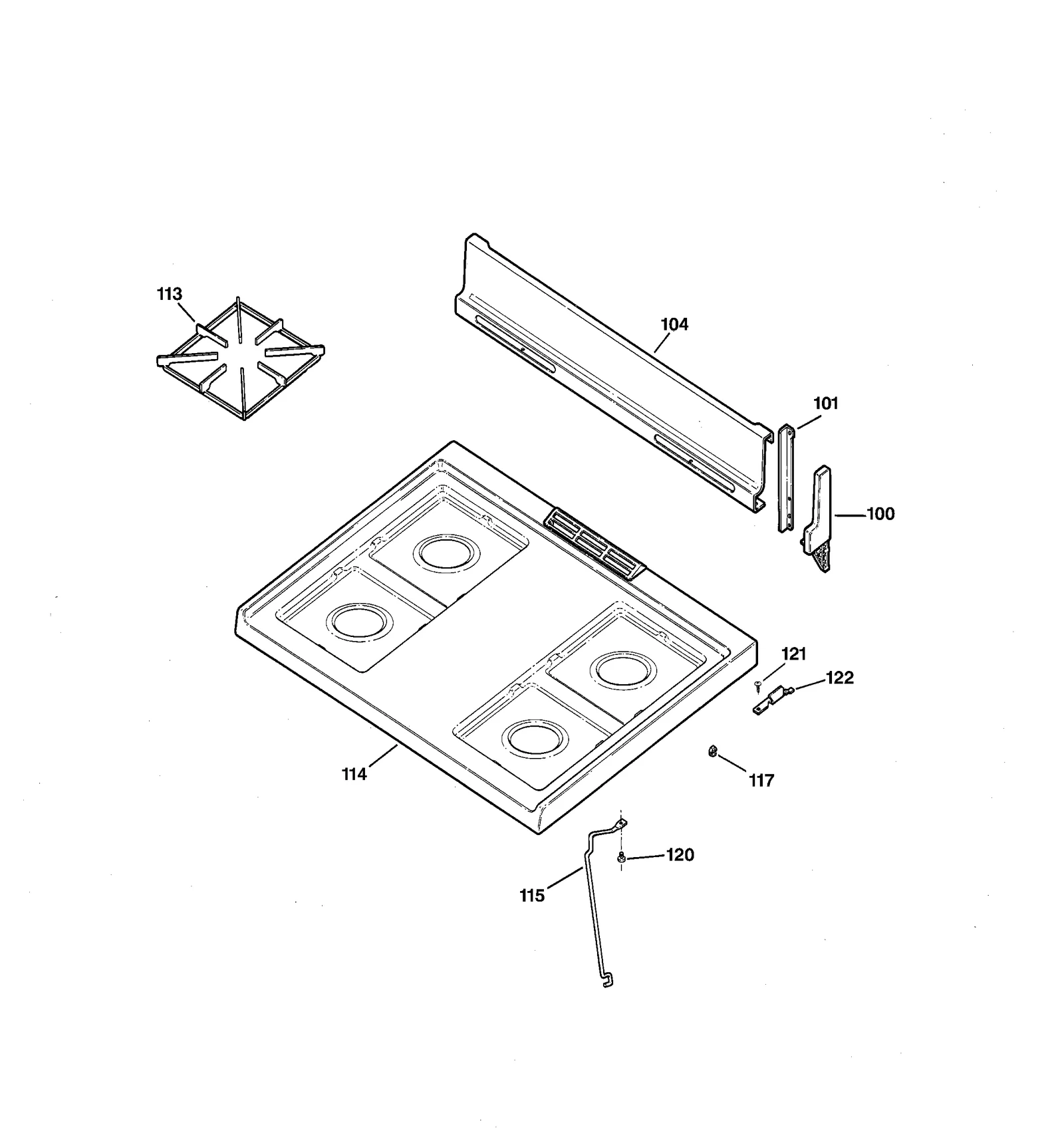

100

WB7K11 GE Range Right Endcap Backorder GEN WB7K11 $8.41

View on Model

100

WB7K12 GE Range Left Endcap Backorder GEN WB7K12 $8.00

View on Model

101

WB37K5 GE Can Bracket Backorder GEN WB37K5 $9.58

View on Model

101

Sup Can Bk L GEN WB37K0006 Contact Us For Availability

View on Model

104

WB37K4 GE Range Can Back Backorder GEN WB37K4 $26.21

View on Model

108

WB1X5364 GE Oven Mounting Screw In Stock GEN WB1X5364 $5.65

View on Model

110

WB20K5037 GE Range Spark Module In Stock GEN WB20K5037 $94.10

View on Model

113

WB31K10012 GE Range 8-Finger Burner Grate In Stock GEN WB31K10012 $67.07

View on Model

114

WB62K10001 GE Range Cooktop Backorder GEN WB62K10001 $240.09

View on Model

114

WB62K10064 GE Range Flat Cooktop (Bisque) In Stock GEN WB62K10064 $106.39

View on Model

115

Range Support GEN WB06K0008 Contact Us For Availability

View on Model

117

Locator Pin GEN WB02K0017 Contact Us For Availability

View on Model

120

WB1K45 GE Range Screw and Range Assembly Backorder GEN WB1K45 $5.67

View on Model

121

Screw 12-14 GEN WB01K0078 Contact Us For Availability

View on Model

122

WB10K18 GE Range Guide Hinge Backorder GEN WB10K18 $5.28

View on Model

122

Hinge Guide GEN WB10K0019 Contact Us For Availability

View on Model

200

WB48T10095 GE Oven Rack In Stock GEN WB48T10095 $44.20

View on Model

202

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

203

WB18K10036 GE Oven Line Cord Backorder GEN WB18K10036 $17.60

View on Model

204

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $5.65

View on Model

204

WZ4X345D GE Screw Package 12 C92 Backorder GEN WZ4X345D $17.17

View on Model

205

Cvr Bck Pnl GEN WB34K0021 Contact Us For Availability

View on Model

206

WR01X10065 GE Screw Backorder GEN WR01X10065 $5.65

View on Model

207

WB2K36 GE Oven Clamp Cable Backorder GEN WB2K36 $5.02

View on Model

208

WB63K20 GE Ran Back Backorder GEN WB63K20 $31.43

View on Model

209

Panel GEN WB63K0050 Contact Us For Availability

View on Model

209

Panel GEN WB63K0051 Contact Us For Availability

View on Model

209

Side Pnl/bis GEN WB62K10039 Contact Us For Availability

View on Model

210

Oven GEN WB53K0035 Contact Us For Availability

View on Model

211

WB1K5 GE Range Screw 8-18 X B97 In Stock GEN WB1K5 $5.69

View on Model

212

WB1K2 GE Range Speednut Backorder GEN WB1K2 $5.65

View on Model

213

WB1K3 GE Oven Speed Nut Backorder GEN WB1K3 $5.65

View on Model

214

WB19K31 GE Gas Range Oven Cooktop Safety Valv Backorder GEN WB19K31 $116.75

View on Model

215

WB2K65 GE Range SAF Valve Bracket Backorder GEN WB2K65 $5.65

View on Model

216

Lock Nut GEN WB01K0006 Contact Us For Availability

View on Model

217

WB16K10043 GE Range Bake Burner Without Ignit In Stock GEN WB16K10043 $32.44

View on Model

218

WB13K21 GE Oven Igniter with 7 Leads In Stock GEN WB13K21 $50.54

View on Model

219

Flame Spread GEN WB49K0044 Contact Us For Availability

View on Model

220

GROMMET GEN WB02K0008 Contact Us For Availability

View on Model

221

WB02K10073 GE Range Clip Capillary Backorder GEN WB02K10073 $7.09

View on Model

222

Hinge Asm Gd GEN WB10K0012 Contact Us For Availability

View on Model

223

Hinge Pin GEN WB02X6195 Contact Us For Availability

View on Model

224

Retainer GEN WB02X1082 Contact Us For Availability

View on Model

225

SHIELD VALVE GEN WB34K0002 Contact Us For Availability

View on Model

226

Hook Drive Spring GEN WB02K0011 Contact Us For Availability

View on Model

227

Door Spring GEN WB09K0001 Contact Us For Availability

View on Model

228

Wire Clip GEN WB02X7066 Contact Us For Availability

View on Model

232

Range Hinge Bushing GEN WB34K0003 Contact Us For Availability

View on Model

232

Hnge Grd Lft GEN WB34K0004 Contact Us For Availability

View on Model

234

Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability

View on Model

236

Wire Clip GEN WB02K0022 Contact Us For Availability

View on Model

237

WB28K147 GE Range Tube Valve Supply Backorder GEN WB28K147 $38.02

View on Model

239

Rear Broiler Panel GEN WB63K0001 Contact Us For Availability

View on Model

240

WB63K3 GE Range Panel Side Broil Backorder GEN WB63K3 $13.21

View on Model

240

Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability

View on Model

241

WB63K10029 GE Range Bottom Backorder GEN WB63K10029 $70.05

View on Model

242

Brace GEN WB63K0005 Contact Us For Availability

View on Model

243

WB63K10232 GE Range Support Base Backorder GEN WB63K10232 $21.59

View on Model

243

WB63K10233 GE Range Support Base Backorder GEN WB63K10233 $20.07

View on Model

245

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.84

View on Model

246

Weld Frame GEN WB63K0031 Contact Us For Availability

View on Model

247

Oven GEN WB53K0001 Contact Us For Availability

View on Model

248

Oven GEN WB53K0002 Contact Us For Availability

View on Model

249

Oven Side Lf GEN WB53K0003 Contact Us For Availability

View on Model

250

Ov Back 24" GEN WB53K0010 Contact Us For Availability

View on Model

251

WB2K3 GE Angle Support Backorder GEN WB2K3 $5.02

View on Model

253

WB2K4 GE Cover Accessory Spring Backorder GEN WB2K4 $4.65

View on Model

254

Hinge Screw GEN WB01K0053 Contact Us For Availability

View on Model

254

Support Rivet GEN WB10K0014 Contact Us For Availability

View on Model

254

Support Rivet GEN WB10K0013 Contact Us For Availability

View on Model

255

WB2K5 GE Range Broiler Stop Backorder GEN WB2K5 $24.89

View on Model

256

Vent Gasket GEN WB32K0001 Contact Us For Availability

View on Model

257

Vent GEN WB38K0004 Contact Us For Availability

View on Model

258

Brace Vent GEN WB38K0003 Contact Us For Availability

View on Model

259

Slide GEN WB39K0001 Contact Us For Availability

View on Model

259

Slide Bot Lf GEN WB39K0002 Contact Us For Availability

View on Model

260

WB32K2 GE Range Gasket Seal Backorder GEN WB32K2 $5.30

View on Model

261

Insert Oven Wrap GEN WB35K0001 Contact Us For Availability

View on Model

262

WB35K16 GE Range Back Insulation Backorder GEN WB35K16 $47.95

View on Model

267

Counterweight GEN WB06K0002 Contact Us For Availability

View on Model

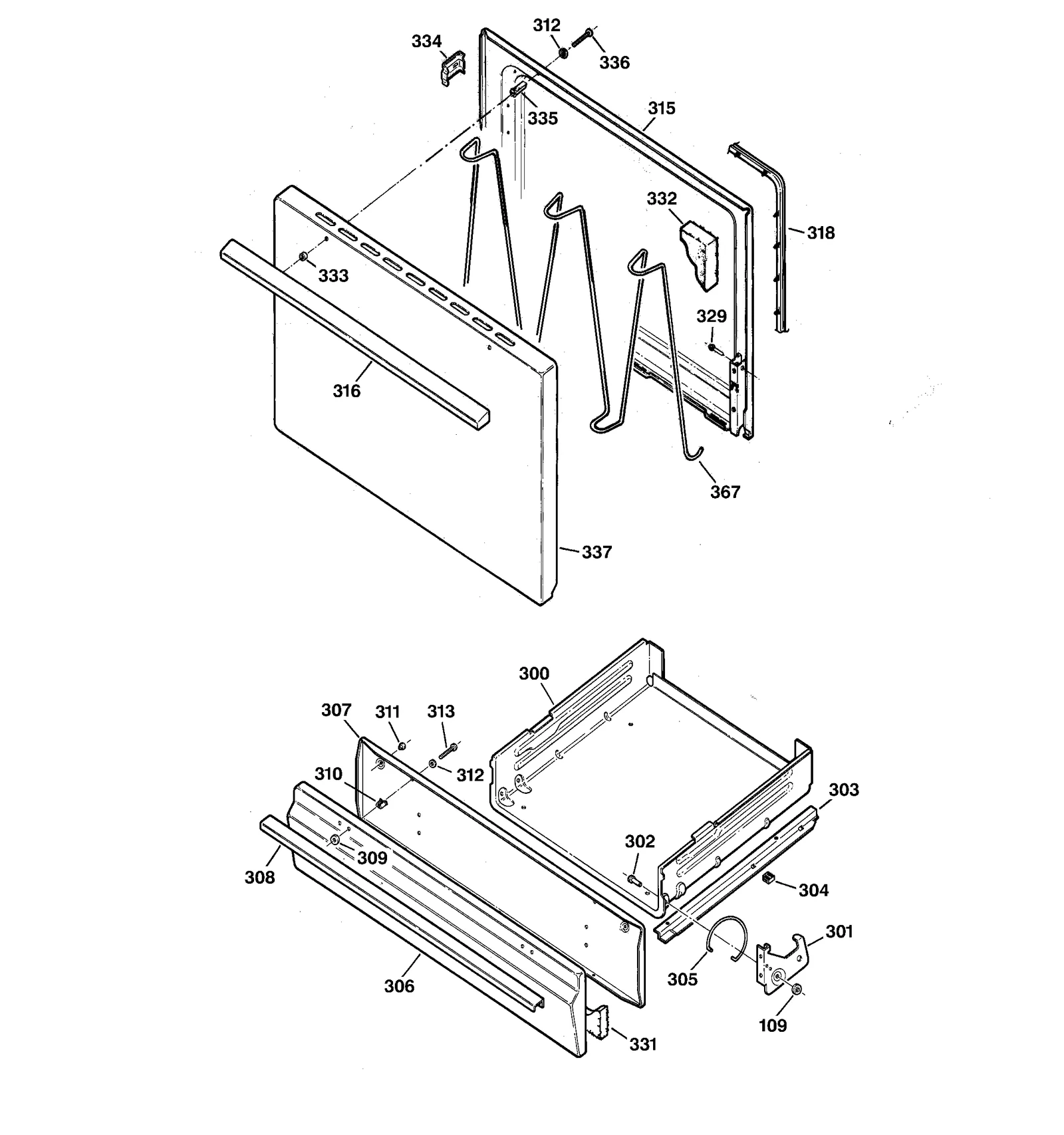

308

Broiler Handle GEN WB15K0003 Contact Us For Availability

View on Model

309

Washer GEN WB01X0560 Contact Us For Availability

View on Model

310

WB2K14 GE Range Spacer In Stock GEN WB2K14 $5.28

View on Model

311

WB2K15 GE Range Grate Bumper In Stock GEN WB2K15 $6.45

View on Model

312

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $10.25

View on Model

313

WB1X5731D GE Range Nut Package of 12 Backorder GEN WB1X5731D $20.27

View on Model

315

Liner Asm Wd GEN WB55K0002 Contact Us For Availability

View on Model

316

WB15K1 GE Range Broil Handle Backorder GEN WB15K1 $32.23

View on Model

318

WB35X29720 GE Oven Door Gasket In Stock GEN WB35X29720 $14.79

View on Model

329

WB1X558D GE Oven Screw Package Backorder GEN WB1X558D $15.44

View on Model

331

Drawer Insert GEN WB35K0003 Contact Us For Availability

View on Model

332

Door Insulation GEN WB35K0004 Contact Us For Availability

View on Model

333

WB1K10 GE Oven Grommet Handle Backorder GEN WB1K10 $5.65

View on Model

334

Door Spacer GEN WB02K0013 Contact Us For Availability

View on Model

335

Spacer GEN WB02K0002 Contact Us For Availability

View on Model

336

Handle Screw GEN WZ04X0423 Contact Us For Availability

View on Model

337

Pnl Door Wh GEN WB56K0002 Contact Us For Availability

View on Model

337

Pnl Door Alm GEN WB56K0003 Contact Us For Availability

View on Model

337

Door Panel GEN WB56K10012 Contact Us For Availability

View on Model

367

Retaining Wire Insulation GEN WB33K0001 Contact Us For Availability

View on Model

420

Cover GEN WB34K0016 Contact Us For Availability

View on Model

710

WB02K10254 GE Oven Anti-Tip Bracket Assembly In Stock GEN WB02K10254 $14.27

View on Model

711

Range Thermostat Knob GEN WB03K10008 Contact Us For Availability

View on Model

712

WB1K37 GE Range Screw Backorder GEN WB1K37 $5.28

View on Model
