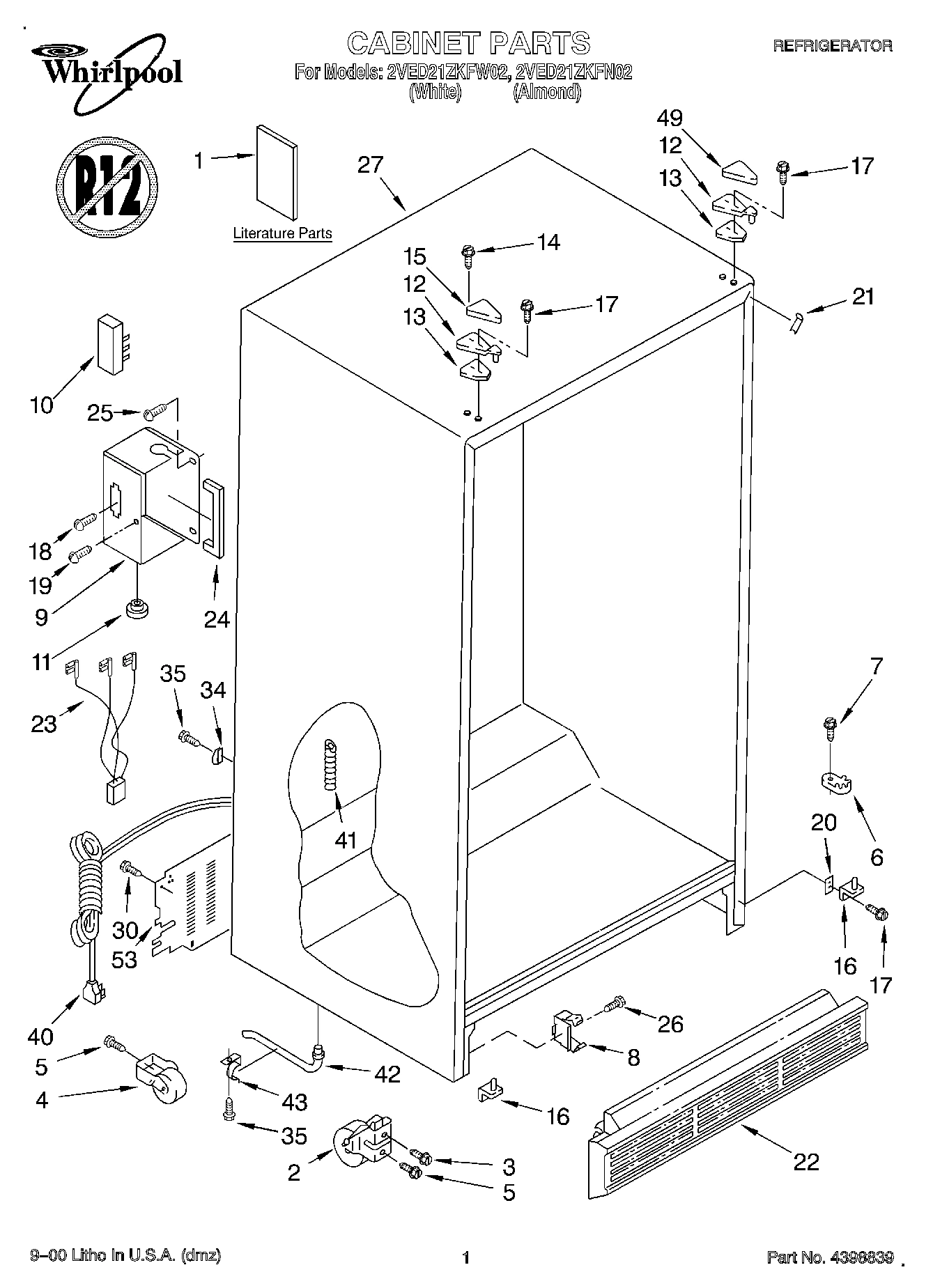

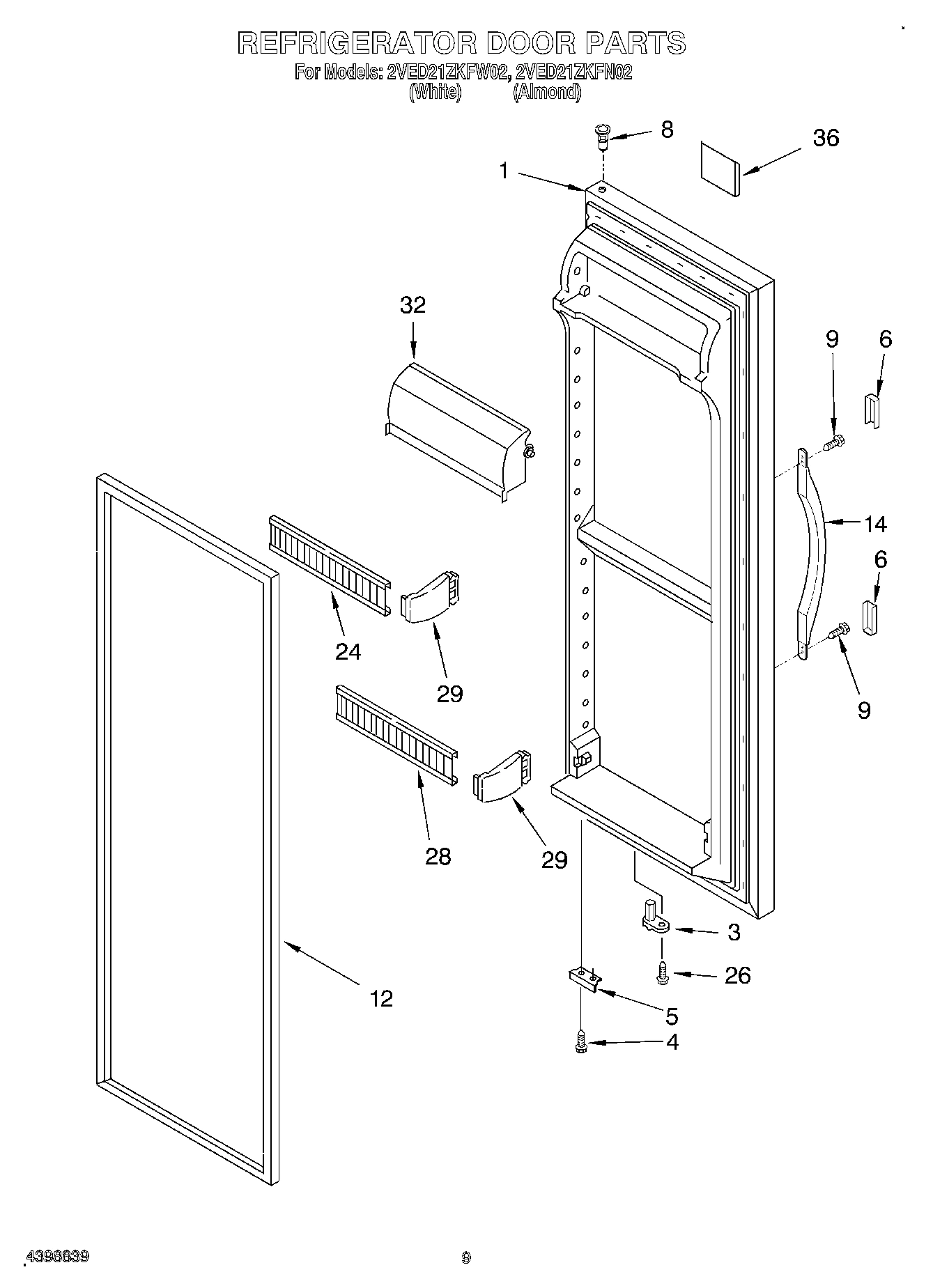

Model Whirlpool 2VED21ZKFN02 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI11576A5 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI11577A1 Contact Us For Availability

1

Freezer, Door (Almond) WPL 2212055N Contact Us For Availability

1

Freezer, Door (White) WPL 2212055W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

2

Blade, Fan WPL 2190685 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Icemaker, Hole Seal WPL 1129056 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

5

Air Duct Freezer WPL 2203592 Contact Us For Availability

6

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Shelf Ladder (2) WPL 2181796 Contact Us For Availability

6

Shroud, Light WPL 2167012 Contact Us For Availability

6

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

7

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

7

Fan Motor WPL 2187151 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

8

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

Bracket, Door Stop WPL 2195950 Contact Us For Availability

9

Gasket WPL 2209604 Contact Us For Availability

10

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

Grommet (10) WPL 2176134 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Stud, Rear WPL 2196207 Contact Us For Availability

Gasket WPL 2209605 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Harness, Fan, Evaporator, And Heater WPL 2206505 Contact Us For Availability

Extension WPL 2179561 Contact Us For Availability

Shelf WPL 2163612 Contact Us For Availability

13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

13

Shelf, Cantilever WPL 2163617 Contact Us For Availability

14

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

14

Shelf (1) WPL 2174269 Contact Us For Availability

14

Shelf (2) WPL 2174270 Contact Us For Availability

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

Light Bar (RC) WPL 2179920 Contact Us For Availability

Bin, Freezer WPL 2171707 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

16

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

17

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $93.63

17

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

17

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $26.75

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Handle, Center (White) WPL 2186649W Contact Us For Availability

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

20

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

20

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

20

Cover, Wiring WPL 2155571 Contact Us For Availability

21

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

22

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

22

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

23

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

23

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

24

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

24

WPW10129864 Whirlpool Refrigerator Diffuser Backorder WPL WPW10129864 $177.34

24

Trim, Door Shelf WPL 2195934 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $80.31

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Cover, Conduit WPL 2150330 Contact Us For Availability

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

28

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

28

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

34

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

Trim, Door Shelf WPL 2195919 Contact Us For Availability

38

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

38

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
