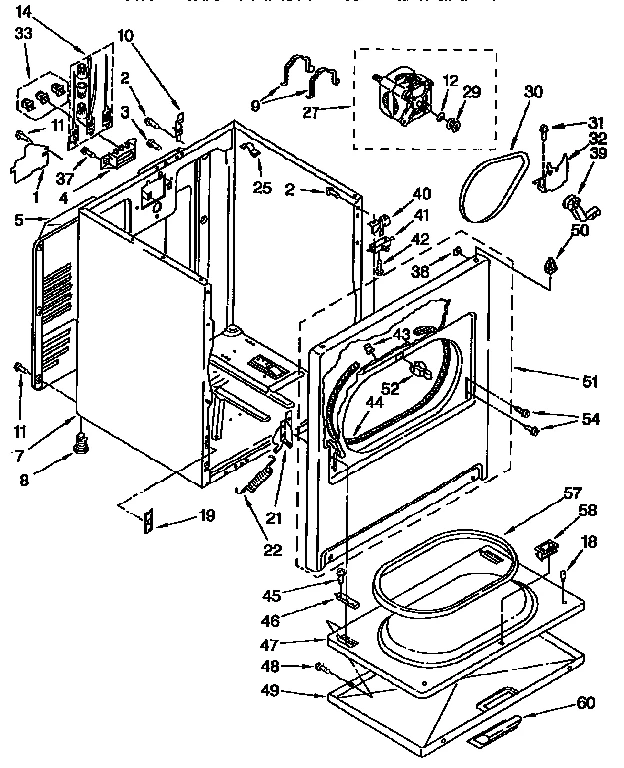

Whirlpool 110.96585400 Electric Dryer (Kenmore 11096585400) Parts List

1

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $26.28

View on Model

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

View on Model

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

View on Model

3

WP3398190 Whirlpool Timer Backorder WPL WP3398190 $176.51

View on Model

4

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

View on Model

4

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

5

280043 Whirlpool Rear Panel Backorder WPL 280043 $143.13

View on Model

5

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $31.81

View on Model

7

Cabnt Wh WPL 3399585 Contact Us For Availability

View on Model

7A

Cabnt Al WPL 3399586 Contact Us For Availability

View on Model

8

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

View on Model

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.70

View on Model

11

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

View on Model

12

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

View on Model

12

WP3398093 Whirlpool Buzzer Adjuster Backorder WPL WP3398093 $59.35

View on Model

14

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

View on Model

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

View on Model

15

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

View on Model

16

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $75.86

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

View on Model

19

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.33

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

View on Model

21

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $27.08

View on Model

21A

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $34.59

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

View on Model

22

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

View on Model

25

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $132.34

View on Model

25

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

View on Model

27

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

View on Model

28

Dryer Timer Wire Harness Connector WPL 3397269 Contact Us For Availability

View on Model

29

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

View on Model

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $19.20

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.00

View on Model

30

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

View on Model

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

34

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $46.74

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

View on Model

39

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

View on Model

39

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

View on Model

40

Signal WPL 690981 Contact Us For Availability

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

View on Model

41

Hose WPL 686577 Contact Us For Availability

View on Model

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $12.85

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $11.93

View on Model

44

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.72

View on Model

44

Housing WPL 695081 Contact Us For Availability

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

View on Model

46

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

View on Model

47

WP695737 Whirlpool Door Backorder WPL WP695737 $114.85

View on Model

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

View on Model

49

WP3393549 Whirlpool Door Assembly In Stock WPL WP3393549 $88.96

View on Model

49A

Door Al WPL 3393550 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

View on Model

51

279443 Whirlpool Primary Panel Backorder WPL 279443 $195.66

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

View on Model

51A

Panel (Almond) WPL 695621 Contact Us For Availability

View on Model

52

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $50.42

View on Model

53

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $54.77

View on Model

54

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.13

View on Model

54

Screw WPL 342043 Contact Us For Availability

View on Model

55

Chute WPL 686214 Contact Us For Availability

View on Model

57

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $37.83

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

View on Model

58

98460 Whirlpool Nut Backorder WPL 98460 $9.59

View on Model

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

View on Model

60

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60A

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model
