Model Whirlpool 110.87273100 Gas Dryer (Kenmore 11087273100) – Common Parts &amp; Diagrams

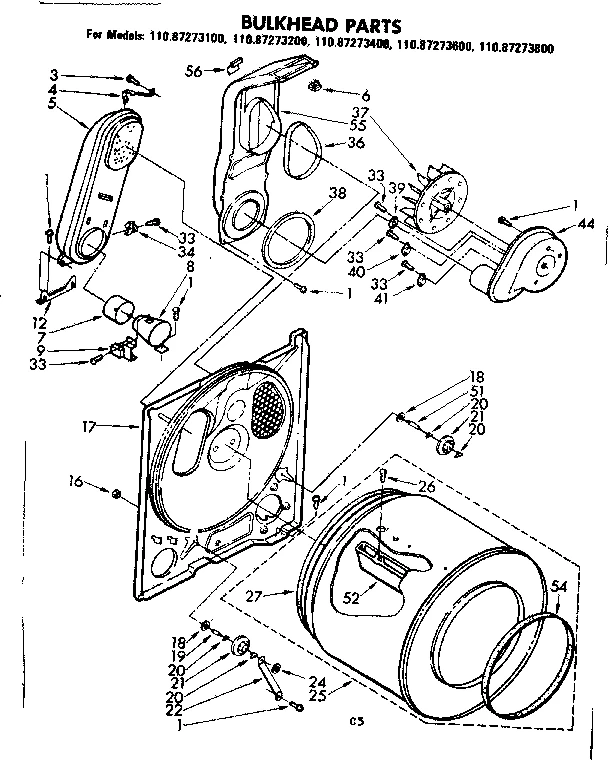

1

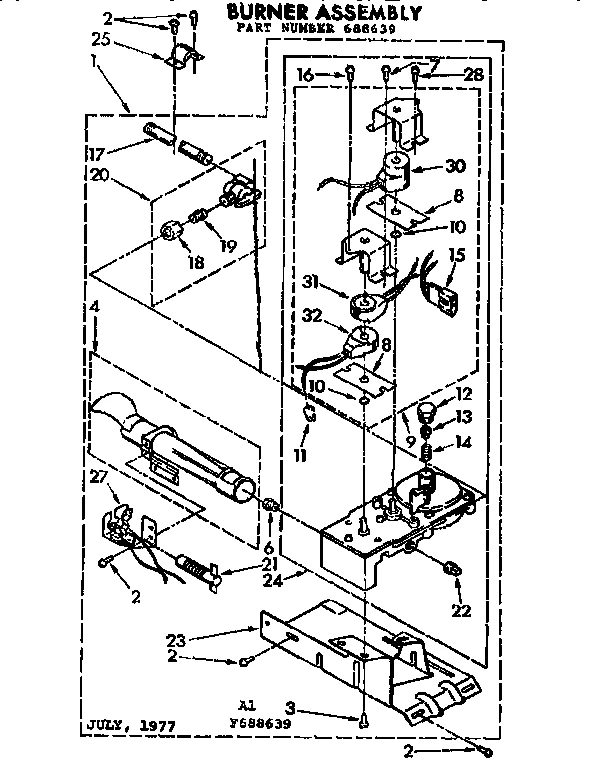

Burner WPL 688639 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

2

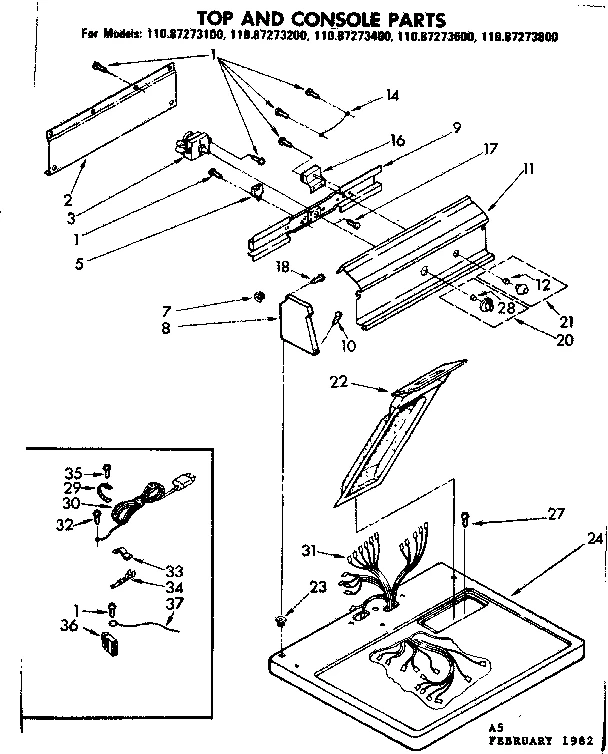

Panel WPL 359374 Contact Us For Availability

3

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $75.86

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

Timer 60hz WPL 691528 Contact Us For Availability

4

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.18

4

WP693140 Whirlpool Burner Backorder WPL WP693140 $76.64

5

Panel WPL 348364 Contact Us For Availability

5

Buzzer WPL 686864 Contact Us For Availability

6

Screw WPL 343826 Contact Us For Availability

6

(338471) (ALT.) WPL N/P Contact Us For Availability

6A

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.42

6B

Burner Orifice WPL 15775 Contact Us For Availability

6C

Burner Orifice WPL 15419 Contact Us For Availability

6D

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

6E

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

End Cap Clip WPL 689559 Contact Us For Availability

7A

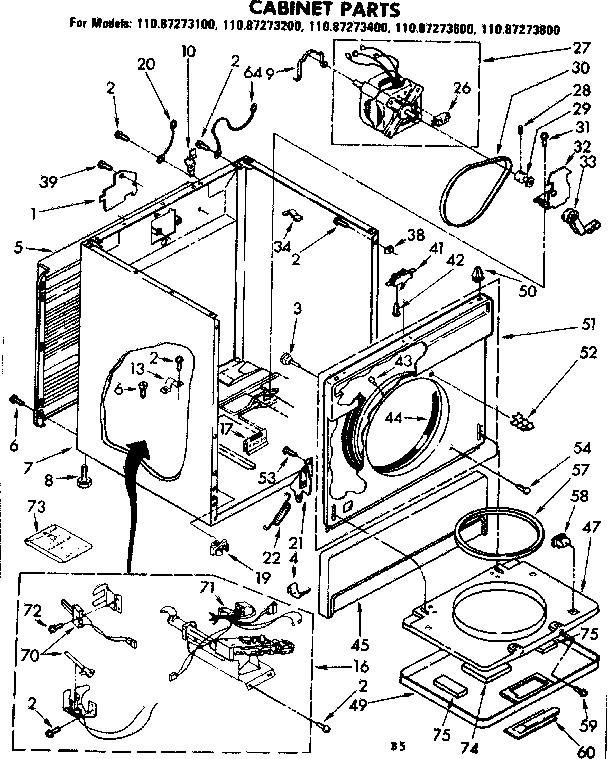

Cabinet (White) WPL 690841 Contact Us For Availability

7B

Cabinet WPL 690843 Contact Us For Availability

7C

Cabinet WPL 690844 Contact Us For Availability

7D

Cabinet WPL 690845 Contact Us For Availability

7E

Cabinet (Almond) WPL 690842 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

Plate WPL 338869 Contact Us For Availability

8A

Cap (Chestnut) WPL 372134 Contact Us For Availability

8B

Cap (Chestnut) WPL 372127 Contact Us For Availability

9

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Coil WPL 685947 Contact Us For Availability

9

Bracket WPL 690864 Contact Us For Availability

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.70

10

Screw WPL 358225 Contact Us For Availability

10

O-Ring WPL 296302 Contact Us For Availability

11

Panel WPL 691969 Contact Us For Availability

11

Connector WPL 340140 Contact Us For Availability

12

Compression Ring WPL 90015 Contact Us For Availability

12

Leak Limiter WPL 338868 Contact Us For Availability

13

Screw WPL 99996 Contact Us For Availability

14

Ground Wire WPL 340025 Contact Us For Availability

14

Spring WPL 339226 Contact Us For Availability

15

Washer Terminal Connector WPL 353424 Contact Us For Availability

16

Switch WPL 345775 Contact Us For Availability

16

Screw WPL 98487 Contact Us For Availability

16A

Burner WPL 688637 Contact Us For Availability

17

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

17

Screw, Nibbed WPL 339607 Contact Us For Availability

17

Gas Pipe WPL 233273 Contact Us For Availability

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

18

Nut Union WPL 233076 Contact Us For Availability

18

Screw WPL 355326 Contact Us For Availability

19

3393767 Whirlpool Pipe Backorder WPL 3393767 $63.59

19

Clip WPL 690625 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

20

Dryer Timer Knob WPL 688865 Contact Us For Availability

20

Valve WPL 345062 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

Dryer Hinge WPL 687905 Contact Us For Availability

Dryer Control Knob WPL 349796 Contact Us For Availability

21A

Hinge WPL 687906 Contact Us For Availability

22

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

22

Door Spring WPL 237979 Contact Us For Availability

22A

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $28.00

22B

Screen WPL 689466 Contact Us For Availability

22C

Screen WPL 689468 Contact Us For Availability

22D

Dryer Lint Filter WPL 689467 Contact Us For Availability

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

23

Base WPL 338455 Contact Us For Availability

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

24

Valve WPL 688616 Contact Us For Availability

24A

Top (White) WPL 685958 Contact Us For Availability

24B

Top WPL 689474 Contact Us For Availability

24C

Top WPL 689476 Contact Us For Availability

24D

Top WPL 689475 Contact Us For Availability

24E

Top (Almond) WPL 689473 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

25

Drum WPL 347875 Contact Us For Availability

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

26

Screw WPL 690372 Contact Us For Availability

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

27

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

28

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

28

Screw WPL 690046 Contact Us For Availability

28

Screw WPL 340182 Contact Us For Availability

29

Pulley WPL 348946 Contact Us For Availability

29

Ground Strap WPL 22965 Contact Us For Availability

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.00

30

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $41.12

30

Coil WPL 348376 Contact Us For Availability

31

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

31

Harness WPL 692605 Contact Us For Availability

31

Coil WPL 348375 Contact Us For Availability

32

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

32

Coil WPL 348374 Contact Us For Availability

33

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

33

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

34

Thermostat WPL 338471 Contact Us For Availability

34A

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

35

Screw WPL 132848 Contact Us For Availability

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

36

Receptacle WPL 353425 Contact Us For Availability

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

37

Ground Wire WPL 364089 Contact Us For Availability

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

39

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

40

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

279220 Whirlpool Clip Backorder WPL 279220 $11.93

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $51.86

44

Housing WPL 348494 Contact Us For Availability

45A

Toe Panel (White) WPL 237035 Contact Us For Availability

45B

Panel WPL 689538 Contact Us For Availability

45C

Panel WPL 689540 Contact Us For Availability

45D

Panel WPL 689539 Contact Us For Availability

45E

Panel (Almond) WPL 689537 Contact Us For Availability

47A

Door (White) WPL 346370 Contact Us For Availability

47B

Door WPL 689259 Contact Us For Availability

47C

Door WPL 689260 Contact Us For Availability

47D

Door WPL 689261 Contact Us For Availability

47E

Door (Almond) WPL 689258 Contact Us For Availability

49A

Door (White) WPL 348728 Contact Us For Availability

49B

Door WPL 689331 Contact Us For Availability

49C

Door WPL 689332 Contact Us For Availability

49D

Door WPL 689333 Contact Us For Availability

49E

Door (Almond) WPL 689330 Contact Us For Availability

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

51A

Panel (White) WPL 338012 Contact Us For Availability

51B

Panel WPL 689534 Contact Us For Availability

51C

Panel WPL 689536 Contact Us For Availability

51D

Panel WPL 689535 Contact Us For Availability

51E

Panel (Almond) WPL 689533 Contact Us For Availability

52

Baffle WPL 347892 Contact Us For Availability

52A

Baffle WPL 348868 Contact Us For Availability

53

Screw WPL 342043 Contact Us For Availability

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

54

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $43.79

55

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $70.95

56

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

57

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $42.05

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

59

Screw WPL 689791 Contact Us For Availability

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

60B

Handle WPL 689458 Contact Us For Availability

60D

Handle WPL 689459 Contact Us For Availability

60E

Handle (Almond) WPL 689457 Contact Us For Availability

64

Wire WPL 690236 Contact Us For Availability

72

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

73

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $63.59

73A

Conversion Kit WPL 279243 Contact Us For Availability

74

Filler WPL 691207 Contact Us For Availability

75

Filler WPL 691525 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Owner's Manual WPL LIT690811 Contact Us For Availability

Label WPL LIT691629 Contact Us For Availability

Operating Instructions WPL LIT692142 Contact Us For Availability

Checklist WPL LIT692169 Contact Us For Availability

Parts List WPL LIT692358 Contact Us For Availability

Service Manual WPL LIT828693 Contact Us For Availability
