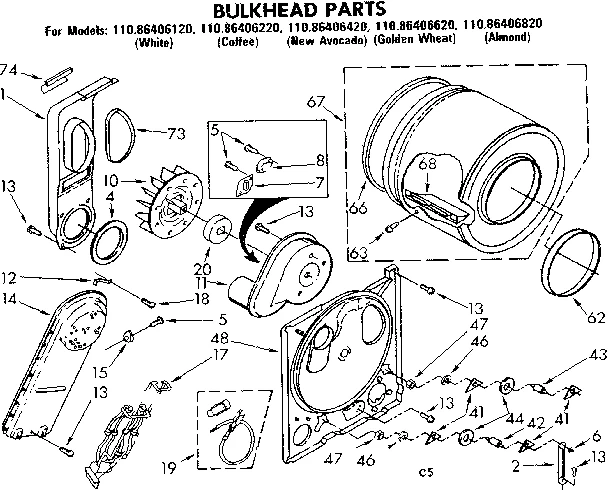

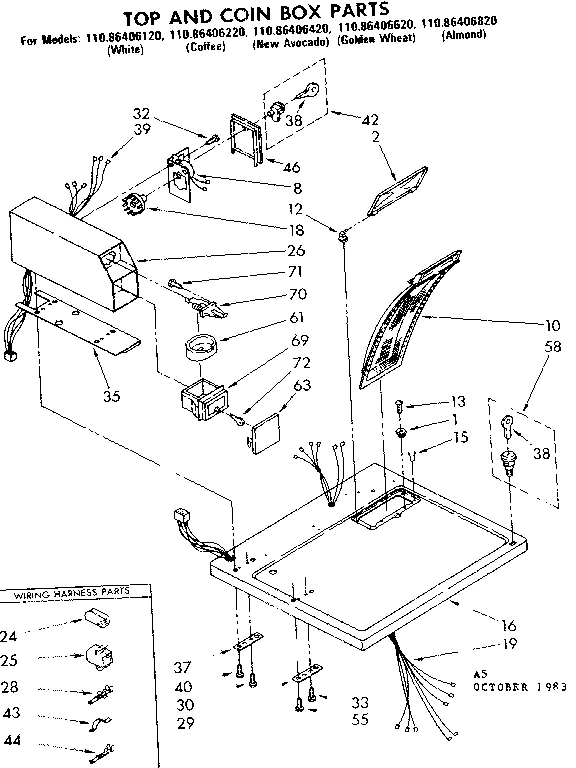

Model Whirlpool 110.86406120 Electric Dryer (Kenmore 11086406120) – Common Parts &amp; Diagrams

1

98460 Whirlpool Nut Backorder WPL 98460 $9.59

1

Escutcheon WPL 692313 Contact Us For Availability

2

Screw WPL 355326 Contact Us For Availability

2

Bracket WPL 348945 Contact Us For Availability

2A

Cover (White) WPL 691200 Contact Us For Availability

2E

Cover (Almond) WPL 691201 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

4

Clip WPL 98084 Contact Us For Availability

5

Relay WPL 340274 Contact Us For Availability

6

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

7

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

7

Bezel WPL 692312 Contact Us For Availability

8

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $180.66

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

8

Switch WPL 692268 Contact Us For Availability

9

Screw WPL 346893 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $24.81

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

10

Light WPL 360402 Contact Us For Availability

11

Light WPL 360398 Contact Us For Availability

11

Housing WPL 688880 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $6.20

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

Ground Wire WPL 340025 Contact Us For Availability

12A

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

13

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

14

Box WPL 685457 Contact Us For Availability

15

Bumper WPL 297535 Contact Us For Availability

16A

Top (White) WPL 692273 Contact Us For Availability

16E

Top (Almond) WPL 692789 Contact Us For Availability

17

WP279462 Whirlpool Element Backorder WPL WP279462 $135.97

18A

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

18B

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

18C

WP339853 Whirlpool Cam Backorder WPL WP339853 $3.70

19

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

19

Harness WPL 693736 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

20

Seal WPL 694630 Contact Us For Availability

24

Plug WPL 352457 Contact Us For Availability

25

Plug WPL 352458 Contact Us For Availability

26A

285623 Whirlpool Case Backorder WPL 285623 $287.92

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

29

Housng Strap WPL 83701 Contact Us For Availability

30

Screw WPL 90057 Contact Us For Availability

32

339805 Whirlpool Screw Backorder WPL 339805 $9.59

33

W10841059 Whirlpool Screw Backorder WPL W10841059 $0.95

35

Cushion (White) WPL 358264 Contact Us For Availability

36A

WP348205 Whirlpool Door Backorder WPL WP348205 $62.14

36E

Dryer Door (Almond) WPL 689314 Contact Us For Availability

37

Plate WPL 351562 Contact Us For Availability

37A

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.88

37B

Handle WPL 689498 Contact Us For Availability

37C

Handle WPL 689500 Contact Us For Availability

37D

Handle WPL 689499 Contact Us For Availability

37E

Handle (Almond) WPL 689497 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $51.86

38

4396669 Whirlpool Washer Dryer Door Key In Stock WPL 4396669 $7.21

39

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

39

Harness WPL 692314 Contact Us For Availability

40

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.16

40

Bolt WPL 691983 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

42

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

42

WP3349091 Whirlpool Lock Cam Mechanism Backorder WPL WP3349091 $58.81

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.33

43

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

44

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

44

Clip WPL 690625 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46A

Door (White) WPL 358239 Contact Us For Availability

46C

Door WPL 689680 Contact Us For Availability

46D

Door WPL 689681 Contact Us For Availability

46E

Door (Almond) WPL 689732 Contact Us For Availability

47

Clip WPL 341776 Contact Us For Availability

48

Bulkhead WPL 685769 Contact Us For Availability

51

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.70

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

55

Screw WPL 98048 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.00

57

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

58

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

58

Commercial Dryer Top Panel Lock WPL 358290 Contact Us For Availability

59

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $44.93

60

Screw WPL 690046 Contact Us For Availability

61

Funnel WPL 355446 Contact Us For Availability

61B

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $40.96

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

63

Screw WPL 690372 Contact Us For Availability

63

Plate WPL 358973 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $25.73

66

Wire WPL 690236 Contact Us For Availability

67

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

68

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $54.61

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

74

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Label WPL LIT691594 Contact Us For Availability

Instruction Sheet WPL LIT691868 Contact Us For Availability

Parts List WPL LIT694438 Contact Us For Availability
