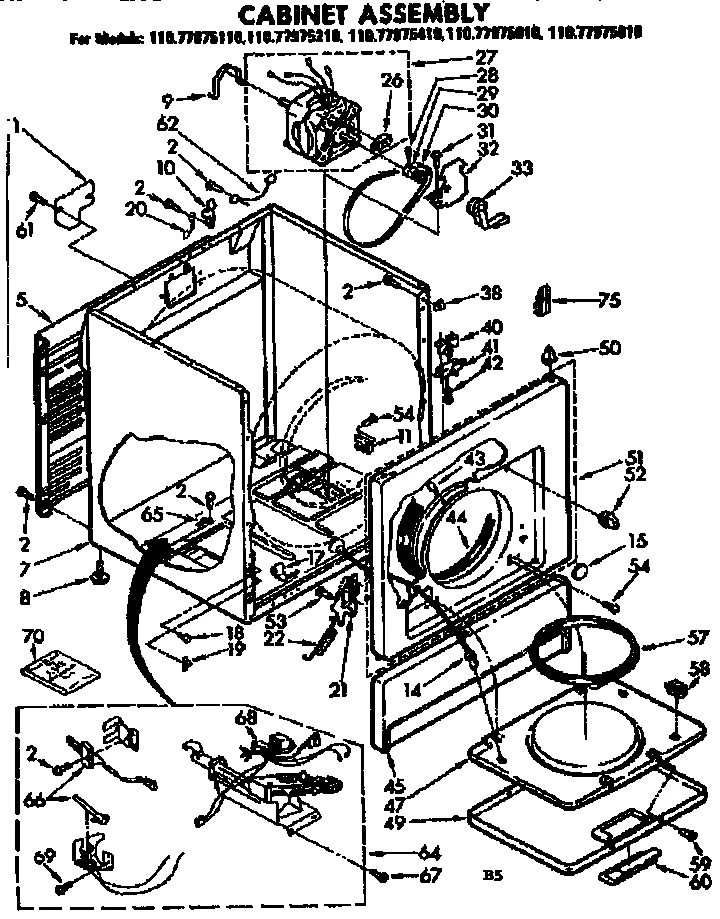

Whirlpool 110.77975110 Dryer (Kenmore 11077975110) Parts List

1

Cover WPL 343630 Contact Us For Availability

View on Model

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.55

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $6.31

View on Model

5

Panel WPL 347736 Contact Us For Availability

View on Model

7

279900 Whirlpool Box O/S1 Backorder WPL 279900 $140.26

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

7

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

7A

Cabinet (White) WPL 690847 Contact Us For Availability

View on Model

7B

Cabinet WPL 690849 Contact Us For Availability

View on Model

7C

Cabinet WPL 690850 Contact Us For Availability

View on Model

7D

Cabinet WPL 690851 Contact Us For Availability

View on Model

7E

Cabinet (Almond) WPL 690848 Contact Us For Availability

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.44

View on Model

9

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $18.27

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.76

View on Model

11A

Door Cable Guide WPL 337182 Contact Us For Availability

View on Model

11B

Guide WPL 337183 Contact Us For Availability

View on Model

12

Box Support WPL 337445 Contact Us For Availability

View on Model

14

DOOR CABLE Backorder CMP 230131CM $4.48

View on Model

15

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.76

View on Model

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.94

View on Model

17

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.46

View on Model

17

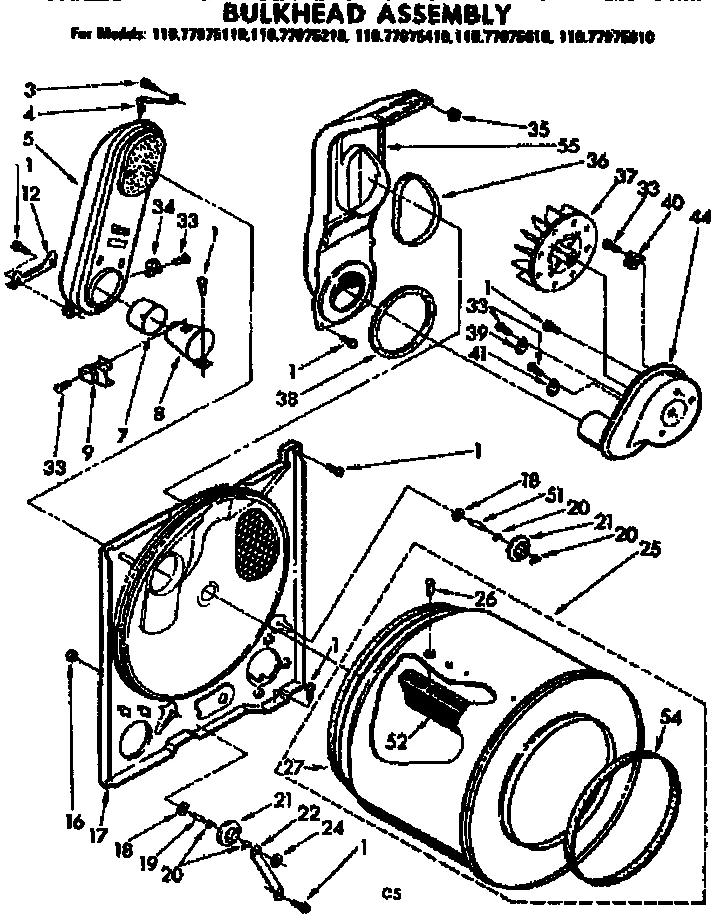

Bulkhead WPL 685769 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $77.11

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.55

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.89

View on Model

19

Clip WPL 342601 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.87

View on Model

20

Dryer Timer Knob WPL 688865 Contact Us For Availability

View on Model

20

Ground Wire WPL 340025 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.30

View on Model

21A

Door Hinge WPL 238456 Contact Us For Availability

View on Model

21B

WP238460 Whirlpool Hinge In Stock WPL WP238460 $2.55

View on Model

22

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $2.55

View on Model

22

Bracket WPL 348945 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.76

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.55

View on Model

25

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $216.86

View on Model

26

Screw WPL 690372 Contact Us For Availability

View on Model

26A

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

View on Model

26B

Motor Switch WPL 298699 Contact Us For Availability

View on Model

27

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $26.15

View on Model

27

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.24

View on Model

28

Screw WPL 690046 Contact Us For Availability

View on Model

29

W11233559 Whirlpool Motor Pulley Backorder WPL W11233559 $45.66

View on Model

29B

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.10

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $9.75

View on Model

31

Clip WPL 688412 Contact Us For Availability

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $41.07

View on Model

32

Ground Wire WPL 364089 Contact Us For Availability

View on Model

33

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.50

View on Model

33

Screw WPL 132848 Contact Us For Availability

View on Model

34

Ground Strap WPL 22965 Contact Us For Availability

View on Model

34

Dryer High-Limit Thermostat WPL 341227 Contact Us For Availability

View on Model

35

98460 Whirlpool Nut Backorder WPL 98460 $9.75

View on Model

35

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $41.12

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.94

View on Model

36A

Receptacle WPL 353425 Contact Us For Availability

View on Model

36B

Washer Terminal Connector WPL 353424 Contact Us For Availability

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.67

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.27

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.85

View on Model

39

Thermostat WPL 343251 Contact Us For Availability

View on Model

40

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.67

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.94

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $10.10

View on Model

41

Dryer Operating Thermostat WPL 344395 Contact Us For Availability

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.55

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $12.13

View on Model

44

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.71

View on Model

44

Housing WPL 348494 Contact Us For Availability

View on Model

45A

Toe Panel (White) WPL 237035 Contact Us For Availability

View on Model

45B

Panel WPL 689538 Contact Us For Availability

View on Model

45C

Panel WPL 689540 Contact Us For Availability

View on Model

45D

Panel WPL 689539 Contact Us For Availability

View on Model

45E

Panel (Almond) WPL 689537 Contact Us For Availability

View on Model

47A

Door (White) WPL 346395 Contact Us For Availability

View on Model

47B

Door WPL 689490 Contact Us For Availability

View on Model

47C

Door WPL 689492 Contact Us For Availability

View on Model

47D

Door WPL 689491 Contact Us For Availability

View on Model

47E

Door (Almond) WPL 689489 Contact Us For Availability

View on Model

49A

Door (White) WPL 348737 Contact Us For Availability

View on Model

49B

Door WPL 689486 Contact Us For Availability

View on Model

49C

Door WPL 689488 Contact Us For Availability

View on Model

49D

Door WPL 689487 Contact Us For Availability

View on Model

49E

Door (Almond) WPL 689485 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.10

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $32.00

View on Model

51A

Panel (White) WPL 337470 Contact Us For Availability

View on Model

51B

Panel WPL 689530 Contact Us For Availability

View on Model

51C

Panel WPL 689532 Contact Us For Availability

View on Model

51D

Panel WPL 689531 Contact Us For Availability

View on Model

51E

Panel (Almond) WPL 689529 Contact Us For Availability

View on Model

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.22

View on Model

52

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $55.51

View on Model

53

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.33

View on Model

54

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $44.52

View on Model

54

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

View on Model

55

279505 Whirlpool Chute Backorder WPL 279505 $141.56

View on Model

57

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $22.30

View on Model

59

Screw WPL 689791 Contact Us For Availability

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $49.25

View on Model

60B

Handle WPL 689458 Contact Us For Availability

View on Model

60D

Handle WPL 689459 Contact Us For Availability

View on Model

60E

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

62

Wire WPL 687261 Contact Us For Availability

View on Model

64

Burner WPL 689792 Contact Us For Availability

View on Model

64A

Burner WPL 689174 Contact Us For Availability

View on Model

65

341029 Whirlpool Clamp Backorder WPL 341029 $7.70

View on Model

66

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

View on Model

67

Screw WPL 343826 Contact Us For Availability

View on Model

68

Coil WPL 685947 Contact Us For Availability

View on Model

69

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.55

View on Model

70

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $64.64

View on Model

70A

Conversion Kit WPL 279243 Contact Us For Availability

View on Model

75

Clip WPL 689180 Contact Us For Availability

View on Model

NI

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $28.63

View on Model

NI

W10851673 Whirlpool Transformer Backorder WPL W10851673 $244.73

View on Model

NI

Wire Adapter WPL 299663 Contact Us For Availability

View on Model

NI

Wire Adapter WPL 299669 Contact Us For Availability

View on Model

NI

Wiring Diagram WPL LIT230082 Contact Us For Availability

View on Model

NI

Installation Instructions WPL LIT340704 Contact Us For Availability

View on Model

NI

Label WPL LIT689883 Contact Us For Availability

View on Model

NI

Checklist WPL LIT690131 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT690597 Contact Us For Availability

View on Model

NI

Parts List WPL LIT690695 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT690811 Contact Us For Availability

View on Model

NI

Service Manual WPL LIT828693 Contact Us For Availability

View on Model
