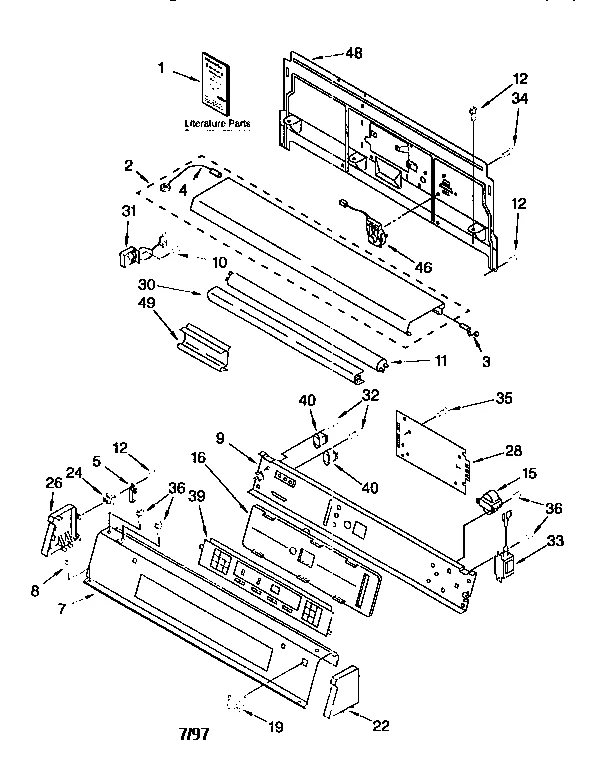

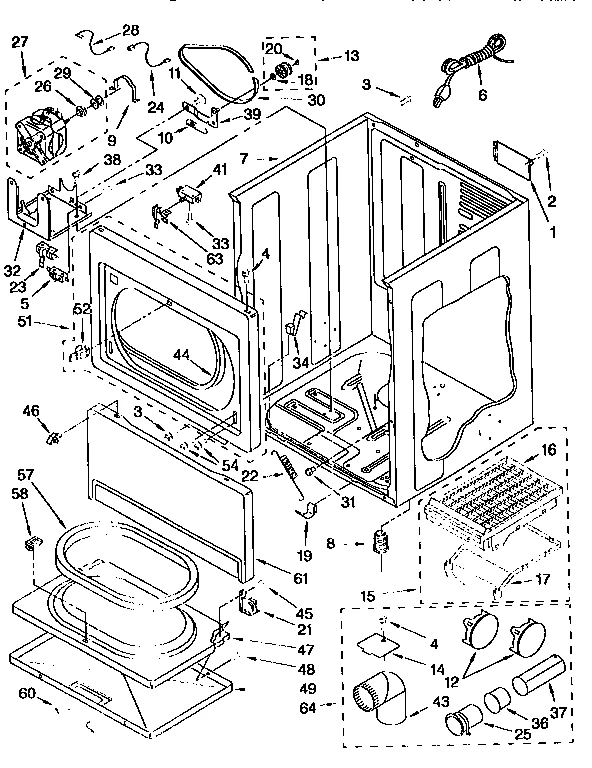

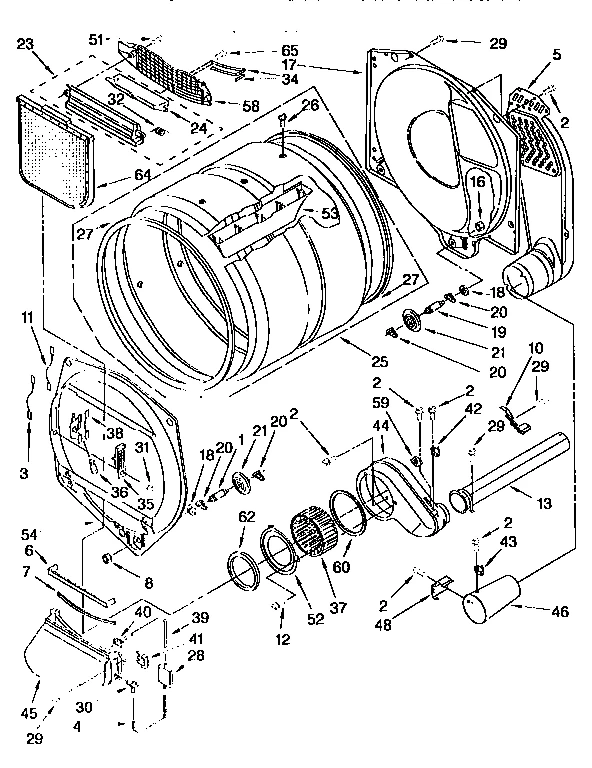

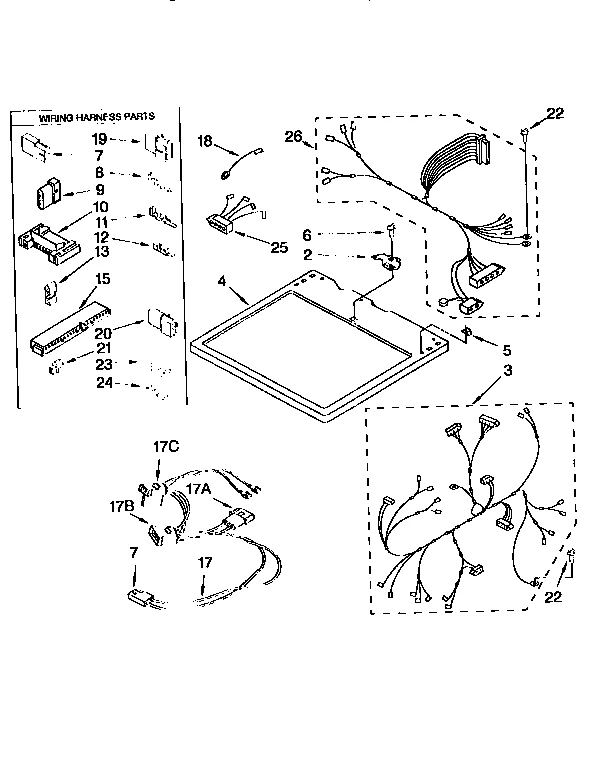

Model Whirlpool 110.76954692 Gas Dryer (Kenmore 11076954692) – Common Parts &amp; Diagrams

1

Terminal Cover WPL 3387680 Contact Us For Availability

1

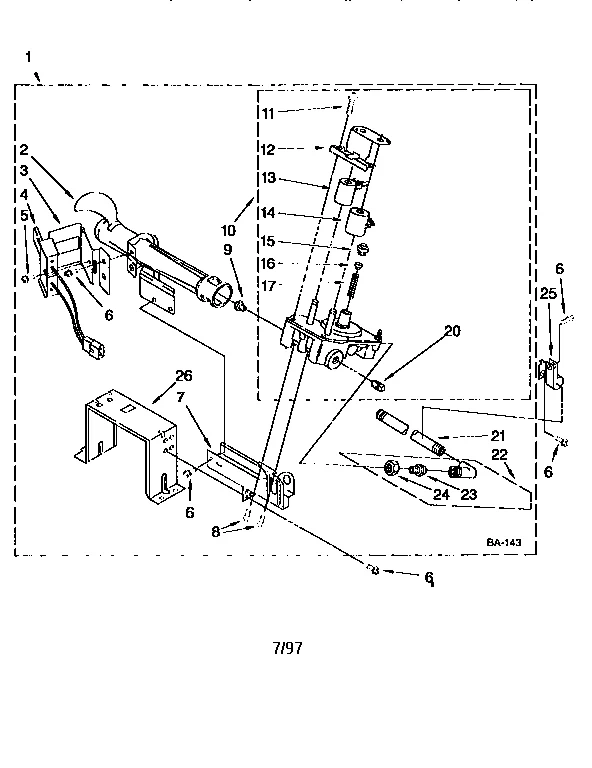

Gas Burner WPL 3402851 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $76.64

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

2

Clip WPL 3355753 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Wire Harness WPL 3398957 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

Top W WPL 697202 Contact Us For Availability

4A

Top Eby WPL 3388607 Contact Us For Availability

4B

Top Al WPL 697203 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $34.33

5

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Hinge Panel WPL 387402 Contact Us For Availability

6

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $41.12

6

WP355214 Whirlpool Screw In Stock WPL WP355214 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

7

Cabinet WPL 3402264 Contact Us For Availability

7

Receptacle WPL 717252 Contact Us For Availability

7

Sears Canada Bracket WPL 3389871 Contact Us For Availability

7A

Cabnt Eby WPL 3402268 Contact Us For Availability

7B

Cabnt Al WPL 3402265 Contact Us For Availability

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.42

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Plug WPL 342529 Contact Us For Availability

9A

Burner Orifice WPL 15775 Contact Us For Availability

9B

Burner Orifice WPL 15419 Contact Us For Availability

9C

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9D

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

11

Fluorescent Lamp WPL 387693 Contact Us For Availability

12

Terminal WPL 60279 Contact Us For Availability

12

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

12B

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $41.69

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $12.04

13

Terminal WPL 717315 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $3.70

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Transformer WPL 660987 Contact Us For Availability

15

Connector WPL 60278 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Support WPL 3354196 Contact Us For Availability

17

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

17

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $113.53

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17A

Connector WPL 697779 Contact Us For Availability

17B

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

17C

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.51

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

Wire WPL 3392258 Contact Us For Availability

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.18

19

Switch Rack WPL 3353963 Contact Us For Availability

19

Receptacle WPL 691707 Contact Us For Availability

19A

Switch Rack WPL 3353967 Contact Us For Availability

19B

Switch Rack WPL 3353964 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

20

Receptacle WPL 351296 Contact Us For Availability

21

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $54.34

21

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

21

Pipe WPL 3387224 Contact Us For Availability

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $54.34

3406051 Whirlpool Elbow Backorder WPL 3406051 $41.38

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $13.56

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

End Cap WPL 3949298 Contact Us For Availability

22A

End Cap WPL 3949300 Contact Us For Availability

22B

End Cap WPL 3949299 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $63.59

23

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

23

Support WPL 341052 Contact Us For Availability

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

Nut Union WPL 233076 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

Terminal WPL 3354466 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $32.74

25

Wire Harness WPL 3393781 Contact Us For Availability

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

End Cap WPL 3949304 Contact Us For Availability

Wire Harness WPL 3393780 Contact Us For Availability

Bracket WPL 3389889 Contact Us For Availability

26A

End Cap WPL 3949306 Contact Us For Availability

26B

End Cap WPL 3949305 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $108.05

28

3398948 Whirlpool Wire Backorder WPL 3398948 $42.36

28

Microcomputer WPL 3406002 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $11.24

30

Lamp Cover WPL 3354454 Contact Us For Availability

31

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

31

Socket WPL 3393545 Contact Us For Availability

31A

Socket WPL 3393546 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

32

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

32

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.34

33

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

33

Lamp Ballast WPL 3393544 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

34

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

34

Clip WPL 3388600 Contact Us For Availability

35

Dryer Drum Light Lens WPL 3395196 Contact Us For Availability

35

Screw WPL 690756 Contact Us For Availability

36

WP3395618 Whirlpool Light Bulb Backorder WPL WP3395618 $27.78

36

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $32.06

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

37

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $34.48

38

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $12.68

39

Touchpad WPL 3405820 Contact Us For Availability

39A

Touch Module WPL 3405822 Contact Us For Availability

39B

Touch Module WPL 3405821 Contact Us For Availability

40

Relay WPL 696819 Contact Us For Availability

41

Dryer Door Switch WPL 3394522 Contact Us For Availability

43

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

46

Speaker WPL 387973 Contact Us For Availability

47

Door WPL 697655 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

48

Rear Panel WPL 3393842 Contact Us For Availability

49

Shield-hns WPL 3393825 Contact Us For Availability

49

Dryer Door WPL 697221 Contact Us For Availability

49A

Door Eby WPL 3388441 Contact Us For Availability

49B

Door Al WPL 697222 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

51

Panel WPL 697227 Contact Us For Availability

51A

Panel Eby WPL 3388526 Contact Us For Availability

51B

Panel Al WPL 697228 Contact Us For Availability

57

W10823582 Whirlpool Door Seal In Stock WPL W10823582 $47.01

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

60

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

60A

Door Handle WPL 695176 Contact Us For Availability

60B

Handle (Almond) WPL 689457 Contact Us For Availability

61

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $90.75

61A

Toepnl Eby WPL 3388446 Contact Us For Availability

61B

Toepnl Al WPL 697216 Contact Us For Availability

63

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

64

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Paint (White) WPL 799344 Contact Us For Availability

Spray WPL 786020 Contact Us For Availability

Paint (Ebony) WPL 786032 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
