Whirlpool 110.60901990 Electric Dryer (Kenmore 11060901990) Parts List

1

Wiring Diagram WPL LIT3398970 Contact Us For Availability

View on Model

1A

Technical Sheet WPL LIT3396572 Contact Us For Availability

View on Model

1B

Owner's Manual WPL LIT3405602 Contact Us For Availability

View on Model

1C

Operating Instructions WPL LIT3394996 Contact Us For Availability

View on Model

1D

Parts List WPL LIT3977490 Contact Us For Availability

View on Model

1E

Serv Manul WPL LIT787207 Contact Us For Availability

View on Model

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

2

Rear Panel WPL 3388665 Contact Us For Availability

View on Model

3

WP3976576 Whirlpool Timer In Stock WPL WP3976576 $132.23

View on Model

4

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

5

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $31.81

View on Model

6

3391885 Whirlpool Connector Backorder WPL 3391885 $32.06

View on Model

6

3398948 Whirlpool Wire Backorder WPL 3398948 $42.36

View on Model

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

View on Model

7

3395683 Whirlpool Connector Backorder WPL 3395683 $35.69

View on Model

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

View on Model

8

End Cap WPL 3949276 Contact Us For Availability

View on Model

8A

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $73.56

View on Model

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

8B

End Cap WPL 3949275 Contact Us For Availability

View on Model

8C

End Cap (Off-White) WPL 3949278 Contact Us For Availability

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

9

Bracket WPL 8271316 Contact Us For Availability

View on Model

10

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

View on Model

10

Dryer Drum Light Lens WPL 3395196 Contact Us For Availability

View on Model

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.51

View on Model

11

Connector WPL 3347243 Contact Us For Availability

View on Model

12

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

View on Model

14

279318 Whirlpool Terminal In Stock WPL 279318 $44.05

View on Model

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $37.64

View on Model

14

Trim WPL 3951011 Contact Us For Availability

View on Model

14B

Trim WPL 3951010 Contact Us For Availability

View on Model

14C

Trim WPL 3977759 Contact Us For Availability

View on Model

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

View on Model

16

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

View on Model

16

Dryer Timer Wire Harness Connector WPL 3397269 Contact Us For Availability

View on Model

17

693152 Whirlpool Bumper In Stock WPL 693152 $7.06

View on Model

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

View on Model

18

Trim WPL 3951015 Contact Us For Availability

View on Model

18B

Trim WPL 3951014 Contact Us For Availability

View on Model

18C

Trim WPL 3977760 Contact Us For Availability

View on Model

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.18

View on Model

19

Wire Harness WPL 3398958 Contact Us For Availability

View on Model

20

Dryer Control Knob WPL 3402595 Contact Us For Availability

View on Model

20A

Dryer Control Knob WPL 3402594 Contact Us For Availability

View on Model

20B

Knob WPL 3402596 Contact Us For Availability

View on Model

20C

Dryer Timer Knob (Bisque) WPL 3402597 Contact Us For Availability

View on Model

21

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $54.34

View on Model

21

Dryer Control Knob (Black) WPL 3402567 Contact Us For Availability

View on Model

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $54.34

View on Model

21A

Knob (White) WPL 3402566 Contact Us For Availability

View on Model

21B

8575010 Whirlpool Knob Backorder WPL 8575010 $37.46

View on Model

22

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $13.56

View on Model

22

Hinge Panel WPL 387402 Contact Us For Availability

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

24

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.34

View on Model

24

Top W WPL 697202 Contact Us For Availability

View on Model

24A

Top Al WPL 697203 Contact Us For Availability

View on Model

24B

Top WPL 3978577 Contact Us For Availability

View on Model

25

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

View on Model

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $56.87

View on Model

26

End Cap WPL 3949282 Contact Us For Availability

View on Model

26B

End Cap WPL 3949281 Contact Us For Availability

View on Model

26C

End Cap WPL 3949284 Contact Us For Availability

View on Model

27

WP3398093 Whirlpool Buzzer Adjuster Backorder WPL WP3398093 $59.35

View on Model

28

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

View on Model

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

View on Model

29

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $187.83

View on Model

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $11.24

View on Model

30

WP3402573 Whirlpool Appliance Knob Backorder WPL WP3402573 $42.58

View on Model

30A

Washer Control Knob WPL 3402572 Contact Us For Availability

View on Model

30B

Washer Control Knob WPL 3402574 Contact Us For Availability

View on Model

30C

Dryer Timer Knob (White) WPL 3402575 Contact Us For Availability

View on Model

31

Control Panel WPL 3977554 Contact Us For Availability

View on Model

31A

Control Panel WPL 3977555 Contact Us For Availability

View on Model

31B

Control Panel WPL 3977556 Contact Us For Availability

View on Model

31C

Control Panel WPL 8316769 Contact Us For Availability

View on Model

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $49.90

View on Model

32

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

View on Model

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

View on Model

33

WP3399640 Whirlpool Switch In Stock WPL WP3399640 $48.13

View on Model

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.59

View on Model

37

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

View on Model

42

WP8318268 Whirlpool Thermostat In Stock WPL WP8318268 $45.16

View on Model

43

Receptacle WPL 351296 Contact Us For Availability

View on Model

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

View on Model

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $62.79

View on Model

45

Duct Lint WPL 3390531 Contact Us For Availability

View on Model

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $77.20

View on Model

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

View on Model

47

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $20.11

View on Model

47

WP8066045 Whirlpool Door Assembly Backorder WPL WP8066045 $101.70

View on Model

48

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $46.74

View on Model

49

Bracket WPL 697700 Contact Us For Availability

View on Model

50

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

View on Model

50

Heater Shield WPL 697699 Contact Us For Availability

View on Model

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

View on Model

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $34.59

View on Model

53

Drum Baffle WPL 697693 Contact Us For Availability

View on Model

54

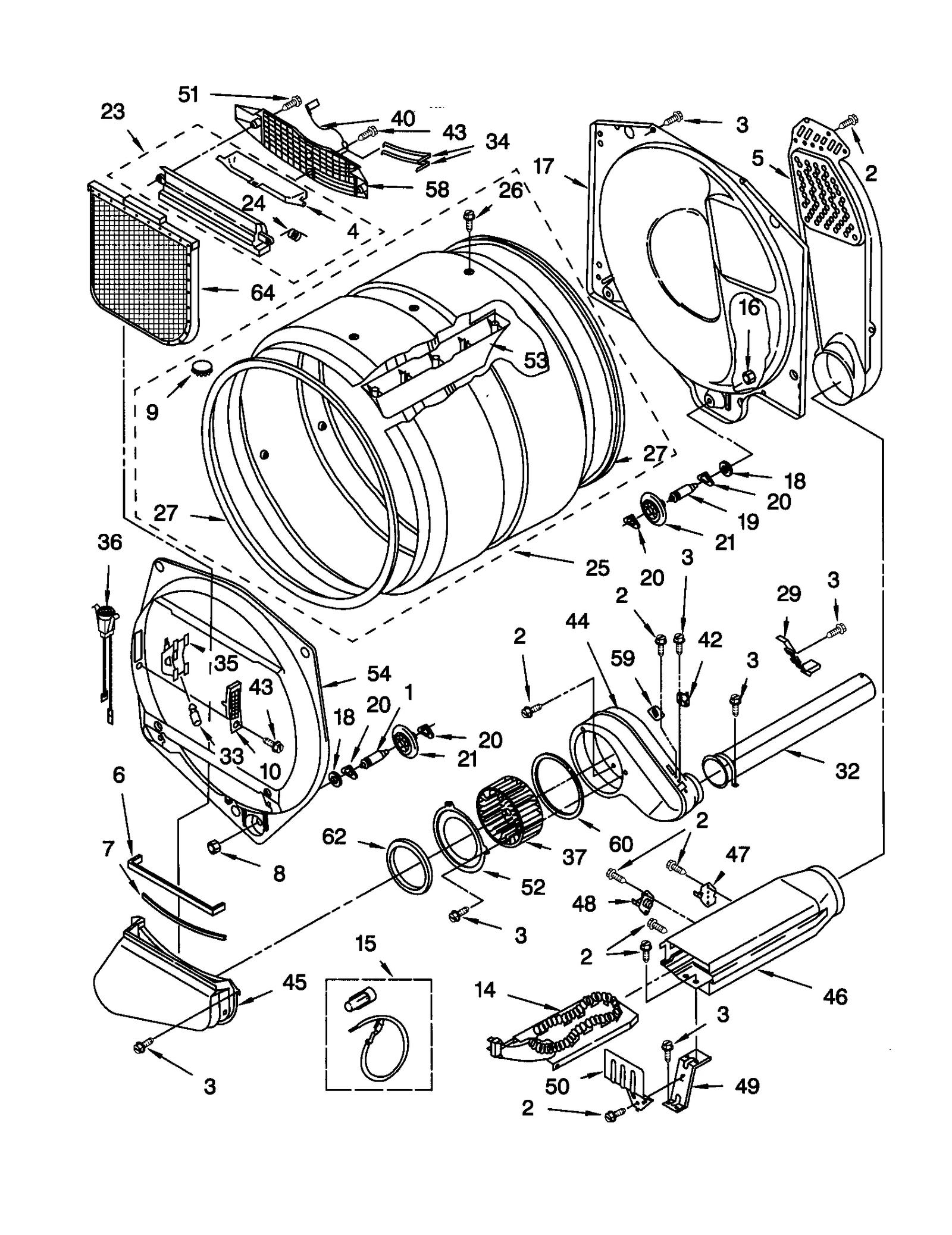

Bulkhead WPL 697563 Contact Us For Availability

View on Model

58

Grill WPL 697767 Contact Us For Availability

View on Model

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $7.98

View on Model

60

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

View on Model

60B

Dryer Door Handle WPL 3977746 Contact Us For Availability

View on Model

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $32.06

View on Model

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

View on Model

NI

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

View on Model

NI

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model
