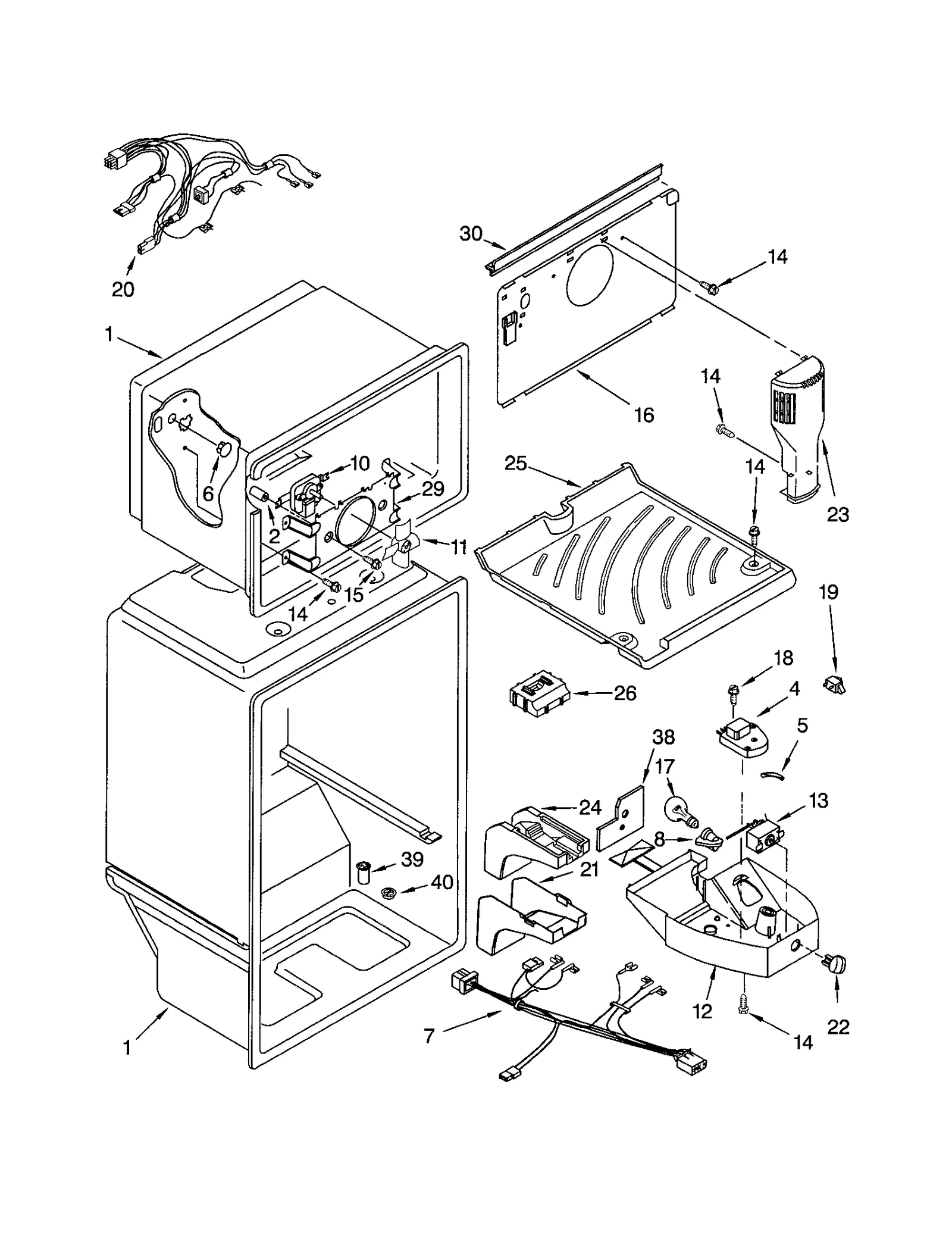

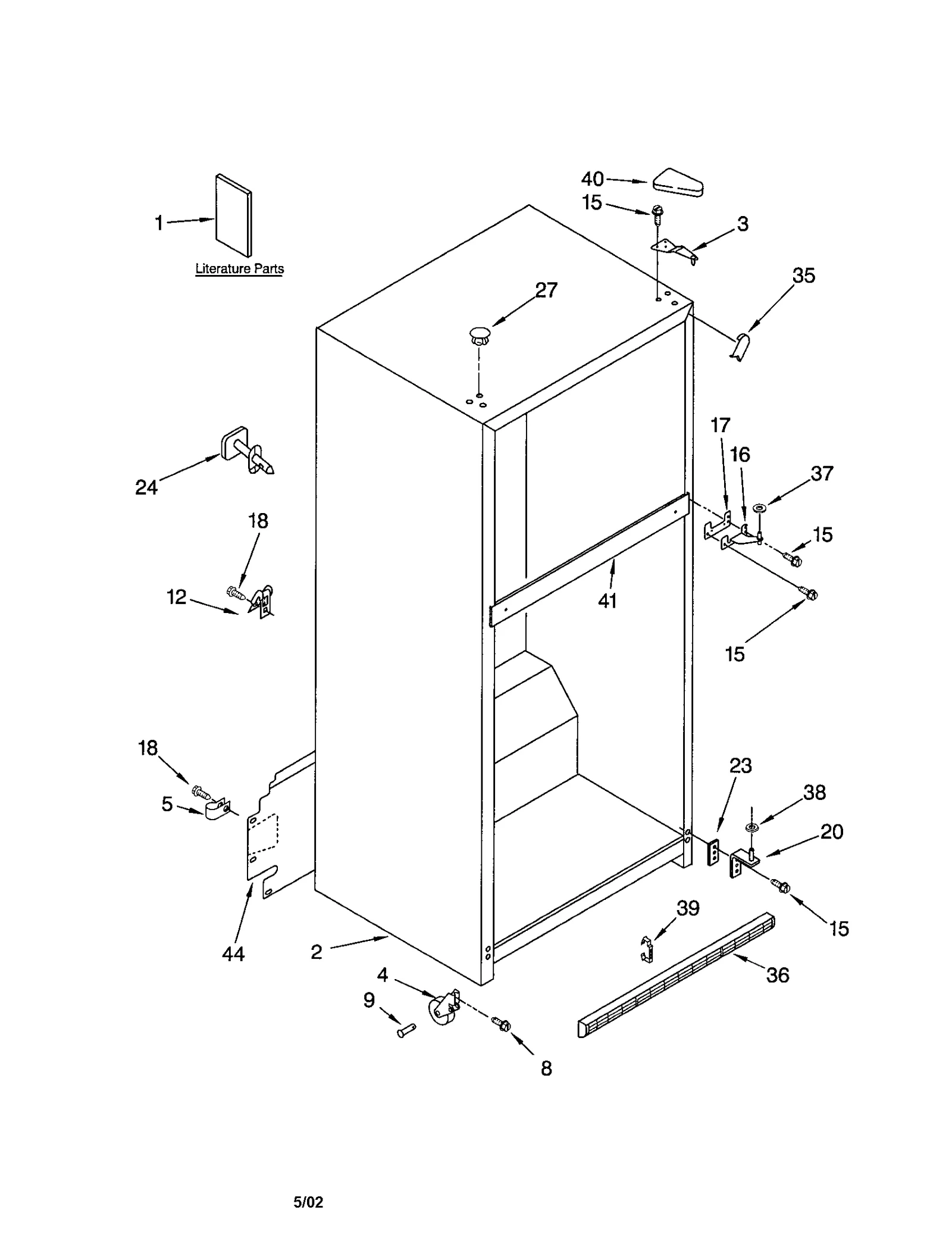

Model Whirlpool 106.60844101 Top-Mount Refrigerator (Kenmore 10660844101) – Common Parts &amp; Diagrams

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

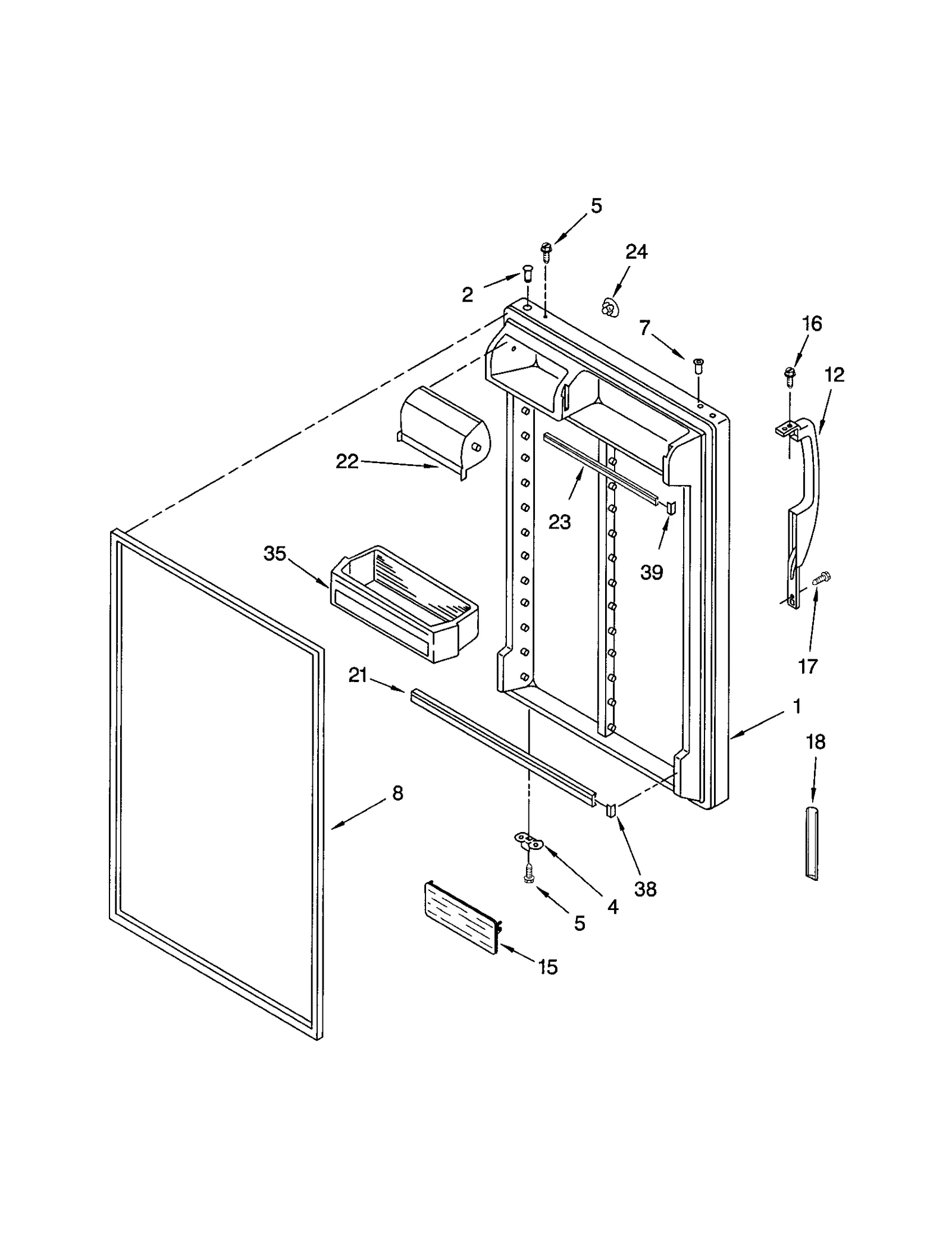

Refrigerator Door Assembly (White) WPL 2183898 Contact Us For Availability

1A

Refrigerator Door Assembly (Biscuit) WPL 2205281 Contact Us For Availability

2

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

4

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

4

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7A

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

8

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

8

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

9

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $27.28

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

WP2254533W Whirlpool Refrigerator Handle In Stock WPL WP2254533W $66.77

12A

Refrigerator Handle (Off-White) WPL 2195248T Contact Us For Availability

13

WP4387938 Whirlpool Refrigerator Overload In Stock WPL WP4387938 $91.26

14

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

15

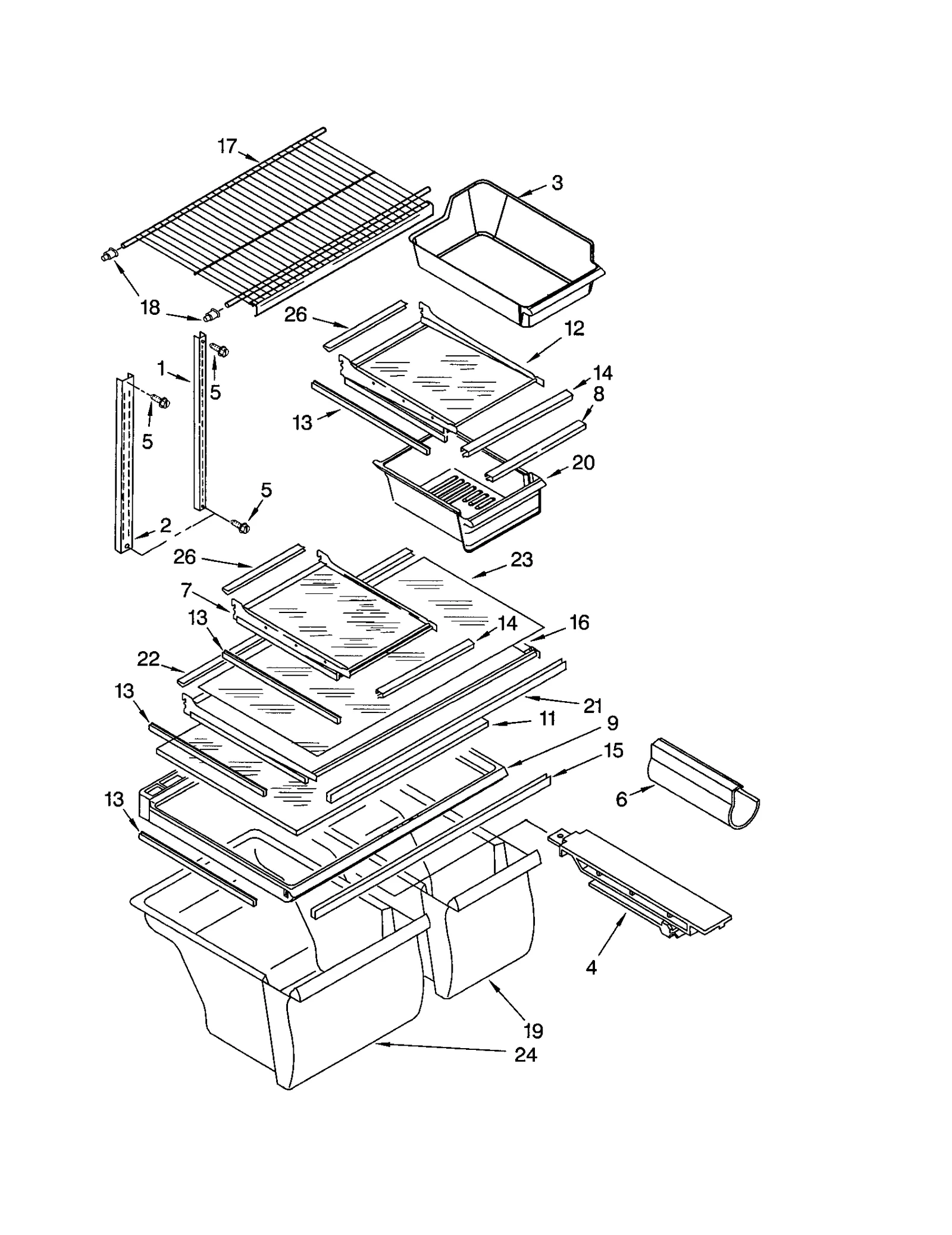

WP2188234 Whirlpool Shelf Backorder WPL WP2188234 $32.74

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

16

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

W10887190 Whirlpool Refrigerator Light Bulb Backorder WPL W10887190 $7.06

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $77.47

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $2.51

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

18

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

18

Refrigerator Door Handle Trim WPL 2193143W Contact Us For Availability

18A

Refrigerator Door Handle Trim Cap (Biscuit) WPL 2193143T Contact Us For Availability

W10856580 Whirlpool Crisper Pan In Stock WPL W10856580 $78.01

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $15.76

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Refrigerator Defrost Heater Bracket WPL 2182338 Contact Us For Availability

20

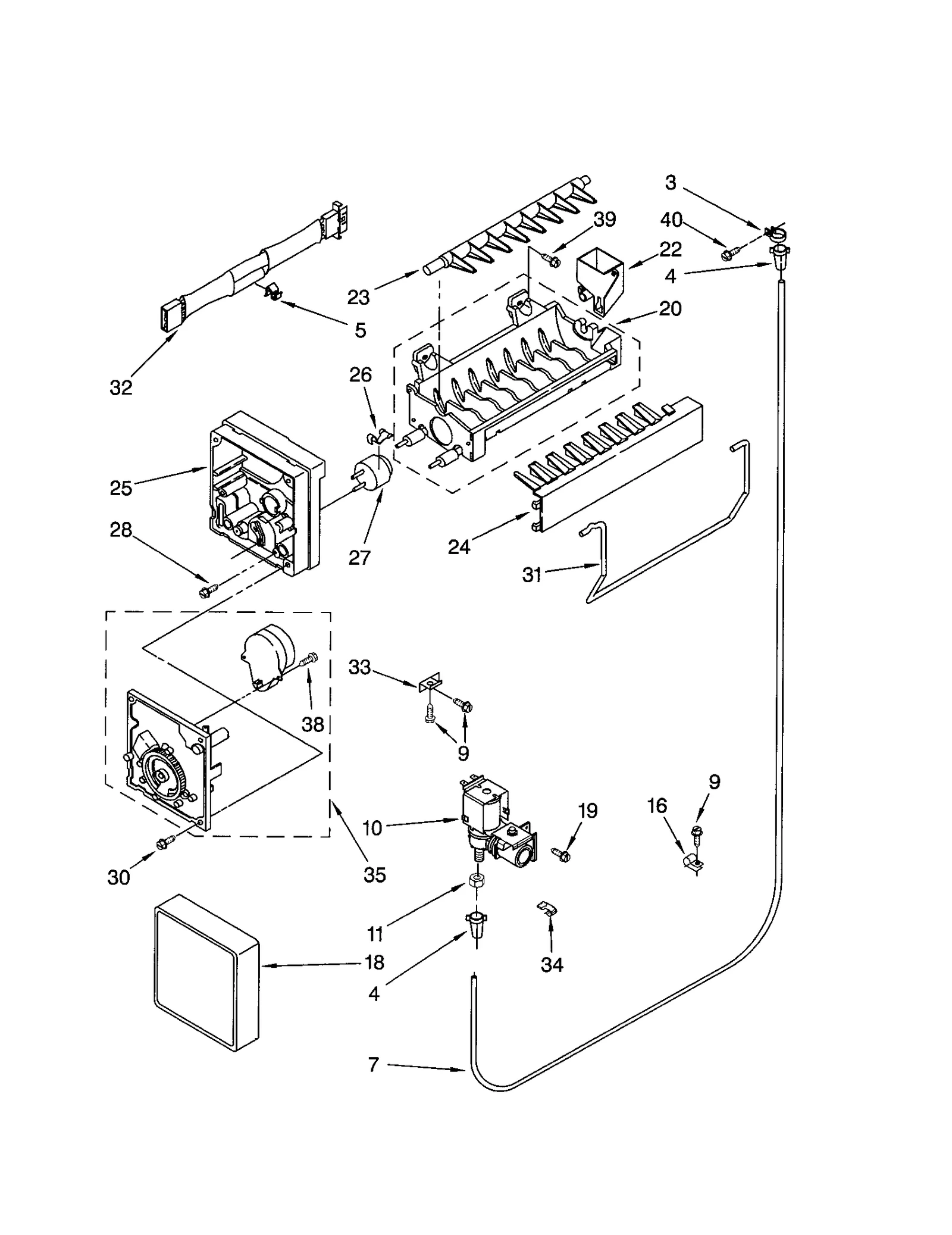

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

21

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $52.63

21

Refrigerator Air Damper Cover WPL 2176281 Contact Us For Availability

WP2202885 Whirlpool Refrigerator Thermal Knob Backorder WPL WP2202885 $8.88

WP2218113 Whirlpool Dairy Door In Stock WPL WP2218113 $21.86

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Refrigerator Support Evaporator WPL 2201184 Contact Us For Availability

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $35.91

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Shim WPL 2172743 Contact Us For Availability

Refrigerator Freezer Air Tower WPL 2182340 Contact Us For Availability

W10854037 Whirlpool Refrigerator Crisper Pan In Stock WPL W10854037 $99.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $47.43

24A

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Refrigerator Retainer WPL 2212998 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

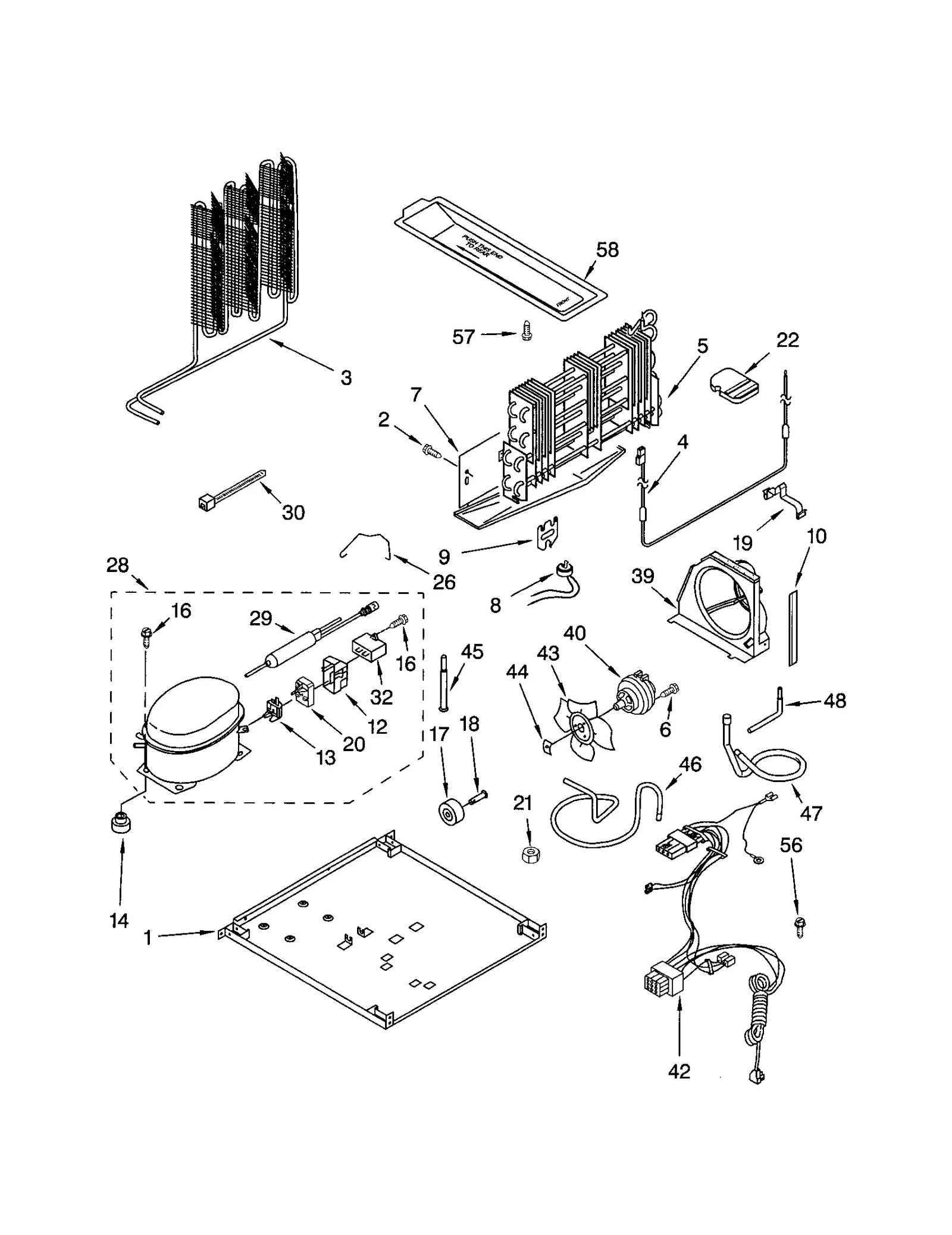

W10823815 Whirlpool Refrigerator Compressor In Stock WPL W10823815 $282.92

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $39.24

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $35.50

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

35

WP2204810 Whirlpool Refrigerator Cantilever B In Stock WPL WP2204810 $53.00

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $3.70

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Refrigerator Toe Grille Clip WPL 2189356 Contact Us For Availability

Refrigerator Condenser Fan Shroud WPL 2198921 Contact Us For Availability

40

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $139.73

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

40A

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

42

Refrigerator Wire Harness WPL 2187384 Contact Us For Availability

43

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

45

Refrigerator Tube WPL 2212603 Contact Us For Availability

46

Refrigerator Discharge Tube WPL 2205294 Contact Us For Availability

47

2205293 Whirlpool Refrigerator Tube Backorder WPL 2205293 $38.05

48

W11676464 Whirlpool Tube Backorder WPL W11676464 $42.07

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

58

Refrigerator Drain Pan WPL 2210451 Contact Us For Availability

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

NI10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

NI11

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI14

Foam Slab WPL 876029 Contact Us For Availability

NI15

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

NI16

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

NI17

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

NI19

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

NI22

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

NI23

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

NI25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

NI26

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

NI27

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

NI28

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

NI29

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

NI30

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI32

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

NI34

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
