Model Bosch SHX36L02UC/22 Dishwasher – Common Parts & Diagrams
Diagram 1
Diagram 2

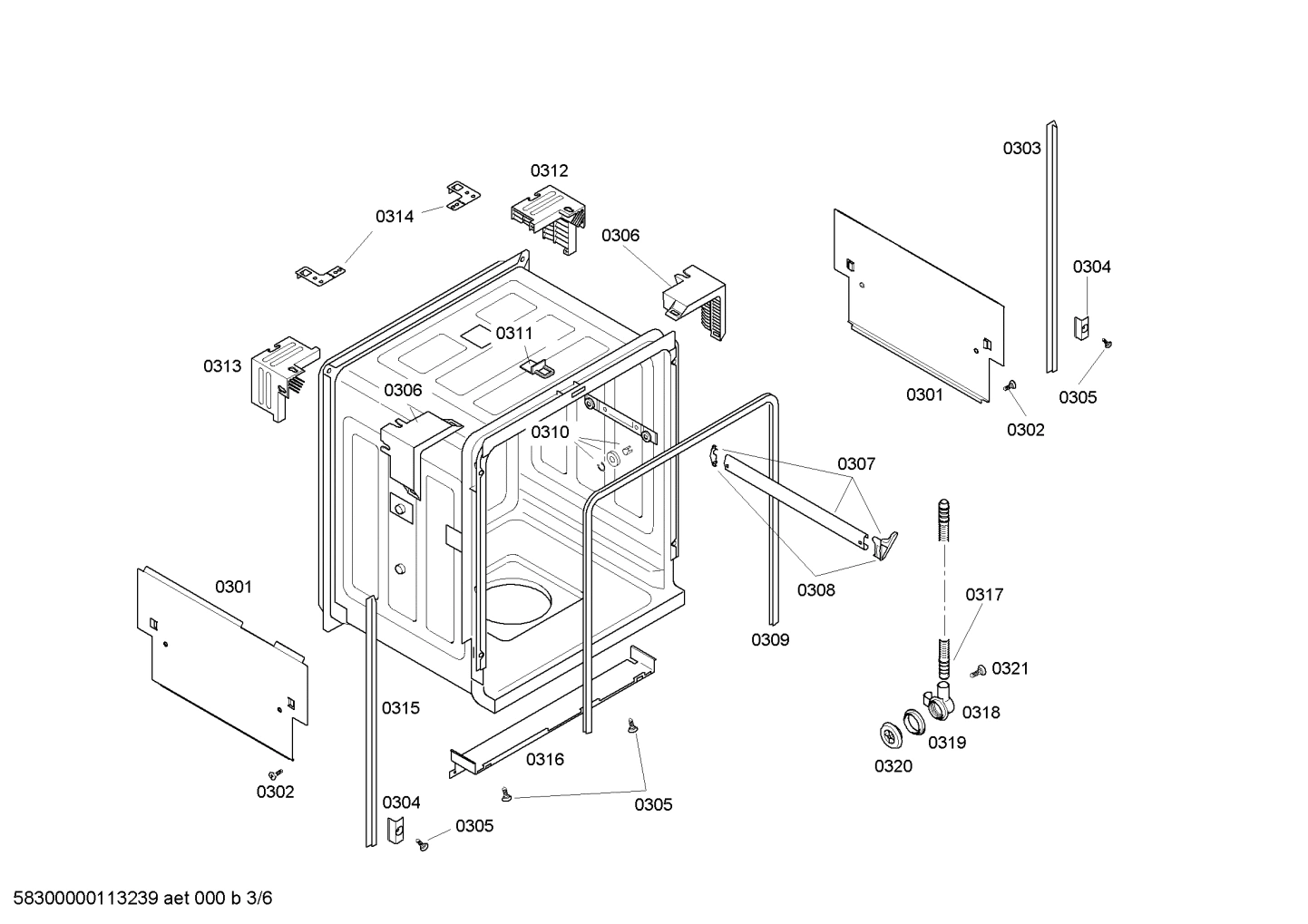

Diagram 3

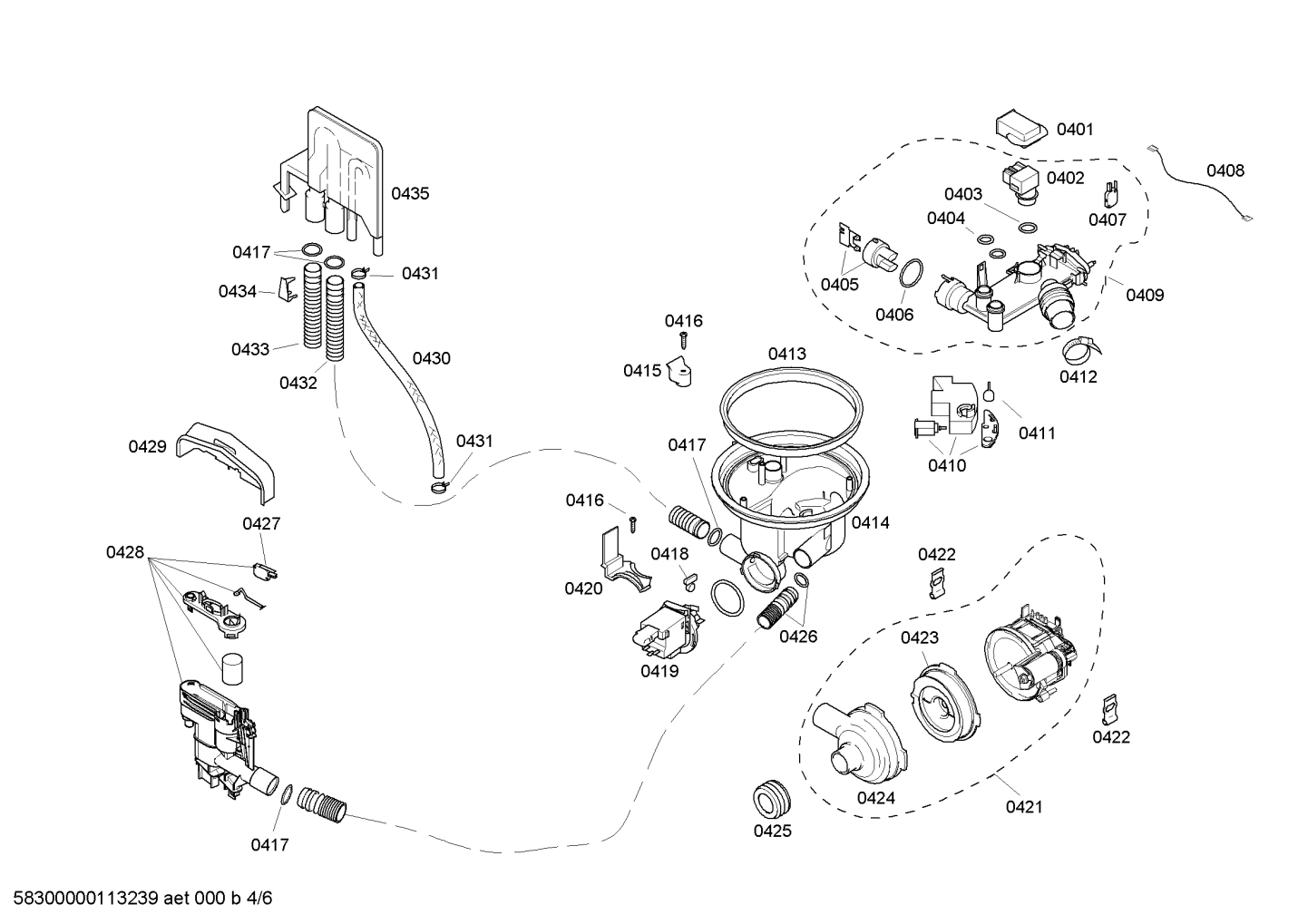

Diagram 4

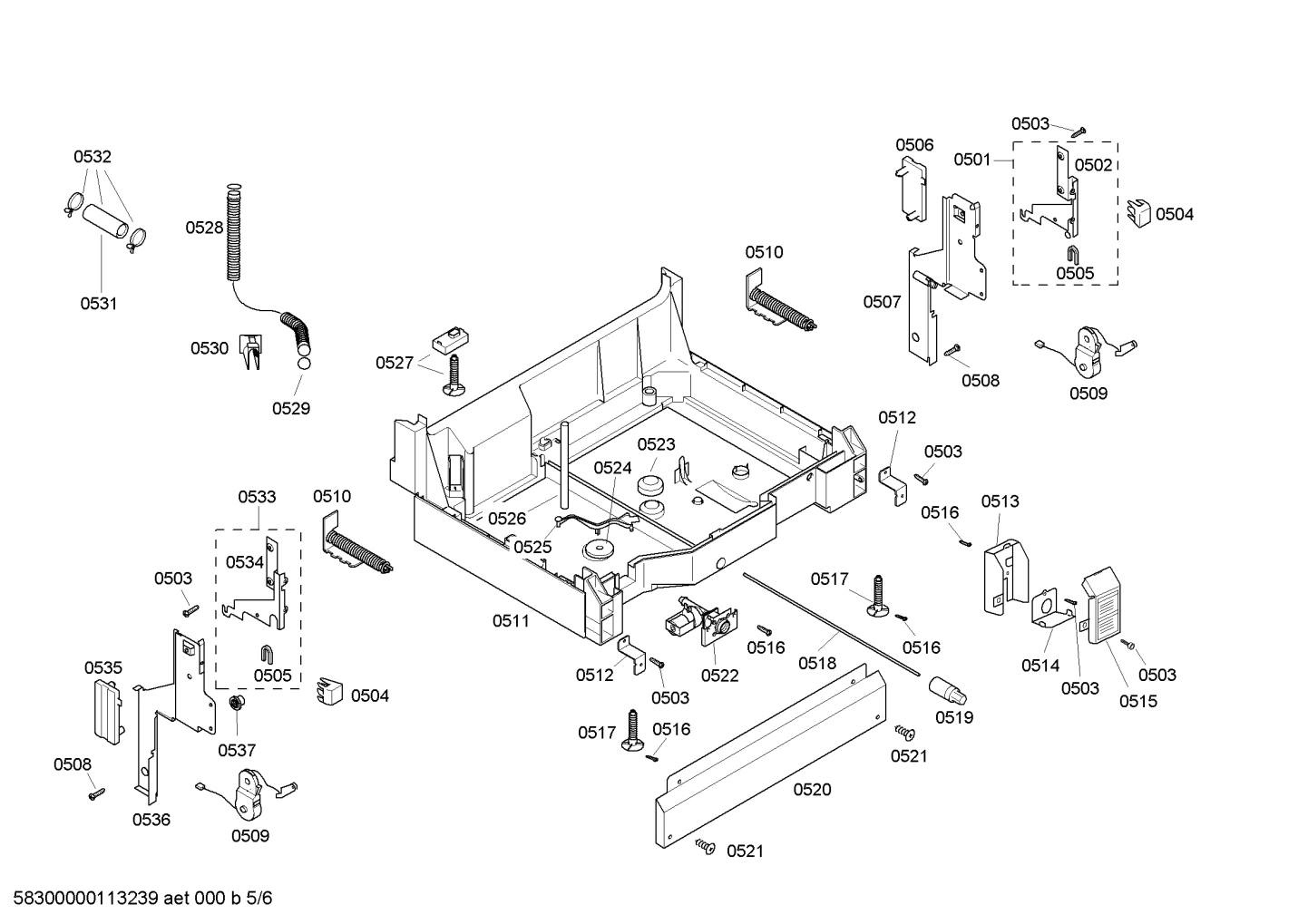

Diagram 5

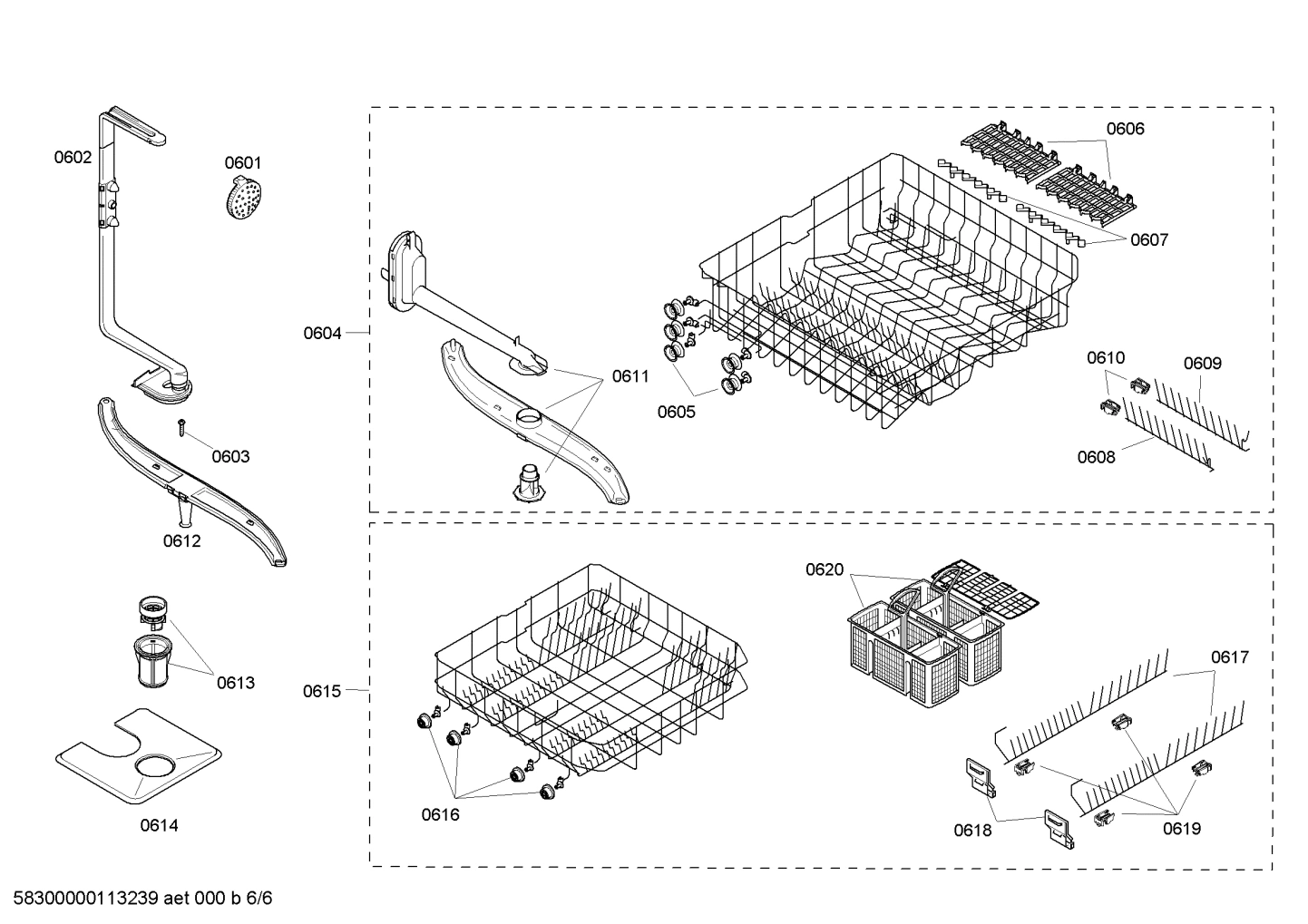

Diagram 6
Common parts from model Bosch SHX36L02UC/22 Dishwasher
0209
Dispenser BOS 00490467 Contact Us For Availability
0303
Strip BOS 00353047 Contact Us For Availability
0304
Clip BOS 00186929 Contact Us For Availability
0316
Cover sheet BOS 00350318 Contact Us For Availability
0317
Hose-vent BOS 00265832 Contact Us For Availability
0319
Sealing BOS 00065303 Contact Us For Availability
0320
Cover BOS 00066400 No Longer Available
0407
Switch BOS 00426400 No Longer Available
0411
Float BOS 00165273 Contact Us For Availability
0413
Sealing BOS 00263102 No Longer Available
0415
Holder BOS 00165265 Contact Us For Availability
0422
Suspension BOS 00171596 No Longer Available
0506
Hinge-cover BOS 00422794 Contact Us For Availability
0512
Bracket BOS 00167079 Contact Us For Availability
0513
Terminal box BOS 00492036 Contact Us For Availability
0514
Stress-relief BOS 00422806 Contact Us For Availability
0515
Cover BOS 00422795 Contact Us For Availability
0523
Hood BOS 00167243 Contact Us For Availability
0525
Lever BOS 00263123 No Longer Available
0526
Tube BOS 00263122 No Longer Available
0527
Foot BOS 00165330 Contact Us For Availability
0535
Hinge-cover BOS 00422793 Contact Us For Availability
0605
Dishwasher Rack Wheel BOS 00421129 No Longer Available
0606
Cup rack BOS 00093044 Contact Us For Availability
0609
Insert BOS 00425754 Contact Us For Availability
0612
Spray Arm BOS 00359975 No Longer Available
× ![]()
